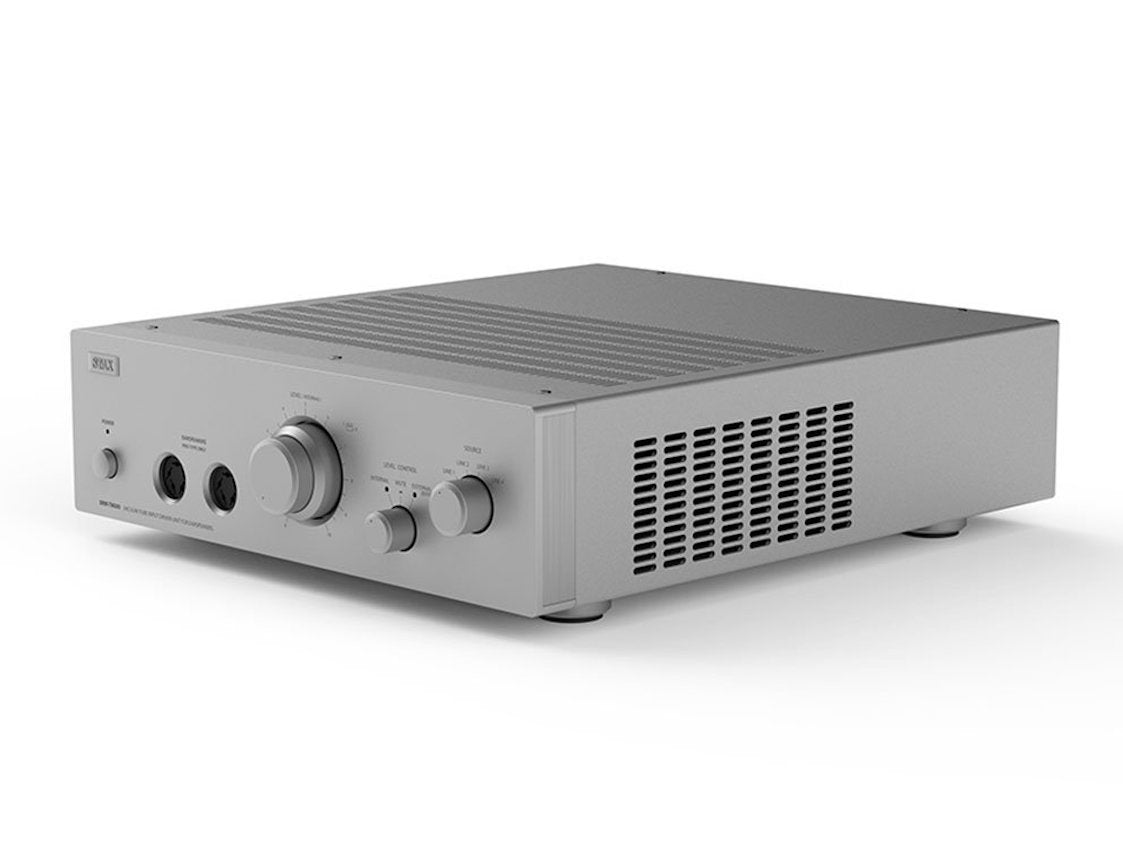

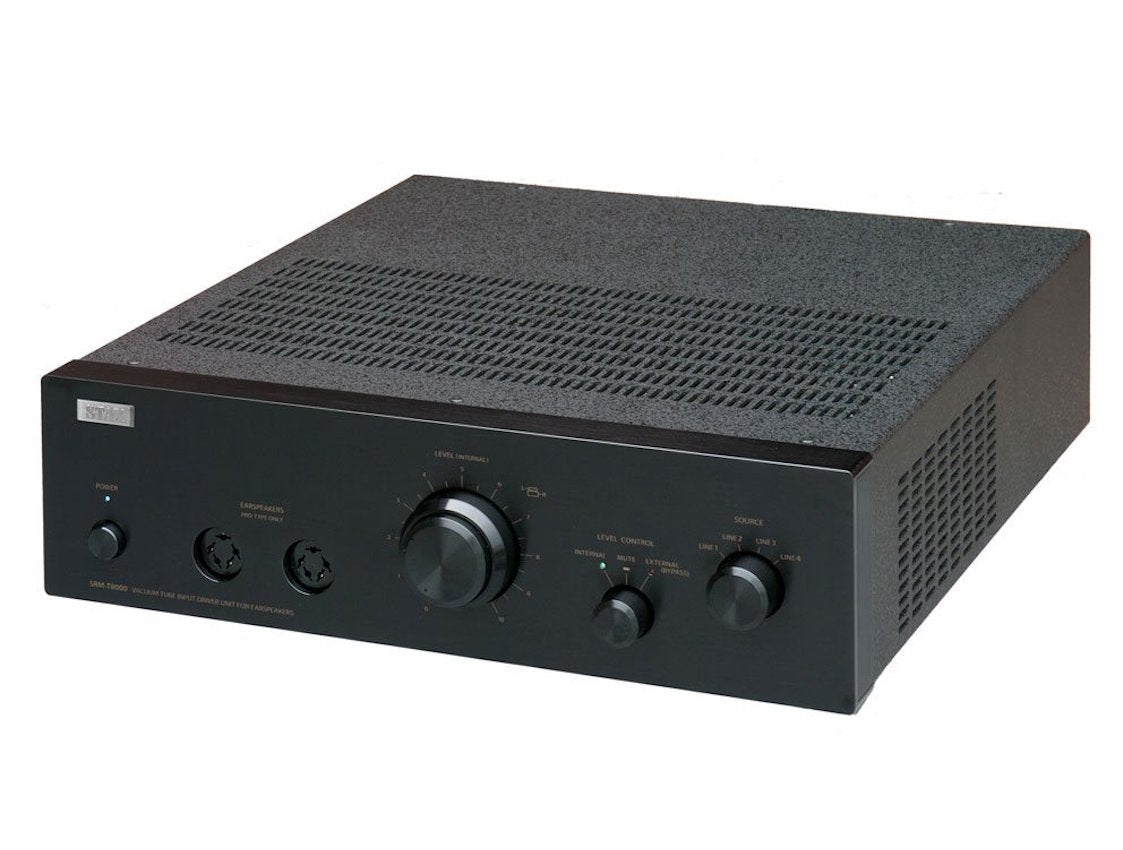

STAX SRM-T8000 Electrostatic Tube Amp

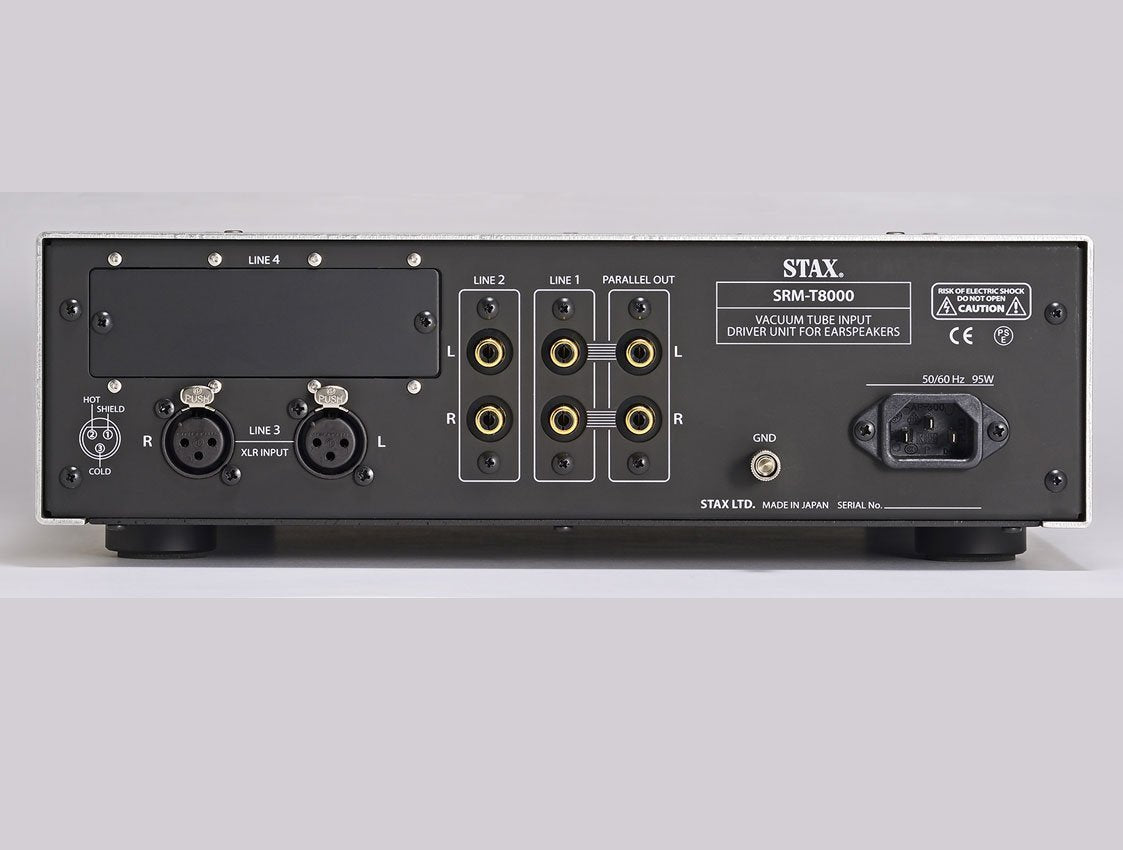

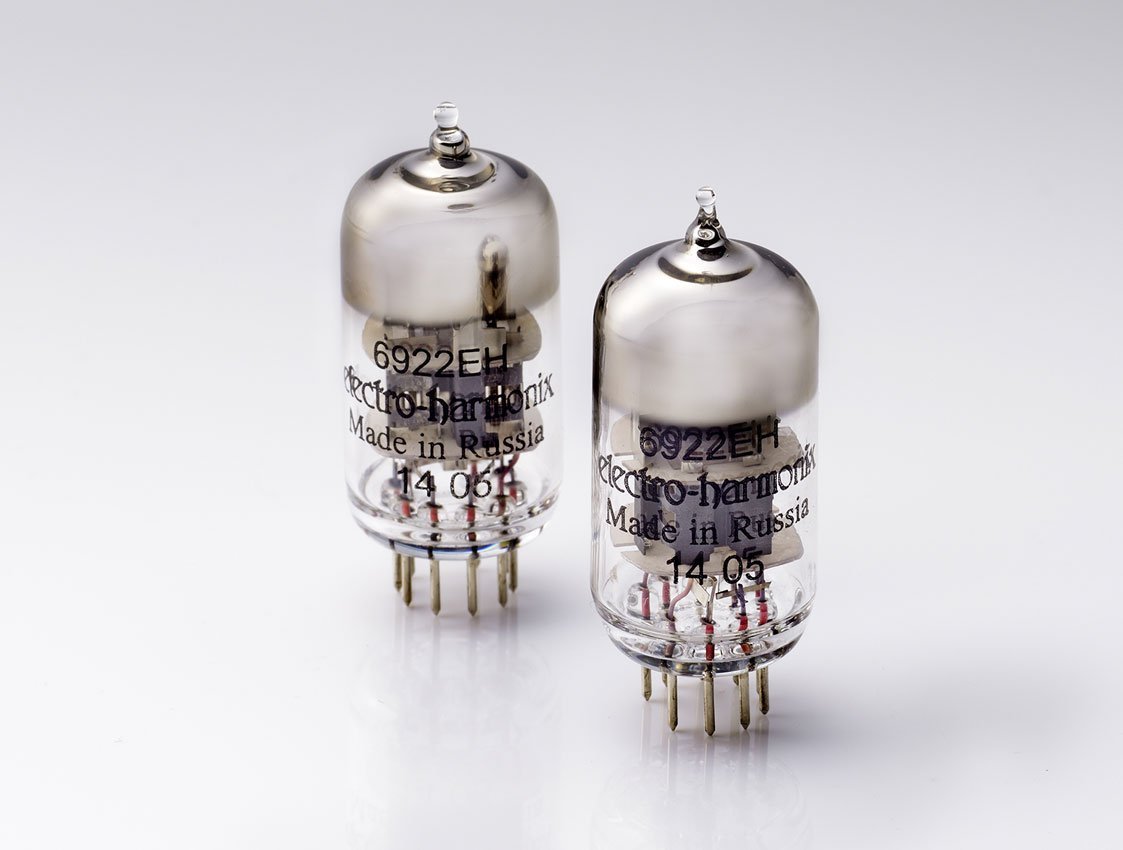

    The STAX SRM-T8000 is an electrostatic tube amplifier with 4-input selector developed in order to drive STAX electrostatic earspeakers. The unit incorporates a high-quality double-axis 4-gang volume controller along with XLR connectors that can connect to all kinds of analog line-level output terminals. The hybrid amplifier configuration with strictly selected low-noise 6922 dual triode tube for the first stage and high-current emitter-follower at output stage brings out the maximum performance of earspeakers. Its natural un-colored sound has been realized by eliminating the coupling capacitor that affects sound.

    • Frequency response: 1Hz - 115kHz +0, -3dB
    • Rated input level: 100mV (at 100V output)
    • Maximum input level: 30Vrms. (at minimum volume)
    • Gain: 60dB (x 1000)
    • Harmonic distortion: 0.01% or less (1kHz)
    • Input impedance: 50kΩ (RCA input), 50kΩx 2 (XLR input)
    • Maximum output voltage: 470Vrms (1330Vp-p) / 1kHz
    • Bias voltage: 580V DC
    • Power consumption: 95W/Max. 58W (without optional slot)
    • Operating temperature: 0 to 35 degrees C (less than 90% humidity, non condensing)
    • Dimension: 320 (W) x103 (H) x395 (D) mm (maximum protruding portion included)
    • Weight: 7.3kg
    • Others: equipped with PARALLEL OUT, optional slot and volume by- pass function and mute function
