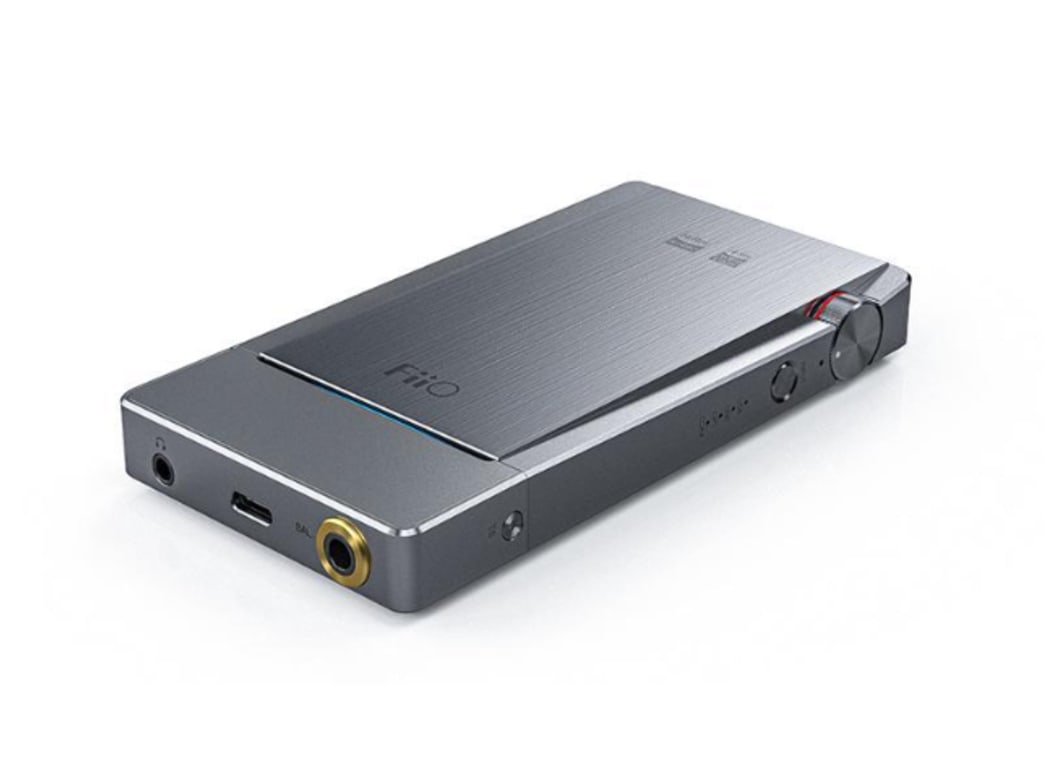

FiiO Q5s Type-C DAC/Amp versus Q5 DAC/Amp Comparison Chart
With the release of the FiiO Q5s Type-C DAC/Amp, we thought we'd do another comparison chart for you all comparing it to the predecessor from a couple years ago: the Q5. While there was a micro-USB Q5s available, that is no longer sourced and we have upgraded our stock only to the future-proof Q5s Type-C for you. Please check out the comparison chart below to see how they stack up!
|
GENERAL SPECIFICATIONS |
||
|
Model Name |
Q5 |
|
|
Color Available |
Titanium |
Titanium |
|
Dimensions |
About 124 mm× 64 mm× 16 mm |
About 124 mm× 64 mm× 16 mm |
|
Weight |
About 195g |
About 195g |
|
Displayer |
N/A |
N/A |
|
Analog Audio Input |
Standard 3.5 mm Jack |
Standard 3.5 mm Jack |
|
USB Port |
Type-C Data exchanging 、 Charging、Firmware upgrade |
11-pin Micro USB at the bottom side, for data exchanging and charging 5-pin Micro USB on the left side, for charging only by default （Can be interchanged via App） |
|
Digital Audio Input |
|
Coaxial/Optical input |
|
Headphone Output |
Standard 3.5 mm Jack |
Standard 3.5 mm Jack |
|
Line Output |
Standard 3.5 mm Jack |
Standard 3.5 mm Jack |
|
Balance Headphone Output |
4.4mm Jack |
Standard 2.5 mm Jack |
|
Headphone Impedance Range |
16~150 Ω (AM3D-TC, PO) |
16~150 Ω (AM3A, PO) |
|
16~300 Ω (AM3D-TC, BAL) |
16~300 Ω (AM3A, BAL) |
|
|
Volume Control |
ADC volume adjustment |
ADC volume adjustment |
|
Bass Adjust |
Yes |
Yes |
|
Treble Adjust |
N/A |
N/A |
|
Balance Adjust |
0.1 dB |
0.1 dB |
|
GAIN Control |
Yes(High/Low) |
Yes(High/Low) |
|
MFi |
Yes |
Yes |
|
Bluetooth |
Bluetooth 5.0，supports AAC/SBC/aptX/aptX HD/ aptX_LL/LDAC/atpX adaptive |
Bluetooth 4.2, supports aptX, AAC, SBC |
|
Operation |
Volume knob + Physical buttons + Toggle switch |
Volume knob + Physical buttons + Toggle switch |
|
Chip Used |
USB: XMOS XU208 , DAC: AK4493EQ * 2 , Bluetooth： QCC5124 ,LPF：OPA1642×2，Volume IC：NJW1195 AMP：THX AAA |
DAC: AK4490EN * 2 , USB: XMOS, Bluetooth： CSR8670 , LPF：OPA1642×2，Volume IC：NJW1195 OP+AMP：AD8620+OPA926 |
|
EXTENDED FUNCTIONS |
||
|
APP interconnection |
Supports setting through App |
Supports setting through App |
|
Bluetooth codec indication |
Yes |
N/A |
|
Sampling rate indication |
Yes |
N/A |
|
Supports connection to Sony Walkman players |
Yes |
Yes |
|
Supports docking to K5 |
Audio input |
Audio input |
|
Deep-sleep |
Automatic stand-by, can be controlled on App |
Automatic stand-by, can be controlled on App |
|
Firmware upgrade |
System firmware and Bluetooth version can be upgraded through USB |
System firmware and Bluetooth version can be upgraded through USB |
|
AUDIO PERFORMANCE (DAC Section) |
||
|
DSD Support (USB IN） |
DSD64/128/256/512 |
DSD64/128/256 |
|
USB Sample Rate Support |
768kHz/32bit |
384kHz/32bit |
|
SPDIF Coaxial Sample Rate Support |
192kHz/24bit |
192kHz/24bit |
|
SPDIF Optical Sample Rate Support |
96KHz/24bit |
96KHz/24bit |
|
Frequency Response |
5 Hz~90 kHz（-3dB） |
5 Hz~90 kHz（-3dB） |
|
THD+N |
＜0.002%(1 kHz/10kΩ) |
＜0.001% (1 kHz/10kΩ) |
|
SNR |
≥117 dB (A-weighted AUX IN) |
≥115 dB (A-weighted) |
|
HEADPHONE OUT SPECIFICATIONS (3.5mm headphone out jack) |
||
|
Output Power1 |
≥280mW（16Ω / THD+N＜1%, AUX IN) |
≥230 mW（16Ω / THD+N＜1%) |
|
Output Power2 |
≥210mW（32Ω / THD+N＜1%, AUX IN) |
≥160 mW（32Ω /THD+N＜1%) |
|
Output Power3 |
≥30 mW（300Ω / THD+N＜1%, AUX IN) |
≥24 mW（300Ω /THD+N＜1%) |
|
Frequency Response |
5 Hz~50kHz (-3dB) |
5 Hz~50 kHz（-3dB） |
|
SNR |
≥115 dB (A-weighted) |
≥115 dB (A-weighted) |
|
Output impedance |
＜1.2Ω（32Ω loaded） |
＜1.4Ω (32Ω loaded) |
|
Crosstalk |
≥75 dB (1 kHz，AUX IN) |
≥73 dB (1 kHz，AUX IN) |
|
THD+N |
＜0.002% (1 kHz) |
＜0.001% (1 kHz） |
|
Peak Output Voltage |
＞7Vp-p |
＞6 Vp-p |
|
MAX. output Current |
＞150mA（For reference) |
150mA (For reference) |
|
MAX. input Level |
3.35 Vrms |
3.8 Vrms |
|
POWER AND BATTERY |
||
|
Power/Charger |
DC5V 2A (Recommended) |
DC5V 2A (Recommended) |
|
Charging Indicator |
4-level battery indication (4 LED) |
Red light flashes when being charged, Red light goes off after fully charged |
|
Low Battery Warning |
Red light flashes twice every 3 seconds |
Red light flashes twice every 3 seconds |
|
Battery Capacity |
3800 mAh |
3800 mAh |
|
Charge Time |
≤3.5 h （DV5V 2A） |
≤3.5 h （DV5V 2A，USB on the left side） |
|
Battery Life |
＞24 h (AUX IN) |
＞25 h (AUX IN) |
|
＞9.5h (USB IN) |
＞10 h (USB IN) |
|
|
＞9.5 h (OPT IN) |
＞10 h (OPT IN) |
|
|
＞9.5 h (COAX IN) |
＞10 h (COAX IN) |
|
|
＞9.5h (Bluetooth IN) |
＞10 h (Bluetooth IN) |
|
|
