In January 2019 TOPPING announced that they are almost finishing their flagship DX7 Pro DAC and everybody prepared their wallets and some romantic stories for their wives, fast forward in April it was revealed that they are still tuning the DX7 Pro and are assuring a polished device with good specs and impressive measurements will come out of their labs. In September we are assured no other delays will happen and that it entered the final production stage. At long last, after a long 9-month wait time of adjustments and tuning DX7 Pro sees the light of the day. I personally don’t mind waiting for a mature and polished product, I’ve seen multiple flawed devices (especially smaller portable ones) at their launch and nobody was happy with those.
We already tested their D70 DAC and were impressed by its build, specs, and measurements, but most importantly by its sound performance and incredible value. Want it or not, TOPPING is growing fast and as far as I can tell their D90 will be the first commercial DAC with the flagship AKM4499 DAC chip inside.
DX7 Pro is an updated version of the acclaimed DX7s that at that time replaced the DX7, as you can see DX7 Pro is the third iteration of the all-in-one DAC/Preamp and headphone amp combo, DX7 Pro has now even some powerful Bluetooth capabilities, should it also be called as a streamer? Not really, since both AptX-HD and LDAC are still not capable of delivering bit-perfect Hi-Res data streams, but in time with new tech that will surely happen.
So, if you are wondering what exactly was improved or changed or maybe left unchanged? Let’s take a closer look.
- It seems that DX7 Pro uses a slightly smaller and thinner case losing a bit weight in the process, it is now at only 1.4 Kg
- DX7 Pro has an additional digital input – I2S input, from my listening tests this is the best digital input, closely followed by USB
- DX7 Pro has also an additional Bluetooth receiver, actually the best Bluetooth receiver as of right now (CSR8675 from Qualcomm), this one is capable of receiving AAC, SBC, aptX, aptX-LL, aptX-HD and LDAC for up to 990 kb/sec wireless transmission. Bluetooth version 5.0 and the included antenna help a lot in maintaining a clear and stable wireless signal even with 3 concrete walls between the sender and the DX7 Pro
- Probably the biggest change is moving from a dual 2-channel ES9038Q2M mobile DAC chips to a single but more advanced 8-channel and desktop-class ES9038 PRO
- DX7 Pro moved to 3 high-performance Accusilicon AS318-B femtosecond crystal oscillators, combined with a better DAC chip the total-harmonic-distortion (THD) was lowered by 5 times compared to DX7s! It sits at only 0.000084%, SINAD improved as well and on the XLR out it shows an impressive 121 dB, which is a world-class performance by my standards.
- Another great improvement is the headphone amp section, DX7s was no slouch with headphones and could drive almost all of them except for current hungry headphones like low sensitivity planar-magnetic headphones. From a full 1 Watt of power on DX7s, a newer device upped the game and delivers a whopping 1.7W in the same 32 Ohm impedance. This power increase was targeted mostly at planars that are mostly current and not voltage driven (as opposed to dynamic driver headphones)
- There are other smaller improvements, like higher SNR on the balanced out and on the headphone out (by 3dB) and fewer things that only an Audio Precision APx555 will show you (IMD hump is almost gone).
- Of course, all those improvements come at a price, DX7 Pro costs $599 and DX7s $499, however only those 3 femtosecond crystal clocks are costing more than $100 so I consider the higher price fully justified.
1. Unbox Therapy
The unboxing experience is very positive, no complaints here. Double boxed? Check! Thick cardboard box? Check! Lots of foam for extra protection? Triple Check!
Inside the box, you’ll find the DX7 Pro unit itself, a power cable, a USB type-B cable, a headphone adapter, a screwing type Bluetooth antenna, a much-needed remote control, a warranty card and a very in-depth to the smallest details user manual. What I really like about this user manual is that TOPPING actually published actual audio performance measurements recorded by the world’s best audio analyzer: Audio Precision APx555. Basically, everything from FFT Spectrum, harmonic distortion ratio, Inter-modulation distortion ratio (IMD) and RMS levels for both the RCA and XLR out, everything is included in there. Want to use the i2S input but don’t know the exact phase settings of the external S/PDIF interface, the manual has all those i2S phase settings too. They did exactly like that with the D70 and with newer devices. I also like that all the usual audiophile marketing snake-oil is not present in the manual, just pure specs, and facts. They earned my respect with the release of D70 and the same story repeats itself with DX7 Pro. I think other manufacturers should take notes, I would always prefer specs and measurements than audiophile marketing nonsense like others are doing.
2. Design & Build Quality

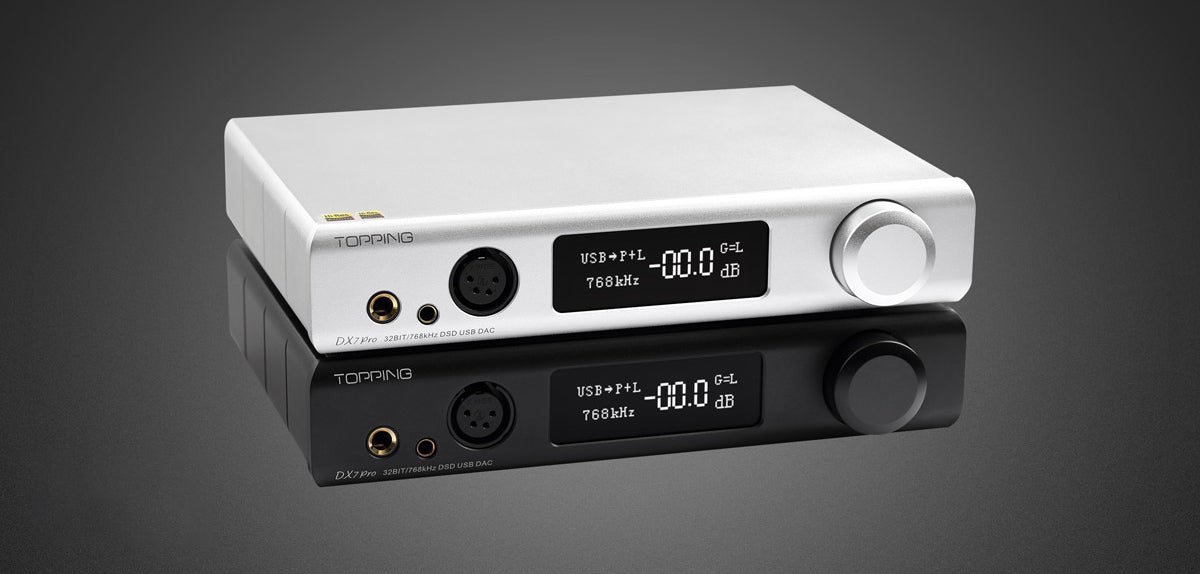

From first glance, it is very clear to me that TOPPING further improved it in terms of aesthetics and design. There isn’t a single visible screw on the faceplate, on the side plates or underneath the device. Only on the back few screws can be spotted, but those are hidden from the human eyes.
DX7 Pro is very clean, simple and elegant looking. I really like the use of the black and white OLED screen; I think for a simple black or silver box it adds a bit of class and coolness factor.
The case is beautifully crafted & CNC milled from aluminum, it feels and looks impressive. From my perspective this is their most beautiful design, don’t you agree?
Underneath it those 4 rubber feet are actually positioned in 4 individually carved spaces on the case itself and will never move around, this small thing is actually a big plus for headphone listeners. I am touching and changing volume settings, I’m plugging and unplugging my headphones multiple times per day and if a device is lighter the rubber feet might move or worse fell down due to poor gluing, not the case with DX7 Pro.
Size-wise it is a bit smaller than DX7s and D70 DACs, but just barely. I put it on top of the Benchmark HPA4 and these two are like made for each other – they have the same width and both cases have rounded side plates.
3. Controls & Connectivity
The front panel looks clean and tidy, the sneaky volume pot also works as a standby On/Off button
I really like the positioning of all those 3 headphone outs and I’m glad besides a 4-pin XLR and ¼” headphone jack they also used the best-balanced headphone jack of the moment: 4.4mm Pentaconn. The volume knob is super smooth to the touch and has 99 physical steps. However, the volume control is 100% fully digital and at 99 steps it is so easy knowing how much volume is there left for my headphones.
The OLED screen has 3 brightness levels and at the highest setting it is not too bright, it shows all the important information like the selected digital input, analog output, the gain settings, the sampling frequency (for PCM material) or the DSD rate and the volume position from -99 to 0 dB.
Taking a glance at the back is clear that DX7 Pro targets high-profile and knowledgeable audiophiles, the i2S and AES inputs are a rare sight nowadays and I’m welcoming those, of course, there is also a USB type-B input, a coaxial and an optical (Toslink) input. Since this is a fully balanced input to output DAC it has RCAs and XLRs on the back.
One important aspect is that with the volume pot that works as a menu navigator can be accessed only basic features of DX7 Pro, if you want to fully customize it to your liking, I recommend using the remote control from the package. With it, you can select from 7 digital filters that are working on the hardware level from the ES9038 PRO itself, you can select 3 brightness levels, you can select your desired analog output: RCA, XLR, RCA+XLR, PO (phone out) or LO (line out) + PO, a setting for every need. DX7 Pro has also a small memory buffer and it will remember the volume settings for every selected output, you can have 0 dB on the line-out and just -20 dB on the phone out, quite convenient!
4. Tech Specs & Detailed information
I will just briefly summarize all the important specs as I already mentioned some of those.
ES9038 PRO DAC chip + 3 Accusilicon femtosecond clocks are doing all the digital work, the USB decoder is the famous XU208 from XMOS and custom drivers from Thesycon will ensure good stability. DX7 Pro can natively decode DSD512 and PCM up to 768 kHz at 32 bits on the USB, only I2S input is capable of decoding DSD1024.
DX7 Pro is using a proprietary toroidal transformer along with some audio-grade Nichion capacitors. From my point of view, this is an advanced power supply with multiple levels of isolation for accurate sound reproduction. DX7 Pro ditched the TPA6120A2 headphone amplifier circuit in favor of the cleaner sounding LME47920 dual op-amps. Since TOPPING is using two of them it means the headphone amp circuit is fully balanced as is the DAC part.
What is kind of interesting is that both op-amps are socketed, so in theory, if you wish to roll some dual op-amps and maybe use something fancier like Burson V6 or SparkoS Labs dual op-amps, you can do that. Even the DAC output stage consisting of two LME49720 is also put on DIP-8 sockets, but sincerely I do not recommend changing those. Those are already very good, have been tested for good performance and thermal stability and other ones might not sound as good, the output stage is quite a sensitive part, leave it as it is.
The 1.7 Watt headphone amp section is really powerful, didn’t expect those numbers at this size and weight. What is not so impressive and a bit worrisome especially for low impedance IEM/headphone users is the output impedance of the headphone outputs. The SE 1/4” one has it at 4.7 Ohm and both balanced outputs at 9.4 Ohm, meaning the balanced out might not have the best damping factor for low impedance headphones.
OK, everyone, I think it is time to have a long listening session.
5. Sound Performance
Using sensitive In-Ear-Monitors
Using full-sized headphones
- On the balanced 4.4 mm/4-pin XLR you should use 35 Ohm or higher impedance headphones and all the kick and impact will be yours to have
- On the SE ¼” use any IEM or portable headphones that have more than 16 Ohms for the best results
In a speaker-based system
I will skip the specs, design, weight, functionality aspects and will focus only on the DAC part of both devices.
The moment I listened to D70 I knew it rolls-off a bit in the sub-bass and upper-treble area. As a result, D70 is not super linear and will not show crazily vivid the lowest octaves or the sub-sonic trebles. DX7 Pro, on the other hand, is brutally honest and has it all from the lowest to the highest notes. D70 is not aggressive, speedy or very articulated. D70 will not hit hard, has a weaker impact and is not very impressive with faster-paced music, it’s good but not impressively good. D70 is a bit romantic and slower sounding, crazy good with blues and jazz and passable with rock and electronica. DX7 Pro is opposed to that, it’s mean, kicks hard and doesn’t care if you like that or not.
Where D70 wins hands down is the localization of all the sounds around the listener, all those notes are also pushed a bit farther away into the mix, you hear them far away on D70 and closer on DX7 Pro. Soundstage size is wider on D70 to a point of being distracting at times, DX7 Pro is closer but more precise somehow, you feel everything with your body.
D70 puts a small emphasis on midrange and makes it warmer, sexy and inviting, you just want to listen more of that guitar, violin or of that soothing and inviting voice. DX7 Pro has nothing like that, just a linear and honest midrange and nothing more.
People who expected M500 to crush all the competition to oblivion will be crushed to know that DX7 Pro is even better on almost everything. The biggest change is in terms of frequency response. M500 puts an emphasis on bass and upper treble, as a result, midrange takes a hit and sounds a bit dry and lifeless. It sounds V-shaped and not as linear as I hoped it to be.
DX7 Pro, by comparison, doesn’t emphasize anything, just a straight line from point A to point B. Few might like the extra energy in the bass and treble of M500, I’m however not that impressed by that. Linearity is my target and DX7 Pro is much better at that. DX7 Pro also has overall better control and a wider stage across the board. It is deeper and wider sounding as well. It may lack the MQA capability, but everything else is better on it.
I will again skip all the functionality and features since the element X incorporates a true streamer and an internal USB-drive player controlled by a simple smartphone app.
When it comes to pure DAC performance, I was actually quite surprised by how close both units sounded. DX7 Pro is kind of like a baby element X to me. Linearity and frequency response wise both are neck and neck on the same level. The element X is slightly better in the bass department, by better I mean not just going lower but by having it even clearer, I guess the Noratel transformer said its word.
Soundstage wise both are good, still, the element X pulls ahead and shows few additional layers and a deeper presentation, I can look easier into my recordings with it.
Detail retrieval is basically the same, both will show any nuance without breaking a sweat. At only 1⁄5 of the price of the element X, DX7 Pro looks like a crazy value to me, I’m impressed…
I can go on and on with my comparisons by I’m already on the 9th page and it seems that without wanting it, this is my longest written review to date.
TOPPING DX7 Pro seen a long development time and optimization process, it is already at its third iteration, I know and I feel while listening to it all the care it went through in terms of design, specs, and measurements. I can’t deny the awesome specs and measurements it possesses.
It delivers a solid performance on all fronts; it has everything a knowledgeable audiophile would desire and as result, I consider it an incredible all-in-one device packed with features that came as a bonus for a close to perfect audio performance. At just $100 more compared to the older DX7s I believe DX7 Pro fully justified its price and at $599 this is currently my best recommendation.
- A sleek looking device, solid build quality
- An impressive feature-packed 4-in-1 device (DAC/preamp/headphone amp/BT receiver)
- Linear and super-extended on both ends, lacks any sound coloration
- Impressive levels of transparency and resolution
- Precise pin-point imaging
- Wide soundstage, deep sounding as well
- Excellent pace, rhythm, and timing with crazy dynamic swings
- Linear and uncolored headphone amp section with lots of power to spare
- Lacks any noise or distortion
- Widest selection of digital inputs
- High output impedance on all headphone outputs limits the damping factor of low impedance IEMs/Headphones
