Gustard

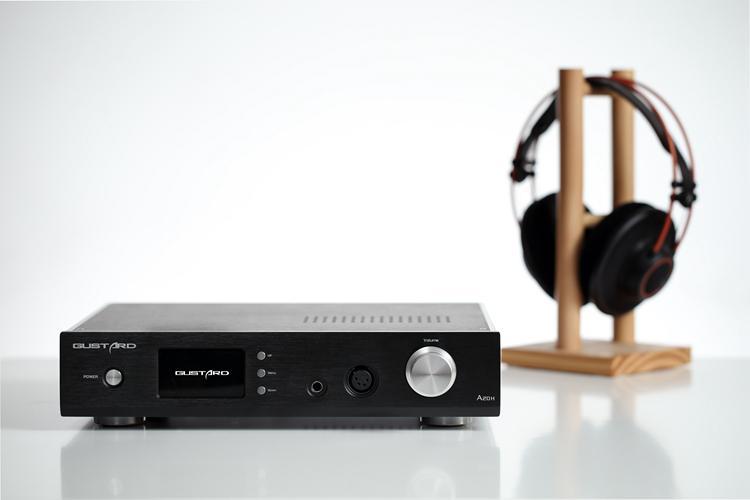

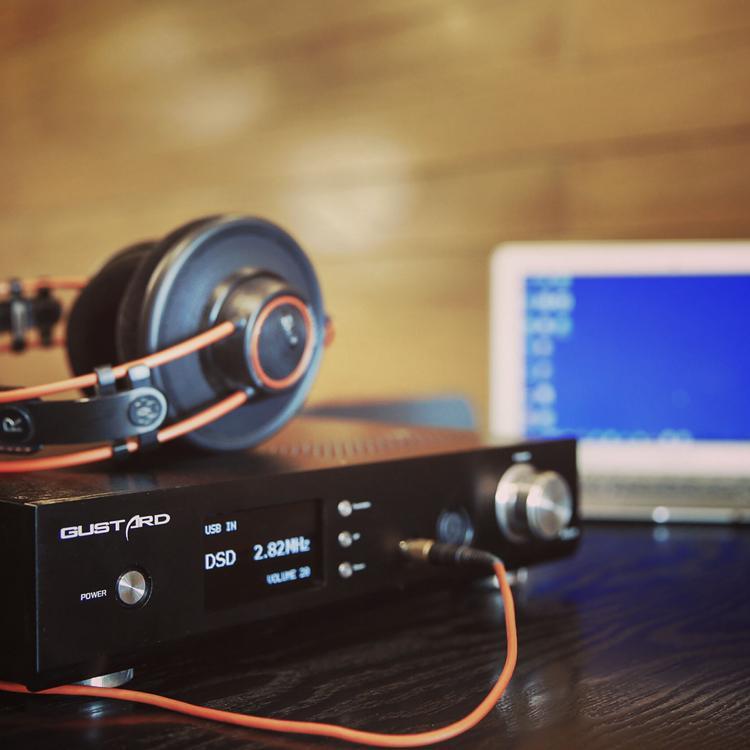

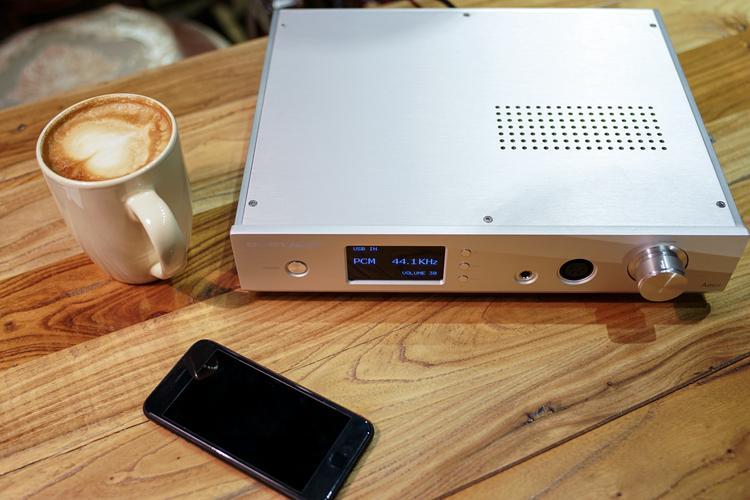

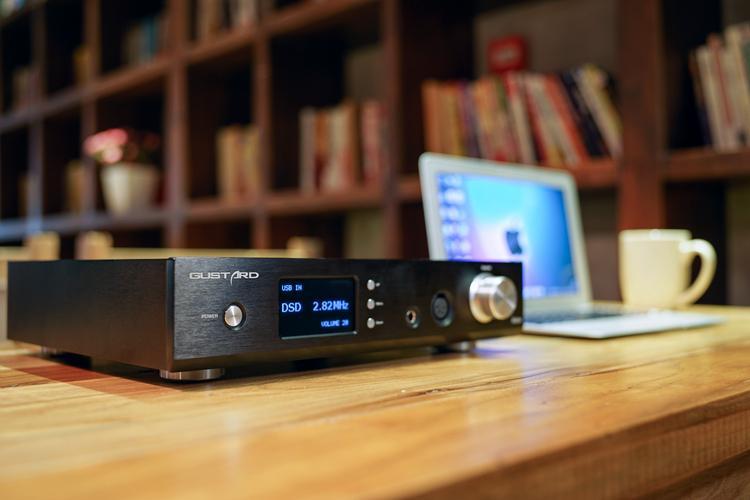

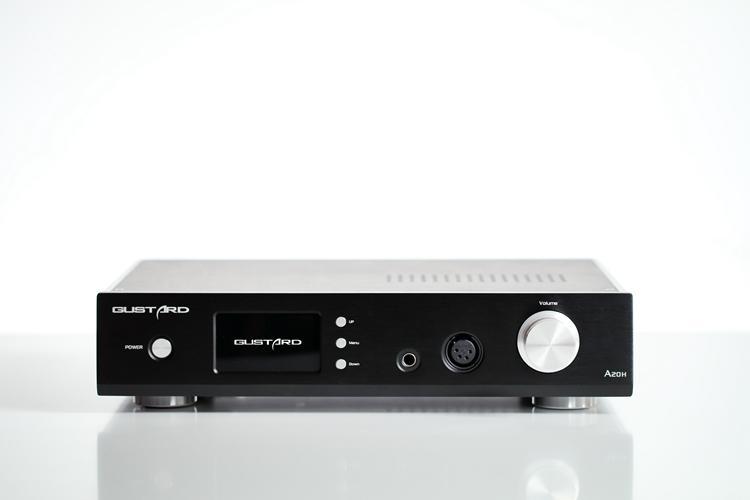

Gustard A20H DAC/Amp
$836.99
Due to the unfortunate fire at the AKM manufacturing facility in Japan, we have a very limited supply of this item. We urge anyone interested in this item to buy it while supplies last. Despite our very best efforts to get these products to customers as soon as possible, the impact of the fire on AKM’s operations may cause shipping delays. The AKM supply volatility will not improve until the end of April 2021.

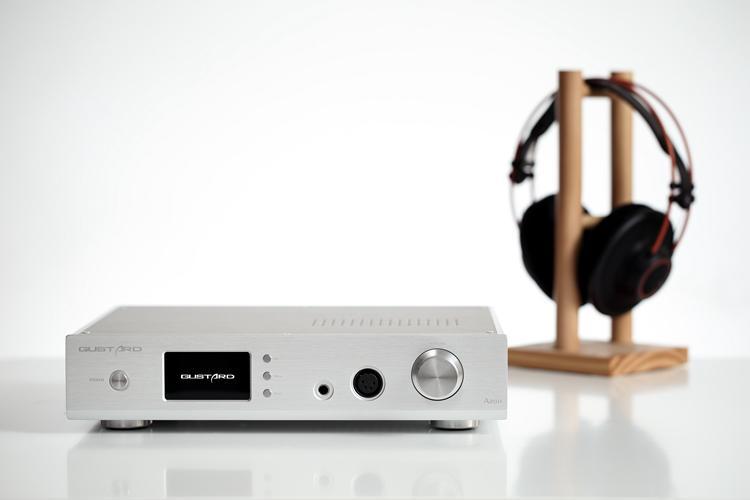

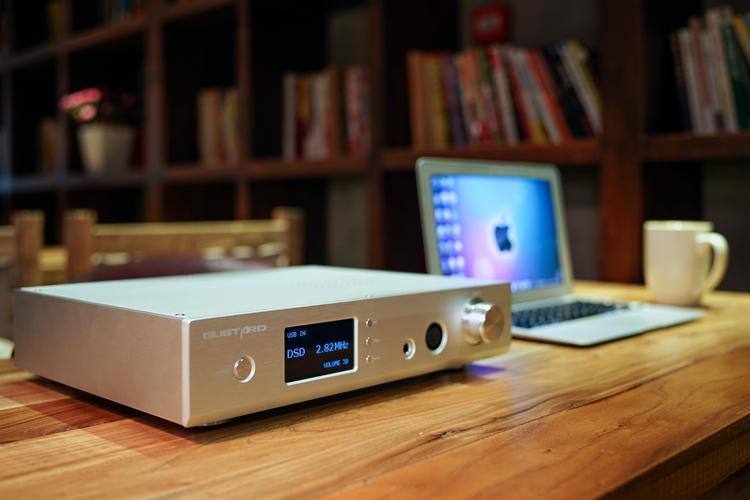

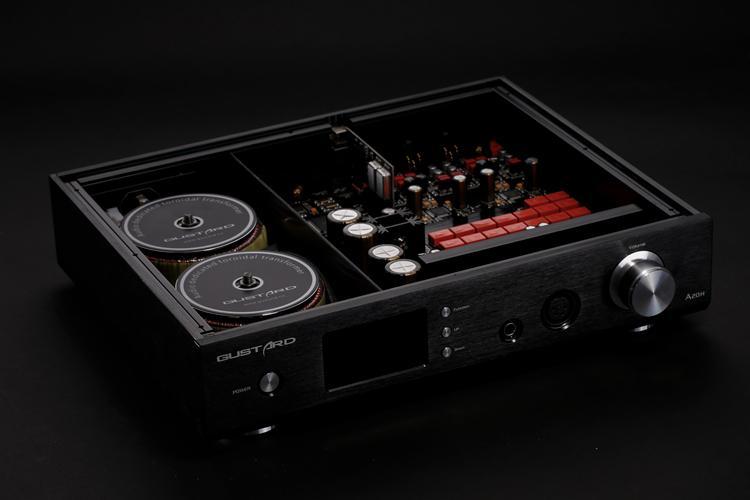

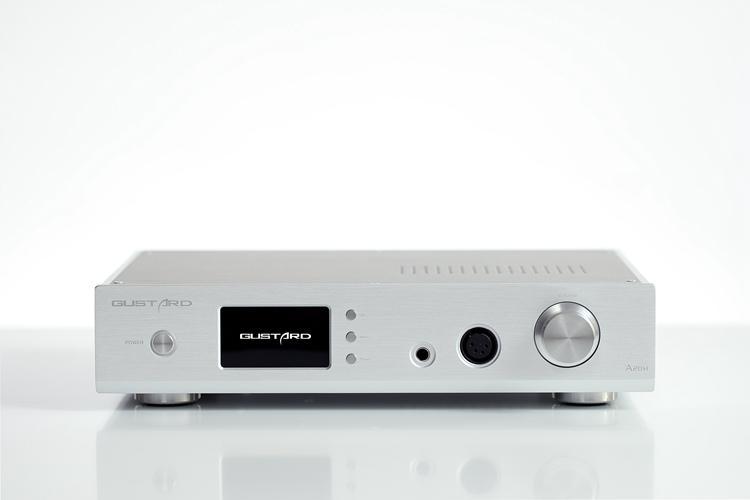

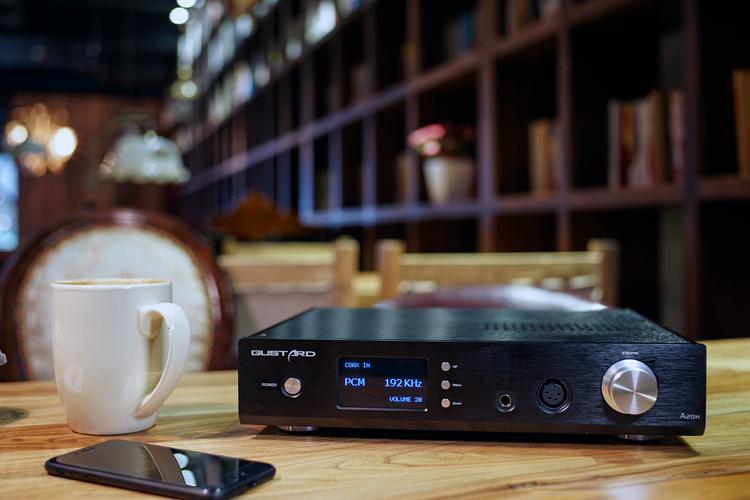

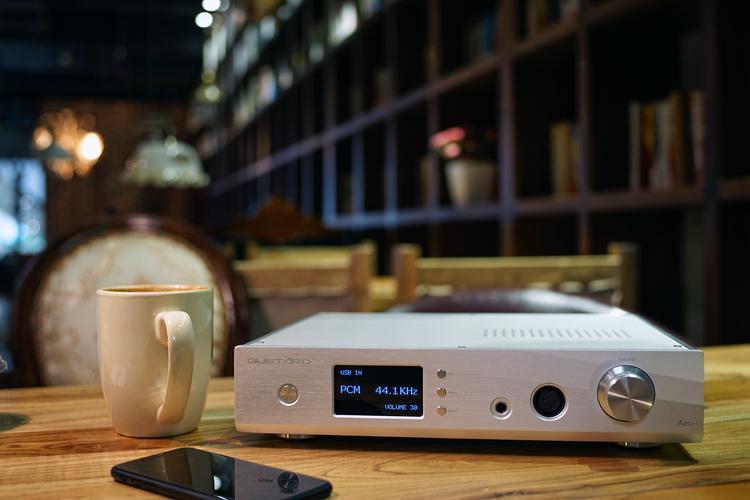

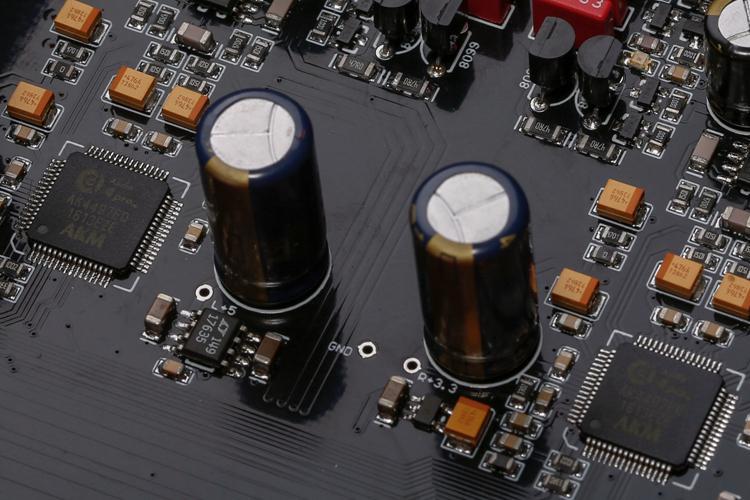

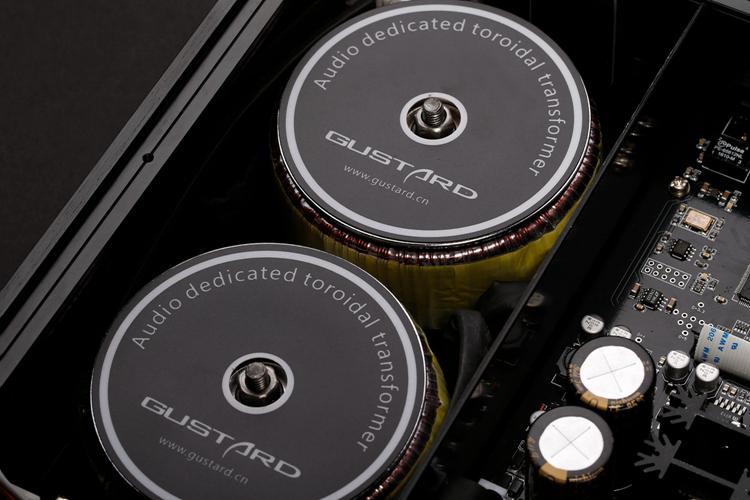

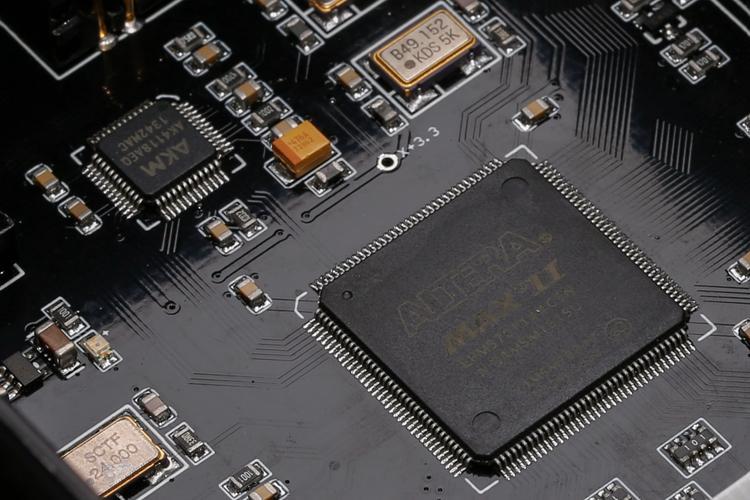

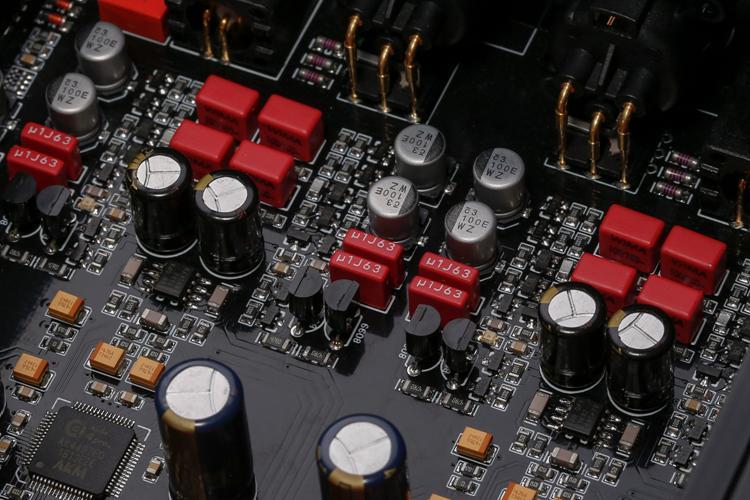

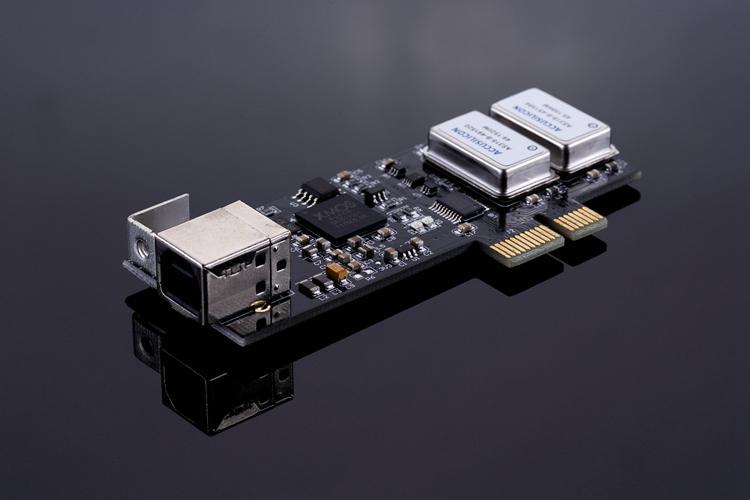

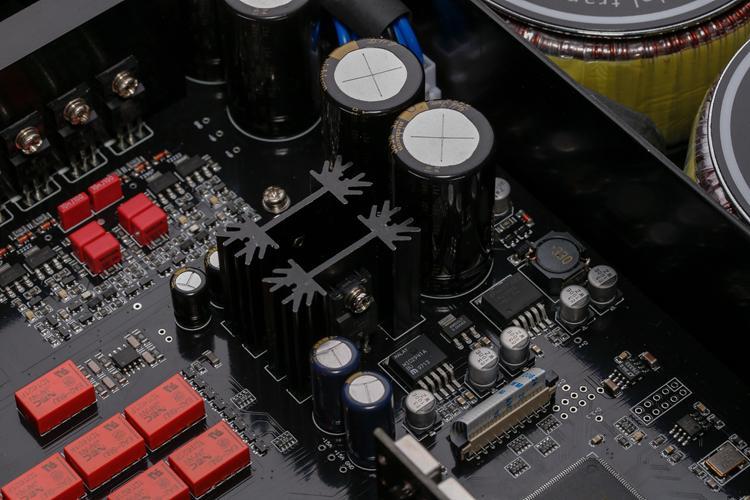

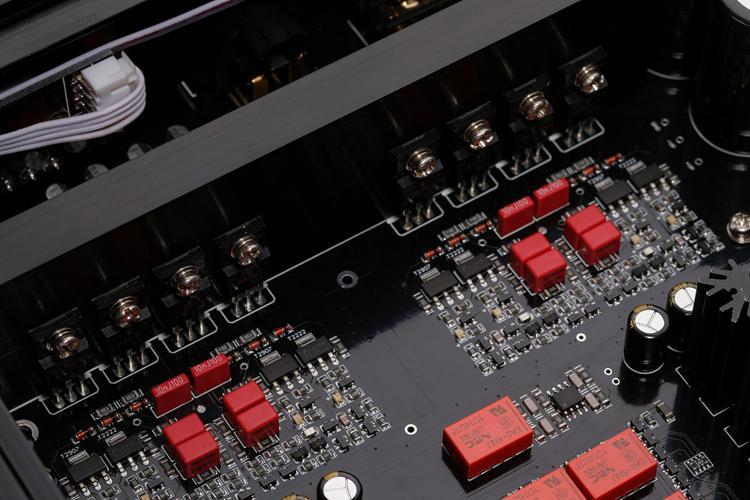

The Gustard A20H DAC/Amp uses a native design so that every component including decoding and volume control is fully balanced. Two AKM AK4497EQ DAC chips, an XMOS U8 USB audio interface, and a powerful Class-A amplifier are some of the high-end specs that make this a premium device. It outputs 2,400 mW at 32 ohms to drive even the most demanding headphones while using a custom 50W dedicated toroidal transformer as a fully independent power supply.
Due to the unfortunate fire at the AKM manufacturing facility in Japan, we have a very limited supply of this item. We urge anyone interested in this item to buy it while supplies last. Despite our very best efforts to get these products to customers as soon as possible, the impact of the fire on AKM’s operations may cause shipping delays. The AKM supply volatility will not improve until the end of April 2021.
The Gustard A20H DAC/Amp uses a native design so that every component including decoding and volume control is fully balanced. Two AKM AK4497EQ DAC chips, an XMOS U8 USB audio interface, and a powerful Class-A amplifier are some of the high-end specs that make this a premium device. It outputs 2,400 mW at 32 ohms to drive even the most demanding headphones while using a custom 50W dedicated toroidal transformer as a fully independent power supply.
Specs:
-
Balanced Output: 32 ohms 2,400 mW; 64 ohms 1,230 mW; 150 ohms 530 mW; 300 ohms 264 mW; 600 ohms 132 mW
-
Single-Ended Output: 16 ohms 1,200 mW; 32 ohms 600 mW; 150 ohms 133 mW; 300 ohms 67 mW; 600 ohms 33 mW
-
SPDIF, Optical, AES/EBU Support: DSD64 (DoP mode)
-
USB Support: DSD64, DSD128, DSD256
-
Digital Filtering: DSD provides Wide BW/Narrow BW, PCM provides Short Delay Slow/Sharp/Slow/Low
-
XMOS U8: Supports PCM384/DSD256
-
Body: All-aluminum chassis
-
Frequency Response: 20 Hz–20 kHz +/- 0.1 dB
-
Line Output (offstage): RCA output level: 2.0 Vrms @ 0 dBFS; XLR output level: 4.0 Vrms @ 0 dBFS
-
XLR Interface Definition: US standard
-
International Voltage: AC 100V–240V
-
Headphone Amp Maximum Output Power: 2,400 mW @ 32 ohms
-
Product Dimensions Without Protrusions: 13 x 10.2 x 2.6 in (330 x 260 x 65 mm)
-
Package Dimensions: 16.5 x 14.2 x 6.9 in (420 x 360 x 175 mm)
-
Packaged Weight: 14.3 lbs (6.5 kg)
- Balanced Output: 32 ohms 2,400 mW; 64 ohms 1,230 mW; 150 ohms 530 mW; 300 ohms 264 mW; 600 ohms 132 mW
- Single-Ended Output: 16 ohms 1,200 mW; 32 ohms 600 mW; 150 ohms 133 mW; 300 ohms 67 mW; 600 ohms 33 mW
- SPDIF, Optical, AES/EBU Support: DSD64 (DoP mode)
- USB Support: DSD64, DSD128, DSD256
- Digital Filtering: DSD provides Wide BW/Narrow BW, PCM provides Short Delay Slow/Sharp/Slow/Low
- XMOS U8: Supports PCM384/DSD256
- Body: All-aluminum chassis
- Frequency Response: 20 Hz–20 kHz +/- 0.1 dB
- Line Output (offstage): RCA output level: 2.0 Vrms @ 0 dBFS; XLR output level: 4.0 Vrms @ 0 dBFS
- XLR Interface Definition: US standard
- International Voltage: AC 100V–240V
- Headphone Amp Maximum Output Power: 2,400 mW @ 32 ohms
- Product Dimensions Without Protrusions: 13 x 10.2 x 2.6 in (330 x 260 x 65 mm)
- Package Dimensions: 16.5 x 14.2 x 6.9 in (420 x 360 x 175 mm)
- Packaged Weight: 14.3 lbs (6.5 kg)
