Musetec Audio (LKS Audio) MH-DA005 ES9038 Pro x2 DAC


The MH-DA005 isn’t just an optimized version of the MH-DA004. It’s an entirely new machine. Four high-performance clocks, high-purity silver wires for internal connections, and a new power system take an industry-leading decoder to the next level.

All-New Clock System

Including its USB interface, the DA005 features a total of four high-performance clocks, resulting in accurate decoding for a more natural sound.

Pure Silver Connections

High-purity Jensen silver wires connect many of the DA005’s internal components. Pure silver boasts higher conductivity than 7N OCC wire, resulting in a more efficient system.

A Newly Designed Power System

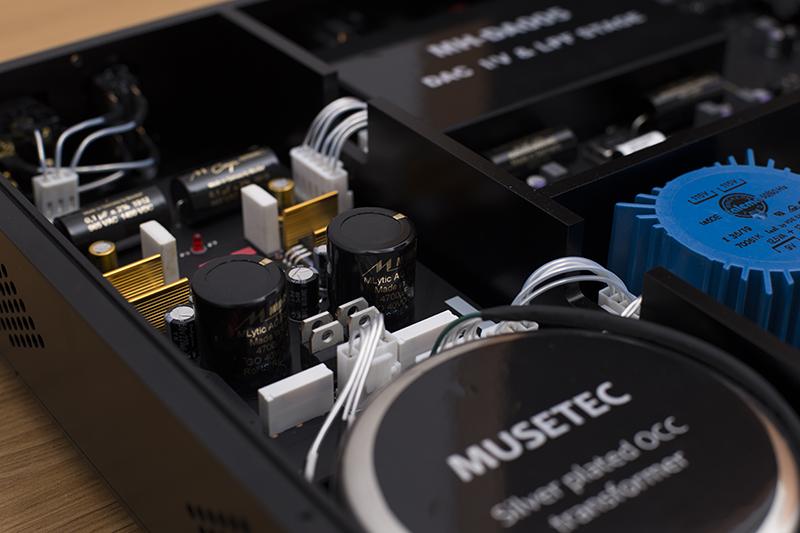

The DA005 features a newly designed power system that separates the storage and charge functions, resulting in a total reduction of AC noise. In addition, the DA005 features a customized silver-plated OCC transformer that’s quieter and more transparent than traditional OFC wire transformers. These upgrades add up to higher efficiency and a vast reduction in operational noise.

Industry-Leading DAC chip

Make that two industry-leading DAC chips. Beneath the MH-DA005’s handsome hood lie two ES9038PRO SABRE DACs, the vanguard of decoder technology, touting the industry’s highest dynamic range (DNR) of 132db in a 32-bit, 8-channel DAC.

HyperStreamDAC Technology

Having the industry’s highest DNR is one thing, but how about having an ultra-low total harmonic distortion plus noise (THD+N) level of -122dB? In layman’s terms, that means that the MH-DA005 is peerless in terms of sound clarity. You won’t believe your ears.

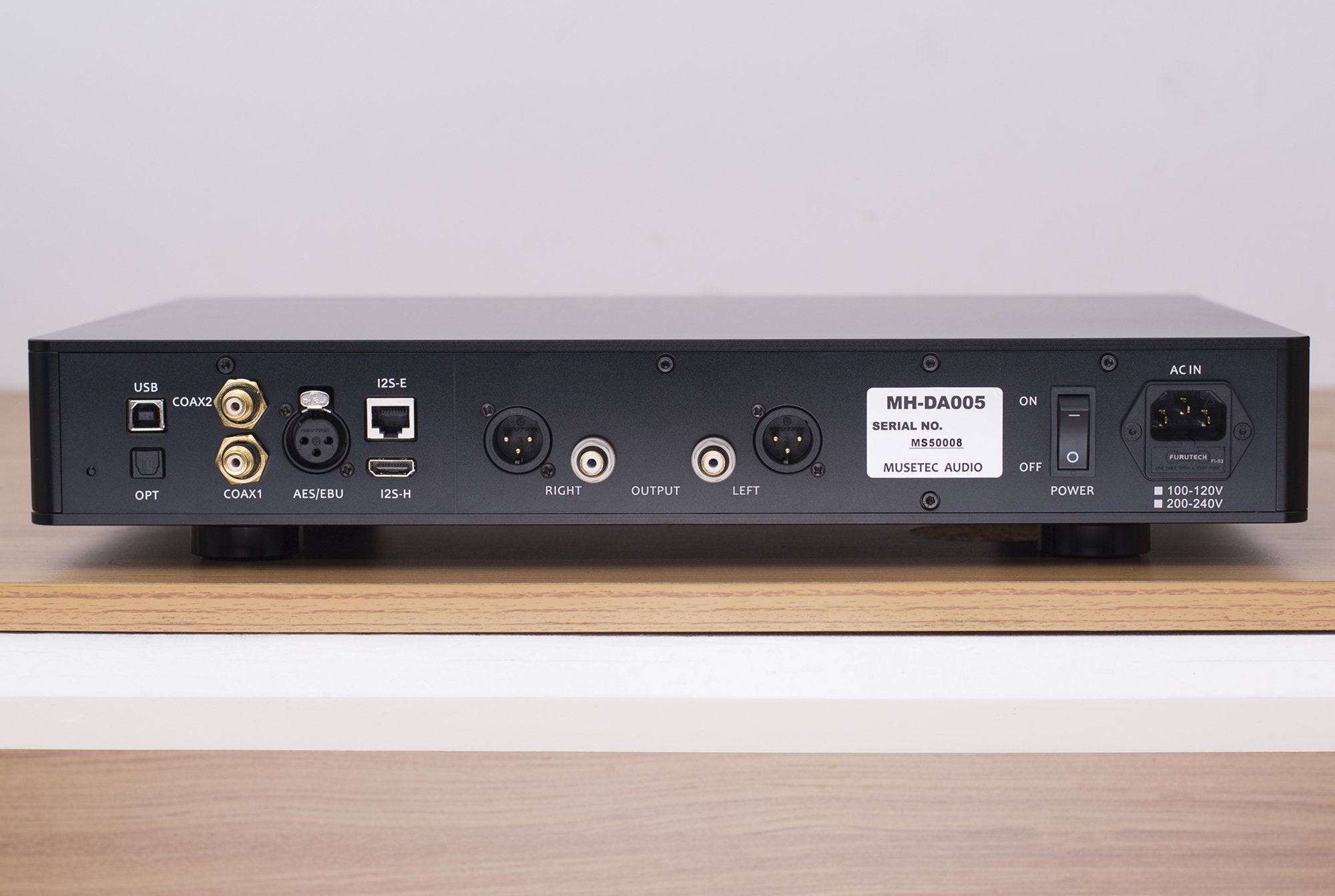

Accepting All Inputs

The MH-DA005 was made to accommodate a full home theater system: Blu-ray players, CD players, game consoles, laptops, tablets, and more. With support for USB, coaxial, optical fiber, AES/EBU, I2S-E, and I2S-H, this thing’s got your bases covered.

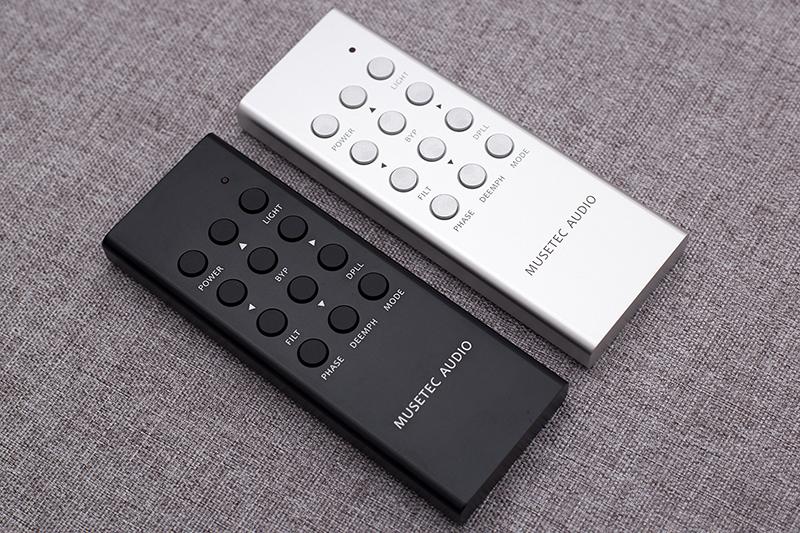

Full-Featured Remote Control

Take a load off. The MH-DA005 comes with a full-featured remote control, letting you control the volume, brightness, and a host of other features from the comfort of your couch.


  • Decoding chip ES9038pro x2

  • Input channels: USB, coaxial 1, coaxial 2, optical fiber, AES/EBU, I2S-E, I2S-H

  • Single-ended RCA output level 2Vrms

  • Balanced XLR output level 4Vrms

  • Digital volume attenuation function, attenuation at 0.5dB intervals, can be skipped

  • Digital filter mode optional

  • Digital phase locked loop DPLL can be set

  • DSD channel swap function that can be set

  • De-emphasis function that can be turned on or off

  • Dop (DSD over PCM) receiving function that can be turned on and off

  • USB supports PCM44~384K, DSD64~DSD512

  • I2S-E, I2S-H support PCM44~PCM384K, DSD64~DSD512, Dop64x

  • Coaxial, optical fiber, AES/EBU support PCM44~PCM192K, Dop64

  • Full-featured remote control with remote control standby function

  • The VFD display has multi-level brightness adjustable, and the screen can be automatically reset

  • Dynamic range>136dB

  • Distortion<0.0002%

  • Stereo separation>120dB

  • Frequency response 0~20KHz ±0.2dB

  • Rated power 16W

  • Size 430*350*78mm (width*depth*height), height includes machine feet

  • Machine net weight 9.0kg

  • Power supply voltage 100~120V or 200~240V optional

Packing List

  • 1* MH-DA005

  • 1* remote control

  • 1* American standard power cord

  • 1* USB cable

  • 1* T2 hexagon socket screwdriver (used to remove the remote control to replace the battery)

  • 1* U disk (including electronic file manual, this machine no longer provides paper version of manual)
