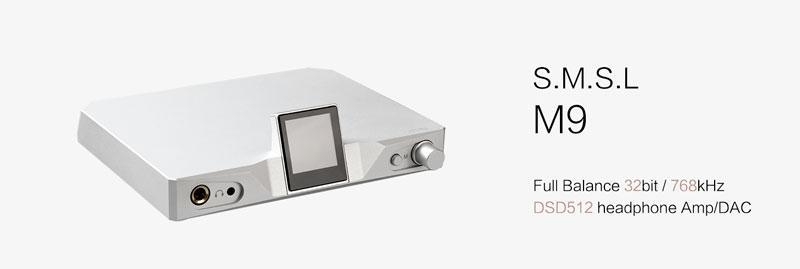

SMSL M9 DAC/Amp

$445.99

Request A Price Match


IMPORTANT NOTE

Due to the unfortunate fire at the AKM manufacturing facility in Japan, we have a very limited supply of this item. We urge anyone interested in this item to buy it while supplies last. Despite our very best efforts to get these products to customers as soon as possible, the impact of the fire on AKM’s operations may cause shipping delays. The AKM supply volatility will not improve until the end of April 2021.

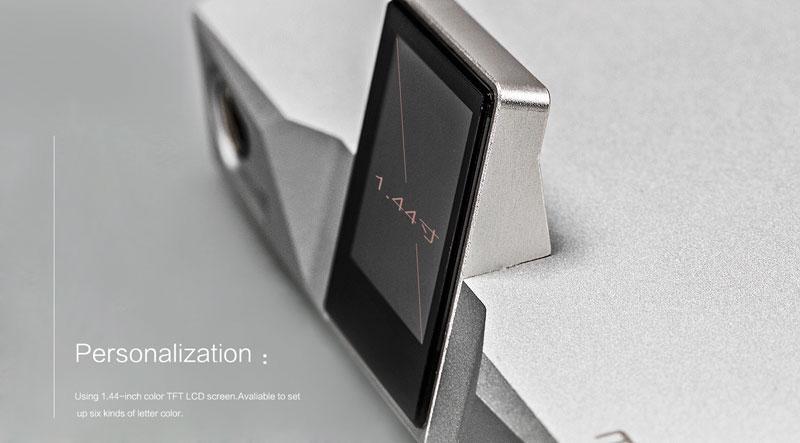

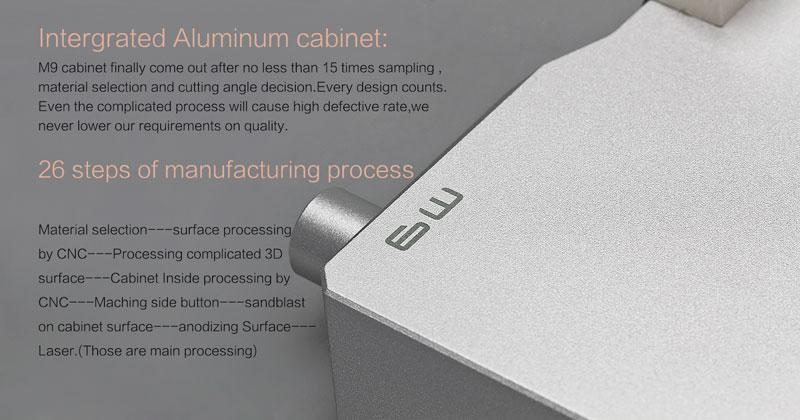

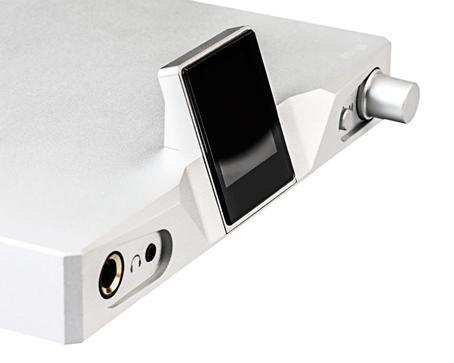

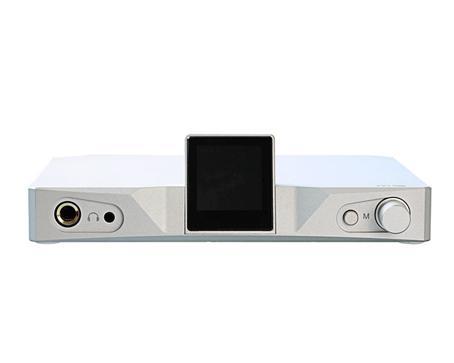

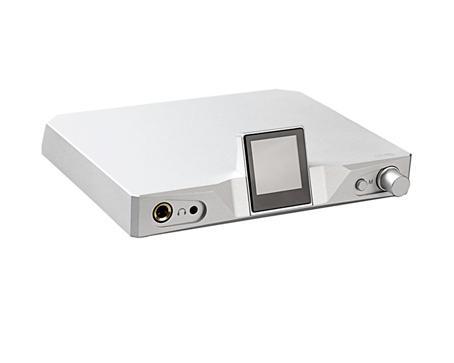

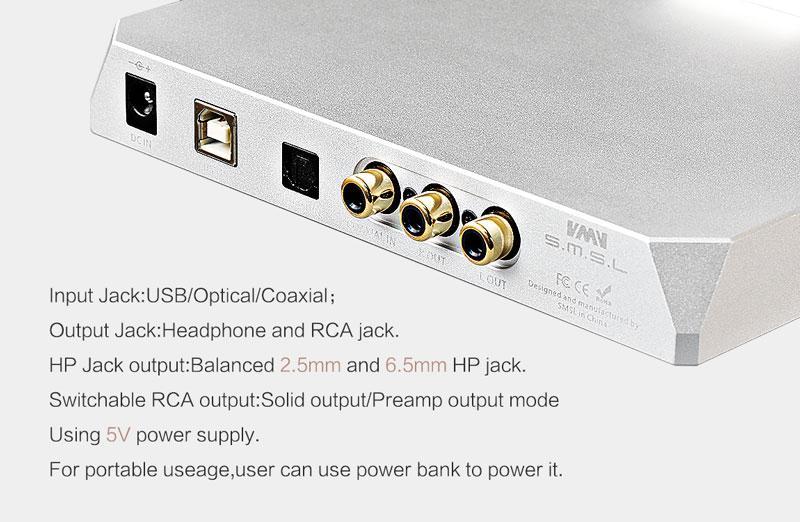

The SMSL M9 is a beautifully machined DAC/Amp that comes with two AKM AK4490EQ DAC chips, two OPA TPA6120A2 op-amps, and an included XMOS xCORE-20 USB audio interface. The front panel includes a 1.44 inch TFT LCD screen, with a quarter-inch headphone out and a 2.5mm balanced out. The back panel includes an RCA out, with a USB, coaxial, and optical inputs.

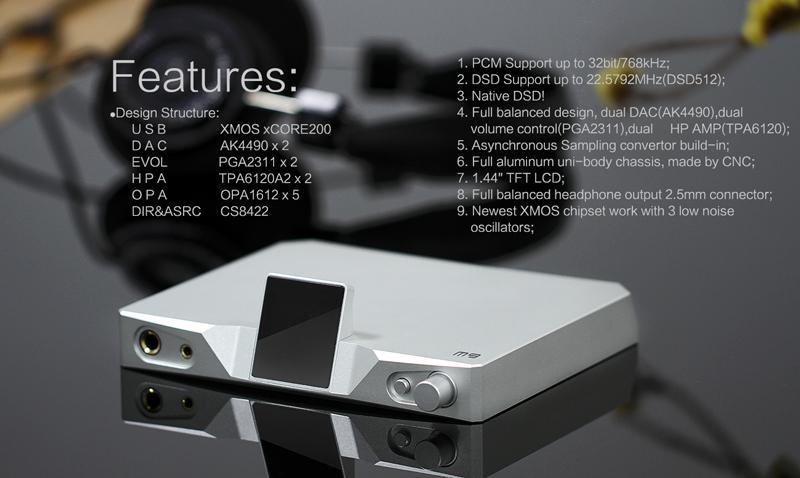

Specs:

  • DAC Chip: 2 x AKM AK4490

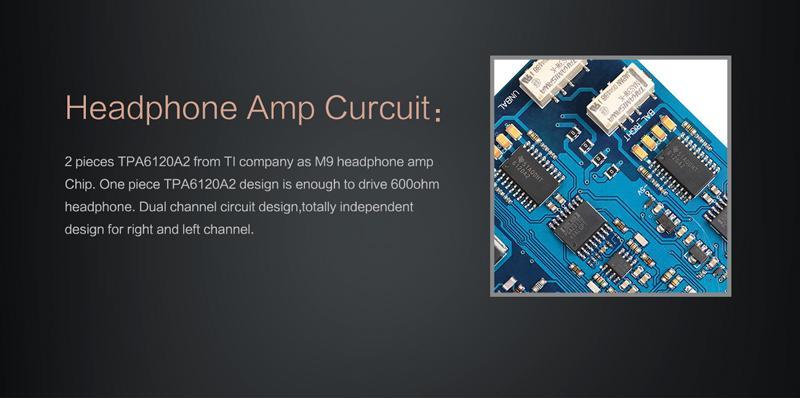

  • Opamp: 2 x TI TPA6120A2

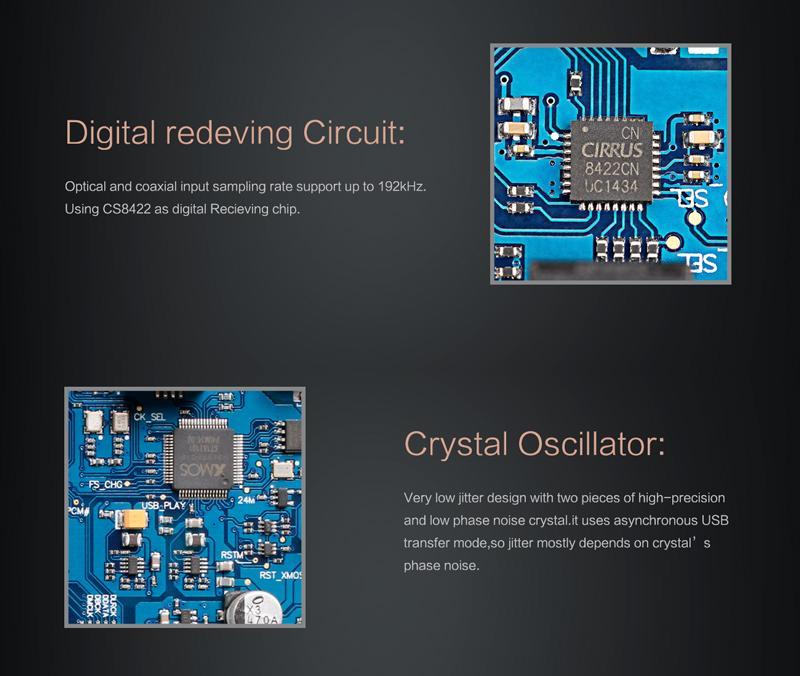

  • Digital receiving chip: CS8422
  • Volume control: 2 x PGA2311
  • USB audio interface: XMOS xCORE-200 with 3 low-noise oscillators
  • PCM support up to 32 bit/768 kHz
  • DSD support up to 22.5792 MHz (DSD512)
  • Digital receiving chip: CS8422
  • Native DSD
  • Fully Balanced Design

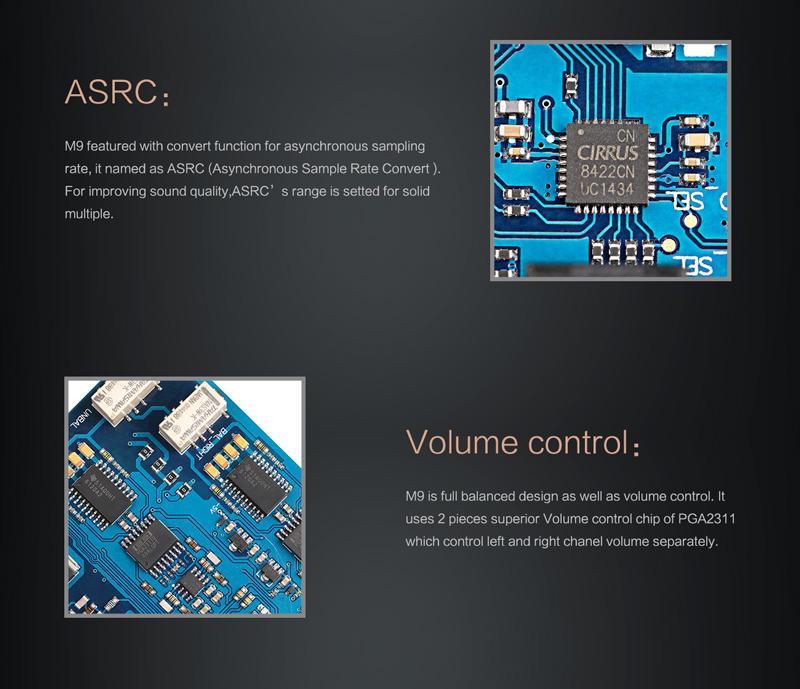

  • Built-in ASRC (Asynchronous Sample Rate Convert)

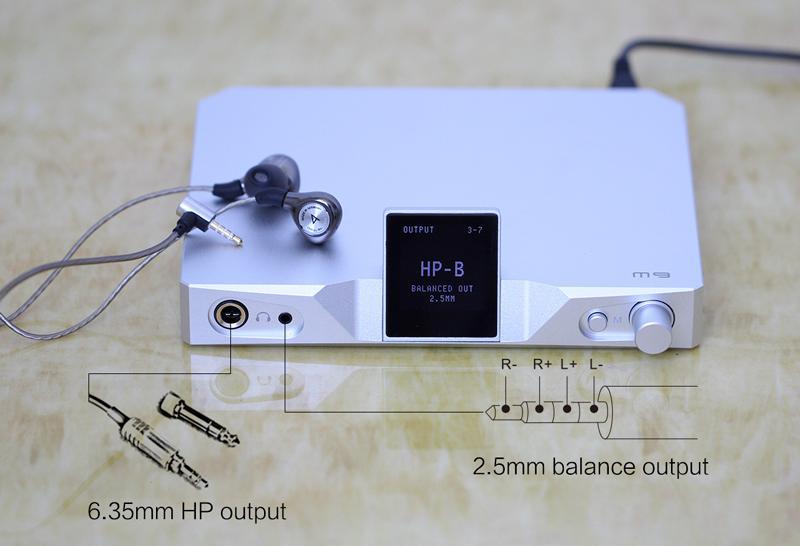

  • Outputs: 6.35mm headphone out, 2.5mm balanced out
  • THD+N, DAC: 0.0004%
  • THD+N, headphone amplifier: 0.001%
  • Sampling Rate: 44.1-768kHz
  • Dynamic range (24 bit): 115 dB
  • Optical/Coaxial Input Sampling Rate:44.1-192kHz
  • Compatibility: Windows 7/8/8.1/10, Mac OS X 10.6 and above
  • Included
    • USB Cable
    • Power Supply
