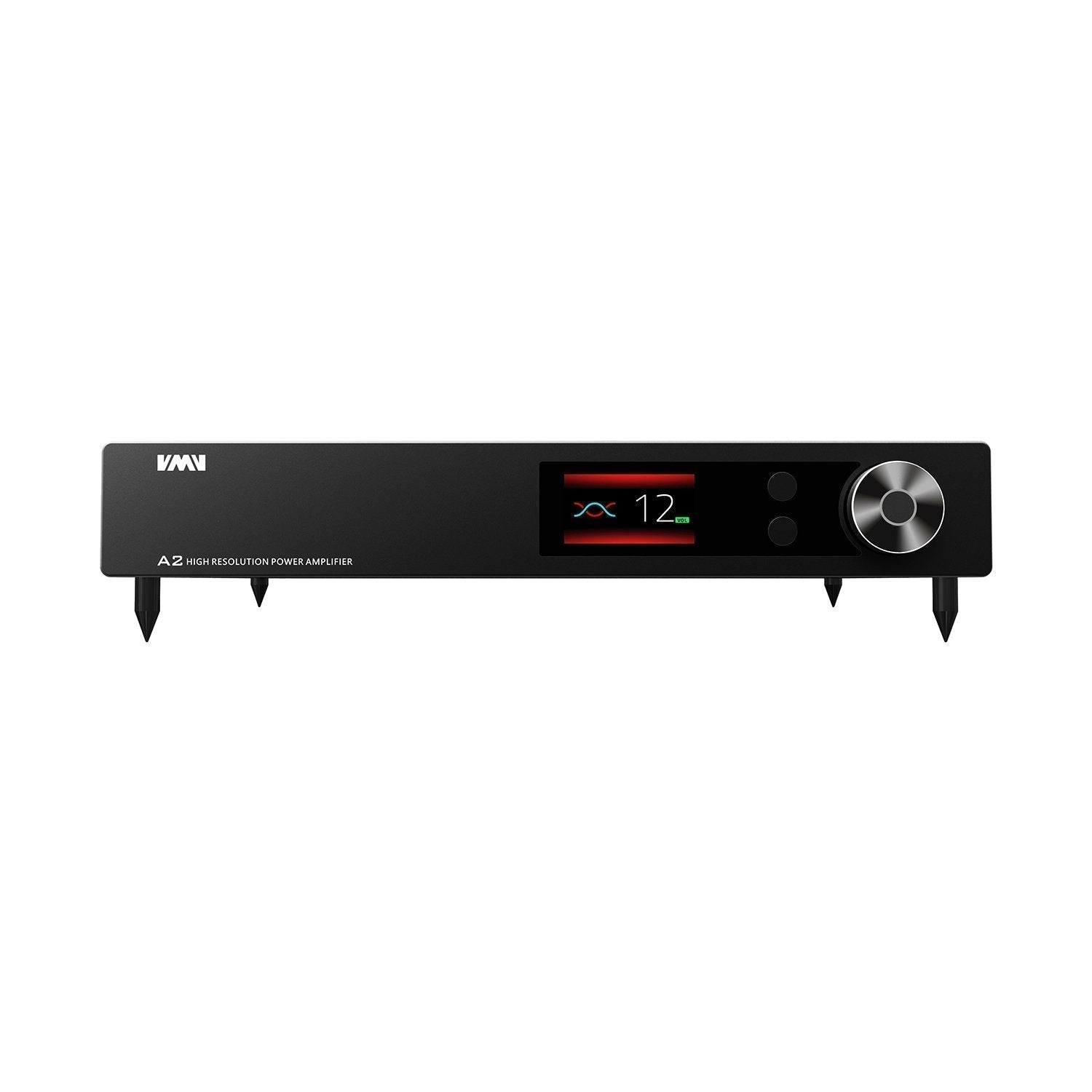

SMSL VMV A2 High Resolution 200Wx2 Power Amplifier


Request A Price Match

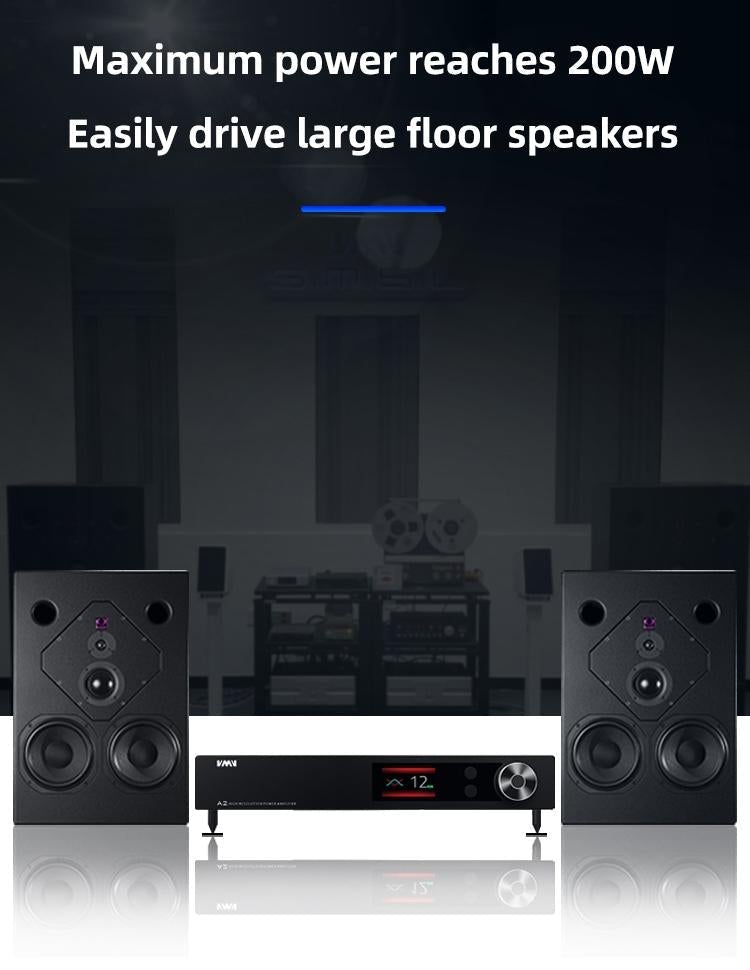

200Wx2 of Pure Power

For those about to rock, we suggest the SMSL VMV A2 Power Amplifier. With 200Wx2 of output power, it can easily drive desktop monitors, bookshelf speakers, and large floor speakers.

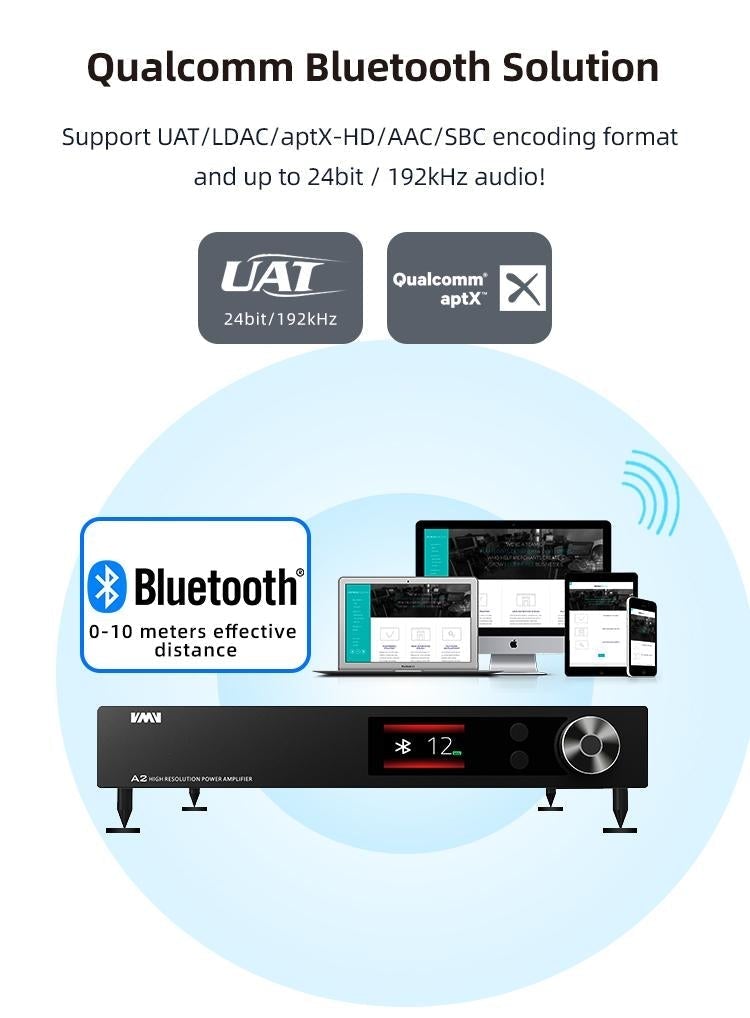

Ultra-High Def 24-bit Bluetooth playback

Get lossless Bluetooth with rich 24-bit/192kHz playback. A Qualcomm Bluetooth 5.0 chip supports all major hi-fi codecs, including UAT, LDAC, aptX, aptX-HD, SBC, and AAC.

Audiophile-grade circuitry

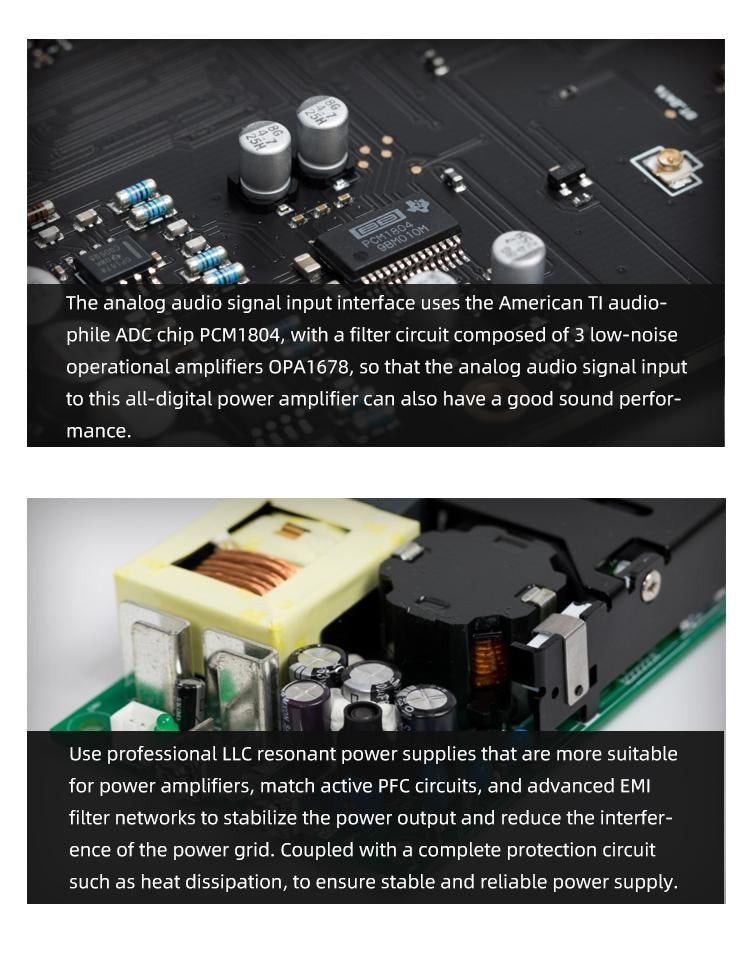

LLC resonant power supplies, matched active PFC circuits, and advanced EMI filter networks stabilize the power output and reduce interference from the power grid. A complete protection circuit and thorough heat dissipation ensure stable and reliable power.

Low-noise Texas Instruments ADC chip

Are you a vinyl lover? This is an all-digital amplifier, but that doesn’t mean you can’t play analog sources through it. An audiophile-grade Texas Instruments ADC chip converts incoming analog signals to digital and filters them through three low-noise op amps for ultra-clean output.

Bit-perfect audio transfer

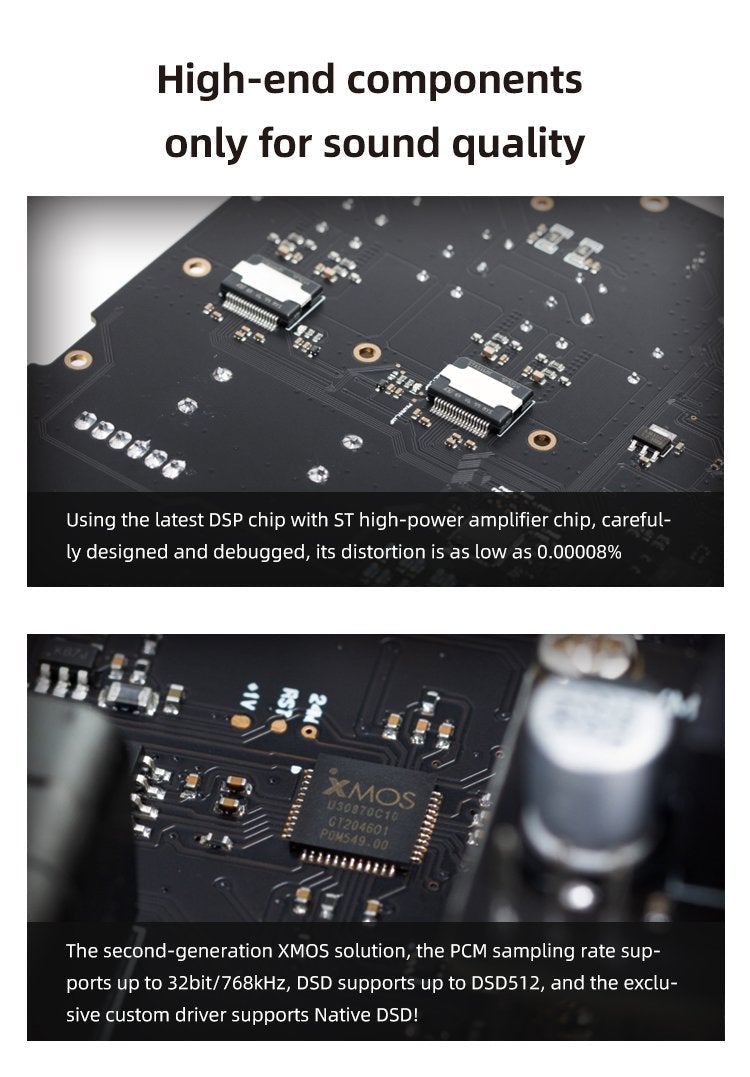

Get bit-perfect audio playback without distortion or jitter. The XMOS 16-core XU216 microcontroller converts the highest quality digital files to analog voltage without the timing deviations that cause distortion.

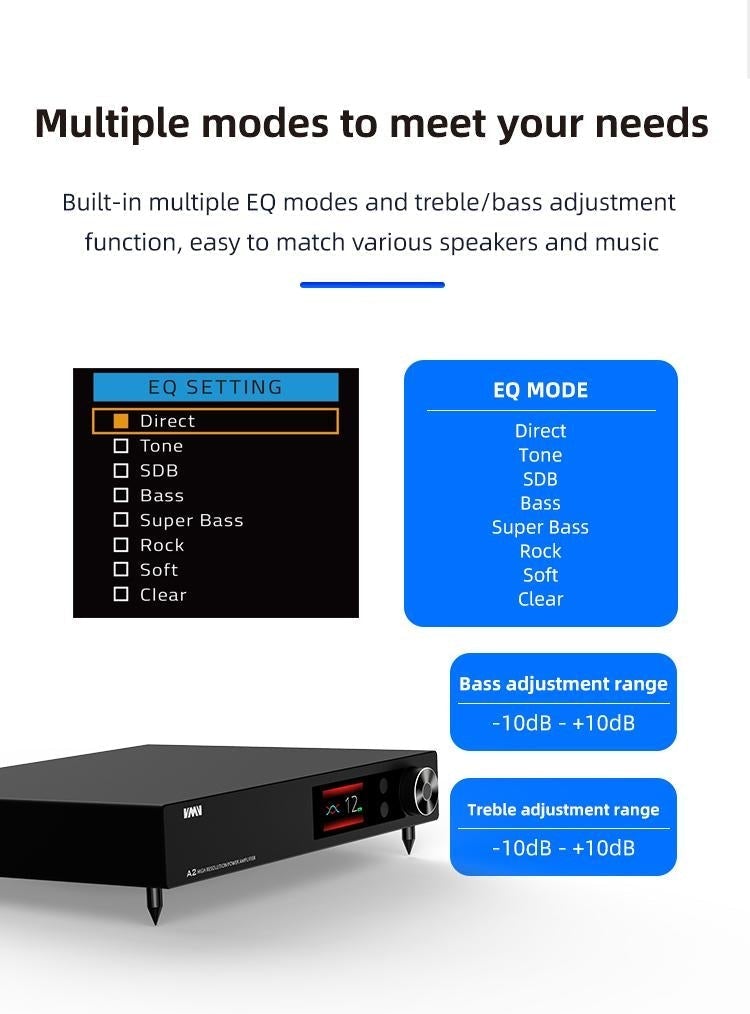

Find your sound with multiple EQ modes

Complement your favorite genres with built-in EQ modes: Direct, Tone, SDB, Bass, Super Bass, Rock, Soft, and Clear. If you need to fine-tune the sound, adjust the bass and treble by 20 decibels each with built-in adjustment ranges.

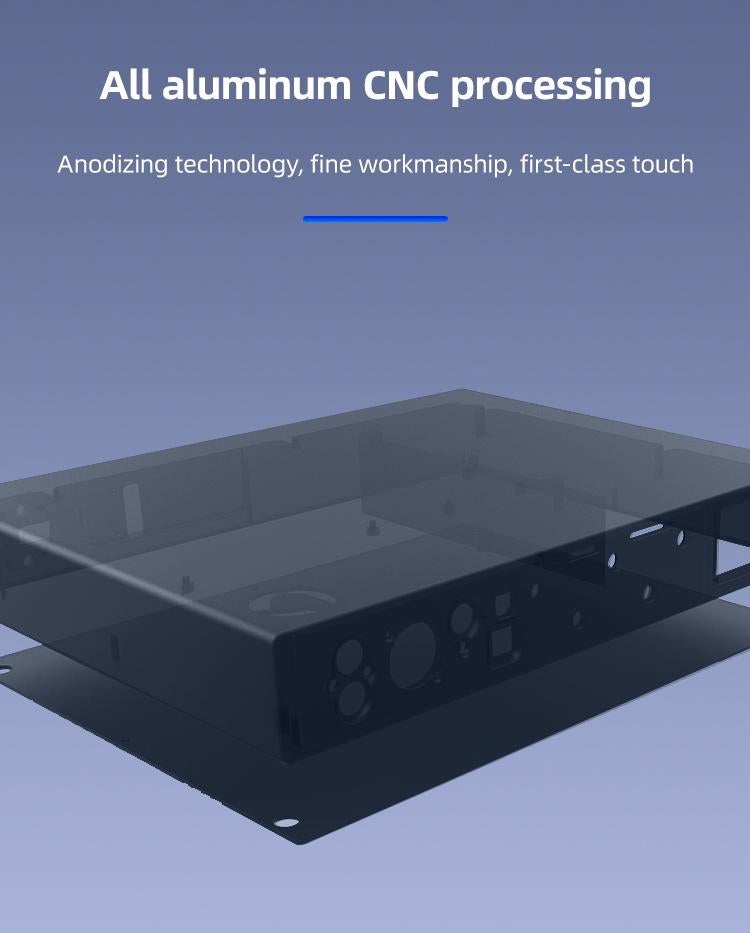

Elevate your space

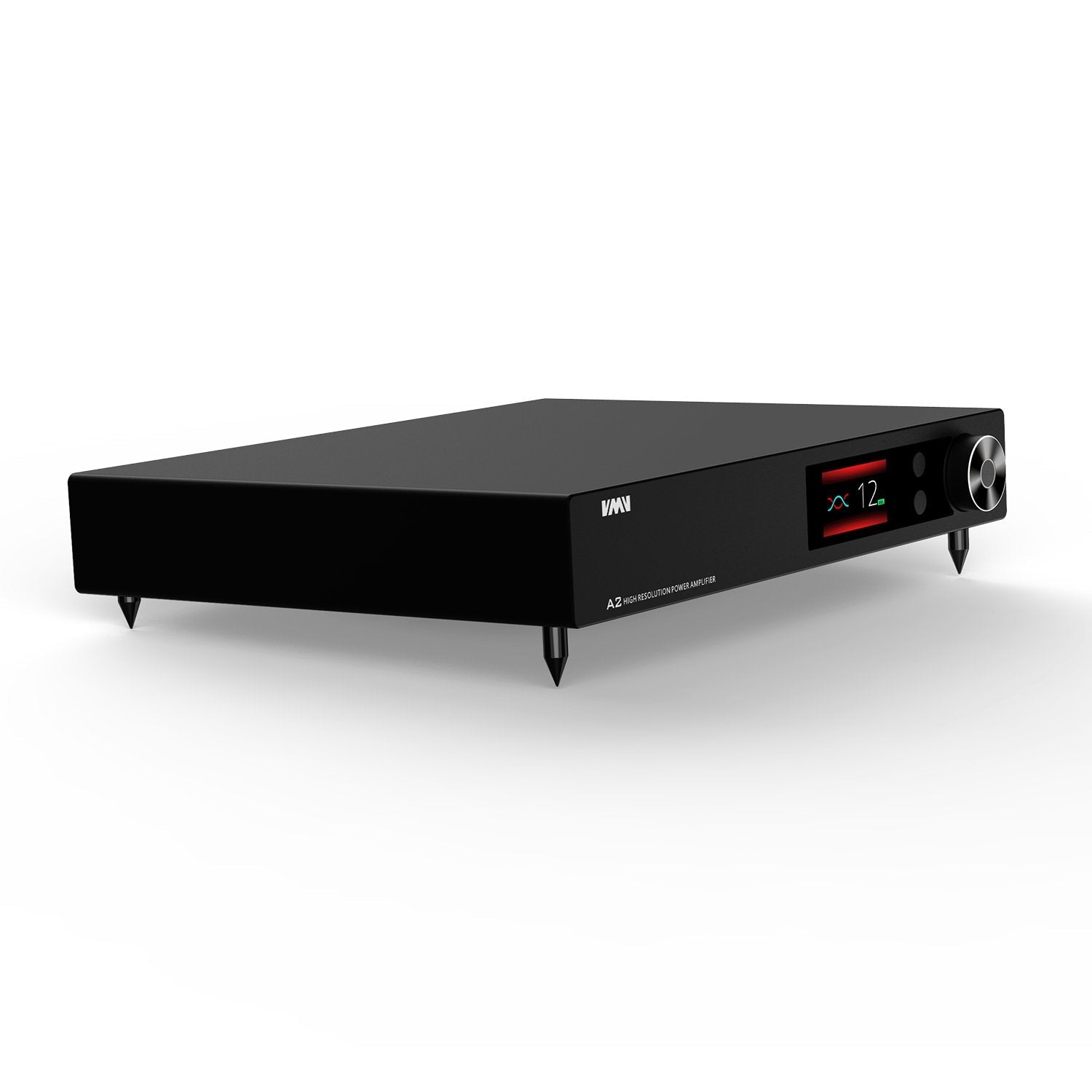

A CNC machined all-aluminum chassis protects the internal components while elevating your space, whether that be a desk, bookshelf, or table.


Product highlights

  • 200W x 2 output power easily drives large floor speakers

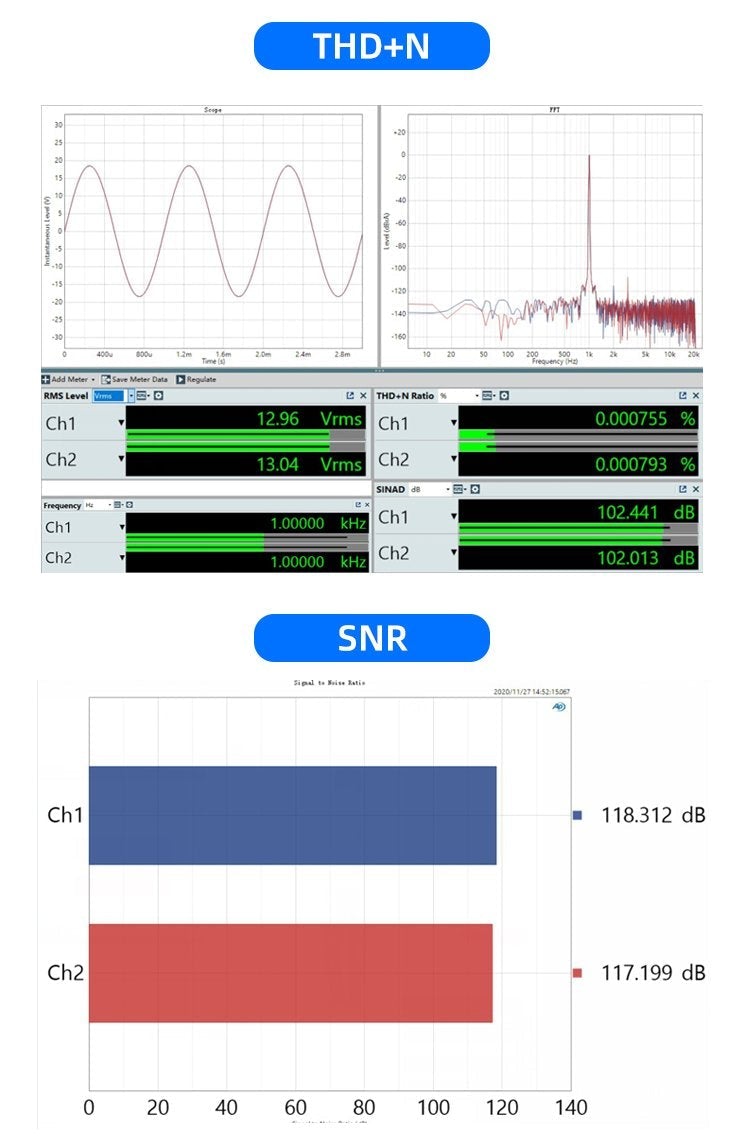

  • THD+N 0.0008%, SNR 115dB for a perfectly clean sound
  • PCM: 32bit/768kHz and DSD512 high-def playback
  • Multiple EQ modes maximize versatility
  • Qualcomm Bluetooth with UAT 24bit/192kHz support

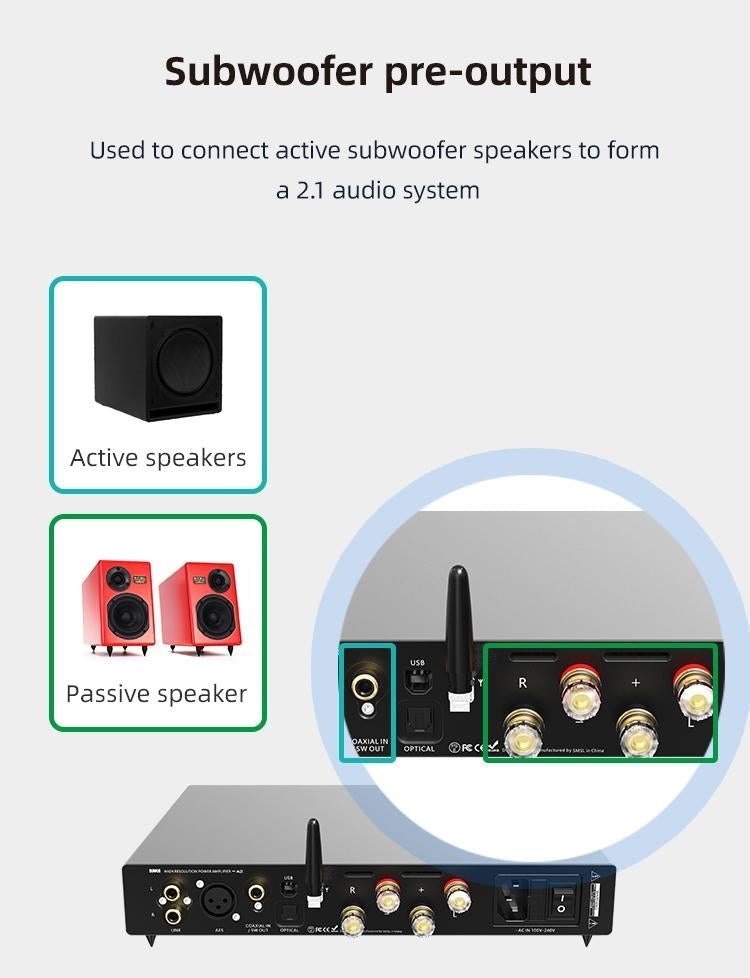

  • Subwoofer pre-output to rock the house
  • XMOS XU 216 for rich 32-bit playback

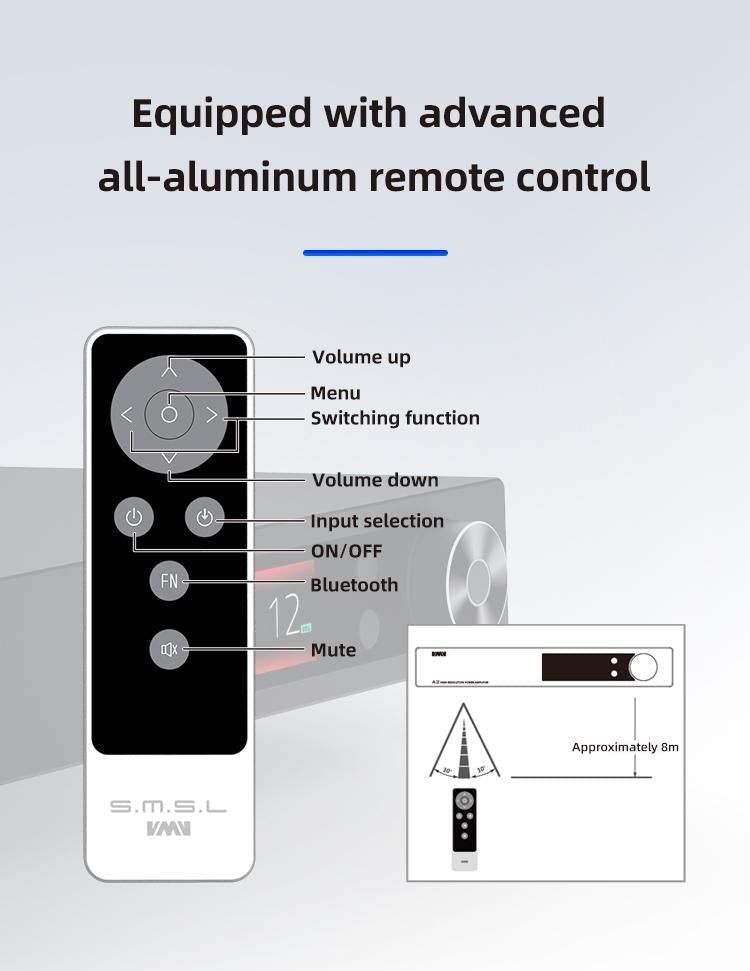

  • All-aluminum remote control
  • CNC machine process chassis
  • Protection circuit safeguards the circuitry

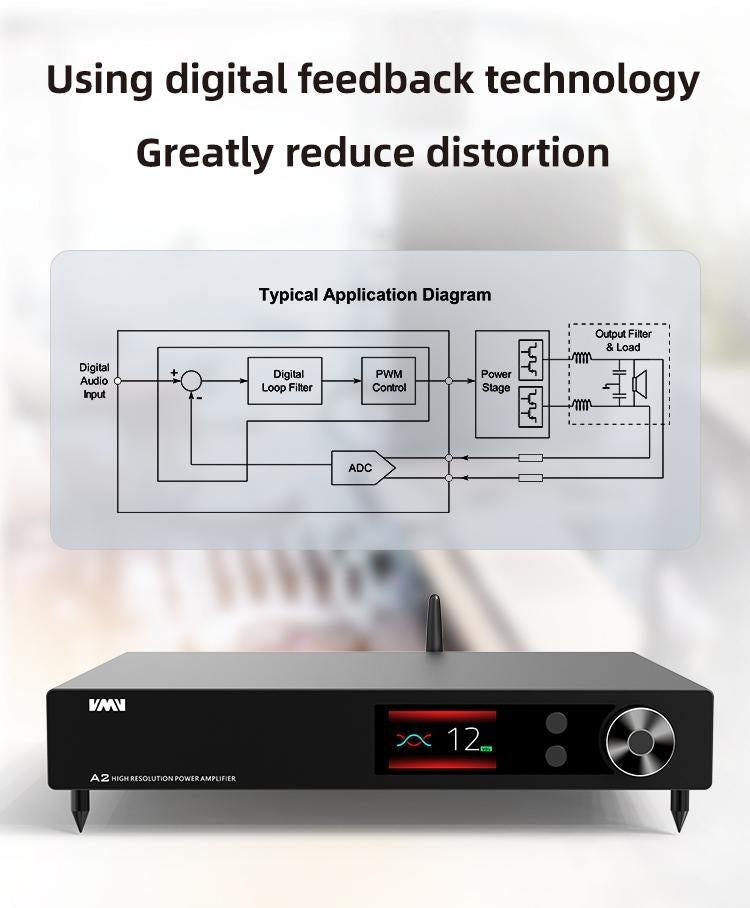

  • Digital feedback technology greatly reduces distortion

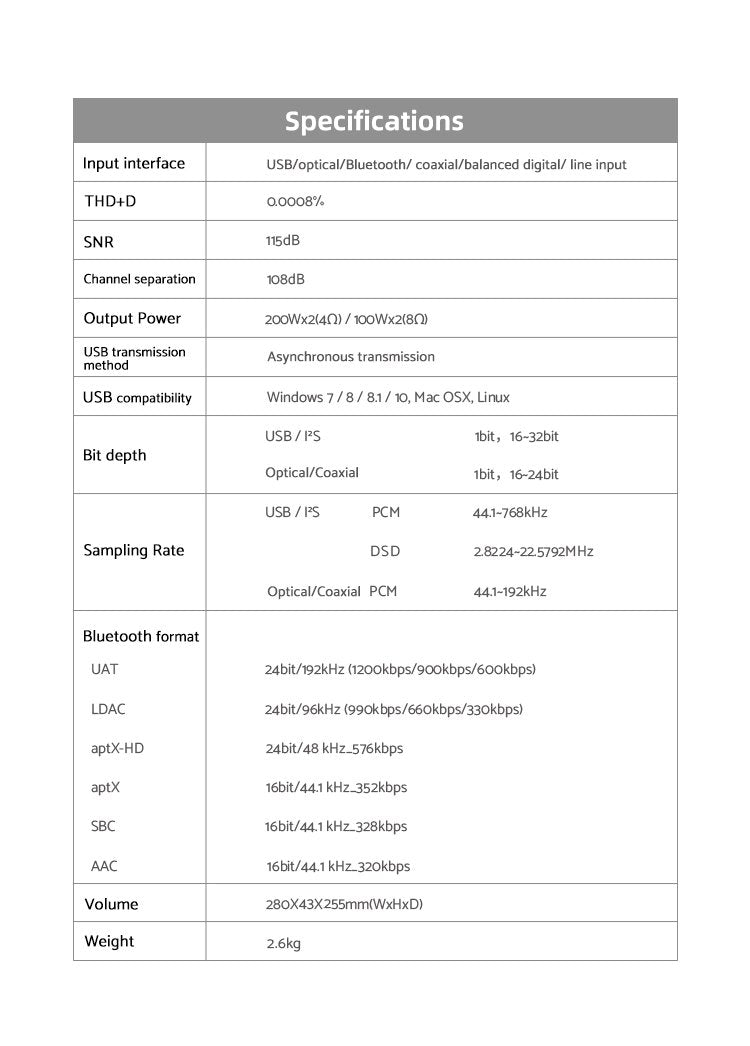

Specs

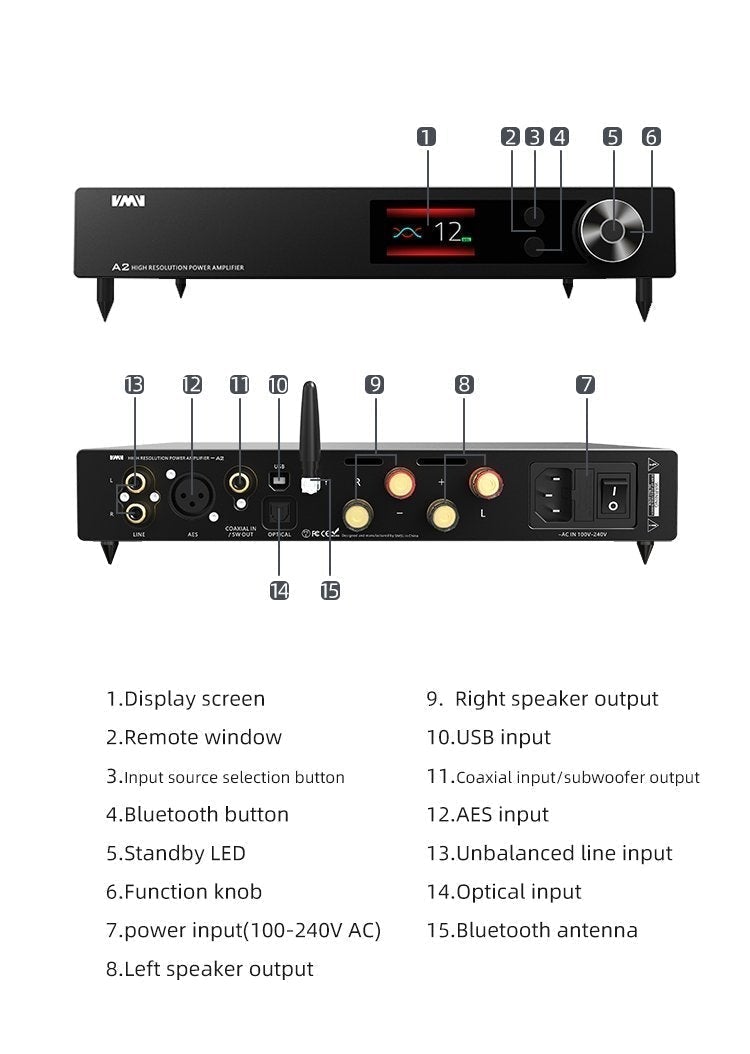

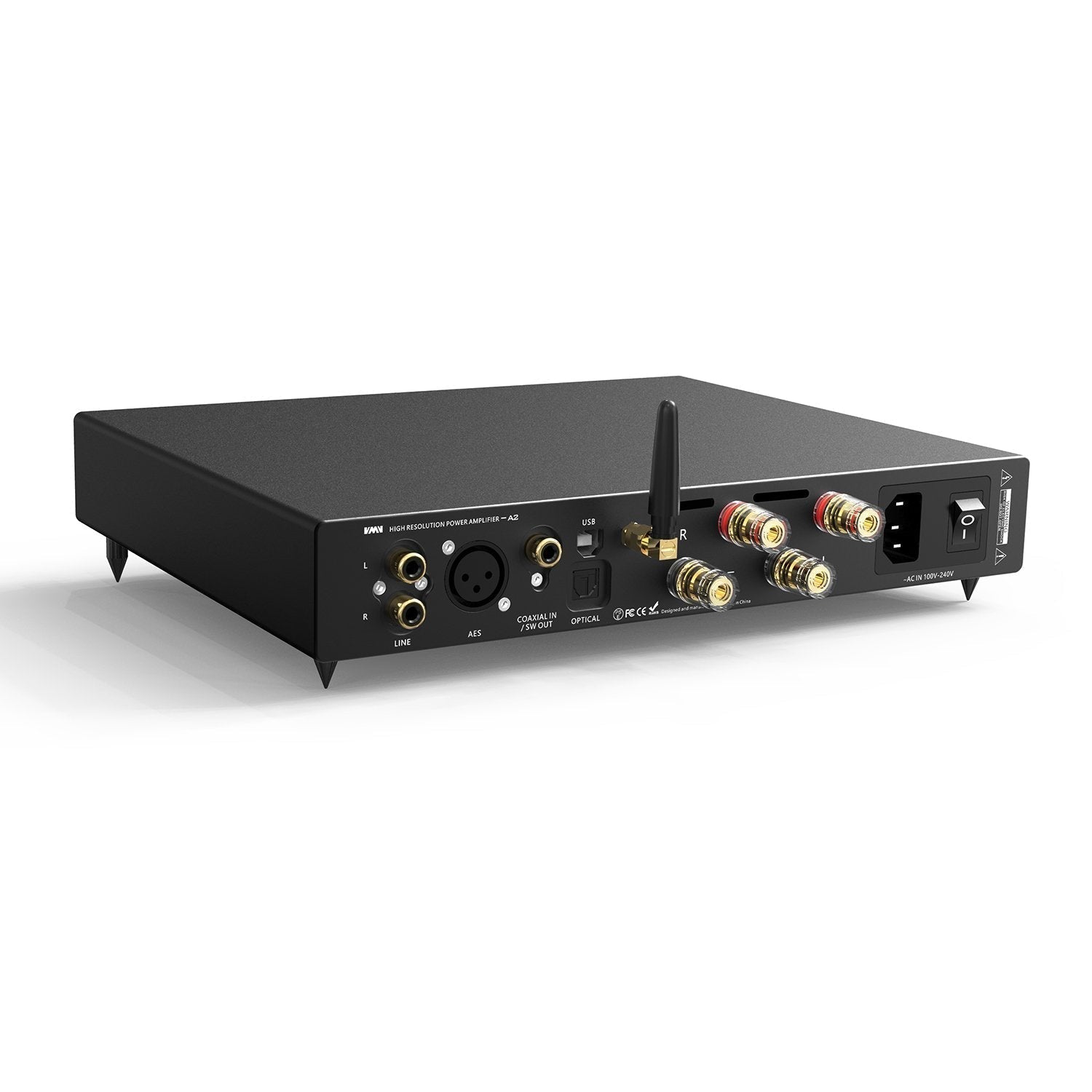

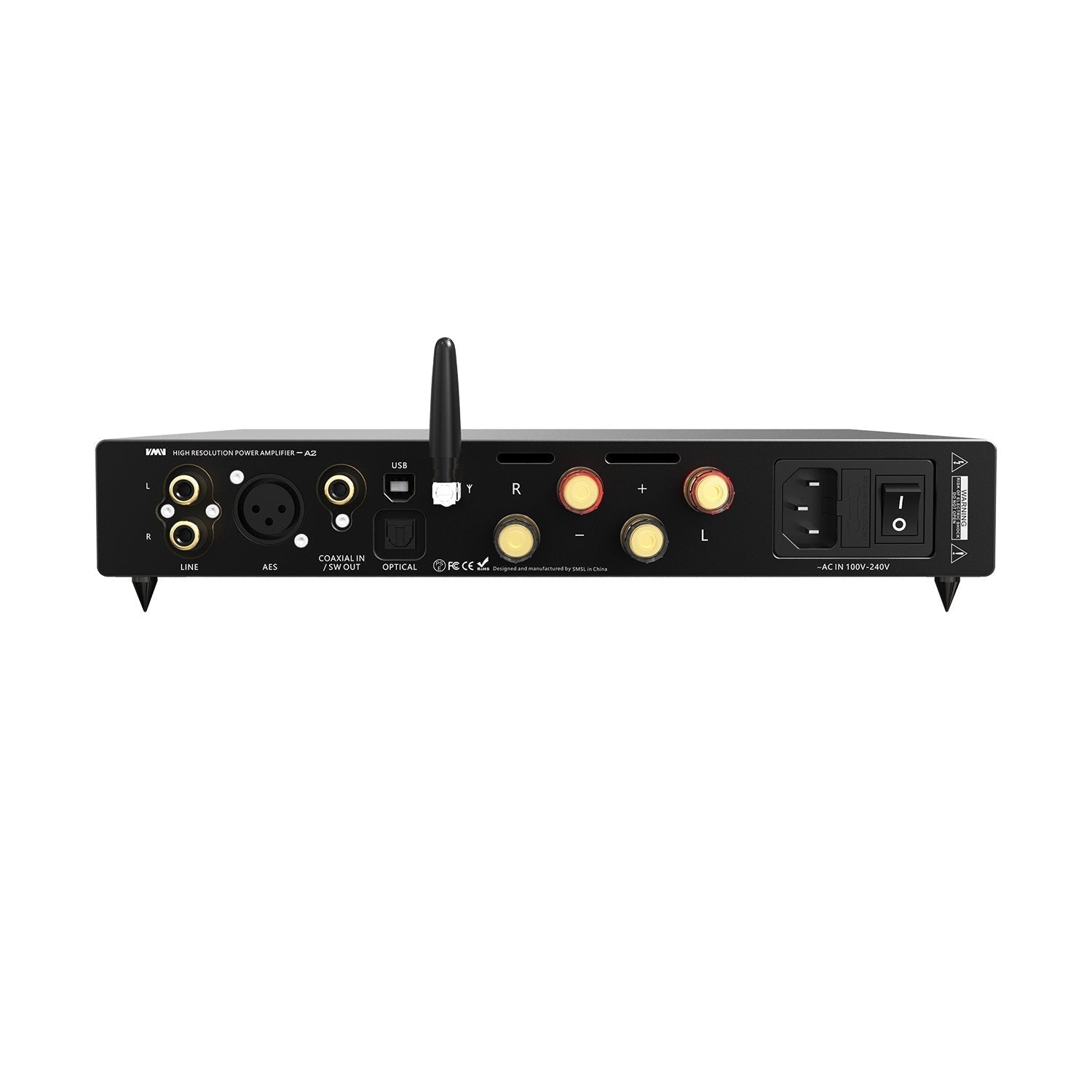

  • Inputs: USB, coaxial, AES, Unbalanced, optical, bluetooth
  • Outputs: analog speakers

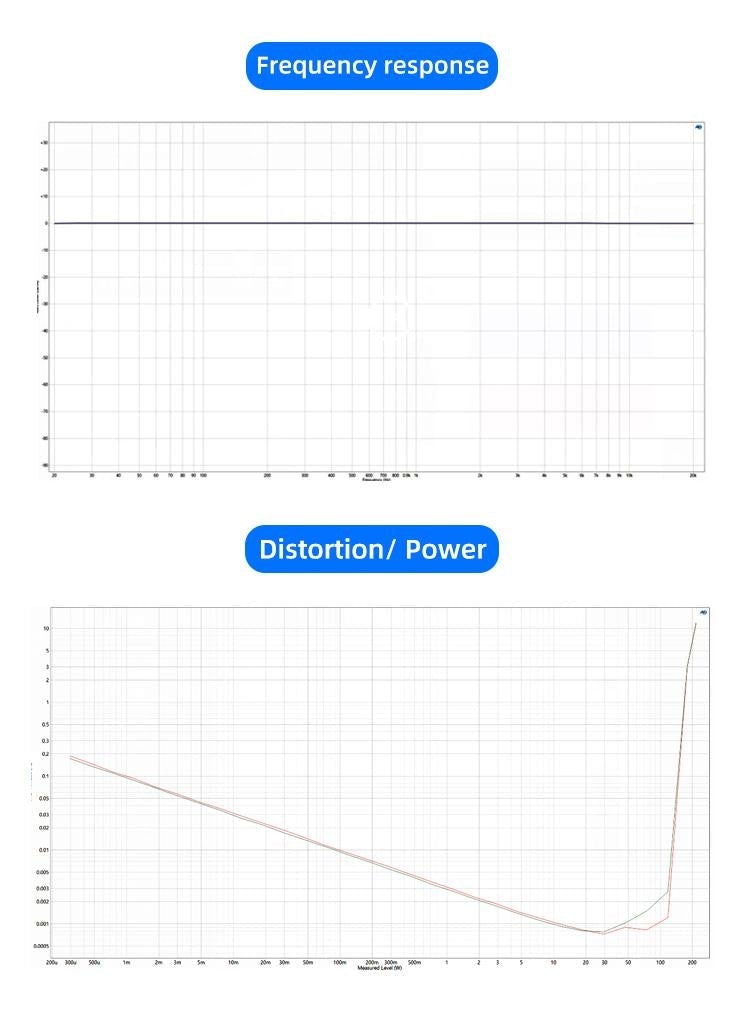

  • THD+N: 0.0008%
  • SNR: 115dB
  • Channel separation: 108dB
  • Output power: 200W x2 (4Ω) / 100Wx2 (8Ω)
  • USB transmission method: asynchronous
  • USB compatibility: Windows 7/ 8/ 8.1/ 10, Mac OSX, Linux
  • Bit depth
    • USB/ I2S: 1bit, 16-32bit
    • Optical/ coaxial: 1bit, 16-24bit
  • Sampling rate
    • USB/ I2S:
      • PCM: 44.1 - 768kHz
      • DSD: 2.8224 - 22.5792MHz
    • Optical/ coaxial
      • PCM: 44.1 - 192kHz
  • Bluetooth format
    • UAT: 24bit/ 192kHz (1200kbps/ 900kbps/ 600kbps)
    • LDAC: 24bit/ 96kHz (990kbps/ 660kbps/ 330kbps)
    • aptX-HD: 24bit/ 48kHz_576kbps
    • aptX: 16bit/ 44.1kHz_352kbps
    • SBC: 16bit/ 44.1kHz_328kbps
    • AAC: 16bit/ 44.1kHz_320kbps

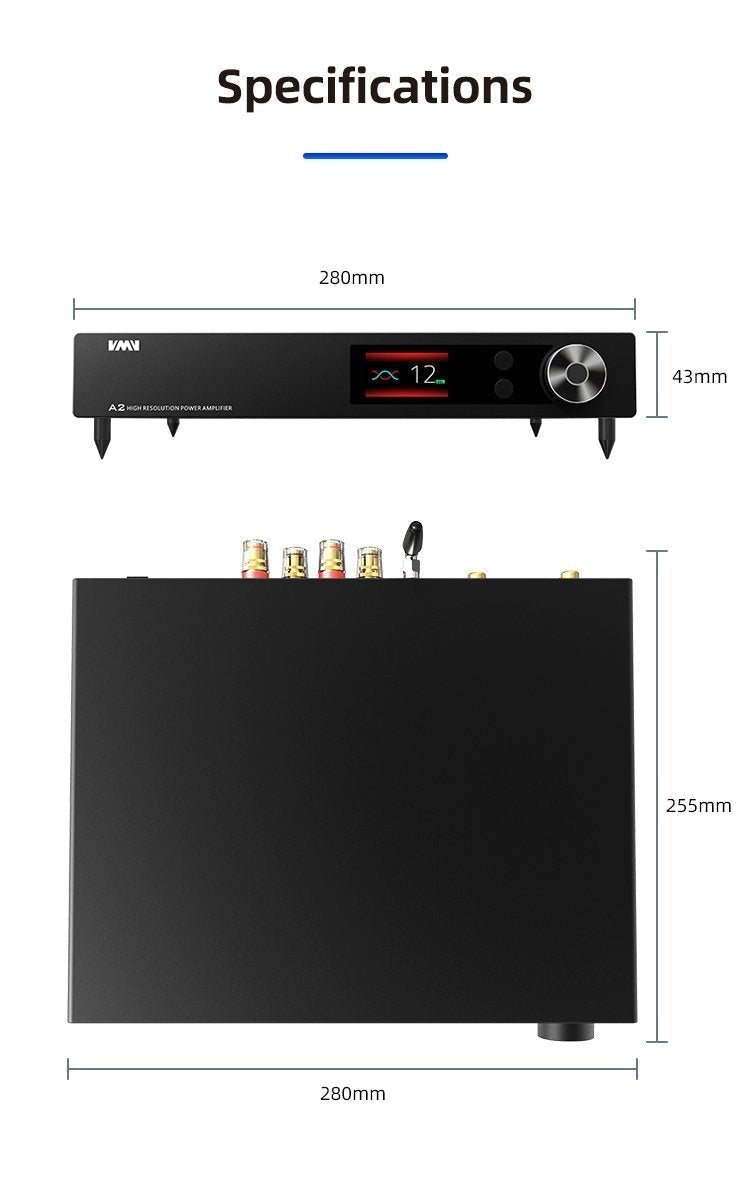

  • Dimensions: 9.4 x 1.69 x 10” (240 x 43 x 255mm)
  • Weight: 5.7lbs (2.6kg)

What’s included

  • SMSL VMV A2 High Resolution Power Amplifier
  • Remote control
  • Power cord
  • User manual
  • Bluetooth antenna
