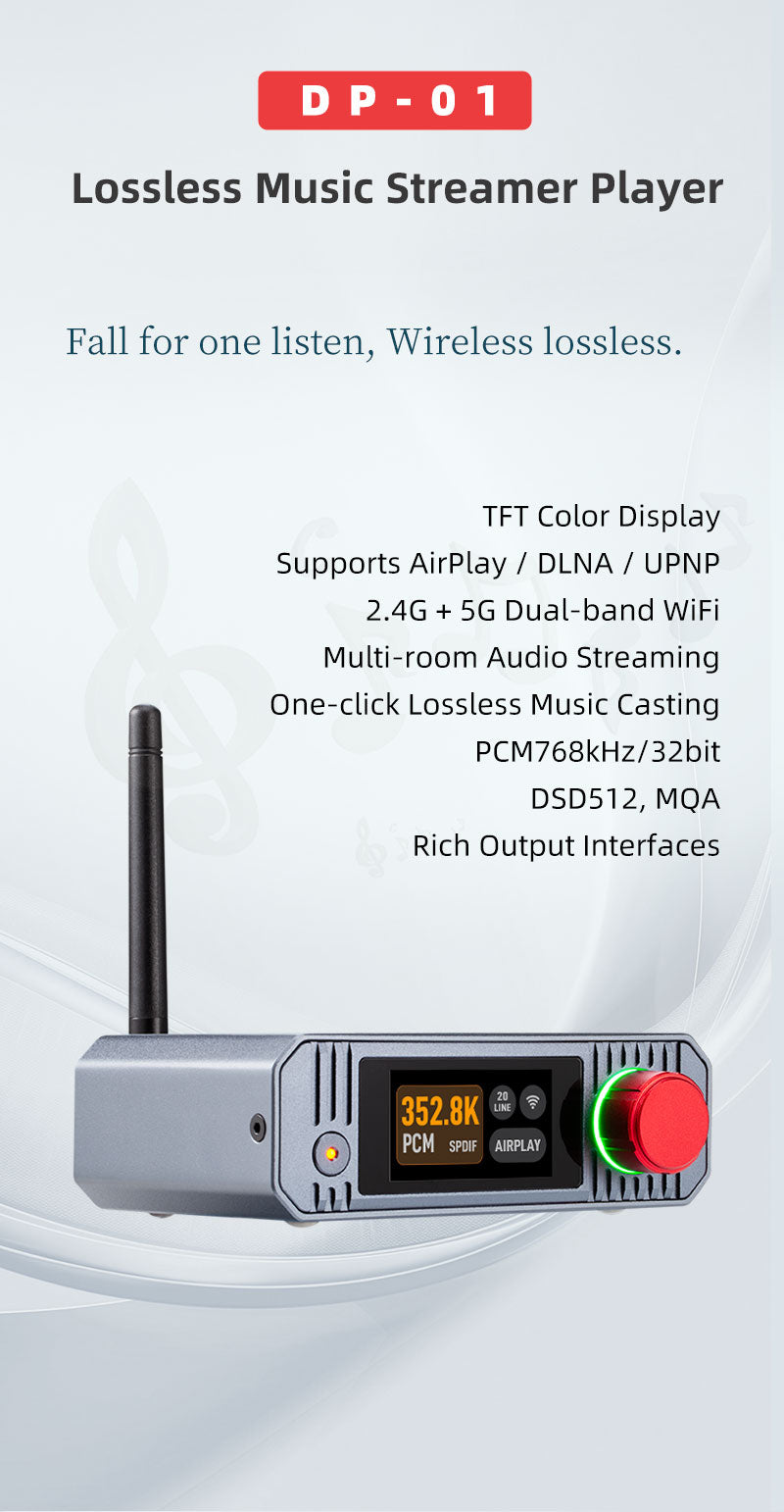

Multi-Room Network Audio Streamer

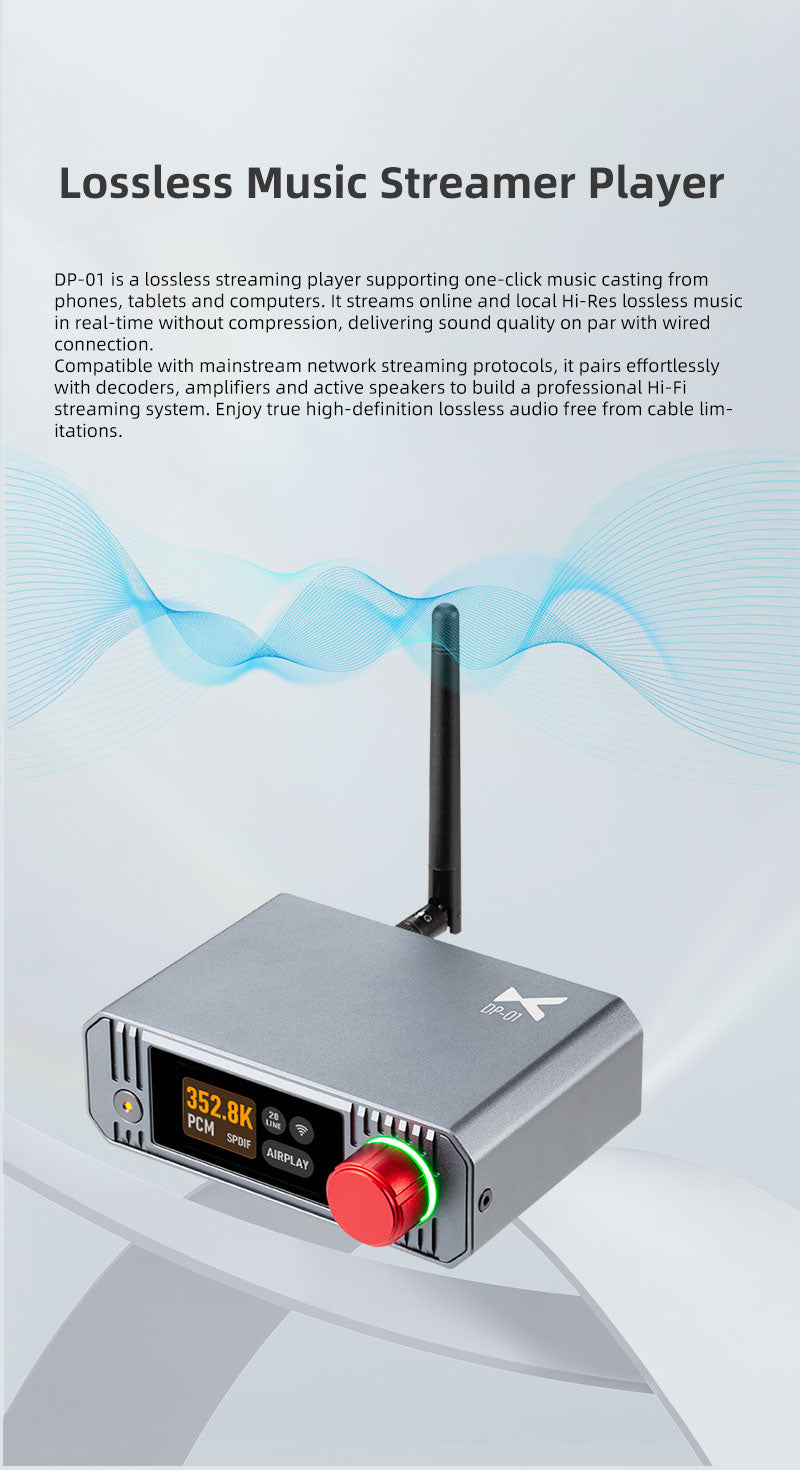

The xDuoo DP-01 is a compact network music streamer designed to bring Hi-Res wireless playback into an existing audio system. Built for lossless music streaming from phones, tablets, computers, and network storage, it supports AirPlay, DLNA, UPnP, and multi-room playback while handling PCM up to 768kHz/32-bit, DSD512, and MQA decoding. With a Cirrus Logic DAC, dual-band Wi-Fi, wired Ethernet support, and a compact aluminum chassis, the DP-01 adds modern streaming functionality without replacing the components you already use.

Wireless streaming without compression

AirPlay, DLNA, and UPnP compatibility allow high-bitrate audio transmission for lossless playback while removing the physical limitations of wired connections. Stream from Apple Music, TIDAL, Spotify, Qobuz, Roon, and compatible applications with direct decoding handled by the player.

Built for local libraries and network audio

Connect to NAS systems and shared storage through Roon and other music management platforms for centralized access to your collection. The DP-01 supports local library organization and network streaming in one compact component, making it easy to move between cloud services and stored media.

Multi-room playback control

Whole-home audio support lets you play music across multiple rooms and adjust playback independently from a phone or control device. Volume can be tailored for each room while maintaining synchronized playback throughout your whole house.

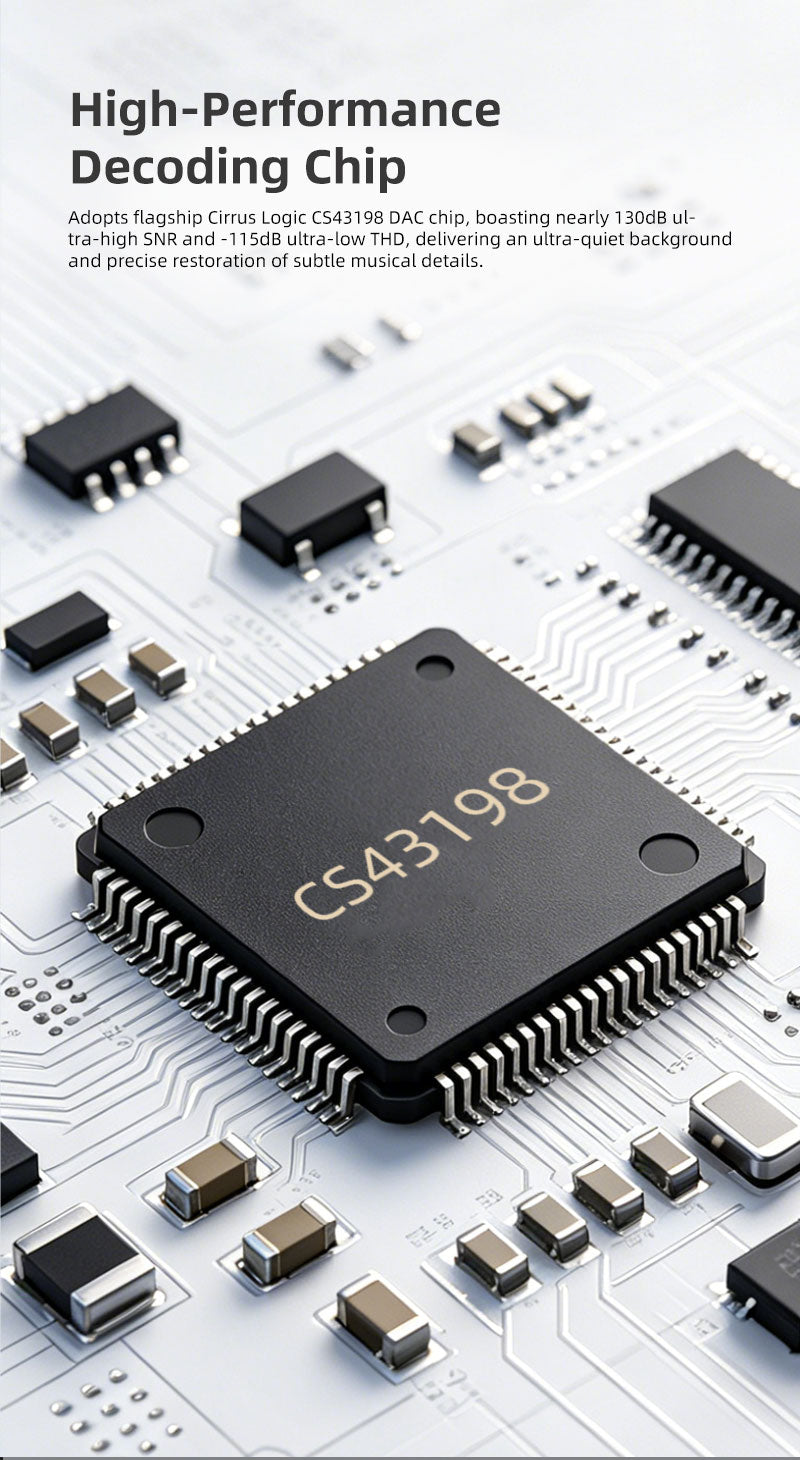

Cirrus Logic decoding with Hi-Res support

At the center of the DP-01 is a Cirrus Logic CS43198 DAC chip designed for detailed playback and low-noise operation. It delivers nearly 130dB SNR with THD measured at -115dB, helping preserve low-level musical detail and maintain a quiet background.

Stable processing for uninterrupted playback

An audio-grade quad-core ARM Cortex-A7 processor provides the computing power needed for stable playback and responsive operation. The processor balances low power consumption with audio processing performance for reliable streaming and smooth navigation.

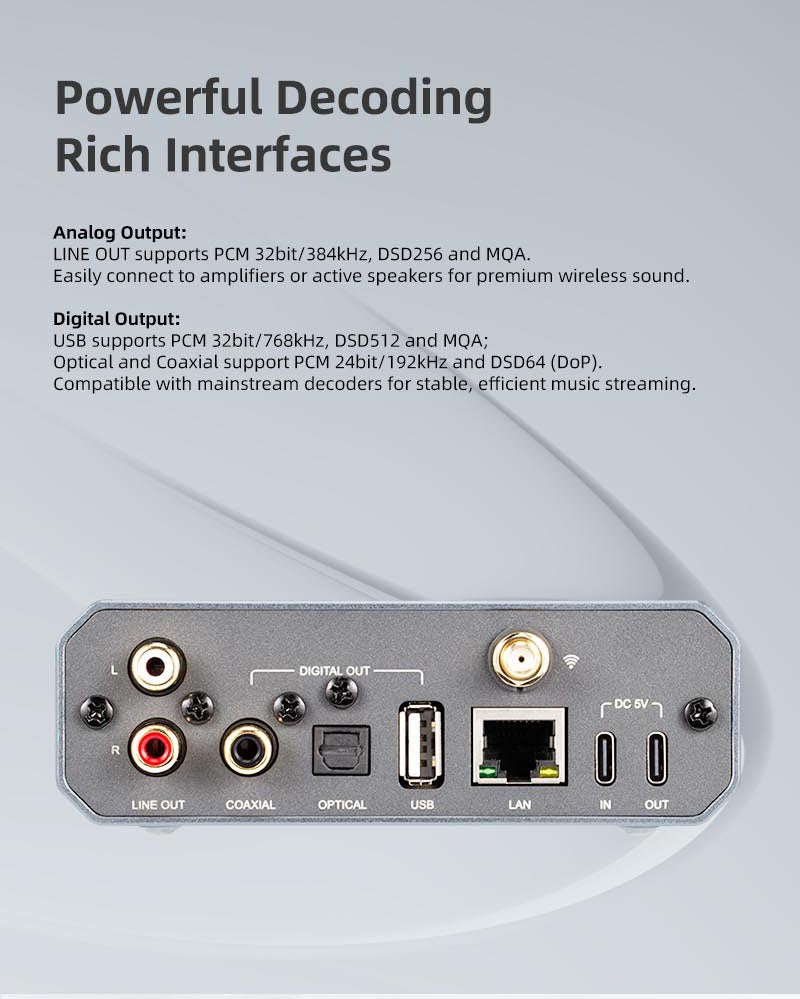

Flexible digital and analog connectivity

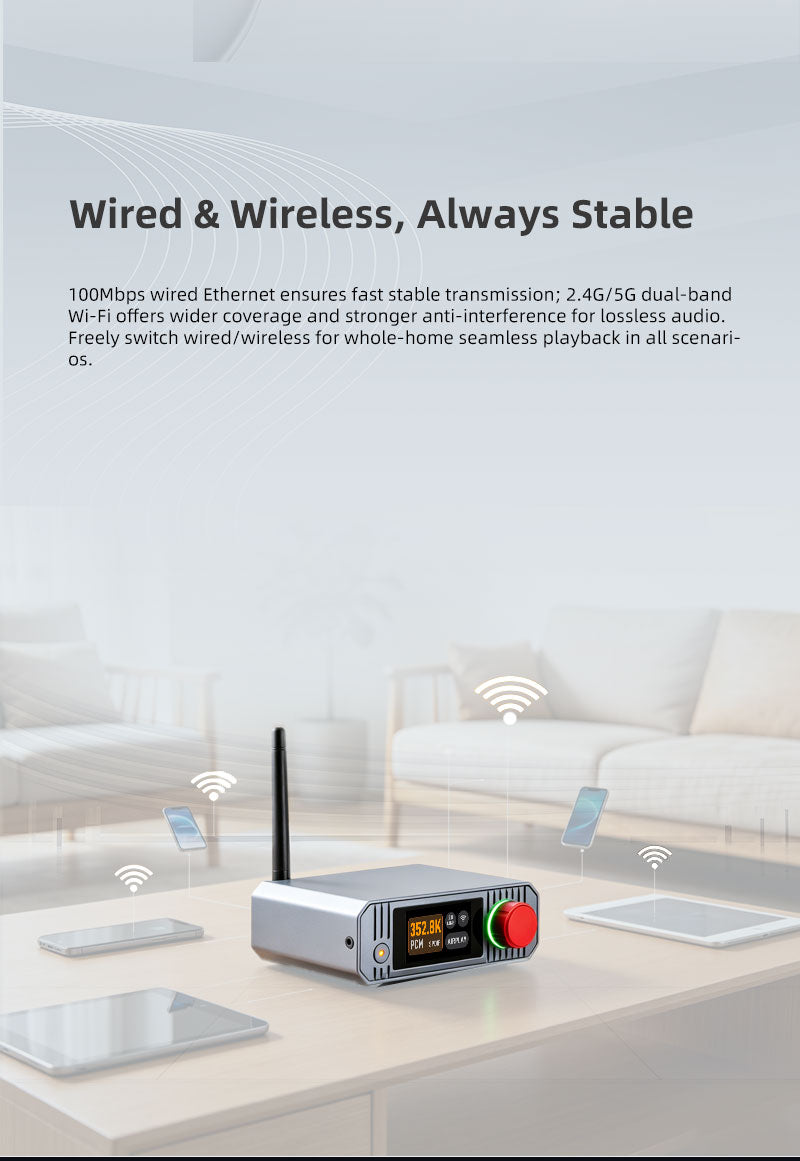

Digital outputs include USB, optical, and coaxial connections for compatibility with external DACs and downstream audio systems. Analog RCA line outputs allow direct connection to amplifiers and active speakers. Wired 100Mbps Ethernet and dual-band 2.4G/5G Wi-Fi give you flexibility between wired stability and wireless convenience.

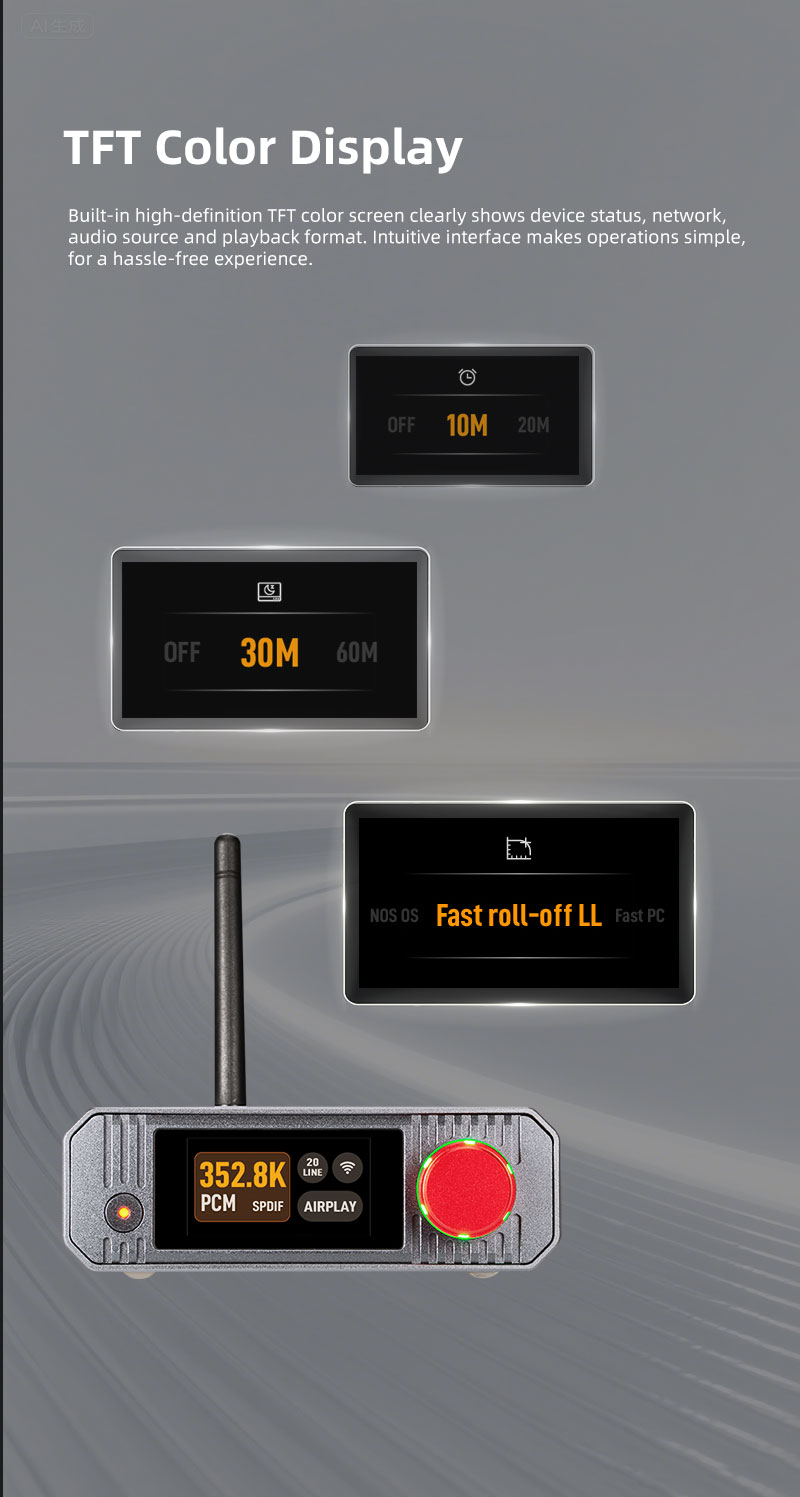

TFT display with precise control

A built-in 1.9-inch TFT color display shows playback status, audio format, network information, and system settings. A 100-step stepless volume control enables fine adjustments with smooth response, while onboard filter options and display controls allow playback customization.

Smart power management

Integrated sleep timer and automatic power-off functions help reduce unnecessary power use. Set playback duration before bedtime or allow the device to shut down automatically after idle periods.

Product highlights

• Lossless wireless music streaming

• AirPlay, DLNA, and UPnP support

• PCM 32-bit/768kHz playback support

• DSD512 and MQA decoding

• Cirrus Logic CS43198 DAC

• 100-step stepless volume control

• Multi-room audio playback

• 100Mbps Ethernet and dual-band Wi-Fi

• 1.9-inch TFT color display

• USB, optical, coaxial, and RCA outputs

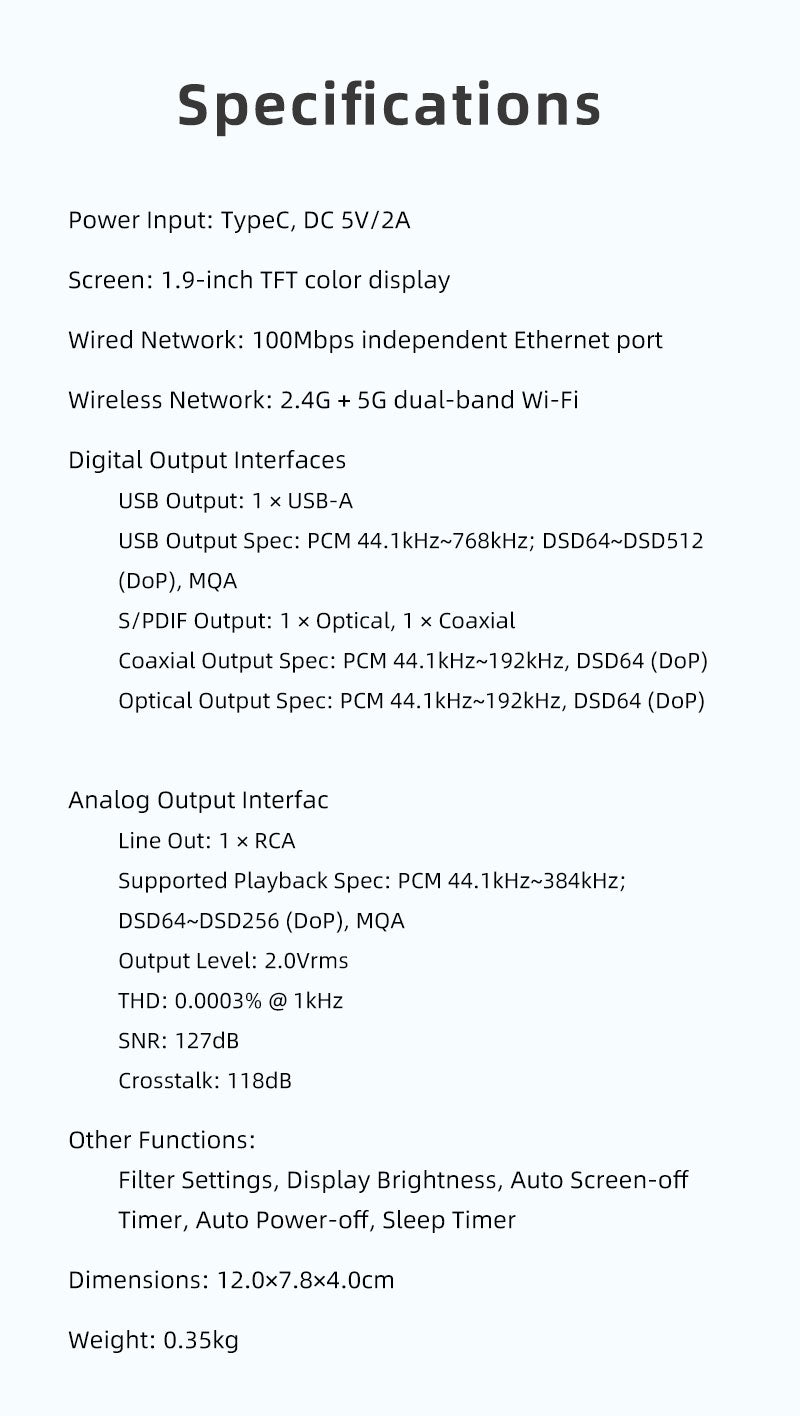

Specs

• DAC: Cirrus Logic CS43198

• Processor: Quad-core ARM Cortex-A7

• Display: 1.9-inch TFT color display

• Power input: USB-C, DC 5V/2A

• Wired network: 100Mbps Ethernet

• Wireless network: 2.4G + 5G dual-band Wi-Fi

• USB output: 1 x USB-A

• USB output support: PCM 44.1kHz–768kHz, DSD64–DSD512 (DoP), MQA

• S/PDIF outputs: 1 x Optical, 1 x Coaxial

• Optical and coaxial support: PCM 44.1kHz–192kHz, DSD64 (DoP)

• Line out: 1 x RCA

• Analog playback support: PCM 44.1kHz–384kHz, DSD64–DSD256 (DoP), MQA

• Output level: 2.0Vrms

• THD: 0.0003% @ 1kHz

• SNR: 127dB

• Crosstalk: 118dB

• Dimensions: 4.7 x 3.1 x 1.6 in (12.0 x 7.8 x 4.0 cm)

• Weight: 0.77 lb (0.35 kg)

What’s included

• DP-01 lossless music streamer player

• Wi-Fi antenna

• Power cable

• User documentation
