xDuoo XD-05 Basic DAC/Amp

$119 $140

Request A Price Match


IMPORTANT NOTE

Due to the unfortunate fire at the AKM manufacturing facility in Japan, we have a very limited supply of this item. We urge anyone interested in this item to buy it while supplies last. Despite our very best efforts to get these products to customers as soon as possible, the impact of the fire on AKM’s operations may cause shipping delays. The AKM supply volatility will not improve until the end of April 2021.

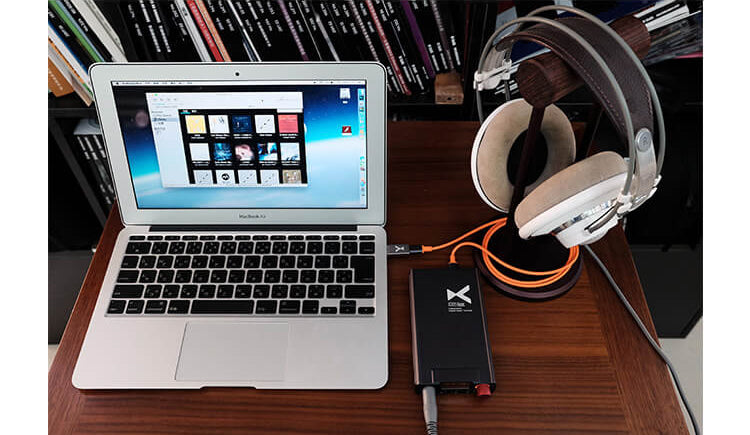

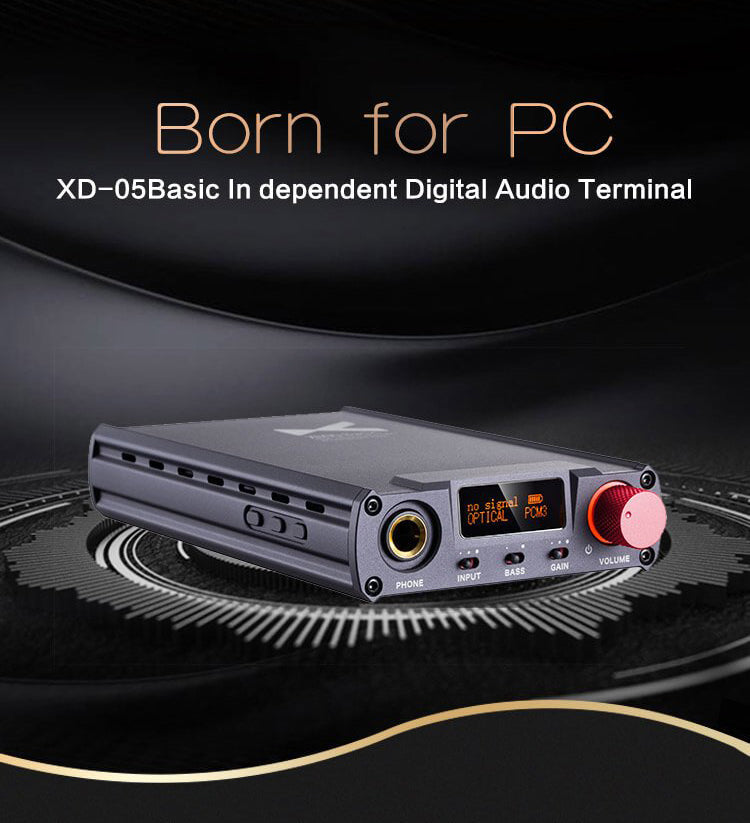

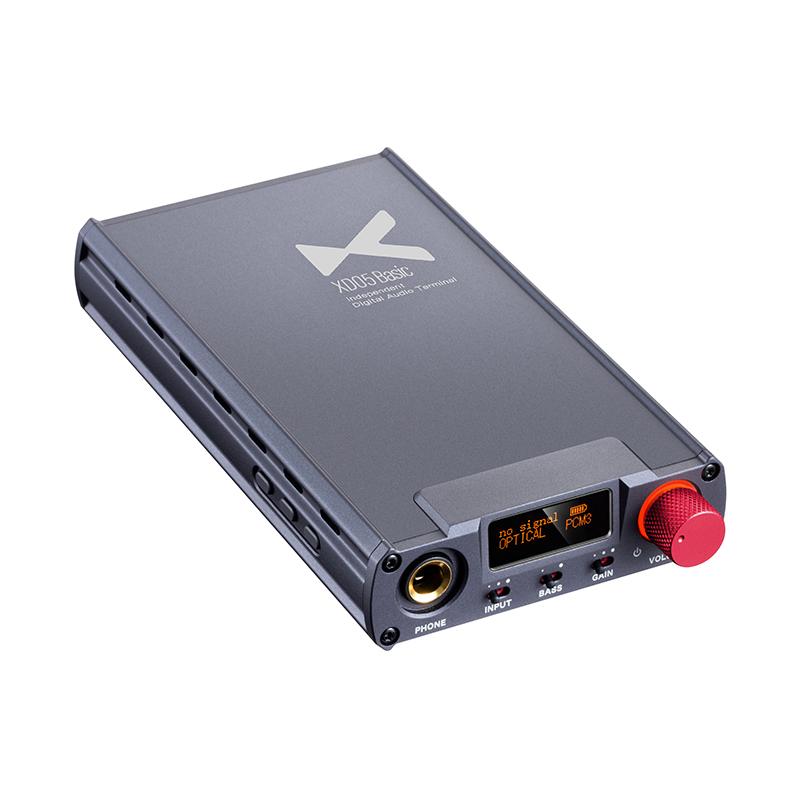

The xDuoo XD-05 Basic is a DAC/Amp that’s powerful enough for your desktop yet portable enough for your pocket. Featuring an audiophile-grade digital-to-analog (DAC) chip, input connections for all the major consoles, and massive output power, it’s a power up for any gaming rig.



Pro Gamer-Grade Sound

With an AK4490 digital-to-analog converter (DAC), the XD-05 Basic supports playback of sample rates up to PCM 32bit/384kHz and DSD256 (basically the audio equivalent of 8K video).


Bump It

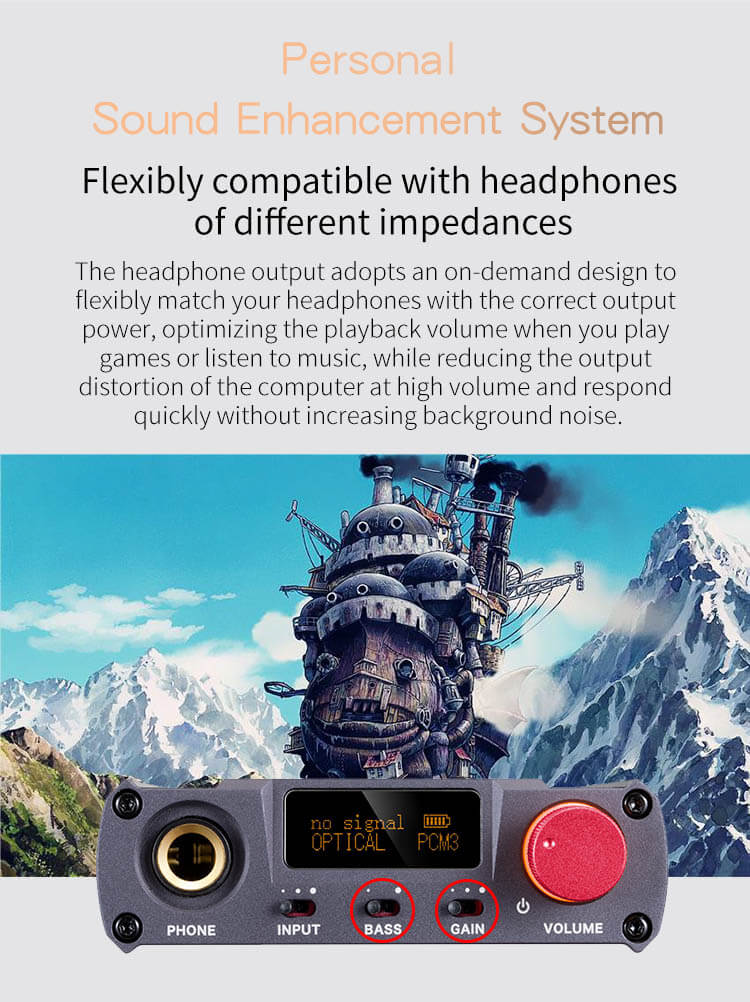

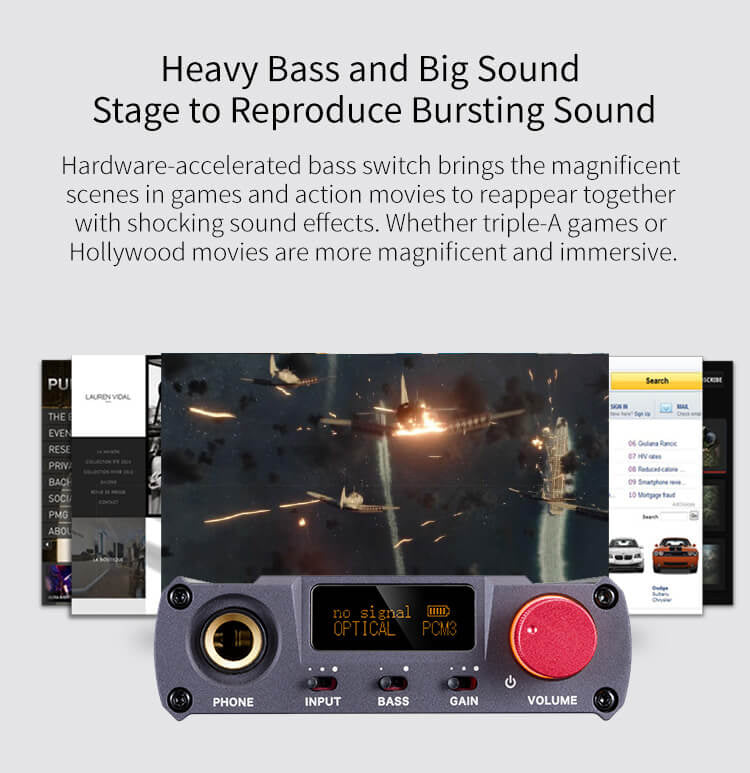

A bass switch on the front plate gives you that extra oomph when you need it: when you’re fighting for your life in a AAA game or when the beat of your favorite track drops.


A Force to Be Reckoned With

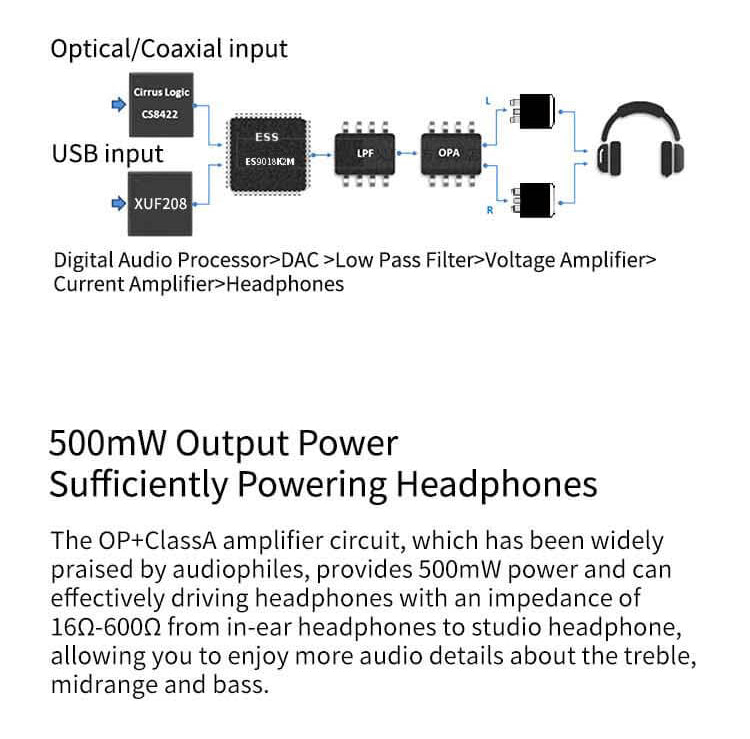

Boasting 500mW of output power, the XD-05 Basic can drive nearly any phone you throw at it, whether they be IEMs or power-hungry planar magnetics.


Peacekeeping the Console War

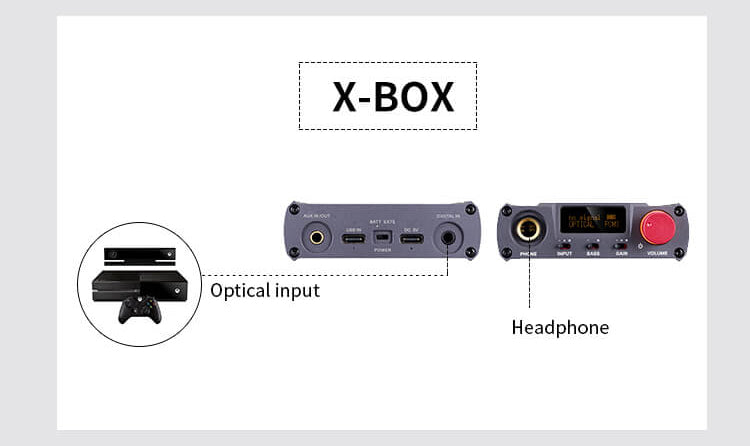

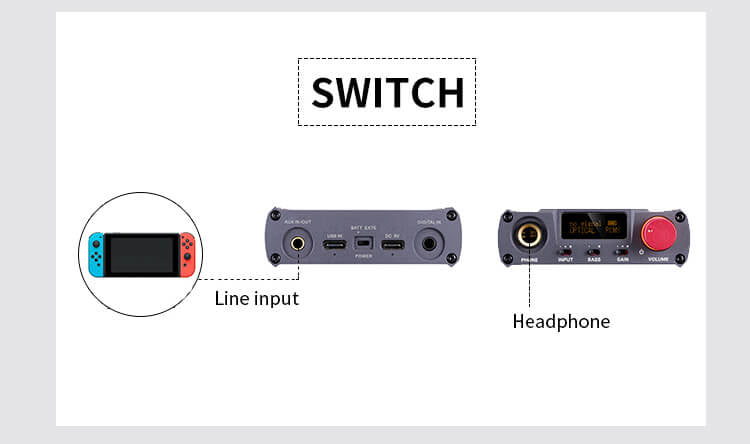

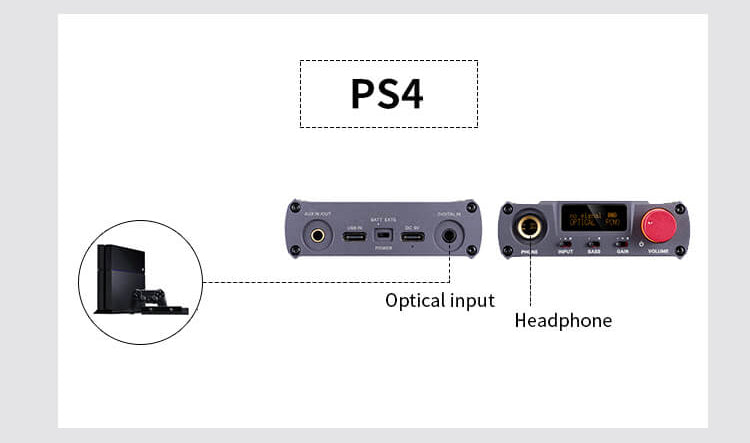

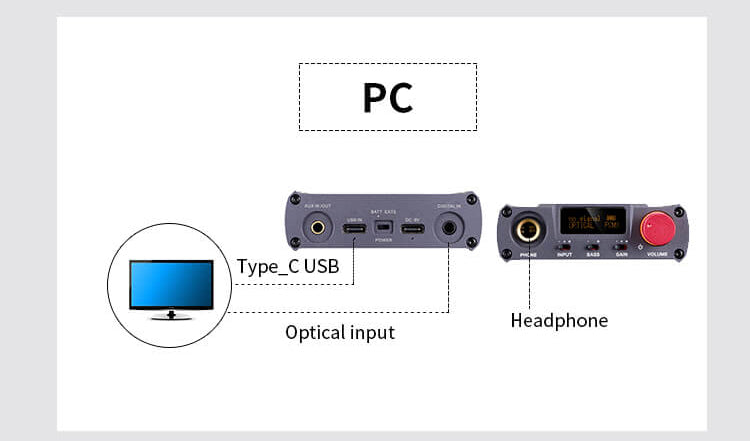

There may be a console war raging, but you wouldn’t know it from looking at the XD-05 Basic’s back plate. With support for USB Type-C, optical, and line-in inputs, this DAC/Amp plays nice with Switch, PS4, X-Box, and PC.


Excursion-Ready

Are all gamers vitamin D-deficient homebodies? Sure, but they don’t have to be. With over nine hours of battery life, the XD-05 Basic can free any gamer from the nomadic restrictions of stationary equipment and help them, you know, see the sun every once in a while. (Pairs really nicely with the Nintendo Switch!)

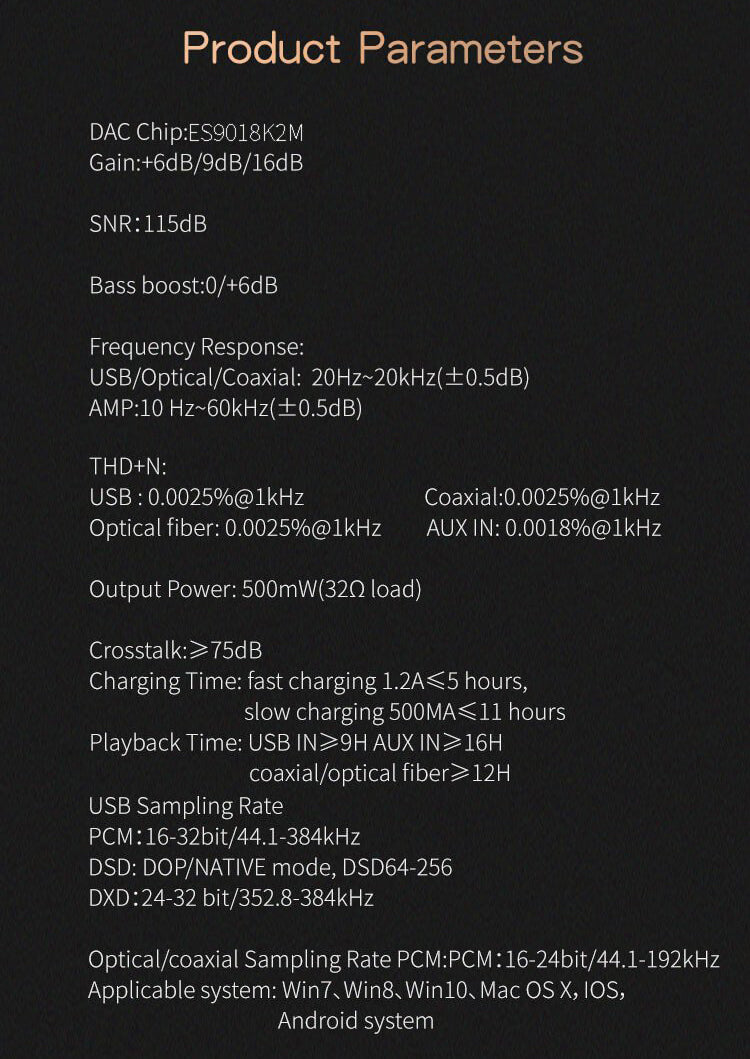

Specs

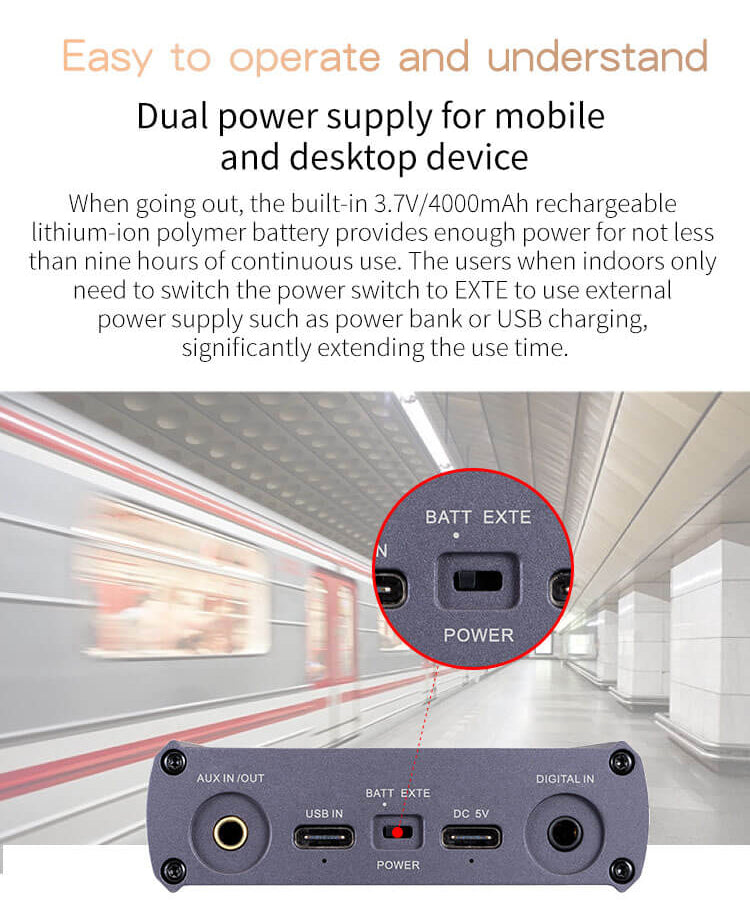

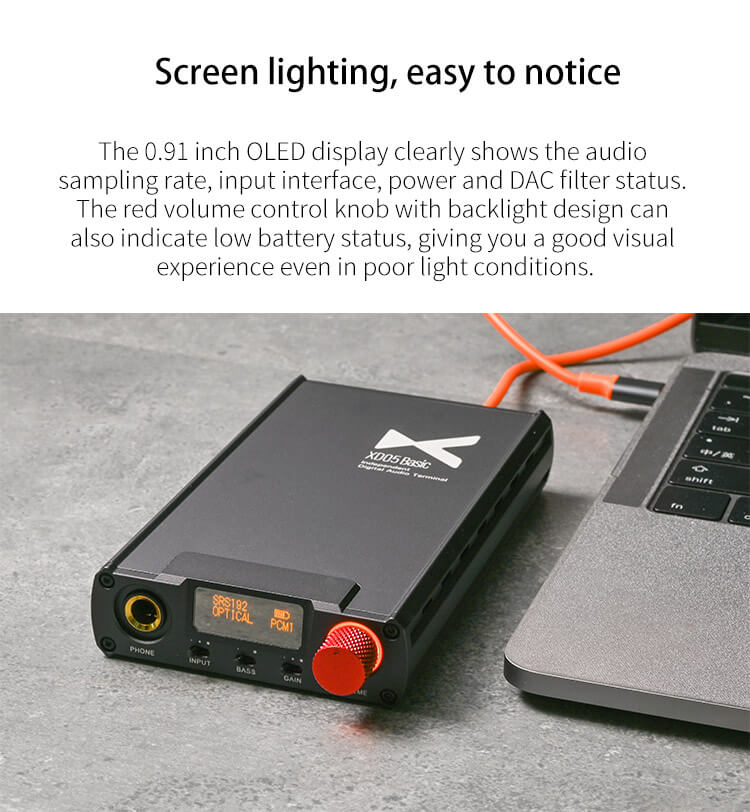

  • Power Source: built-in 3.7V/4000mAh rechargeable lithium polymer battery Screen: 0.91 inch OLED screen

  • Compliant OS: Windows 7/8/10, Mac OS X, 10S, Android system

  • Output power: 500mW (320 load)

  • Frequency Response: AMP:10Hz-100KHz (±0.5dB)

    • USB/SPDIF: 20Hz-20KHz (±0.5dB)

  • Sampling Rate Support:

    • USB PCM:16-32Bit/44.1K-384KHz

    • DSD: DOP/NATIVE mode, DSD64-256 (1Bit/2.8M-11.2M)

    • DXD: 24-32Bit/352.8K-384KHz

    • OPT/COA PCM:16-24BIT/44.1K-192KHz

  • Gain: +6/9/16dB

  • Bass boost: 0/+6dB

  • THD+N:

    • USB IN : 0.0025%@1kHz

    • COAXIAL IN: 0.0025%@1kHz

    • OPTICAL IN: 0.0025%@1kHz

    • AUX IN: 0.0018%@1kHz

  • SNR: 115dB

  • Crosstalk:75dB

  • Battery life: z9H (USB IN), z12H (SPDIF IN), z16H (AUX IN)

  • Charging time: Quick charge 5H (with charger), slow charge 11H (with computer)

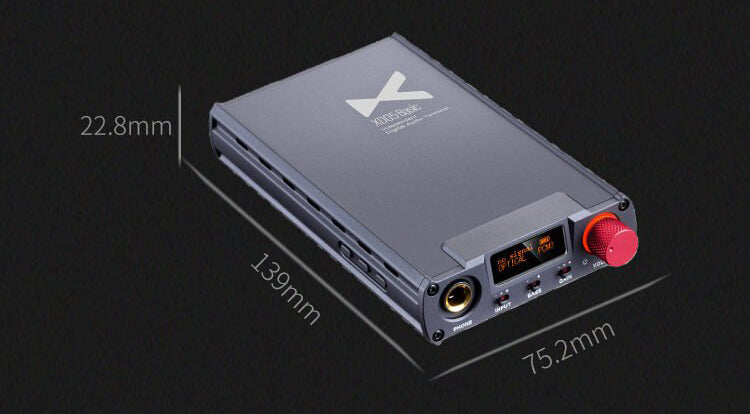

  • Size: 5.4 x 2.9 x 0.89” (139 x 75.2 x 22.8mm)

  • Weight: 9.4oz (268g)
