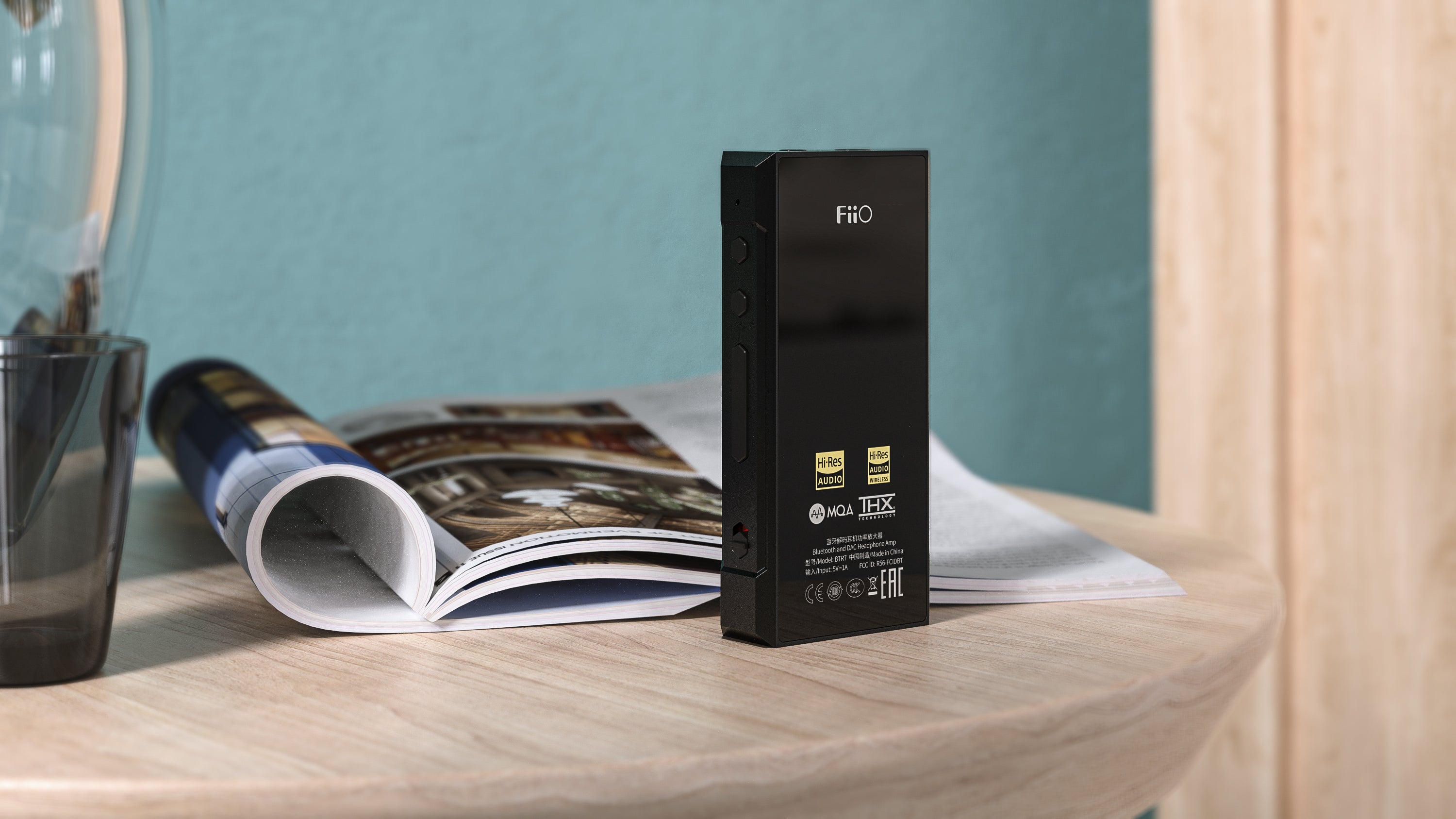

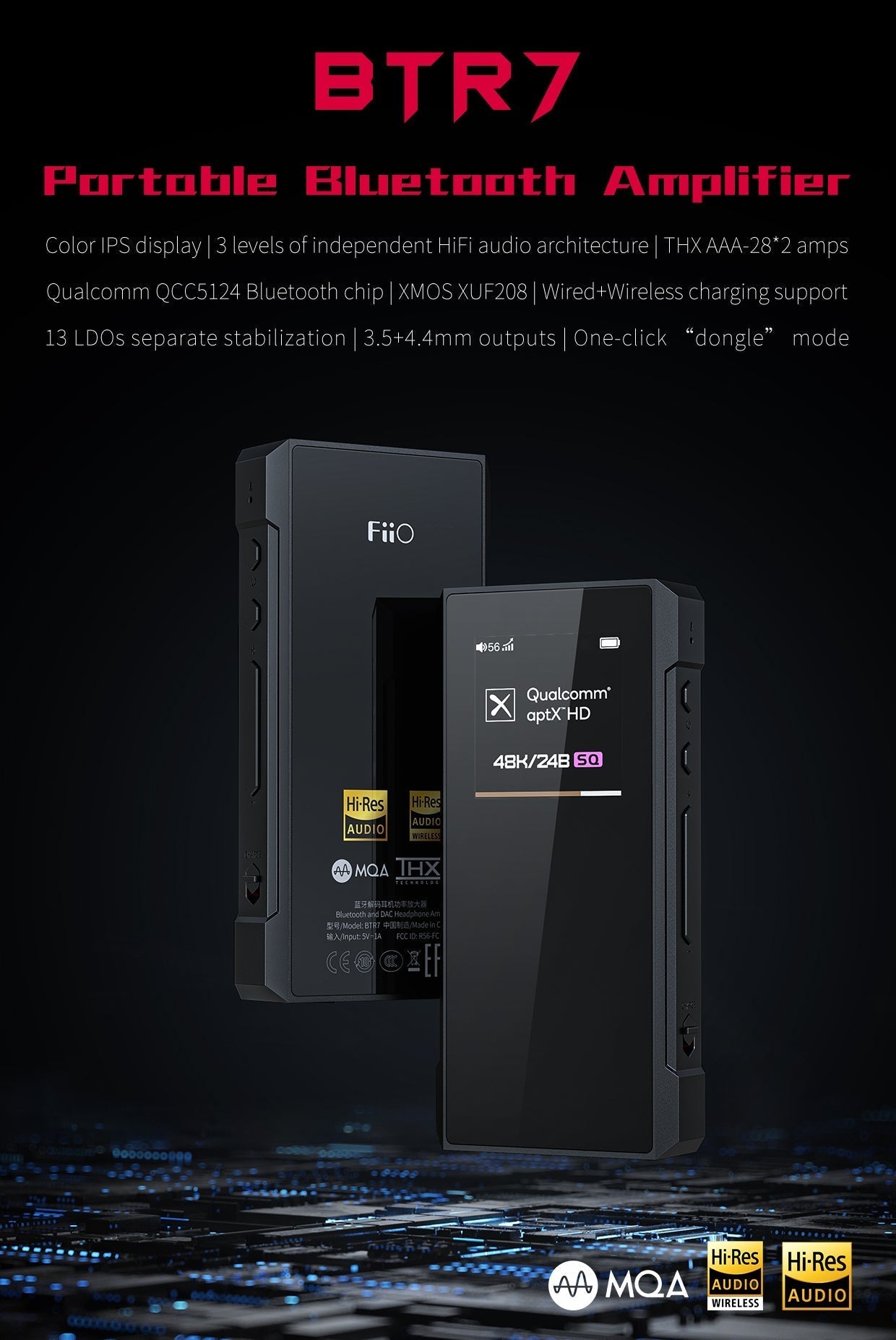

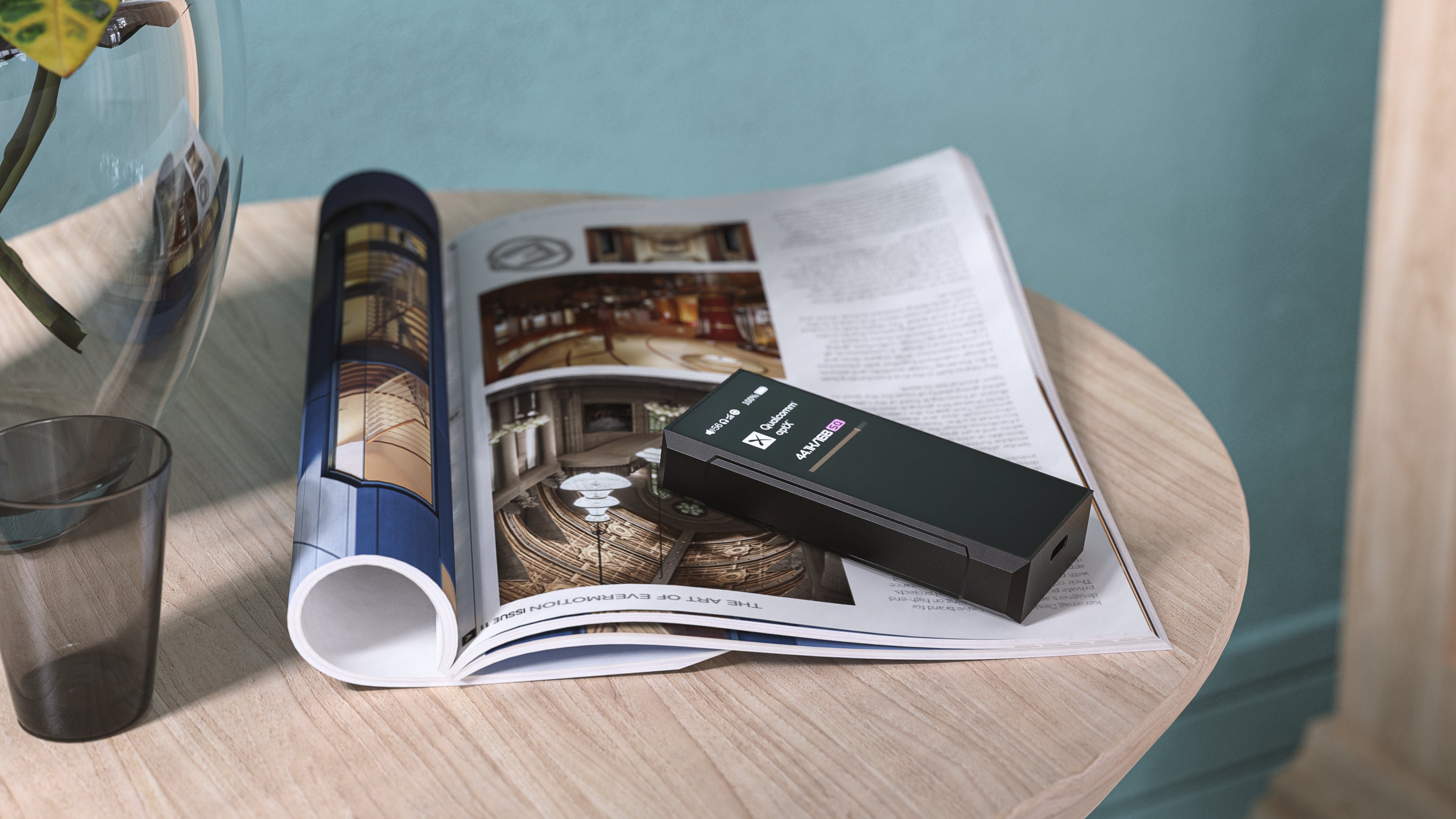

FiiO BTR7 Portable Hi-Fi Bluetooth DAC/Amp (Apos Certified)

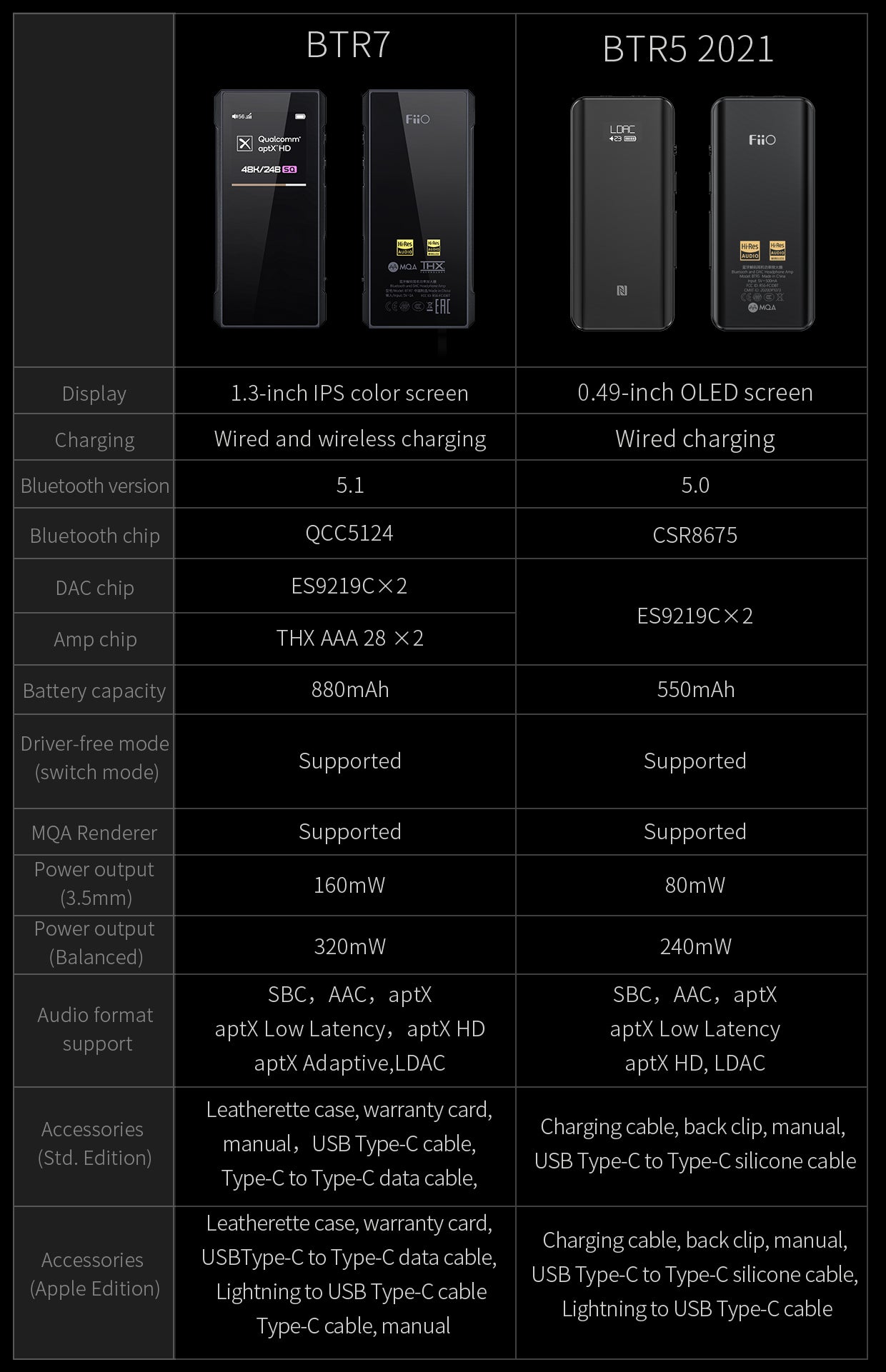

The FiiO BTR7 is a faithful and thrilling upgrade to the BTR5 Bluetooth DAC/Amp. It boasts its predecessor’s fully-balanced dual-DAC-and-amp architecture, and adds a number of excellent quality-of-life improvements, like a color IPS display and wireless charging.

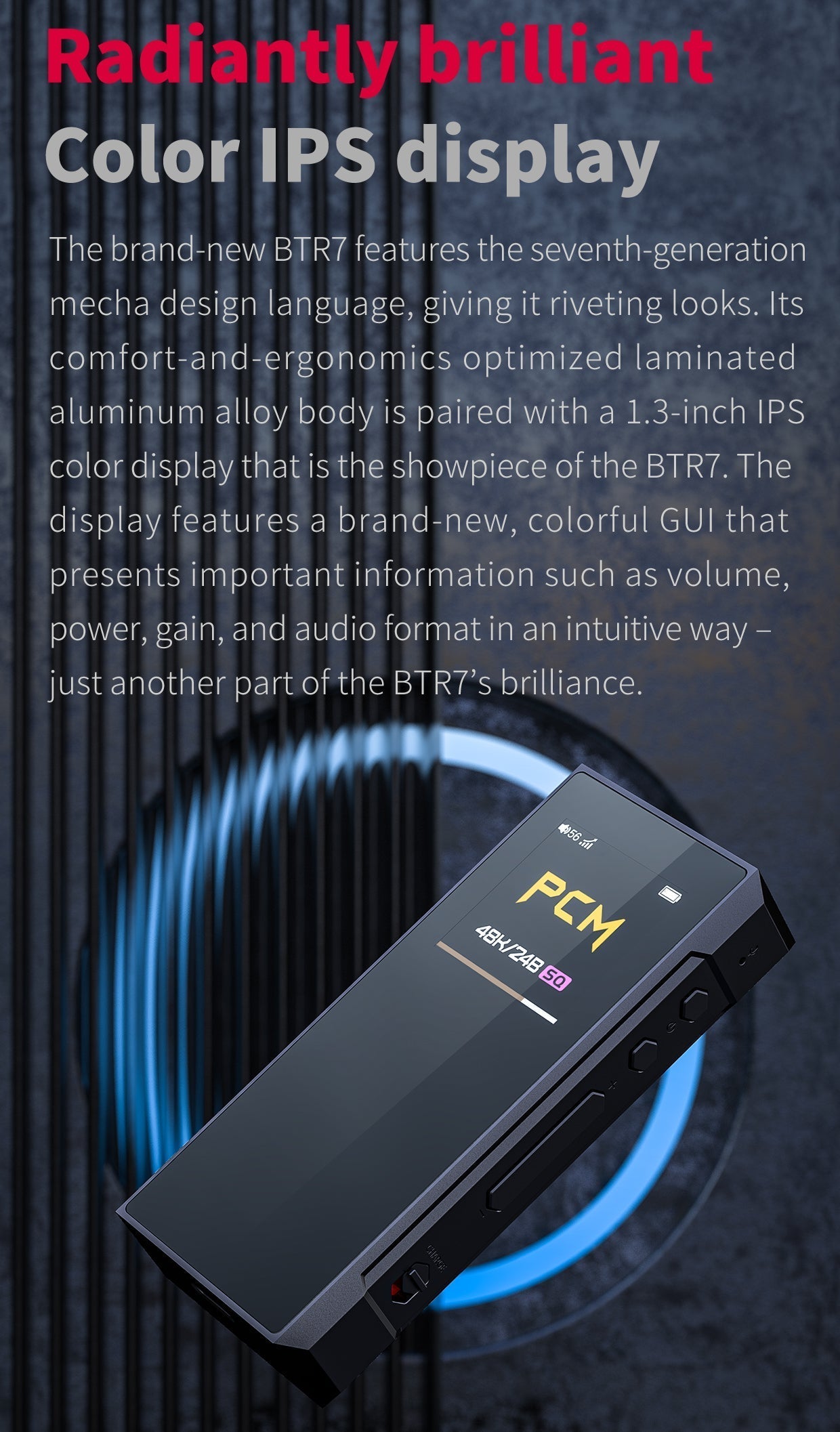

Radiant color IPS display
The laminated aluminum alloy body is optimized for comfort and ergonomics. It’s paired with a 1.3” IPS color display that is the showpiece of the BTR7. The display features a brand-new colorful GUI that organizes information with an intuitive hierarchical design.

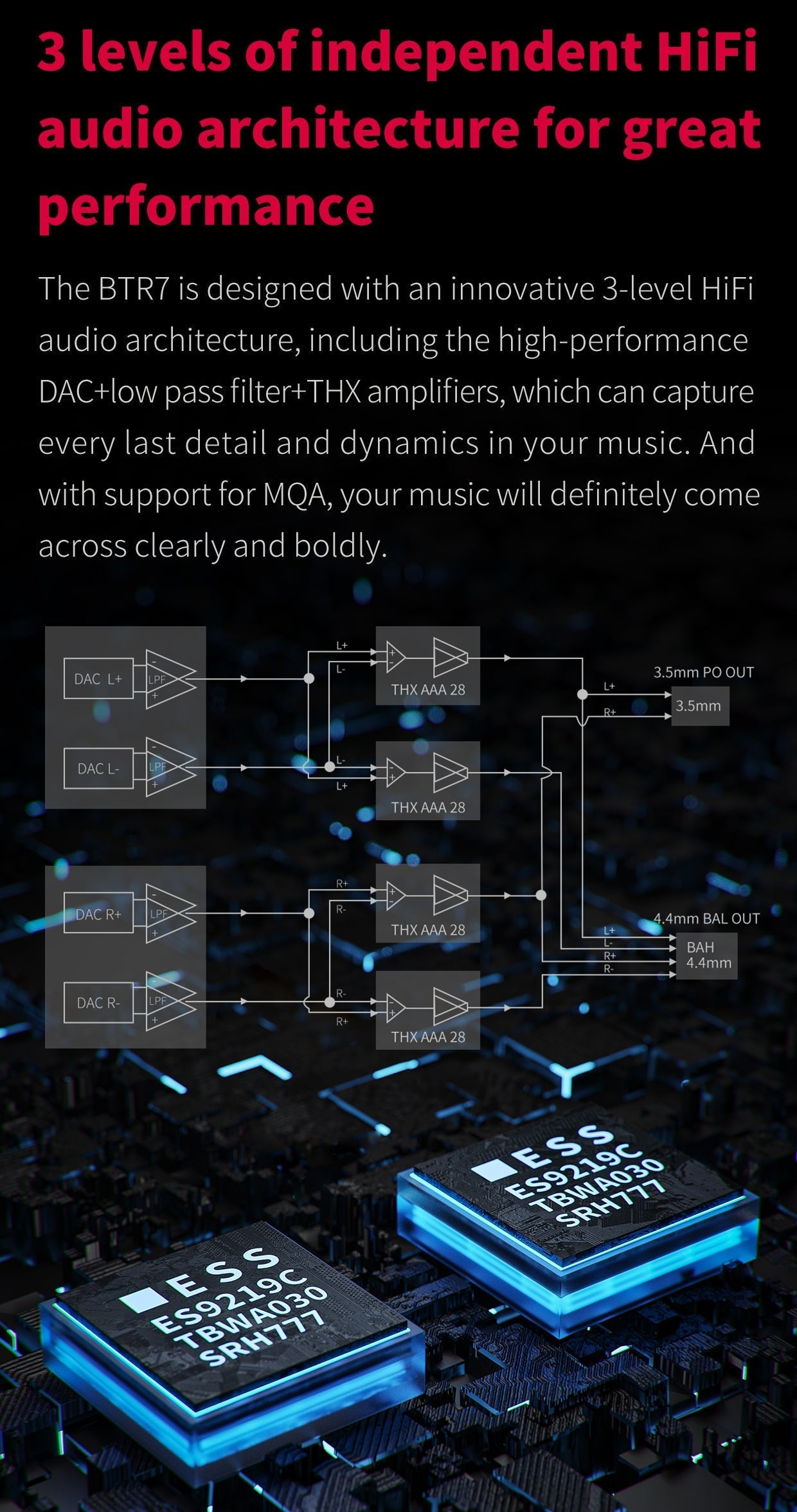

Powerful high-performance DAC
In each of the left and right channels of the BTR7 is the ES9219C, which is paired with a low-pass filter and an amplifier in a highly-optimized audio architecture that captures every last detail and dynamics of your music.
Extraordinary and bold THX amplifiers
The BTR7 is the first portable Bluetooth amplifier to utilize two THX AAA-28 amplifiers. Thanks to a design breakthrough, the FiiO R&D team was able to fit four channels of the THX AAA amplifiers into the BTR7’s compact body for a fully balanced audio design. The result is 88% more single-ended power output and 30% more balanced power output compared to previous designs.
The Qualcomm QCC5124 Bluetooth chip, with its dual DSP and dual-core CPU architecture, ensures a stable connection and supports high-res formats like LDAC/aptX HD/aptX Adaptive and more common formats like AAC/SBC.

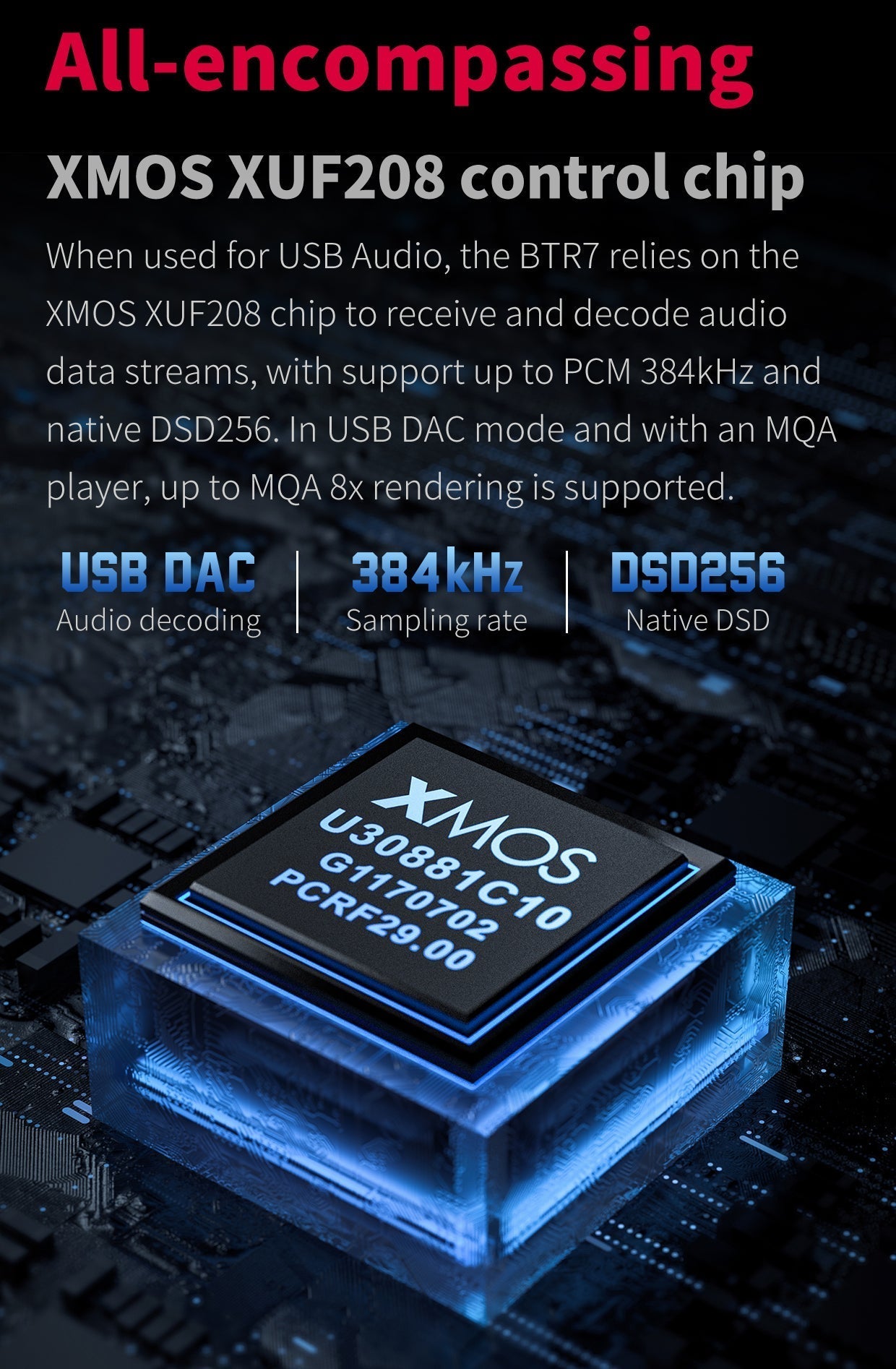

XMOS XUF208 control chip
When used for USB Audio, the BTR7 uses the XMOS XUF208 chip to receive and decode audio data streams, with support for PCM 384kHz and native DSD256.

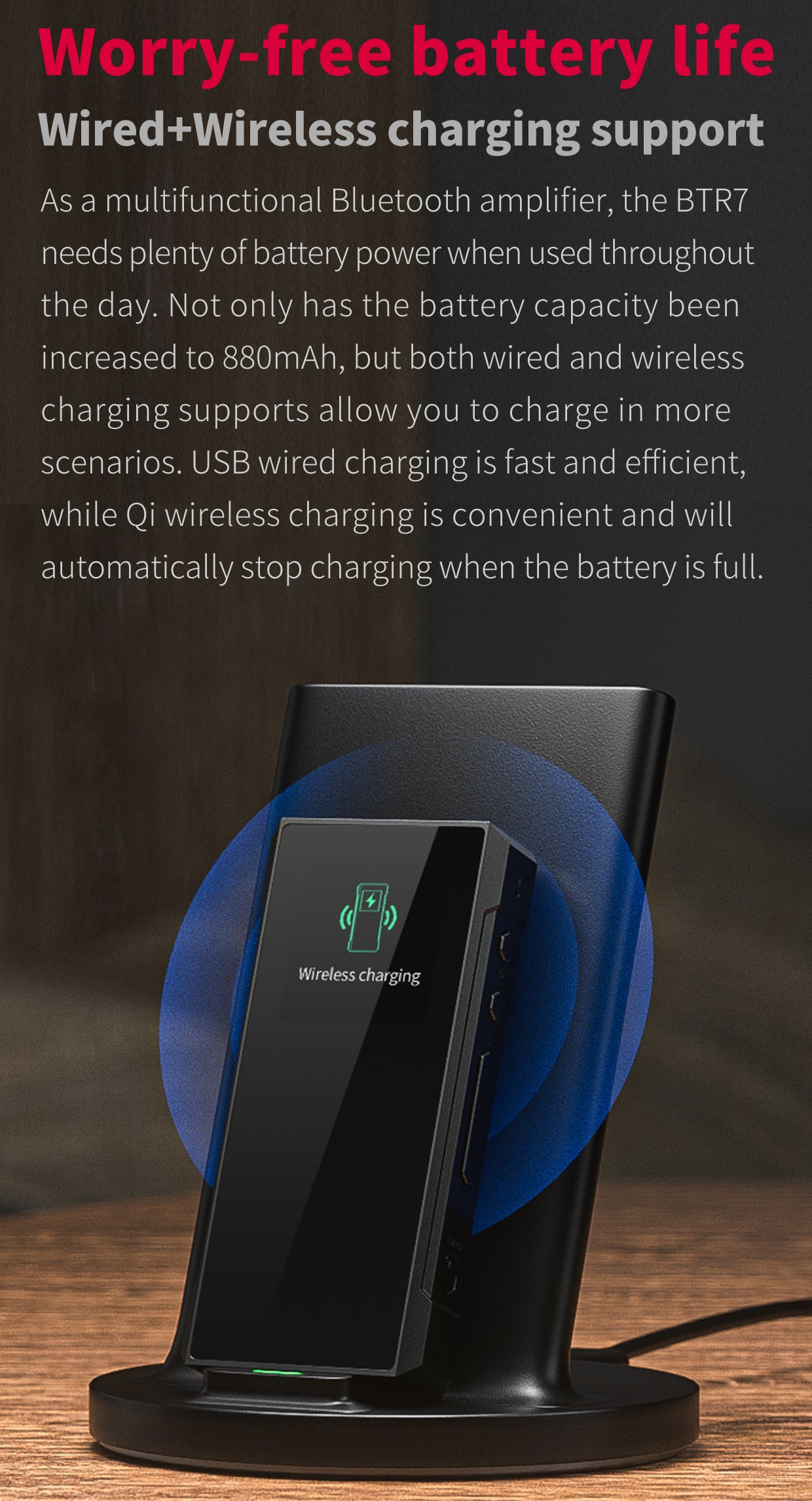

Wired + wireless charging
As a multifunctional Bluetooth amplifier, the BTR7 needs plenty of battery power when used throughout the day. Not only has the battery capacity been increased to 880mAh, but both wired and wireless charging support allows you to charge in more scenarios. USB wired charging is fast and efficient, while Qi wireless charging is convenient and will automatically stop charging when the battery is full.

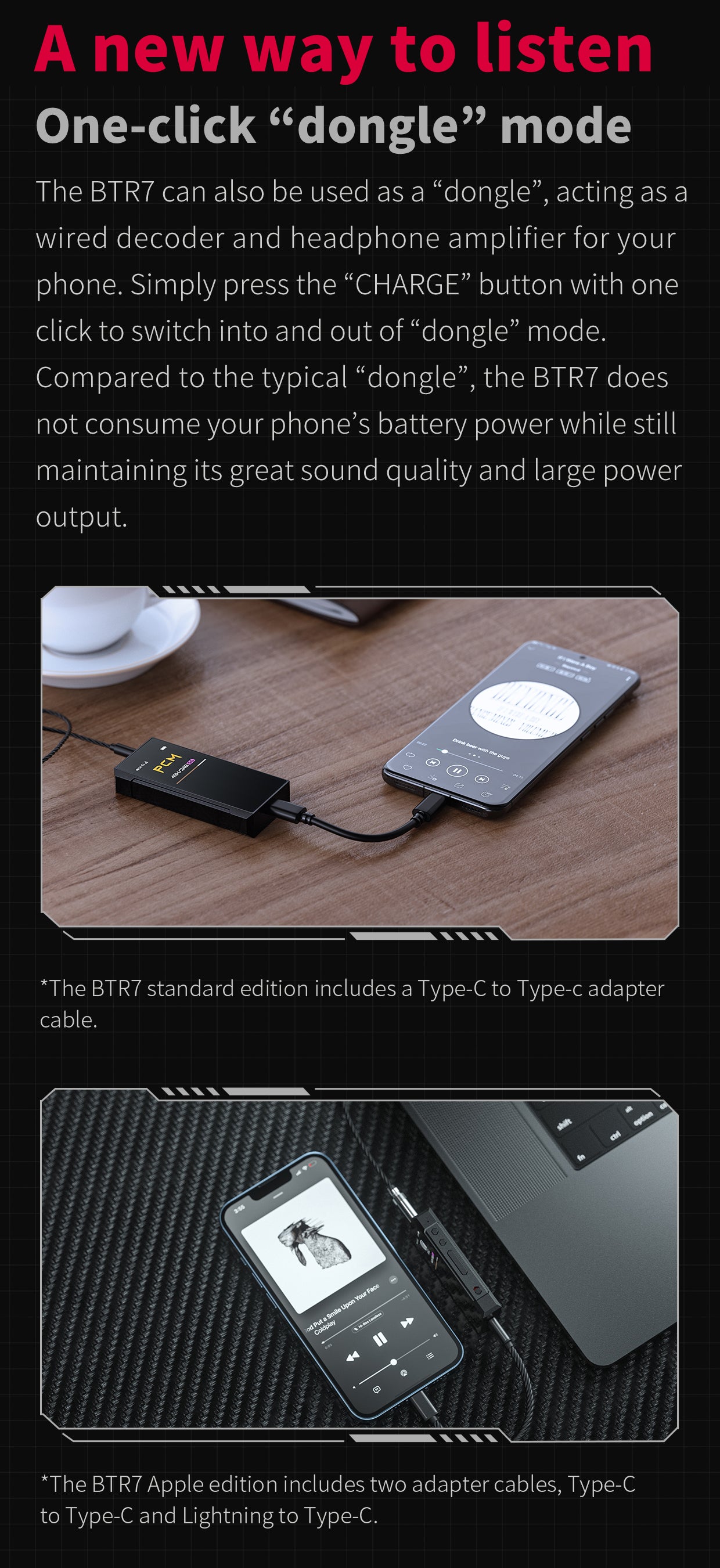

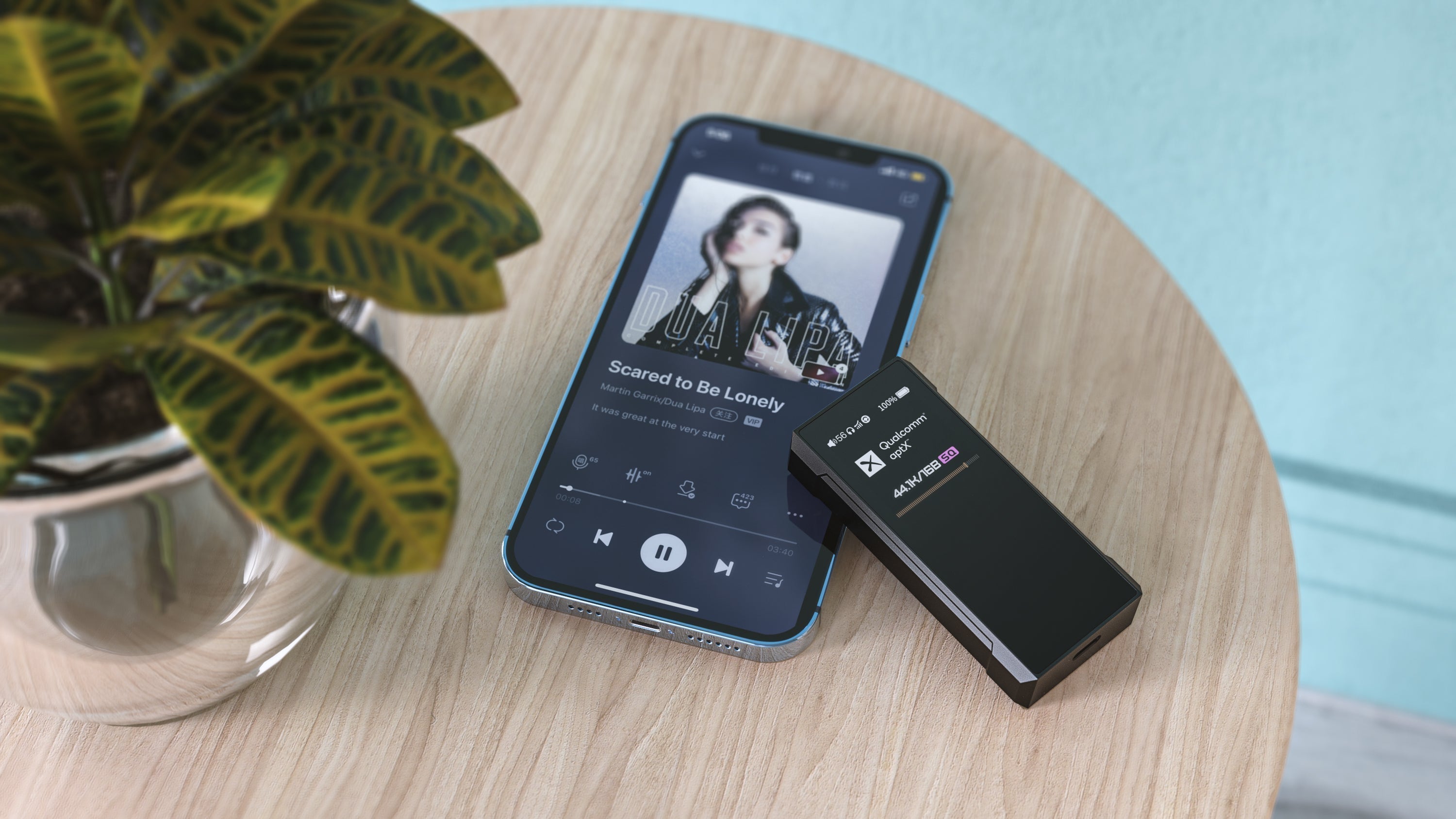

One-click dongle mode
The BTR7 can be used as a wired decoder and headphone amplifier for your phone. Simply press the “CHARGE” button with one click to switch into and out of dongle mode. Compared to the typical dongle, the BTR7 does not consume your phone’s battery power.
- Dual ESS ES9219C DAC chips
- Dual THX AAA-28 amp chips
- Qualcomm QCC5124 Bluetooth chip
- XMOS XUF208
- Color IPS display
- Wired + wireless charging support

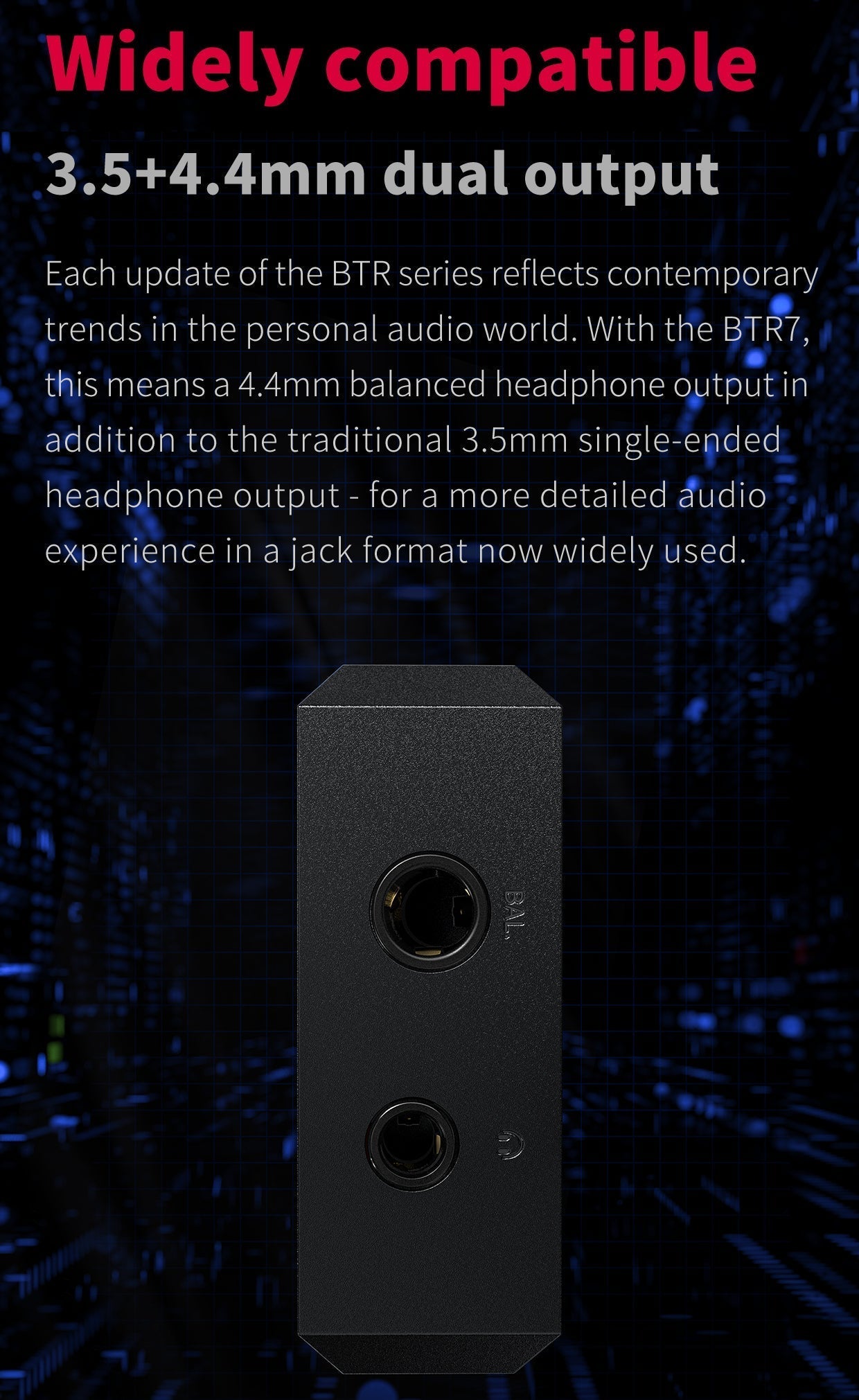

- 3.5 and 4.4mm outputs
- One-click dongle mode

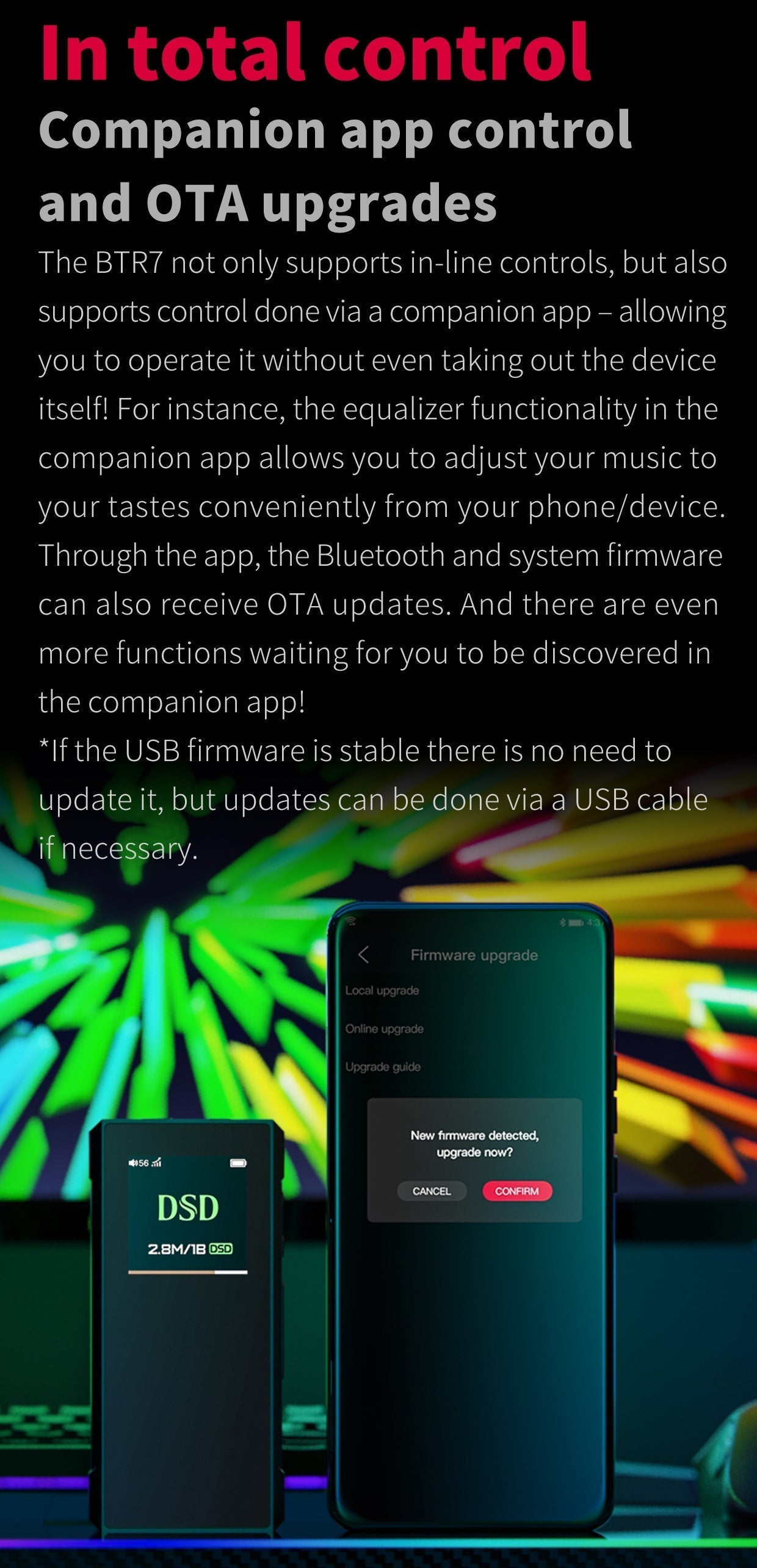

- OTA updates

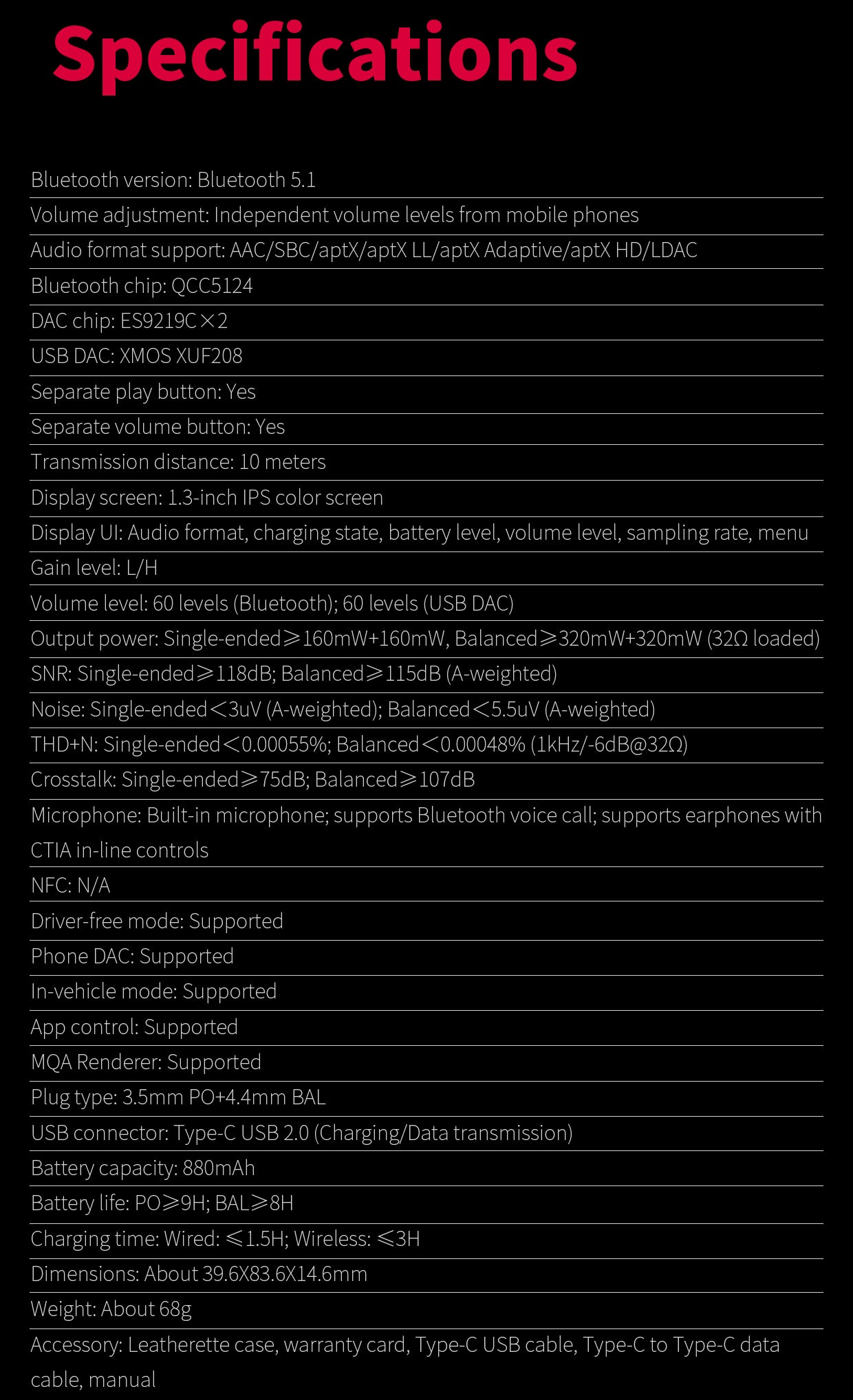

- DAC: ES9219C x2
- Headphone amplifier: THX AAA-28 x2
- Bluetooth chip: Qualcomm QCC5124
- USB controller: XMOS XUF208
- Display: Color 1.3-inch IPS 240*240 bezel-less screen
- Construction: Aluminum alloy body, High-strength glass
- Decoding support: Up to PCM 384kHz, DSD256
- Bluetooth format support: LDAC/aptX Adaptive/aptX LL/aptX HD/aptX/AAC/SBC
- Battery: 880mAh
- Audio connectors: 3.5mm single-ended/4.4mm balanced
- Dimensions: About 39.6*83.6*14.2mm
- Weight: About 68g

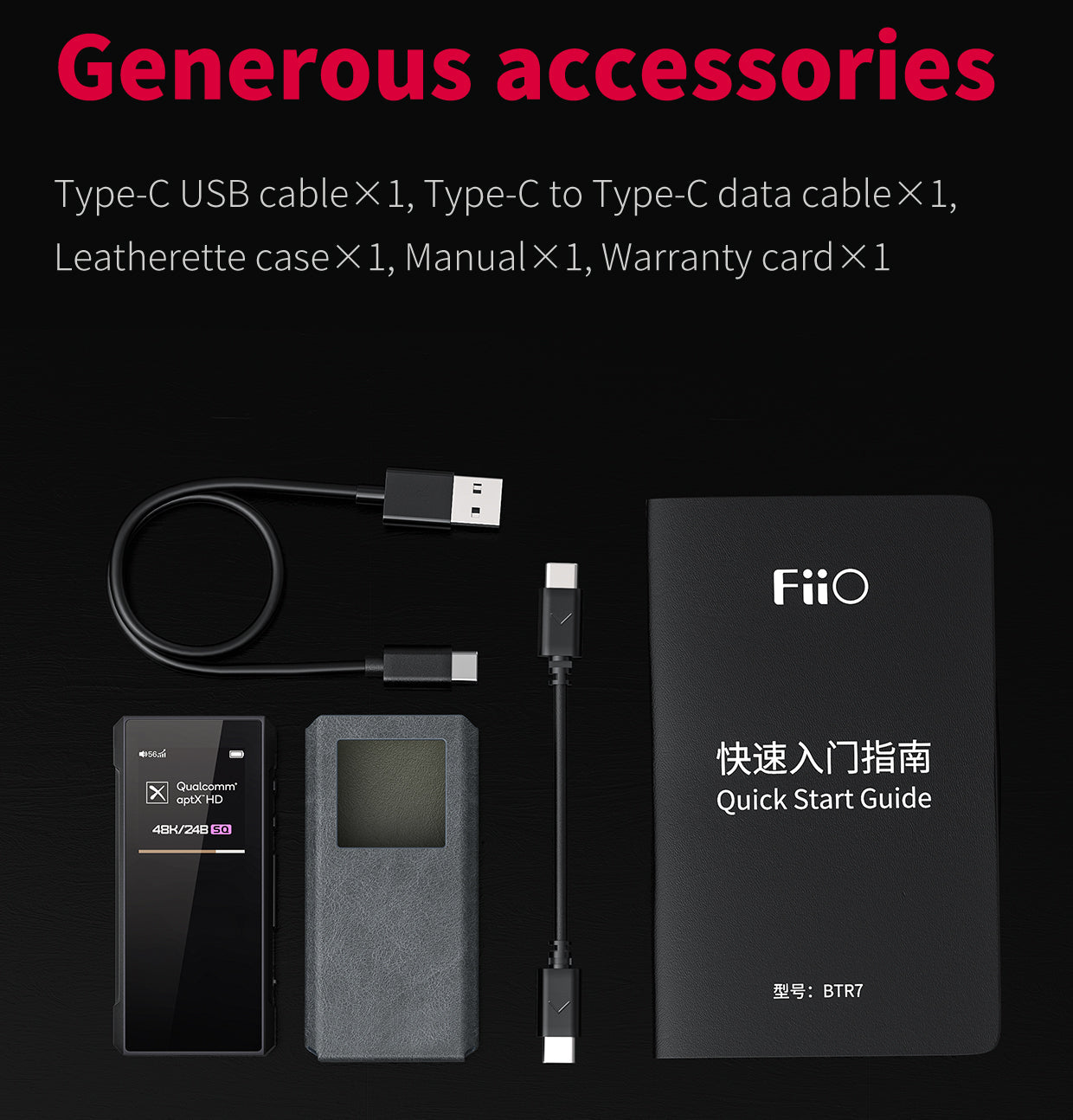

- Type-C USB cable
- Type-C to Type-C data cable

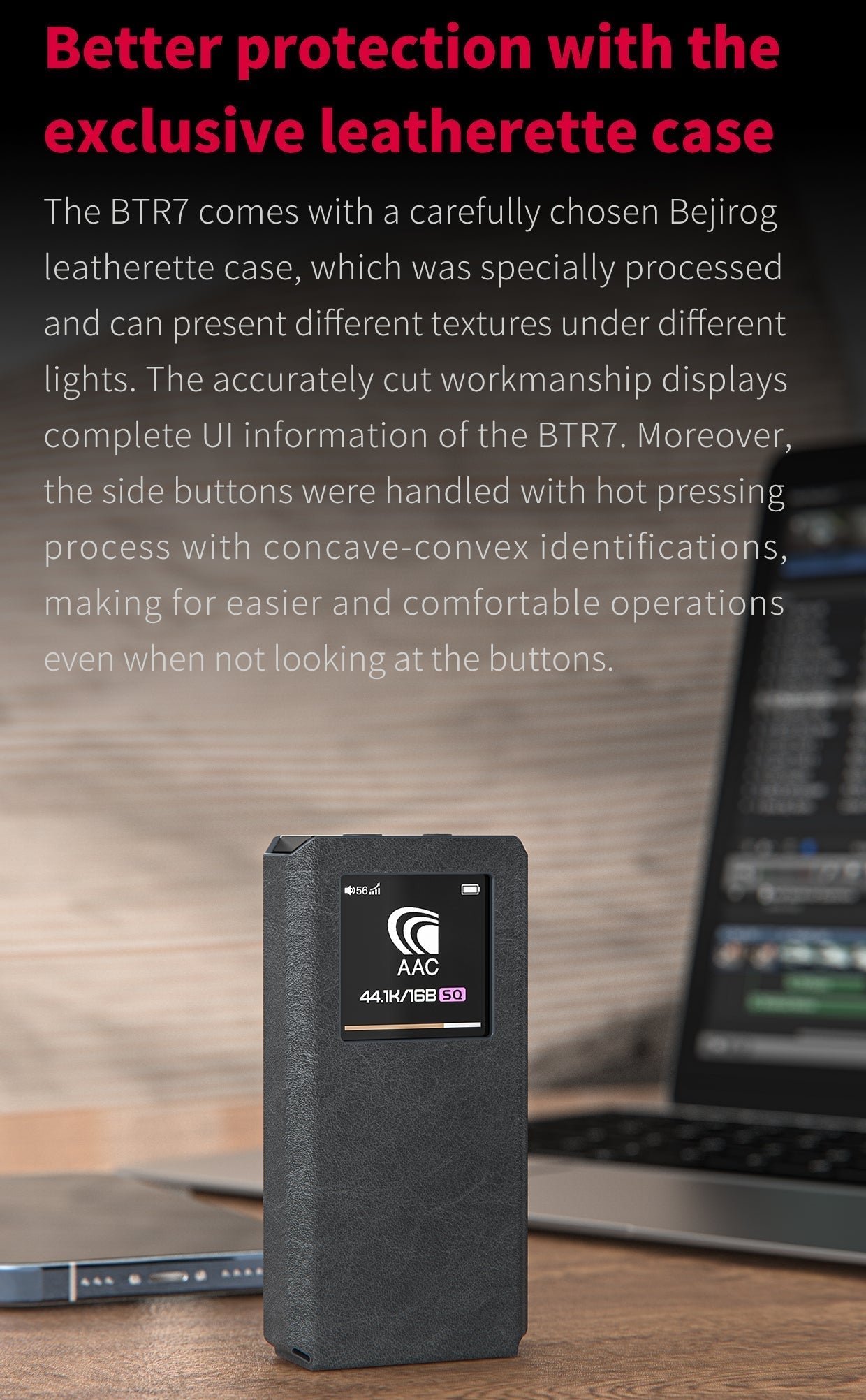

- Leather case
- Warranty card
