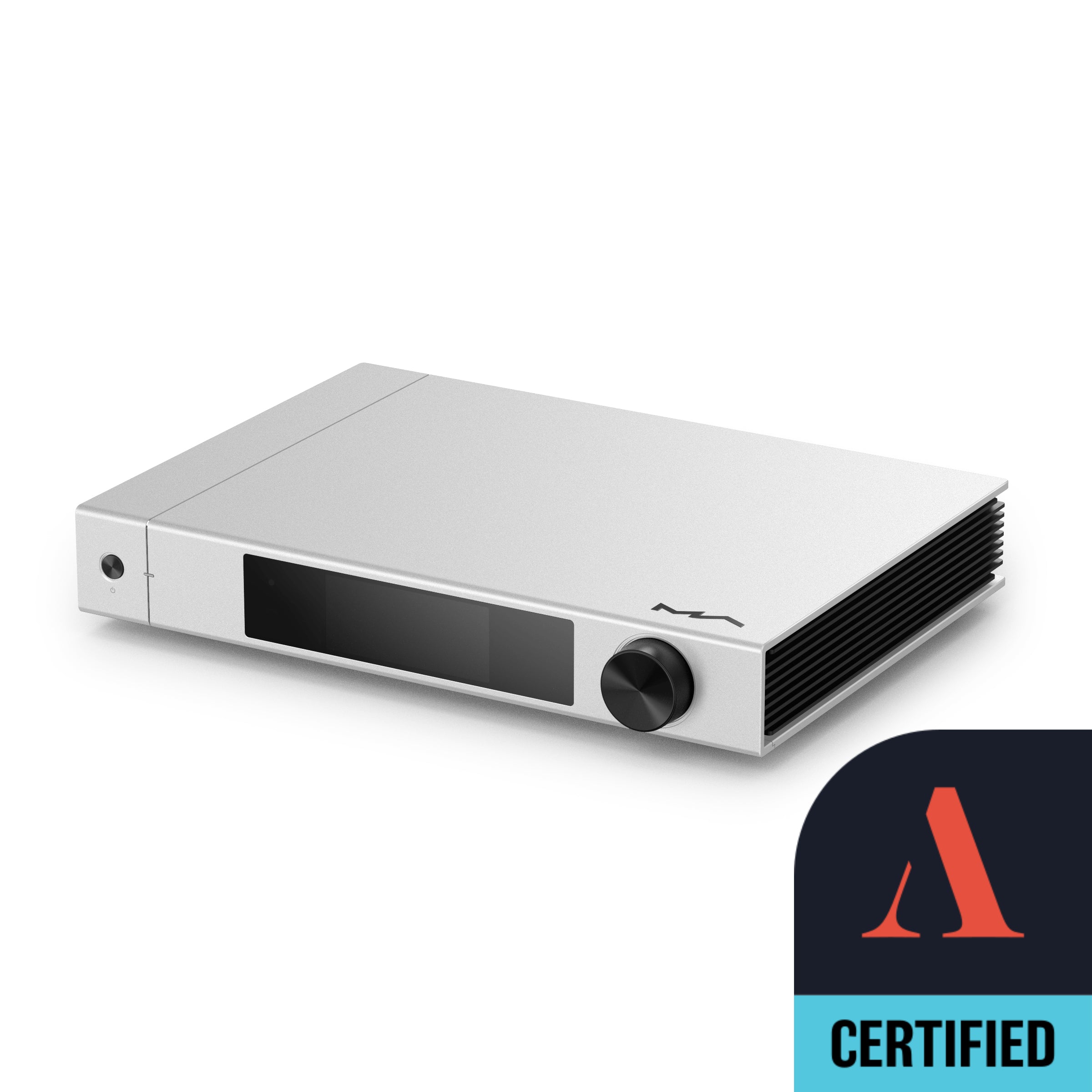

Matrix element X2 Pure Music Streamer (Apos Certified Refurbished)

$3,799.99 $4,499

Request A Price Match




This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

A crowning achievement

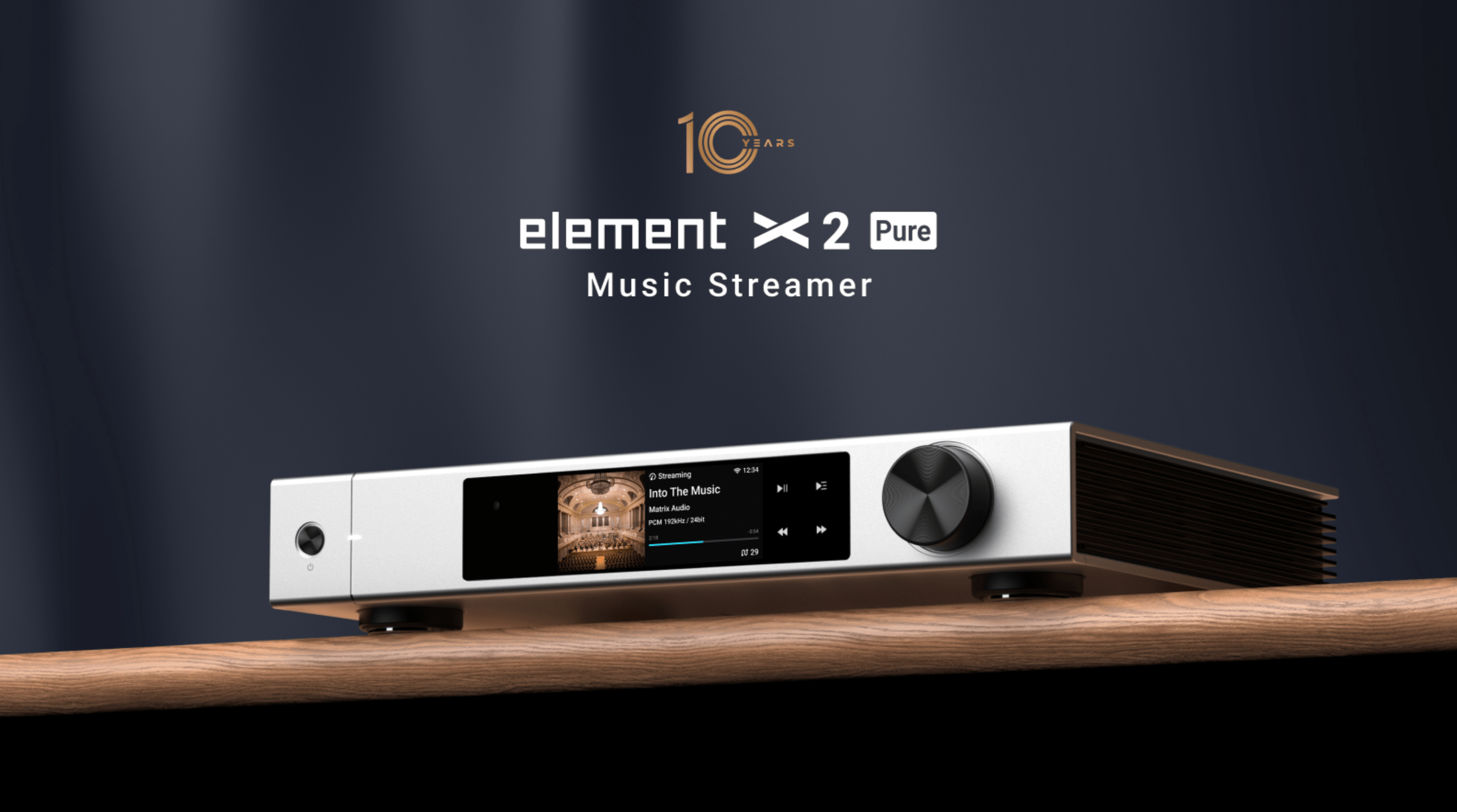

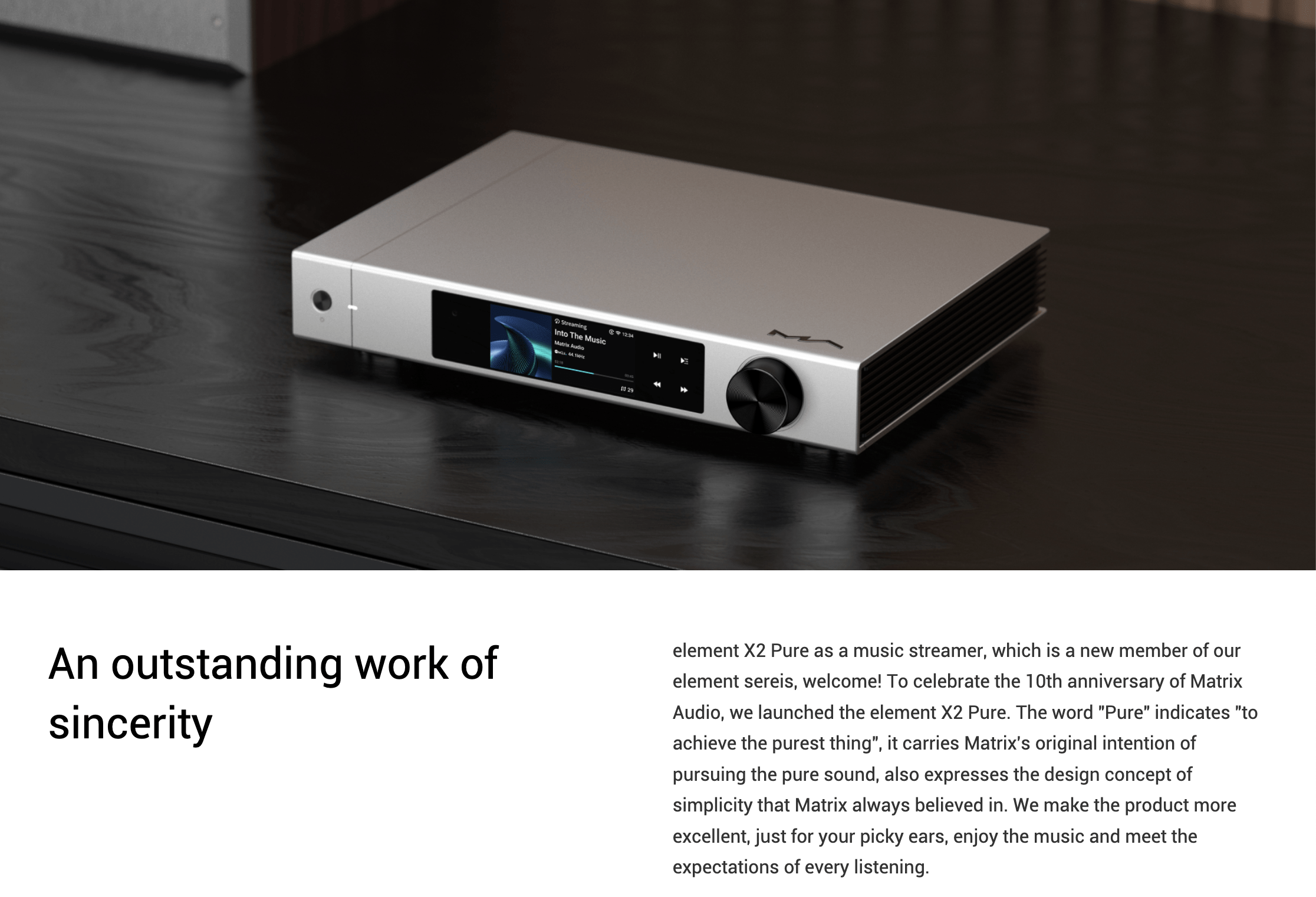

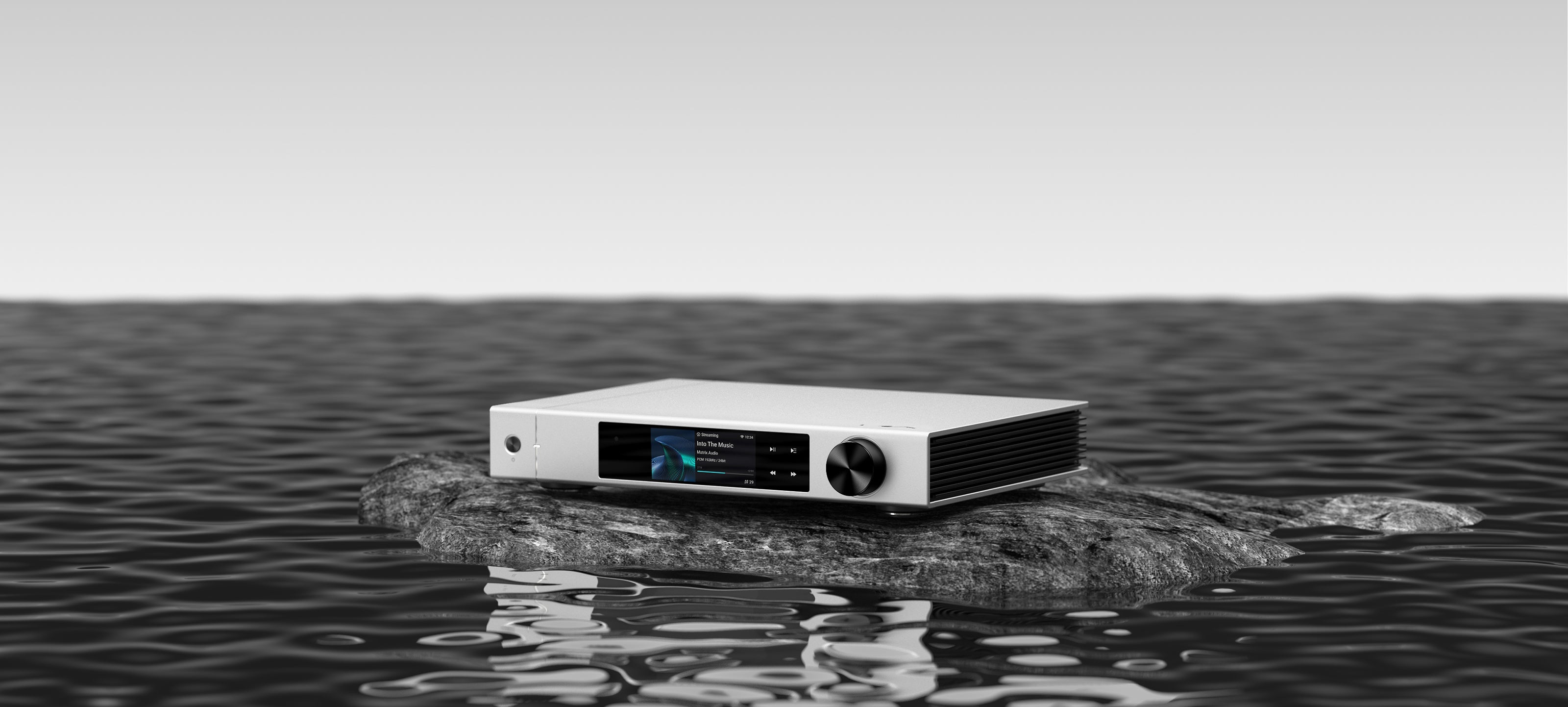

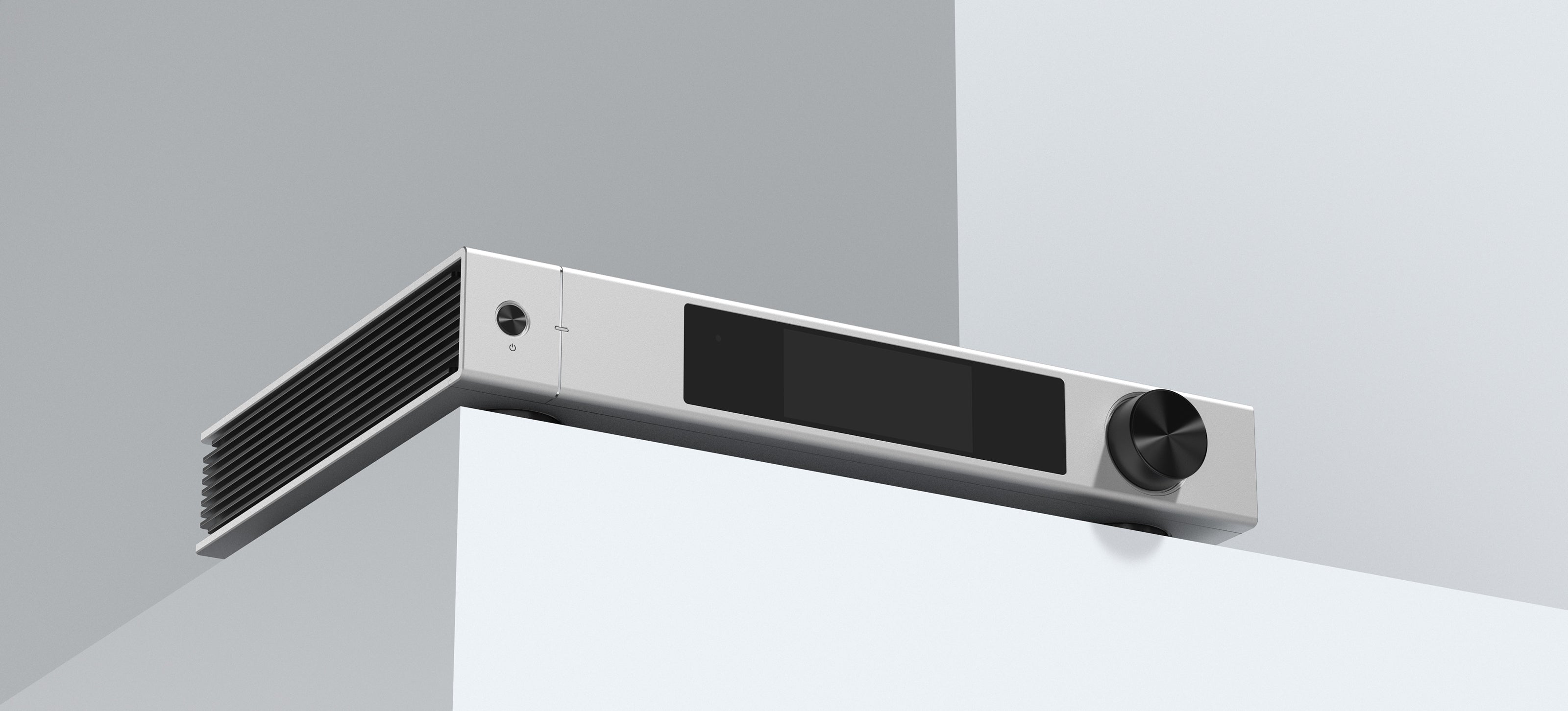

Introducing the Matrix element X2 Pure Music Streamer, an exceptional music streaming device that blends Matrix's pursuit of pure sound with their belief in design simplicity. As a new member of the element series, this streamer celebrates Matrix Audio's 10th anniversary and is designed for the most discerning listeners.

Dual ES9039PRO DAC for ultimate audio quality

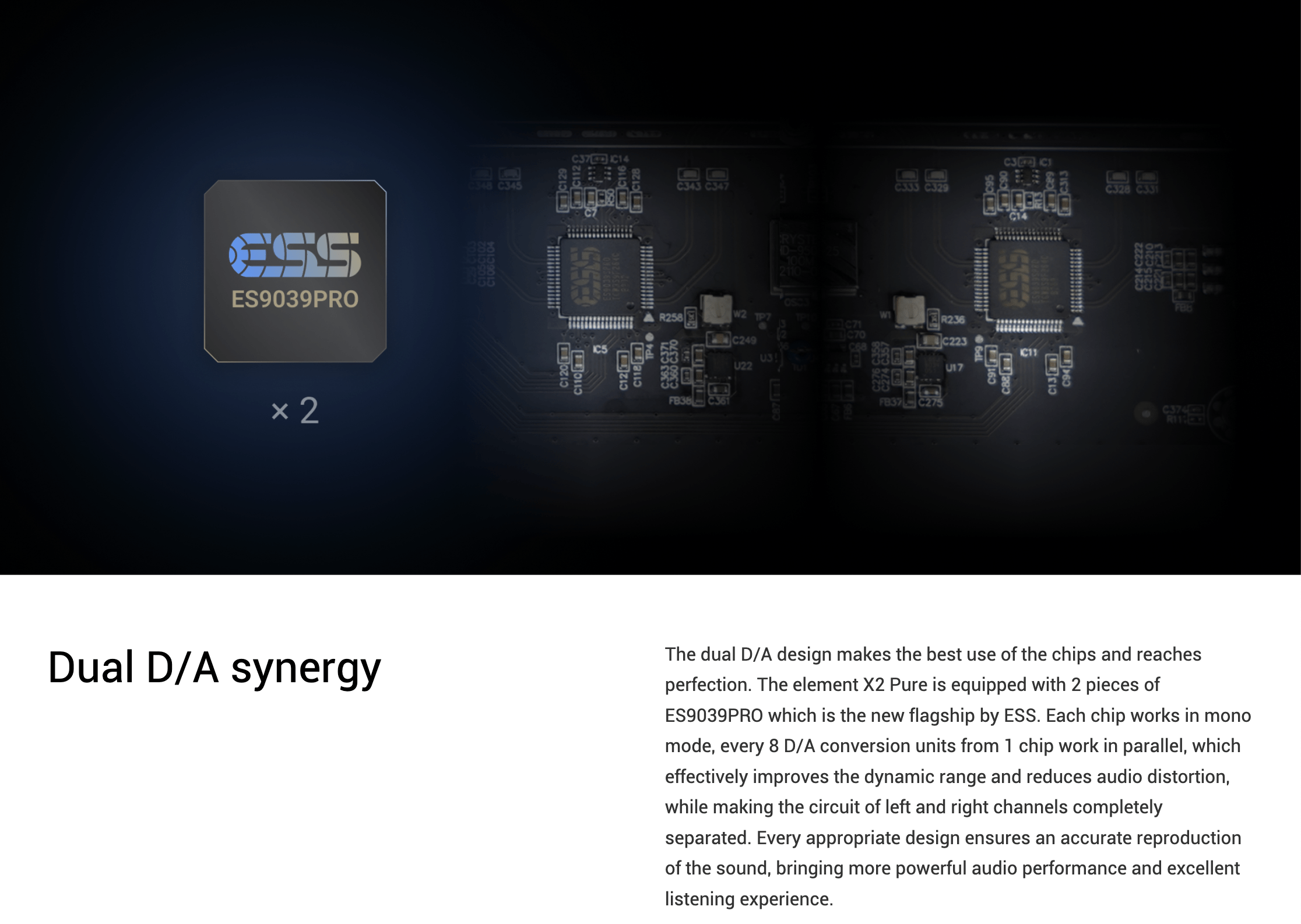

The element X2 Pure features two flagship ESS chips working in mono mode. Each chip utilizes eight D/A conversion units in parallel, significantly improving dynamic range and reducing audio distortion while ensuring complete channel separation. The result? Precise sound reproduction and an outstanding listening experience.

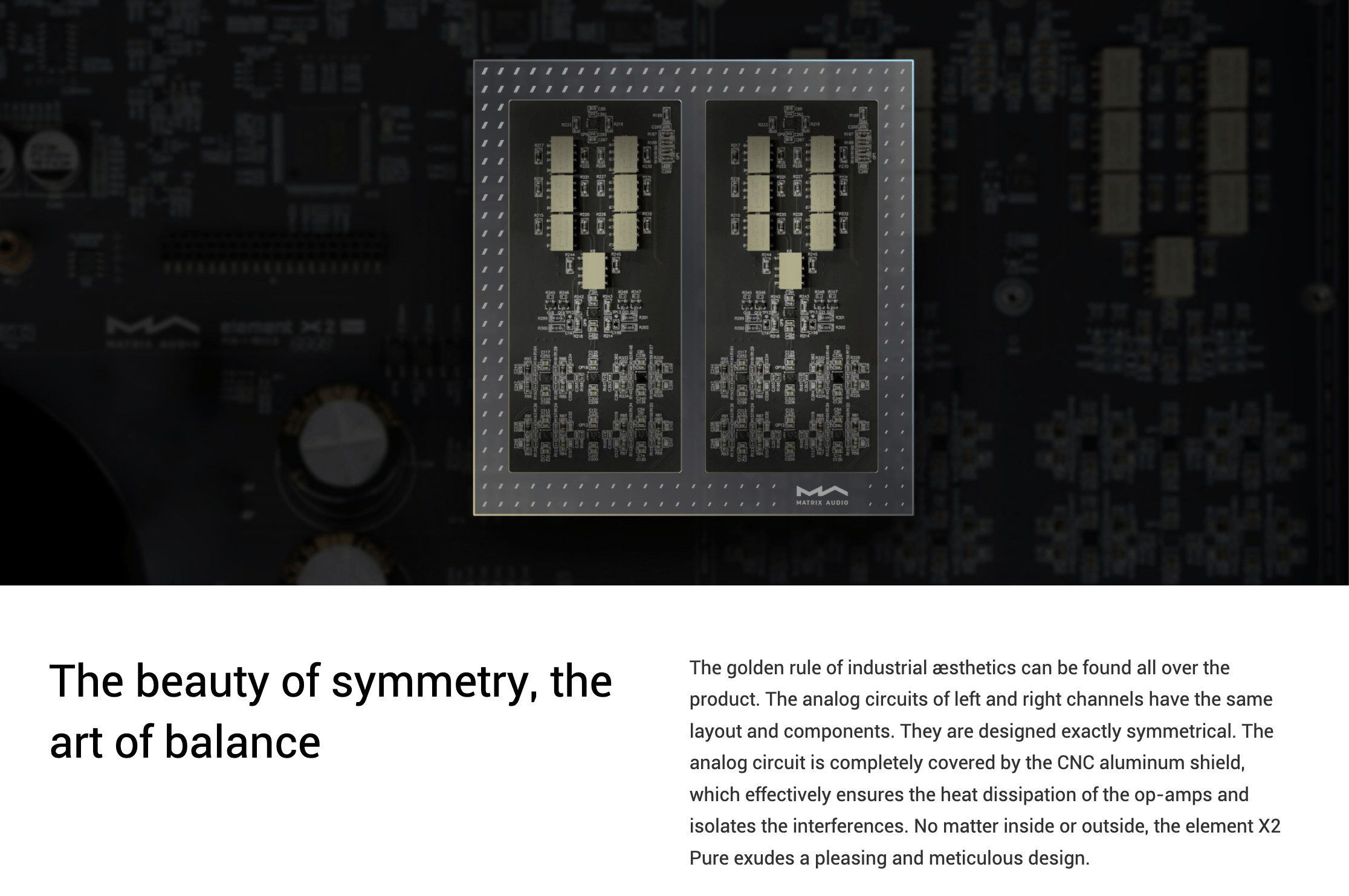

Symmetrical design for accurate sound

The analog circuits of the left and right channels boast the same layout and components, designed symmetrically for a visually pleasing and meticulous design. The analog circuit is covered by a CNC aluminum shield, ensuring effective heat dissipation for op-amps and interference isolation.

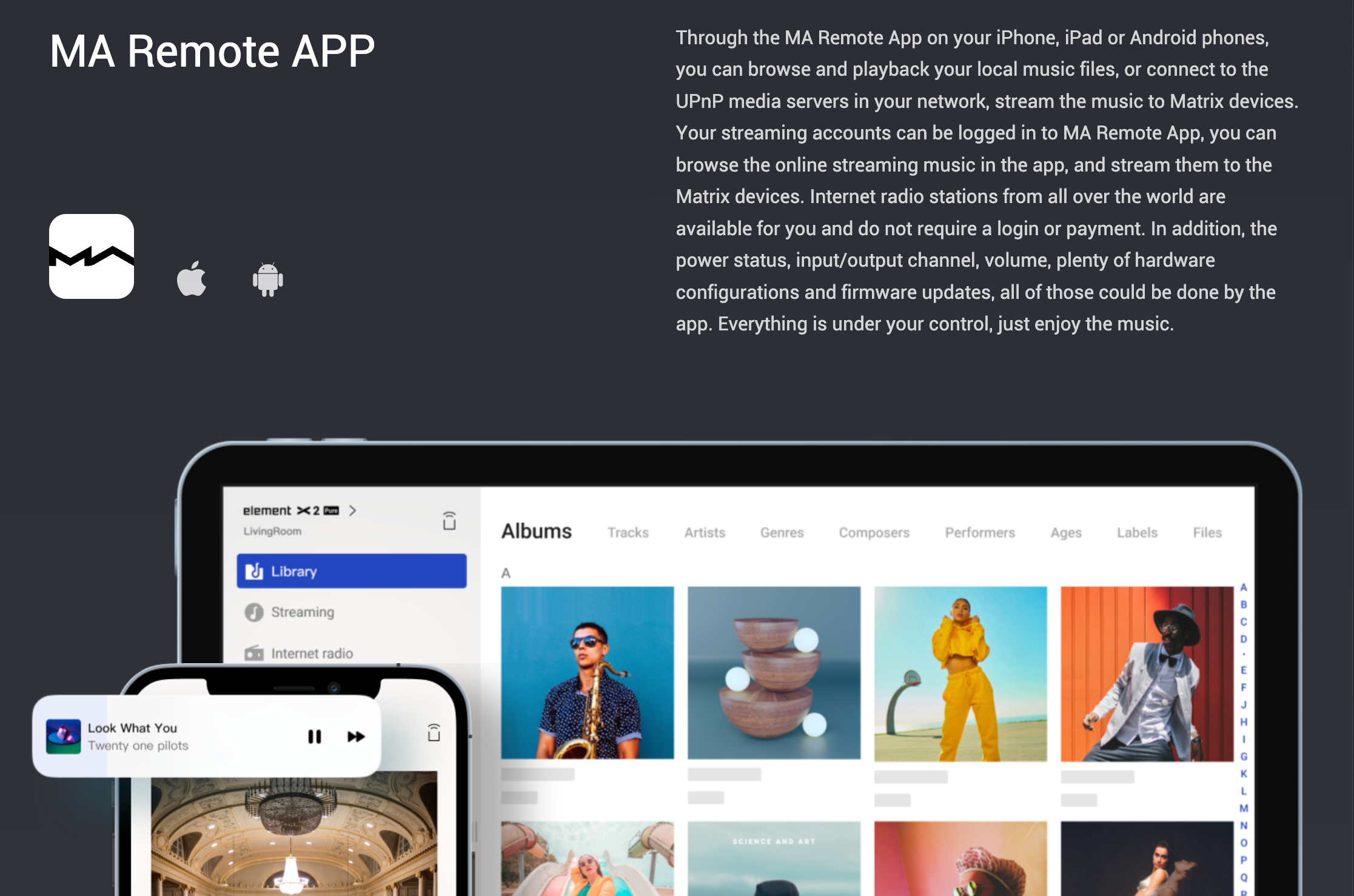

Complete control with the MA Remote App

Effortlessly manage your music and settings through the MA Remote App on your iPhone, iPad, or Android device. Access various streaming services, local file playback options, and even internet radio stations from around the world without requiring a login or payment.

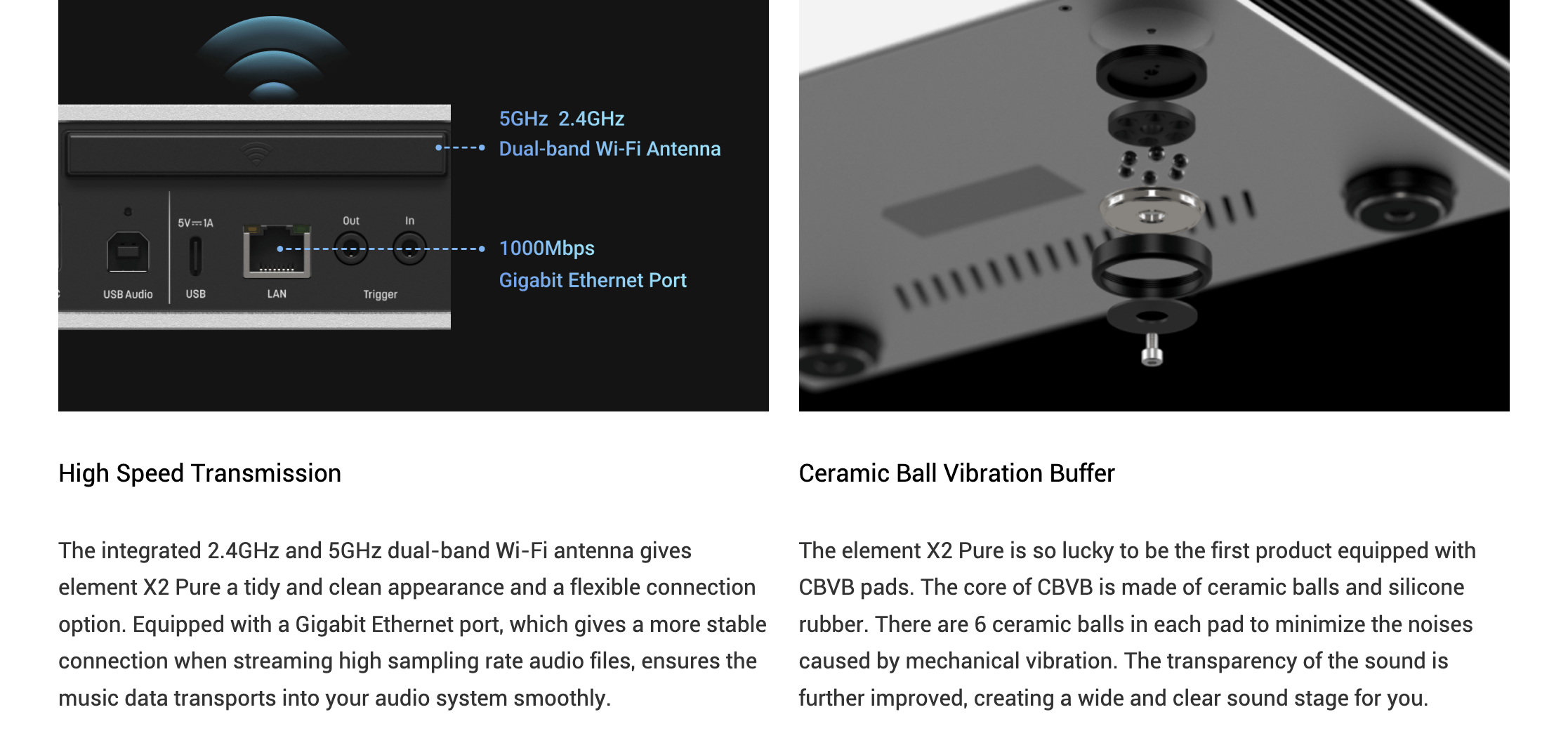

Versatile connectivity options

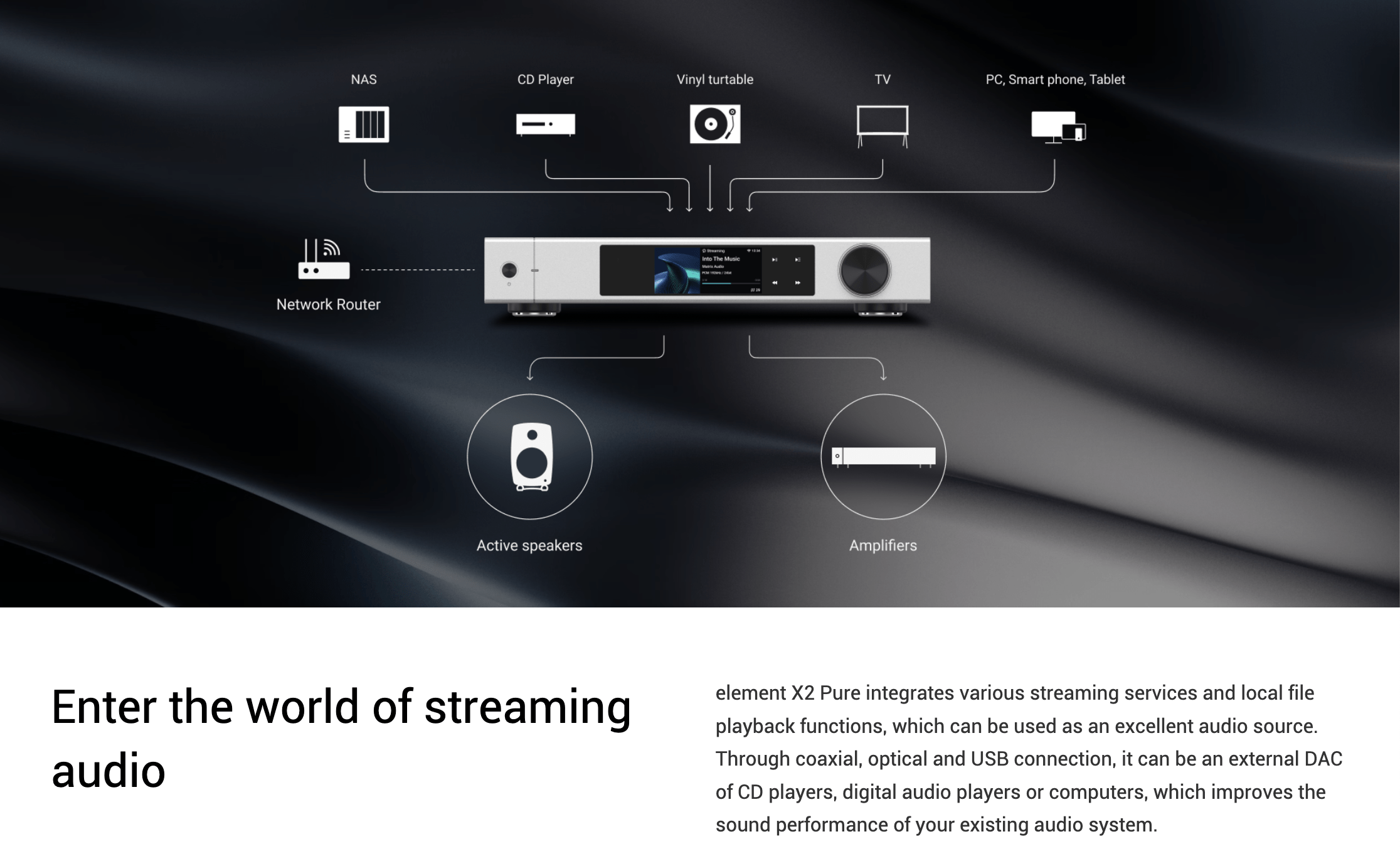

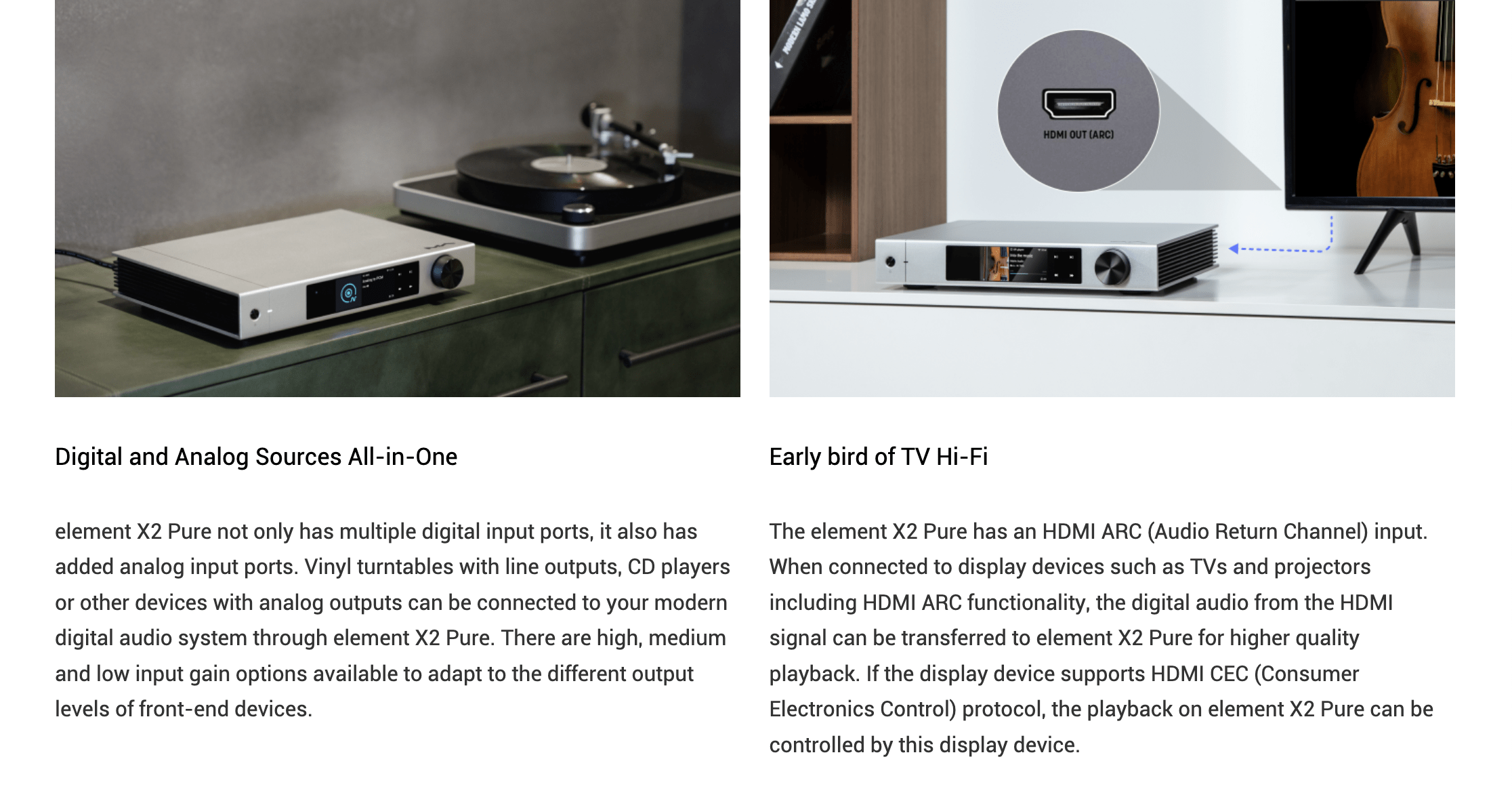

Seamlessly integrate the element X2 Pure into your audio setup with digital and analog inputs, HDMI ARC support, a built-in pre-amplifier, and Wi-Fi connectivity. This streamer is designed to enhance the sound performance of your existing audio system, regardless of the source.

Noise reduction for a crystal-clear sound stage

Innovative CBVB pads, made of ceramic balls and silicone rubber, minimize noise caused by mechanical vibrations. This results in improved sound transparency and a wide, clear sound stage for an exceptional listening experience.

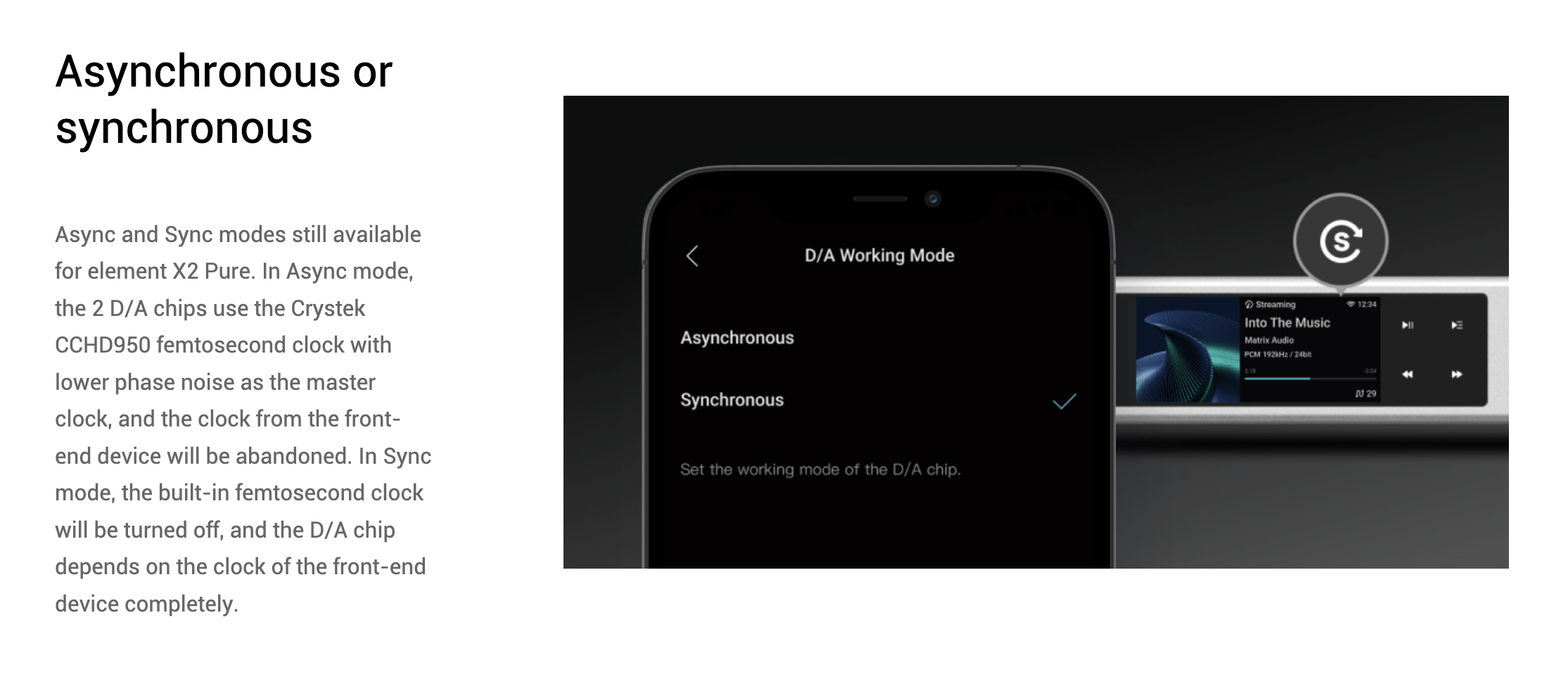

Async and Sync modes for precise timing

The element X2 Pure offers both Async and Sync modes, allowing users to choose the best timing solution for their needs. In Async mode, the two D/A chips rely on the Crystek CCHD950 femtosecond clock as the master clock, resulting in lower phase noise. In Sync mode, the built-in femtosecond clock is turned off, allowing the D/A chips to rely on the front-end device's clock for a more synchronized experience.

High-quality pre-amplifier and seamless pairing

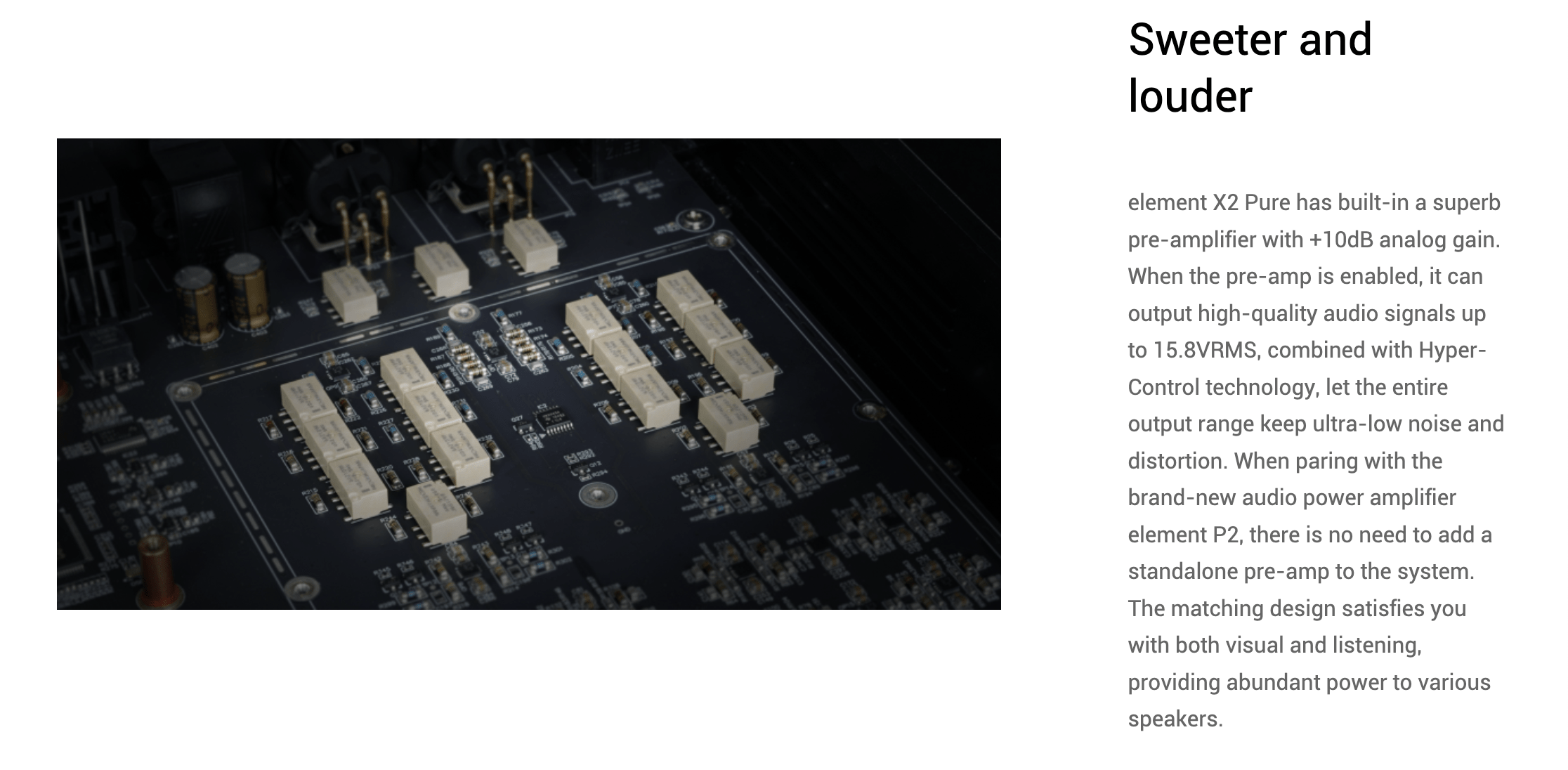

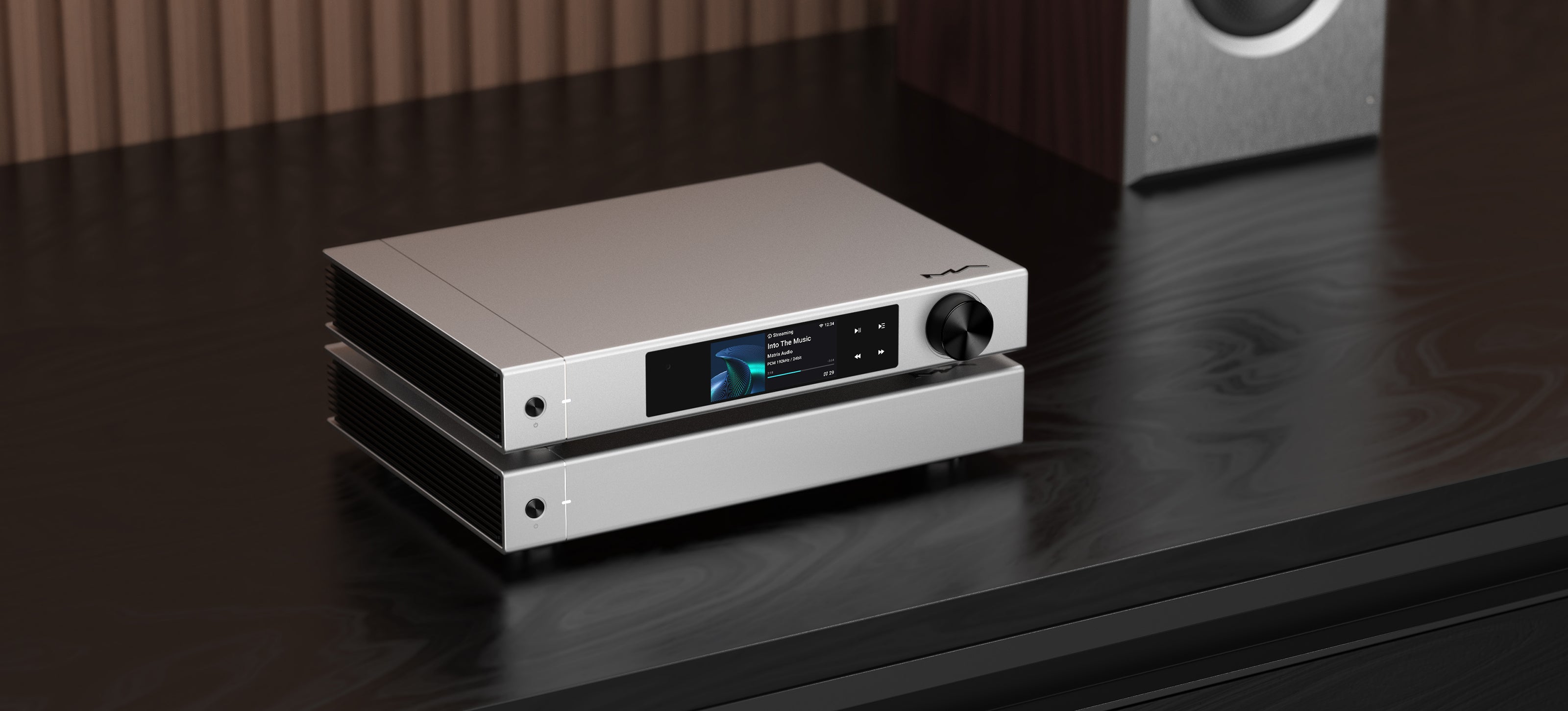

The element X2 Pure features a superb built-in pre-amplifier with +10dB analog gain. When enabled, it can output high-quality audio signals up to 15.8VRMS. Combined with Hyper-Control technology, the output range maintains ultra-low noise and distortion. Paired with the brand-new audio power amplifier element P2, there's no need for a standalone pre-amp, providing abundant power to various speakers and ensuring a visually and audibly satisfying experience.

Ceramic Ball Vibration Buffer for enhanced sound clarity

As the first product to feature CBVB pads, the element X2 Pure benefits from minimized noise caused by mechanical vibrations. With six ceramic balls in each pad, the CBVB pads enhance sound transparency, creating a wide and clear sound stage for an immersive listening experience.

Product Highlights

  • Dual ES9039PRO DAC for ultimate audio quality
  • Symmetrical design for accurate sound reproduction
  • Complete control with the MA Remote App
  • Versatile connectivity options
  • Noise reduction with innovative CBVB pads

Specs

  • CPU: NXP i.MX 6Quad Cortex-A9
  • D/A chip: 2x ESS ES9039PRO
  • Clock source: Crystek CCHD-950
  • Digital input sample rates
    • Coaxial/Optical: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz; DSD 2.8MHz (DoP)
    • IIS-LVDS: PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,352.8kHz, 384kHz, 705.6kHz, 768kHz; DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP); DSD 2.8MHz, 5.6 MHz, 11.2 MHz, 22.4MHz (Native)
    • USB Audio: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz; MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream; DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP); DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
    • HDMI ARC: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Aux input specs
    • SNR: 106dB
    • THD+N: <0.0025%
    • Frequency response: 20Hz-20kHz
    • Channel crosstalk: >-102dB
    • Input level: 2.1Vrms max
  • XLR line output specs
    • SNR: 131dB
    • THD+N: <0.000068%
    • Frequency response: 20Hz-20kHz
    • Channel crosstalk: >-150dB
    • Input level: 4.5Vrms max
  • RCA line output specs
    • SNR: 127dB
    • THD+N: <0.000076%
    • Frequency response: 20Hz-20kHz
    • Channel crosstalk: >-139dB
    • Input level: 2.2Vrms@0dB, 7.5Vrms@+10dB
  • LAN: 10/100/1000 Mbps
  • WLAN: 2.4 GHz/ 5 GHz
  • USB: The USB port works with devices that conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats but is not guaranteed to be compatible with all storage devices.
  • Trigger in: DC 6-12V<10mA
  • Trigger out: DC 12V/50mA MAX
  • Local playback format supported: MP3, WMA, WAV, AIF, AIFC, AAC, FLAC, OGG, APE, ALAC, M4A, DSF,
  • Max sample rates
    • PCM: 24bit/768kHz
    • MQA: 24bit/384kHz, MQA Studio Stream
    • DSD: 22.4MHz
    • Roon Ready
  • Power voltage: AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz
  • Standby power consumption: <5W
  • Maximum power consumption: <50W
  • Weight: 8.6lbs (3.9kg)
  • Size: 13.39” x 10.2” x 2.28”

What's Included

  • Matrix element X2 Pure Music Streamer
  • Power cable

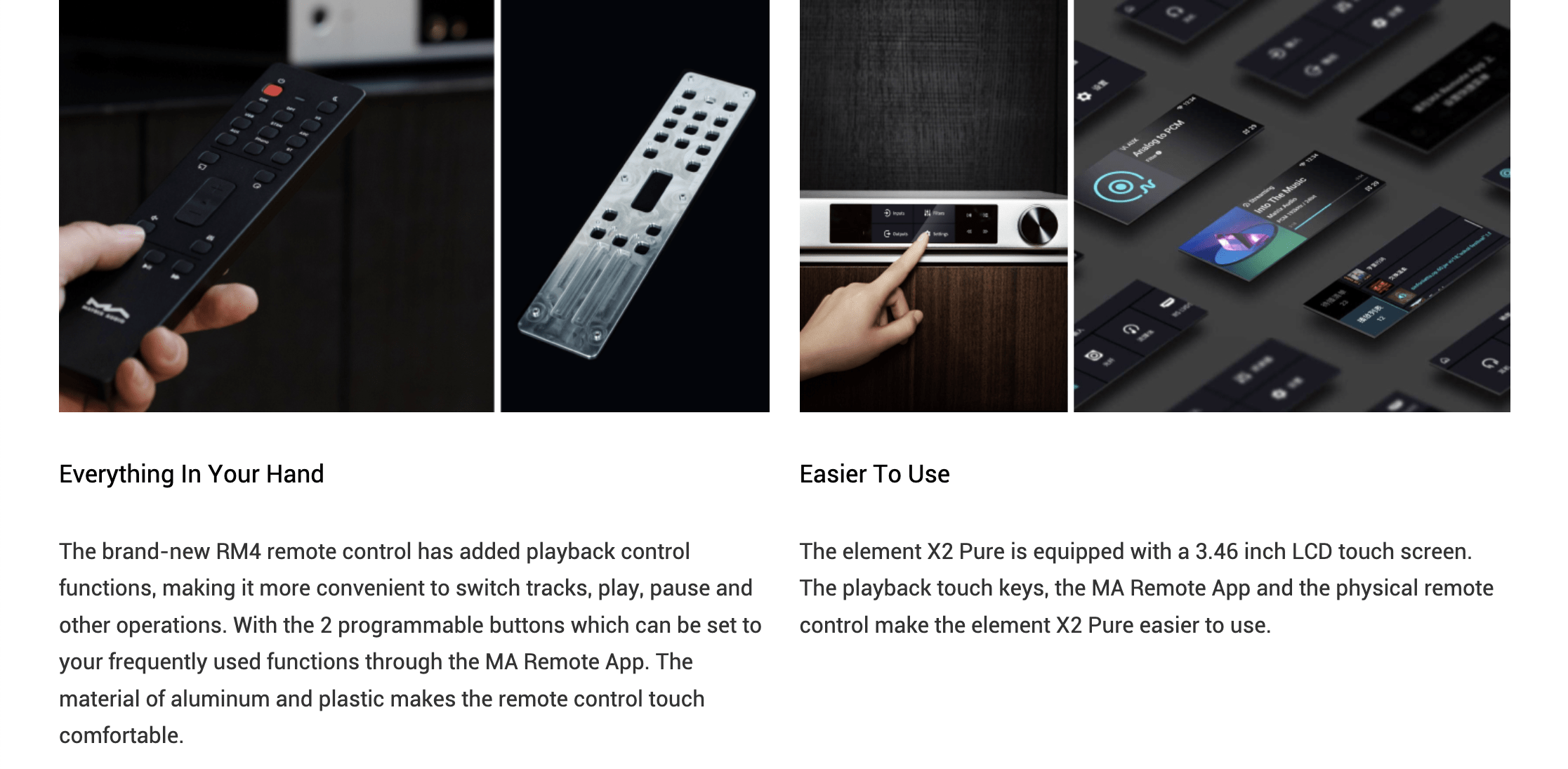

  • Remote control
  • User manual
