Matrix Audio

Matrix X-SPDIF 2 USB Interface (Apos Certified)

$439

Request A Price Match

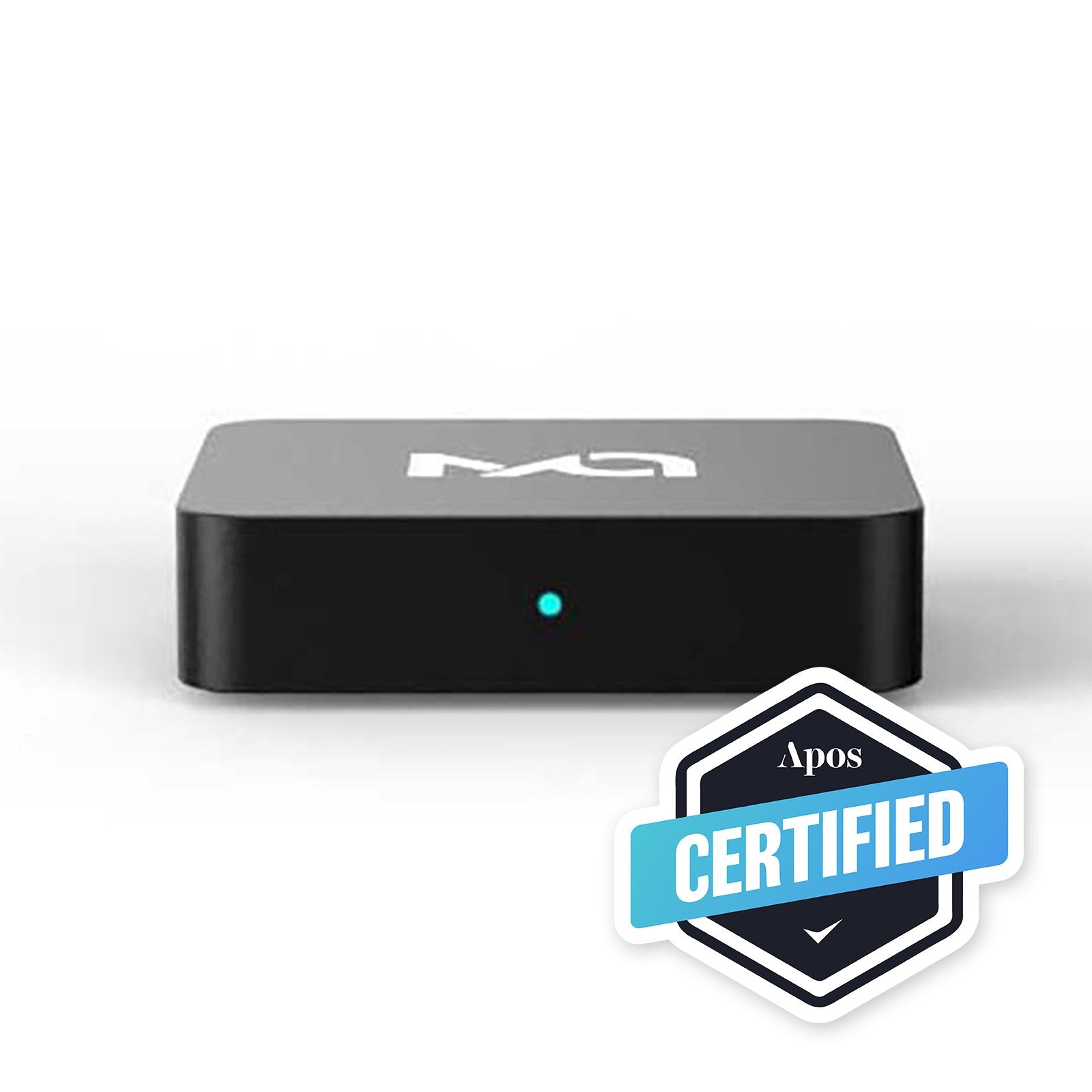

This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

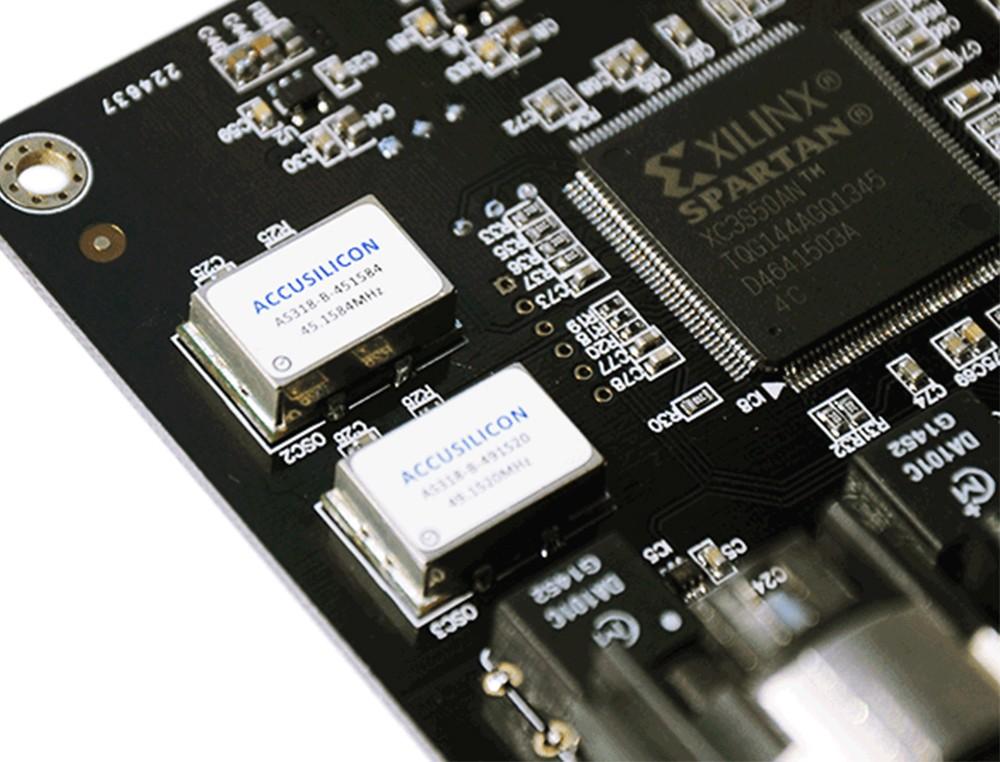

The Matrix X-SPDIF 2 USB Interface has a built-in high-quality femtosecond clock and FPGA processing unit to playback up to 32bit/768kHz PCM audio stream and 1bit/22.4MHz DSD audio stream. With a multi-level LDO, configurable IIS port, and external power supply support, this interface is stacked for performance.



Specs:

  • Supported Sample Rate
    • Optical/Coaxial/AES: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHzDSD64 (DoP), PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHzDSD64/128/256/(DoP), DSD64/128/256/512 (Native)
  • Power Supply Specs:
    • USB bus power supply: 5V/500mA
    • External power supply: DC 6~9V, ≥800mA
    • Power supply port: outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)
  • Dimension: 133mm×142mm×38mm(L×W×H, including protruding parts)
  • Weight: 1.1KG

Included:

  • USB CableSilver Plated Teflon Insulation USB Cable ×1
