Singxer

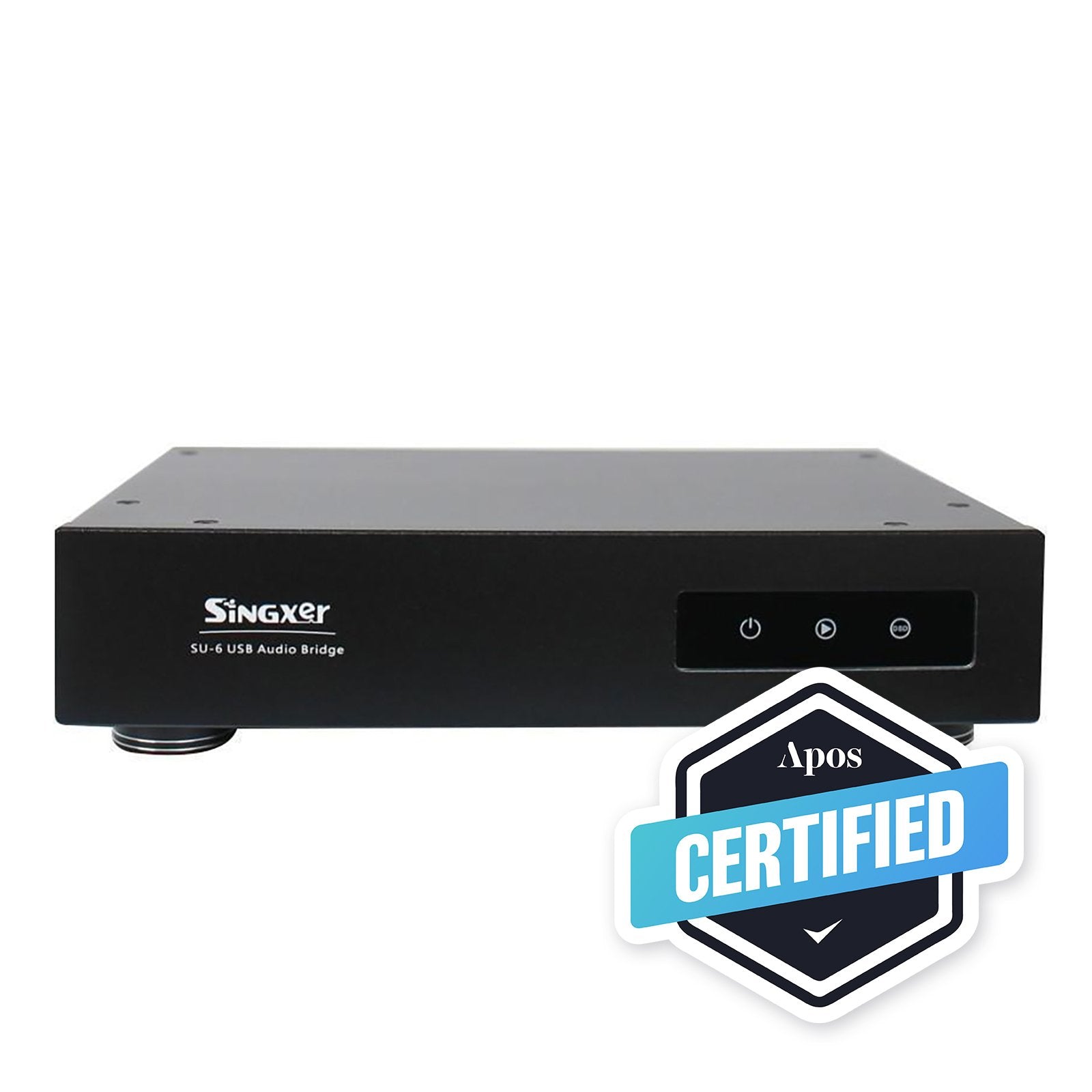

Singxer SU-6 (Apos Certified)
$586.49
$689.99
This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

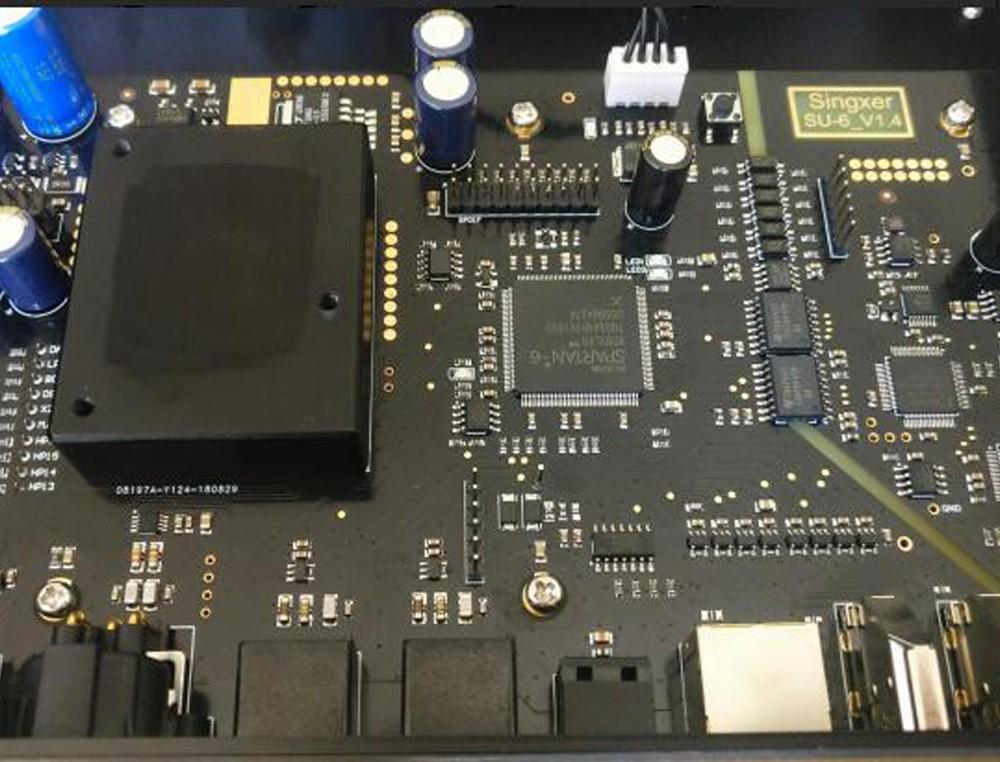

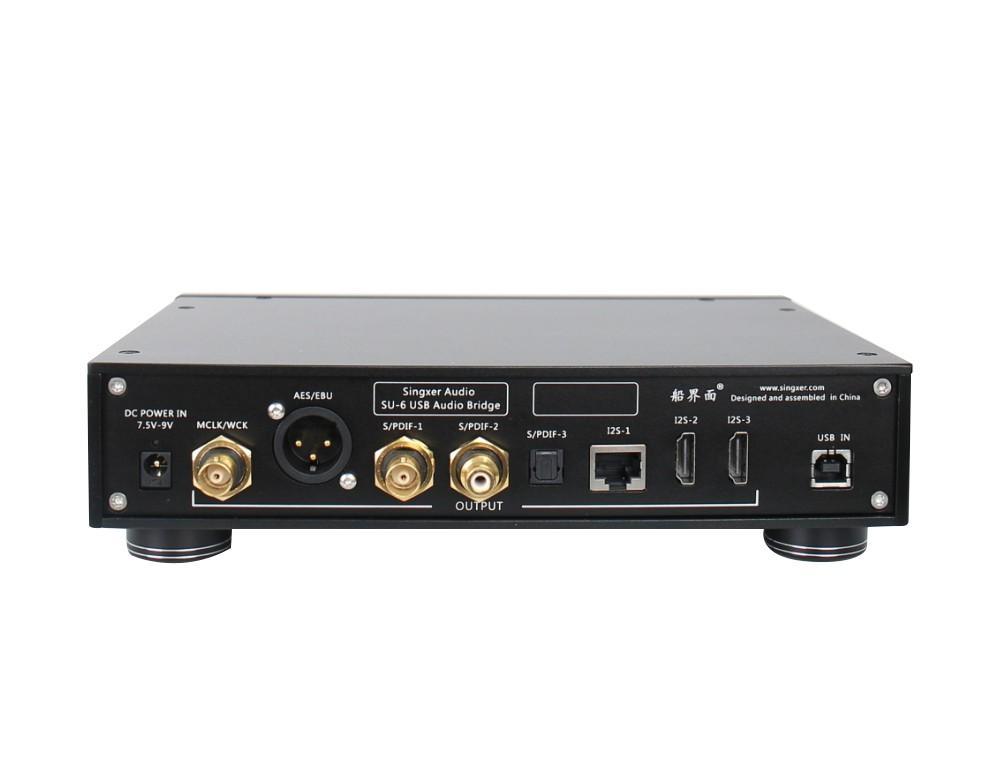

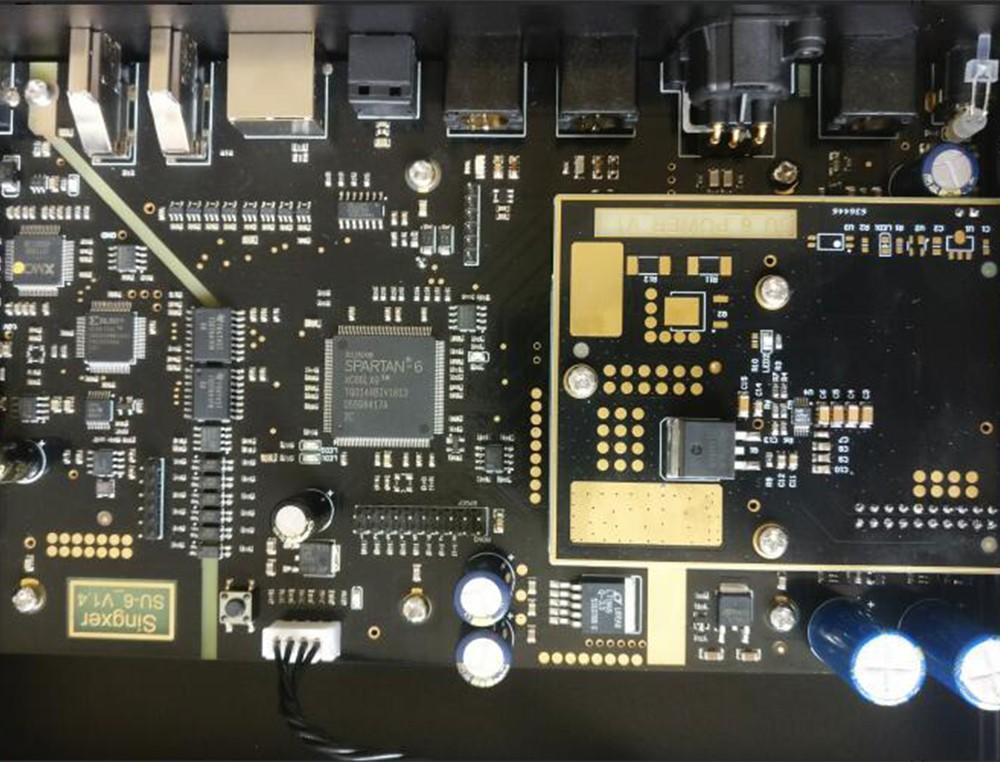

The Singxer SU-6 USB Digital Interface has the XMOS' latest xCORE-200 series and Xilinx's high-performance large-scale PGA chip. It uses a thermostat-level clock system and Crystek's two CCHD-957 femtosecond crystal oscillators provide a solid foundation for the superior audio signal quality of the SU-6 output. For outputs, it has a S/PDI for fiber/coaxial RCA and BNC outputs, AES/EBU for XLR balanced output, RJ45, and HDMI interfaces. The power system design is optimized and the audio section is powered by a 7.5F (7.5 million uf) super capacitor.
Specs:
- Sample rate supported by each output interface:
- PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz
- 2.8 MHz (DSD64) - DoP, native
- 5.6 MHz (DSD128) - DoP, native
- 11.2 MHz (DSD256) - DoP, native
- 22.5 MHz (DSD512) - native
- Bit width: up to 32 bit over I2S output
- Up to 24 bit over S/PDI, AES/EBU
- Compatibility: Windows 7/8/10, MacOS 10.6 and later, Native Linux with UAC2 compliant kernel, Android OS 4.2 and above
- Electrical standards for each interface:
- USB power supply range is 4.5 V - 5.1 V
- DC Input is 7.5 V - 9 V
- BNC interface and RCA interface level is 550 mV with the output impedance of 75 ohms
- XLR interface output standard AES / EBU signal level is 3.3 V and the output impedance is 10 ohms
- World Clock output level is TTL and the output impedance of 75 ohms
- RJ45-I2S output I2S signal is CMOS (5V)
- Optical fiber port outputs the standard optical signal
- Sample rate supported by each output interface:
- PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz
- 2.8 MHz (DSD64) - DoP, native
- 5.6 MHz (DSD128) - DoP, native
- 11.2 MHz (DSD256) - DoP, native
- 22.5 MHz (DSD512) - native
- Bit width: up to 32 bit over I2S output
- Up to 24 bit over S/PDI, AES/EBU
- Compatibility: Windows 7/8/10, MacOS 10.6 and later, Native Linux with UAC2 compliant kernel, Android OS 4.2 and above
- Electrical standards for each interface:
- USB power supply range is 4.5 V - 5.1 V
- DC Input is 7.5 V - 9 V
- BNC interface and RCA interface level is 550 mV with the output impedance of 75 ohms
- XLR interface output standard AES / EBU signal level is 3.3 V and the output impedance is 10 ohms
- World Clock output level is TTL and the output impedance of 75 ohms
- RJ45-I2S output I2S signal is CMOS (5V)
- Optical fiber port outputs the standard optical signal
