SMSL SP200 THX AAA-888 Headphone Amp (Apos Certified)

This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

The SMSL SP200 THX Headphone Amp is the newest product in the SMSL lineup with the top of the line audiophile high power grade THX AAA-888 technology. This technology allows for the highest fidelity with extreme output power and ultra-low crosstalk for a high-quality, low distortion sound. This amp is versatile and can be used to drive a variety of headsets/earbuds including those that have high impedance, require high current, or need high sensitivity.

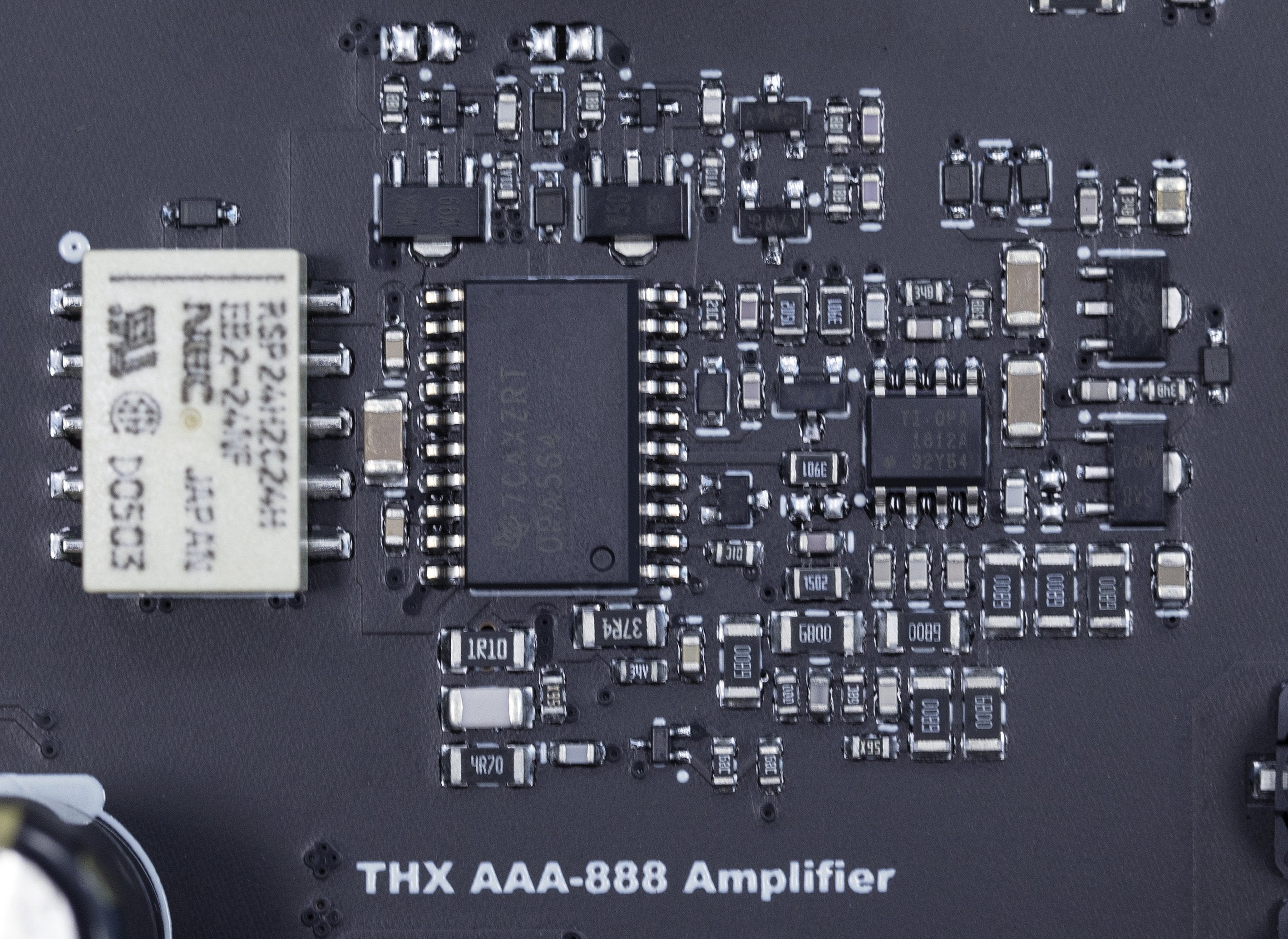

The THX patented AAATM 888 is a linear bipolar amplifier circuit with feedback error correction. It eliminates the distortion mechanism of traditional amplifier circuits, reducing harmonics, intermodulation, and cross-distortion by as much as 40 dBs. This creates a realistic fatigue-free listening experience.

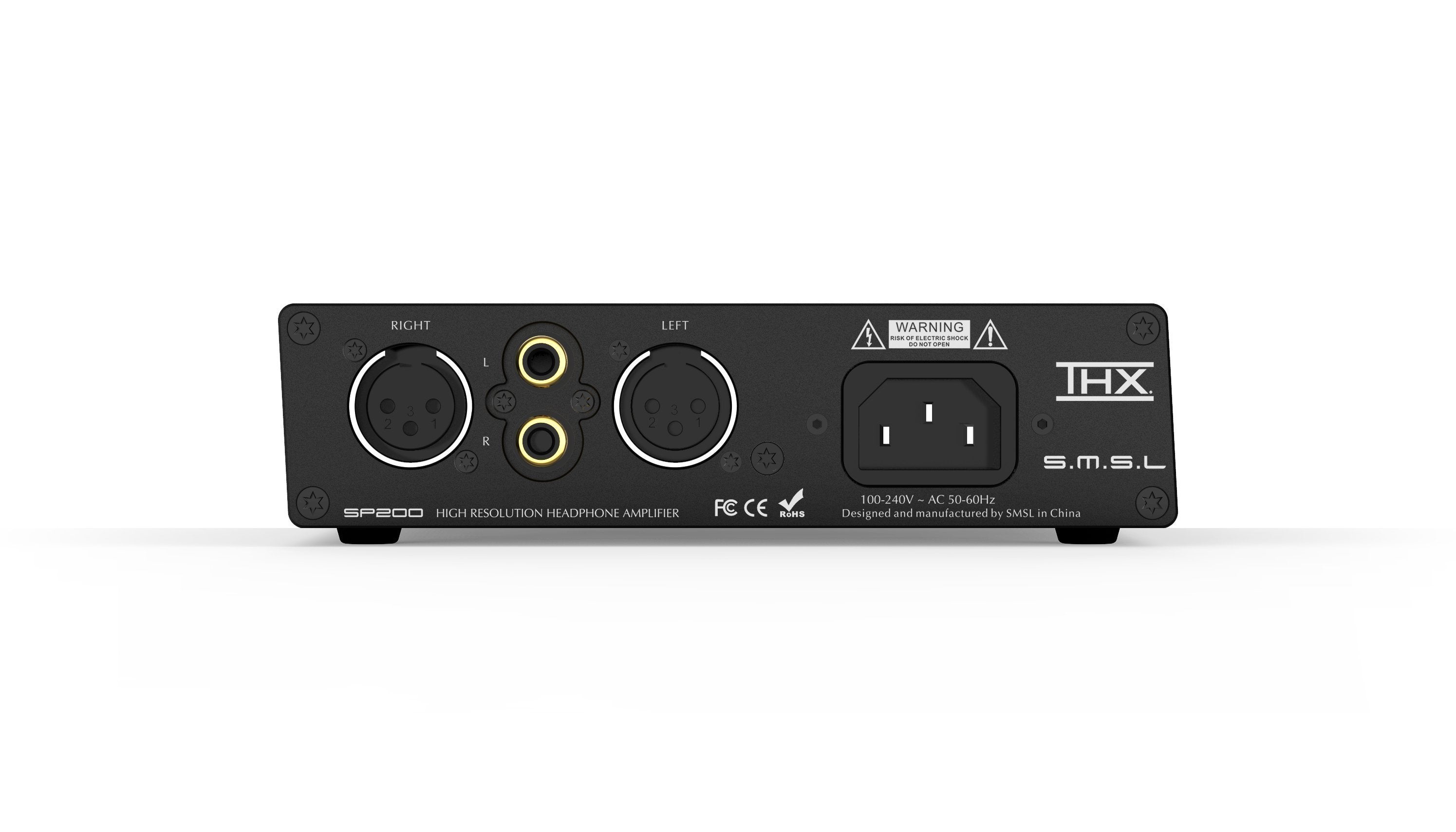

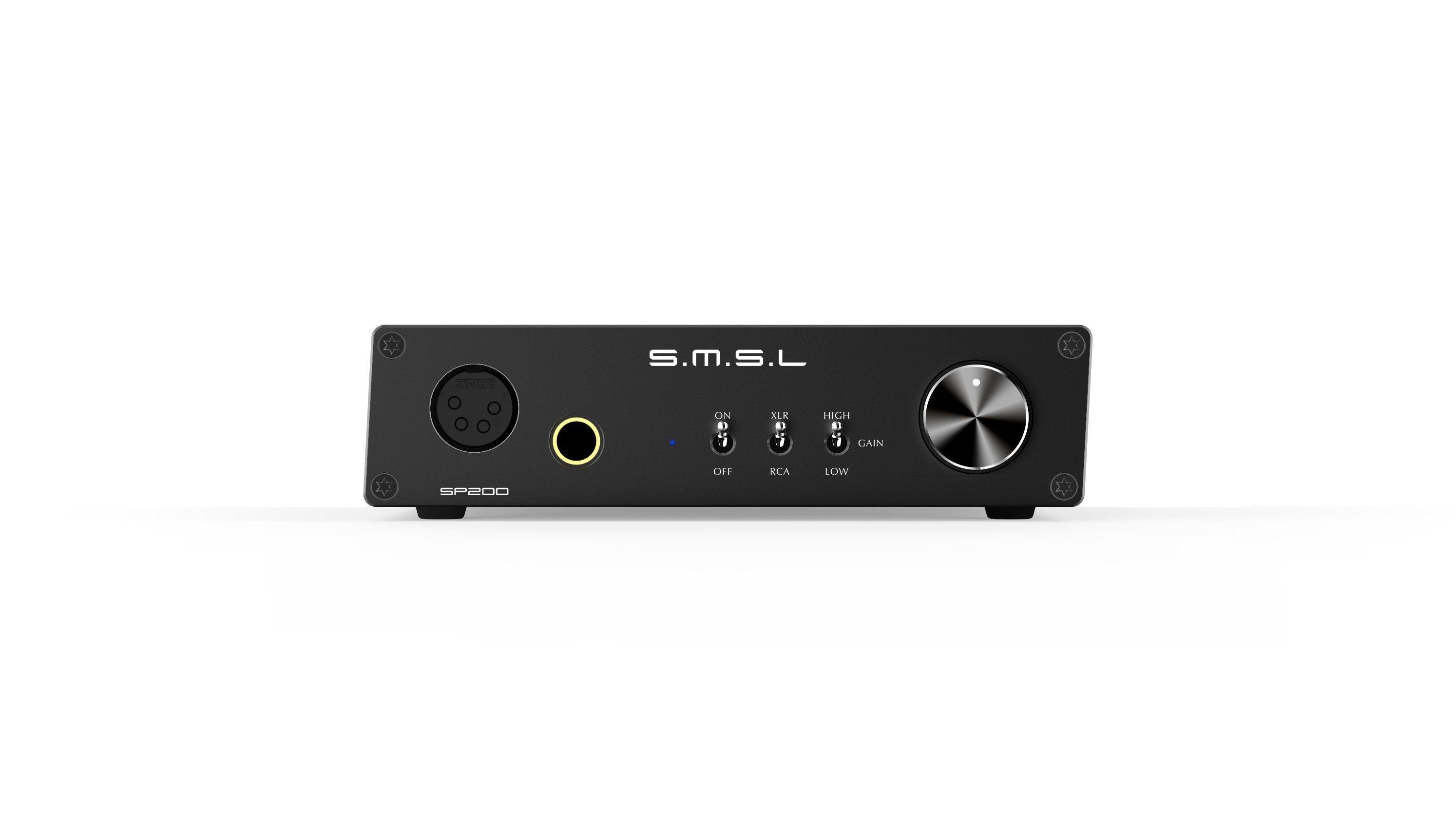

The SP200 comes with a built-in AC power supply and is equipped with XLR and RCA inputs. The front panel has XLR and quarter inch jack outputs, options for switching between different inputs, and choosing high or low gain. A detailed review for the SP200 and its performance is provided by Amir on Audio Science Review.

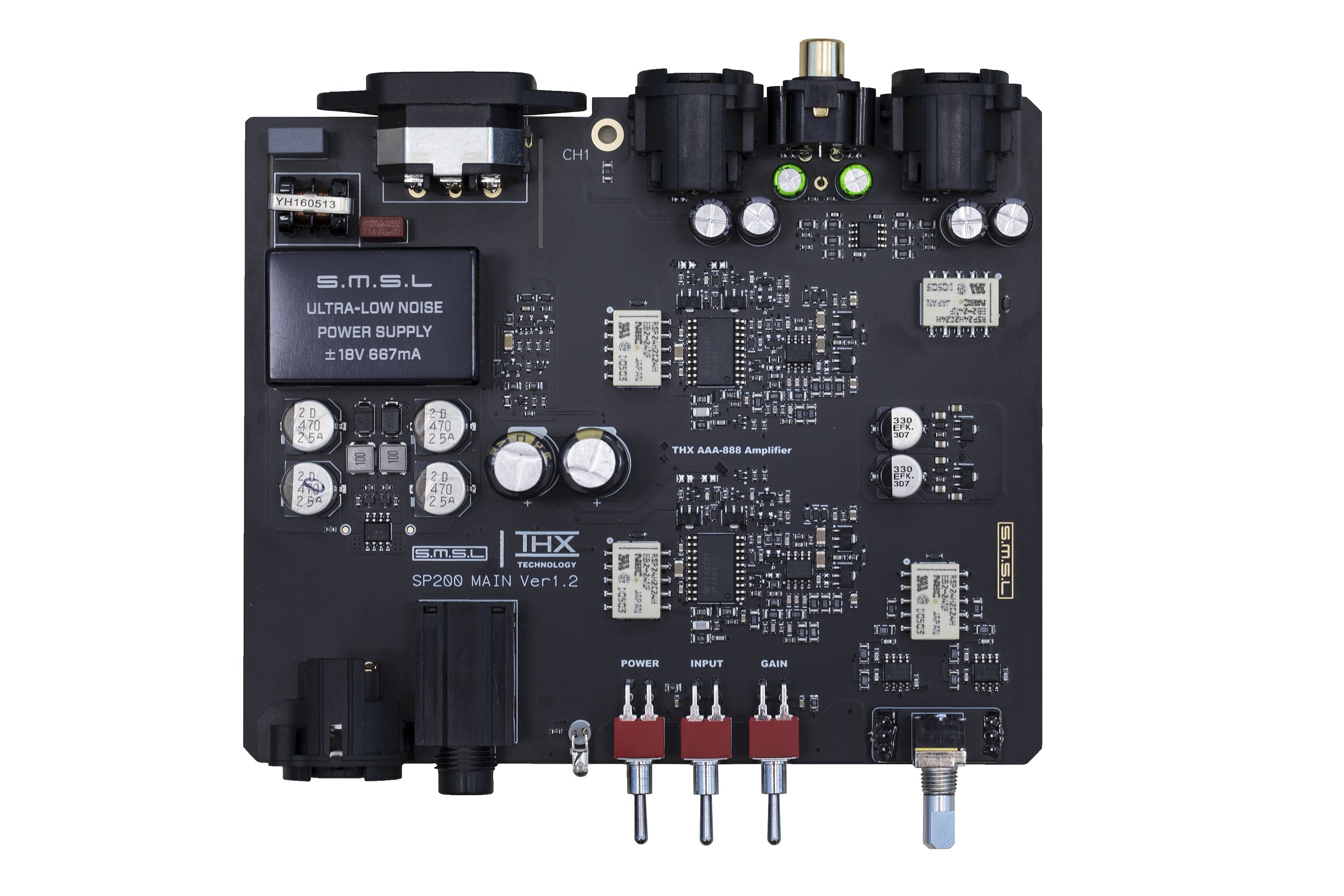

The SP200 has a balanced stereo headphone output, a balanced stereo line input, comes with high precision resistors for temperature stability, and a patented 24W high-efficiency ultra-low noise power supply. Its measured distortion is as low as 0.000078% with a signal-to-noise ratio of 122.2 dB. The CNC aluminum alloy shell chassis reduces the interference and noise to improve the amplifier’s performance.

Features:

• THX AAA-888 Technology
• Ultra-Compact design - great for desktop
• Toggle switch for operation, input selection, and gain control
• Balanced stereo headphone output
• Balanced stereo line input
• High precision resistors for temperature stability
• Pop-less design with high quality relays
• Selected high precision low-distortion volume potentiometer
• Full protection with DC, over-voltage, over-current, and short-circuit
• Thermal protection on headphone amplifier
• High-efficiency ultra-low noise power supply

Specs:

• Inputs: Balanced x 1, Unbalanced x 1
• Outputs: Balanced x 1, Unbalanced x 1
• Output Power:
• 6W x 2 (16ohm)
• 3W x 2 (32ohm)
• 440mW x 2 (300ohm)
• 220mW x 2 (600ohm)
• SNR: 130dB, A-Weighted
• Output Noise: 2.8uV, A-Weighted
• THD+N: -122dB, 0.00007% (1kHz, 32ohm)
• THD+N: -117dB, 0.00013% (20 - 20kHz, 32ohm, -3dB)
• THD: -125dB, 0.00006% (1kHz, 16ohm, -3dB)
• Output Impedance: Near 0ohm
• Frequency Response: 0.1Hz - 500kHz(-3dB)
• Gain: Low(+6dB), High(+18dB)
• Power Supply Voltage/Frequency: AC100-240V, 50-60 Hz
• Power Consumption (EN60065): 24W
• Power Consumption in Standby Mode: < 0.1W
• Size: 160 x 149 x 73 mm
• Weight: 772g
