TOPPING DX1 DAC/Amp (Apos Certified)

$74.25 $99

Request A Price Match

This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

It’s time to shake things up

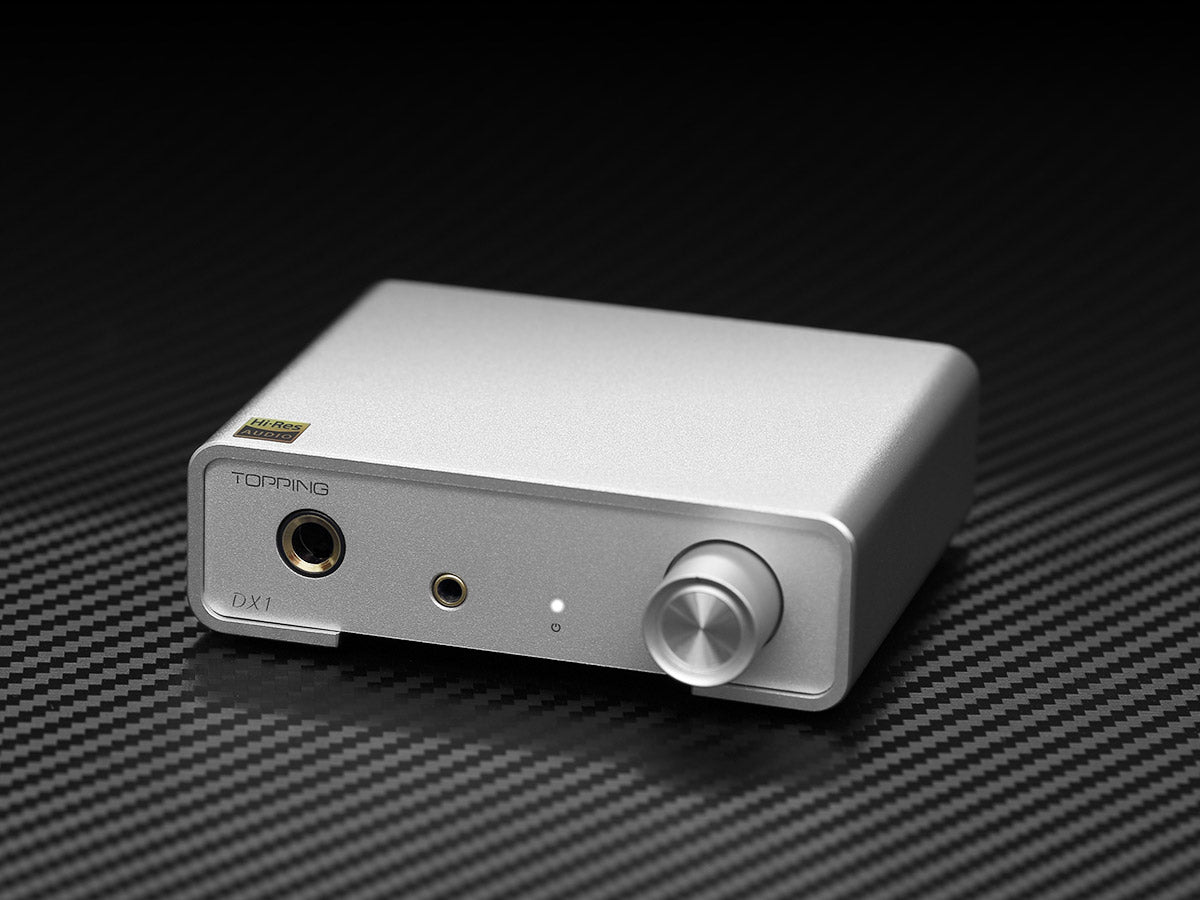

The TOPPING DX1 is a DAC/Amp that’s here to shake up the entry-level market. Featuring an all-new AKM DAC chip, dual gain settings, and two outputs, it’s the perfect way to jumpstart your audiophile journey and hear your IEMs and full-size headphones like never before.

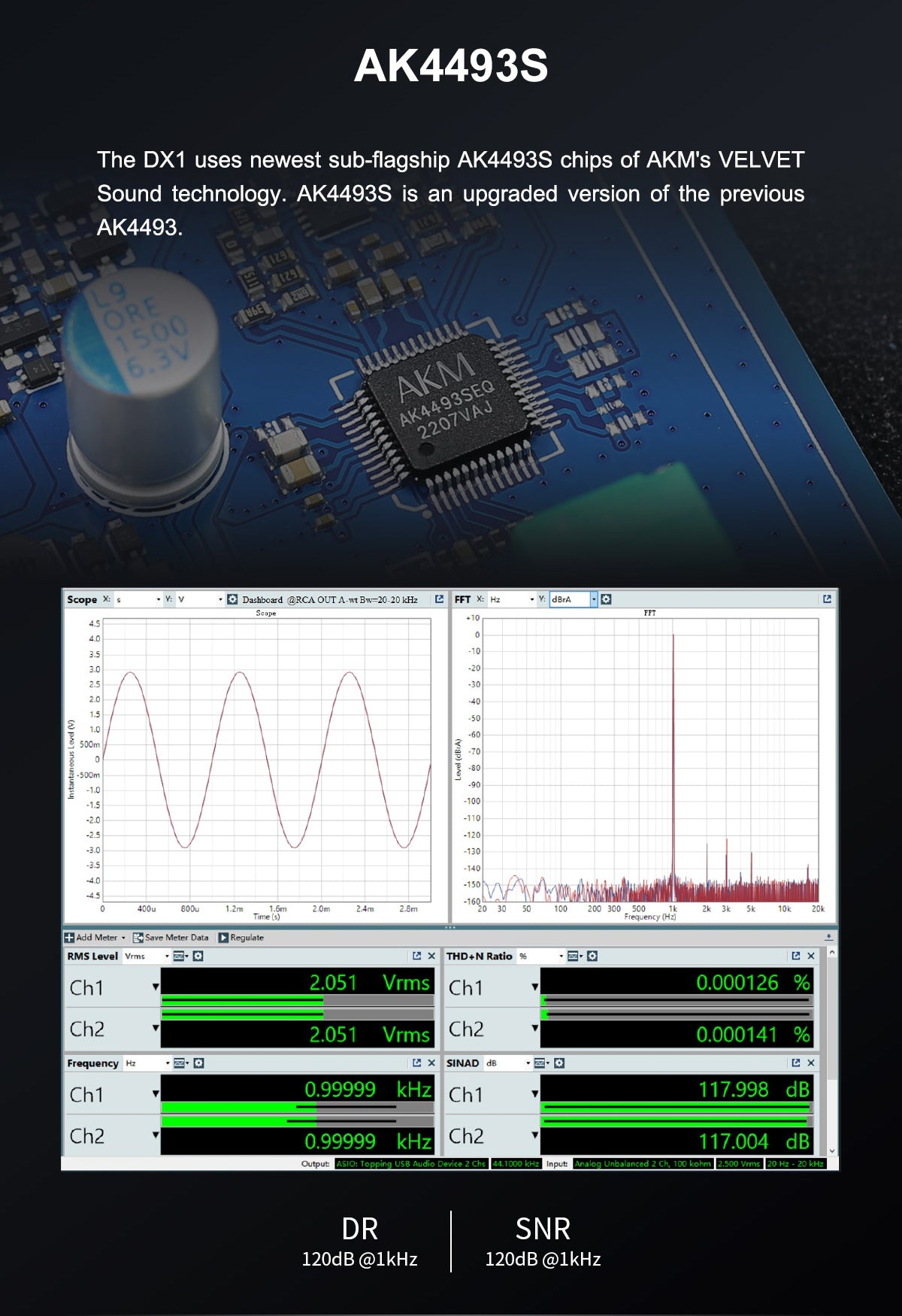

32-bit AK4493S DAC chip

It may be an entry-level device, but that doesn’t mean it isn’t ready for hi-fi sound. Using an all-new AK4493S DAC chip, the DX1 decodes up to 32-bit/384kHz PCM in a stunning 120dB of dynamic range.

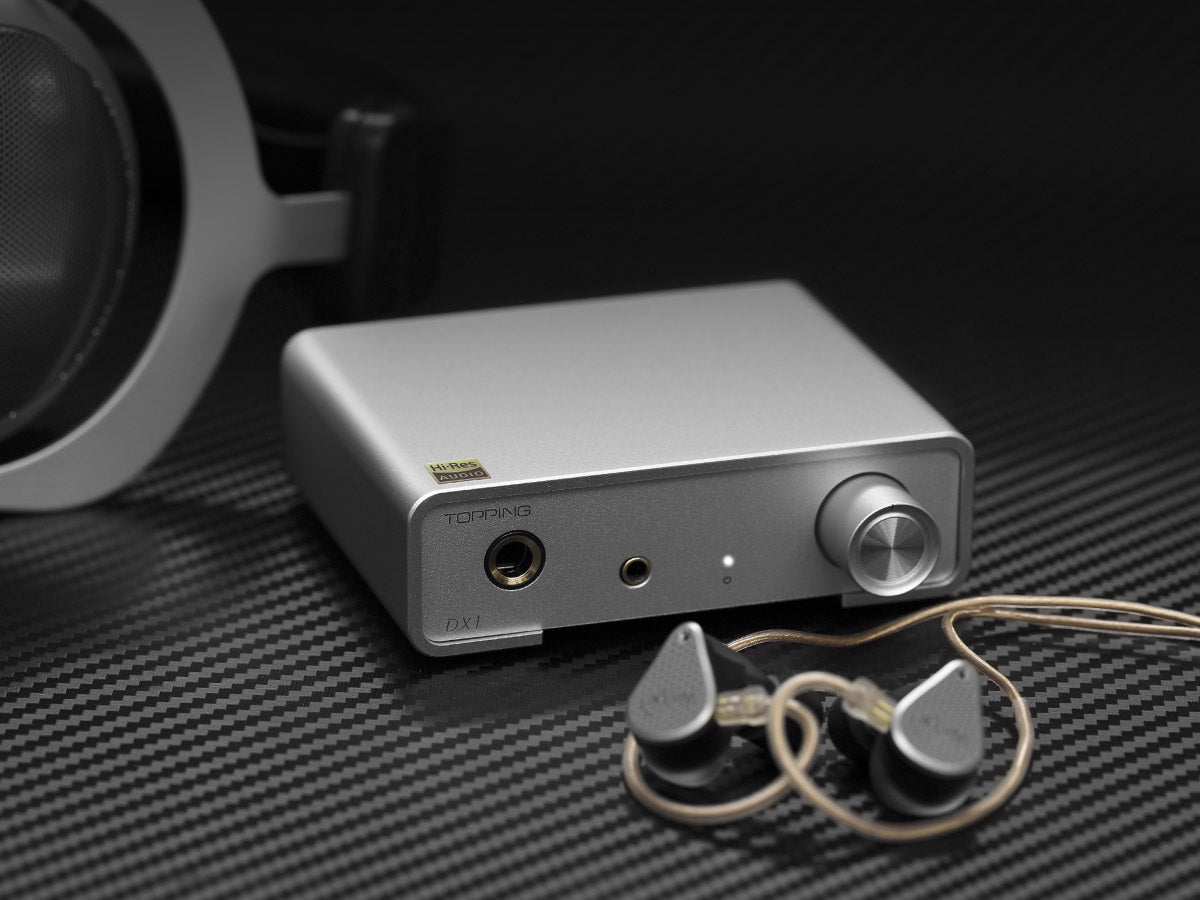

Full-size? IEM? No problem

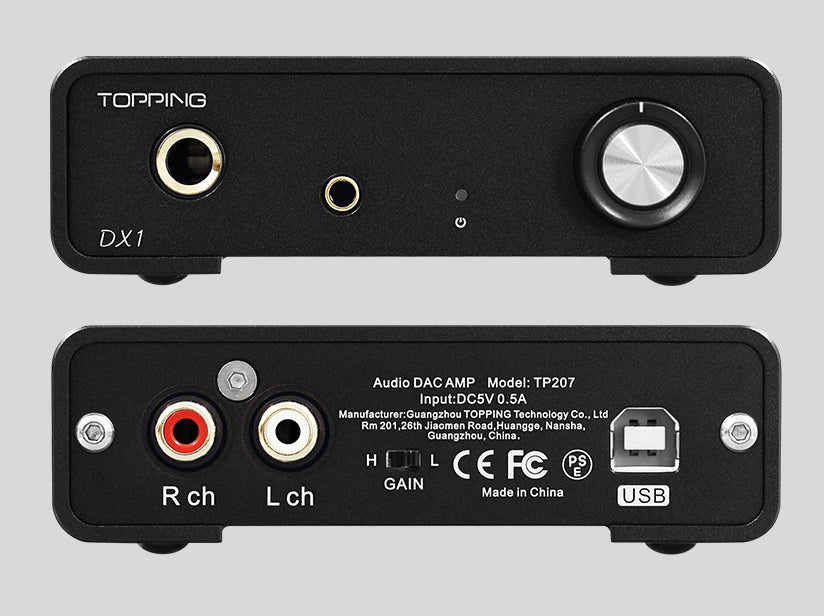

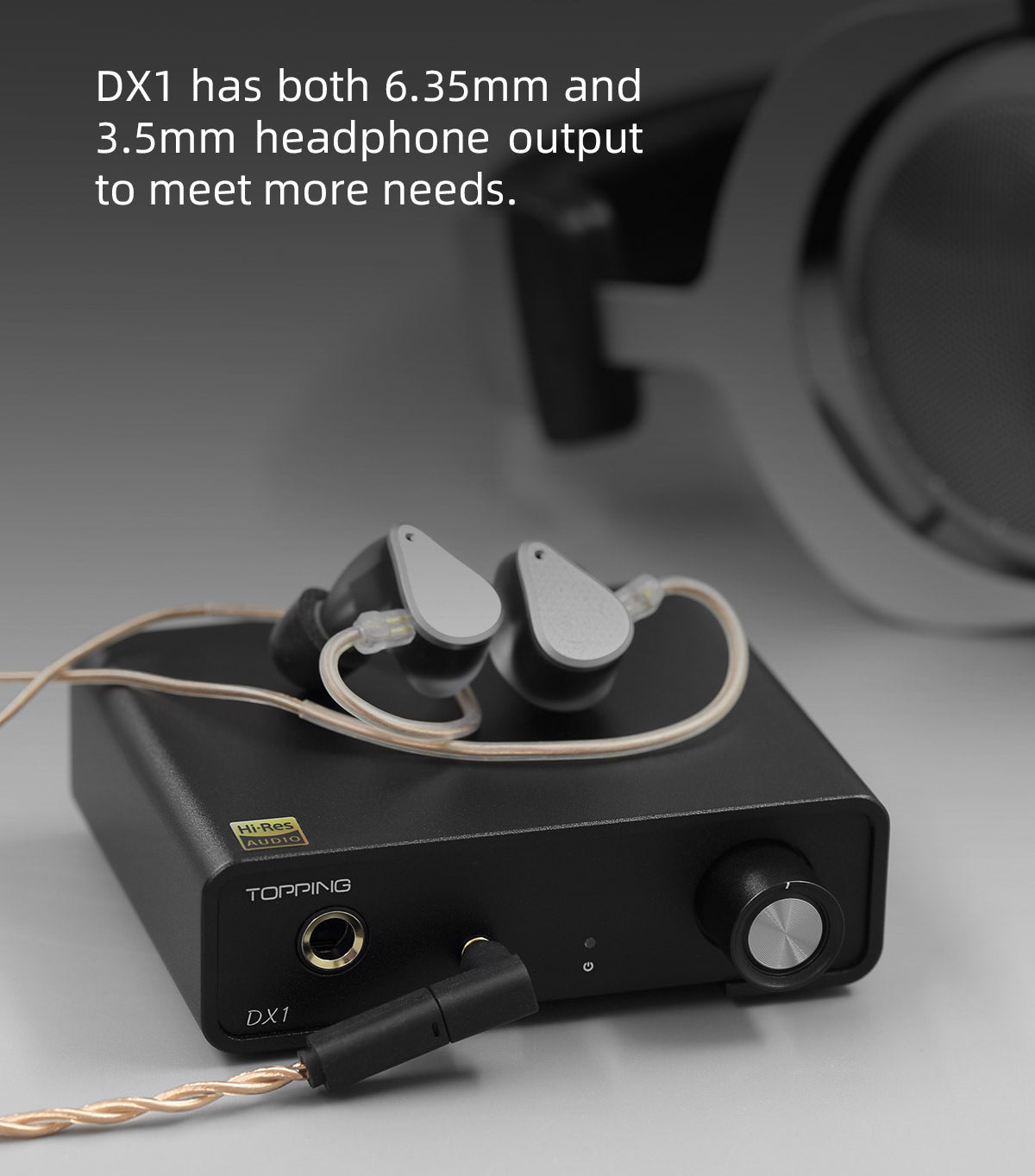

With high/low gain options and two outputs (6.35mm and 3.5mm), the DX1 is ready for IEMs, full-size headphones, and everything in between. Despite its small size, it can output up to 280mWx2 @32Ω and 51mWx2 @300Ω of power.

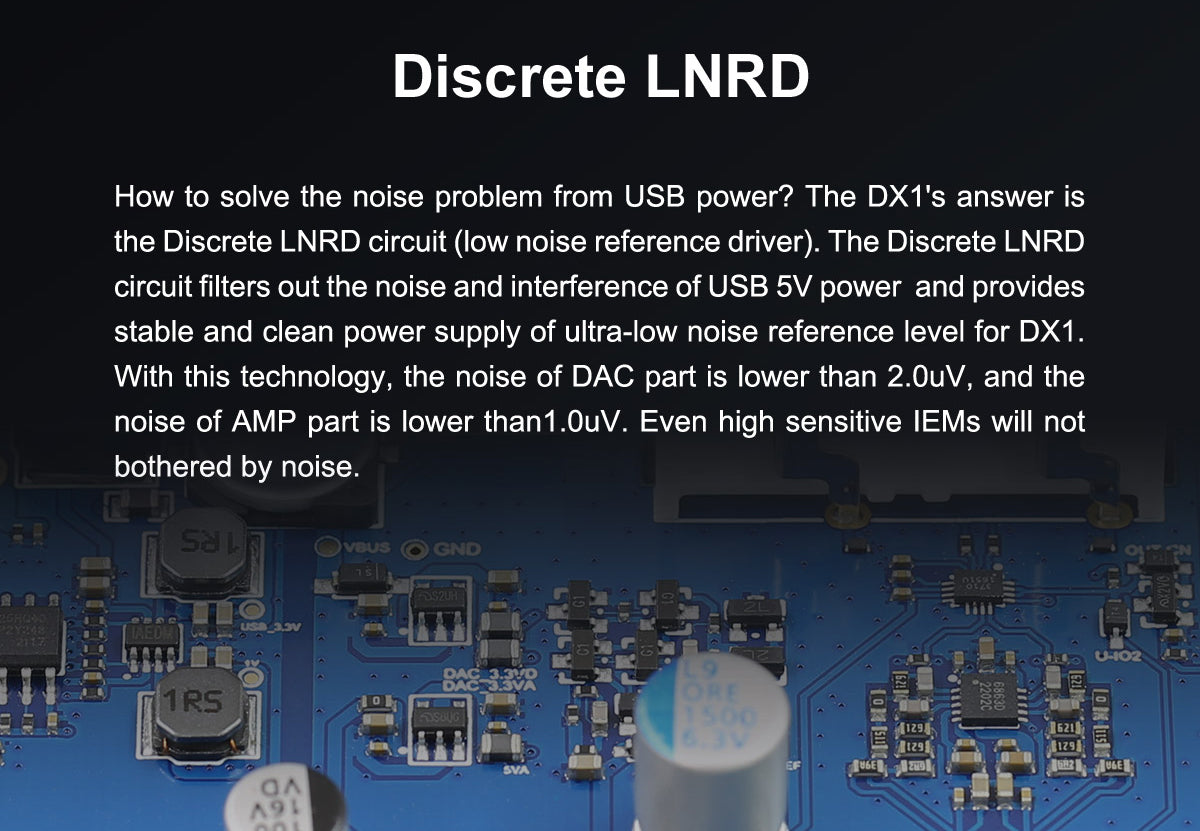

Discrete LNRD circuit

While USB power supplies are conveniently-sized, they present noise problems that can ruin even a high-end audio chain. The DX1 solves this problem with the Discrete LNRD (low noise reference driver) circuit. This circuit filters out the noise and interference of the USB power supply, resulting in less than 2.0uV of noise in the DAC and less than 1.0uV of noise in the amplifier, making sure that not even highly-sensitive IEMs will pick it up.

Product highlights

  • Hi-Res Audio
  • AKM AK4493S DAC chip
  • <0.0002% THD+N
  • DSD256
  • PCM384

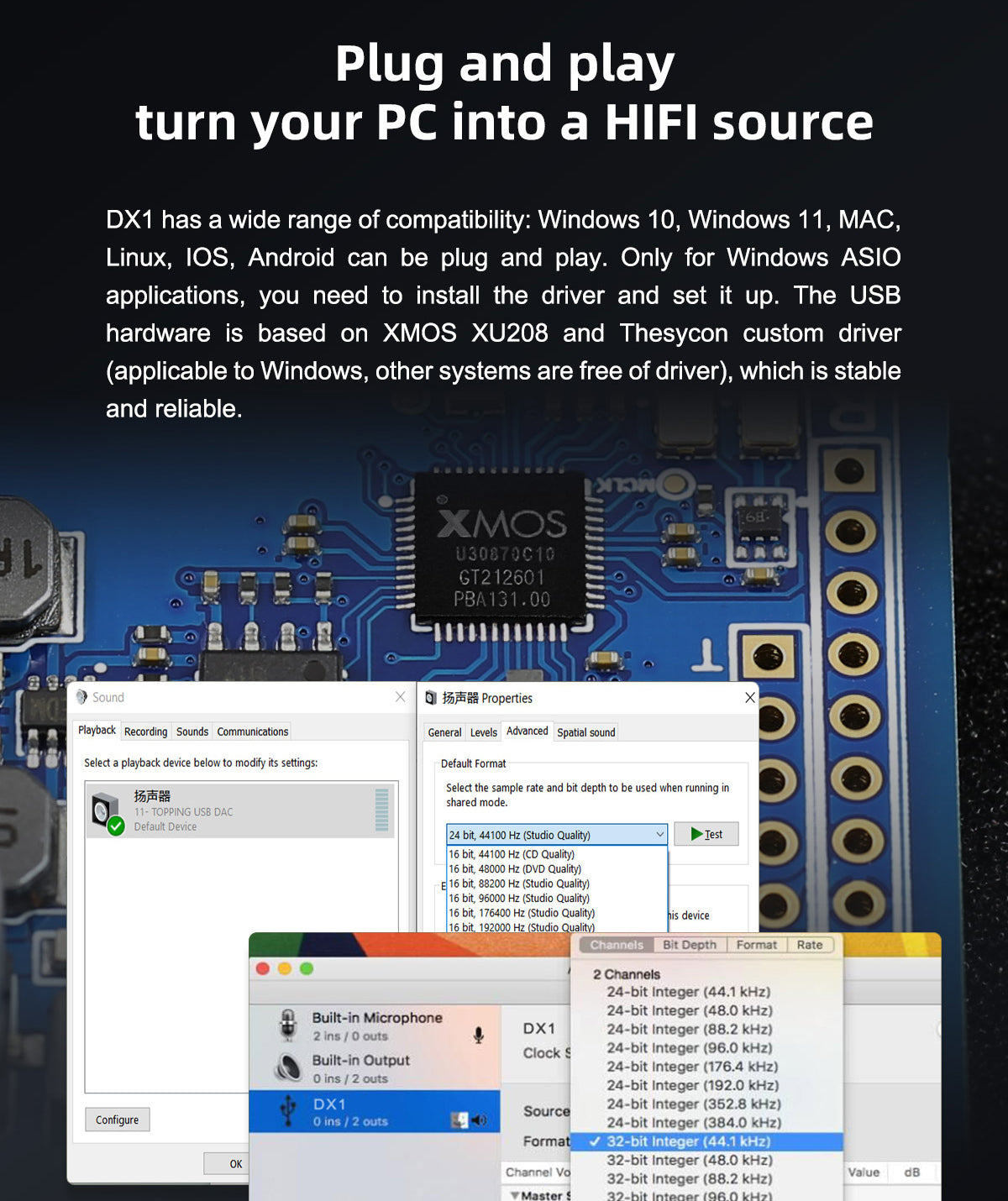

  • XMOS XU208
  • Discrete LNRD
  • 280mW x2

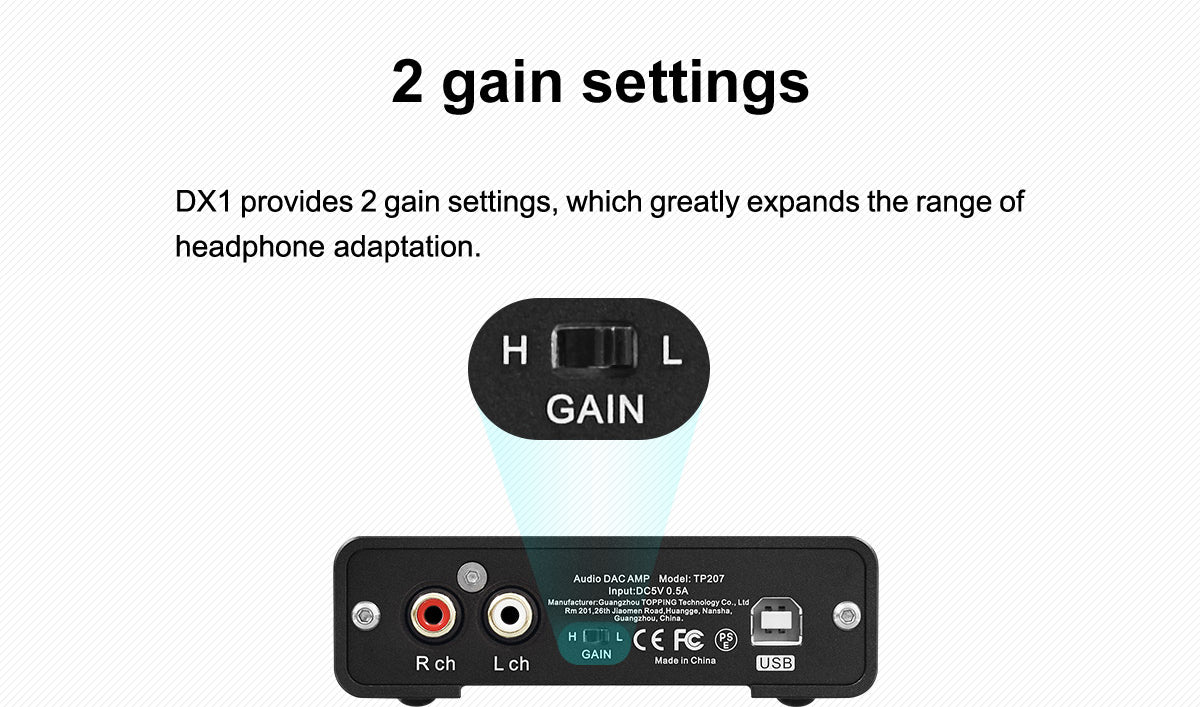

  • 2 gain settings
  • 6.35mm and 3.5mm outputs

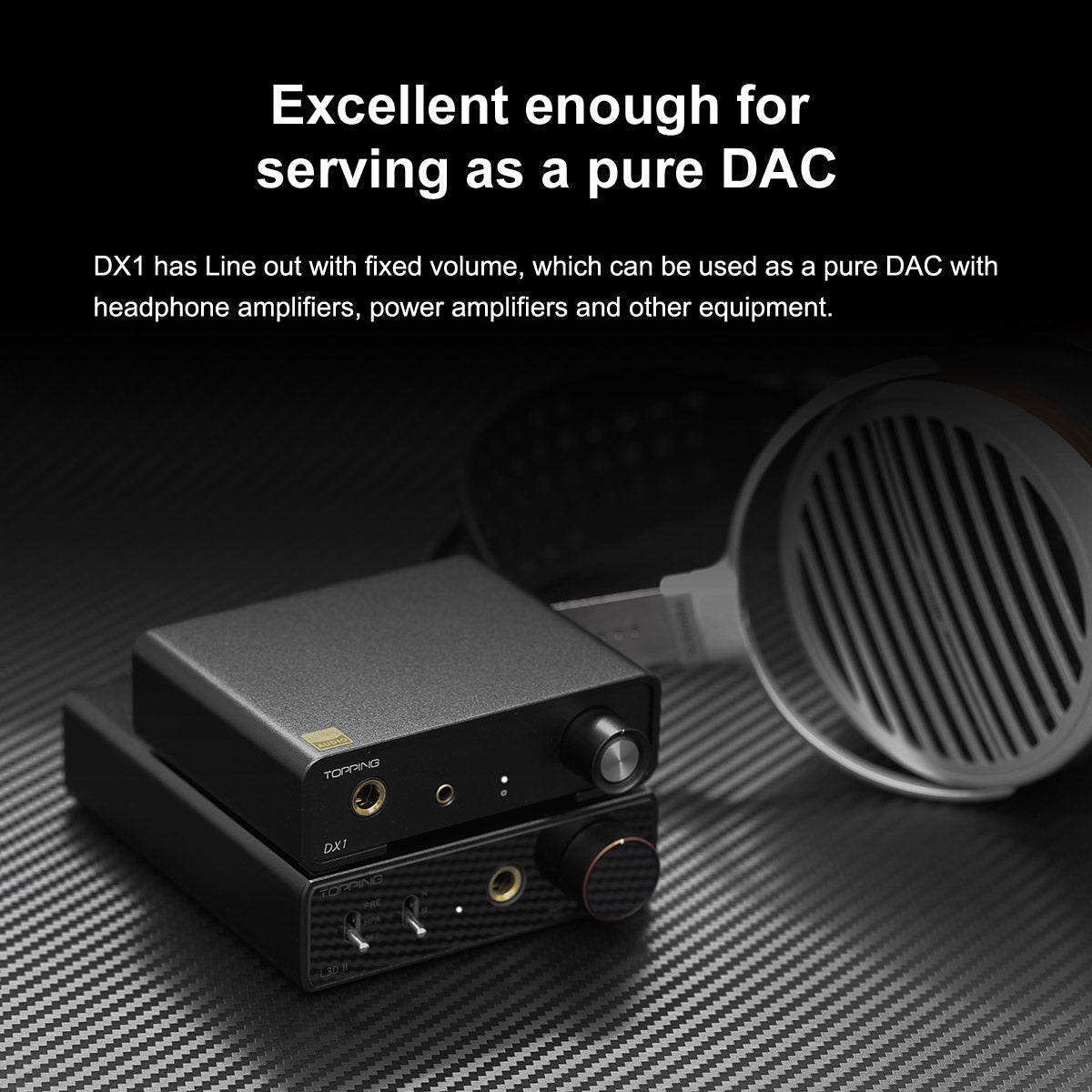

  • Line out

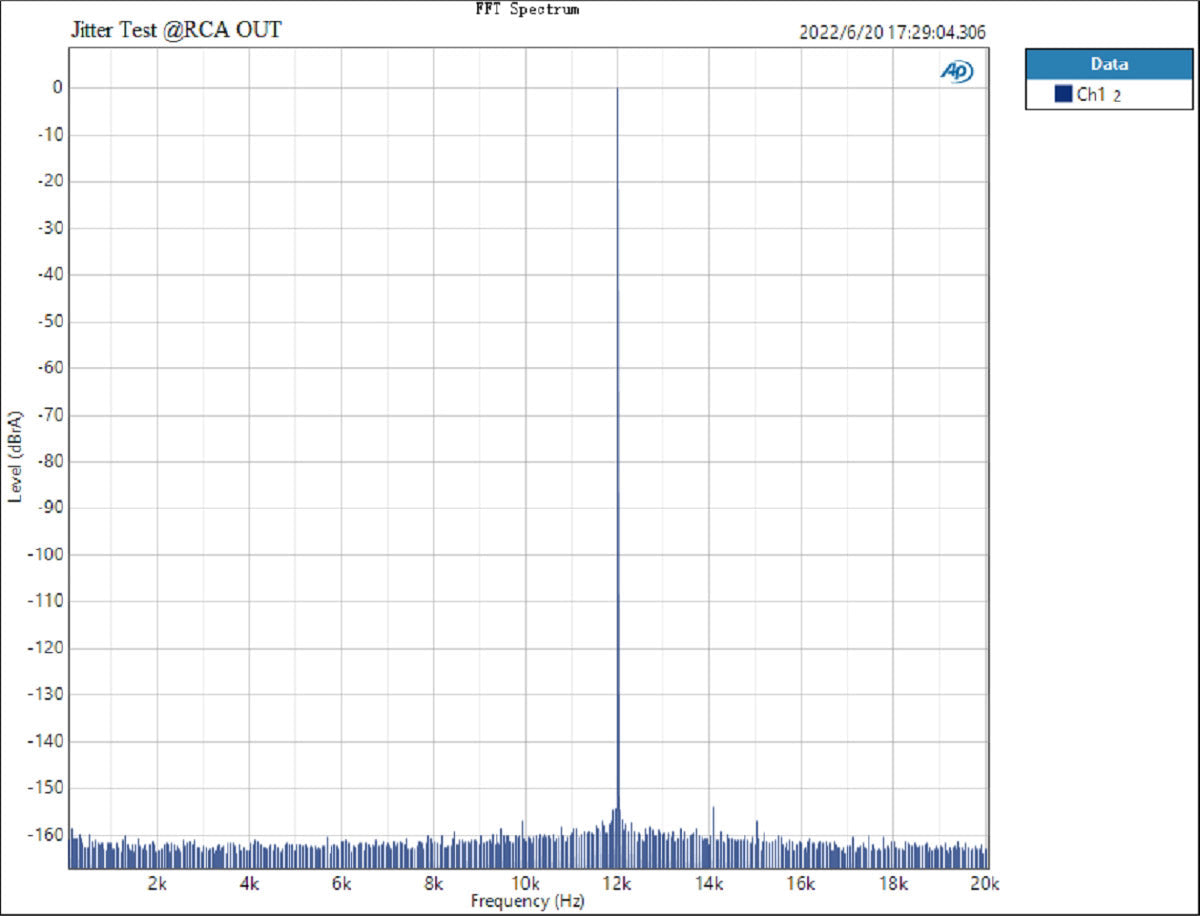

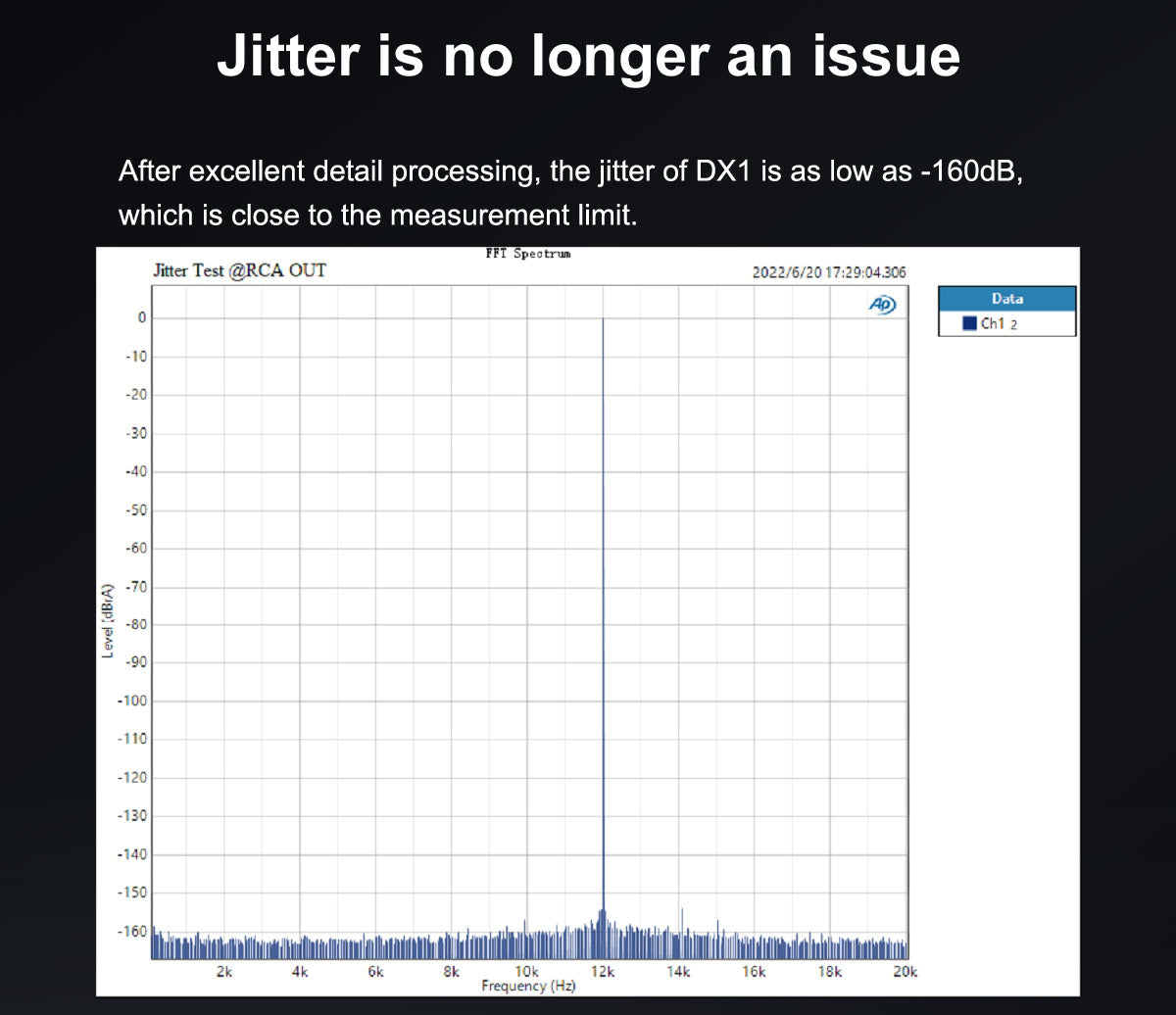

  • -160dB of jitter

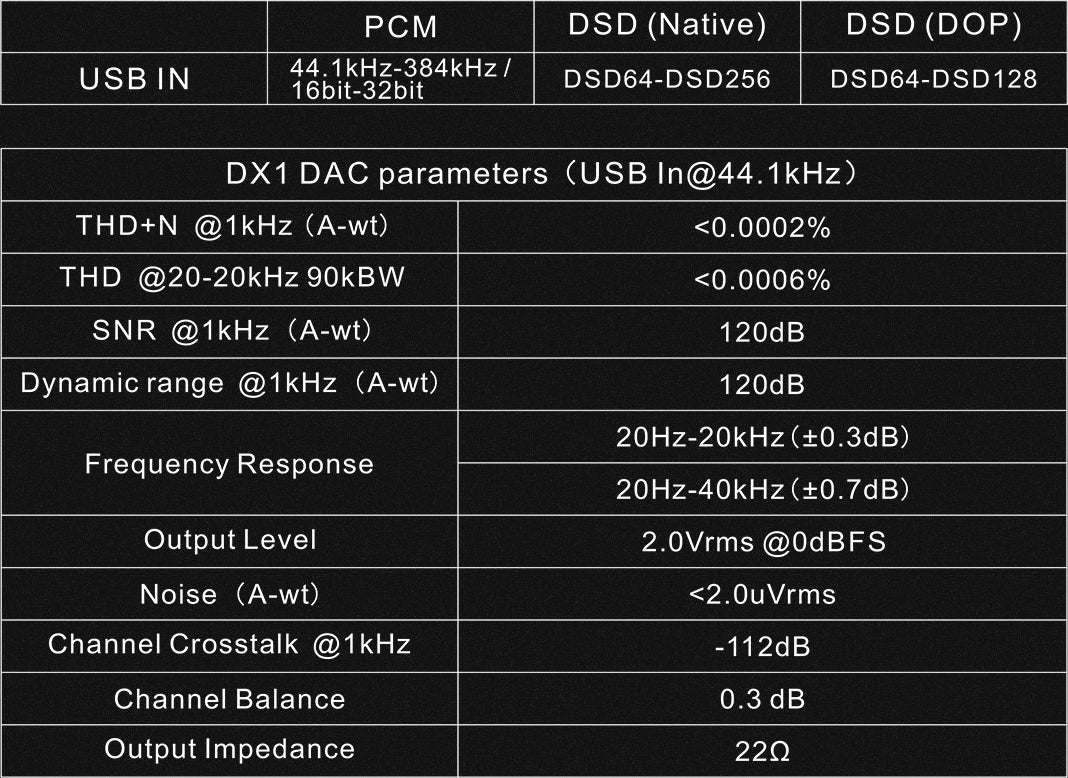

  • USB IN
    • PCM: 44.1kHz-384kHz/16bit-32bit
    • DSD (Native): DSD64-DSD256
    • DSD (DOP): DSD64-DSD128
  • DX1 DAC specs
    • THD+N @1kHz (A-wt): <0.0002%

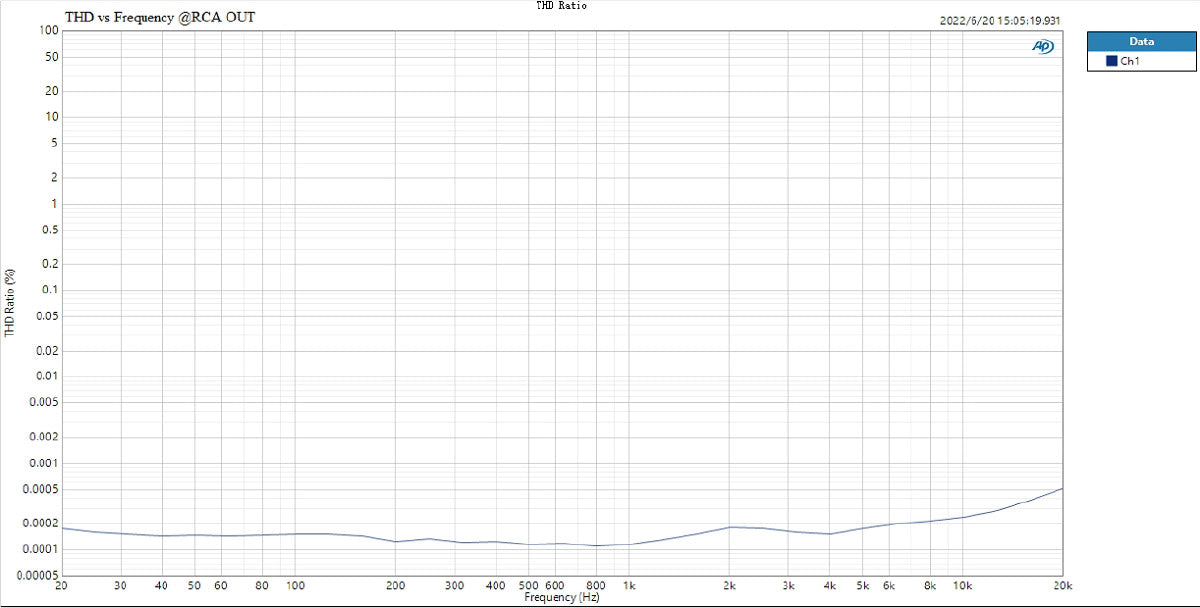

    • THD @20-20kHz 90kBW: <0.0006%
    • SNR @1kHz (A-wt): 120dB
    • Dynamic range @1kHz (A-wt): 120dB

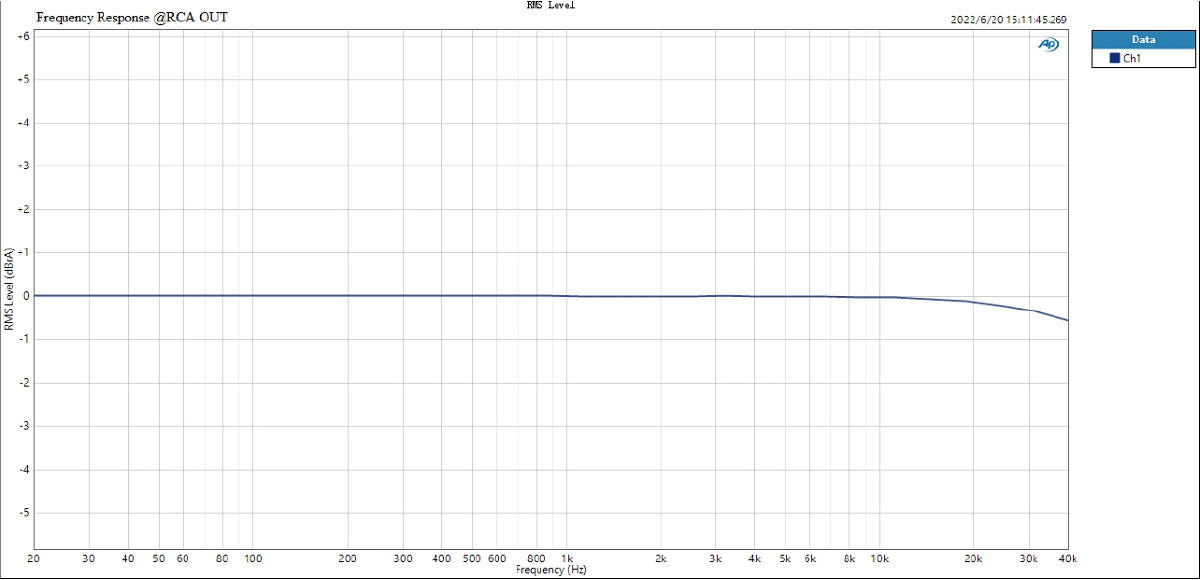

    • Frequency response
      • 20Hz - 20kHz (±0.3dB)
      • 20Hz - 40kHz (±0.7dB)
    • Output level: 2.0Vrms @0dBFS
    • Noise (A-wt): <2.0uVrms
    • Channel crosstalk @1kHz: -112dB
    • Channel balance: 0.3dB
    • Output impedance: 22Ω

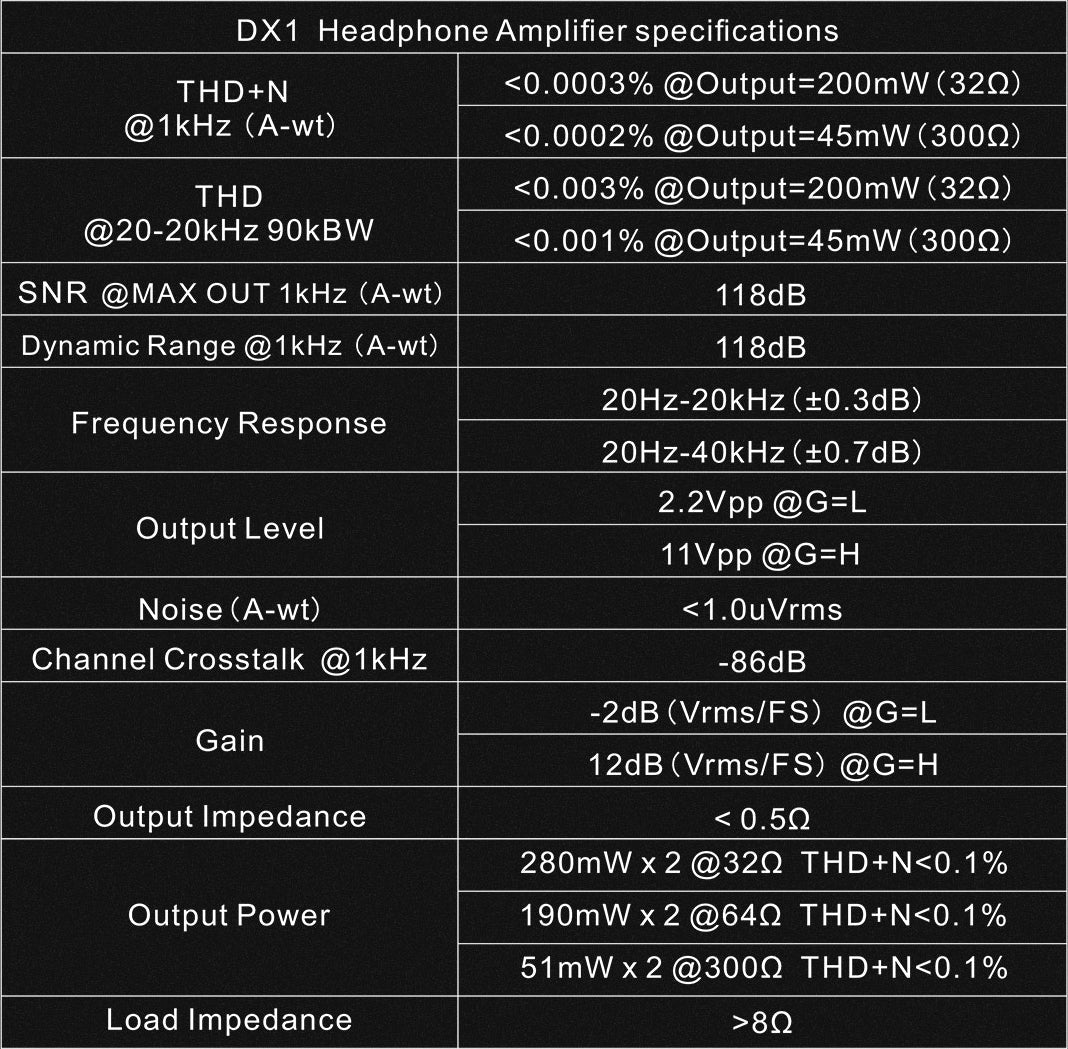

  • DX1 headphone amp specs

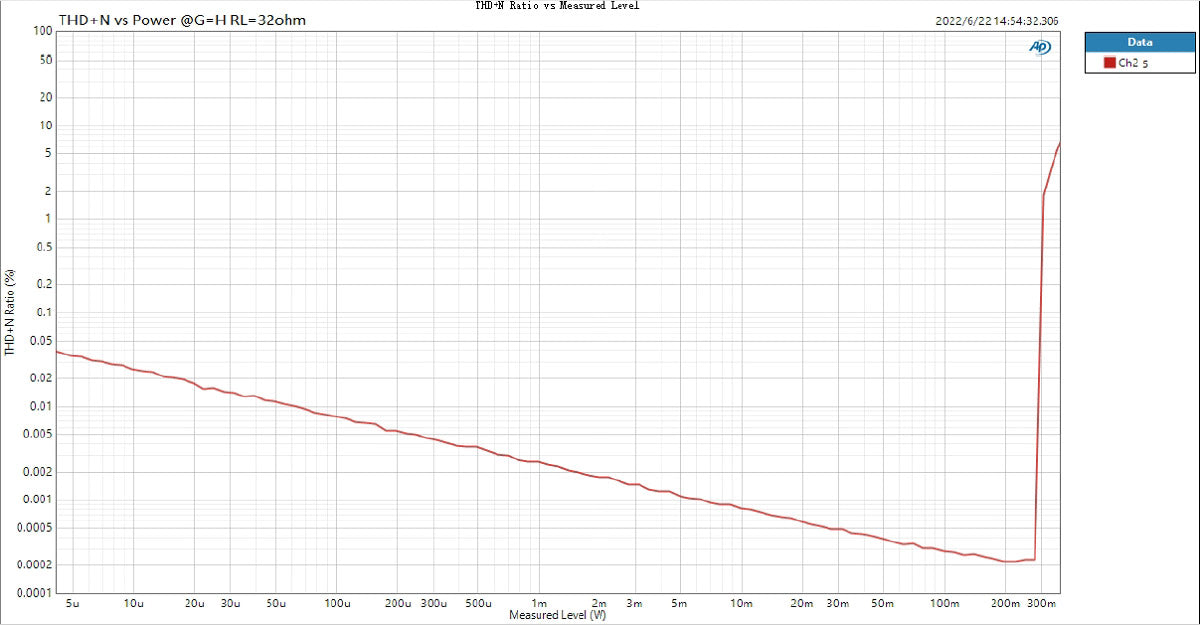

    • THD+N @1kHz (A-wt)
      • <0.0003% @ 200mW (32Ω)
      • <0.0002% @ 45mW (300Ω)

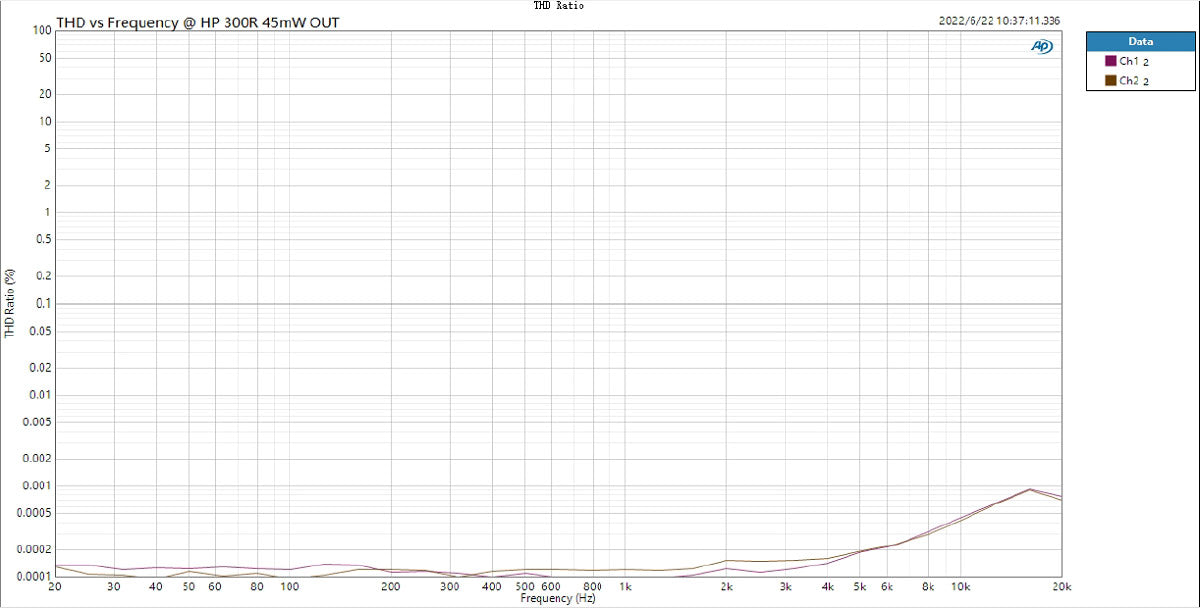

    • THD @20-20kHz 90kBW
      • <0.003% @ 200mW (32Ω)
      • <0.001% @ 45mW (300Ω)
    • SNR @max out 1kHz (A-wt): 118dB
    • Dynamic range @1kHz (A-wt): 118dB
    • Frequency response
      • 20Hz - 20kHz (±0.3dB)
      • 20Hz - 40kHz (±0.7dB)
    • Output level
      • 2.2Vpp (low gain)
      • 11Vpp (high gain)
    • Noise (A-wt): <1.0uVrms
    • Channel crosstalk @1kHz: -86dB
    • Gain
      • -2dB (Vrms/FS) (low gain)
      • 12dB( Vrms/FS) (high gain)
    • Output impedance: <0.5Ω
    • Output power
      • 280mW x2 @32Ω THD+N <0.1%
      • 190mW x2 @64Ω THD+N <0.1%
      • 51mW x2 @300Ω THD+N <0.1%
    • Load impedance: >8Ω

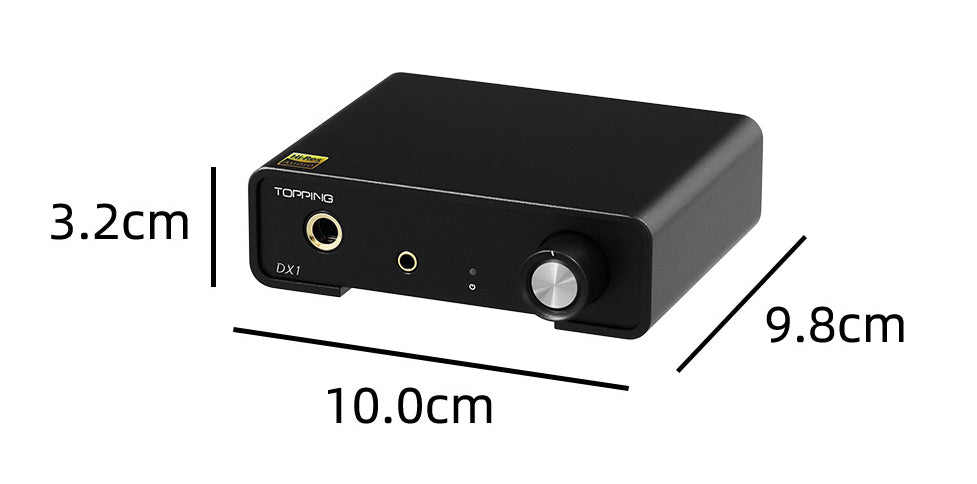

  • Dimensions: 3.9” x 3.8” x 1.25” (10cm x 9.8cm x 3.2cm)

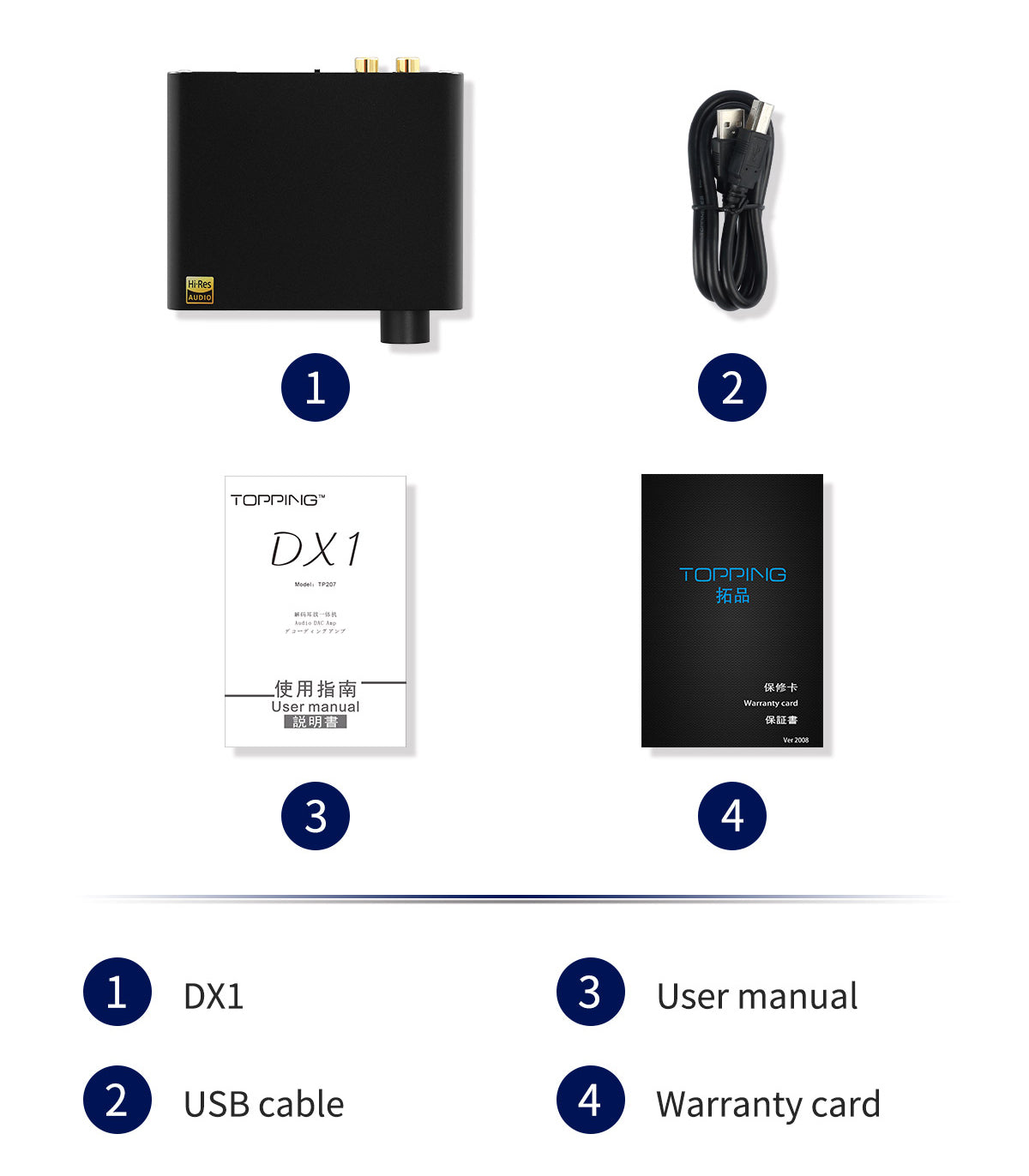

What’s included

  • USB cable
  • User manual
  • Warranty card

TOPPING DX1 DAC/Amp (Apos Certified) User Manual Download
