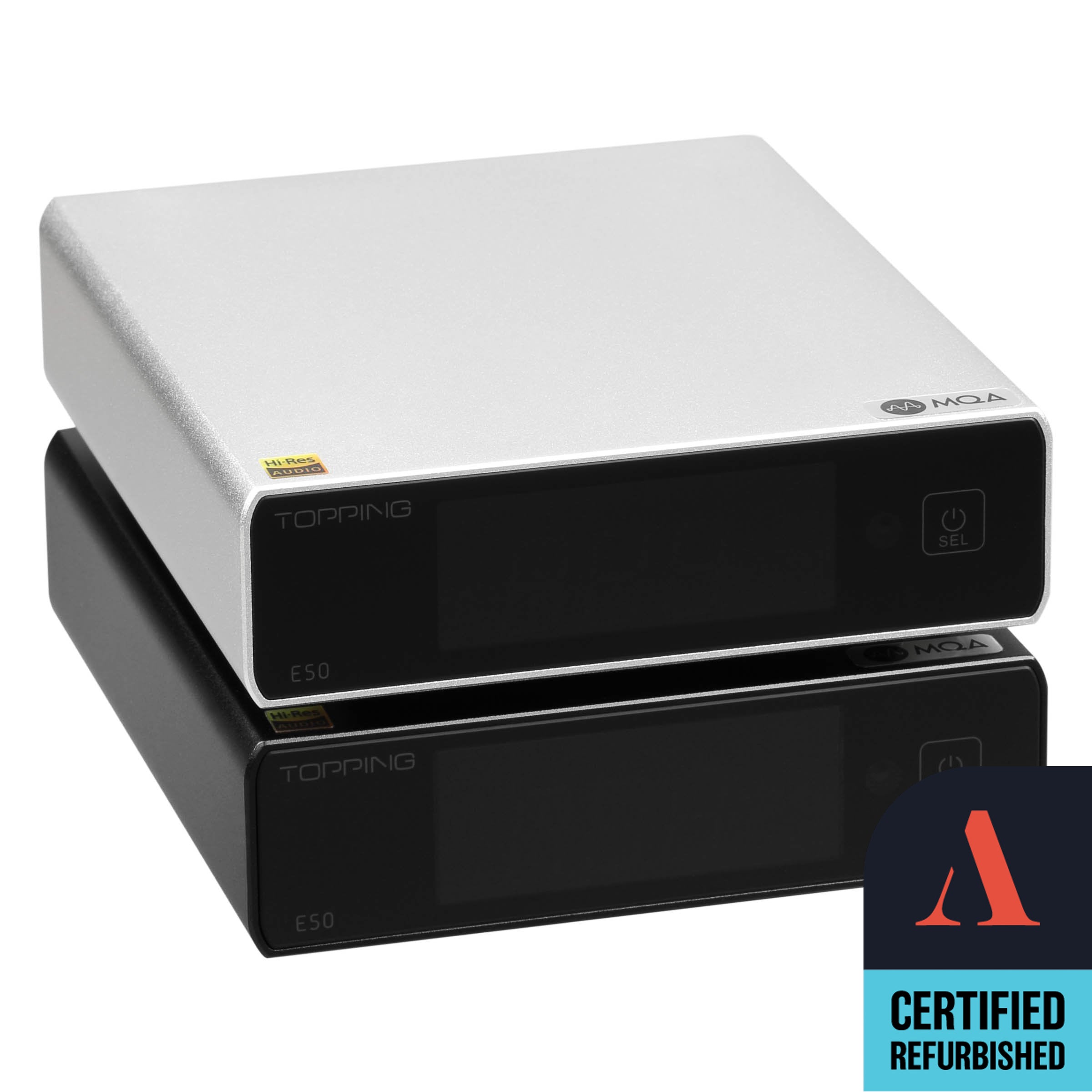

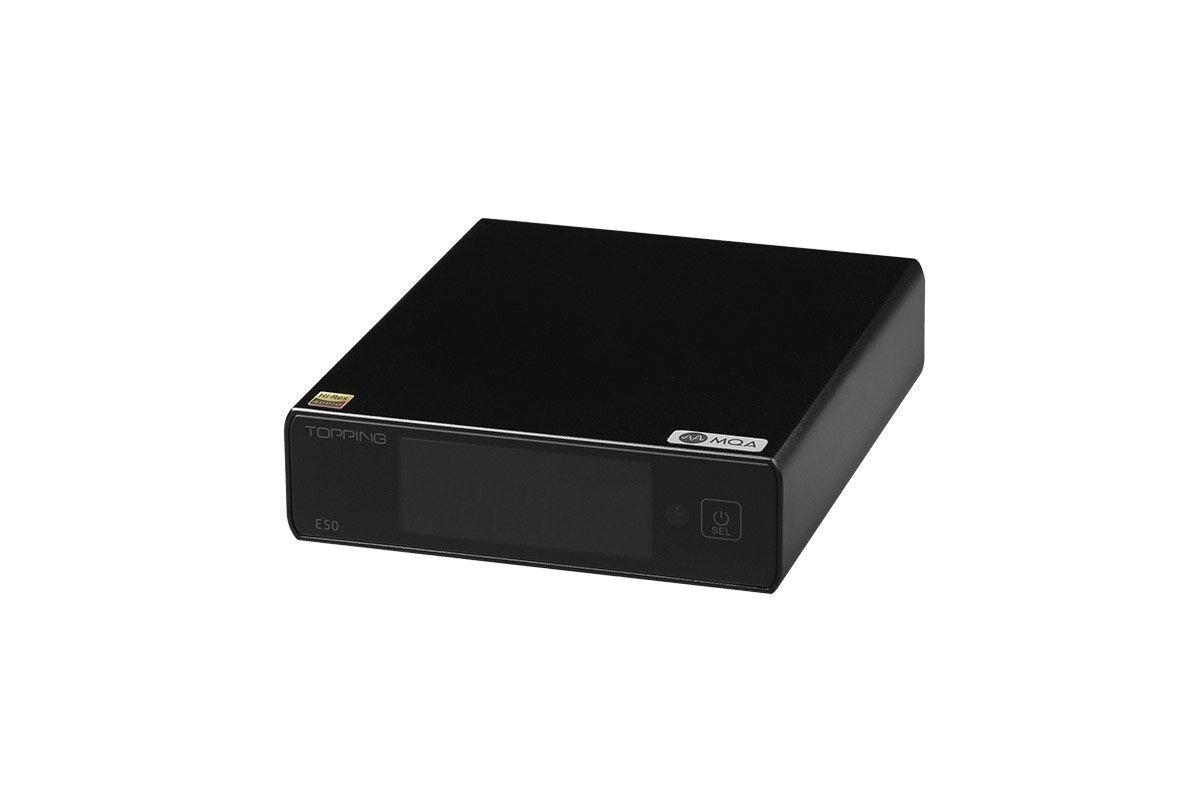

TOPPING E50 DAC (Apos Certified Refurbished)
This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.
Next Gen Specs

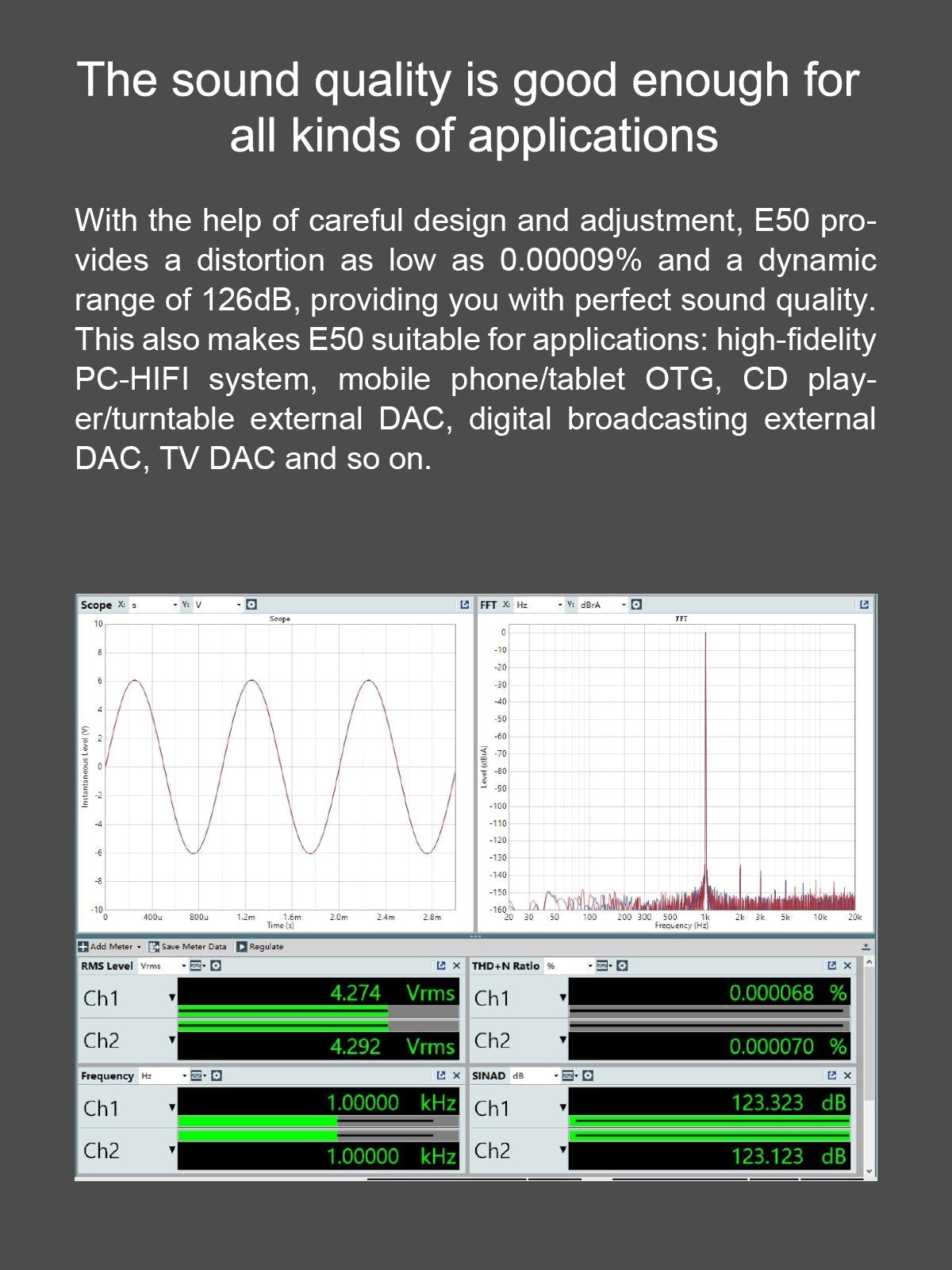

With distortion as low as 0.00009% and a dynamic range of 126dB, the E50 is a desktop DAC that’s light on bells and whistles but heavy on performance.

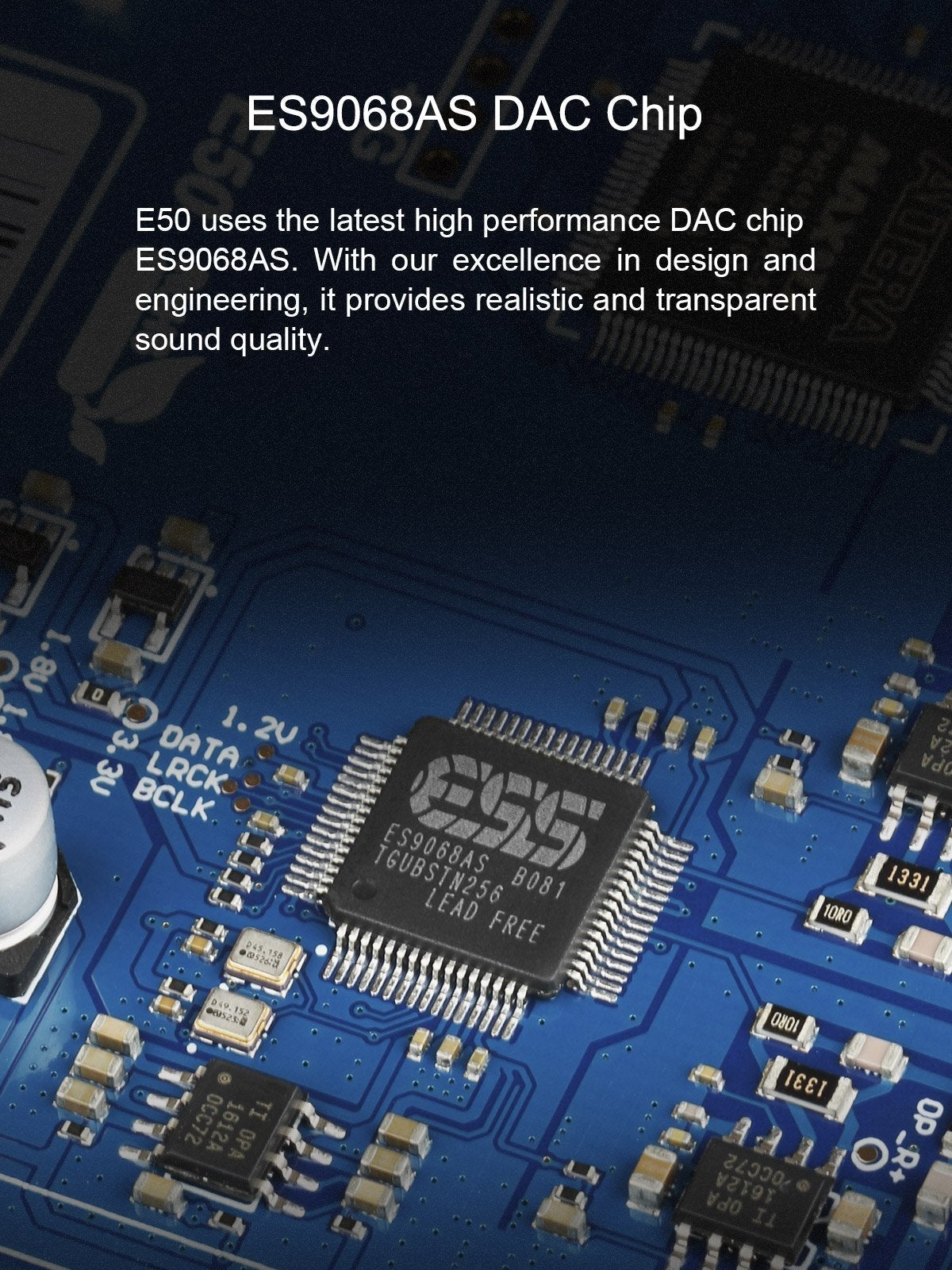

ES9068AS DAC chip
The E50 uses the latest ESS ES9068AS DAC chip, a 32-bit, 2-channel D/A converter designed for audiophile-grade applications. Using the critically acclaimed ESS patented HyperStream II architecture, QUAD DAC technology, Time Domain Jitter Eliminator, and advanced SABRE HiFi technology, the ES9068AS delivers world-class audio performance.

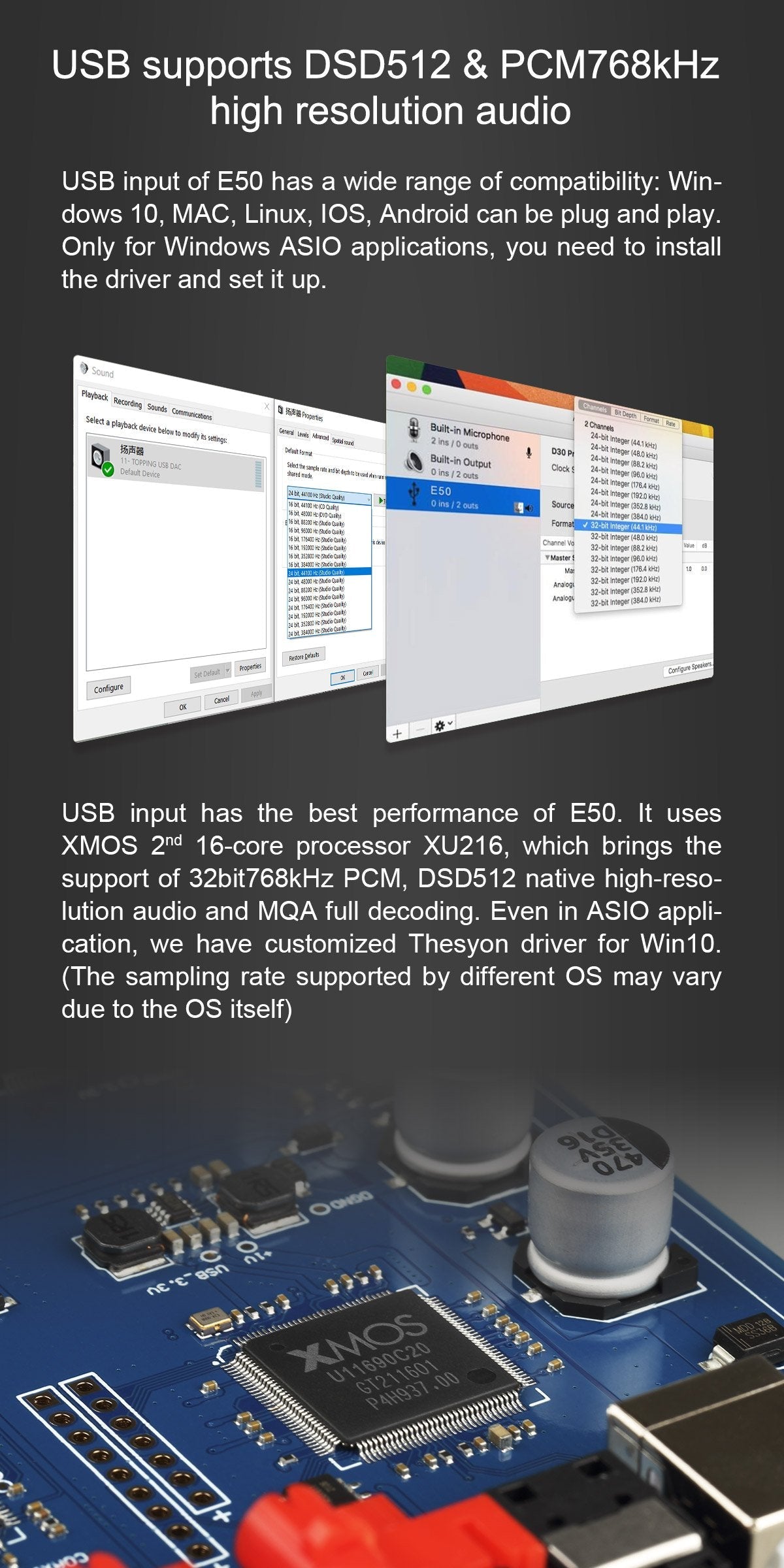

DSD512 & 32-bit/768kHz PCM via USB
The E50 offers top-of-the-line decoding via USB with the XMOS XU216 2nd generation 16-core processor. It supports 32-bit/768kHz PCM, DSD512 native, and MQA full decoding. Windows 10, Max, Linux, iOS, and Android users can plug-and-play the E50 without installing drivers. Only Windows ASIO applications require a driver.

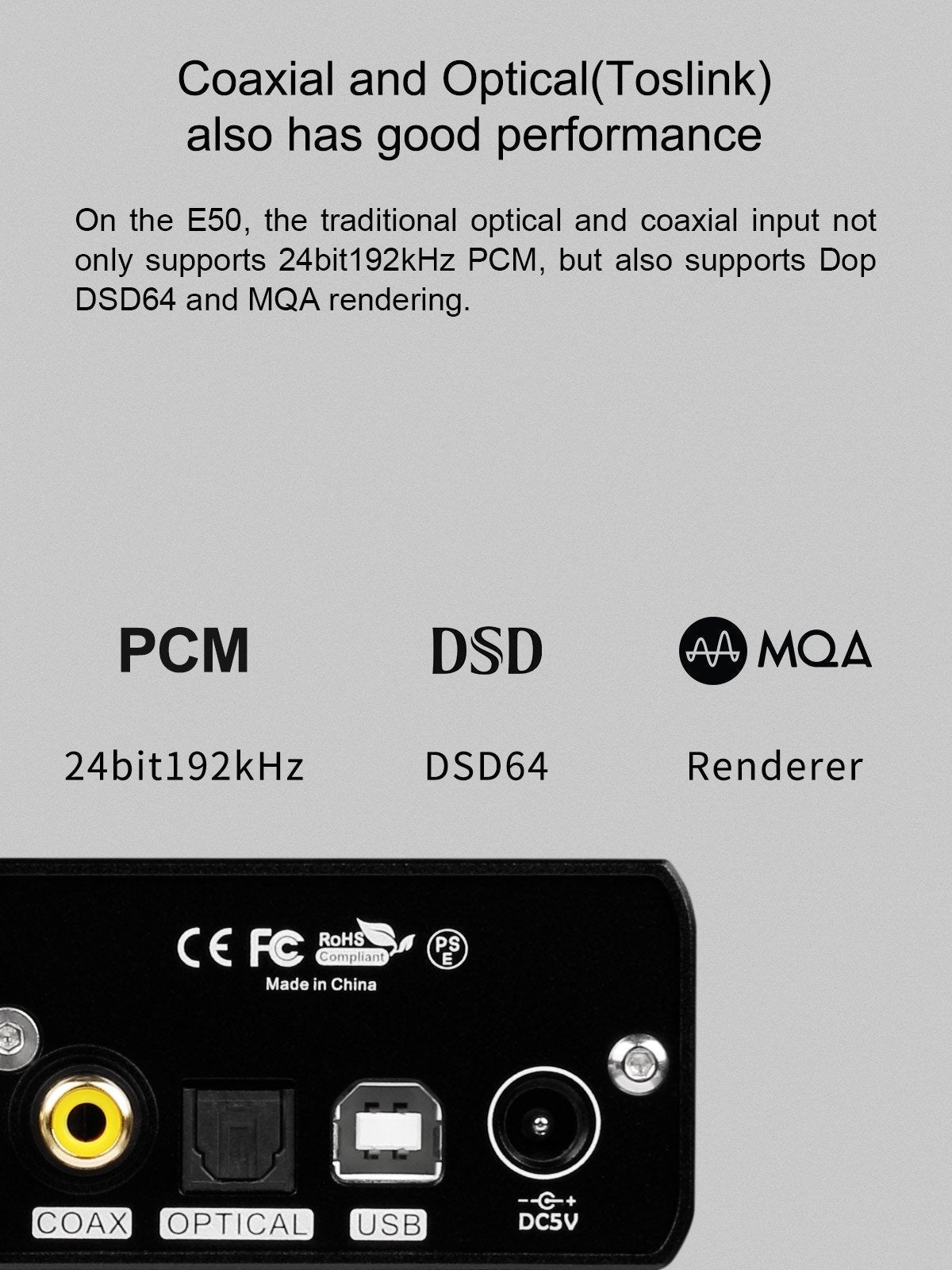

24-bit coax and optical
Get HiFi decoding not only with the USB input but with the coax and optical as well. The E50’s coax and optical inputs support 24-bit/192kHz PCM, DSD64 (DoP), and MQA rendering.

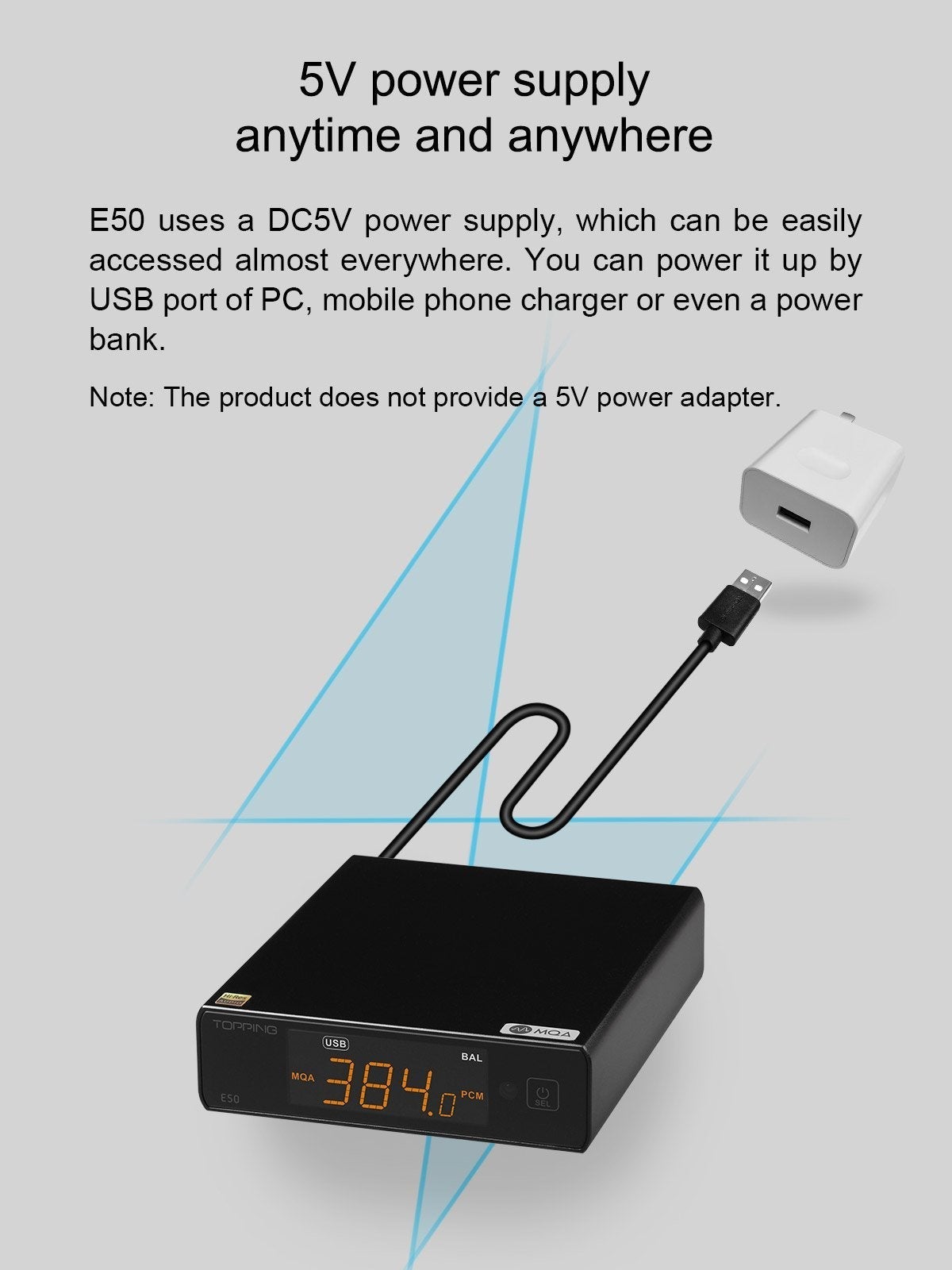

Ultra-portable 5V power supply
The E50 requires only a 5V power supply, meaning you can power it with the USB port of your PC or Mac, or a portable phone charger. At only six inches on its longest side, you can slip it into your suitcase, backpack, or briefcase and use it on trips.

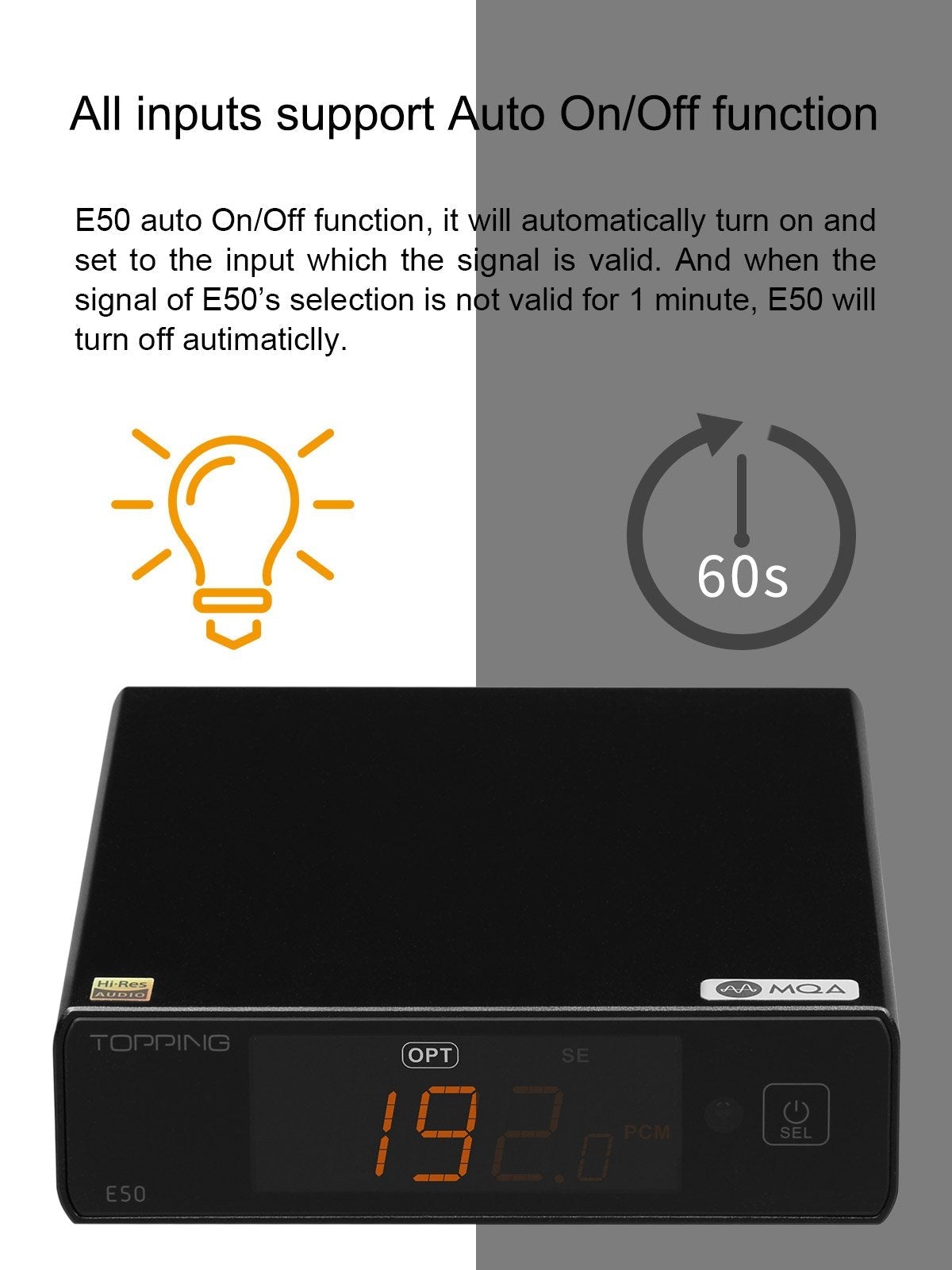

Smart on/off
With an auto on/off function for all inputs, the E50 is a true “set it and forget it” DAC. It automatically turns on and decodes whichever input is receiving a signal, and when it hasn’t received a signal for sixty seconds, it automatically turns off.

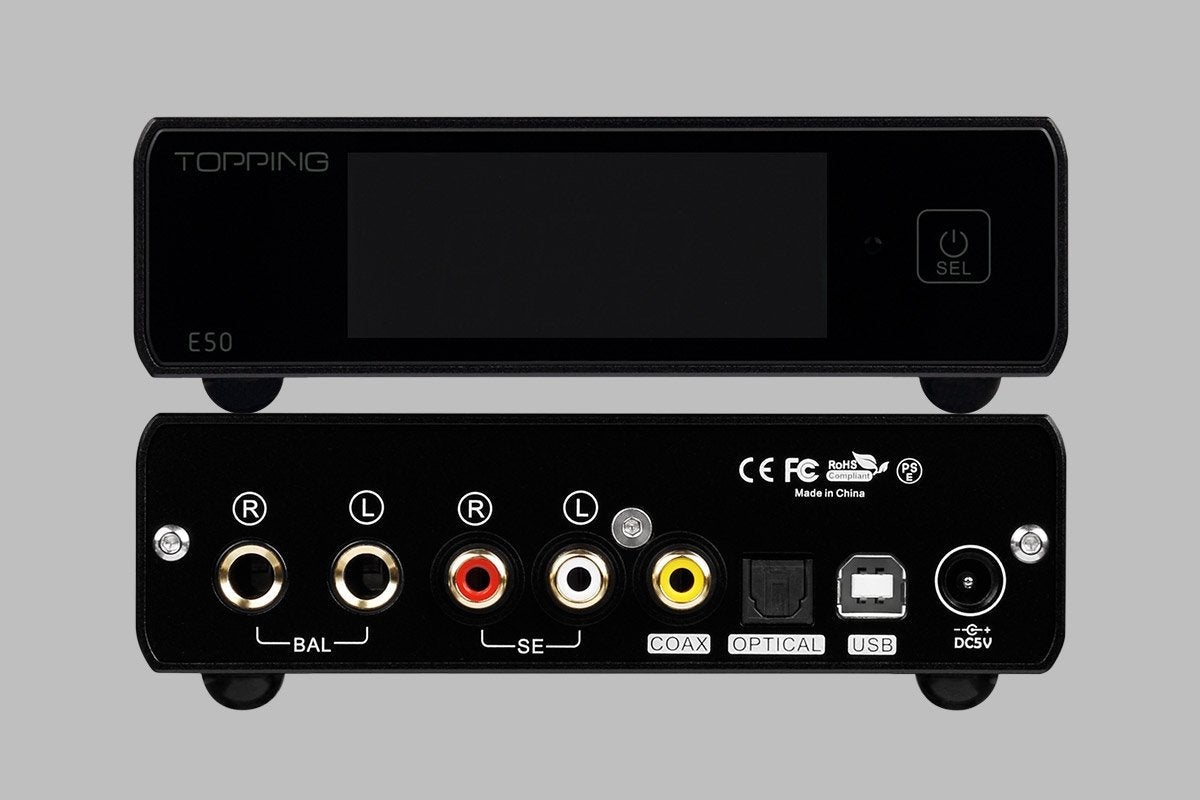

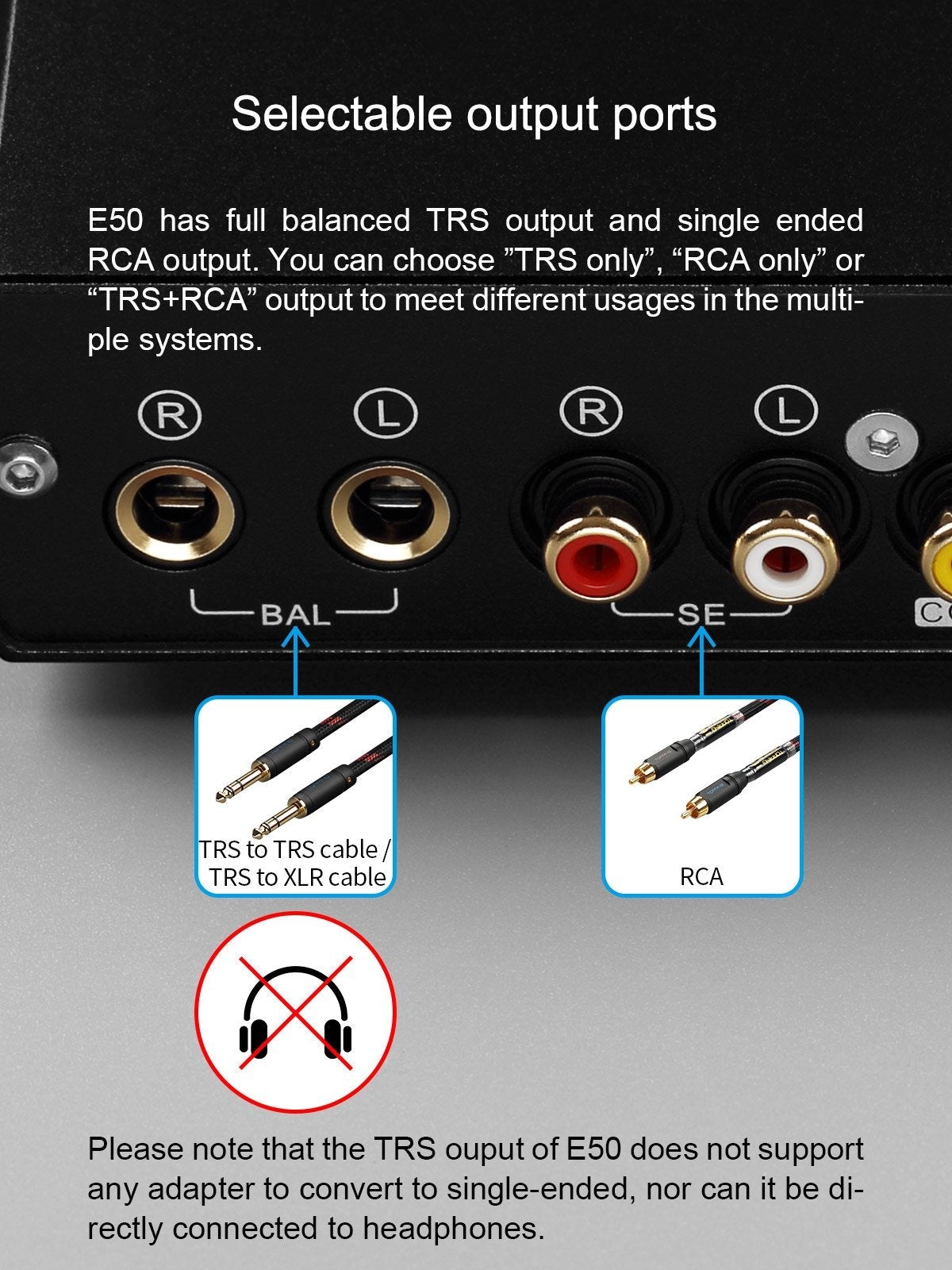

Selectable output port
The E50 features an output selection button with options for “TRS only,” “RCA only,” and “TRS + RCA.” This last option lets you run cables to two different destinations, such as a headphone amp and powered monitors, and listen to either without having to do the cable shuffle.

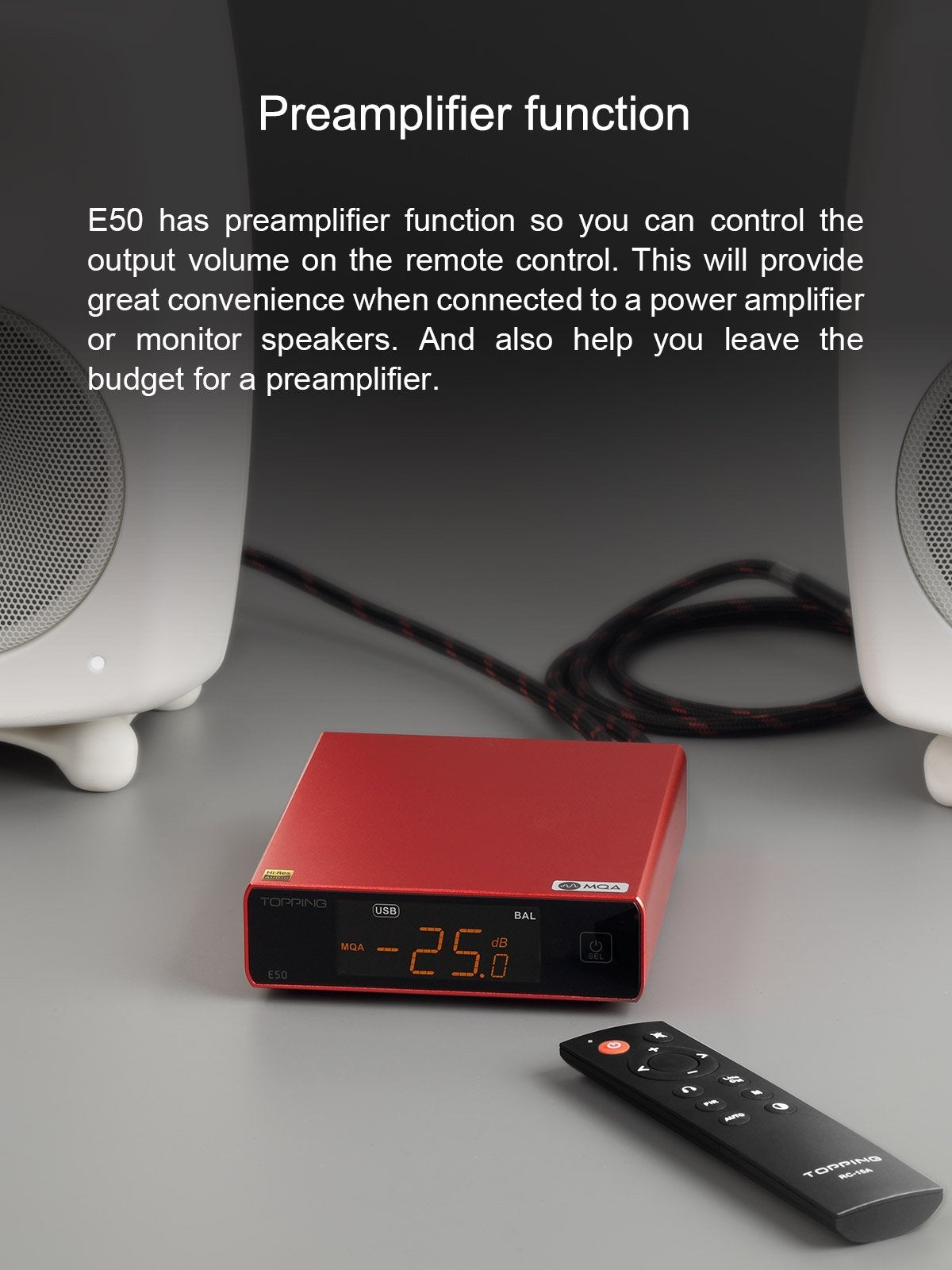

Doubles as a preamp
If you only need a DAC to use with powered speakers, you can skip buying an amp completely. That’s because the E50 has a preamplifier mode. WIth this mode selected, you can control the output volume with the remote control.
Product highlights
- ESS ES9068AS DAC chip
- XMOS XU216
- 0.00009% THD+N
- DSD512 Native
- PCM 32-bit/768kHz

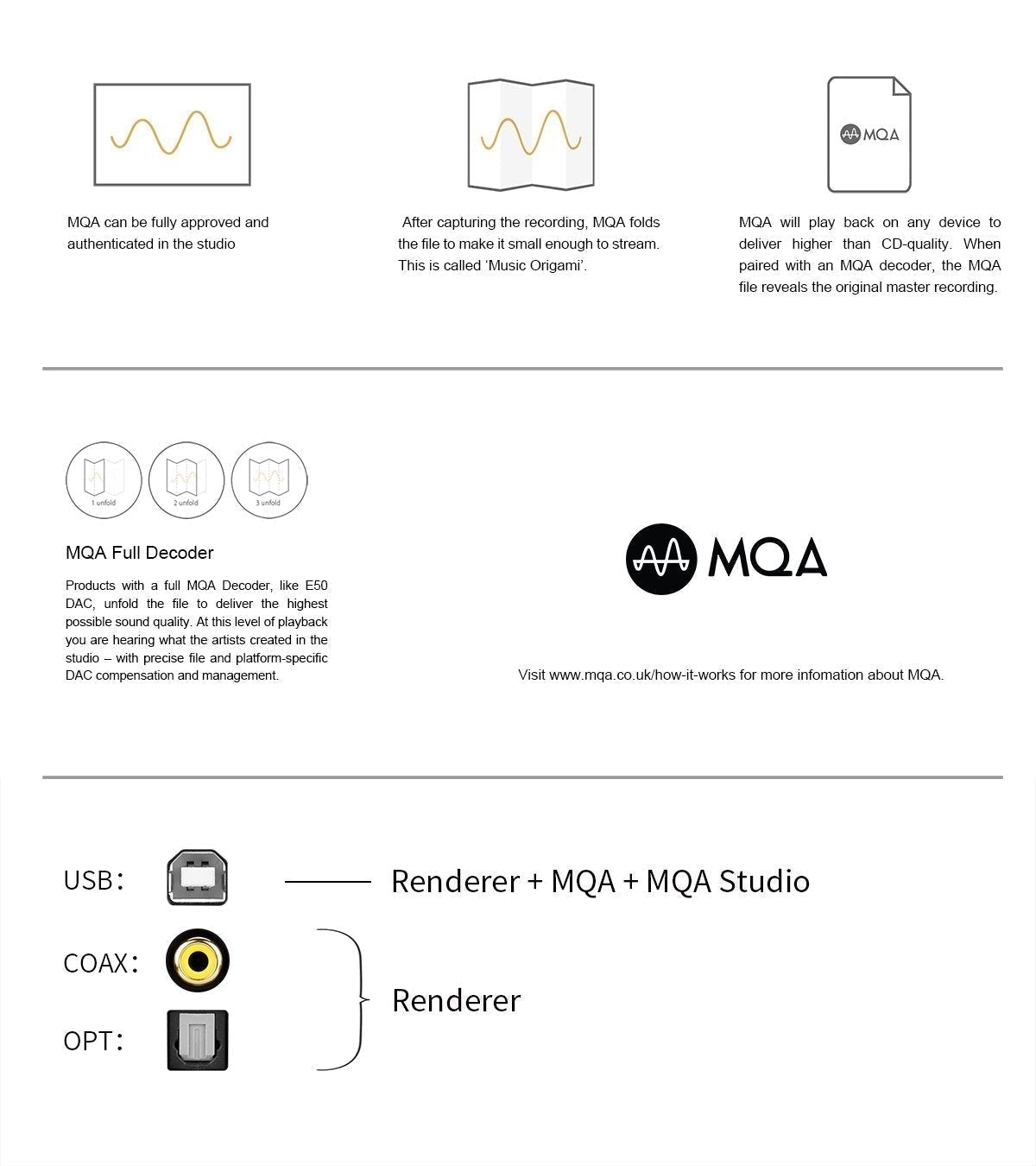

- Full MQA decoding via USB
- RCA & balanced TRS outputs
- Ultra-low noise preamp
- Remote control

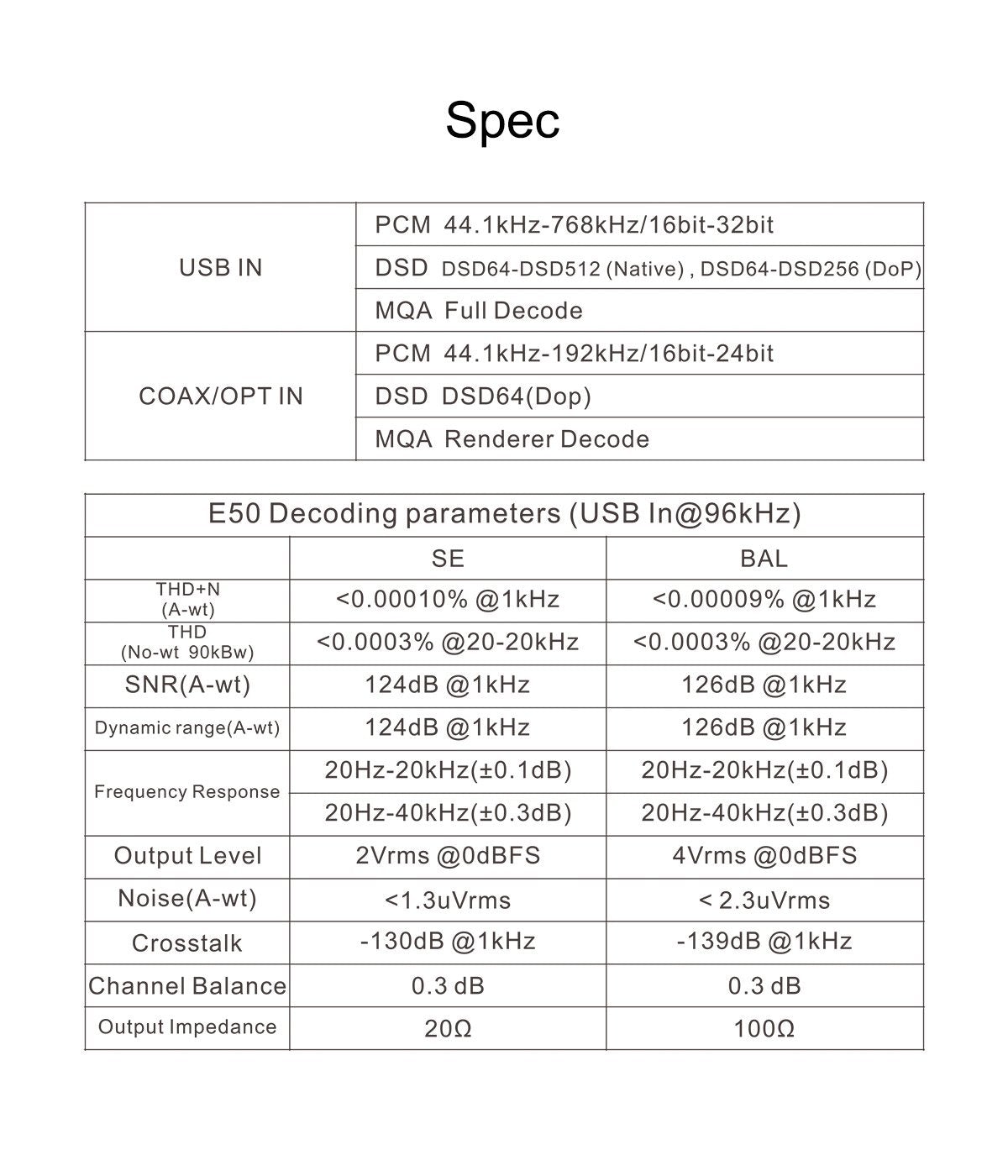

Specs
USB in
- PCM: 44.1kHz-768kHz/ 16bit-32bit
- DSD: DSD64-DSD512 (Native), DSD64-DSD256 (DoP)
- MQA: Full decoding
Coax/optical in
- PCM: 44.1kHz - 192kHz/ 16bit-32bit
- DSD: DSD64 (DoP)
- MQA: Renderer decoding

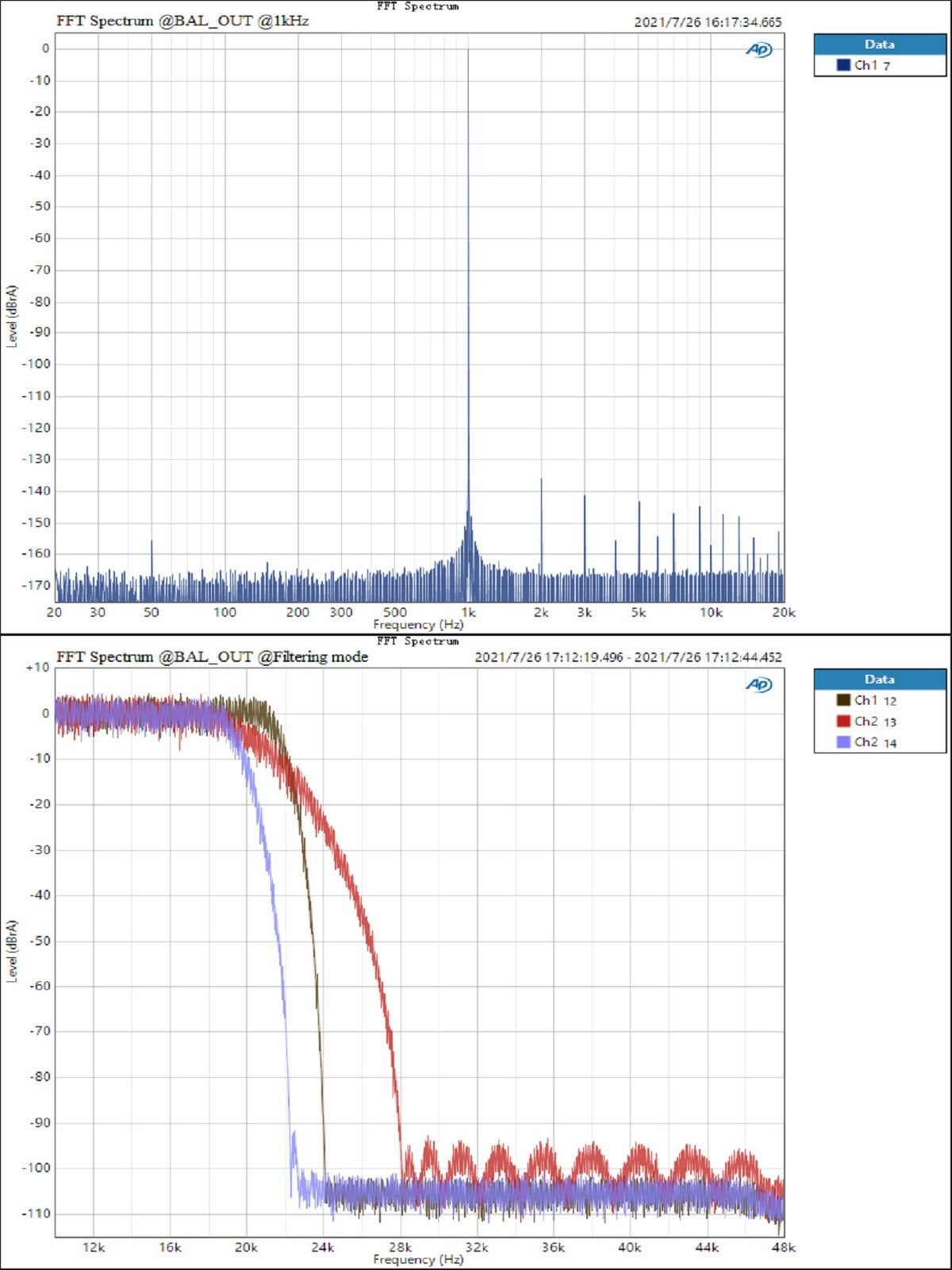

Single-ended input decoding parameters (USB in @96kHz):
- THD+N (A-wt): <0.0001% @1kHz
- THD (No-wt 90kBw): <0.0003% @20-20kHz
- SNR (A-wt): 124dB@1kHz
- Dynamic range (A-wt): 124dB@1kHz
- Frequency response
- 20Hz-20kHz(±0.1dB)
- 20Hz-40kHz(±0.3dB)
- Output level: 2Vrms @0dBFS
- Noise (A-wt): <1.3uVrms
- Crosstalk: -130dB @1kHz
- Channel balance: 0.3dB
- Output impedance: 20Ω

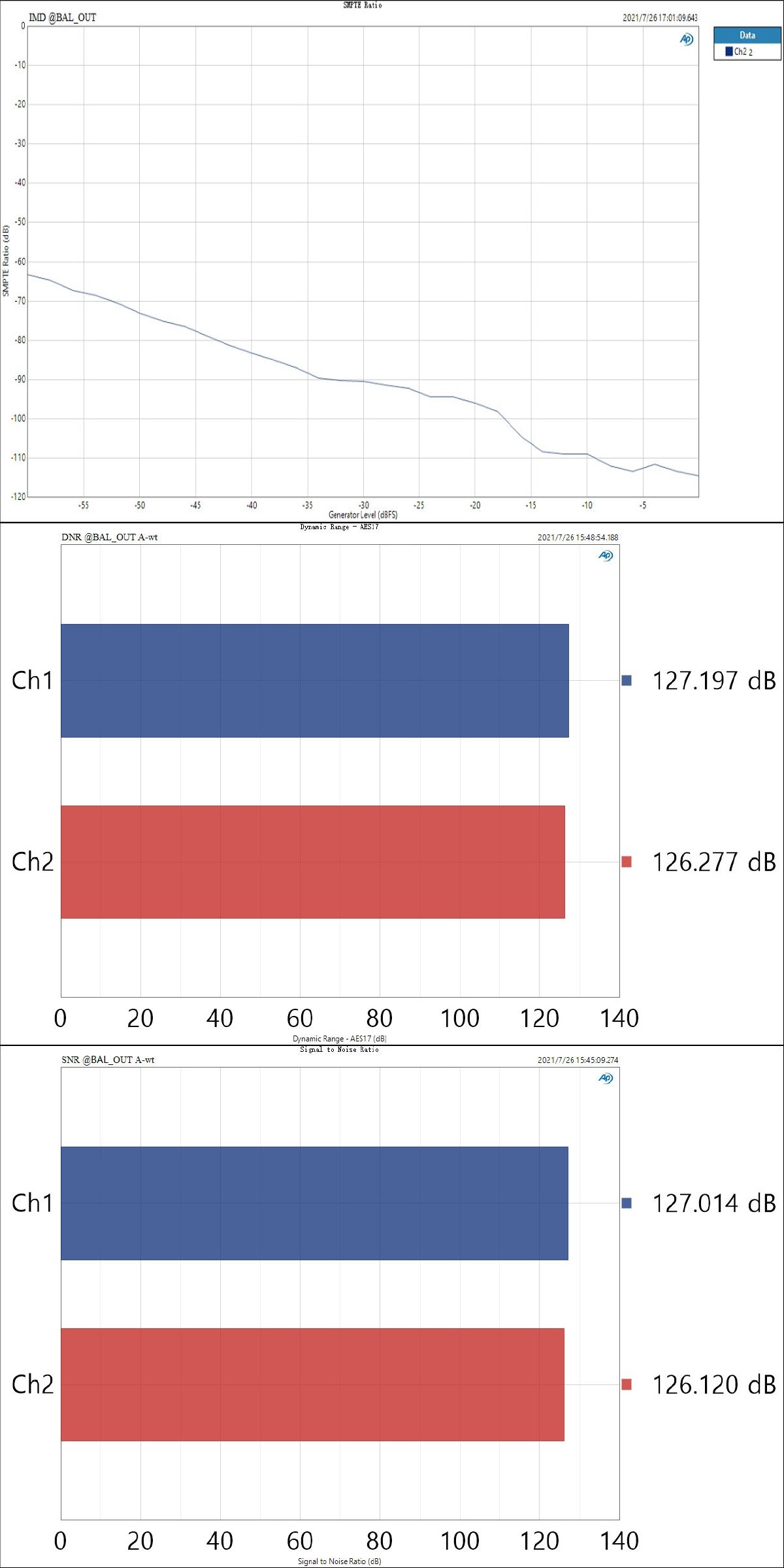

Balanced input decoding parameters (USB in @96kHz):
- THD+N (A-wt): <0.00009% @1kHz
- THD (No-wt 90kBw): <0.0003% @20-20kHz
- SNR (A-wt): 126dB@1kHz
- Dynamic range (A-wt): 126dB@1kHz

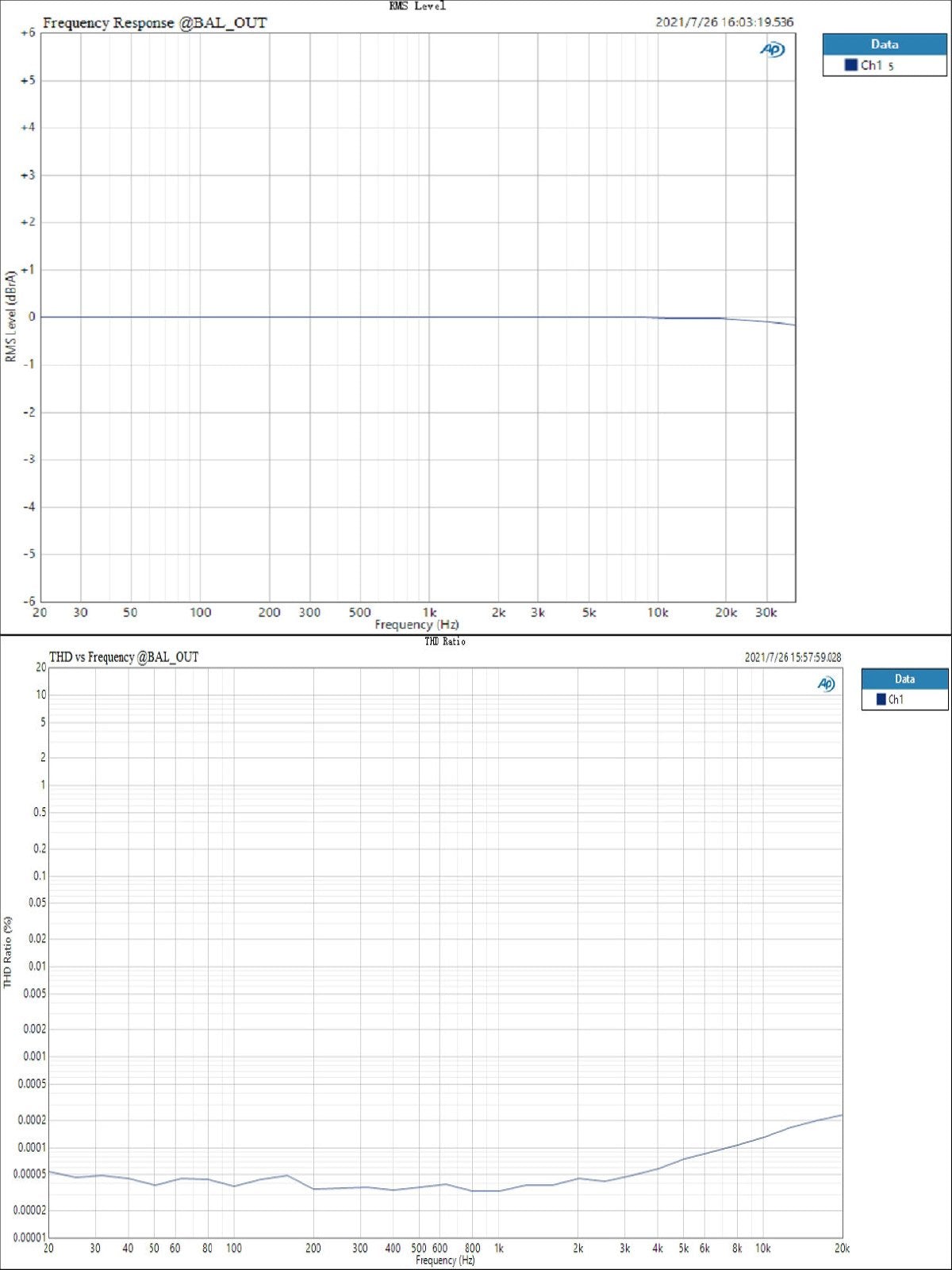

- Frequency response
- 20Hz-20kHz(±0.1dB)
- 20Hz-40kHz(±0.3dB)
- Output level: 4Vrms @0dBFS
- Noise (A-wt): <2.3uVrms
- Crosstalk: -139dB @1kHz
- Channel balance: 0.3dB
- Output impedance: 100Ω

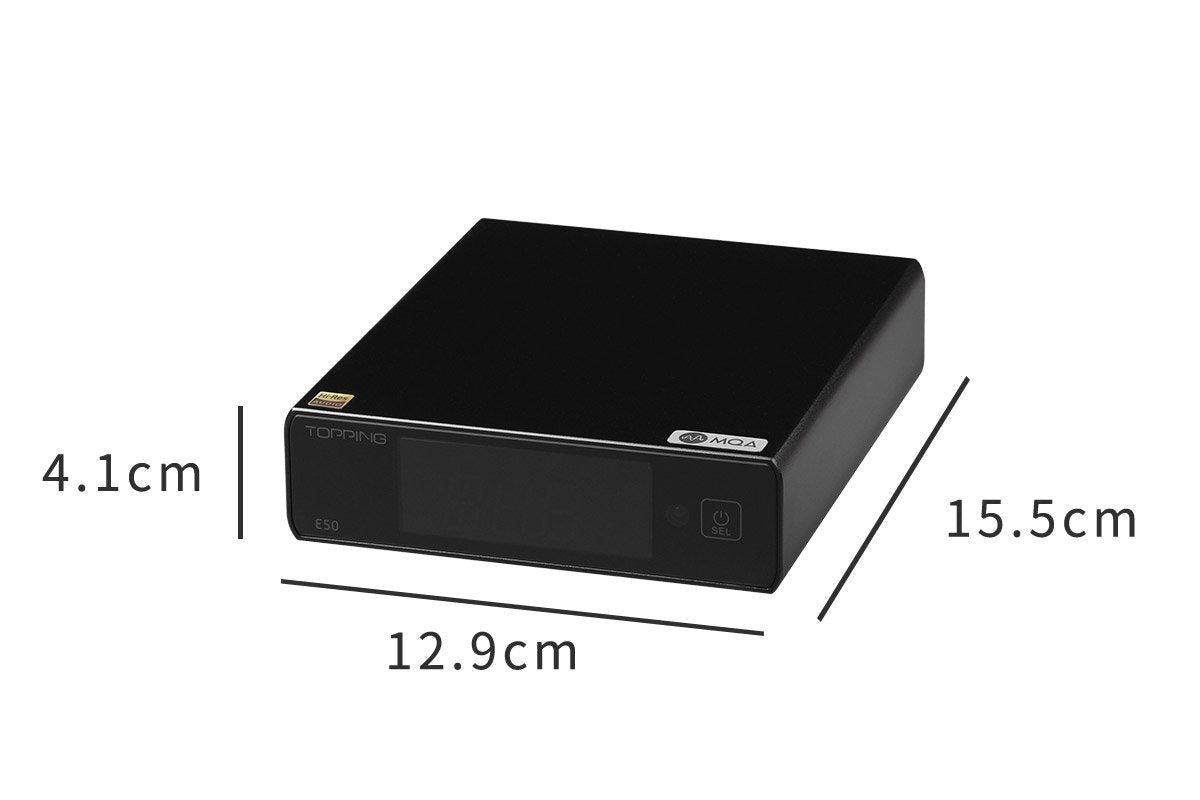

Physical dimensions: 6.1 x 5 x 1.6” (15.5 x 12.9 x 4.1cm)

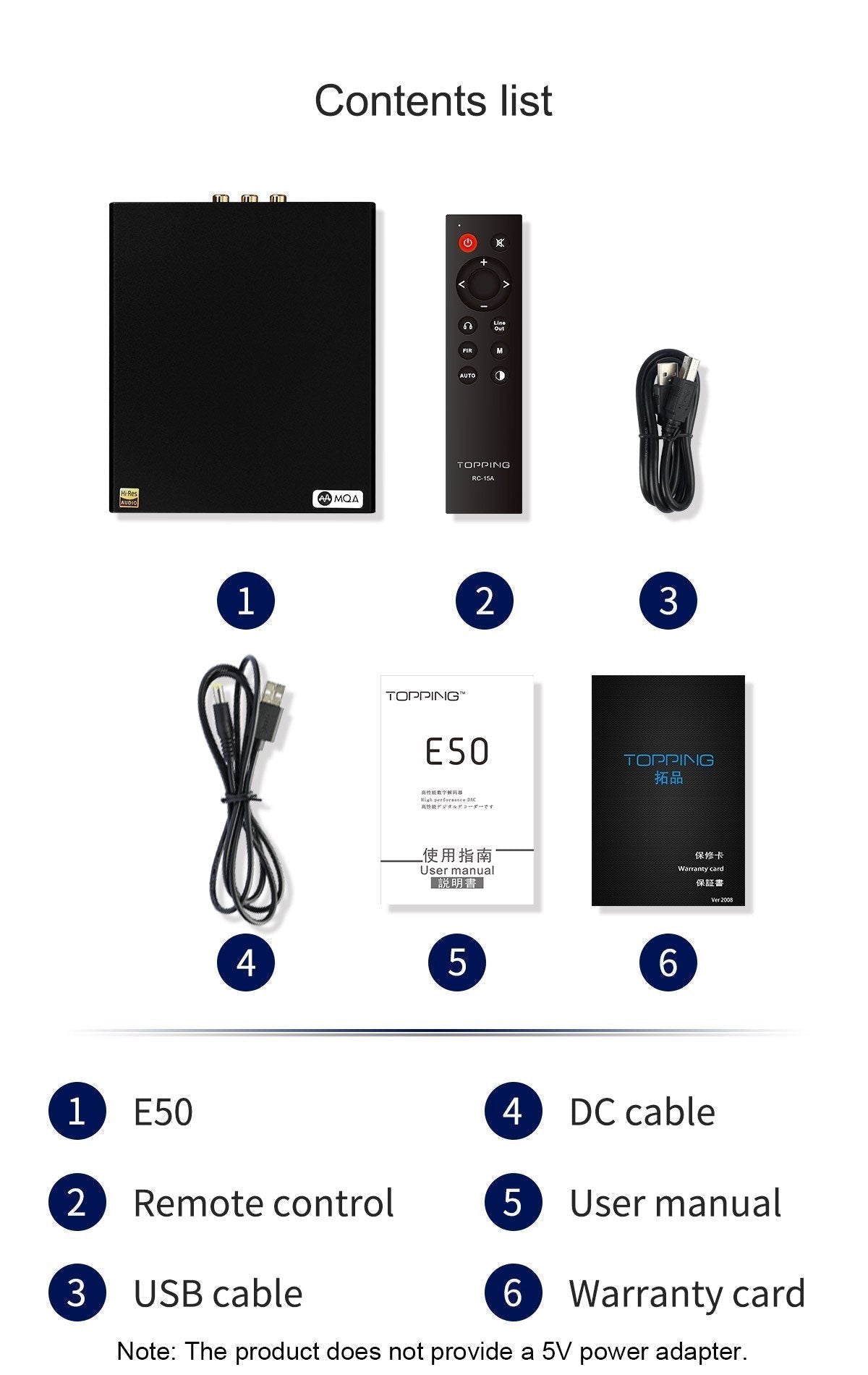

What’s included
- TOPPING E50
- Remote control
- USB cable
- DC cable
- User manual
- Warranty card

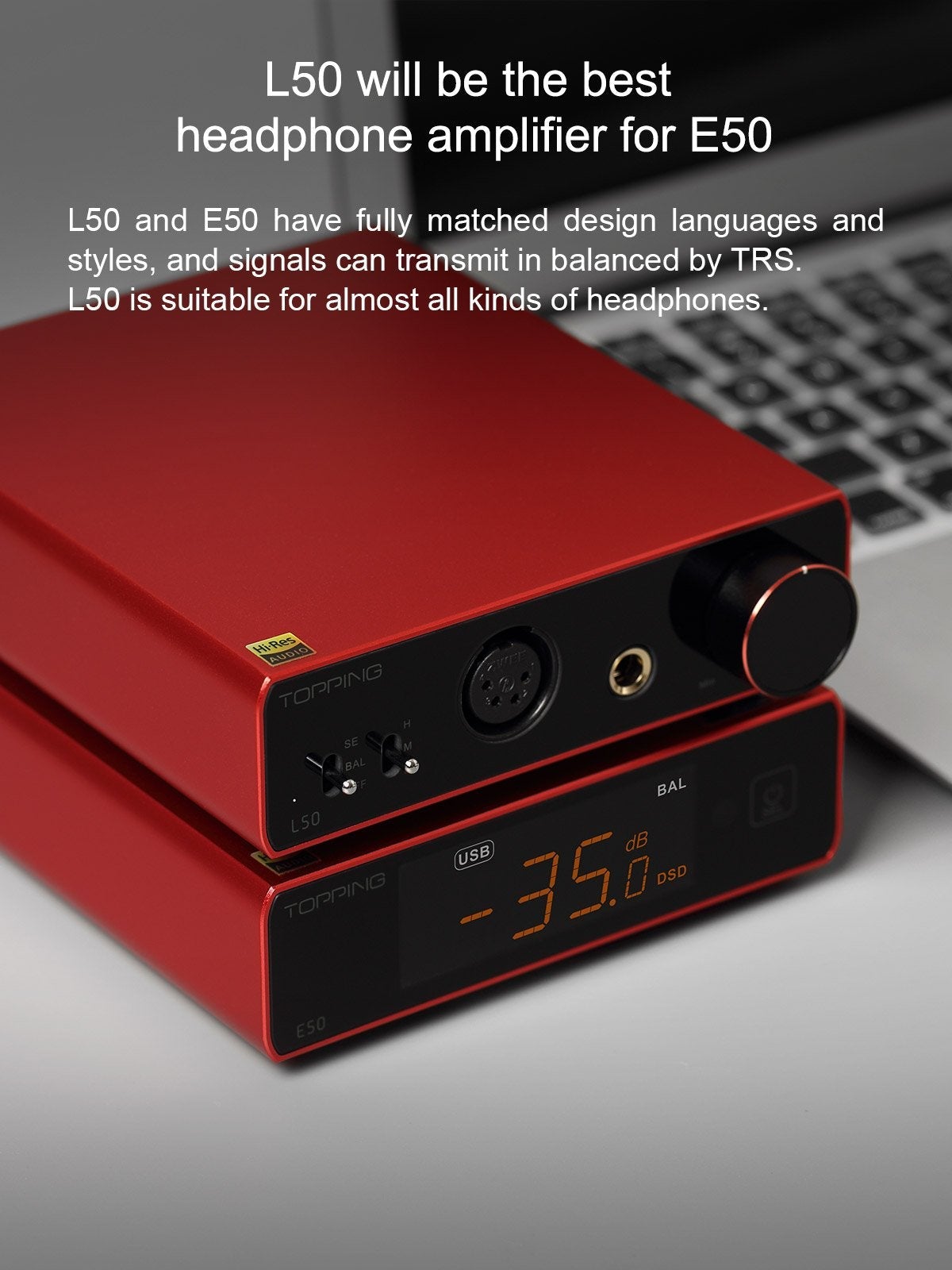

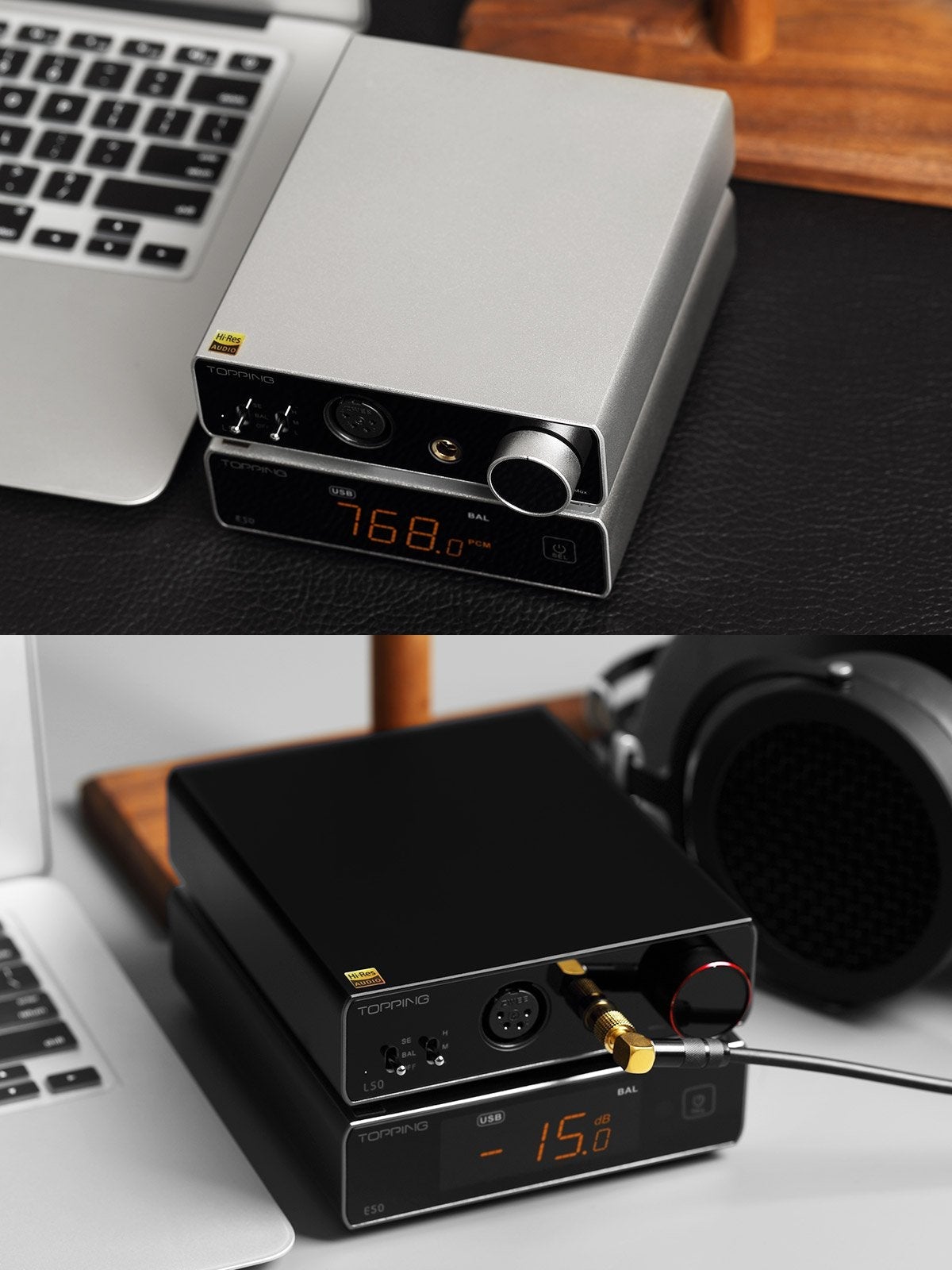

What pairs well
