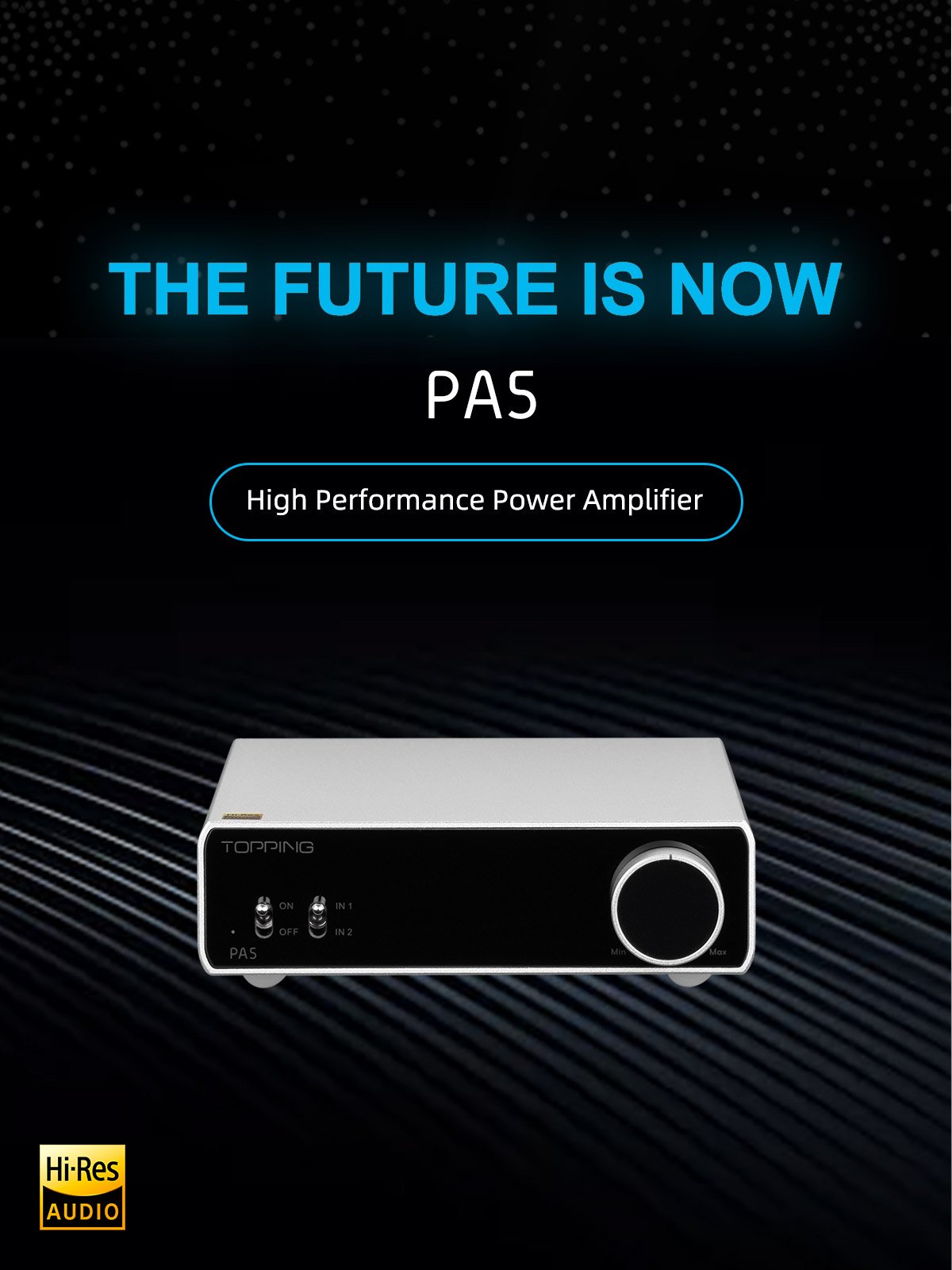

TOPPING PA5 High-Performance Power Amplifier (Apos Certified)

$296.65 $349

Request A Price Match

This is an Apos Certified product. That means it's refurbished, like new, eligible for our 45-day return policy, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

Fully balanced, super efficient

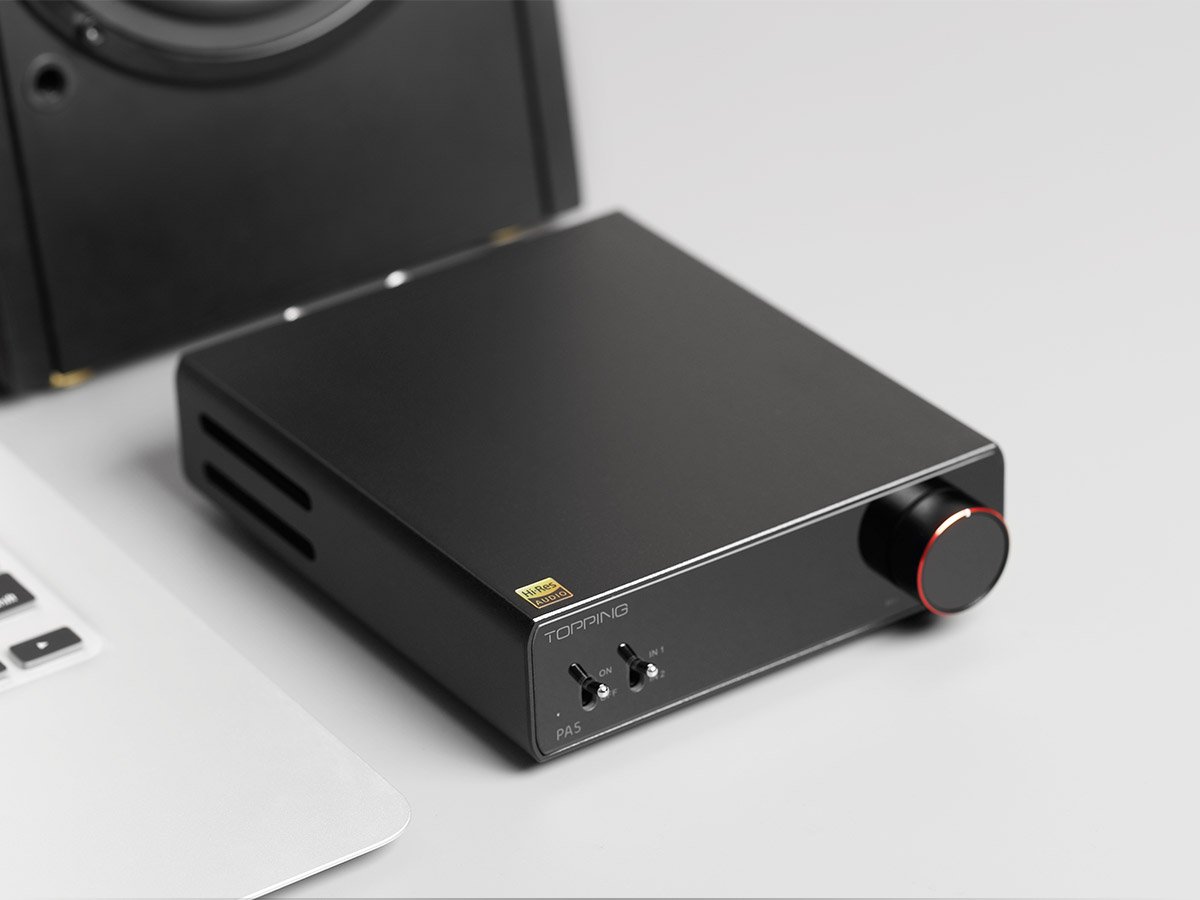

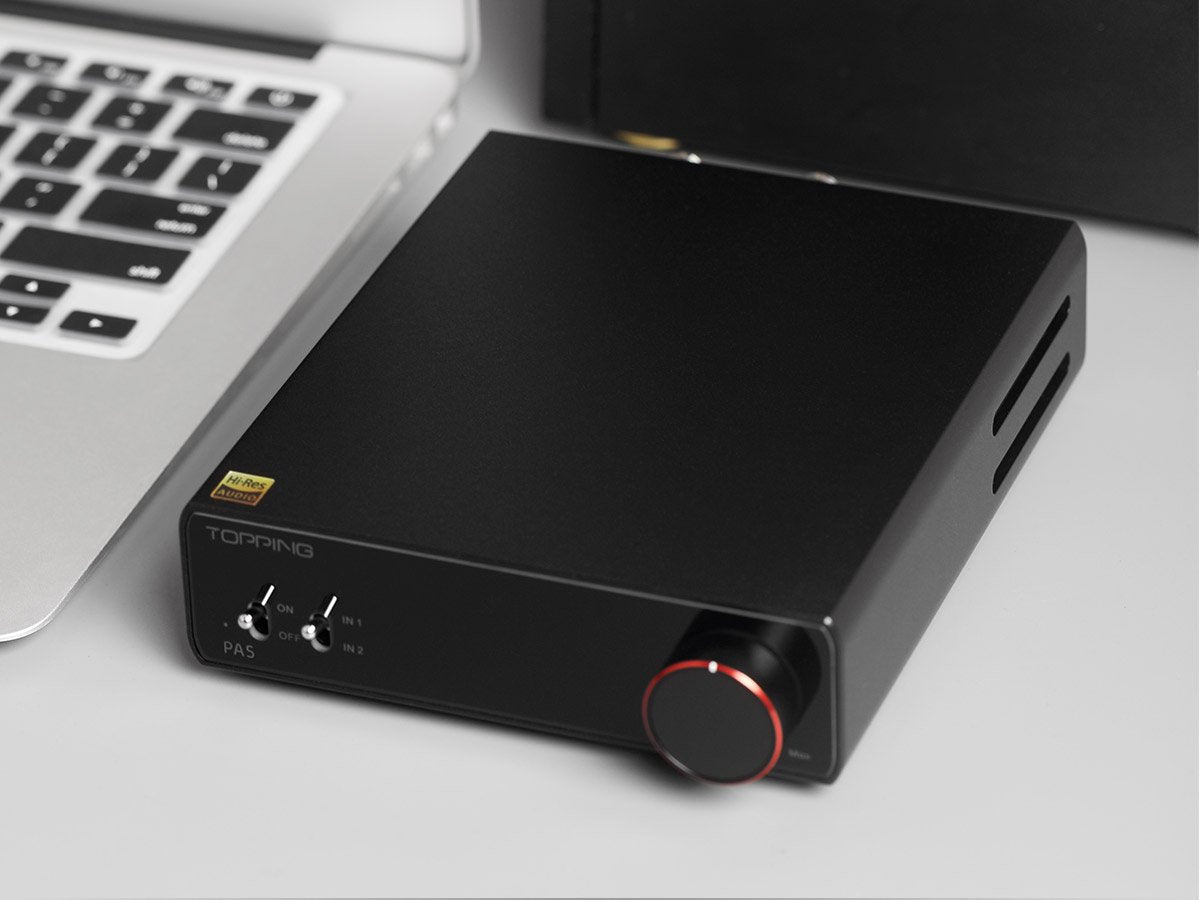

The TOPPING PA5 is a fully balanced Class D power amplifier--an affordable and efficient option for powering your bookshelf or floor stand speakers. As a balanced amplifier, it powers each incoming channel with a separate amplifier chip. As a Class D amp, it uses far less power than Class A amps, making it super efficient.

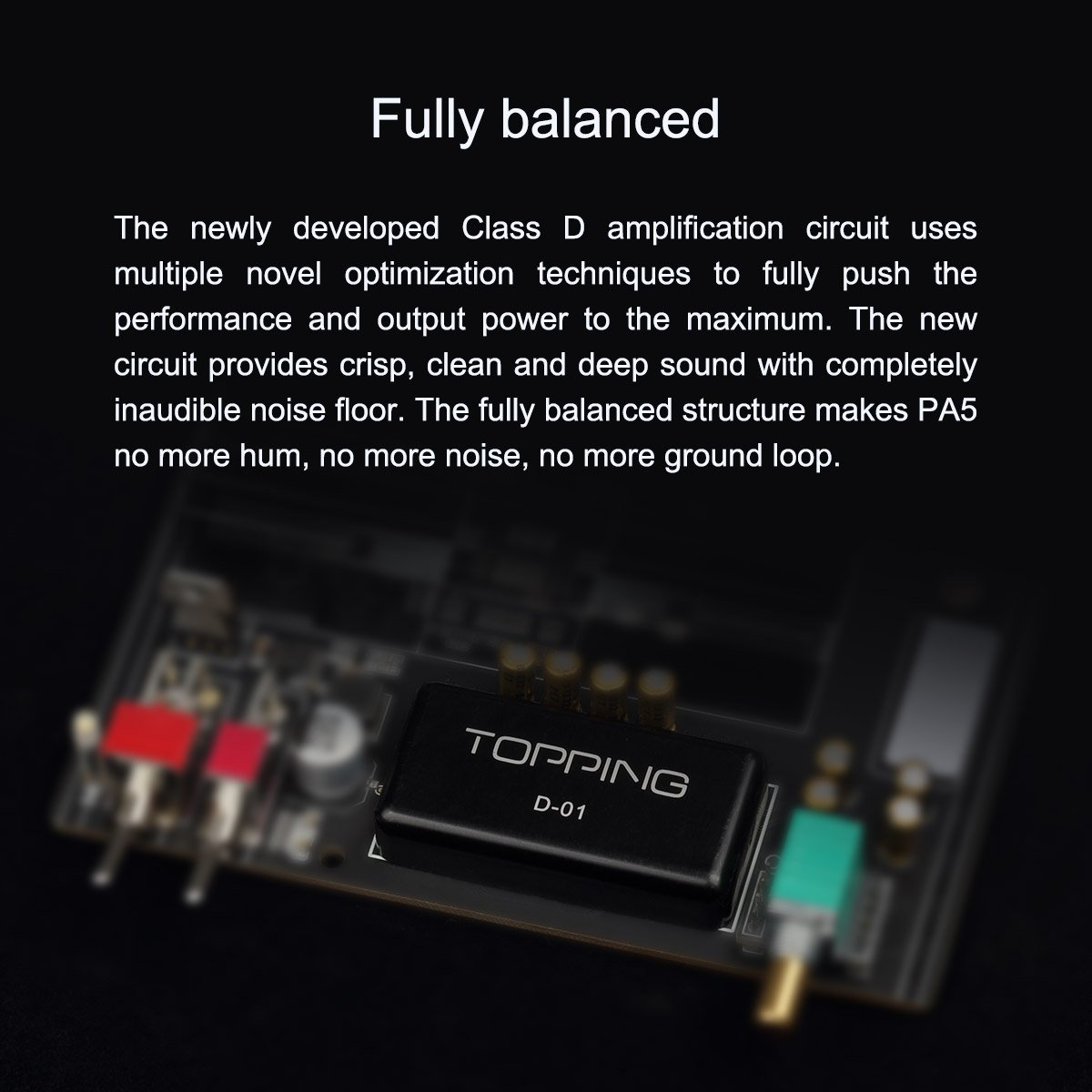

Fully-balanced Class D amplification

The newly developed Class-D amplification circuit uses multiple novel optimization techniques to fully push the performance and output power to the maximum. The new circuit provides crisp, clean, and deep sound with a completely inaudible noise floor. The fully balanced structure results in zero hum, zero noise, and zero ground loop noise.

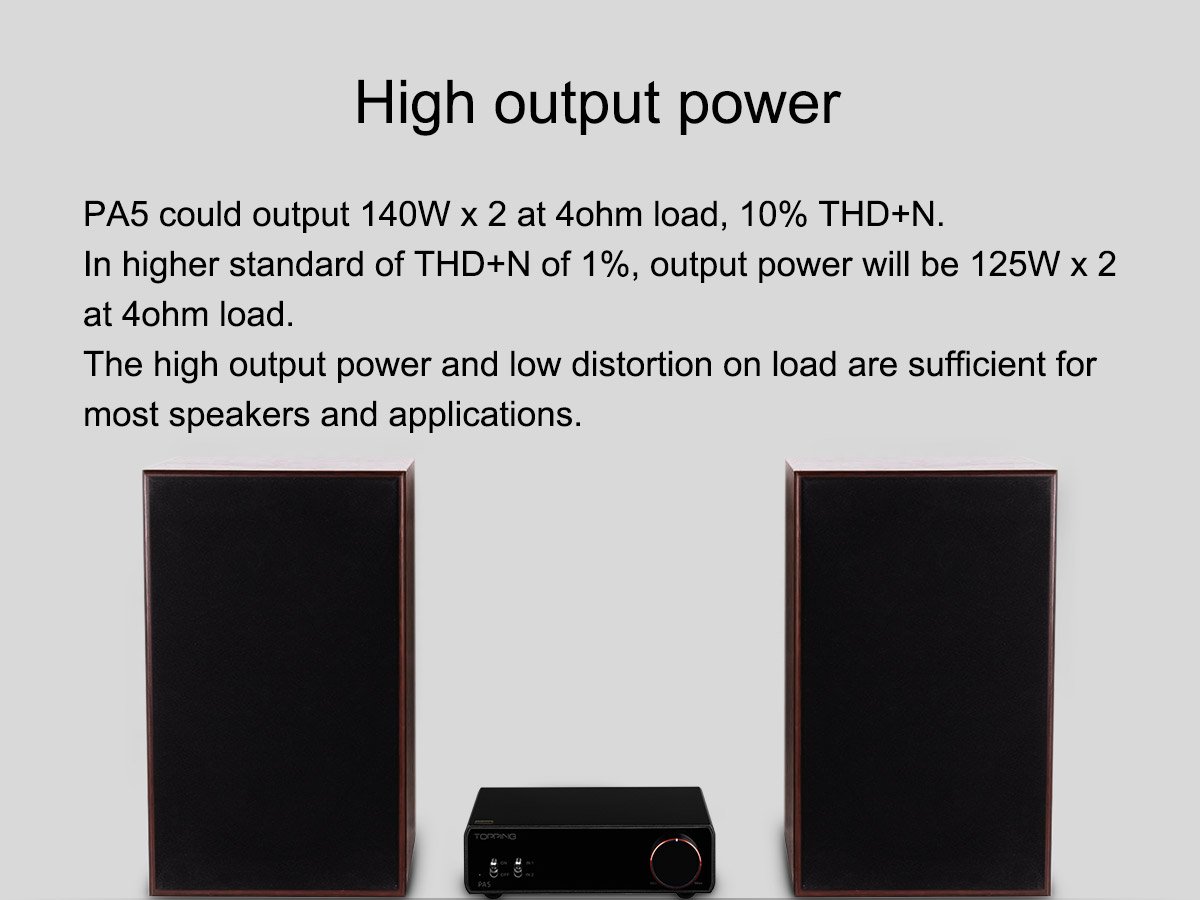

High output power

The PA5 can output 140W x2 @ 4Ω load. This highly powerful output is sufficient to drive most speakers and applications.

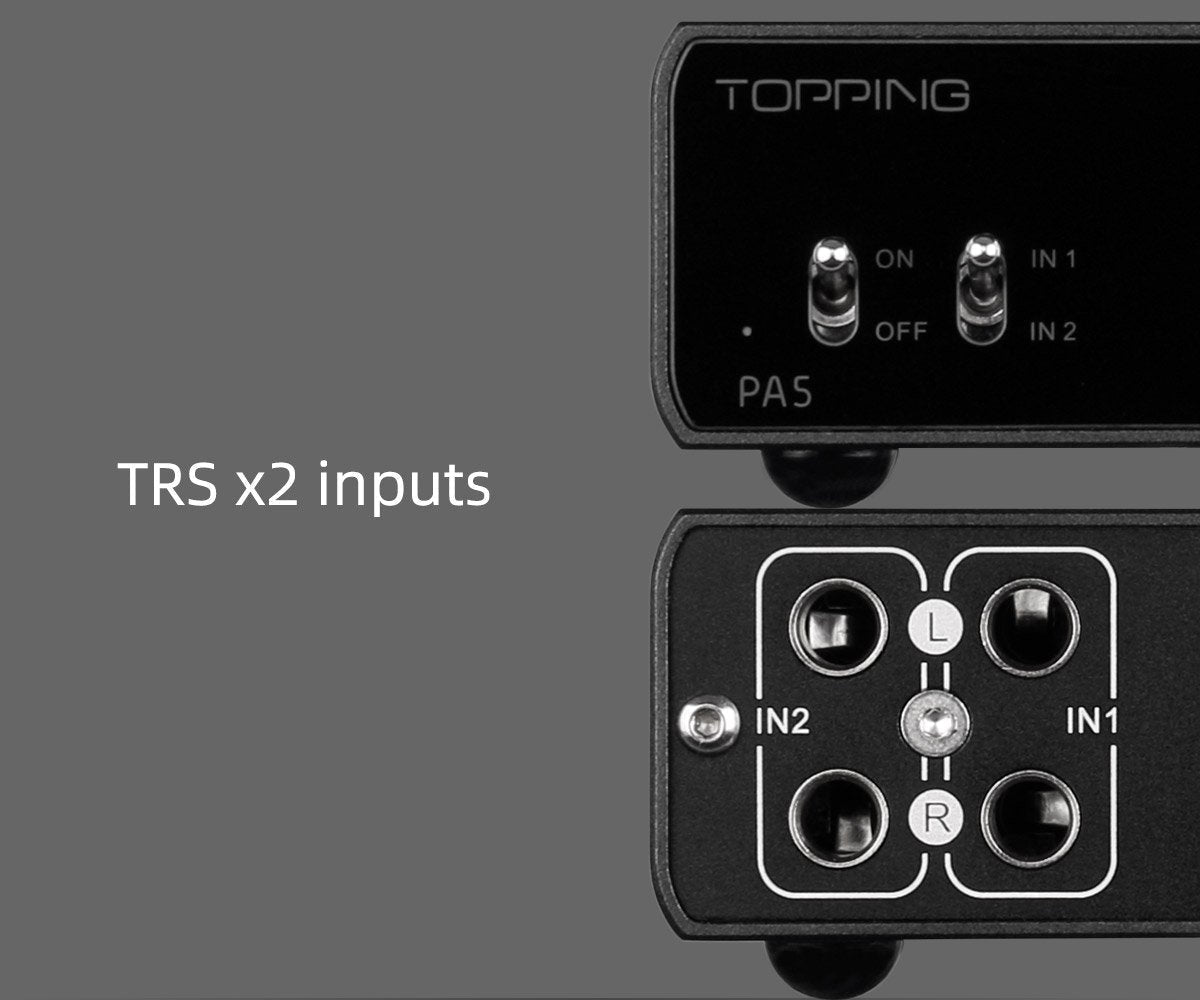

Balanced TRS inputs

Connect multiple sources via TRS balanced inputs. The balanced input option eliminates potential ground loop problems, providing pristine audio without hum.

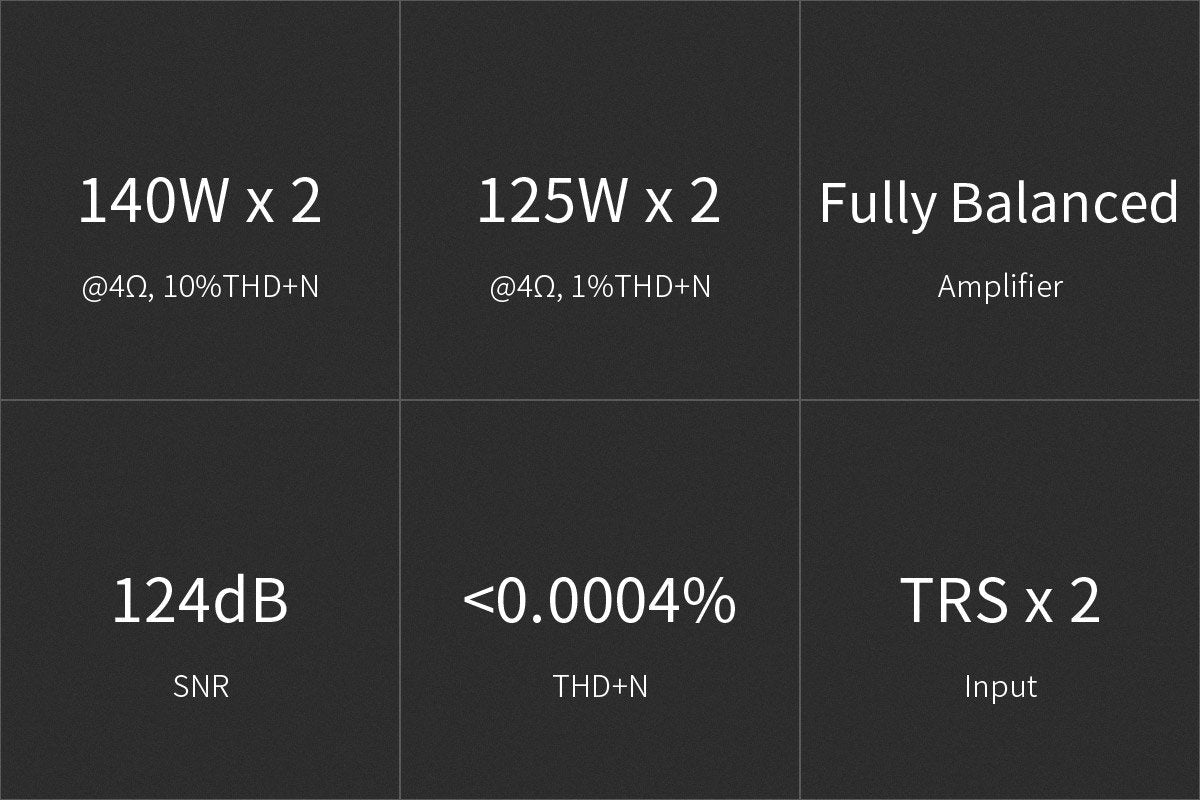

Product highlights

  • 140W x2 @4Ω output power
  • Fully-balanced amplifier
  • SNR: 124dB
  • THD+N: <0.0004%
  • Inputs: TRS x 2


  • Power input: DC38V/4.0A
  • Signal inputs: Balance 1 (TRS), Balance 2 (TRS)

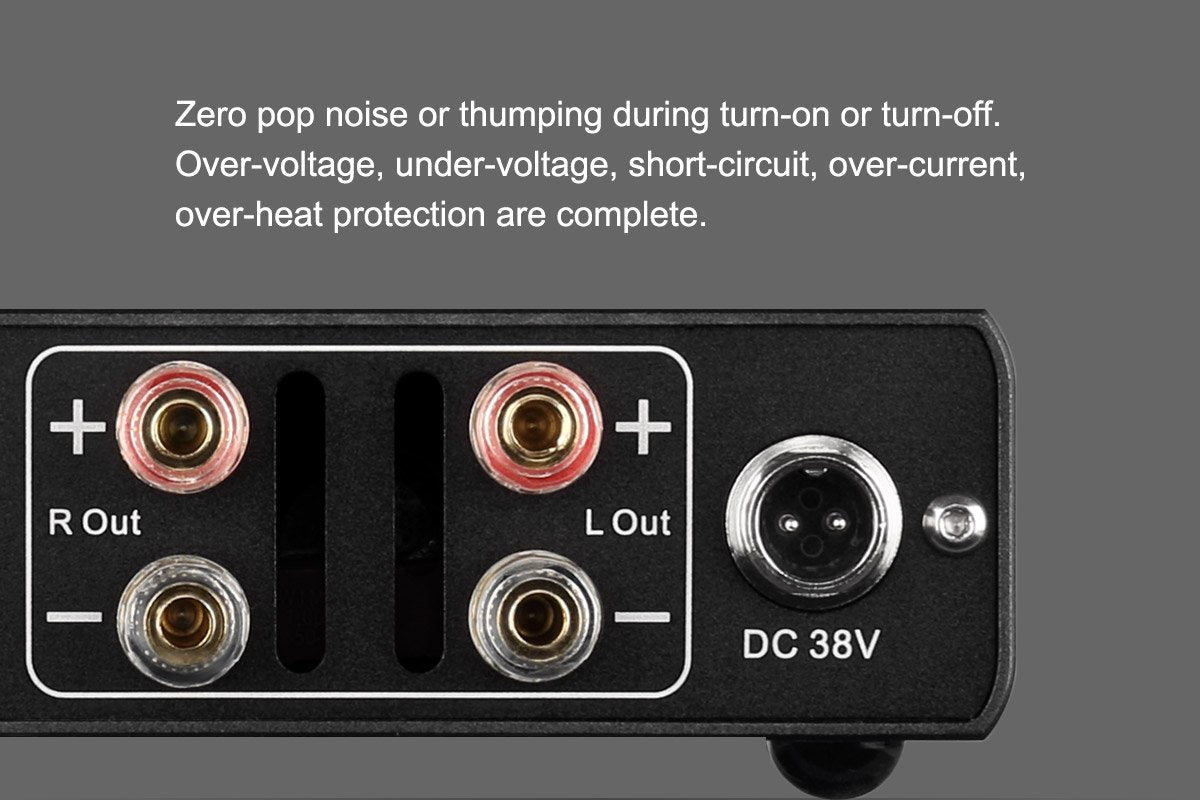

  • Signal output: Speaking terminal (BTL output)
  • Standby power consumption: <0.1W

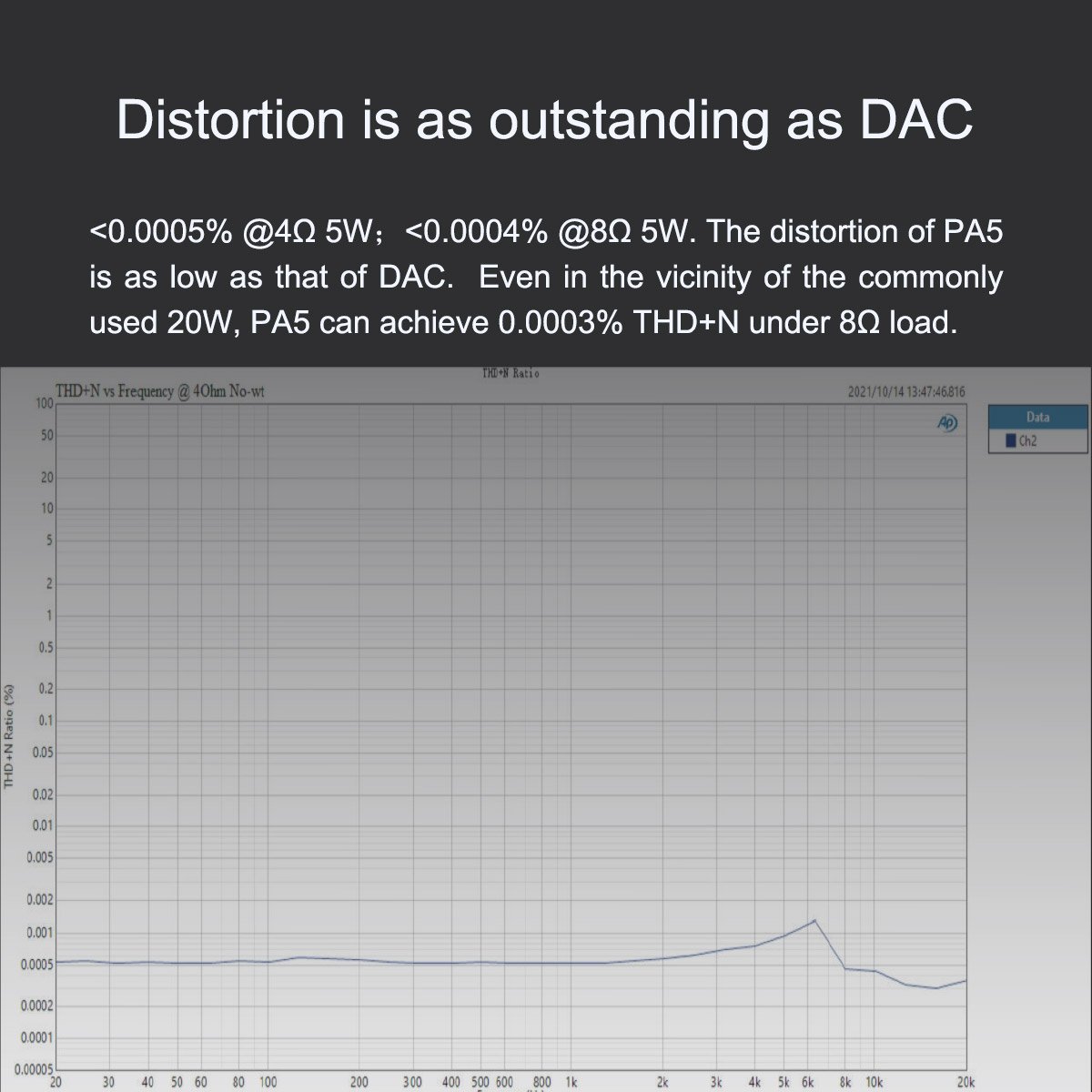

  • THD+N @1kHz (A-wt): <0.0005% @4Ω 5W / <0.0004% @8Ω 5W
  • THD+N @No-wt (20kBW): <0.0015% @4Ω 5W / <0.0006% @8Ω 5W
  • SNR: 124dB
  • Dynamic range: 124dB

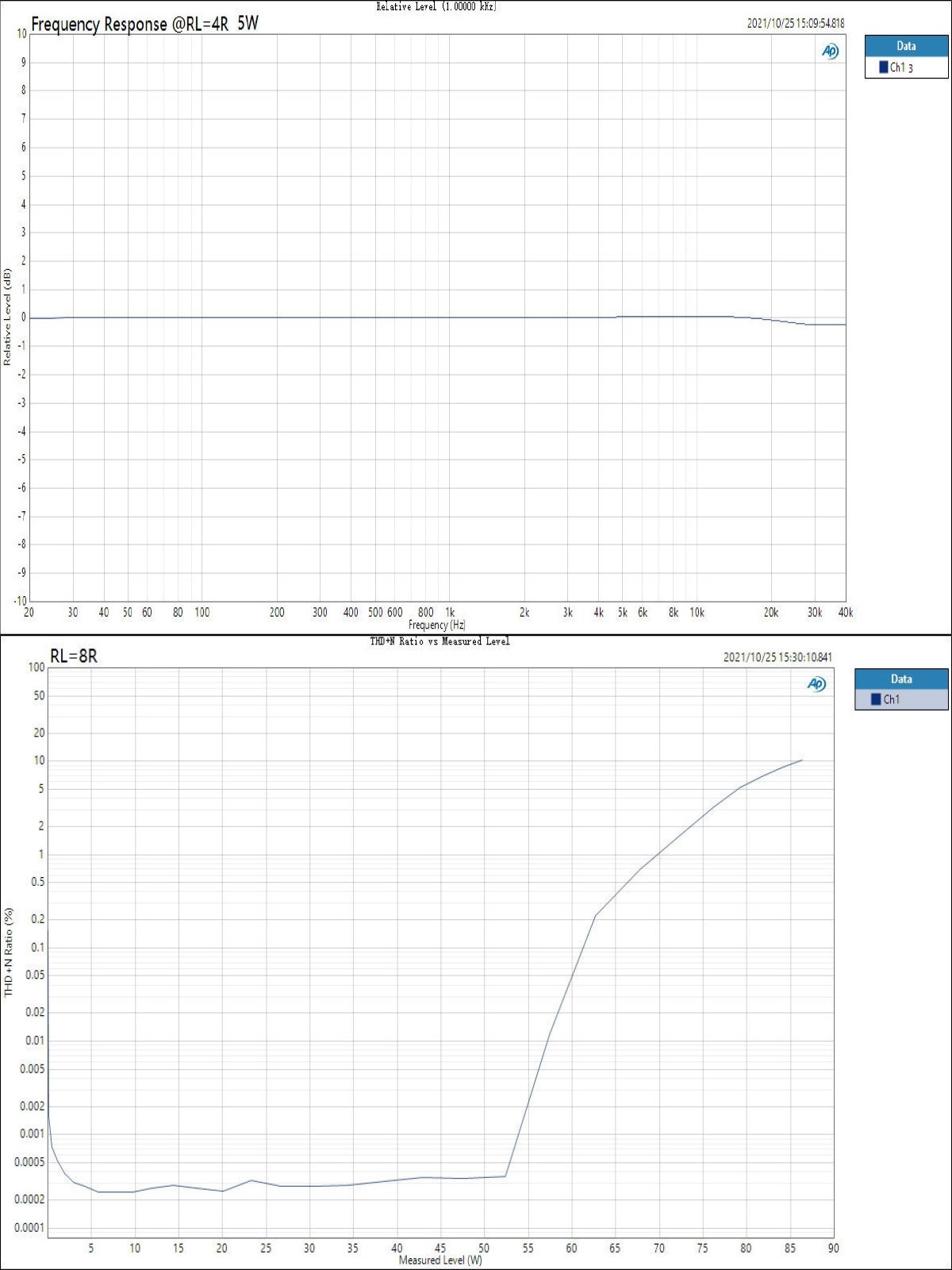

  • Frequency response: 20Hz - 40kHz (±0.3dB)
  • Output level: 65Vpp @RL=4Ω / 68Vpp @RL=8Ω
  • Noise @ A-wt: <16uVrms
  • Channel crosstalk @1kHz: -106dB
  • Input sensitivity: 2.6 Vrms
  • Gain: 19.1dB
  • Channel balance: 0.1dB
  • Output impedance: <0.01Ω
  • Output power
    • 140W x2 @4Ω THD+N<10%
    • 125W x2 @4Ω THD+N<1%
    • 85W x2 @8Ω THD+N<10%
    • 65W x2 @8Ω THD+N<1%
  • Adapter impedance: 3-8Ω
  • Weight: 1.49lbs (0.68kg)

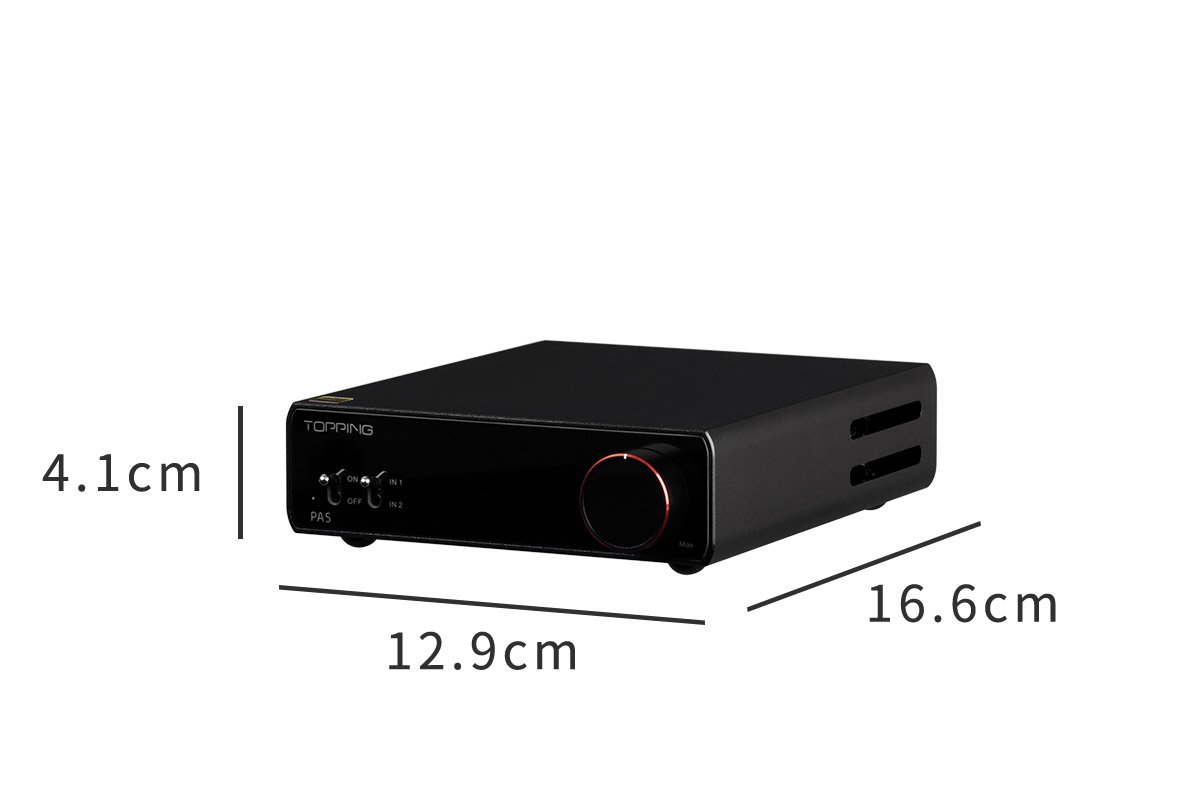

  • Dimensions: 6.5 x 5 x 1.6” (16.6 x 12.9 x 4.1 cm)

What’s included

  • Power adapter
  • Power cable
  • User manual
  • Warranty card

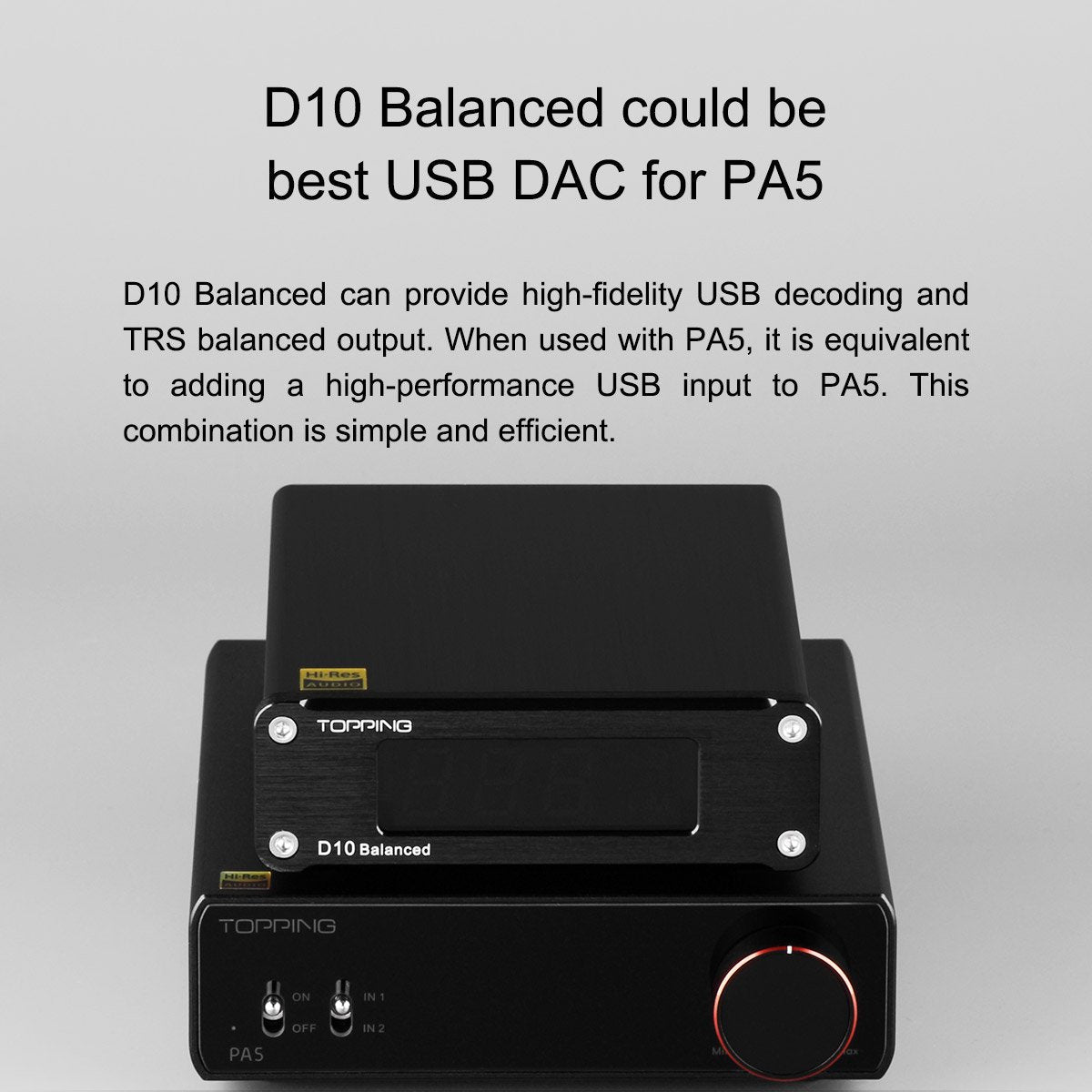

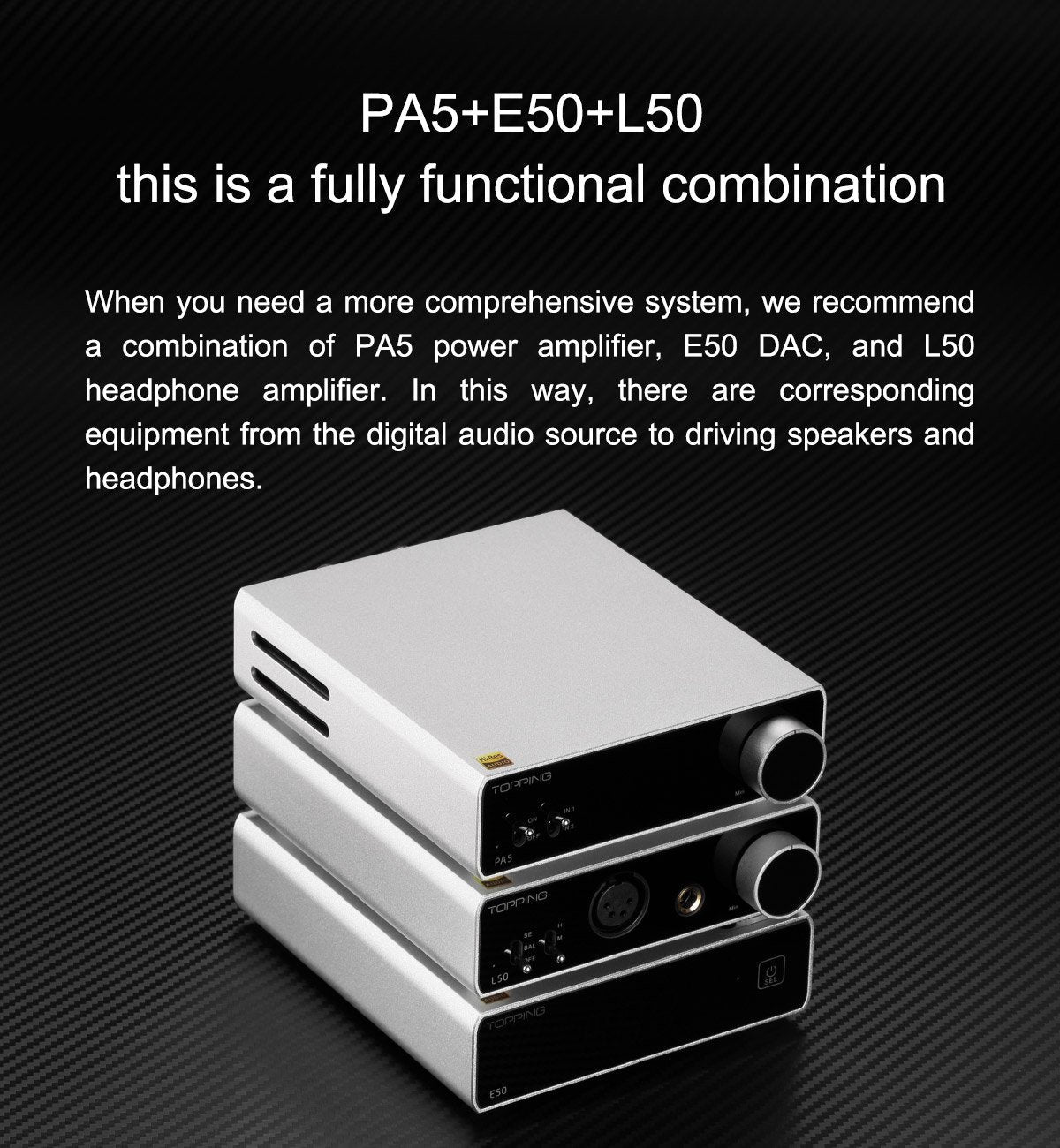

What pairs well
