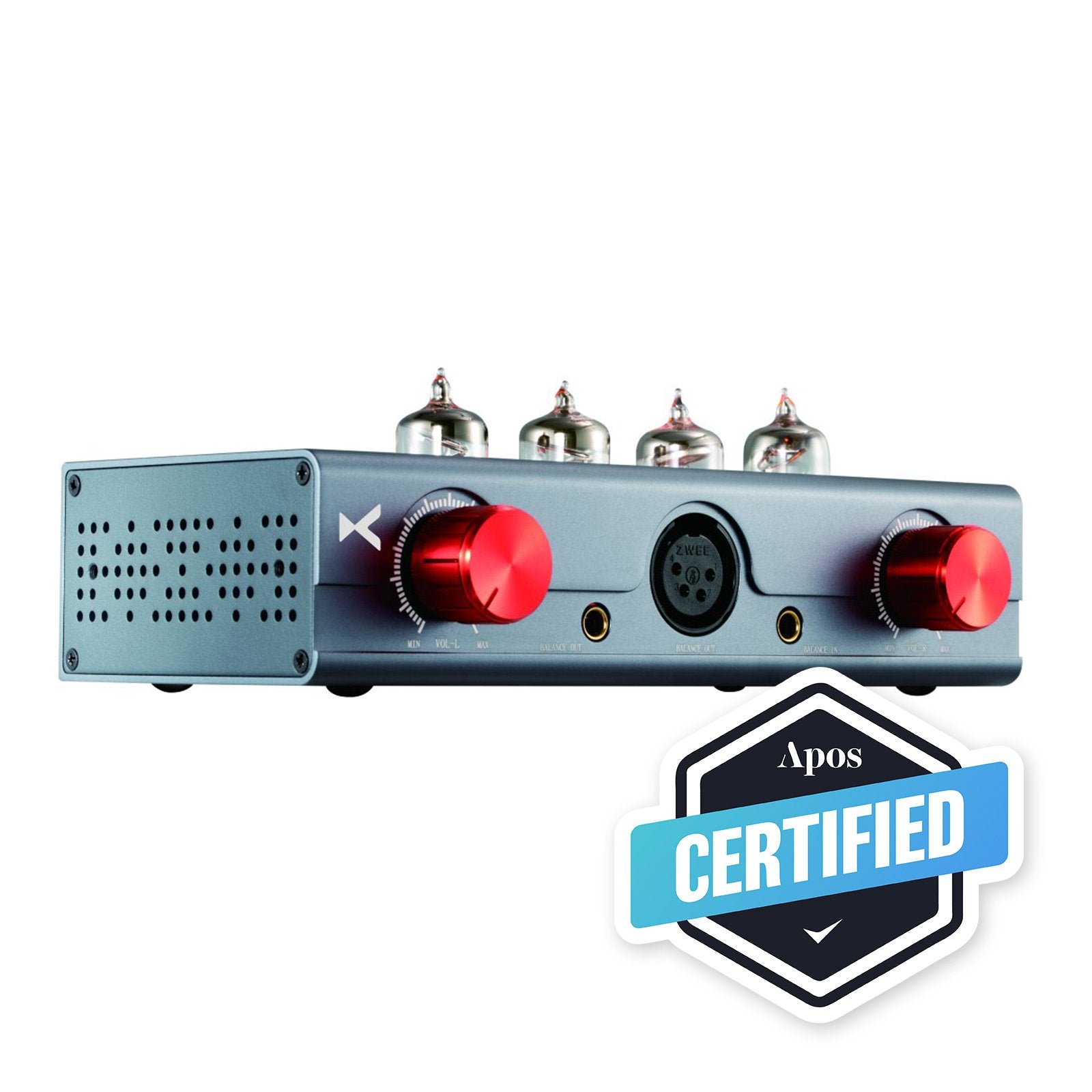

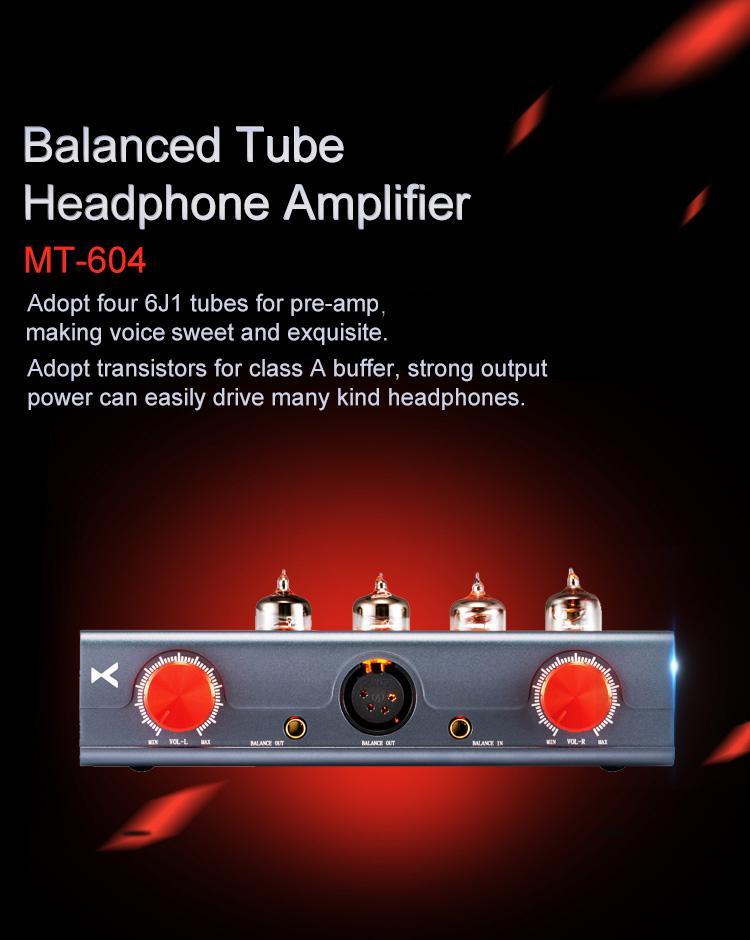

xDuoo MT-604 Balanced Tube Headphone Amplifier (Apos Certified)
Fully balanced tube amp
xDuoo doesn’t do incremental improvements. They evolve by leaps and bounds. The MT-604 is a Class-A tube amp that doubles its predecessor’s tube count and channels, making for a fully balanced tube amp experience.

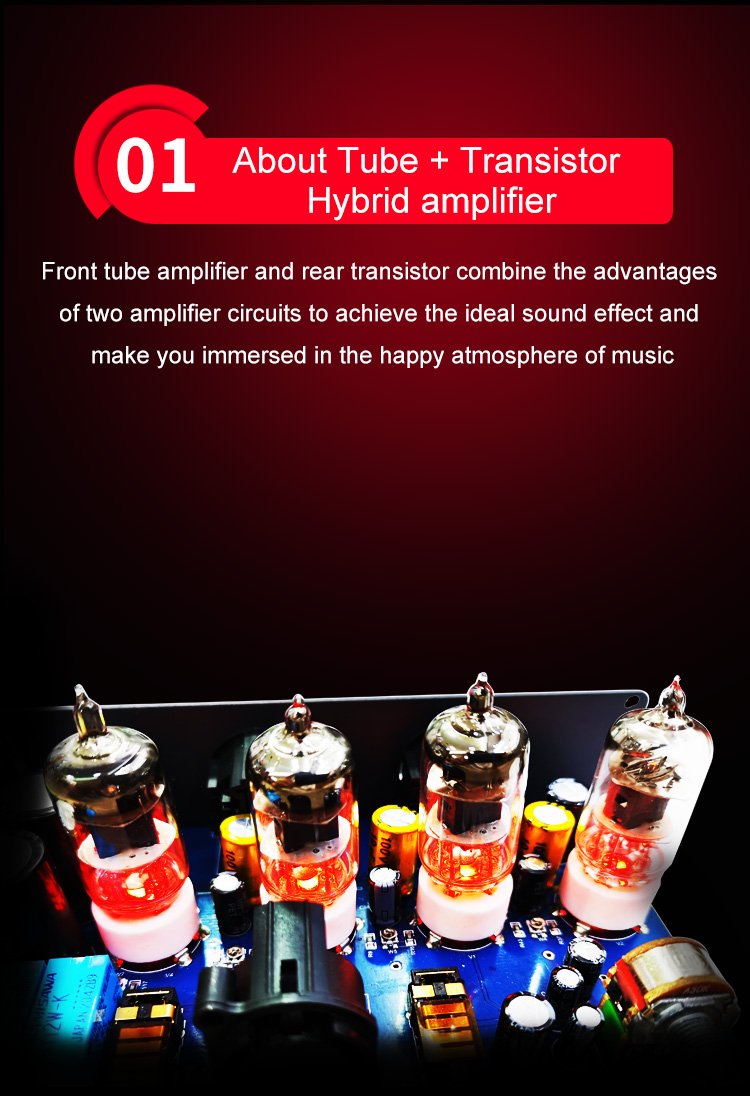

Tube + transistor
Jump back in time with the supple sounds of tube amplification. Known for its soft, sweet mids and laid-back highs, the 6J1 tubes of the MT-604 will thaw the coldest of expectations with their warm reproduction of vocalists and stringed instruments.

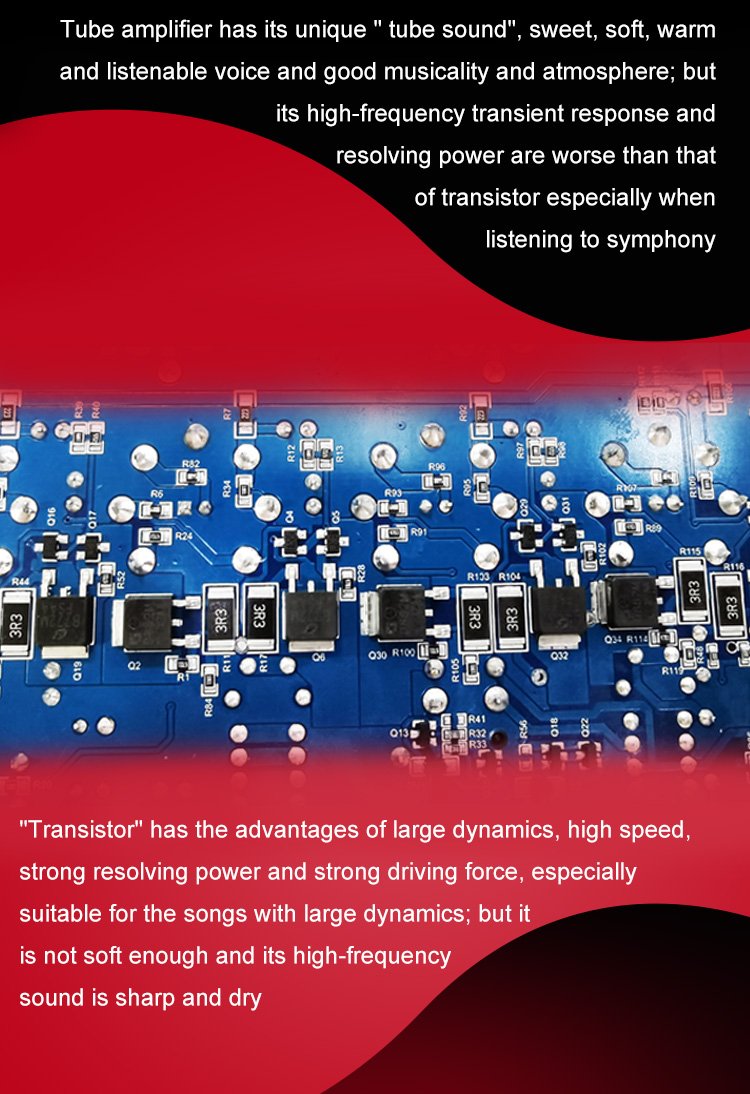

A common complaint about tube amplifiers is their lack of high frequency response and resolving power. To overcome this, xDuoo added a rear transistor circuit capable of large dynamics, high speed, and resolving power. Tubes + transistor: the best of both worlds.
The MT-604 is a class-A amplifier. Using simple circuits that draw the same amount of current and consume the same amount of energy whether receiving a signal or not, this is the most straightforward of amplifier types. It isn’t subject to electromagnetic interference caused by digital components, so its total harmonic distortion and signal-to-noise ratio are exceptionally low.

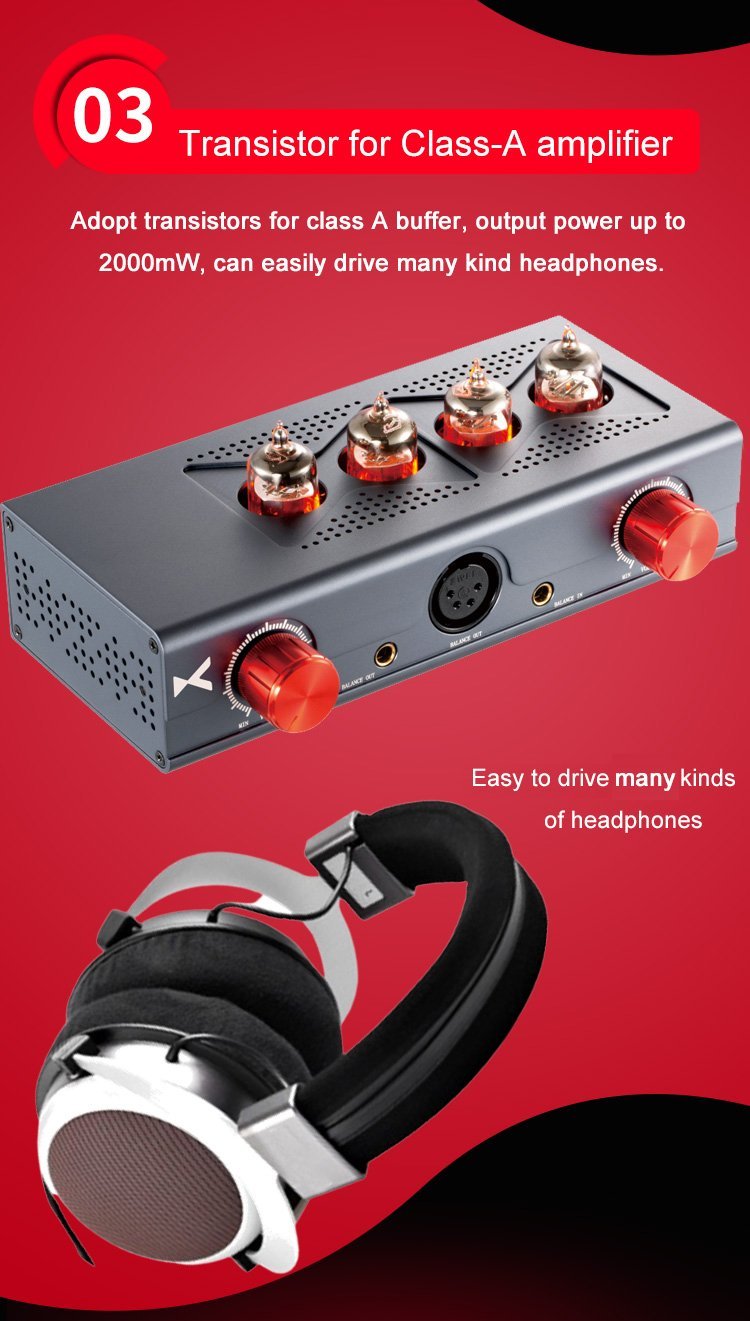

53% more power than the MT-602
The MT-604 outputs up to 2000mW (32Ω) of power. That’s 53% more power than the MT-602--enough to drive even the HiFiMAN HE-4.

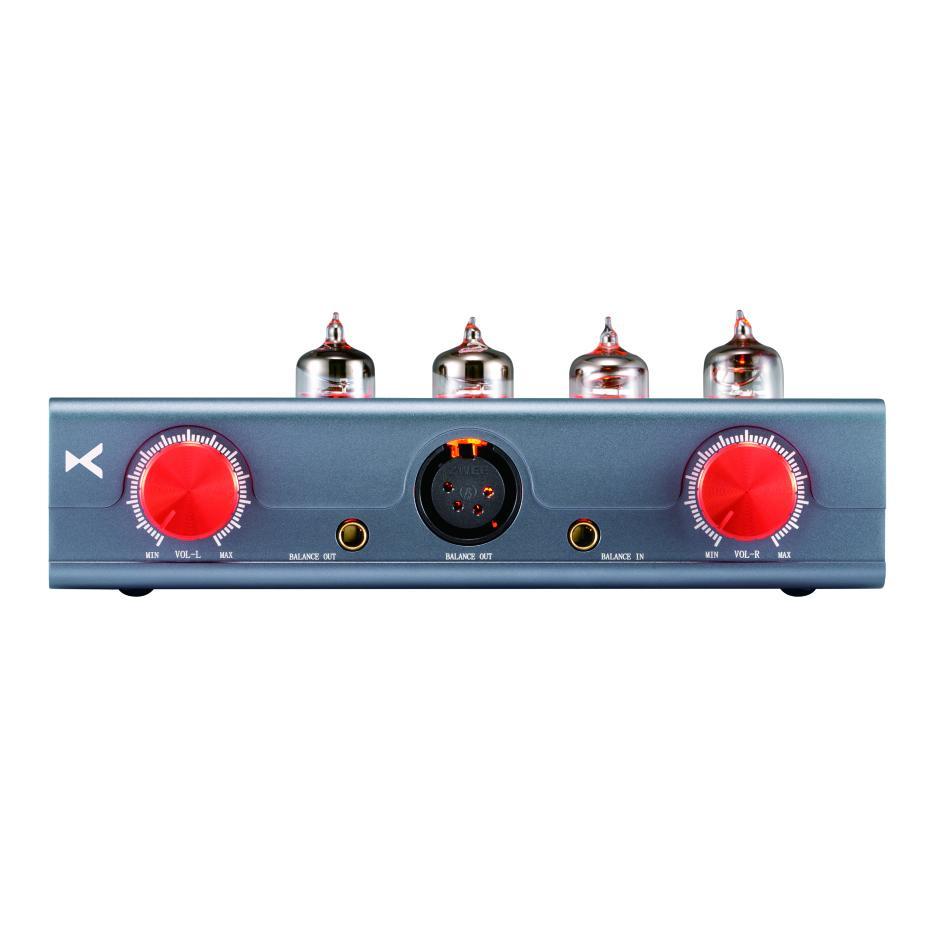

XLR and 4.4 balanced input/output
The MT-604 is a fully balanced amplifier. Plug in any source into its XLR or 4.4mm balanced inputs, and enjoy rich, unhampered sound from its XLR or 4.4mm balanced outs.

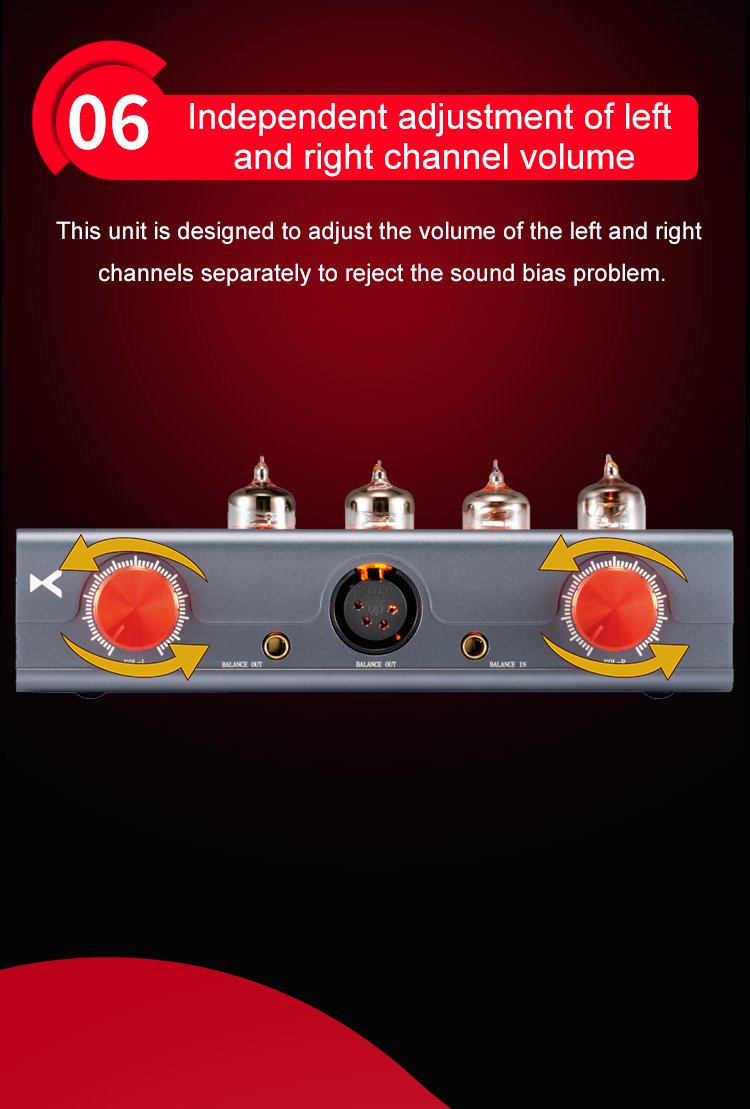

Independent left/right volume adjustment
Sound bias--the phenomenon of one driver being louder than the other--is a thing of the past with the MT-604. Independent left and right volume adjustments let you control each channel separately, ensuring perfectly equal volume across both headphone earcups.

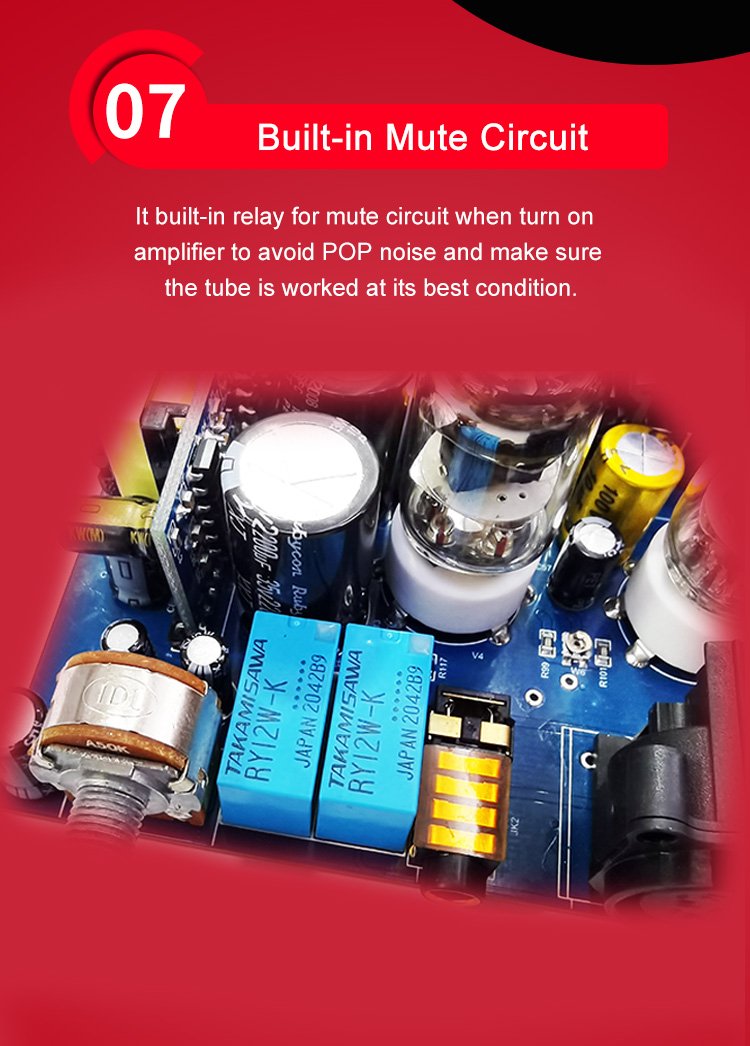

Built-in mute circuit
Anyone who’s ever plugged in their headphones before turning on their amplifier knows that many amplifiers make an ear-splitting “pop!” noise when turned on. Thanks to a built-in mute circuit, the MT-604 prevents this from happening, saving your ears and your patience.

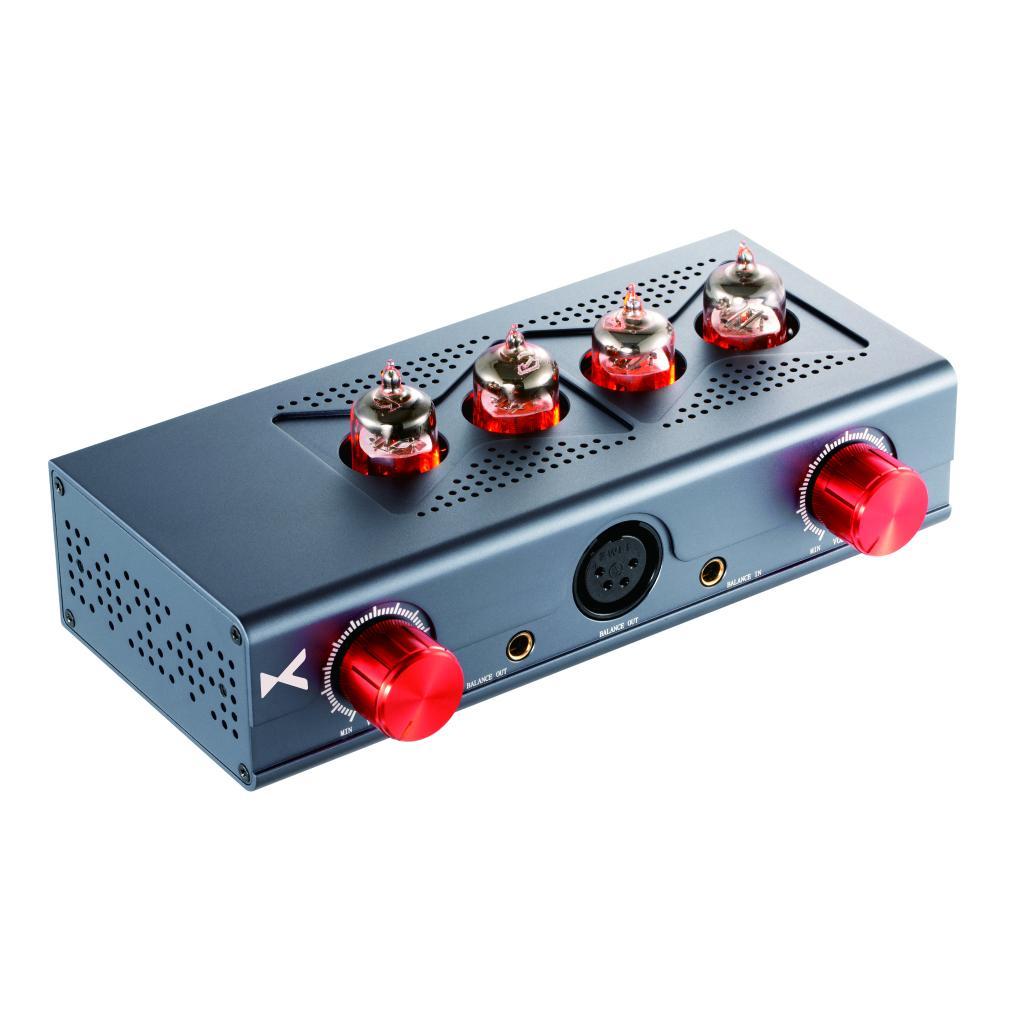

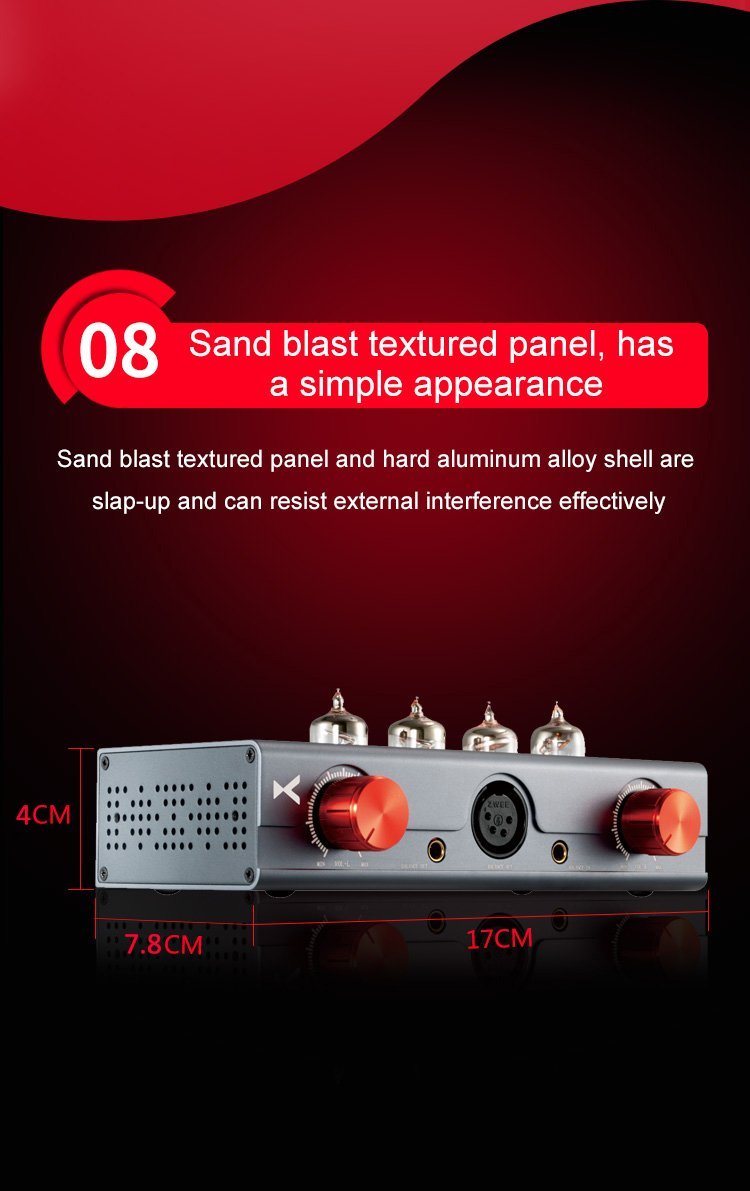

Interference-blocking chassis with sand-blasted texture
The aluminum alloy chassis is a rugged defense against bumps, bruises, and electronic interference. The sand-blasted gray shell beautifully complements the striking red dials and atomic-era aesthetic of the tubes.
Tubes will roll
Adventurous audiophiles will love swapping out the stock tubes for other tubes. Every model of tube has a different sound signature, enhancing or reducing warmth, detail, and soundstage. It’s a fun way to play with the sound signature of a single amp, often for less than $30 a pop. Just be sure to find a reputable dealer of tubes before buying.
- Tubes + transistor hybrid
- Fully balanced amp

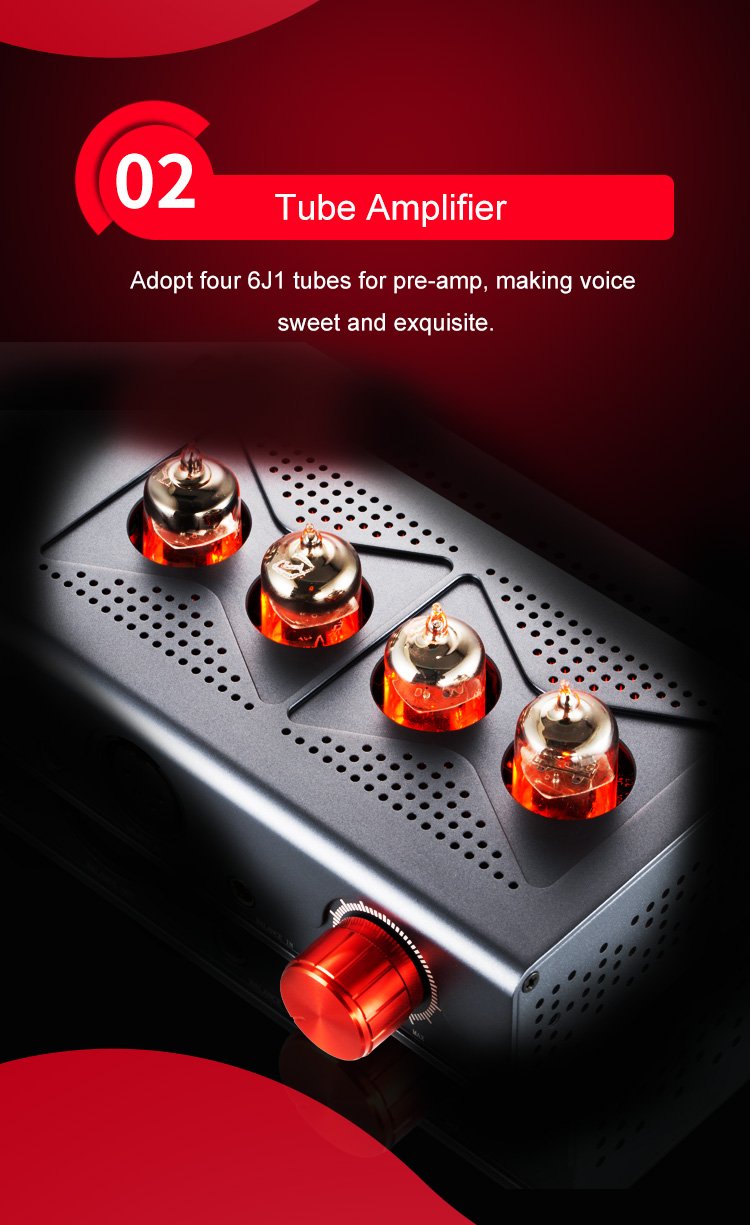

- Four 6J1 tubes
- Class-A amplifier
- 53% more power than MT-602
- XLR and 4.4mm balanced outputs
- Independent left/right volume adjustment
- Built-in mute circuit
- Interference-blocking chassis
- Switchable tubes

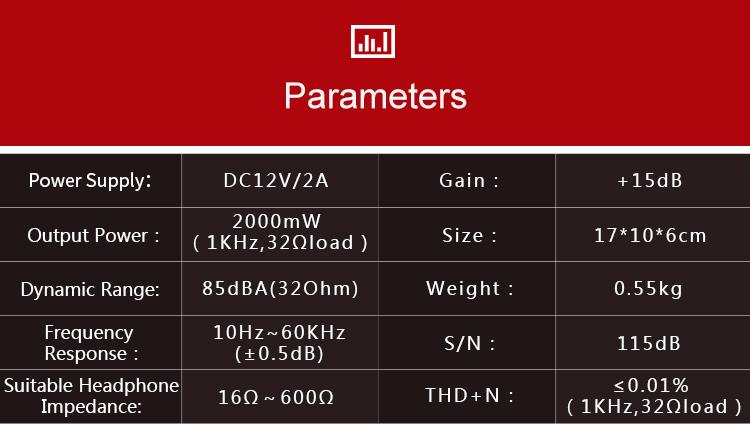

- Power supply: DC12V/2A
- Output power: 2000mW @32Ω 1kHz

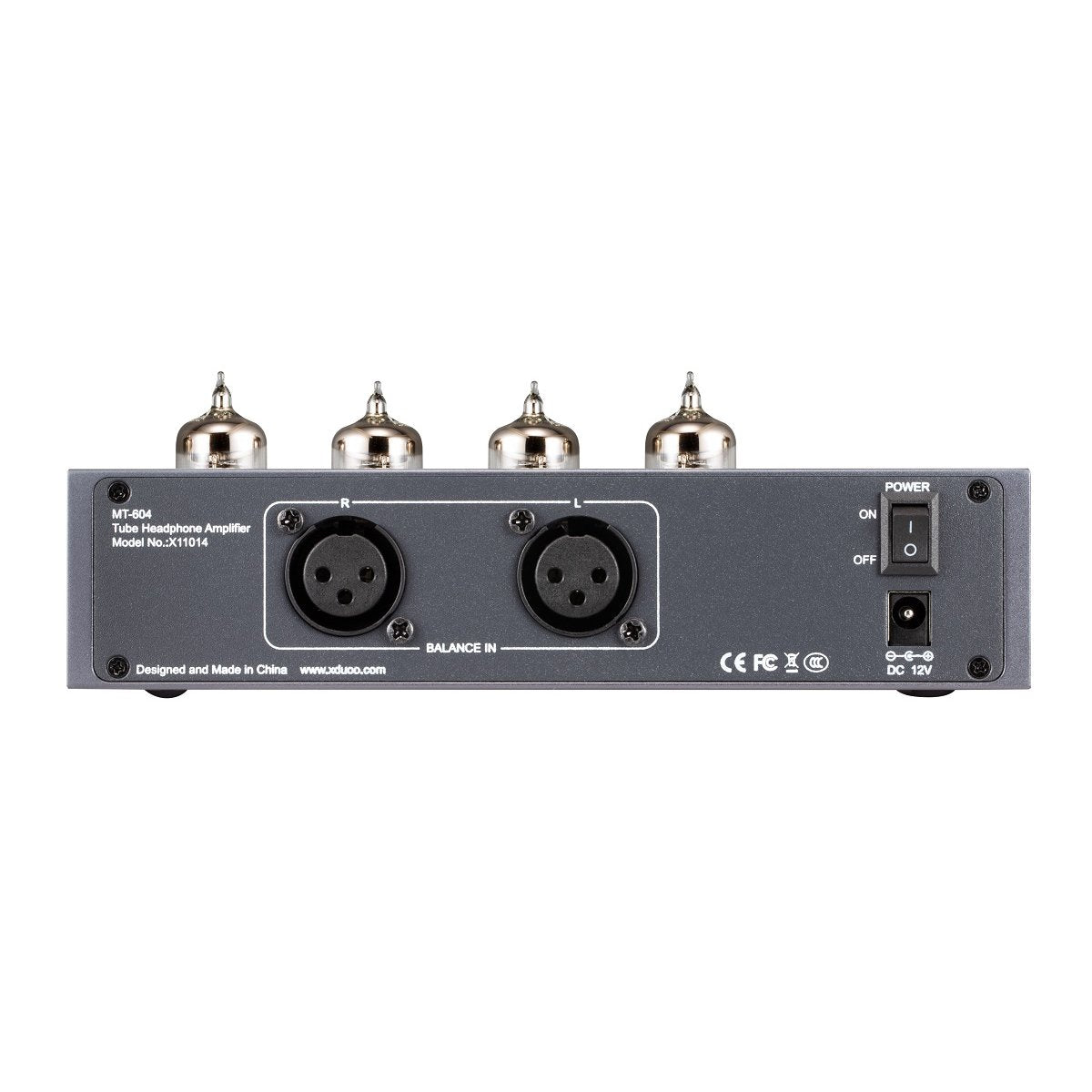

- Inputs: XLR
- Outputs: XLR, 4.4mm balanced
- Dynamic range: 85dBA @32Ω
- Frequency response: 10Hz - 60,000Hz (±0.5dB)
- Suitable headphone impedance: 16Ω - 600Ω
- Gain: +15dB
- Size: 6.6” x 3.9” x 2.3” (17 x 10 x 6cm)
- Weight: 1.2lbs (0.55kg)
- S/N: 115dB
- THD+N: ≤0.01% (@32Ω, 1kHz)
- xDuoo MT-604
- Power cord
- AC adapter
- User’s manual
- Warranty card
