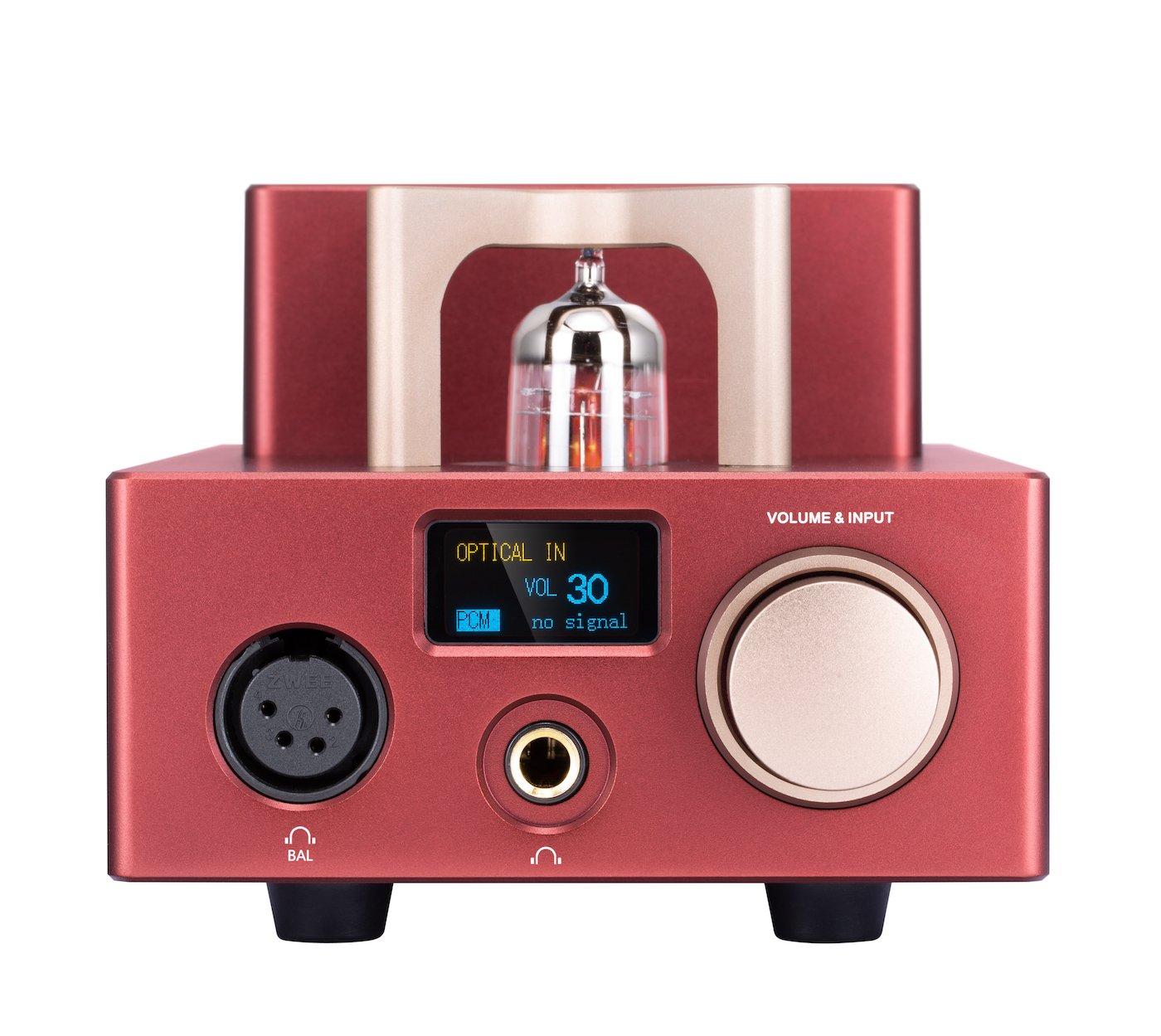

xDuoo TA-10R Tube DAC/Amp (Apos Certified)
This is an Apos Certified product. That means it's refurbished, like new, final sale, carries an Apos Certified One-Year Warranty, and ships from our US facility. Currently, Apos Certified products are only available to customers with a US shipping address. We appreciate your understanding as we aspire to expand our offerings to a broader audience in the future.

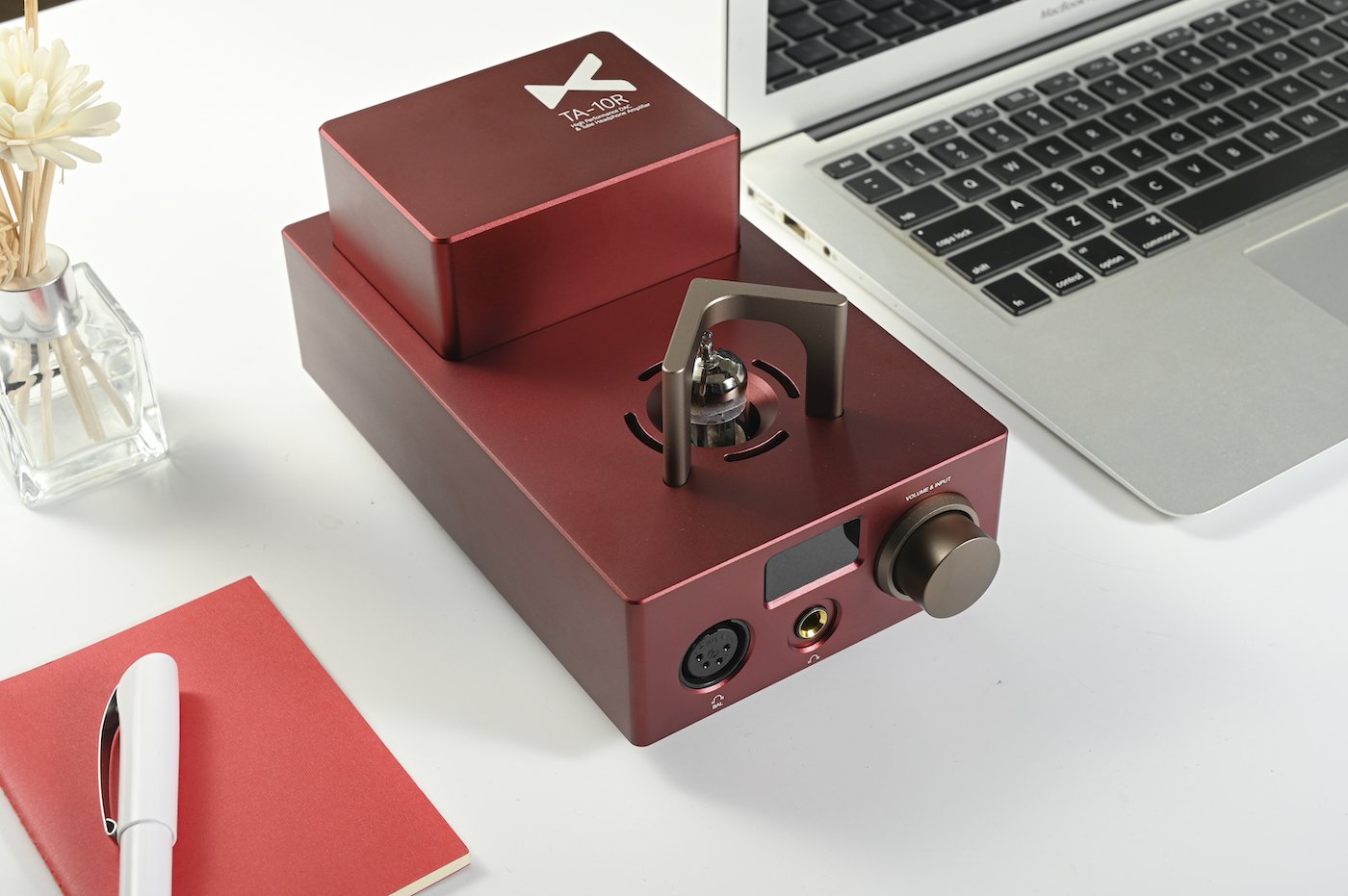

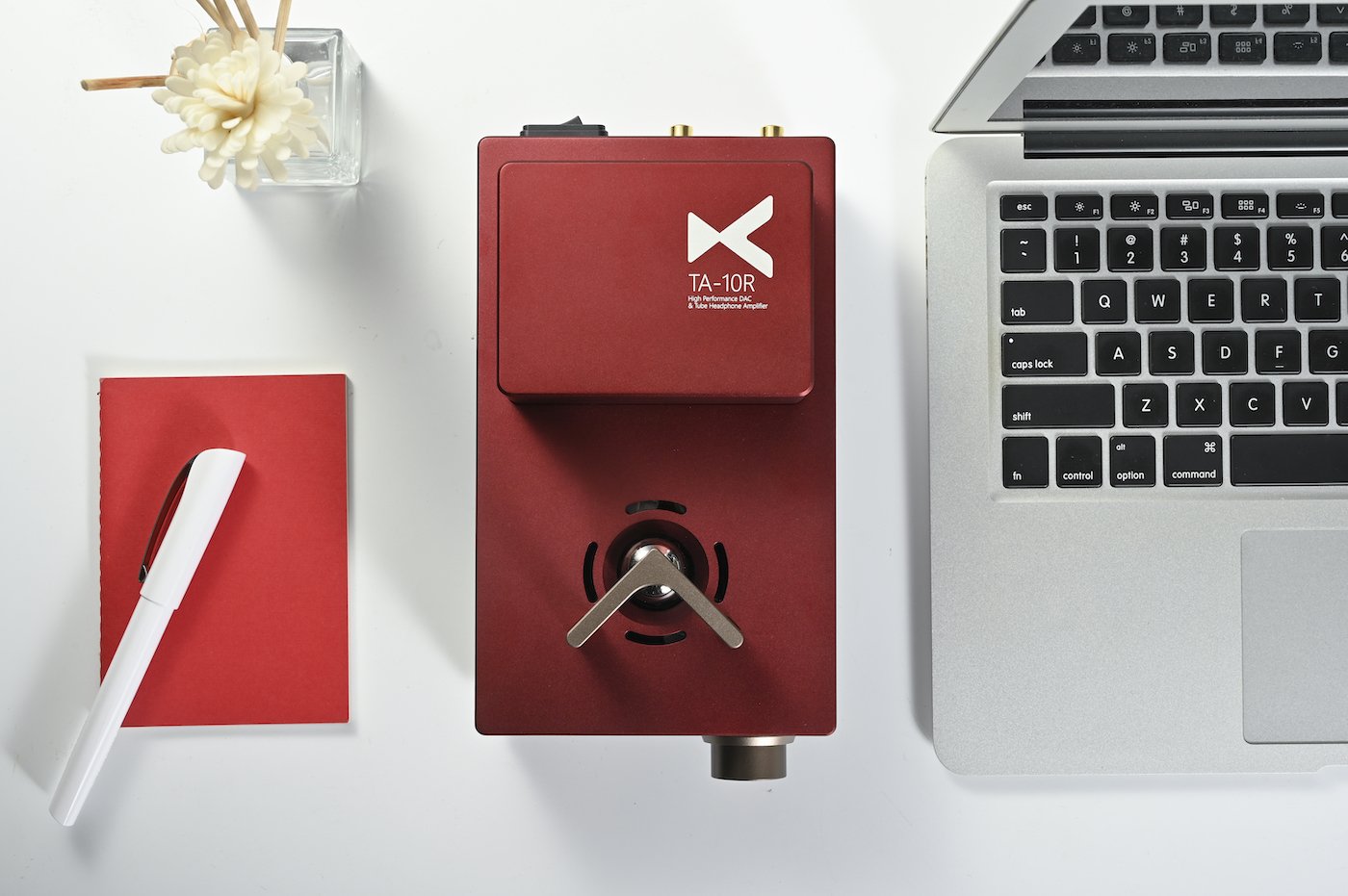

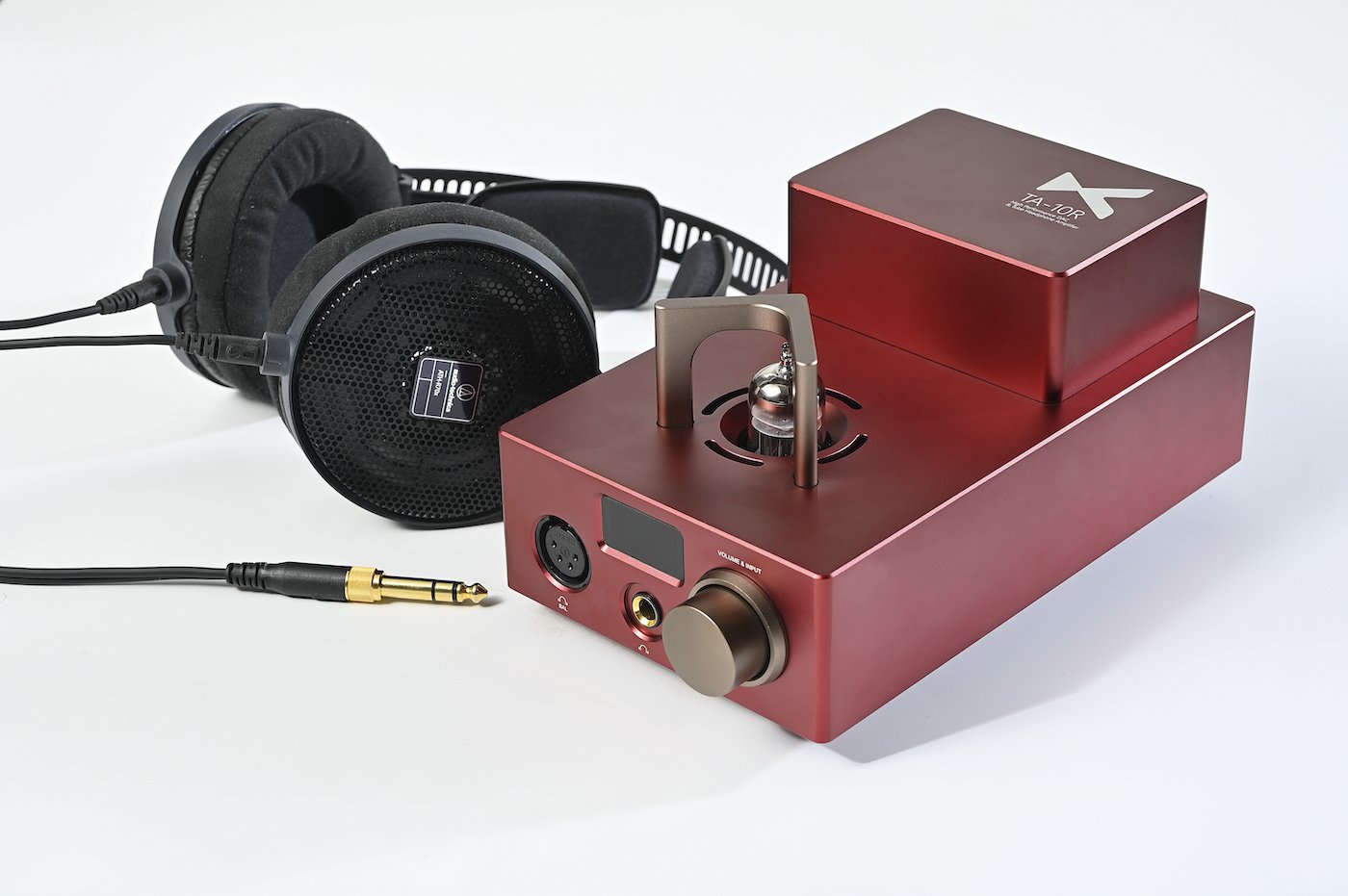

The xDuoo TA-10R is a desktop DAC/Amp with a totally upgraded chipset, optical and coaxial inputs, DOP64 support, plus a striking red exterior. As a DAC/amp, this unit can both decode digital files and amplify them for headphones, making it a great purchase for anyone looking for an all-in-one desktop solution.
Warm tube sound
Most modern solid state amps reduce distortion beyond the threshold of human hearing. Tube amps, on the other hand, add distortion. So why would anyone want one? Many people love the quality of the distortion that tube amps add. They can pare back some of the shrillness and extension of the upper-end, and boost the mids and bass for an altogether warmer sound.
Swap tubes for different sound signatures
One of the joys of tube amp ownership is that the tubes can be swapped out for other tubes. Each tube has a different sound signature, adding or subtracting qualities like warmth, detail, and soundstage. It’s a fun way to play with the sound signature of a single amp, often for less than $30 a pop. Just be sure to find a reputable dealer of tubes before buying.
The TA-10R features a totally updated chipset. The AK4493EQ DAC chip and XMOS XU208 USB chip are capable of decoding 24-bit PCM up to 384kHz, DSD256, and 32-bit DXD up to 384kHz. These file formats are of much higher quality than MP3, providing detail and fidelity that are closer to the quality of master tapes.
Eight inputs and outputs

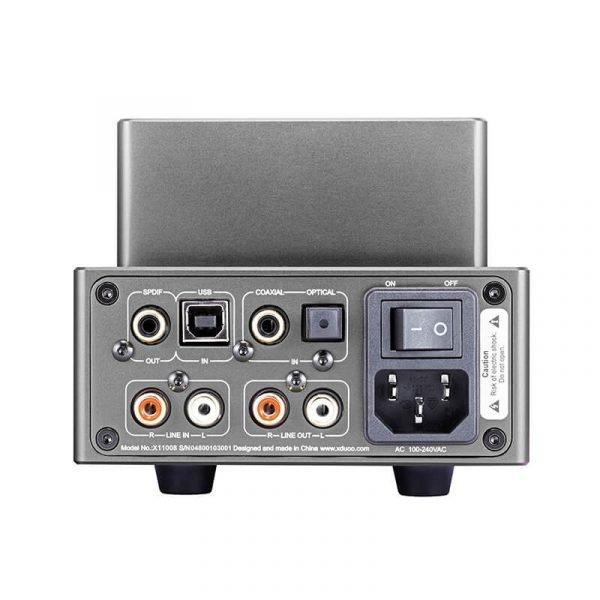

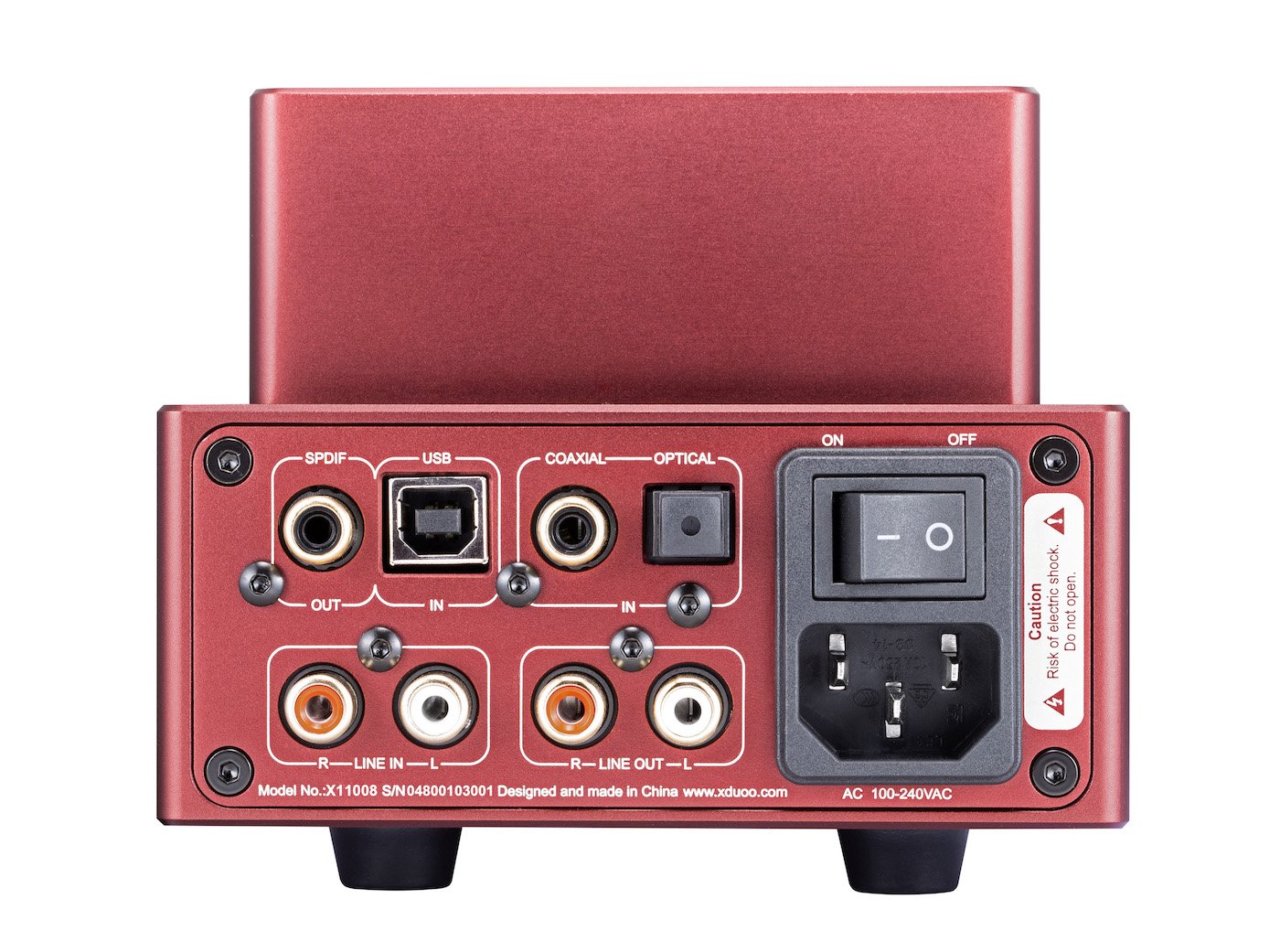

The xDuoo TA-10R features four inputs (optical, coaxial, RCA, and USB) and four outputs (SPDIF, RCA, balanced XLR, and 3.5mm SE). This combination allows you to connect a variety of sources, headphones, and speakers.
- DAC chip: AK4493EQ
- 8 in and outs
- Inputs: Optical, Coaxial, RCA, USB
- Outputs: SPDIF, RCA, Balanced XLR, 3.5mm SE
- USB chip: XU208
- Class-A Amplifier
- Tube: ECC82/12AU7
- DOP64 input: supported
- Power supply:external electricity (AC100-240V)
- Screen: 0.96” OLED
- Compliant OS: Win7, Win8, Win10, Mac OSX, IOS, Android System
- USB sample rate support
- PCM :16-32Bit, 44.1KHz-384KHz
- DSD: DSD64-256
- DXD: 24-32Bit/ 352.8-384KHz
- OPT/COAX sample rate support:
- PCM: 16-24bit/ 44.1K-192kHz
- DSD: DSD64 (DOP)
- Output power
- Phone: 2000mW (32Ω)
- XLR: 2000mW(32Ω)
- Frequency response
- USB/OPT/COAX: 20 - 20,000Hz (+/-0.5dB)
- Amp: 10 - 100,000Hz (+/-0.5dB)
- Gain: +18 dB
- Distortion: ≤0.01% (1KHz)
- SNR: 118dB
- Crosstalk: >65dB
- THD+N: <0.1% (1kHz)
- Suitable headphone impedance: 8Ω ~ 600Ω
- Size: 9 x 4.7 x 4.1” (230 x 120 x 105 MM)
- Weight: 2.3 lbs (1.05 kg)
- xDuoo TA-10R
- Power Cable
- Warranty Card
- USB cable
- ¼” adaptor
"Weighty, warm, smooth....powerful." -SoundNews
"Everything that xDuoo makes is pretty much a winner." -Z Reviews
