Audio-Technica

Audio-Technica AT-LP2022 Fully Manual Belt-Drive Turntable (Ship by March 2023)

$1,200

Request A Price Match


Important Note (please read): This is a limited edition turntable with a very small production run. Each retailer has a tiny allocation of this run. All orders will ship by March 2023.

60th anniversary limited edition turntable

The limited-edition AT-LP2022 turntable celebrates 60 years of audio excellence, designed with modern aesthetics and a uniqueness like no other. This fully manual turntable with belt drive operation demonstrates the purity of analog audio. With a limited-edition Shibata stylus and carbon-fiber tonearm, the AT-LP2022 heightens everyday listening experiences and effortlessly unites people through sound.

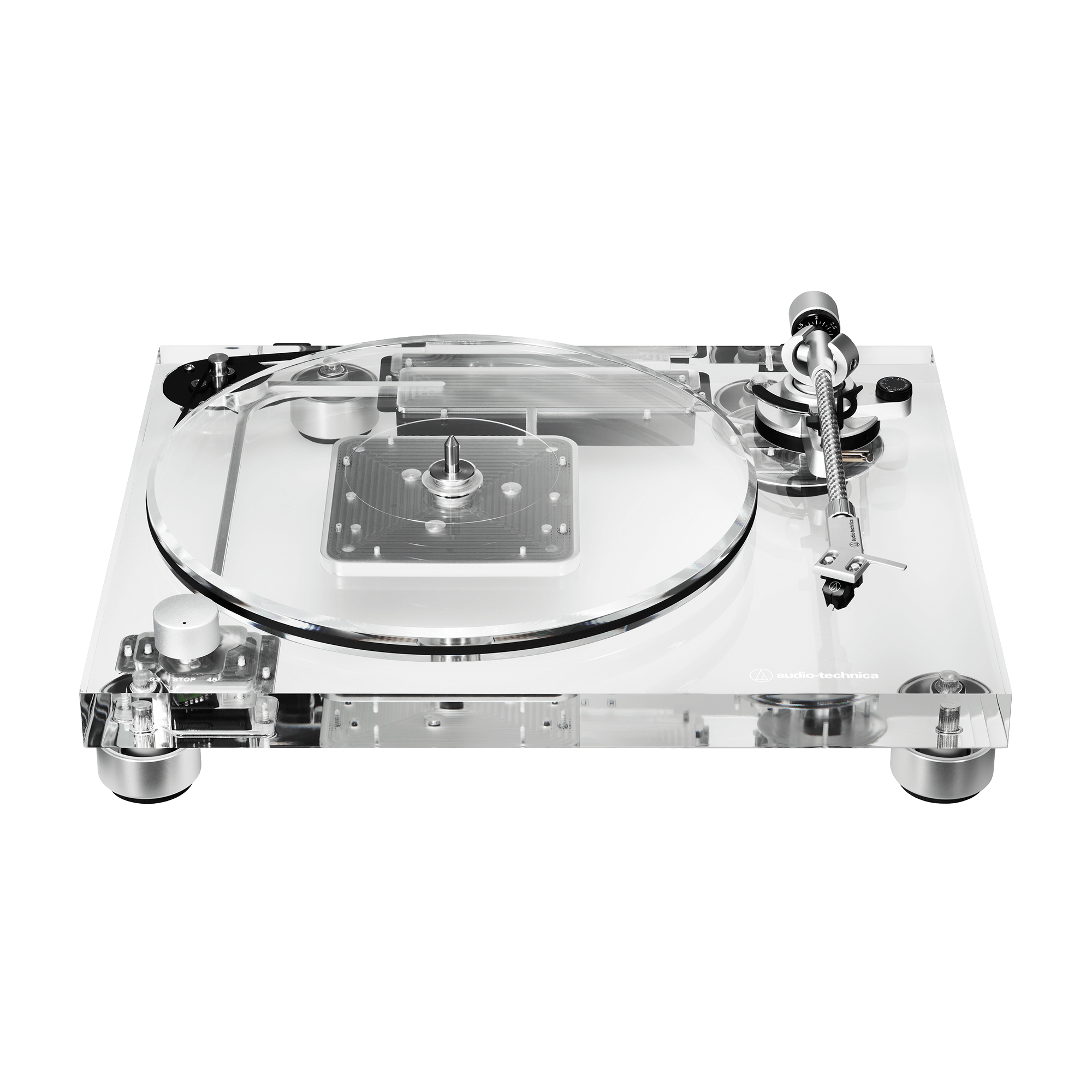

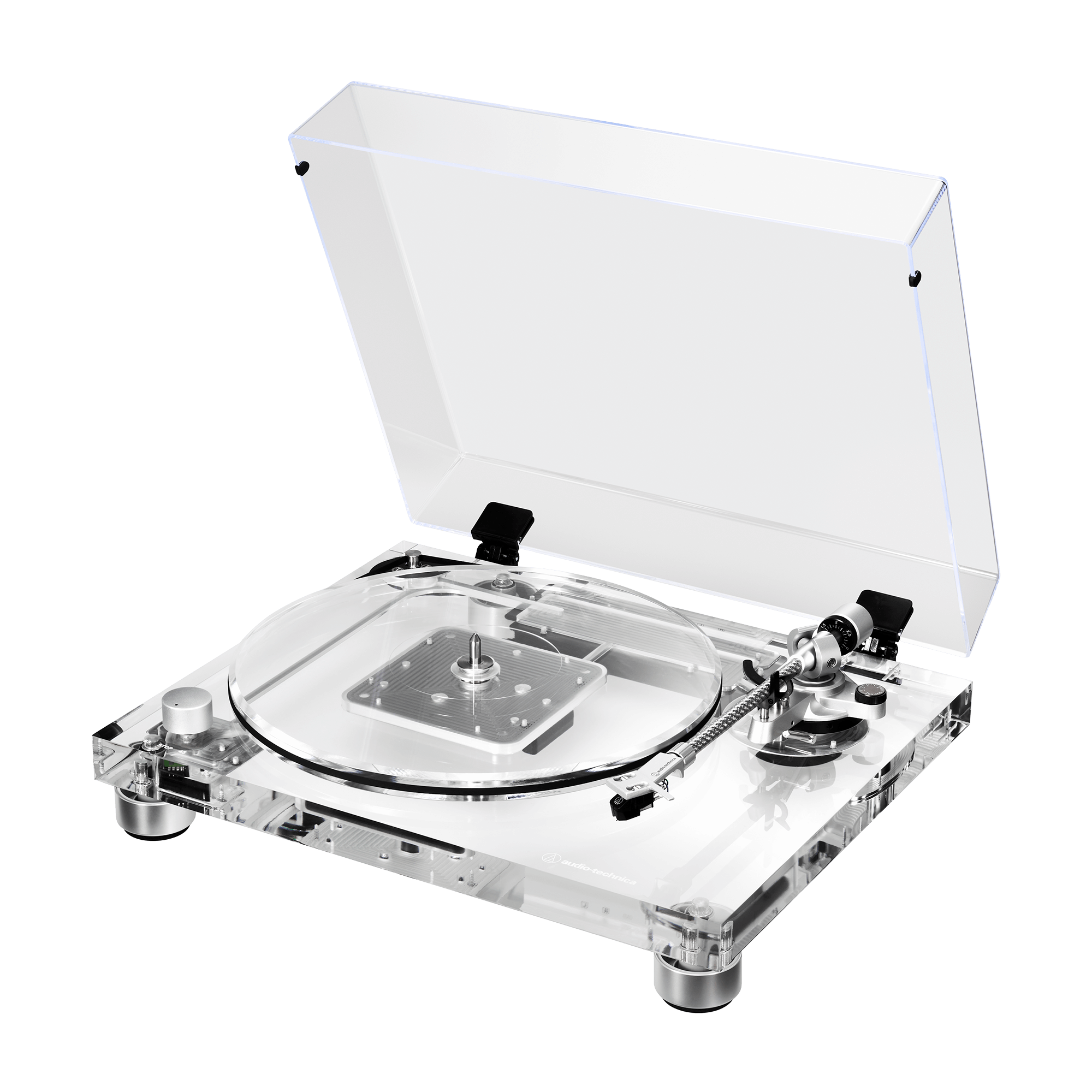

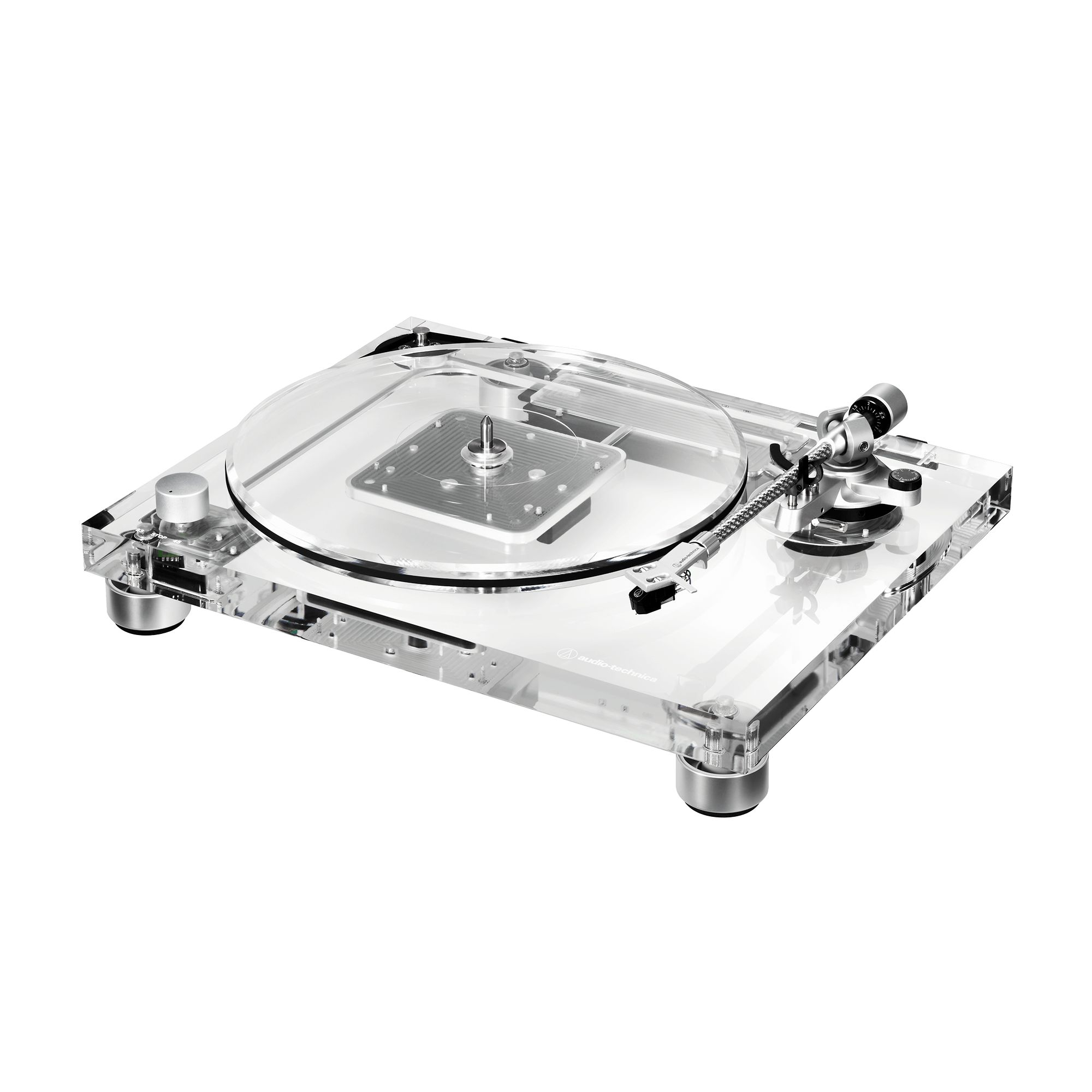

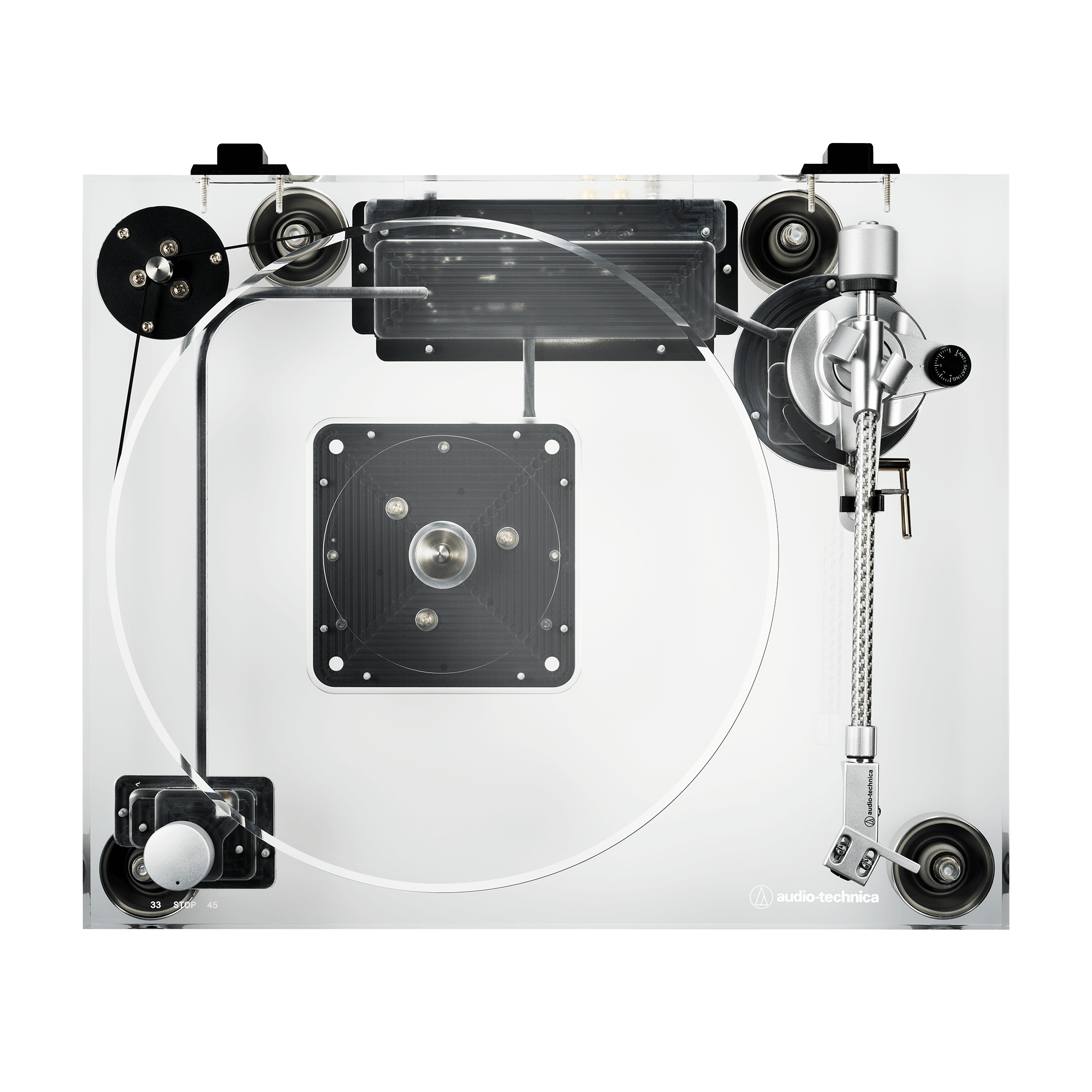

Modern aesthetics

A stylish 30 mm-thick, high-density clear acrylic chassis reduces resonance and reveals the belt-drive motor – highlighting the turntable’s pure analog sound.

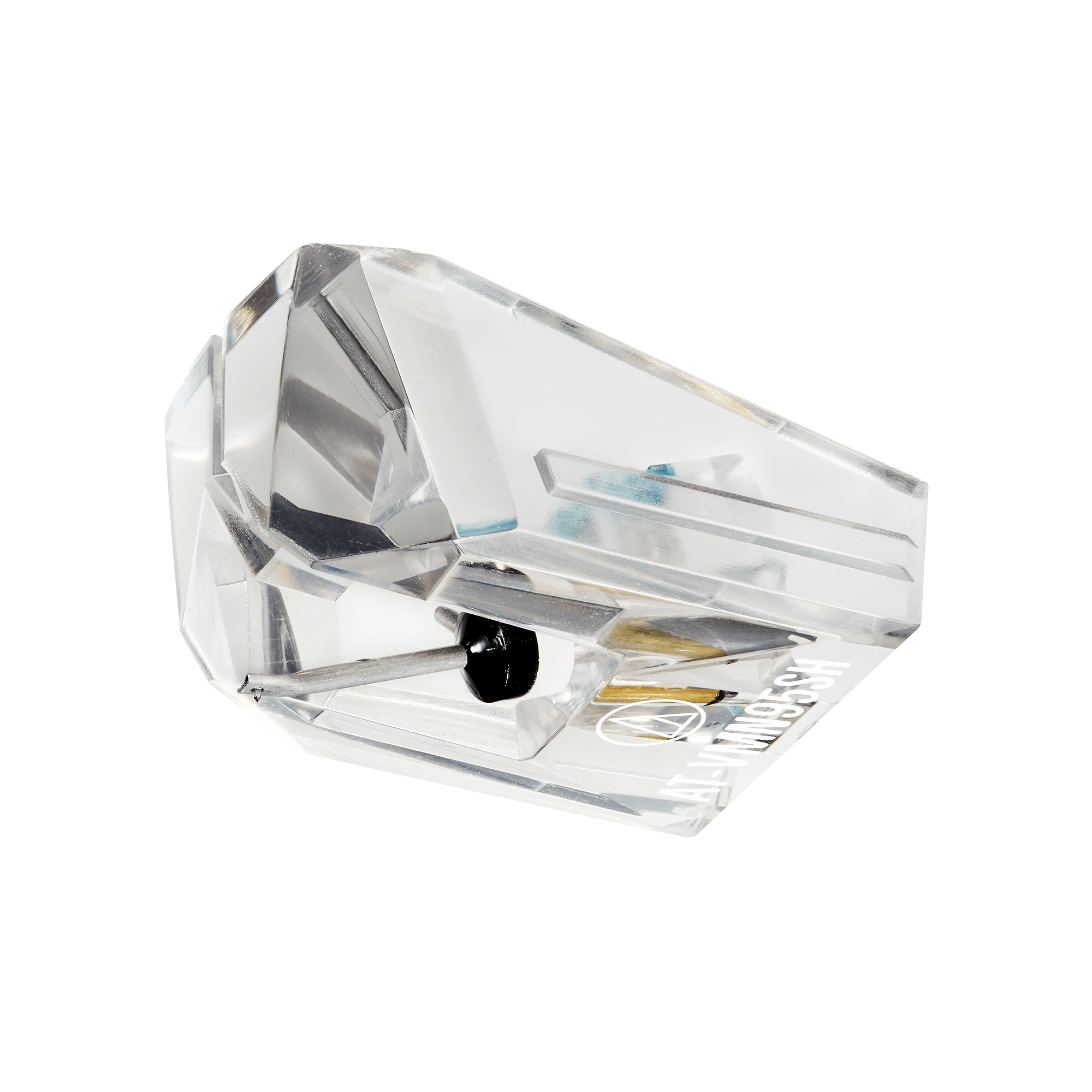

Limited edition Shibata stylus

The clear-body Shibata stylus can pick up ultra-high frequencies, allowing you to discover sound like you’ve never heard before. The Shibata stylus is easily interchangeable with the 0.3 x 0.7 mil elliptical stylus AT-VMN95EBK (black) that comes installed on the included cartridge. (Four additional VM95 stylus types – conical, SP conical, elliptical nude, Microlinear – are available separately.)

Carefully constructed components

A sensor-monitored motor ensures a continuously accurate platter rotation speed of 33-1/3 or 45 RPM. Specially designed high-isolation, height-adjustable feet, keep the turntable stabilized and an AC adapter keeps the AC/DC conversion outside the chassis, reducing noise in the signal chain.

Product highlights

  • 60th anniversary limited-edition turntable clearly demonstrates the purity of analog audio
  • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
  • AT-VM95 cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
  • Includes a 0.3 x 0.7 mil elliptical stylus, plus a limited-edition, clear-body Shibata stylus
  • 30 mm-thick chassis made from low-resonance, high-density clear acrylic
  • Motor features a speed-sensor system to maintain accurate platter rotation speed
  • Transparent acrylic platter for stable rotation

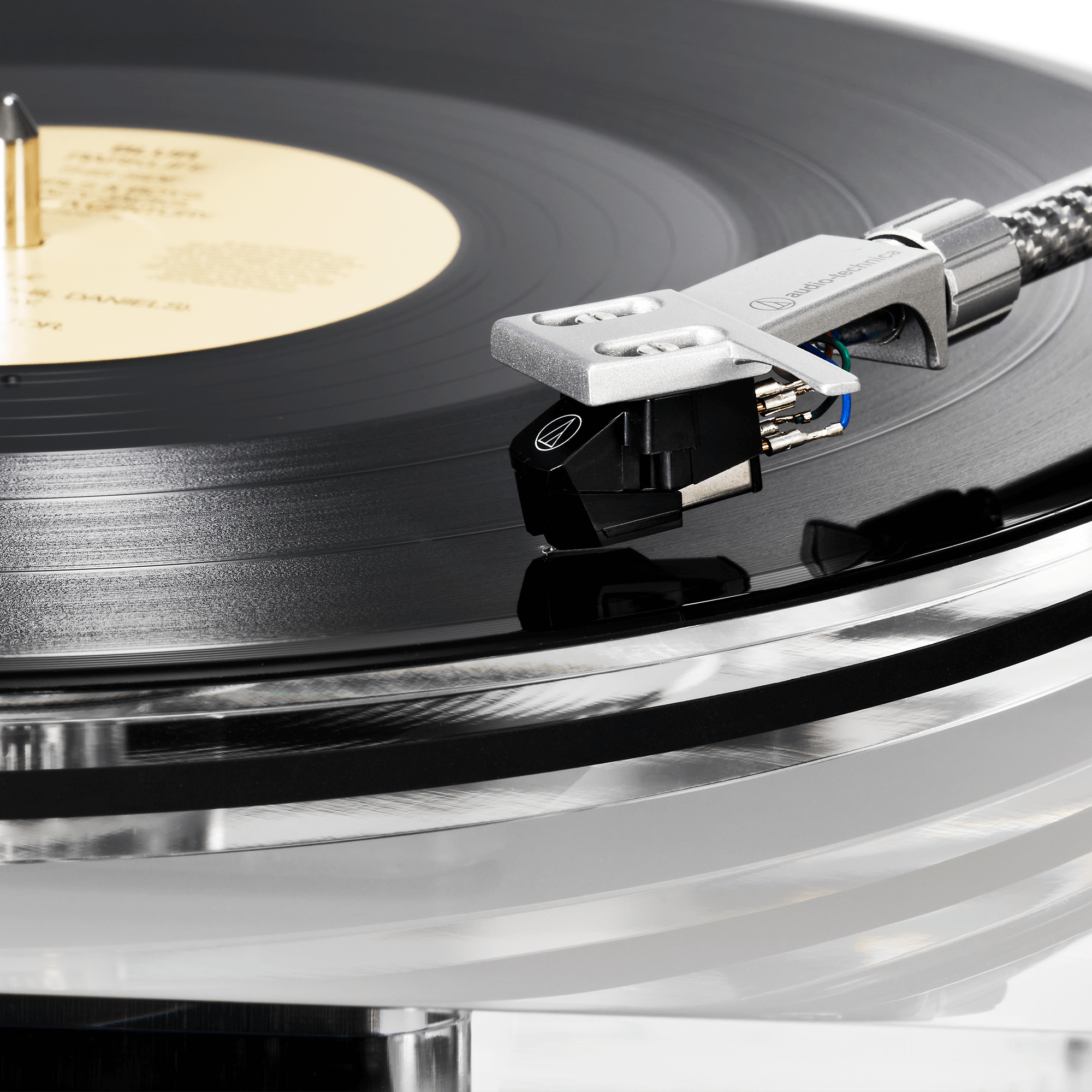

  • Carbon-fiber tonearm with metal tonearm lift and base, and VTA (vertical tracking angle) adjustment
  • Adjustable dynamic anti-skate control
  • Lightweight AT-HS4SV headshell
  • Exclusively designed high-isolation, height-adjustable feet
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, and removable hinged dust cover

Specs

  • Type: belt-drive manual turntable
  • Motor: DC servo with active speed stabilization
  • Drive method: belt drive
  • Speeds: 33 ⅓ RPM, 45 RPM
  • Turntable platter: 16mm-thick acrylic platter
  • Wow and flutter: <0.15% WRMS (33 RPM) at 3kHz
  • Signal-to-noise ratio: >60dB
  • Power supply requirements: 100 to 240V, 50/60Hz, 0.5 A Max.
  • Power consumption: 1.8W
  • Dimensions: 17 x 13 x 5.3” (W x D x H)
  • Weight: 18lbs
  • AC adapter: 12V, 1.0A
  • Tonearm type: Static balanced straight carbon tonearm
  • Effective arm length: 223.6mm
  • Overhand: 18.6mm
  • Tracking error angle: Less than 2.0°
  • Stylus pressure adjustment range: 0 to 3.0g
  • Applicable cartridge weight: 11.5 to 16.5g

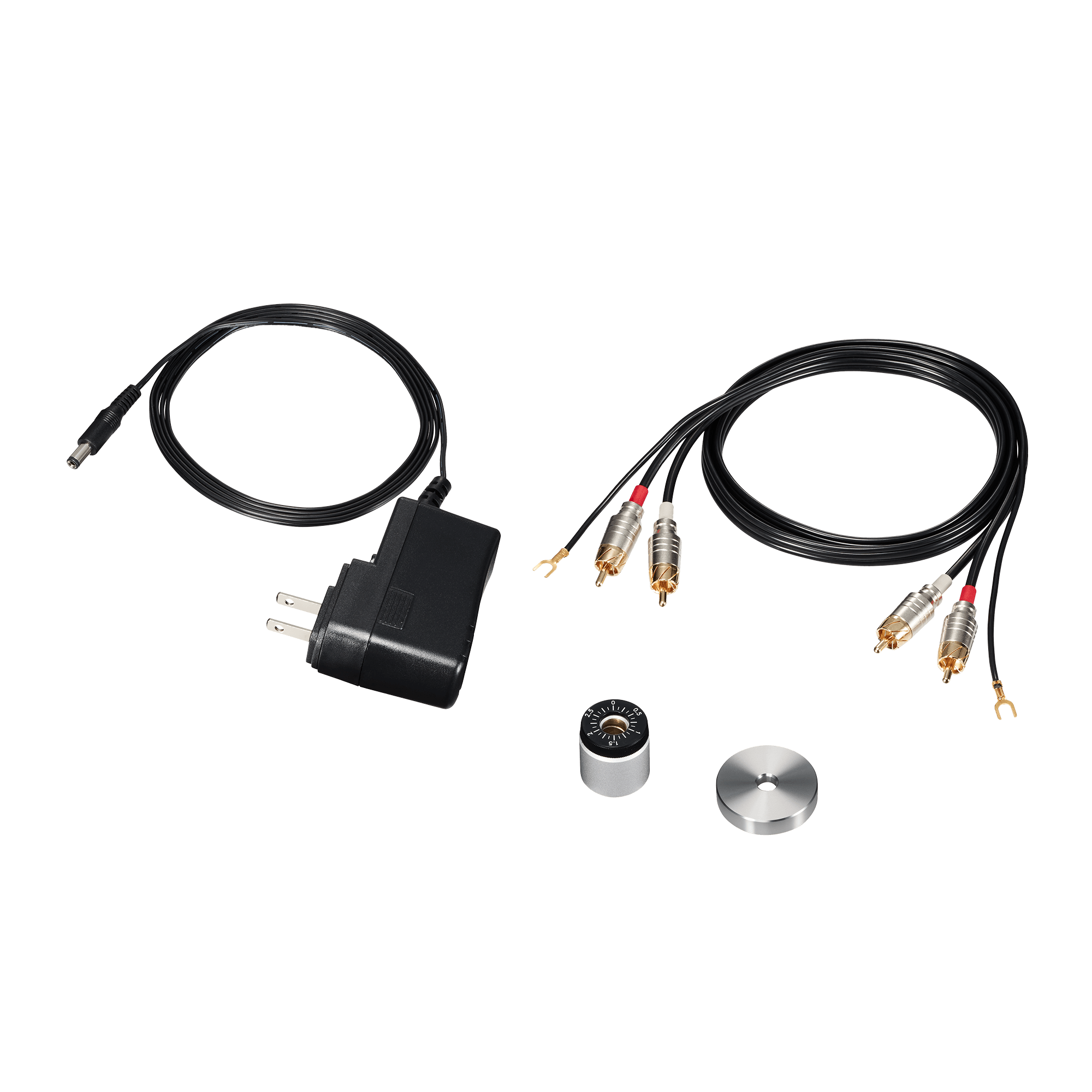

What’s included

  • Dust cover
  • Platter (with drive belt)
  • Dust cover hinges
  • Counterweight
  • Headshell (AT-HS4 SV) with VM stereo cartridge (AT-VM95E BK)
  • Replacement stylus (AT-VMN95SH CL)
  • 45-RPM adapter
  • RCA audio cable (Approx. 1.0 m (3.3'))
  • AC adapter (Approx. 1.5 m (4.9'))
  • Hexagonal wrench
  • Gloves
