ES Lab EHT-LPS linear power supply for the EHT-7 energizer

The ES Lab EHT-LPS is a dedicated linear power supply for the EHT-7 electrostatic headphone energizer. It uses an audio-grade R-core transformer, dual LT3045 voltage regulators, selected filtering capacitors, and EMI filtering to deliver stable 15V DC power with reduced high-frequency noise.

Dedicated EHT-7 compatibility

Designed specifically for the ES Lab EHT-7 energizer, the EHT-LPS provides up to 1A through a two-pin GX-16 output connection. The specified output pinout assigns pin 1 to positive and pin 2 to ground.

Linear power architecture

The linear circuit is designed to provide cleaner, more stable electricity than a conventional switching supply. Reduced high-frequency noise and ripple provide deep bass response, fast transients, and richer dynamics.

Audio-grade R-core transformer

An R-core power transformer forms the foundation of the supply. This transformer design is paired with carefully selected regulation and filtering components for consistent power delivery to the EHT-7.

Dual LT3045 regulation

Two LT3045 voltage regulators provide low-noise voltage regulation. They help maintain a stable DC output as the connected energizer operates.

Selected filtering components

Nichicon Fine Gold and Elna Silmic II capacitors are used in the filtering stage. Dedicated EMI filtering further limits electrical interference before power reaches the connected energizer.

CNC aluminium chassis

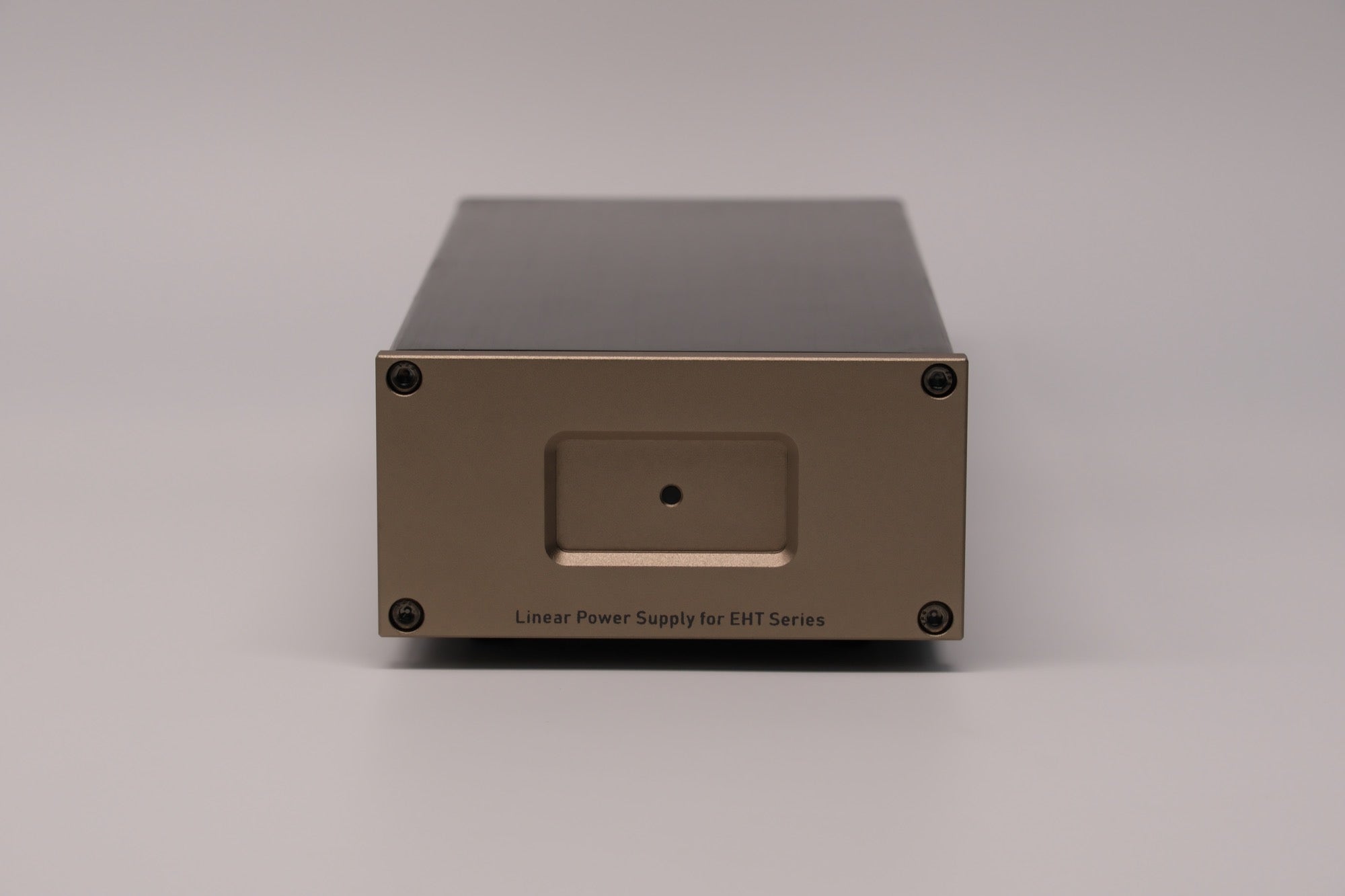

The internal power circuitry is housed in a CNC-machined aluminium chassis. The front panel includes a power-status indicator, while the rear panel provides AC input, a power switch, and the dedicated DC output connection.

Product highlights

• Dedicated linear power supply for the ES Lab EHT-7 energizer

• Audio-grade R-core power transformer

• Two LT3045 voltage regulators

• Nichicon Fine Gold and Elna Silmic II filtering capacitors

• Integrated EMI filtering

• CNC-machined aluminium chassis

• 15V DC output with up to 1A current capacity

Specs

• Power output: 15V DC, 1A maximum

• Output connector: Two-pin GX-16

• Output pinout: Pin 1 positive, pin 2 ground

• Power input: 110V or 220V AC

• Power consumption: 15W

• Warranty: One year

What’s included

• ES Lab EHT-LPS linear power supply

• Additional package contents are not specified in the supplied product information.
