5–30V DC power supply

The Ferrum HYPSOS is an adjustable DC power supply for compatible DACs, headphone amplifiers, preamps, phono stages, and other audio components. Its hybrid design combines switching regulation with a low-noise linear output stage, while four-wire sensing maintains the selected voltage at your component’s power input. A 5–30V output range, selectable polarity, and fine voltage adjustment let HYPSOS serve a wide range of devices.

Hybrid regulation for clean, stable power

The HYPSOS pairs an efficient switching supply with a custom low-dropout linear regulator. The switching stage operates at a nominal 1MHz and feeds the linear stage through additional filtering. The final regulator maintains the output voltage with less than 1V between its input and output, reducing heat dissipation while providing low-noise power and a fast response to changing current demands.

Voltage measured where your component receives it

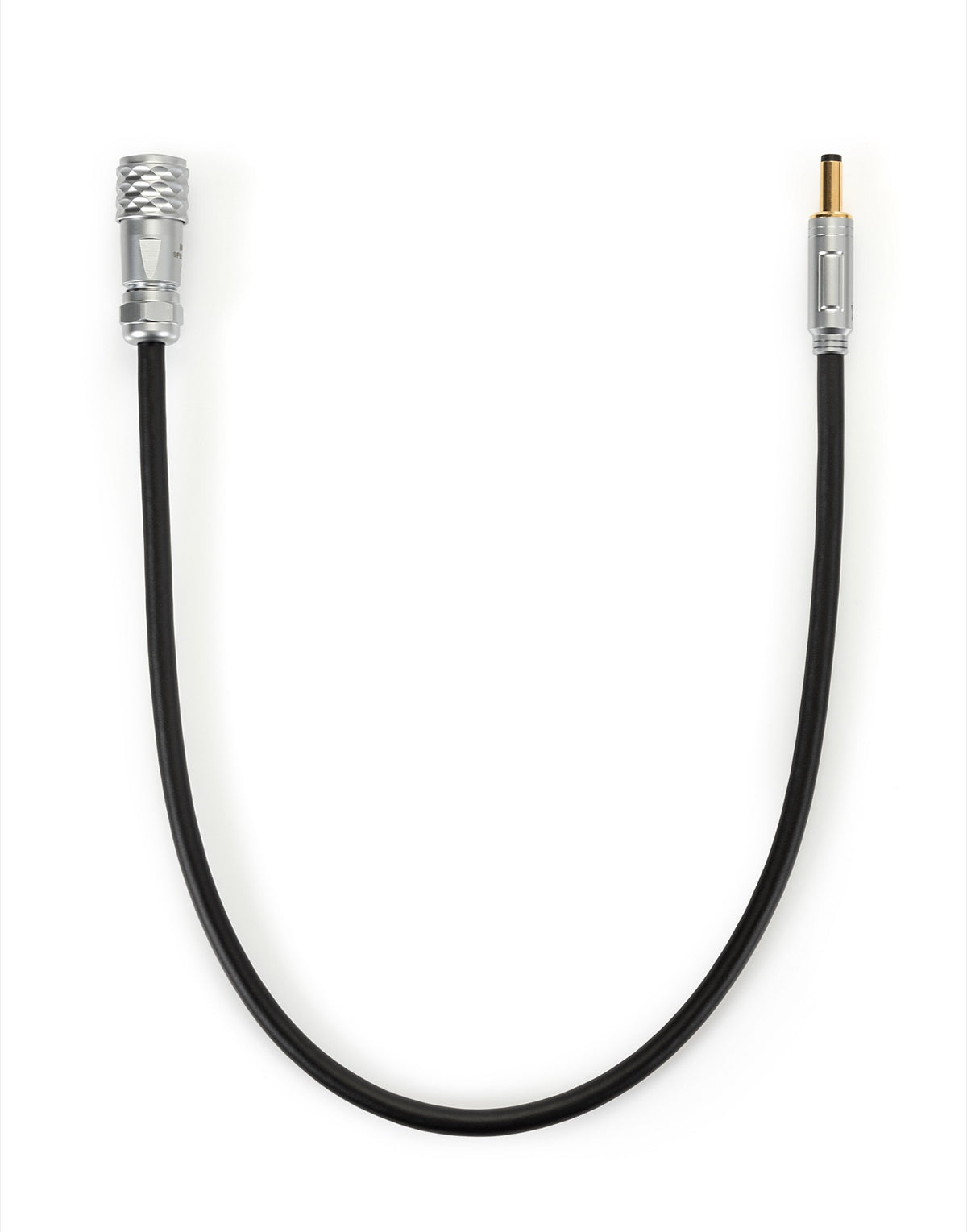

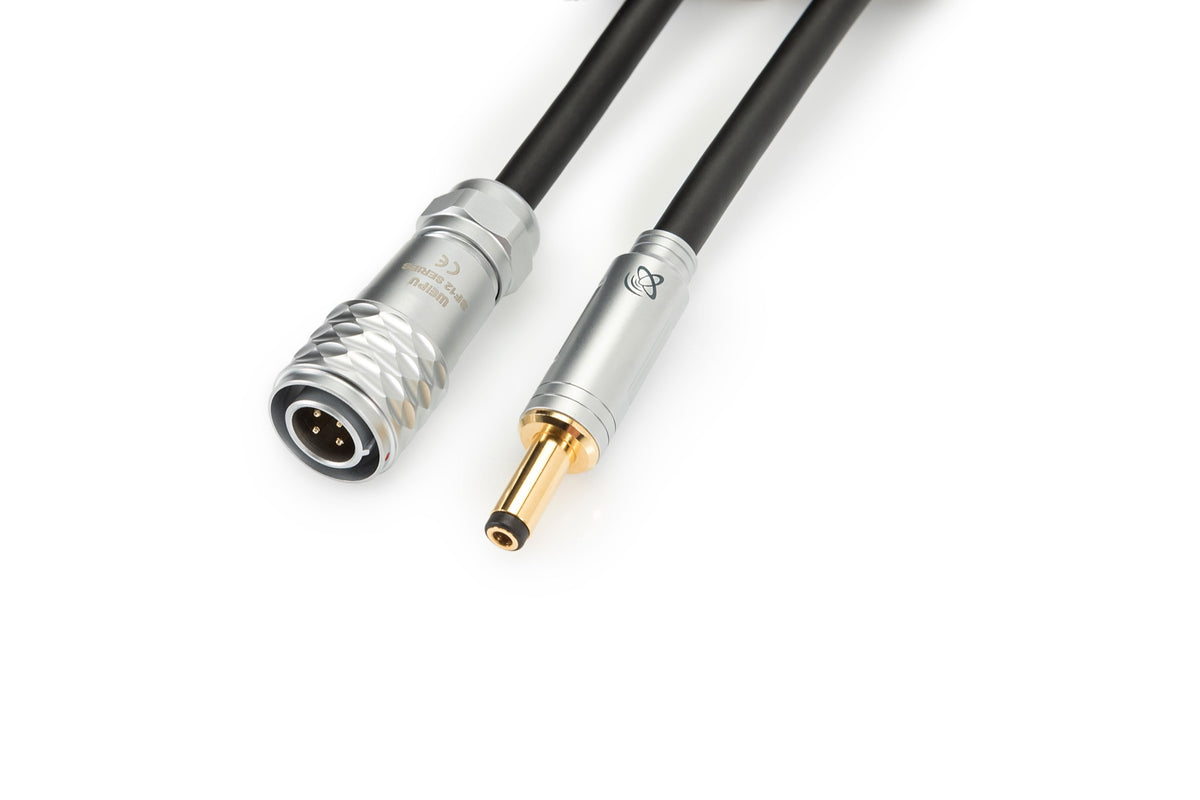

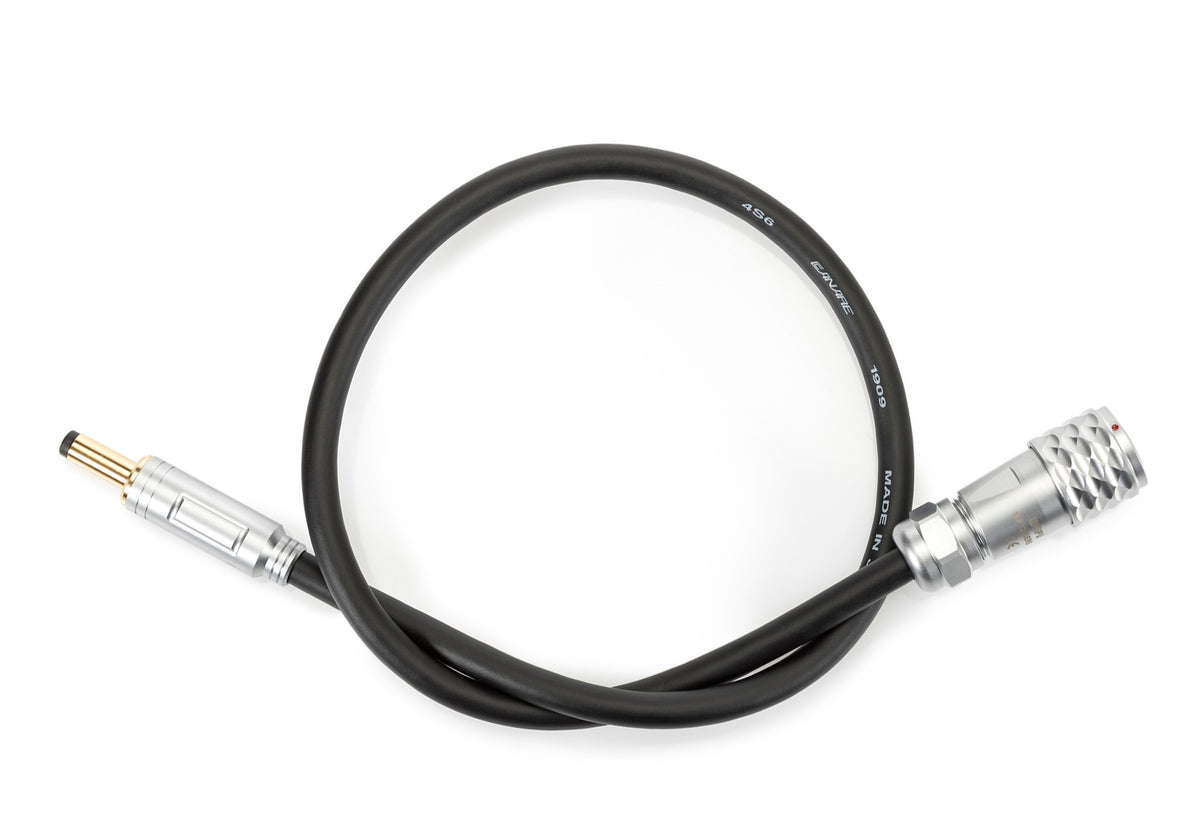

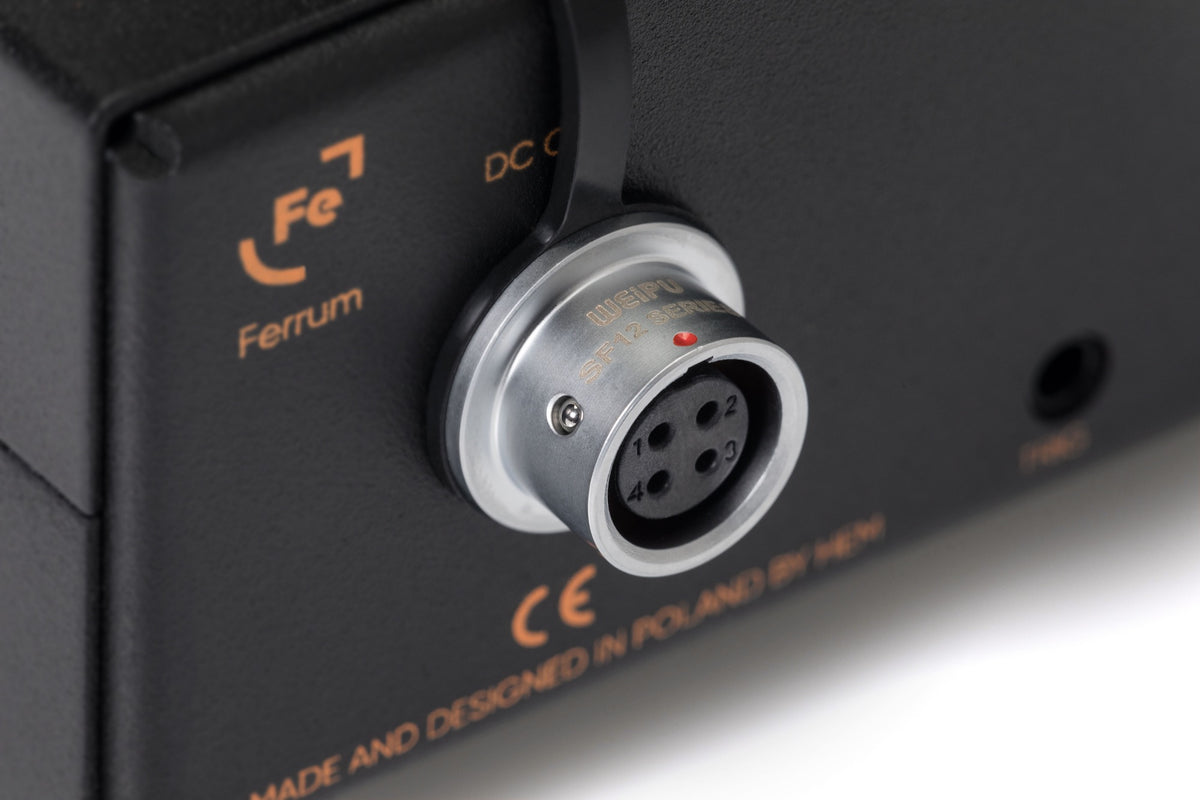

A power cable’s resistance can cause voltage to drop as a component draws more current. Ferrum’s 4T sensing uses two conductors to deliver power and two to measure voltage at the connected device. This feedback allows HYPSOS to compensate for cable resistance and maintain the selected voltage at the component’s DC input. The included low-inductance Canare cable also helps the supply respond to rapid changes in current demand.

Adjustable output for compatible audio components

The HYPSOS provides continuously adjustable output from 5V to 30V, with up to 6A of continuous current subject to its 80W continuous power limit. Preconfigured device profiles simplify voltage selection for supported products. Manual configuration lets you specify voltage and polarity for other compatible components, provided their connector and power requirements match the supply.

Fine voltage adjustment with Sweet Spot Tuning

Sweet Spot Tuning lets you adjust output voltage in 0.1V steps to explore how a compatible component responds to changes in its supply voltage. Device profiles use the manufacturer’s permissible voltage range when available. Otherwise, HYPSOS provides adjustment within ±5% of the nominal setting. Any adjustment should remain within the connected component’s specified operating range.

Spread spectrum control for switching noise

Spread Spectrum Mode varies the switching frequency by 20% of its nominal value. This distributes switching noise across a broader frequency range, reducing the magnitude of individual noise peaks and harmonics. The mode can be enabled or disabled through the HYPSOS controls.

Filtering from the mains inlet to the output

A two-stage filter at the IEC inlet attenuates incoming power-line noise. Additional filters before and after the switching stage help contain switching interference, while the final linear regulator provides further ripple rejection. Together, these stages reduce disturbances that could reach the powered component.

Automatic mains adjustment and selectable DC polarity

Automatic Transformer Voltage Adjust configures the transformer for incoming 115V or 230V mains at startup. Electronic Output Voltage Polarity Switch lets you select the DC polarity required by your component without a separate polarity adapter.

Power control that fits your system

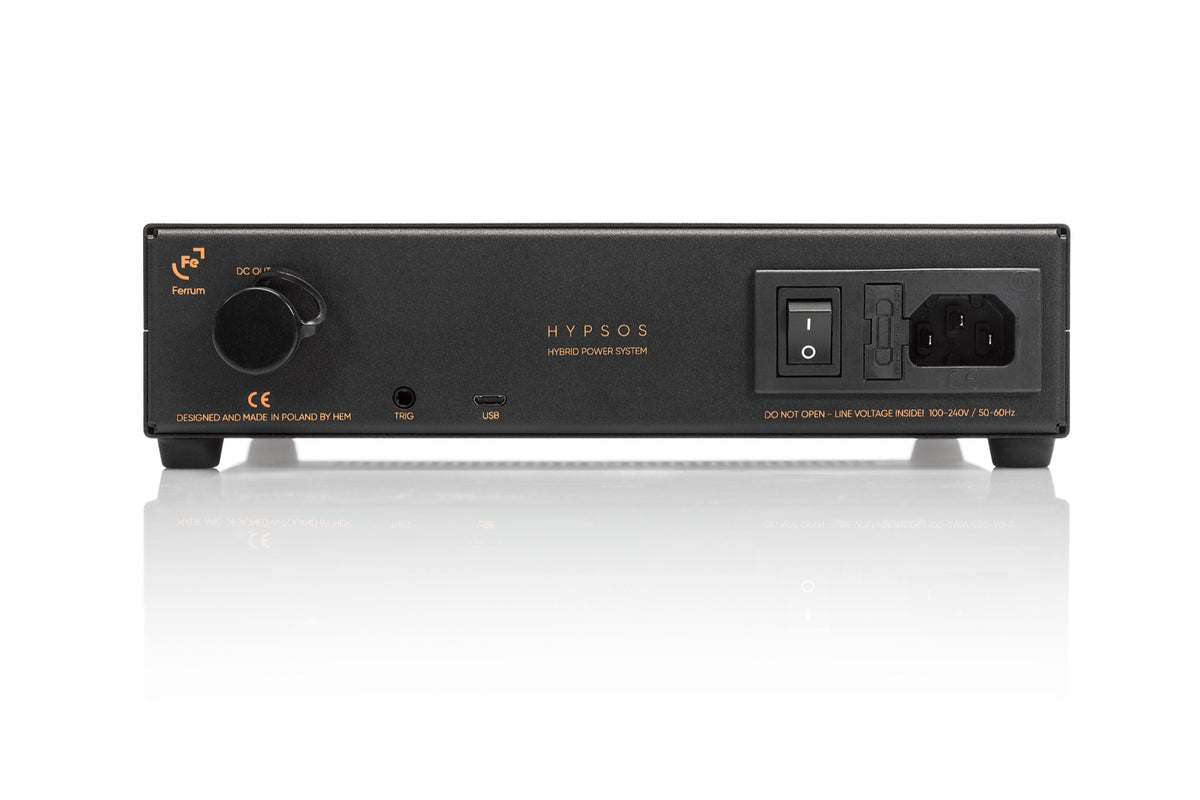

The HYPSOS supports compatible Apple TV remotes and trigger input/output connections for coordinated power control. Its standby automation can also operate without a dedicated trigger connection, giving you several ways to integrate power switching into your audio system.

Protection that monitors the load

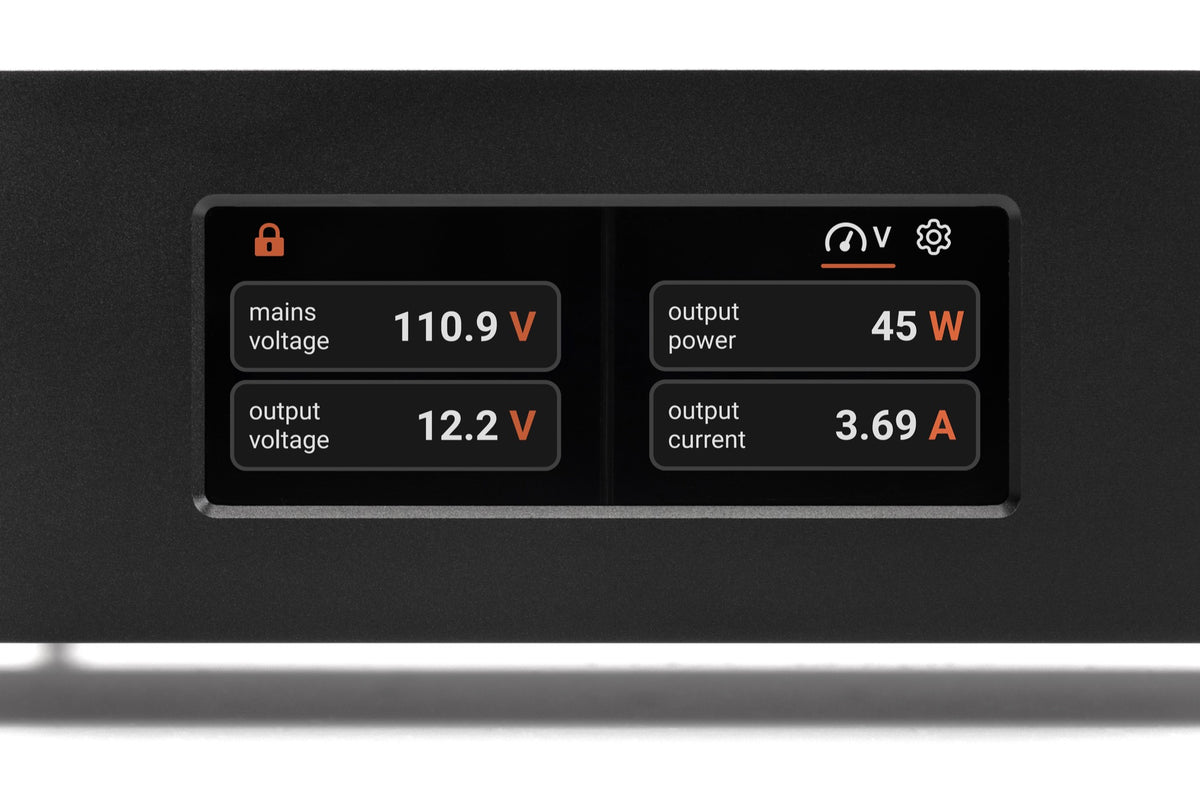

A microprocessor monitors output voltage, current, and delivered power. Overcurrent, overvoltage, and short-circuit protection help safeguard the supply and connected equipment. HYPSOS supports brief current peaks up to 9A, while continuous operation remains governed by its 6A current ceiling and 80W power limit.

Product highlights

• Hybrid switching and linear DC power supply

• Adjustable 5–30V output

• 4T remote sensing at the connected component’s DC input

• Low-inductance four-conductor Canare power cable

• Sweet Spot Tuning with 0.1V adjustment steps

• Selectable Spread Spectrum Mode

• Preconfigured device profiles and manual configuration

• Electronic DC polarity selection

• Automatic transformer adjustment for 115V and 230V mains

• Apple TV remote compatibility and trigger input/output

• Overcurrent, overvoltage, and short-circuit protection

Specs

• Product type: Hybrid DC power supply

• Output voltage range: 5–30V DC

• Maximum continuous output power: 80W

• Maximum continuous output current: 6A, subject to the 80W power limit

• Continuous current limit above approximately 13.3V: 80W divided by the selected output voltage

• Maximum pulse output current: 9A

• Maximum pulse output power: 270W at 30V

• Voltage tuning increment: 0.1V

• Sweet Spot Tuning range: Manufacturer-specified range where available, otherwise ±5% of nominal voltage

• Nominal switching frequency: 1MHz

• Spread spectrum modulation: 20% of nominal switching frequency

• Voltage sensing: Four-wire remote sensing

• DC output polarity: Electronically selectable

• Mains transformer configuration: Automatic selection for 115V or 230V operation

• Included DC cable length: Approximately 1.64 ft (0.5m)

• Manufacturer warranty: 3 years

What’s included

• Ferrum HYPSOS hybrid DC power supply

• Approximately 1.64 ft (0.5m) DC power cable with connector fitted to order

• Spare fuses
