Note: This is a pre-order. This product is expected to ship September 13th.

True R2R sound for under $200

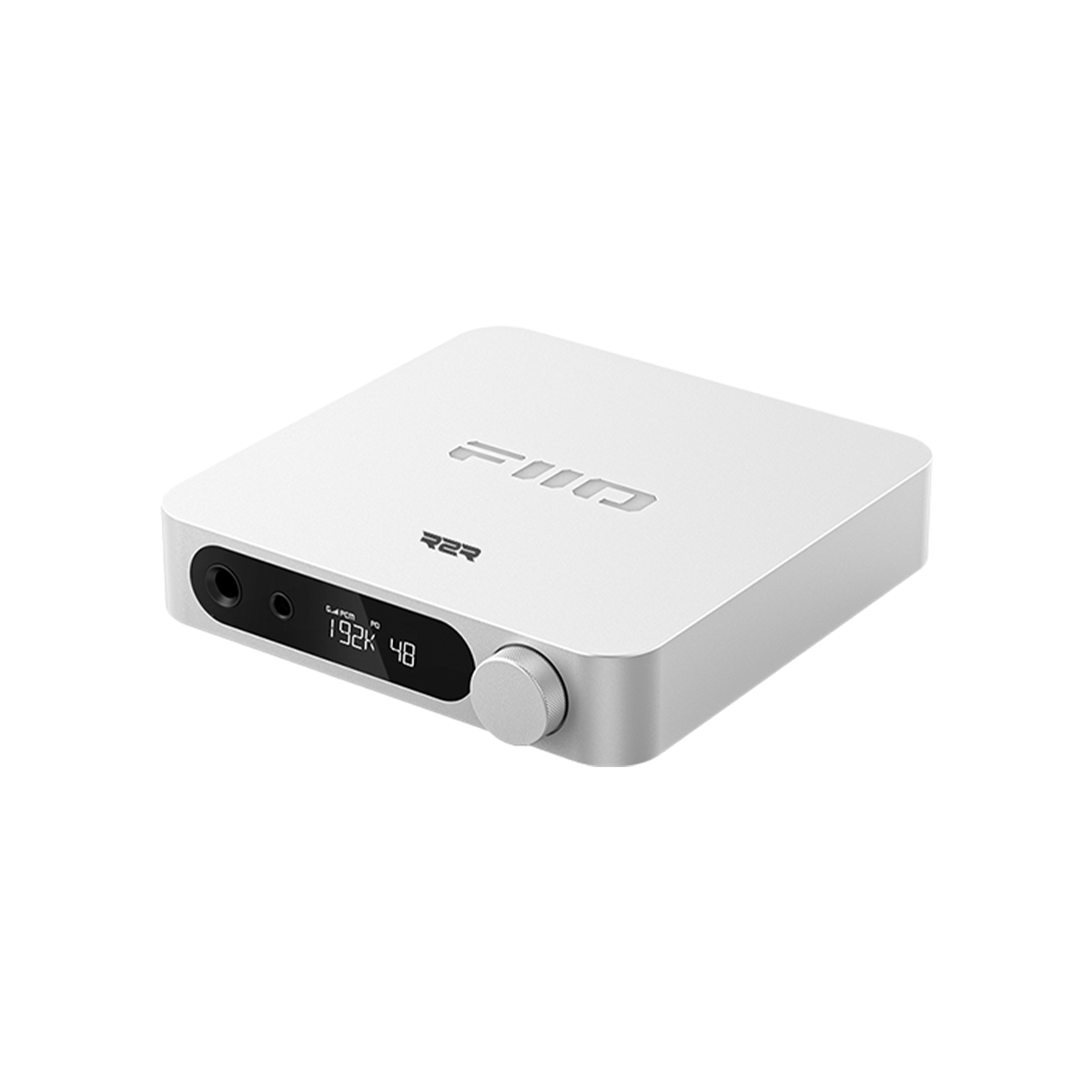

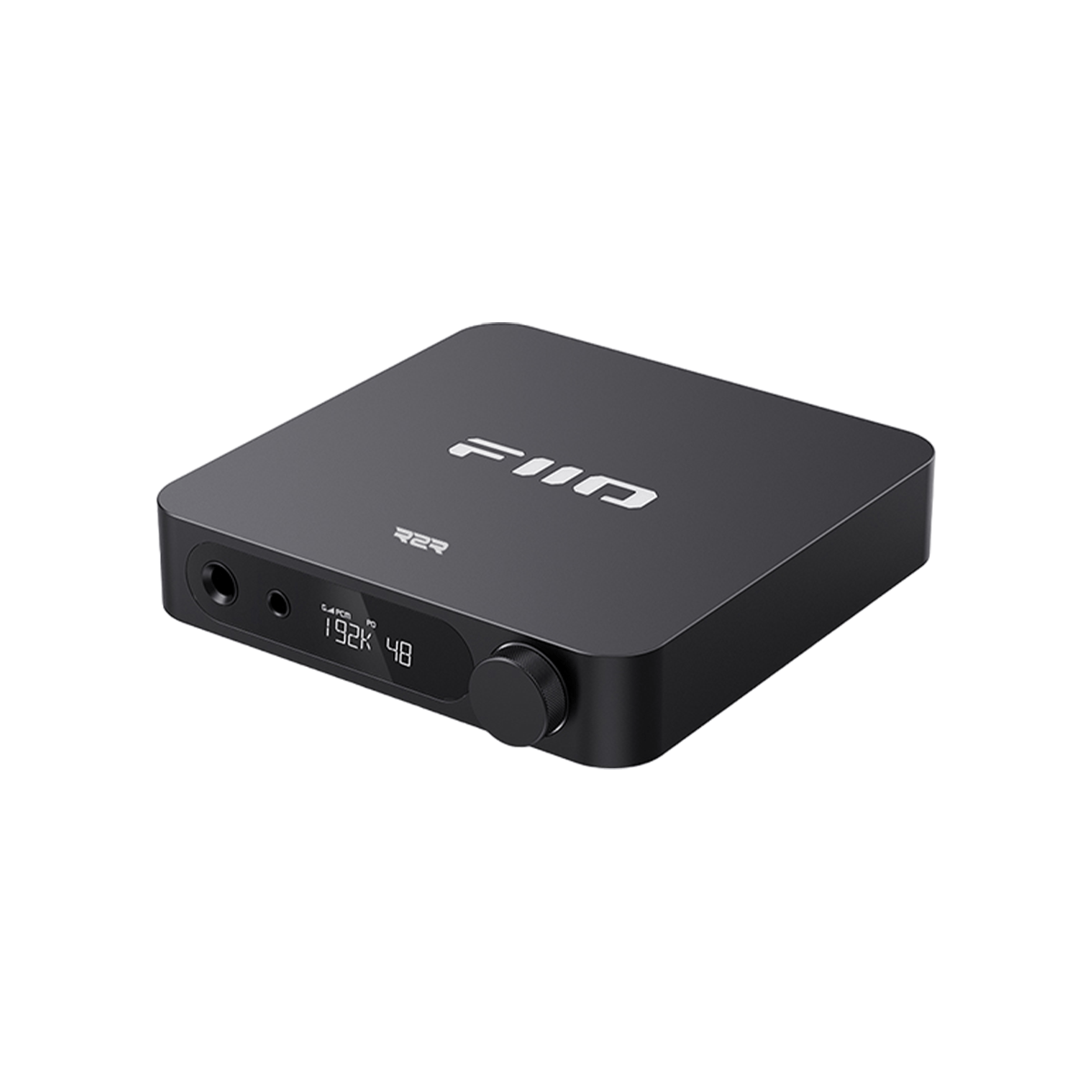

Experience a new dimension of audio fidelity with the FiiO K11 R2R Balanced Desktop DAC/Amp. Designed for audiophiles who crave authentic sound, this DAC/Amp is packed with advanced features that bring your music to life. From its fully differential true 24bit R2R DAC to its customizable RGB lighting, the K11 R2R offers a totally immersive listening experience.

Fully differential true 24-bit R2R DAC resistor arrays

The K11 R2R features FIIO's self-developed four-channel fully differential 24bit R2R DAC. Each channel consists of 48 precision thin-film resistor arrays, totaling 192 resistors with 0.1% tolerance and low temperature drift (30ppm). This meticulous configuration delivers a unique and charming sound, capturing every nuance of your favorite tracks.

Dual NOS/OS modes

• NOS (Non-Oversampling) Mode: Preserves the original sampling rate for decoding—maintaining the authentic sound of your music.

• OS (Oversampling) Mode: Upsamples to a high sampling rate of 384kHz, providing superior audio performance with even more refined, clear sound.

True 24-bit decoding

Supporting PCM 384kHz/24bit and DSD256 decoding, the K11 R2R can easily handle high-precision audio signals. This ensures that you hear every detail, providing an excellent audio experience. *DSD256 requires setting the DSD output mode to Native on the source device, internally converting to PCM before being decoded by the R2R resistor arrays.

NJW1195A high-quality electronic volume control

The K11 R2R uses the NJW1195A, a 4-channel electronic volume controller. This resistor ladder electronic potentiometer offers low distortion and low noise, allowing for precise volume adjustment, ensuring your audio is always at the perfect level.

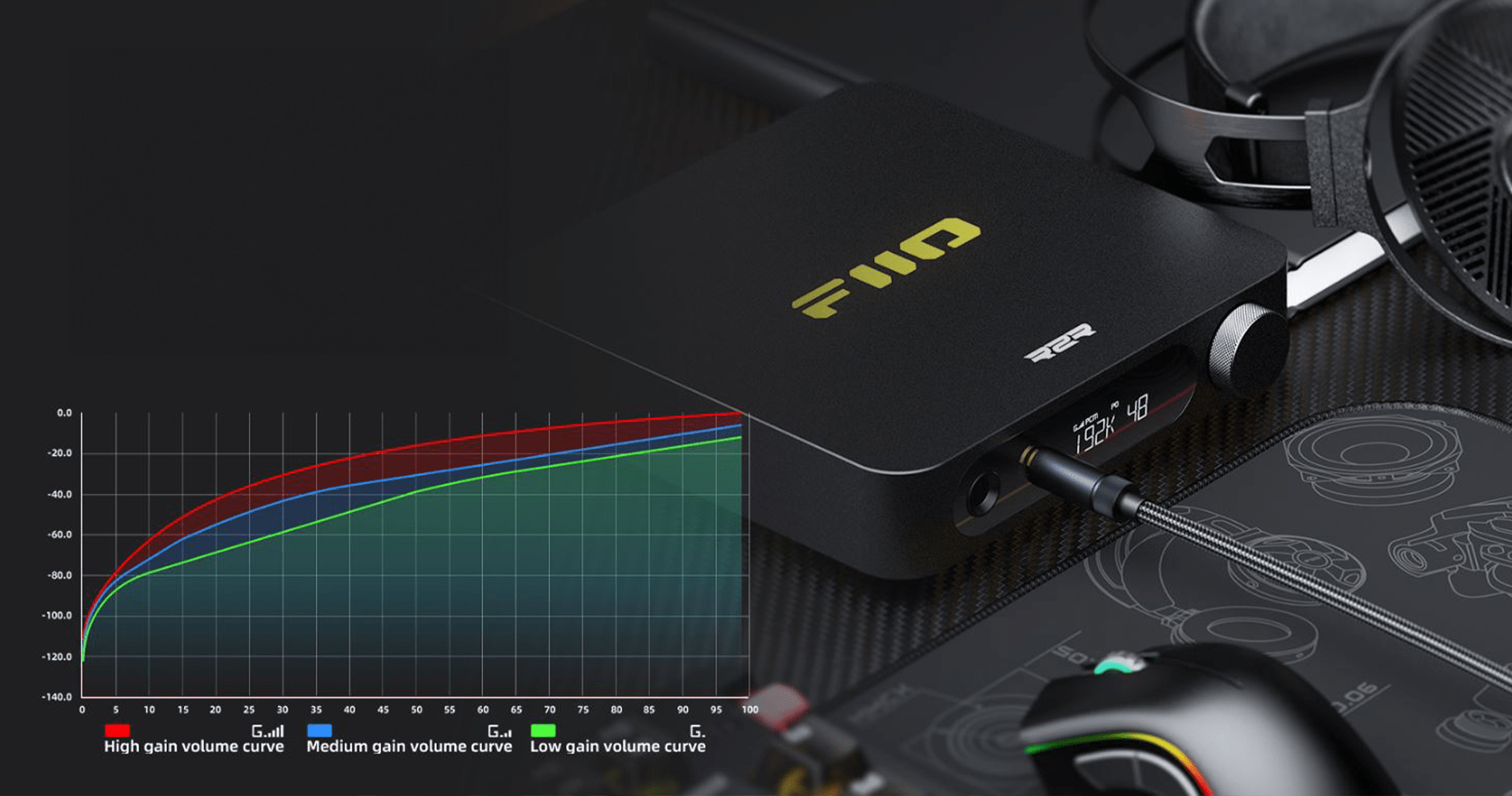

3 gain levels + 3 independent volume curves

With three independent gain levels and volume curves, the K11 R2R adapts to various types of headphones, whether you're using sensitive earphones or harder-to-drive over-ear headphones. This customization ensures a tailored listening experience.

Digital audio bridge: specially-designed audio circuit

The K11 R2R employs a sophisticated audio circuit. The audio signal is transmitted via a USB interface processor to a digital audio bridge, then processed by an FPGA before being sent to the R2R DAC for 4-channel output. It passes through two Ti OPA1642 op-amps for low-pass filtering and single-ended analog signal converting, then to the NJW1195A for precise volume adjustment. Finally, two SGM8262 op-amps handle 4-way phase inversion and amplification, resulting in balanced and single-ended analog outputs.

Specially-designed power supply

The K11 R2R's power supply system uses up to 17 low-noise LDO precision regulator ICs and two DC-DC converters, providing multi-channel specialized power supplies. Combined with an external custom 12V switching power supply, it ensures the purity of the power and supports strong power output. This results in a stable, clean power supply and high-quality sound.

High-quality Beryl solid capacitors

The capacitors' ultra-low ESR and excellent anti-interference capabilities ensure a stable and clean power supply, contributing to the K11 R2R's high-quality sound.

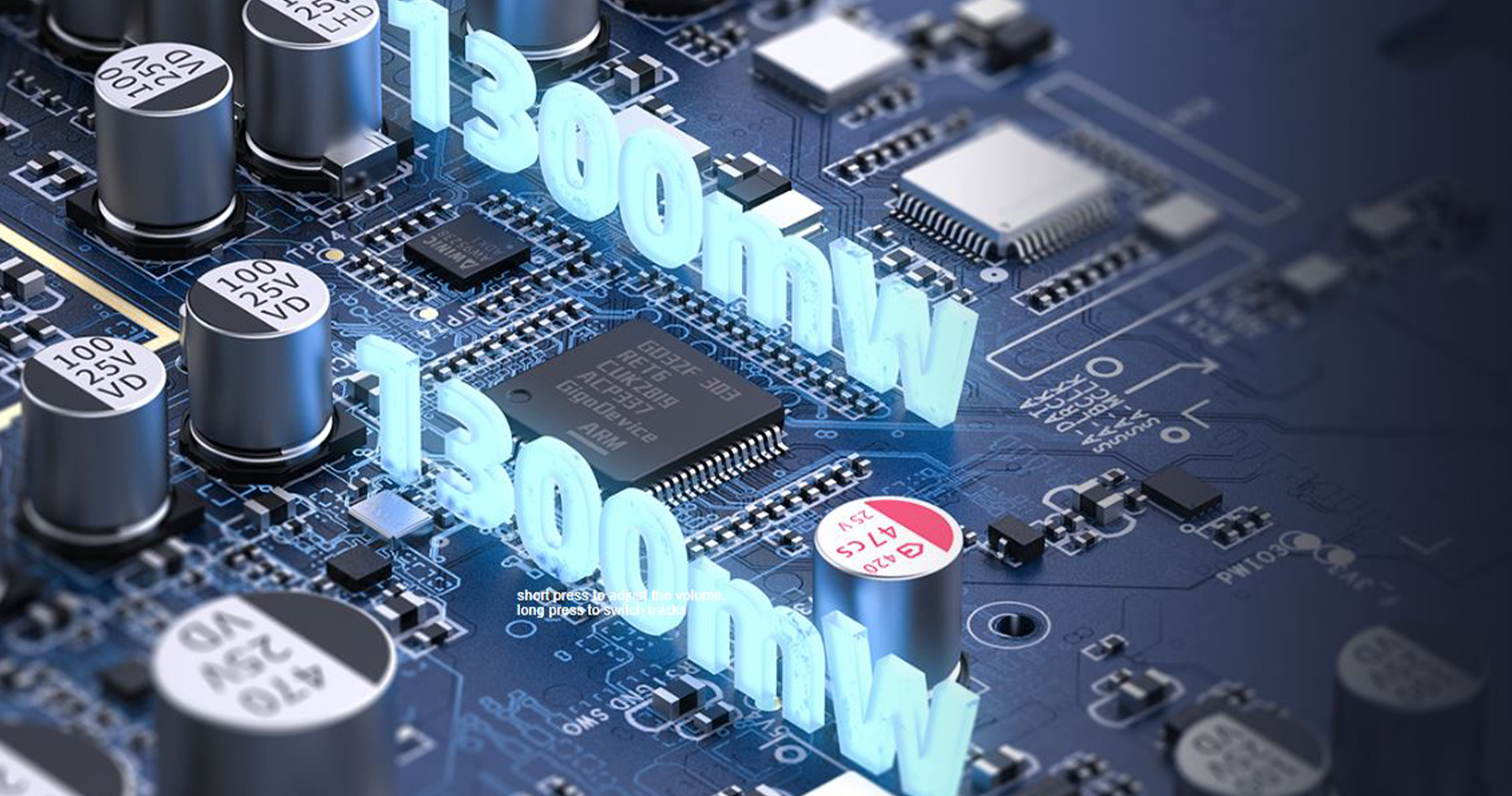

1300mW + 1300mW Powerful output

With the capability to push 1300mW+1300mW under balanced modes, the K11 R2R can drive many HiFi earphones and headphones, unlocking their full potential and delivering powerful, detailed audio.

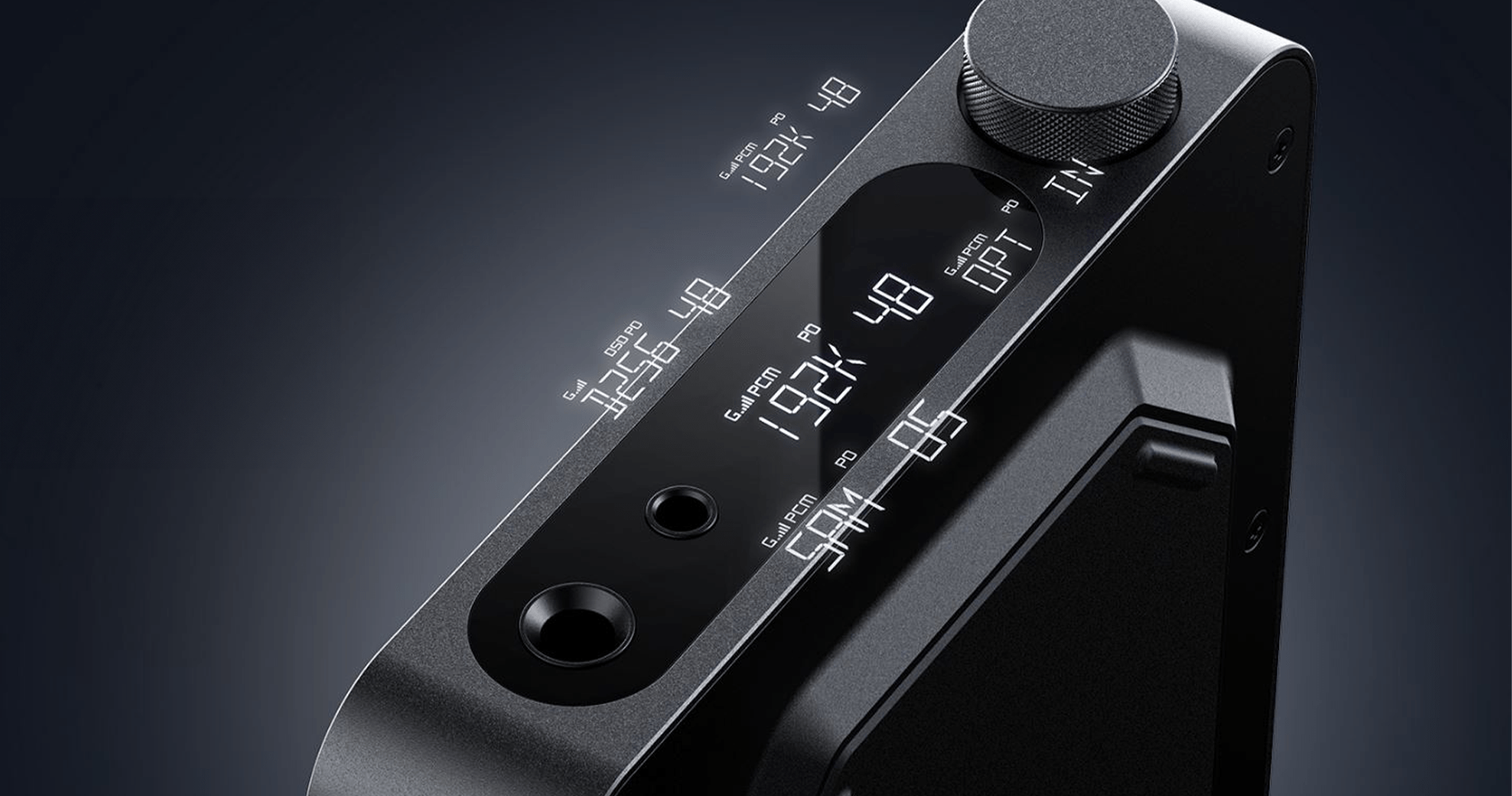

High-contrast LCD screen

A custom, high-contrast LCD screen allows you to easily see the sampling rate, volume, gain, or output mode at a glance. The durable screen is always on with no burn-in, ensuring you always have the information you need with none of the drawbacks of lesser screens.

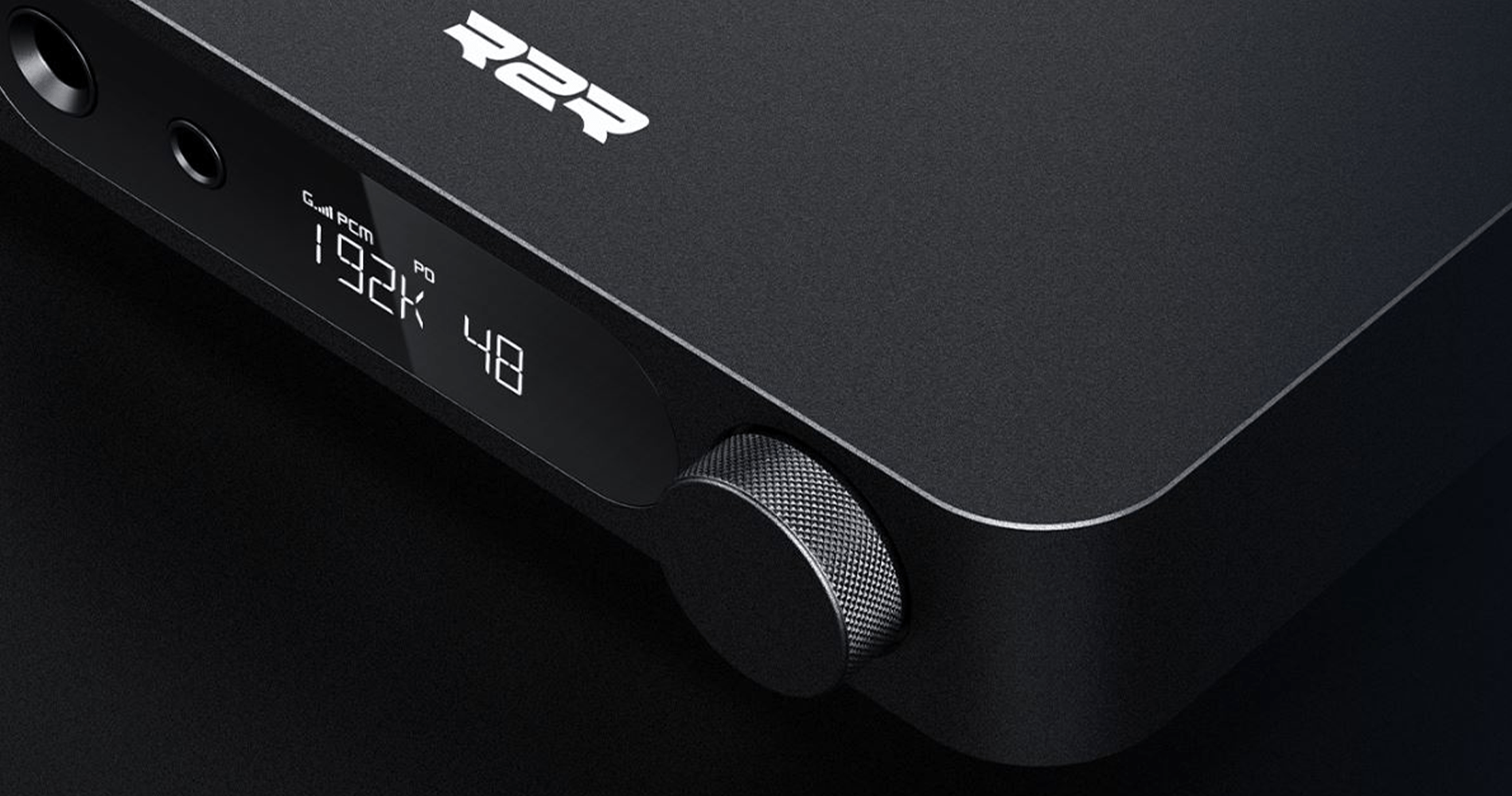

One source of total control

The K11 R2R's multi-function volume knob controls power, menu operations, volume adjustments, and other functions. Quickly switch between PO/PRE (LO SE)/LO modes by double-pressing the knob.

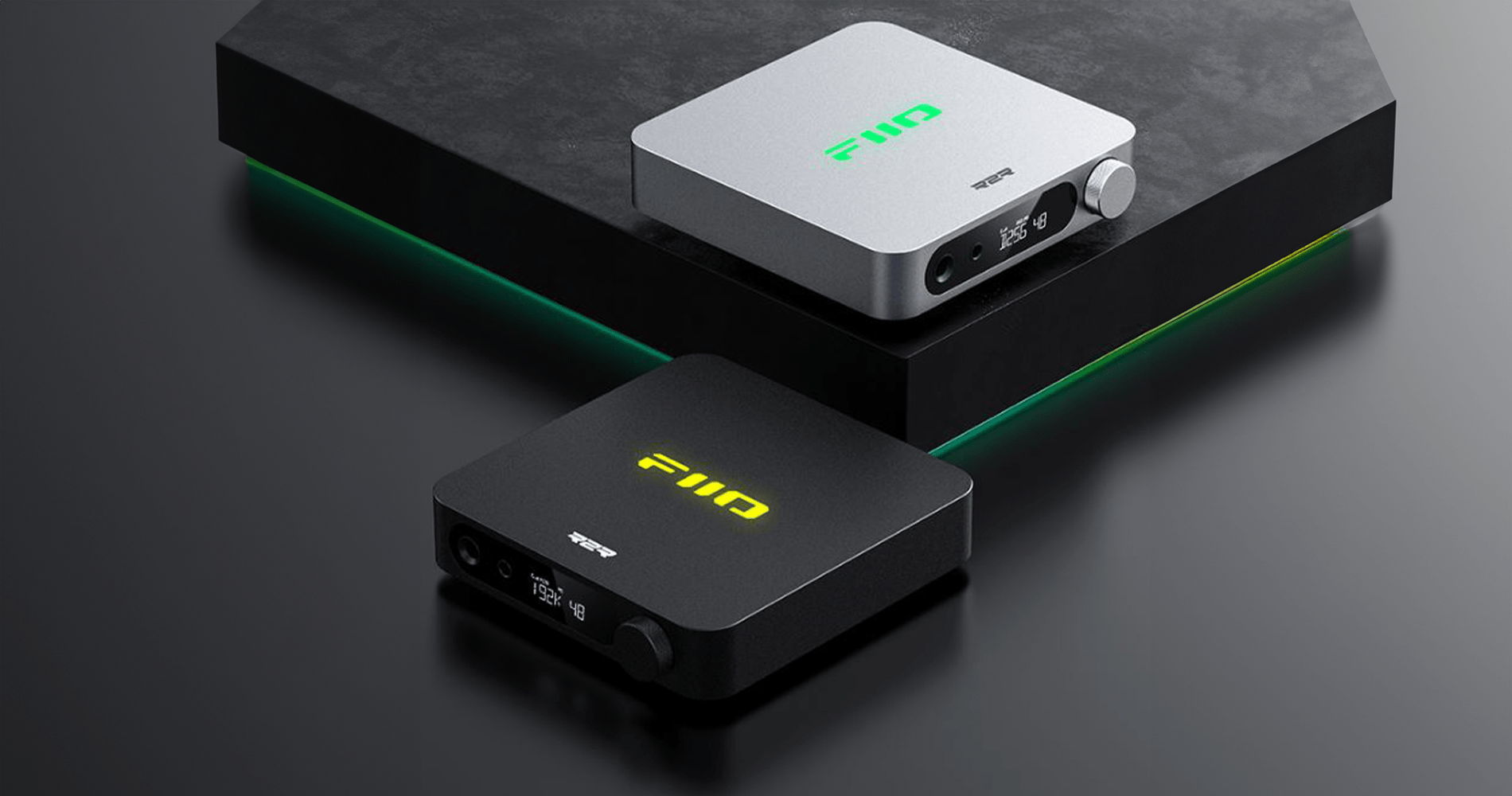

Adjustable RGB logo lighting

The FIIO logo features RGB lighting, helping you quickly identify the sampling rate of the current audio. Six LED strips and reflective design elements ensure uniform and elegant lighting.

Comprehensive safety systems

• RCA metal pressing: Enhanced stability, reliable connection, and durability.

• Headphone amplifier heat dissipation upgrade: Thermal silicone gel and aluminum alloy ensure fast heat dissipation.

• Exclusive phosphor copper metal shielding: Provides corrosion resistance and anti-oxidation capabilities, effectively resisting external interference for accurate signal processing.

Product highlights

• Fully differential true 24bit R2R DAC with 192 precision resistors

• Dual NOS/OS modes for customizable sound

• Supports PCM 384kHz/24bit and DSD256 decoding

• NJW1195A high-quality electronic volume control

• Three gain levels and independent volume curves

• Specially-designed digital audio bridge circuit

• Advanced power supply with 17 low-noise LDO precision regulator ICs

• High-quality Beryl solid capacitors

• Powerful output: 1300mW+1300mW under balanced modes

• Durable, high-contrast LCD screen

• Multi-function volume knob with quick mode switching

• Adjustable RGB logo lighting

• Comprehensive safety systems

Specs

Name/Model: K11 R2R

Hardware solution:

• SoC: GD32F303RE

• DAC: FIIO-developed R2R DAC

• USB decoding: SA9312L

• AMP: SGM8262-2*2

Color: Black/Silver/Red

Volume control: Volume knob

Weight: About 420g

Dimensions: 147x133x32.3mm (including feet)

Gain: L/M/H

Adaptive impedance:

• PO: 8~150Ω

• BAL: 8~350Ω

Driver-free mode (switch mode): Supported

Oversampling setting: OS/NOS

FIIO Control: N/A

Max supported sampling rate:

• 384kHz-32bit/DSD256 (USB DAC)

• 192kHz-24bit (Coaxial)

• 96kHz-24bit (Optical)

Sampling rate indication: Show on display screen

LOGO indicator light:

• Cyan: 48KHz and below

• Yellow: above 48kHz

• Green: DSD

Firmware upgrade: Supports upgrade through USB

Buttons and Ports:

• Knob: Encoder knob (including volume adjusting and menu confirming)

• USB: Type-C (data transmission)

• Single-ended line-out: RCA port

• Digital optical in: Optical port

• Digital coaxial in: RCA port

• Digital coaxial out: RCA port (only works in USB mode)

• Balanced out: Standard 4.4mm port

• Headphone out: Standard 6.35mm port

Power Supply Parameters:

• Power supply: DC 12V/2A

• Battery capacity: No battery

Audio Parameters:

• Parts of performance and parameters of Line-out output (RCA, OS mode):

  • 20Hz~50kHz: damping＜1.2dB

  • 20Hz~20KHz: damping＜0.2dB

• THD+N & Noise: About 0.025% (1kHz/0dB@10KΩ)

• SNR: ≥115dB (A-weighted)

• Crosstalk: ≥111dB

• Noise floor: ＜5.1uV (A-weighted)

• Frequency response:

• Dynamic range: ≥107dB

• Line output level: 2.7Vrms

• Parts of performance and parameters of headphone output (6.35mm, OS mode):

  • L+R≥660mW +660mW (16Ω，THD+N＜1%)

  • L+R≥460mW +460mW (32Ω，THD+N＜1%)

  • L+R≥50mW +50mW (300Ω，THD+N＜1%)

  • 20Hz~50kHz: damping＜1.3dB

  • 20Hz~20KHz: damping＜0.2dB

• Output power:

• THD+N: About 0.025% (1kHz/0dB@32Ω)

• SNR: ≥115dB (A-weighted)

• Noise floor: ＜7.2uV (A-weighted)

• Channel crosstalk: ≥72dB

• Dynamic range: ≥107dB

• Frequency response:

• Output impedance: ＜1Ω

• Peak output voltage: 11Vp-p

• Parts of performance and parameters of headphone output (4.4mm, OS mode):

  • L+R≥520mW +520mW (16Ω, THD+N＜1%)

  • L+R≥1300mW +1300mW (32Ω, THD+N＜1%)

  • L+R≥220mW +220mW (300Ω, THD+N＜1%)

  • 20Hz~50kHz: damping＜1.3dB

  • 20Hz~20KHz: damping＜0.2dB

• Output power:

• THD+N: About 0.025% (1kHz/-11.6dB@32Ω)

• SNR: ≥115dB (A-weighted)

• Noise floor: ＜14.1uV (A-weighted)

• Channel crosstalk: ≥107dB

• Dynamic range: ≥107dB

• Frequency response:

• Output impedance: ＜1.5Ω

• Peak output voltage: 23Vp-p

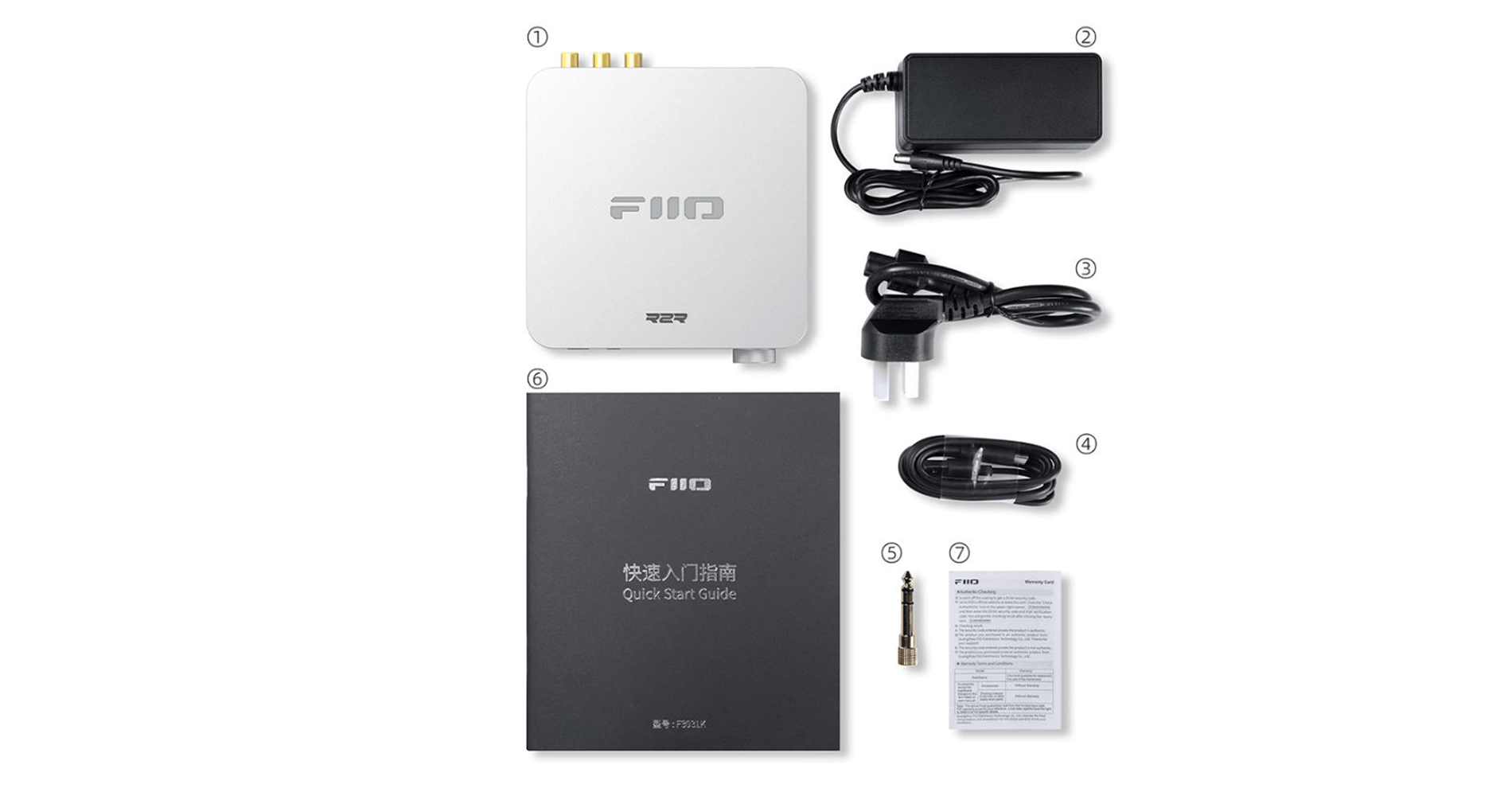

What’s included

• K11 R2R

• Power adapter

• Power cable

• USB data cable

• Headphone adapter

• Quick start guide

• Warranty card
