550mW balanced output power + 4.4mm output

The FiiO KA13 portable DAC and headphone amplifier connects your phone, tablet, or computer to wired headphones through 3.5mm single-ended and 4.4mm balanced outputs. Dual CS43131 DACs and dual SGM8262 op-amps handle conversion and amplification, with support for PCM up to 32-bit/384kHz and DSD256. Switch on desktop mode for balanced output power of up to 550mW per channel into 32Ω.

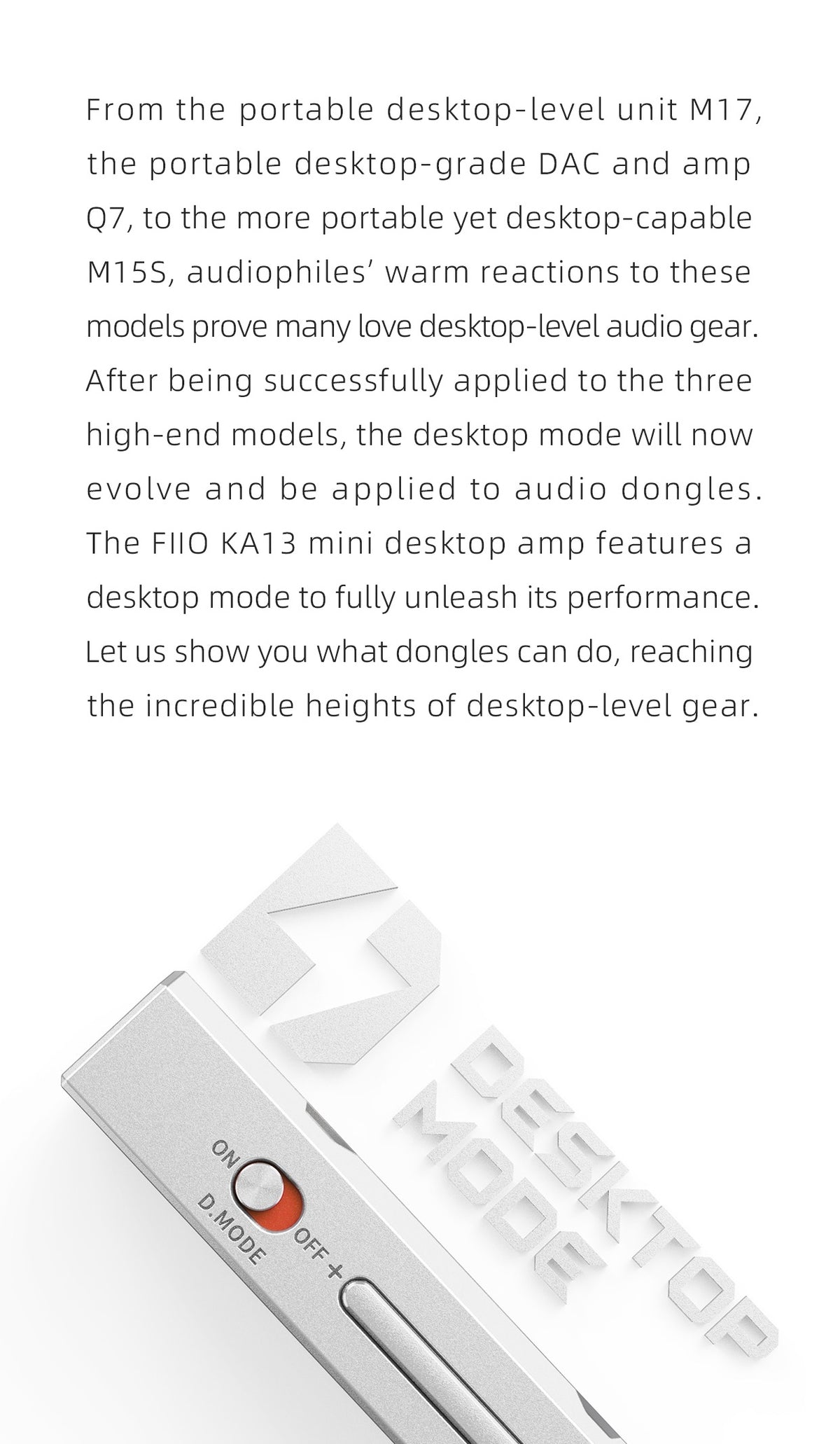

More power at the flip of a switch

A dedicated desktop mode switch gives you access to the KA13’s higher output power. Its balanced output delivers 550mW per channel into 32Ω, providing additional headroom for more demanding headphones. The switch sits beside the volume controls for easy access.

Dual DACs with dedicated amplification

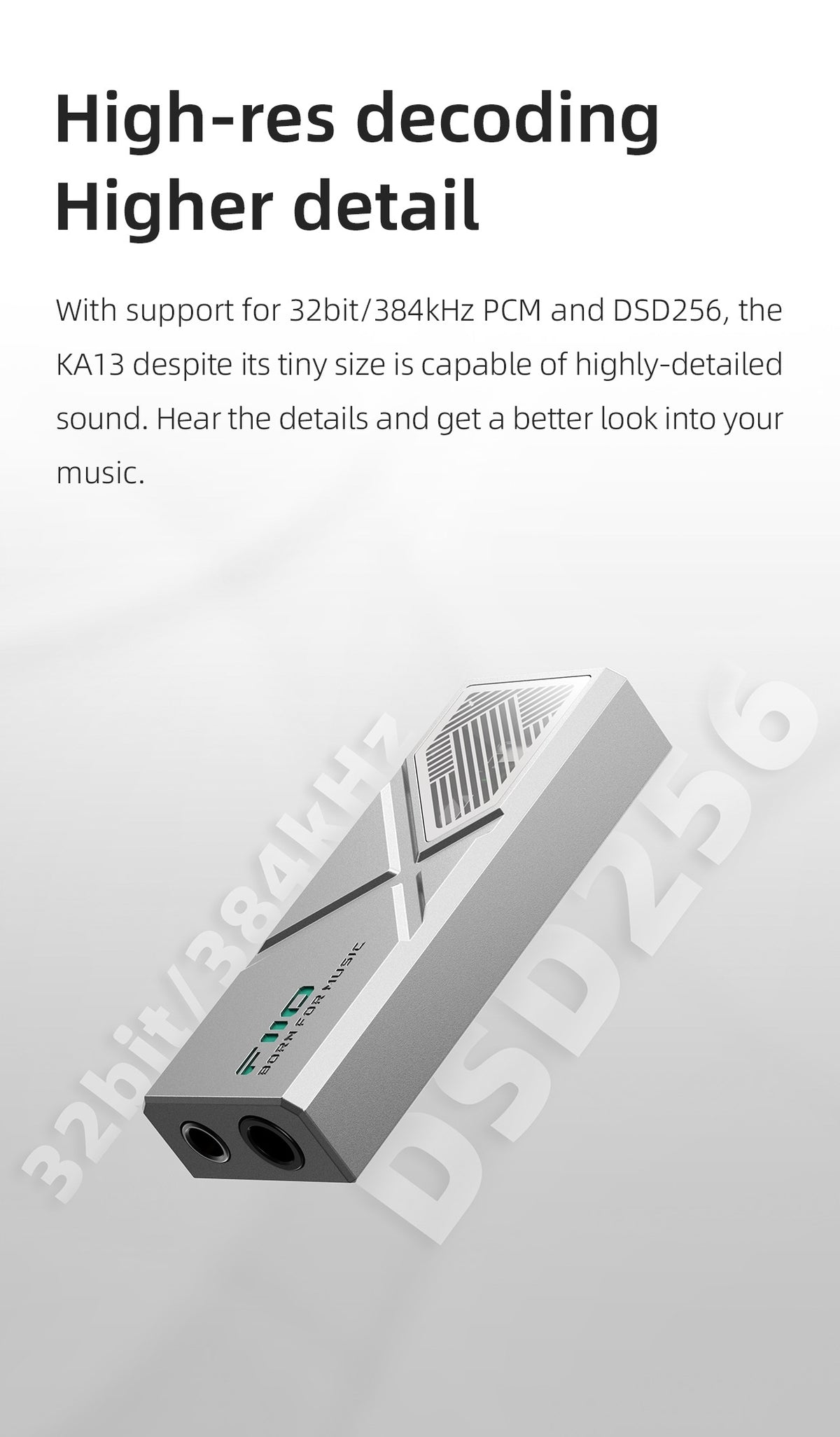

Two CS43131 DAC chips work with two low-noise SGM8262 op-amps to convert and amplify your music. The KA13 supports PCM files up to 32-bit/384kHz and DSD256, with specified THD+N below 0.0005% through either headphone output into 32Ω.

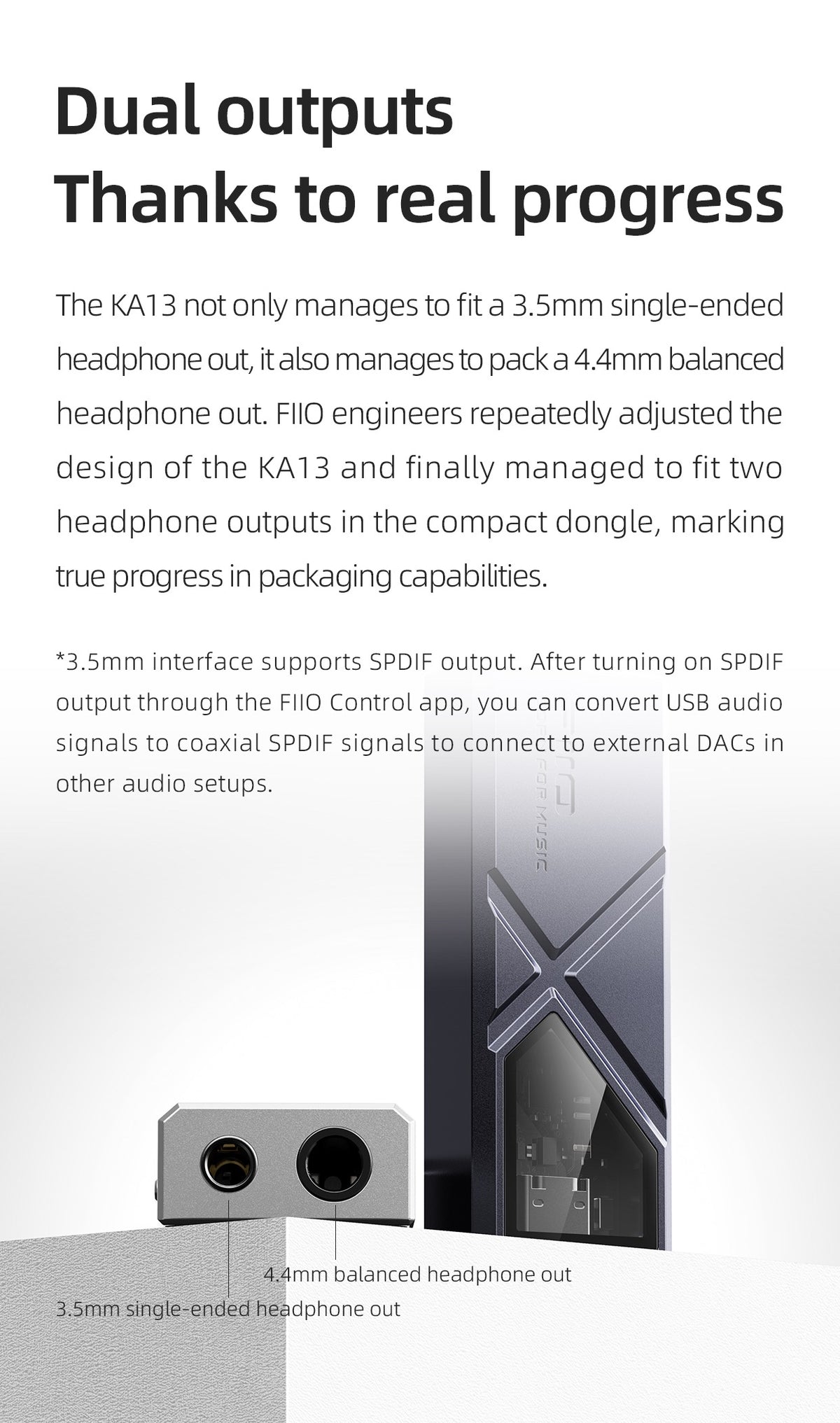

Two headphone connections

Connect headphones or IEMs through the 3.5mm single-ended output or use the 4.4mm balanced output with a compatible cable. Having both connections on the KA13 lets you move between headphones without changing your DAC and amplifier.

A digital connection to an external DAC

The 3.5mm jack also supports coaxial SPDIF output. Enable it through the FiiO Control app on an Android device to convert USB audio into a digital signal for an external DAC. This gives the KA13 another role as a compact USB-to-SPDIF interface.

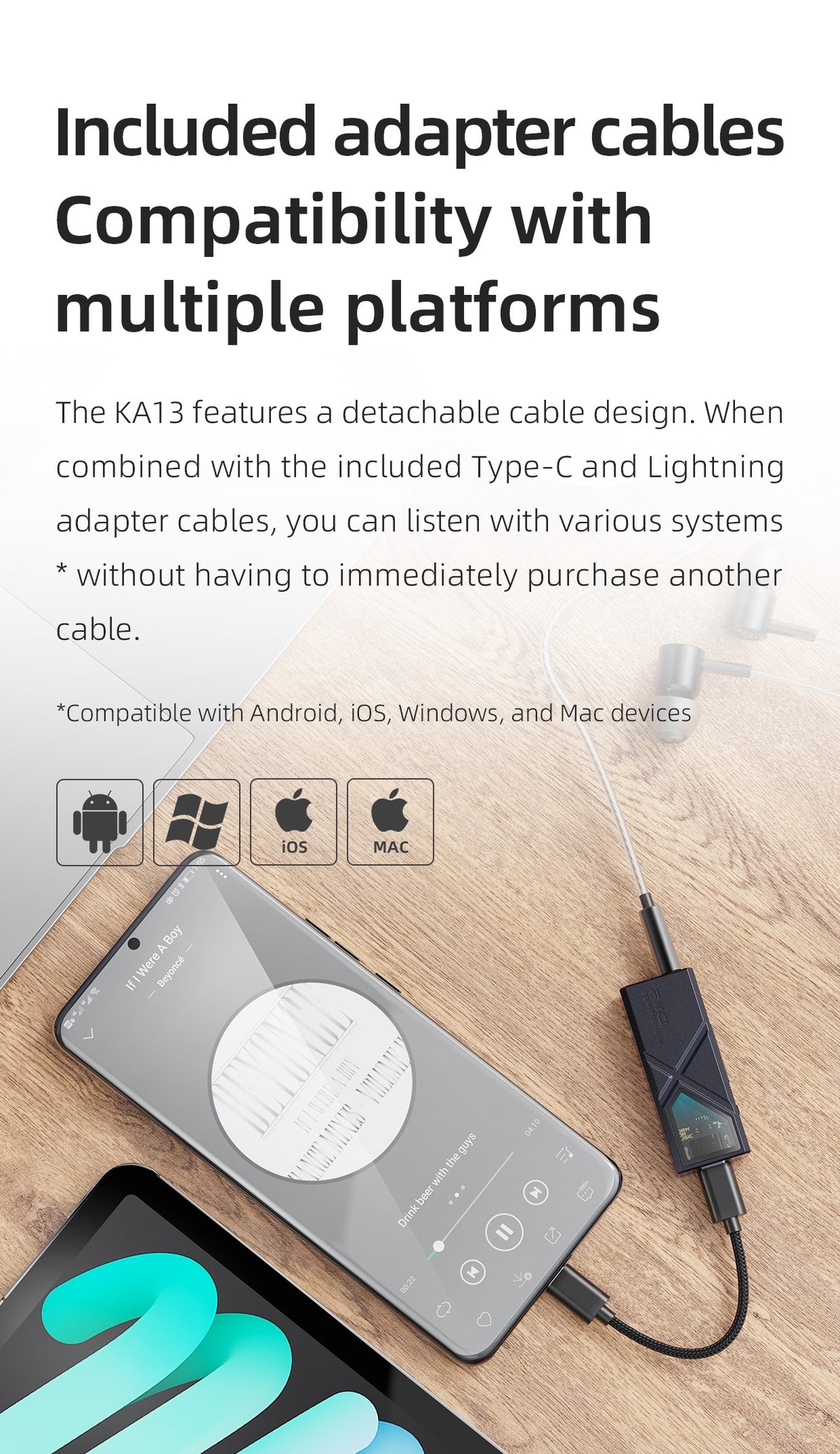

Included cables for phones and computers

A detachable USB-C connection works with the included USB-C and Lightning cables, while a USB-A adapter accommodates computers with older USB ports. The KA13 supports audio playback with Android, iOS, Windows, and Mac devices.

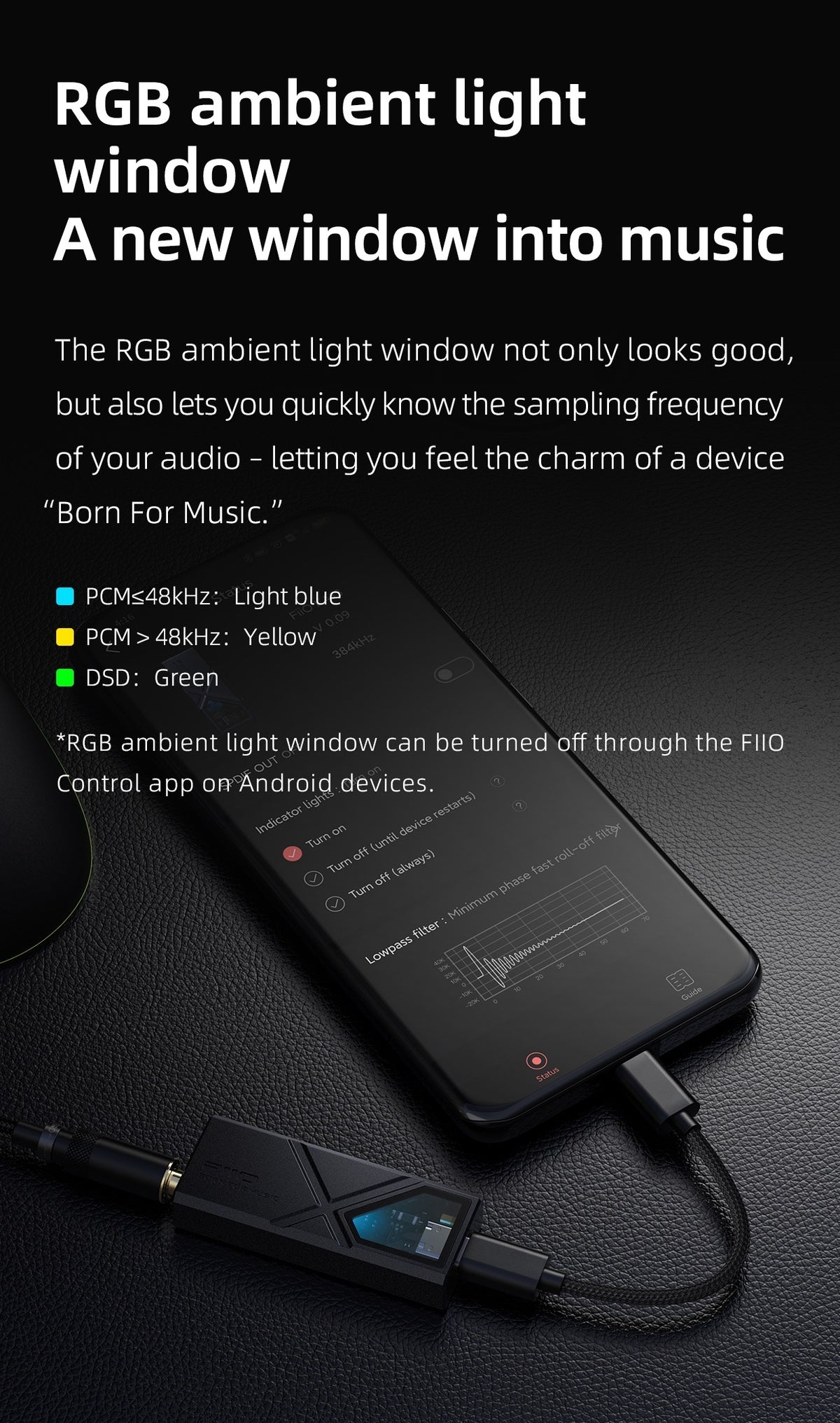

See your audio format at a glance

The RGB light window changes color with the incoming audio signal. Light blue indicates PCM at 48kHz or below, yellow indicates PCM above 48kHz, and green indicates DSD. You can turn the light off through the FiiO Control app on Android.

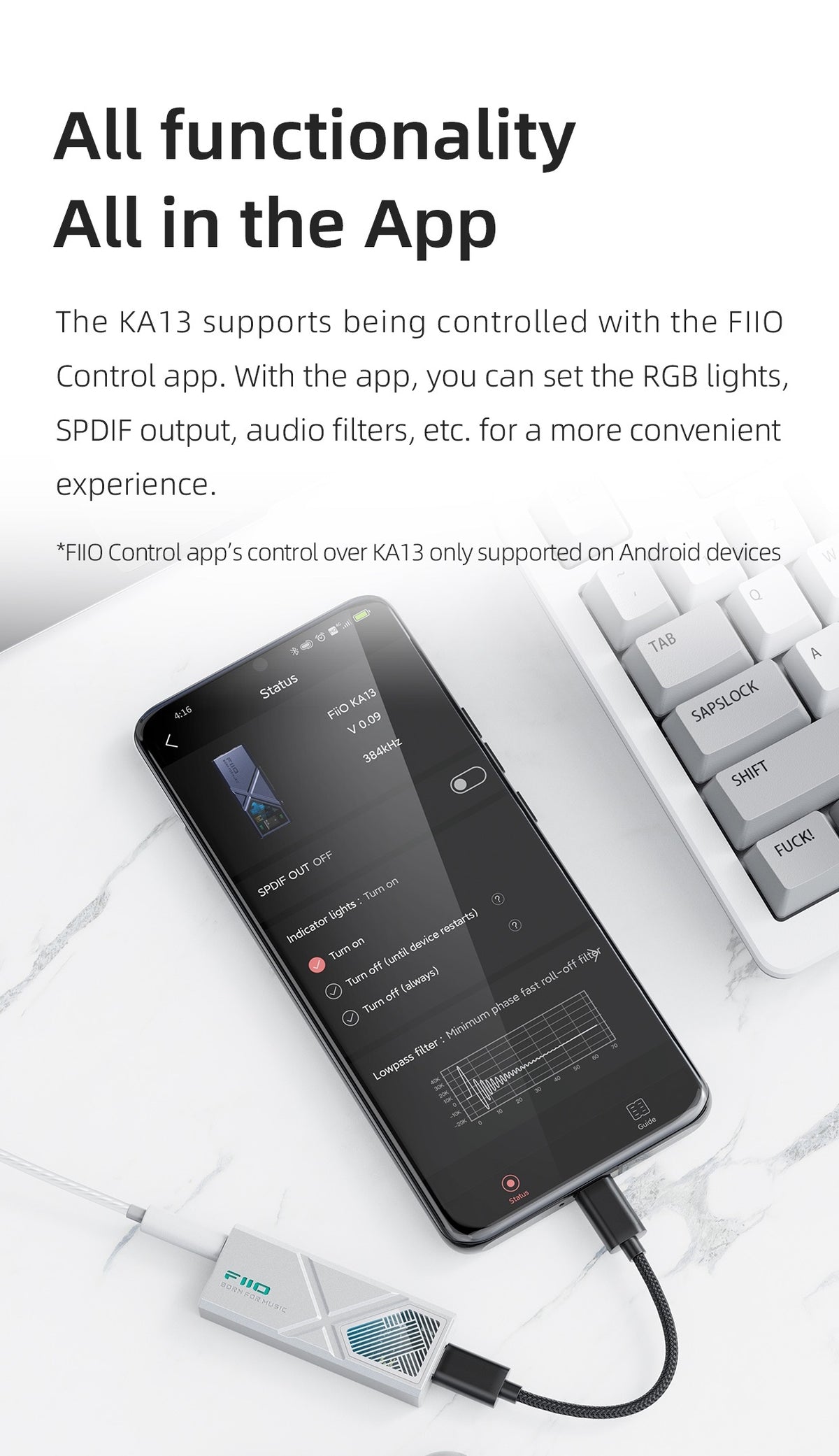

Adjust settings through the app

The FiiO Control app lets you select audio filters, control the indicator light, and enable SPDIF output. App control of the KA13 is supported on Android devices only.

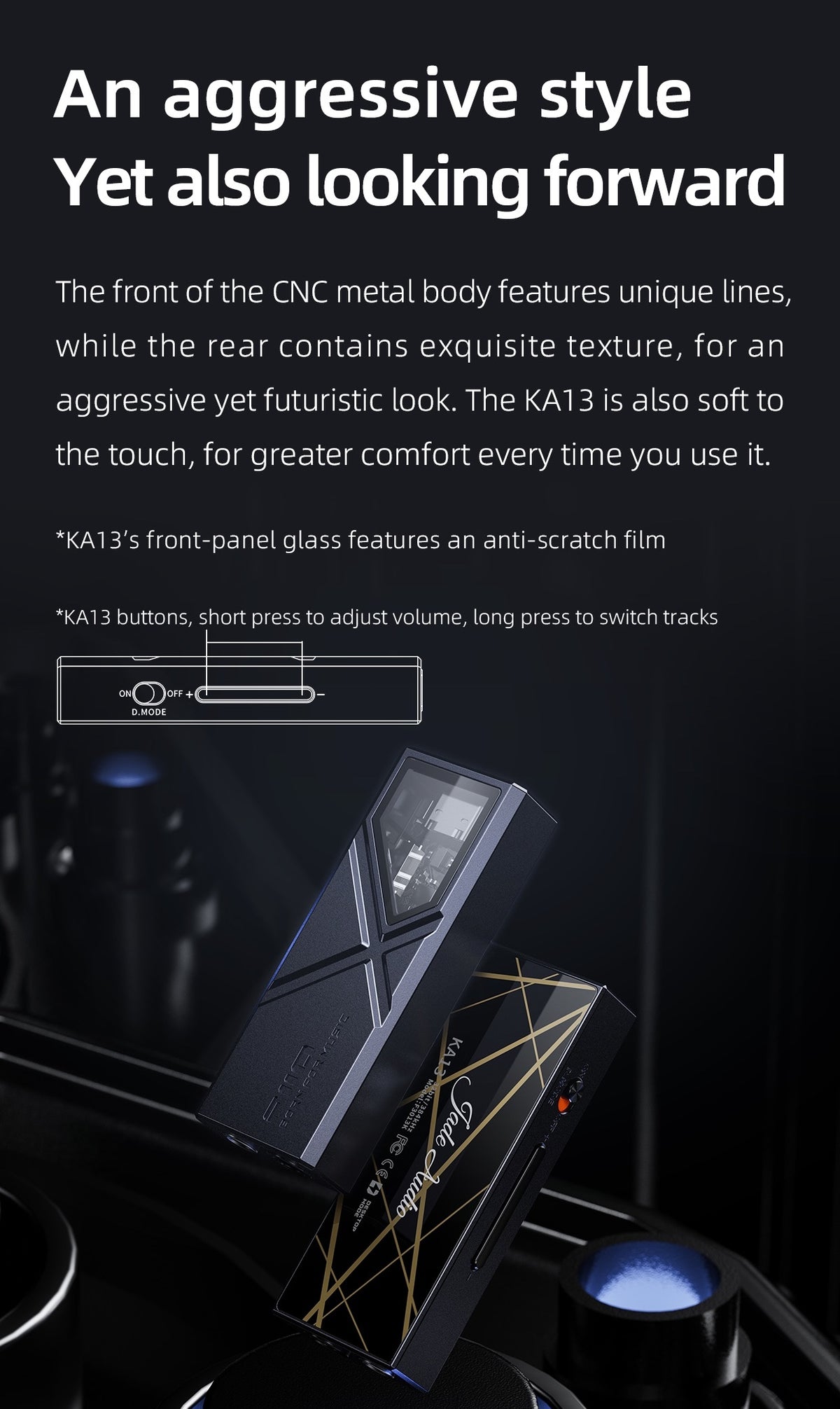

Metal construction with physical controls

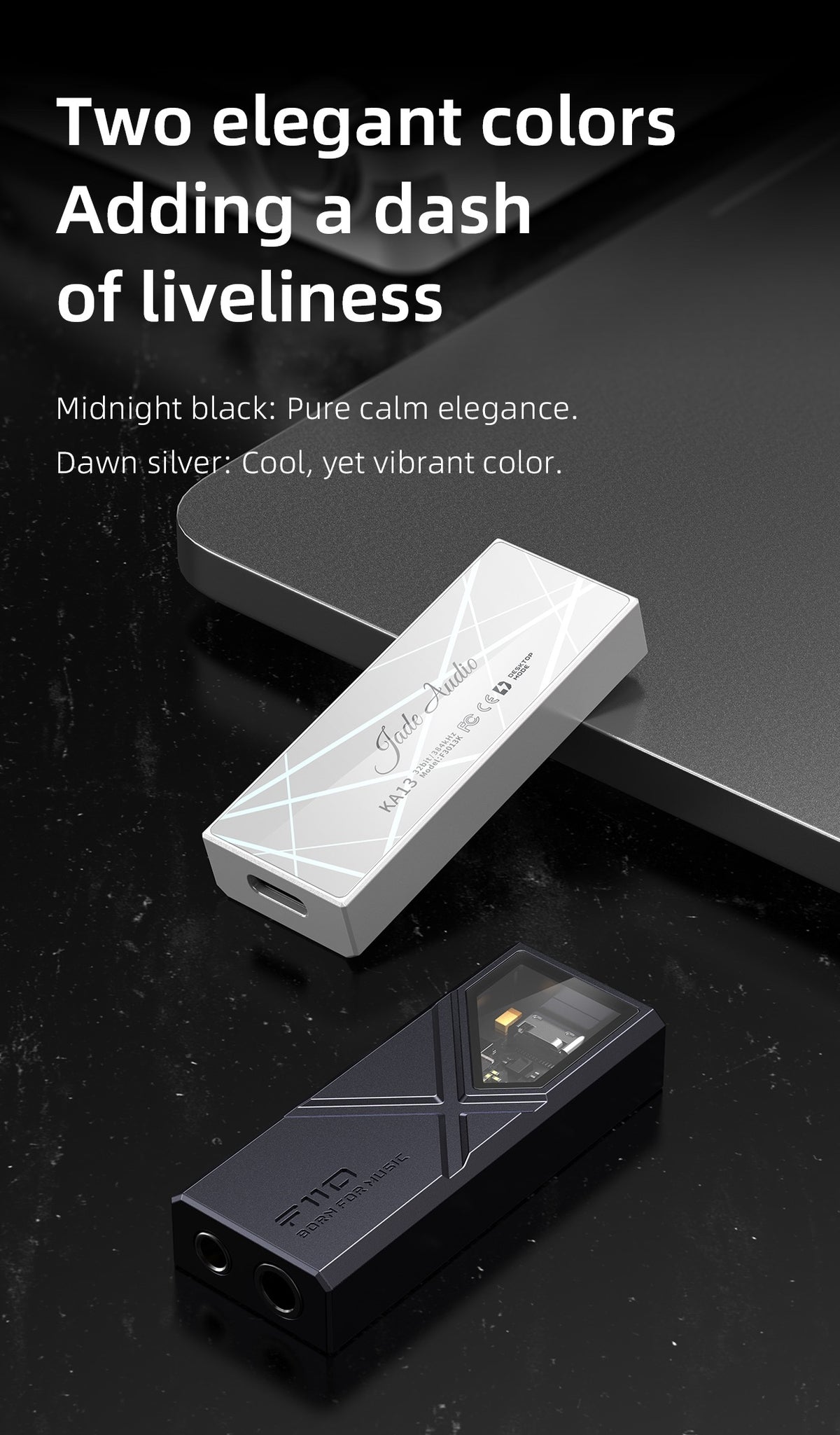

The CNC-machined metal body features angular front-panel lines, a patterned rear panel, and a glass window protected by an anti-scratch film. Short presses on the side buttons adjust volume, while long presses switch tracks. Choose Midnight black or Dawn silver.

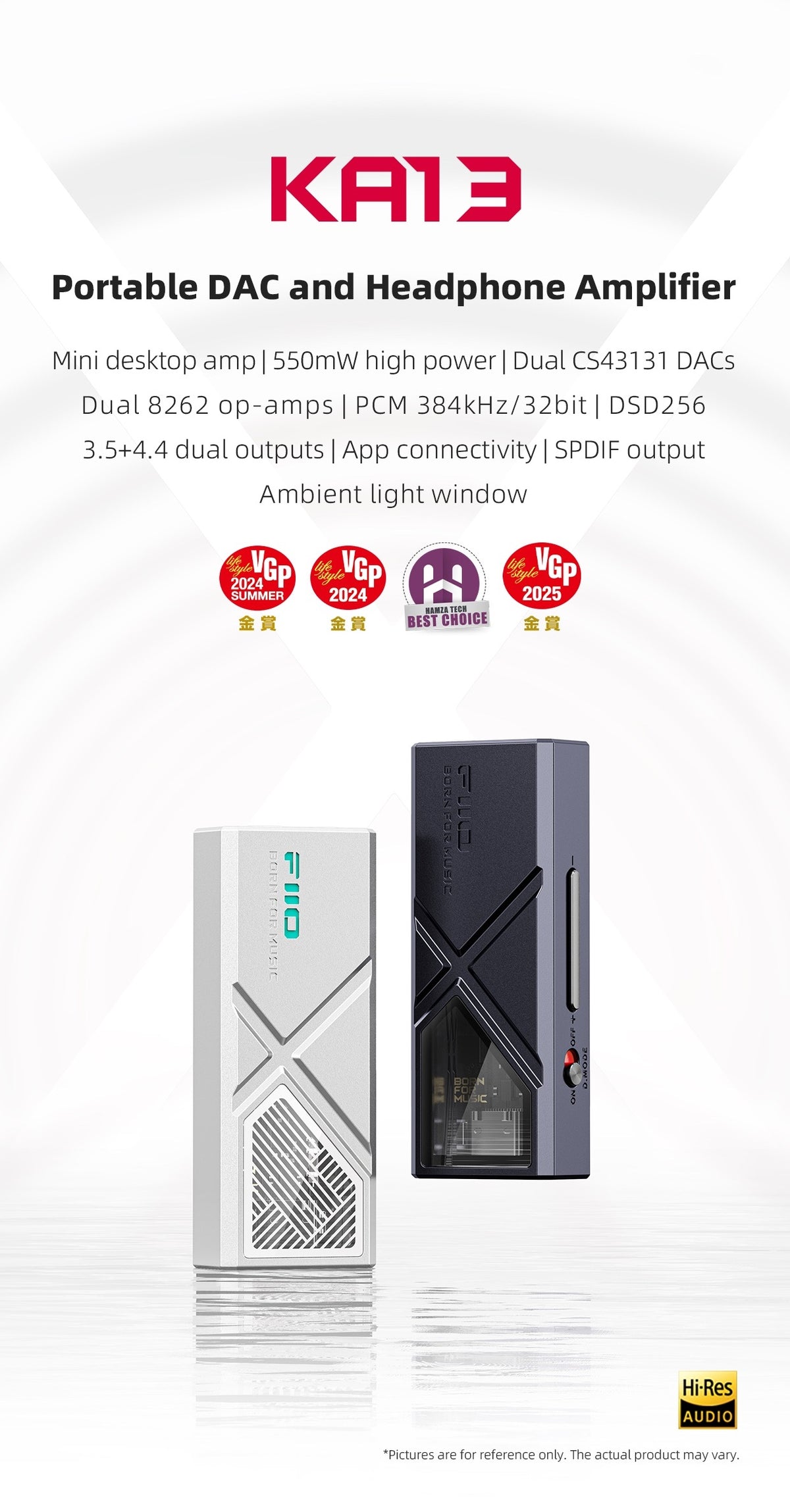

Product highlights

• Dual CS43131 DAC chips

• Dual SGM8262 op-amps

• Desktop mode with 550mW per channel balanced output into 32Ω

• 3.5mm single-ended and 4.4mm balanced headphone outputs

• PCM support up to 32-bit/384kHz and DSD256

• Coaxial SPDIF output through the 3.5mm jack

• Detachable USB-C connection

• Physical volume and track controls

• RGB audio-format indicator

• FiiO Control app support on Android

• Hi-Res Audio certified

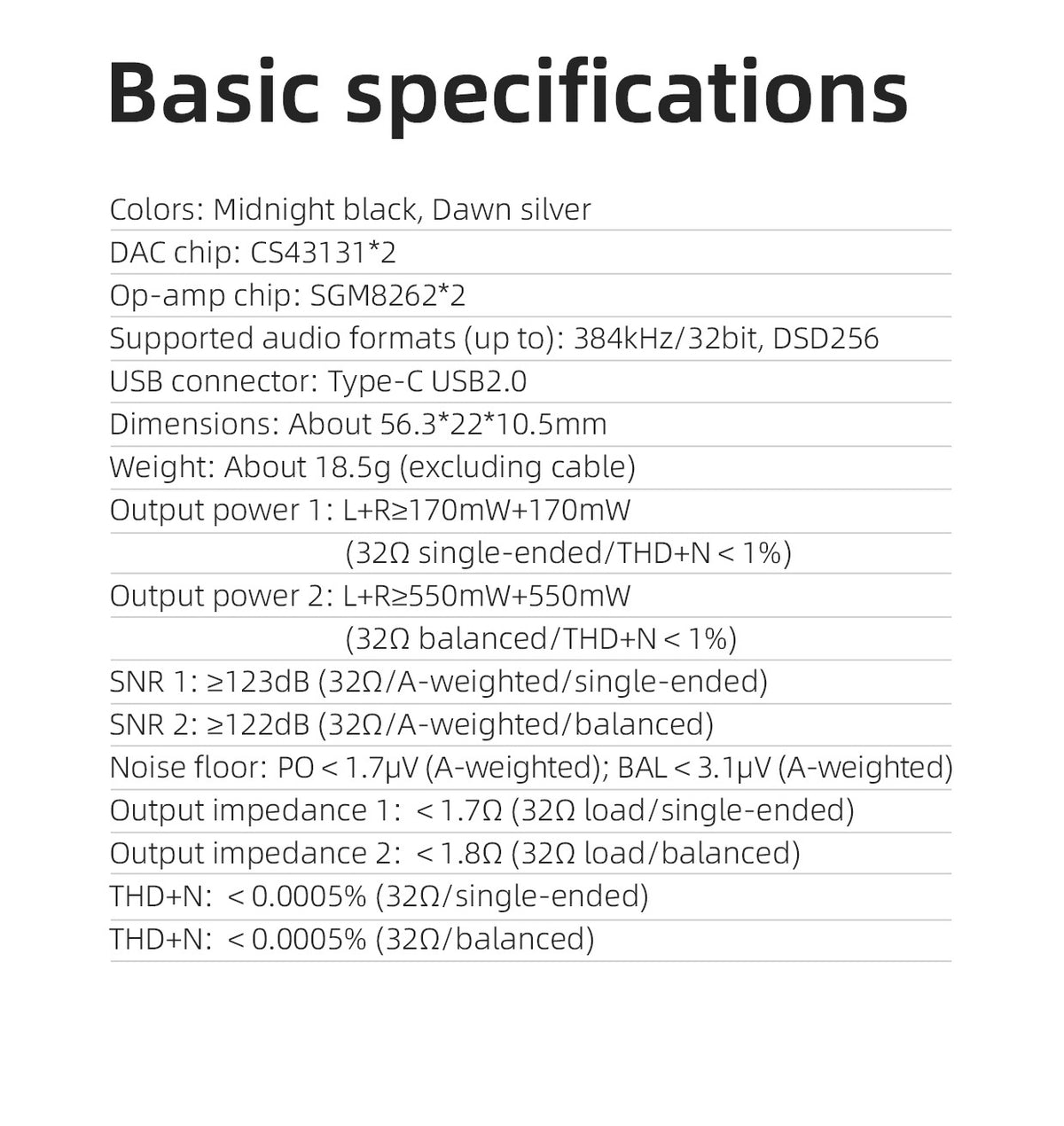

Specs

• Colors: Midnight black, Dawn silver

• DAC chips: 2 × CS43131

• Op-amp chips: 2 × SGM8262

• USB connection: USB-C, USB 2.0

• Supported audio formats: PCM up to 32-bit/384kHz, DSD256

• Headphone outputs: 3.5mm single-ended, 4.4mm balanced

• Digital output: Coaxial SPDIF through the 3.5mm jack, enabled through the Android app

• Single-ended output power: ≥170mW + 170mW into 32Ω, THD+N <1%

• Balanced output power in desktop mode: ≥550mW + 550mW into 32Ω, THD+N <1%

• Single-ended SNR: ≥123dB, 32Ω, A-weighted

• Balanced SNR: ≥122dB, 32Ω, A-weighted

• Single-ended noise floor: <1.7μV, A-weighted

• Balanced noise floor: <3.1μV, A-weighted

• Single-ended output impedance: <1.7Ω, 32Ω load

• Balanced output impedance: <1.8Ω, 32Ω load

• Single-ended THD+N: <0.0005%, 32Ω

• Balanced THD+N: <0.0005%, 32Ω

• Playback compatibility: Android, iOS, Windows, Mac

• App control compatibility: Android only

• Dimensions: Approximately 2.22 × 0.87 × 0.41 inches (56.3 × 22 × 10.5mm)

• Weight excluding cable: Approximately 0.65 oz (18.5g)

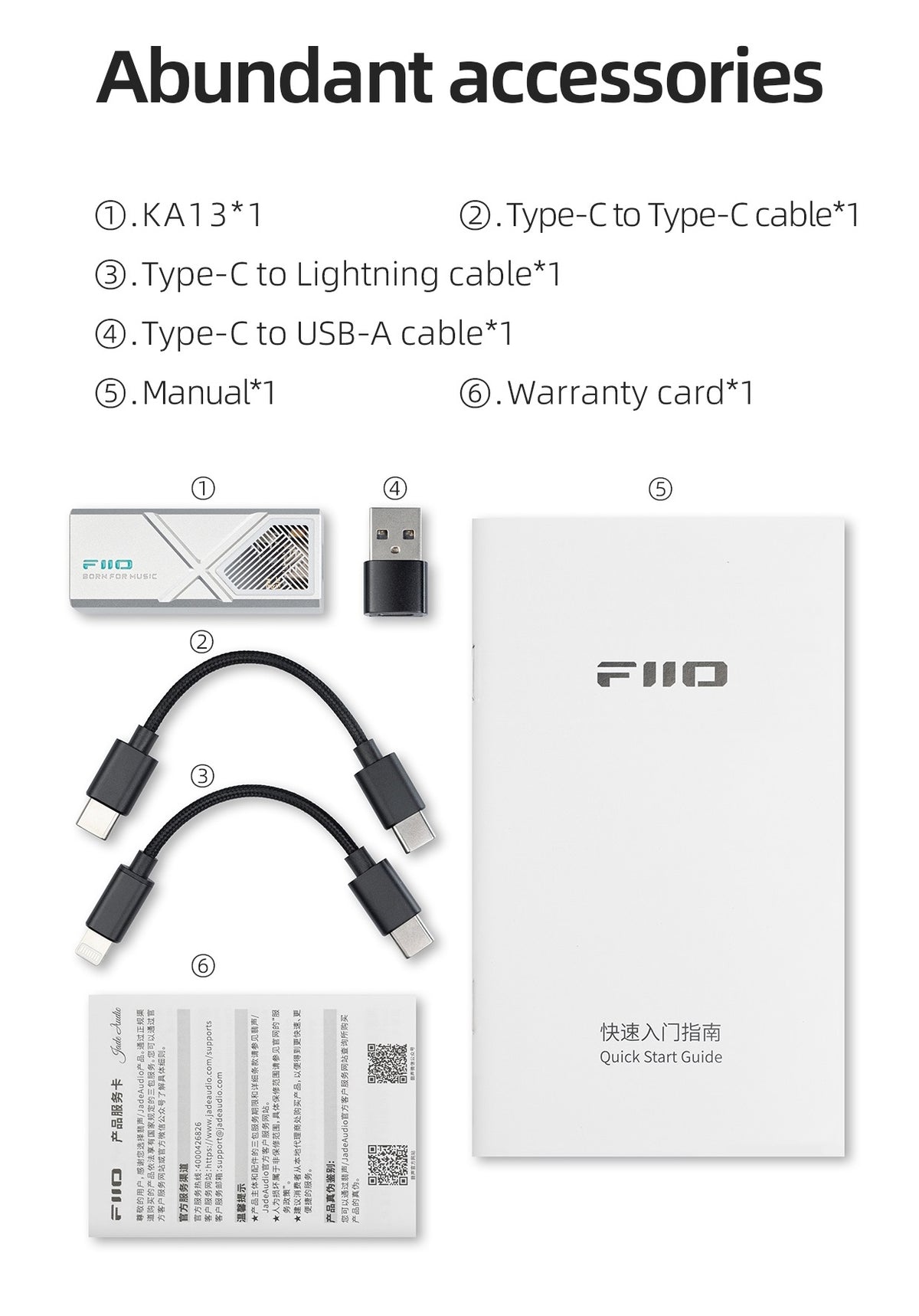

What’s included

• FiiO KA13 DAC and headphone amplifier

• USB-C to USB-C cable

• USB-C to Lightning cable

• USB-C to USB-A adapter

• Quick start guide

• Warranty card
