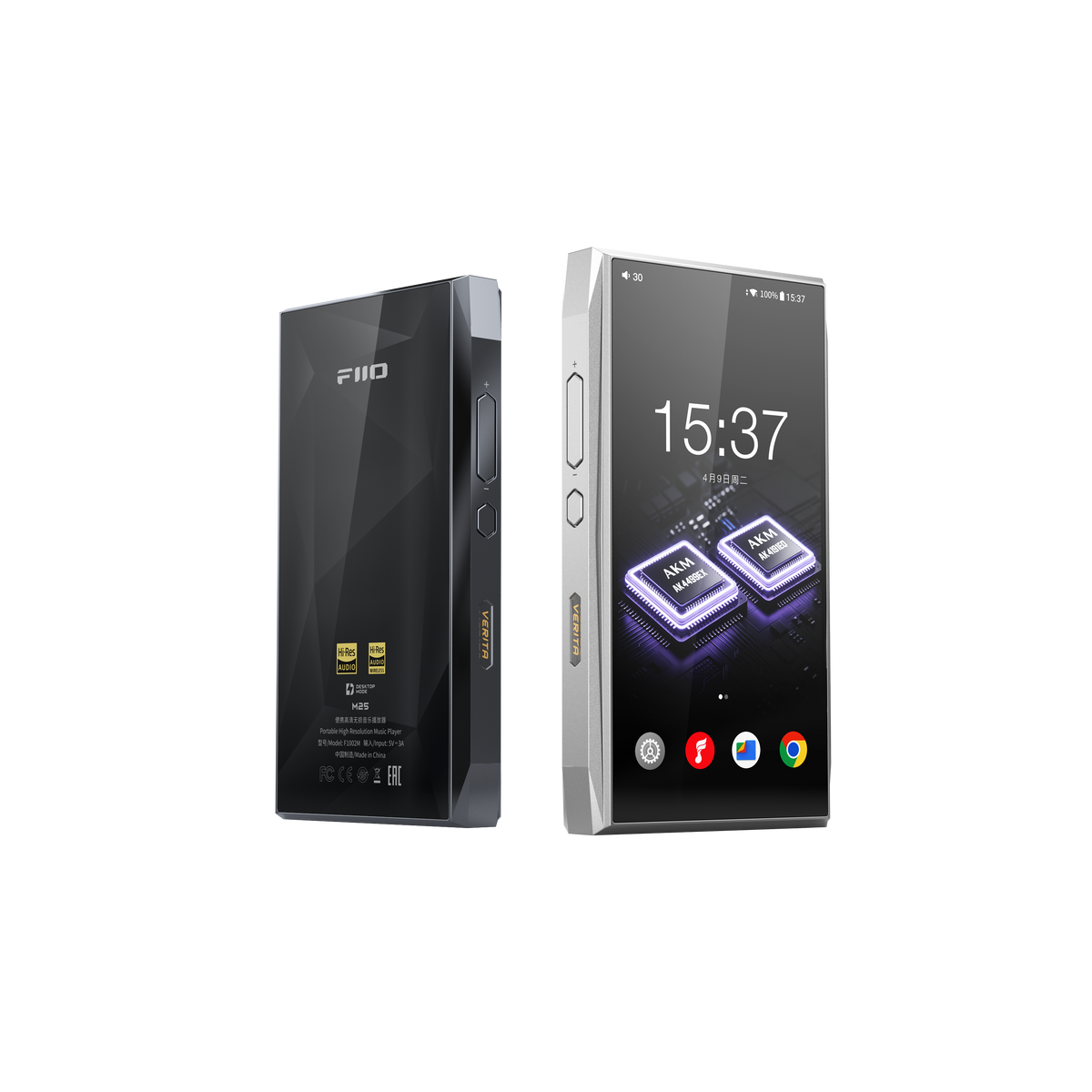

FIIO M25 R2R/ M25 Portable Music Player
R2R or AKM with up to 1700mW per channel
The FiiO M25 and M25 R2R are portable high-resolution music players with two approaches to digital-to-analog conversion. Choose the M25 for its AK4191EQ and dual AK4499EX DAC configuration, or the M25 R2R for FiiO’s proprietary segmented resistor array. Both offer a Qualcomm QCS6490 processor, 8GB of RAM, 128GB of storage, and balanced output rated at 1700mW per channel into 32Ω in Super High Gain Mode. A 5.5-inch display, 31-band parametric EQ, and dedicated USB DAC functionality support listening at home and on the move.
Two versions with different conversion architectures

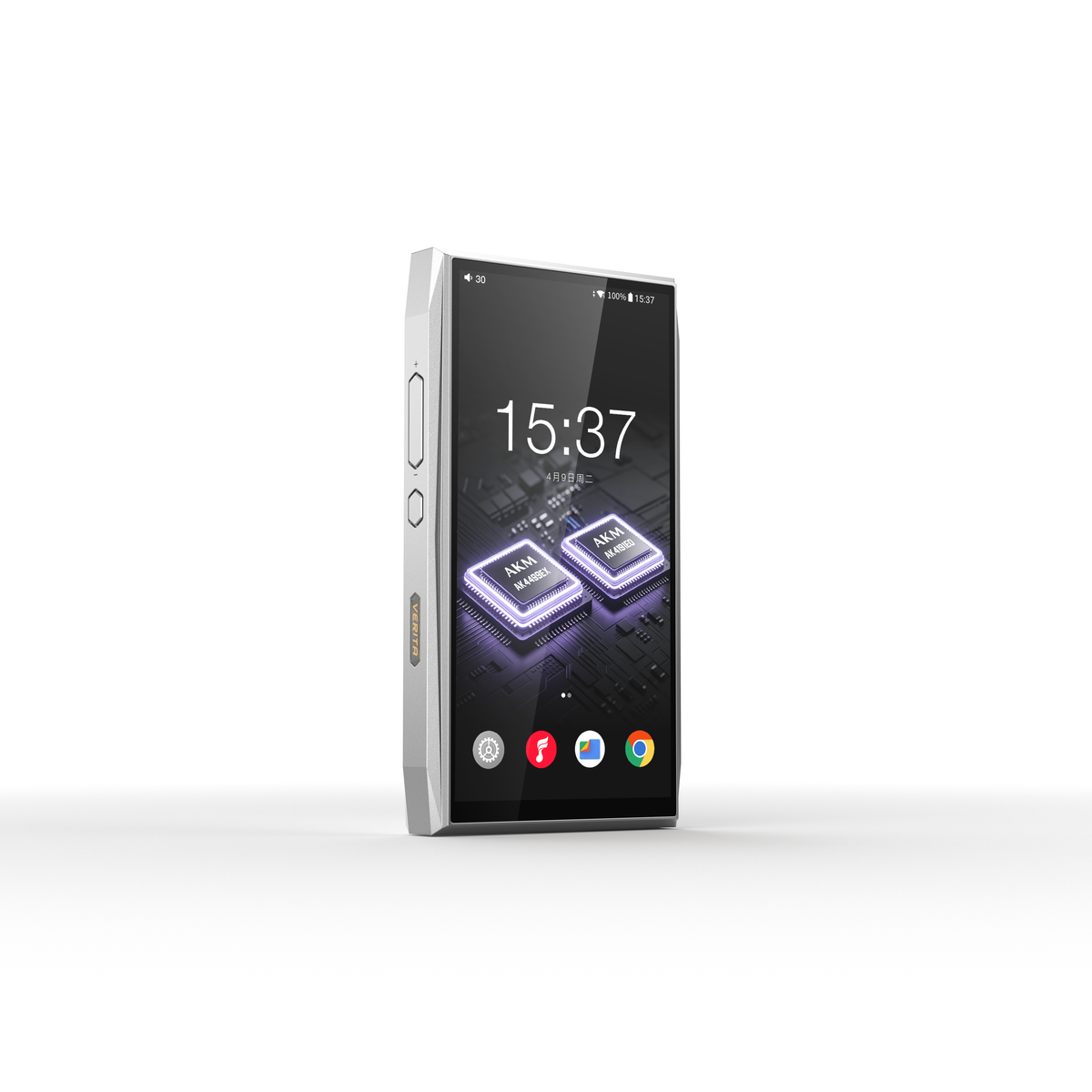

The M25 pairs an AKM AK4191EQ with two AK4499EX DACs. The M25 R2R uses FiiO’s 24+5-bit segmented R2R PRO resistor array for a presentation FiiO describes as naturally warm. These are separate hardware versions, letting you choose the conversion architecture that suits your listening preferences.
A segmented approach to R2R conversion
The M25 R2R’s conversion stage contains 316 high-precision, low-temperature-drift thin-film resistors. Its segmented design uses 31 thermometer-coded resistors to decode the upper five bits, helping reduce accumulated conversion errors and distortion. Natural FLAT and Mellow WARM sound profiles provide different tonal options, and either can be combined with Dynamic Range Enhancement.
Four independent analog signal paths
The M25 R2R uses a fully-balanced, differential audio architecture that maintains four independent signal paths through decoding, volume control, and headphone amplification. Its analog stages include current-to-voltage conversion, low-pass filtering, dedicated volume control, and BUF634A output buffers. Balanced and single-ended line outputs also let you connect the player to external amplification.
Power for high-impedance headphones
Four gain settings let you adjust output for different headphones. Connect a compatible fast charger to either USB-C port to enable Super High Gain Mode, which delivers up to 1700mW per channel into 32Ω through the balanced output. High gain provides 1000mW per channel into the same load, while medium and low gain offer lower output levels for headphones that need less power.
Desktop mode preserves battery cycles
FiiO’s patented Desktop Mode isolates the battery from high-power operation when using external power. This reduces unnecessary charging and discharging during extended listening at your desk. Separate USB-C data/charging and charging/power inputs give you flexibility when connecting a source and an external power supply.
Processing power for apps and large libraries
The Qualcomm Dragonwing QCS6490 uses an eight-core architecture with a maximum clock speed of 2.7GHz. Combined with 8GB of RAM, it supports streaming playback, library browsing, and multiple apps. Built-in storage provides 128GB of capacity, with approximately 112GB available, and a microSD slot supports expansion up to a theoretical 2TB.
Digital timing with dedicated hardware
FiiO’s sixth-generation Digital Audio Purification System combines a high-capacity FPGA with custom dual femtosecond crystal oscillators. This hardware manages digital audio transmission and timing to help reduce jitter. Global SRC bypass, All to DSD, and Dynamic Range Enhancement provide additional playback options.
31-band EQ with automatic tuning options
Global 31-band parametric EQ lets you adjust frequency response to suit your headphones and preferences. AUTO EQ and preset sound profiles offer a starting point without requiring manual adjustment of every band. You can also share EQ curves and download profiles from the online community.
A USB DAC for your other devices
An independent XMOS XU316 USB chip lets the M25 serve as an external DAC and headphone amplifier for a compatible computer, smartphone, or tablet. Local playback and USB DAC operation support PCM up to 32-bit/768kHz and native DSD512. A coaxial output provides another connection to an external DAC.
Wireless playback and five operating modes
Choose from Android, Pure Music, AirPlay, USB DAC, and Bluetooth Receiving modes. Bluetooth 5.2 reception supports SBC and LDAC, while transmission adds aptX, aptX HD, aptX Adaptive, and LHDC. Available codecs depend on the connected device.
A 6500mAh battery with 30W charging
The M25 supports 30W charge-pump fast charging with QC3.0, QC4.0, PD2.0, PD3.0, and PPS compatibility. FiiO rates the M25 for 9.5 hours of single-ended playback or approximately 8.5 hours balanced. The M25 R2R extends those figures to approximately 14.5 and 12.5 hours, respectively. Actual battery life varies with listening conditions and use.
A clear display with physical playback controls

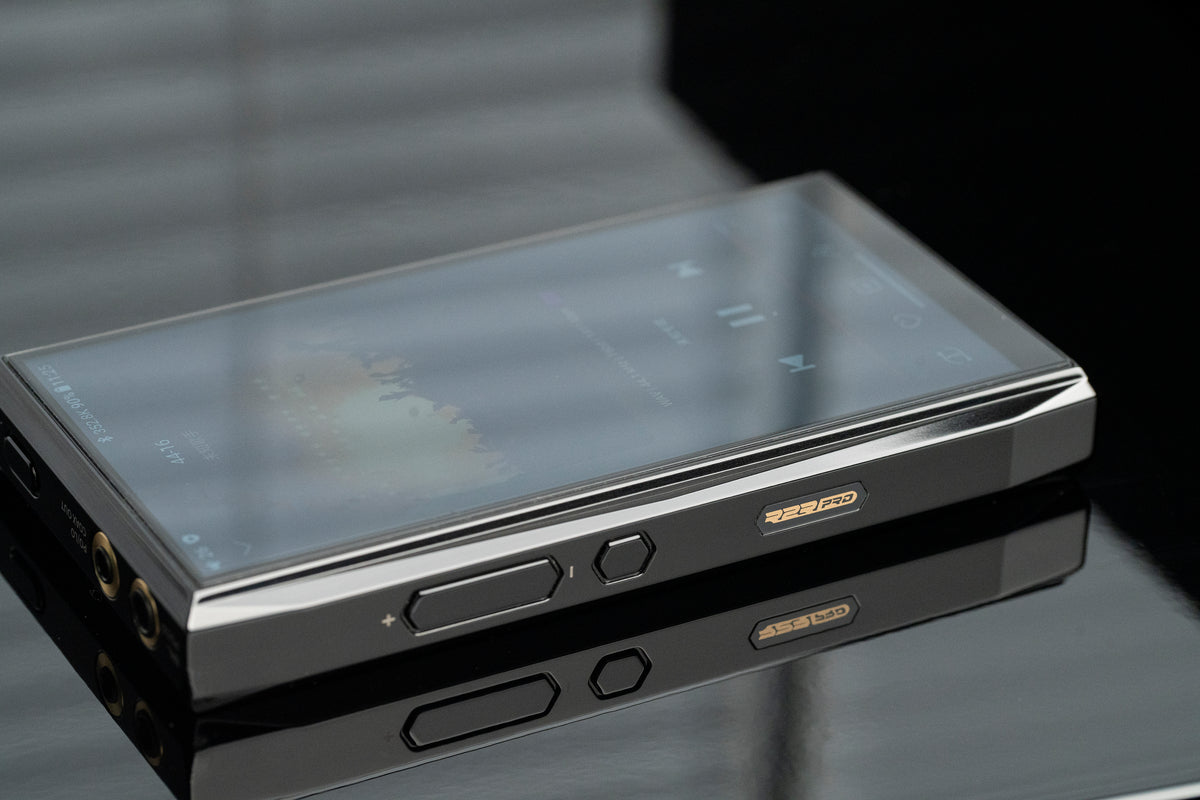

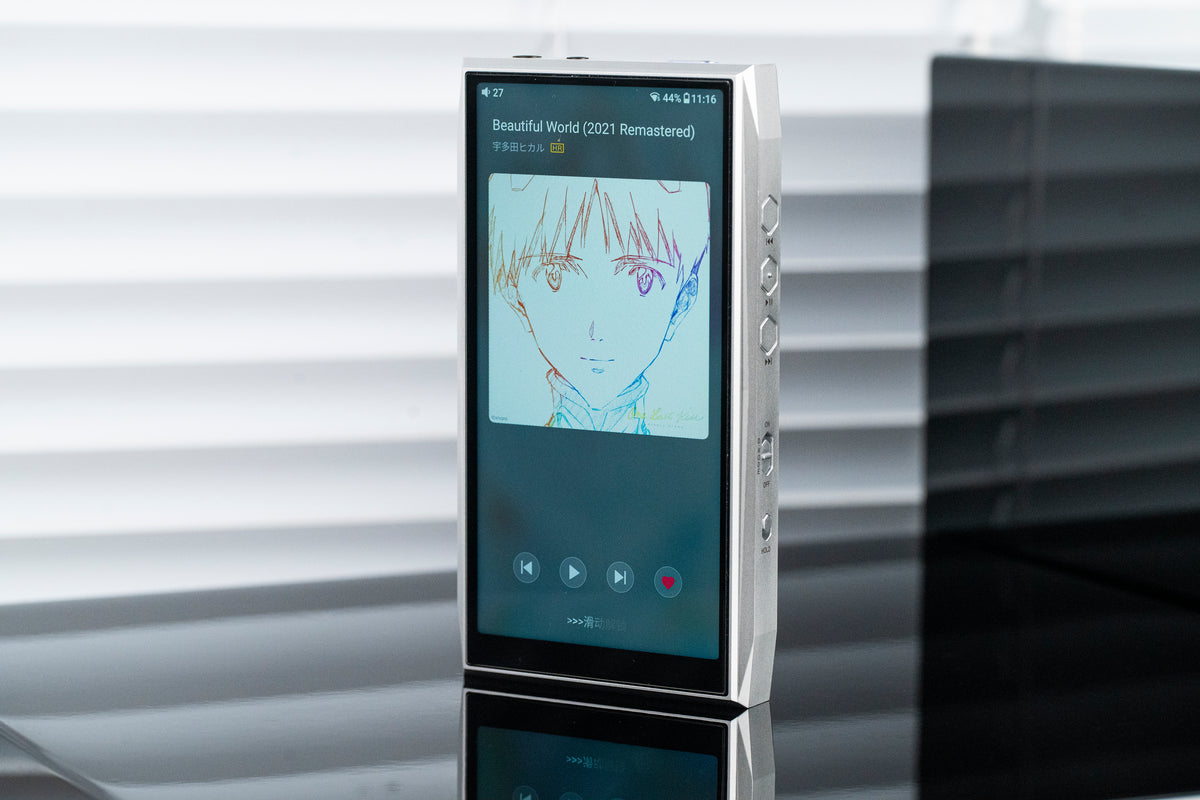

The fully laminated 5.5-inch display has a 1080 × 2160 resolution and an 18:9 aspect ratio. Physical volume and playback buttons put common controls within reach, while a HOLD switch helps prevent accidental input. CNC-machined facets give the chassis its angular profile. Compared with the M15S, the M25 is approximately 0.95 ounces (27g) lighter, 0.04 inches (0.9mm) slimmer, and 0.16 inches (4mm) narrower.
Product highlights
- Separate M25 and M25 R2R hardware versions
- M25: AK4191EQ with dual AK4499EX DACs
- M25 R2R: proprietary 24+5-bit segmented resistor array
- Up to 1700mW per channel balanced into 32Ω in Super High Gain Mode
- Qualcomm QCS6490 processor with 8GB RAM and 128GB storage
- Global 31-band PEQ, AUTO EQ, and community EQ sharing
- XMOS XU316 USB interface
- PCM up to 32-bit/768kHz and native DSD512 playback
- 4.4mm balanced and 3.5mm single-ended headphone/line outputs
- Patented Desktop Mode with battery isolation
- 6500mAh battery with 30W fast charging
- 5.5-inch, 1080 × 2160 fully laminated display
Specs
-
General
- Colors: Black, silver
- Dimensions: Approximately 5.50 × 2.99 × 0.71 inches (139.8 × 76 × 18mm)
- Weight: Approximately 11.22 ounces (318g)
- Processor: Qualcomm Dragonwing QCS6490
- Processor architecture: Eight cores, up to 2.7GHz, 6nm process
- RAM: 8GB
- Internal storage: 128GB, approximately 112GB available
- Storage expansion: microSD, theoretical support up to 2TB
- USB interface: XMOS XU316
- Display: 5.5-inch fully laminated, 1080 × 2160, 18:9
- Battery capacity: 6500mAh
- Maximum charging power: 30W
- Charging protocols: QC3.0, QC4.0, PD2.0, PD3.0, PPS
- Operating modes: Android, Pure Music, AirPlay, USB DAC, Bluetooth Receiving
- Colors: Black, silver
-
Conversion
- M25: AK4191EQ + dual AK4499EX
- M25 R2R: 24+5-bit segmented R2R PRO array with 316 thin-film resistors
- Digital processing: Sixth-generation DAPS with high-capacity FPGA and dual femtosecond crystal oscillators
- EQ: Global 31-band PEQ, AUTO EQ, preset profiles, online EQ sharing
- M25: AK4191EQ + dual AK4499EX
-

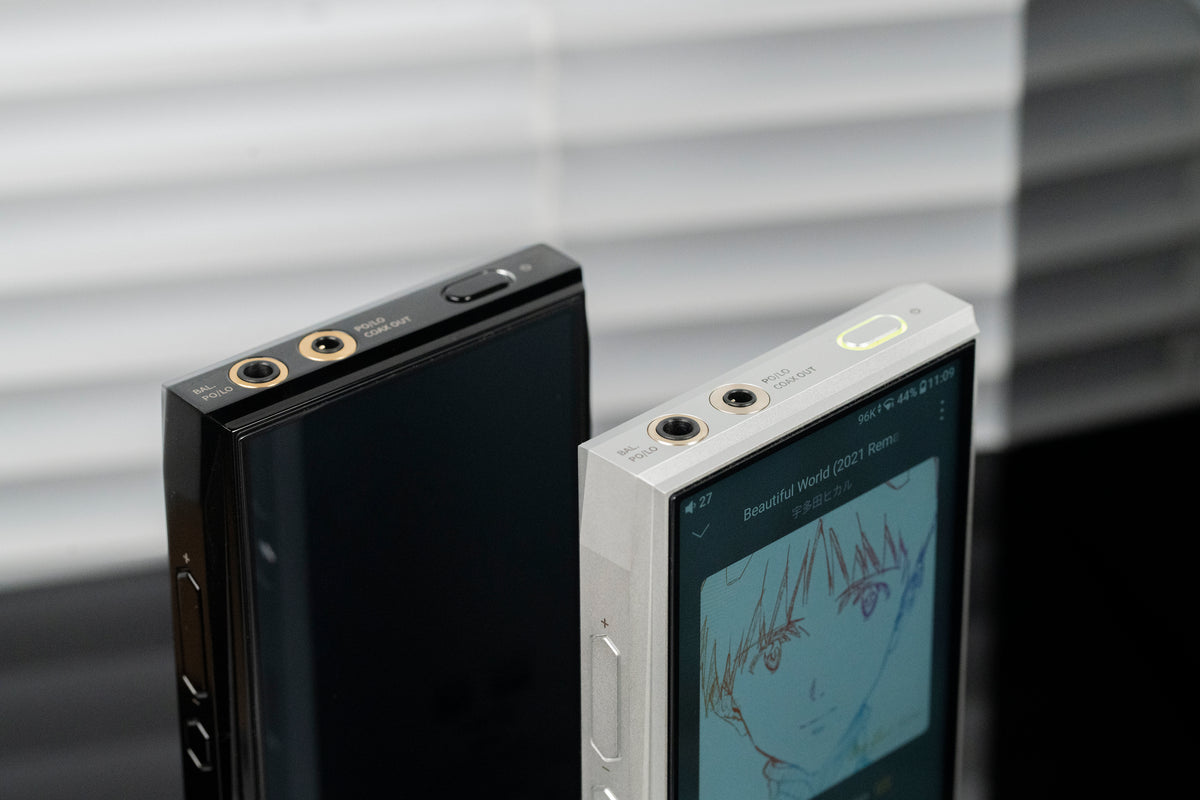

Connections

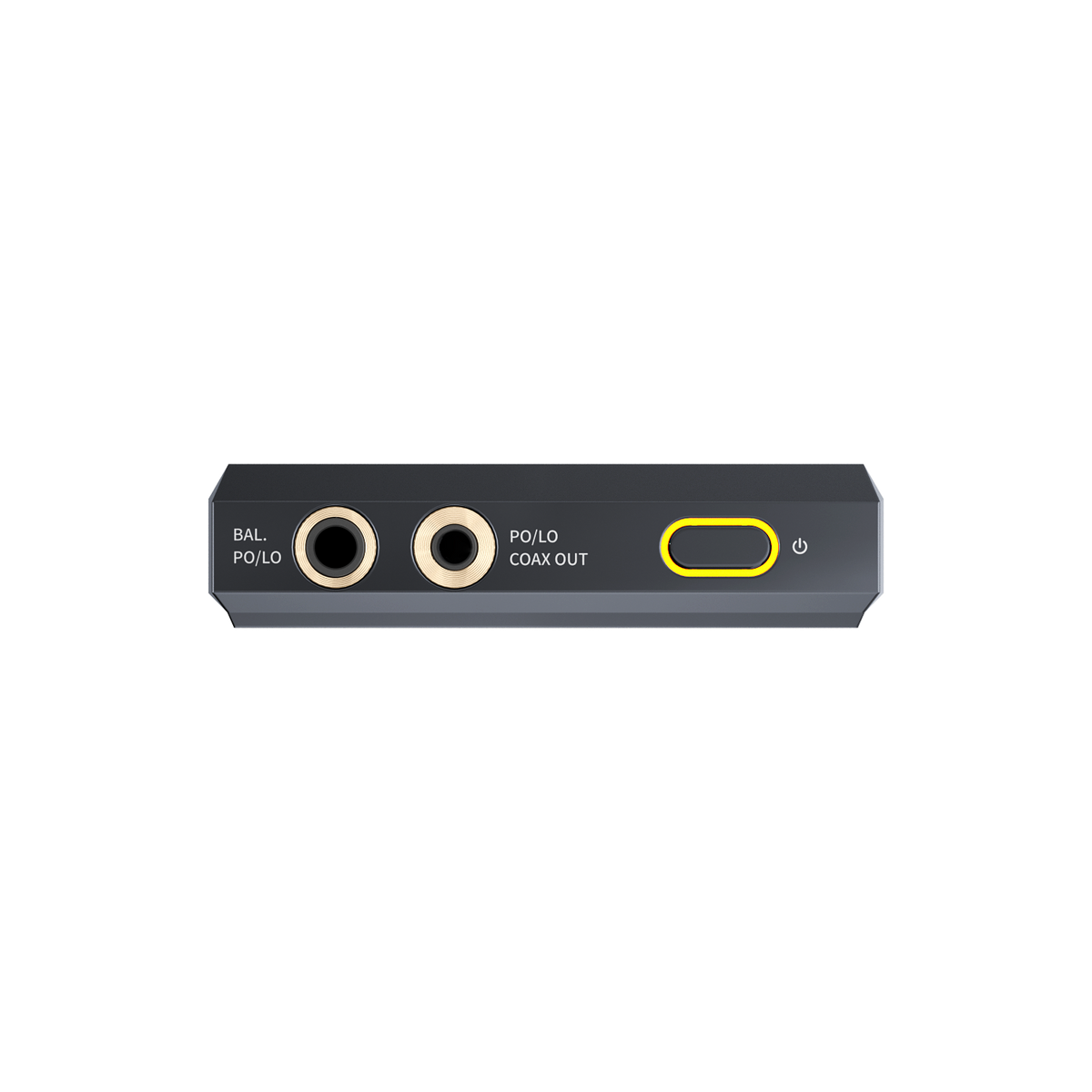

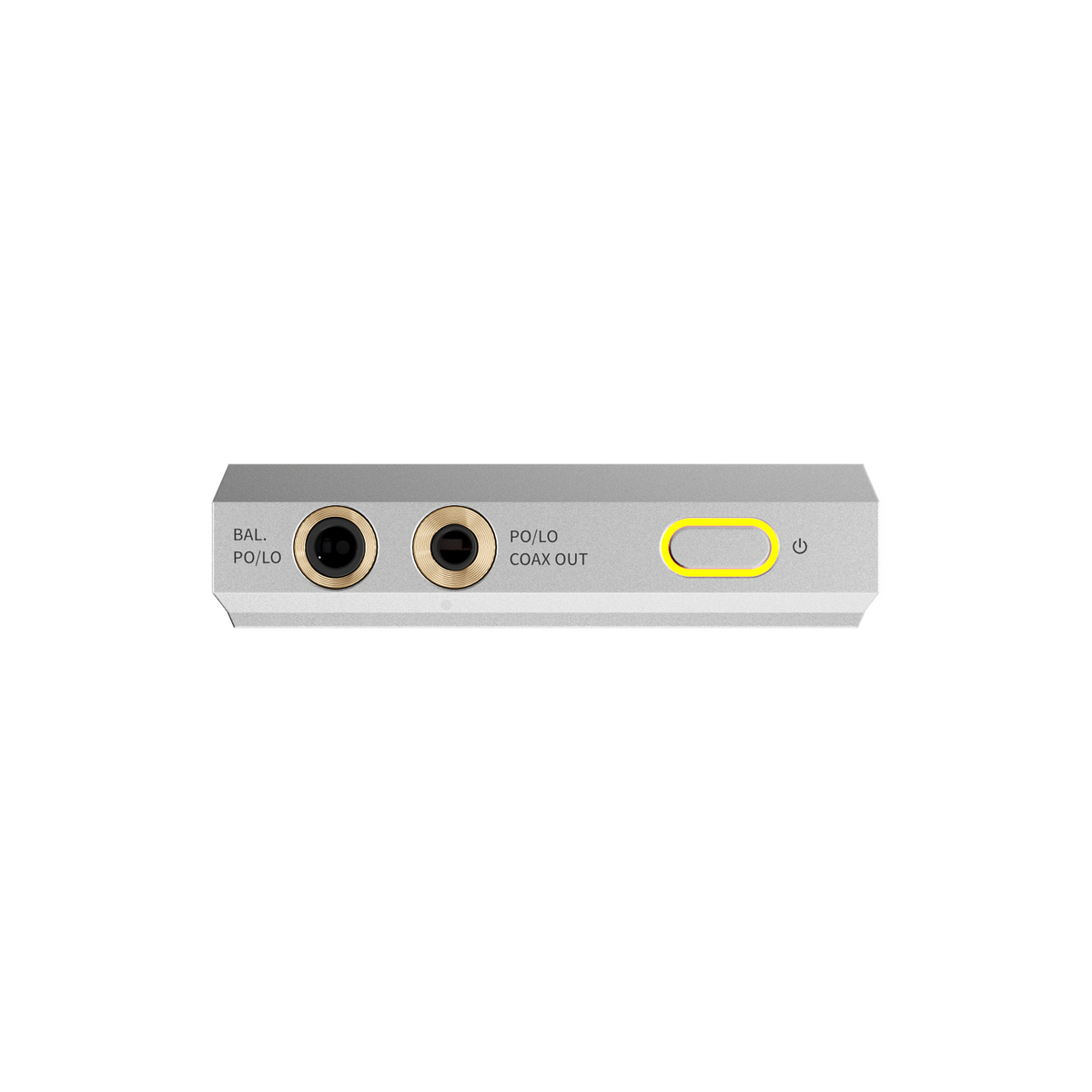

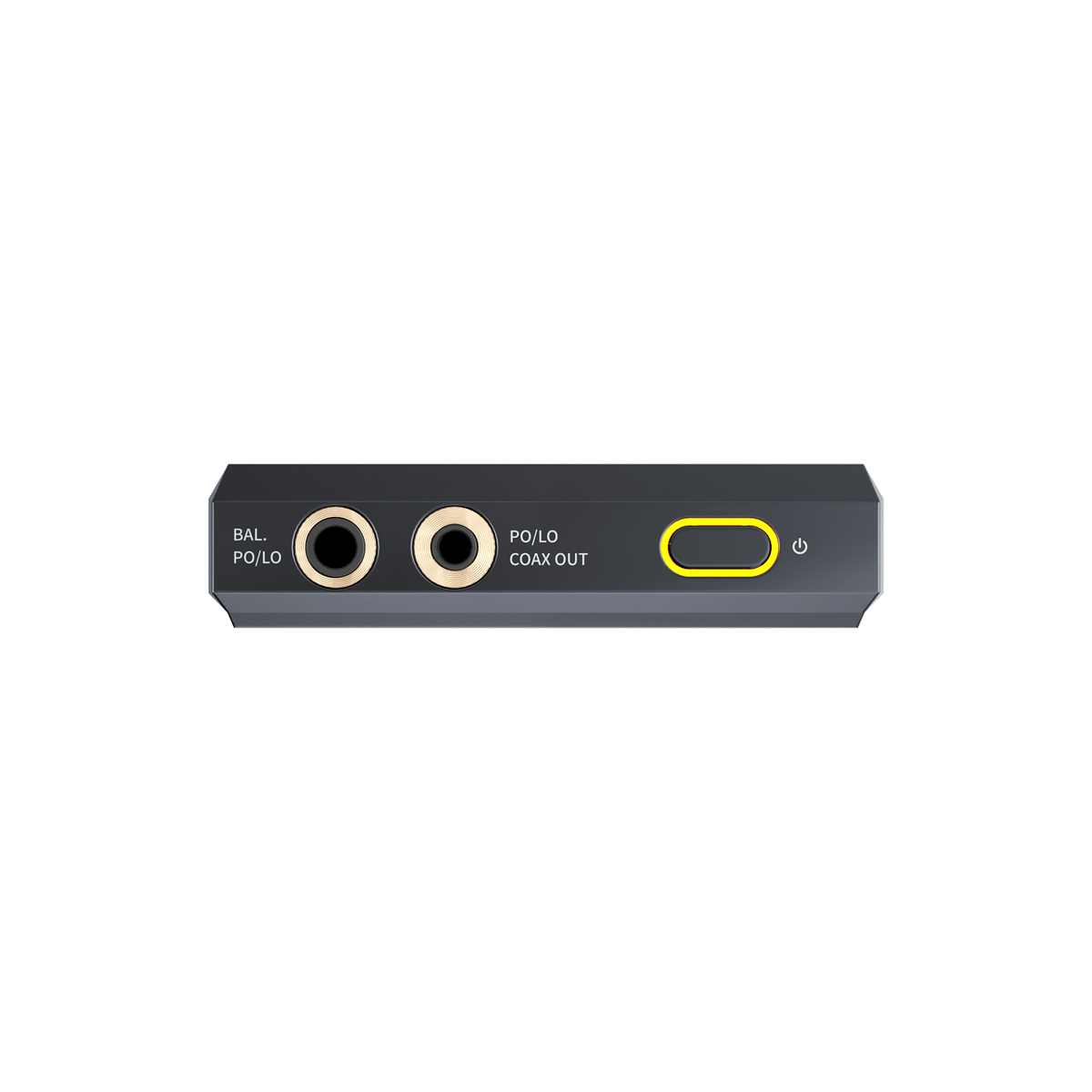

- Balanced output: 4.4mm headphone out/line out
- Single-ended output: 3.5mm headphone out/line out/coaxial out

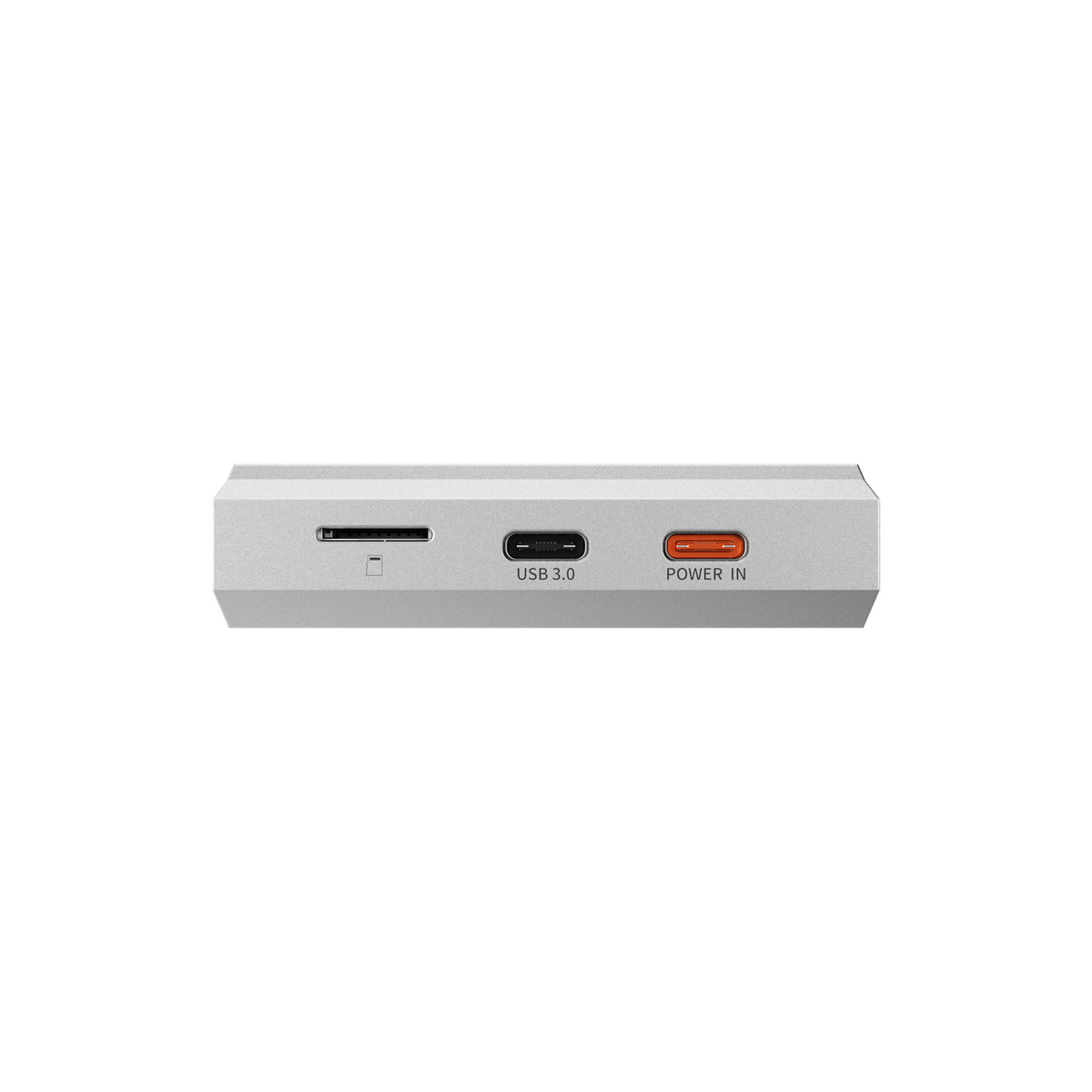

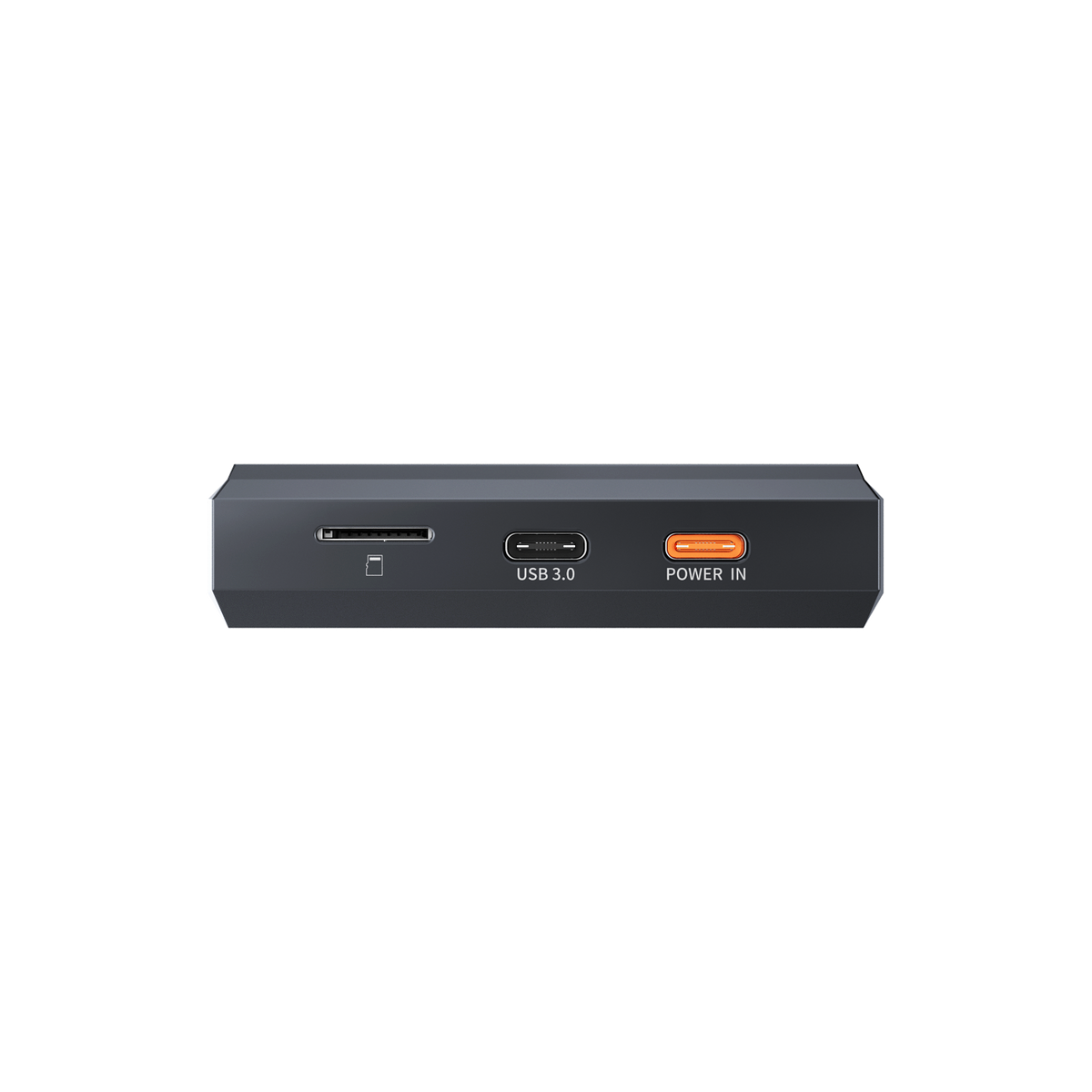

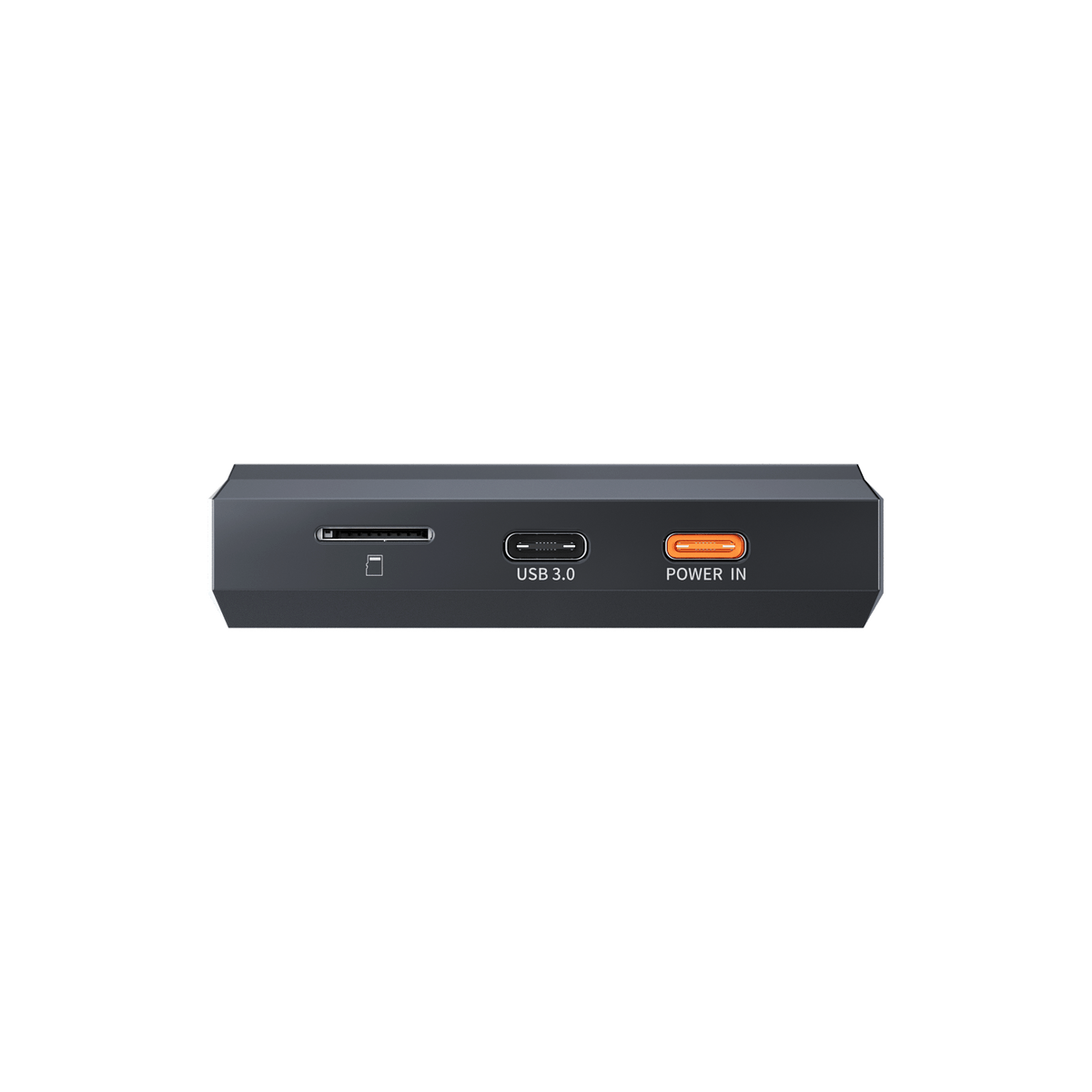

- USB-C port 1: Data/charging, USB 3.0
- USB-C port 2: Charging/power input
- Expansion slot: microSD
- Balanced output: 4.4mm headphone out/line out
-
Format support
- Local playback: PCM up to 32-bit/768kHz, native DSD512
- USB DAC: PCM up to 32-bit/768kHz, native DSD512
- USB Audio: PCM up to 32-bit/768kHz, DSD512 with DoP/D2P/Native support
- Coaxial output: PCM up to 24-bit/384kHz, DSD128 via DoP
- Local playback: PCM up to 32-bit/768kHz, native DSD512
-
Bluetooth
- Version: 5.2
- Reception codecs: SBC, LDAC
- Transmission codecs: SBC, aptX, aptX HD, aptX Adaptive, LDAC, LHDC
- Version: 5.2
-
Headphone output
- Balanced, Super High Gain Mode, 32Ω: ≥1700mW + 1700mW, THD+N <1%, 7.4Vrms
- Balanced, Super High Gain Mode, 300Ω: ≥220mW + 220mW, THD+N <1%, 8.1Vrms
- Balanced, high gain, 32Ω: ≥1000mW + 1000mW, THD+N <1%, 5.7Vrms
- Single-ended, Super High Gain Mode, 32Ω: ≥500mW + 500mW, THD+N <1%, 4Vrms
- Single-ended, high gain, 32Ω: ≥315mW + 315mW, THD+N <1%, 3.1Vrms
- Gain settings: Low, medium, high, super high
- Super High Gain Mode requirement: Compatible external fast charger
- Balanced, Super High Gain Mode, 32Ω: ≥1700mW + 1700mW, THD+N <1%, 7.4Vrms
-
M25 audio performance, high gain
- Frequency response: 20Hz–85kHz, attenuation <3dB
- SNR: ≥126dB, A-weighted
- Noise floor: <2.9μV, A-weighted
- THD+N: 0.00049%, 1kHz/−3dB into 32Ω
- Frequency response: 20Hz–85kHz, attenuation <3dB
-
M25 R2R PRO audio performance, high gain
- Frequency response: 20Hz–45kHz, attenuation <3dB
- SNR: ≥120dB, A-weighted
- Noise floor: <5.8μV, A-weighted
- PCM THD+N: 0.005%, 1kHz/−5dB into 32Ω
- Frequency response: 20Hz–45kHz, attenuation <3dB
-
Battery life
- M25, single-ended: 9.5 hours
- M25, balanced: Approximately 8.5 hours
- M25 R2R, single-ended: Approximately 14.5 hours
- M25 R2R, balanced: Approximately 12.5 hours
- Battery-life figures: FiiO laboratory measurements—actual performance varies with conditions and use
- M25, single-ended: 9.5 hours
What’s included
- M25 or M25 R2R player ×1
- Factory-applied screen protector ×1
- Protective case ×1
- USB data cable ×1
- Warranty card ×1
- Quick start guide ×1
