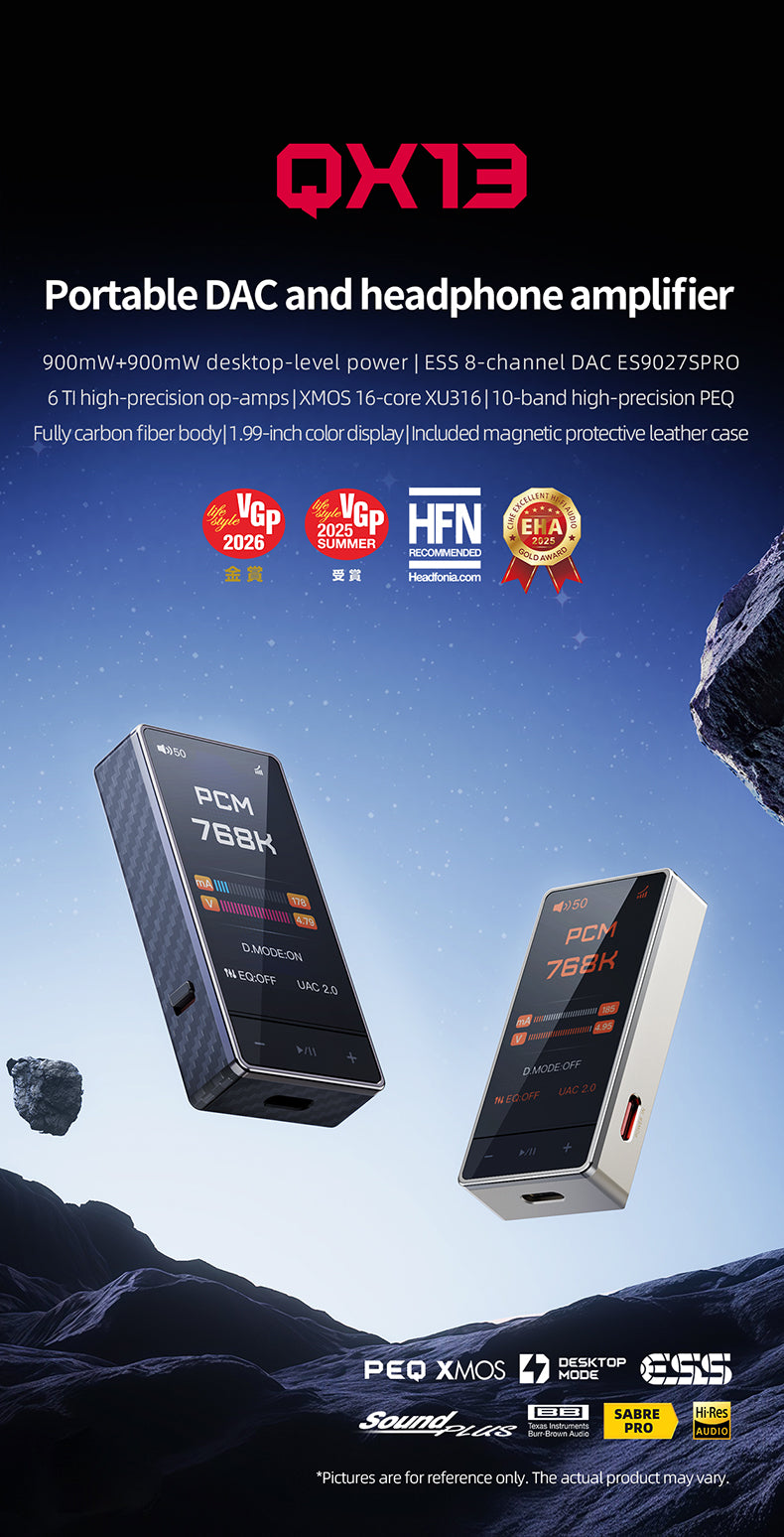

USB DAC/Amp with 900mW balanced output

The FiiO QX13 is a portable DAC and headphone amplifier with an ESS ES9027SPRO DAC, six Texas Instruments op-amps, and balanced output rated at 900mW per channel into 32Ω in desktop mode. A 1.99-inch color display puts playback information and settings in view, while 10-band parametric EQ lets you adjust the sound to your headphones.

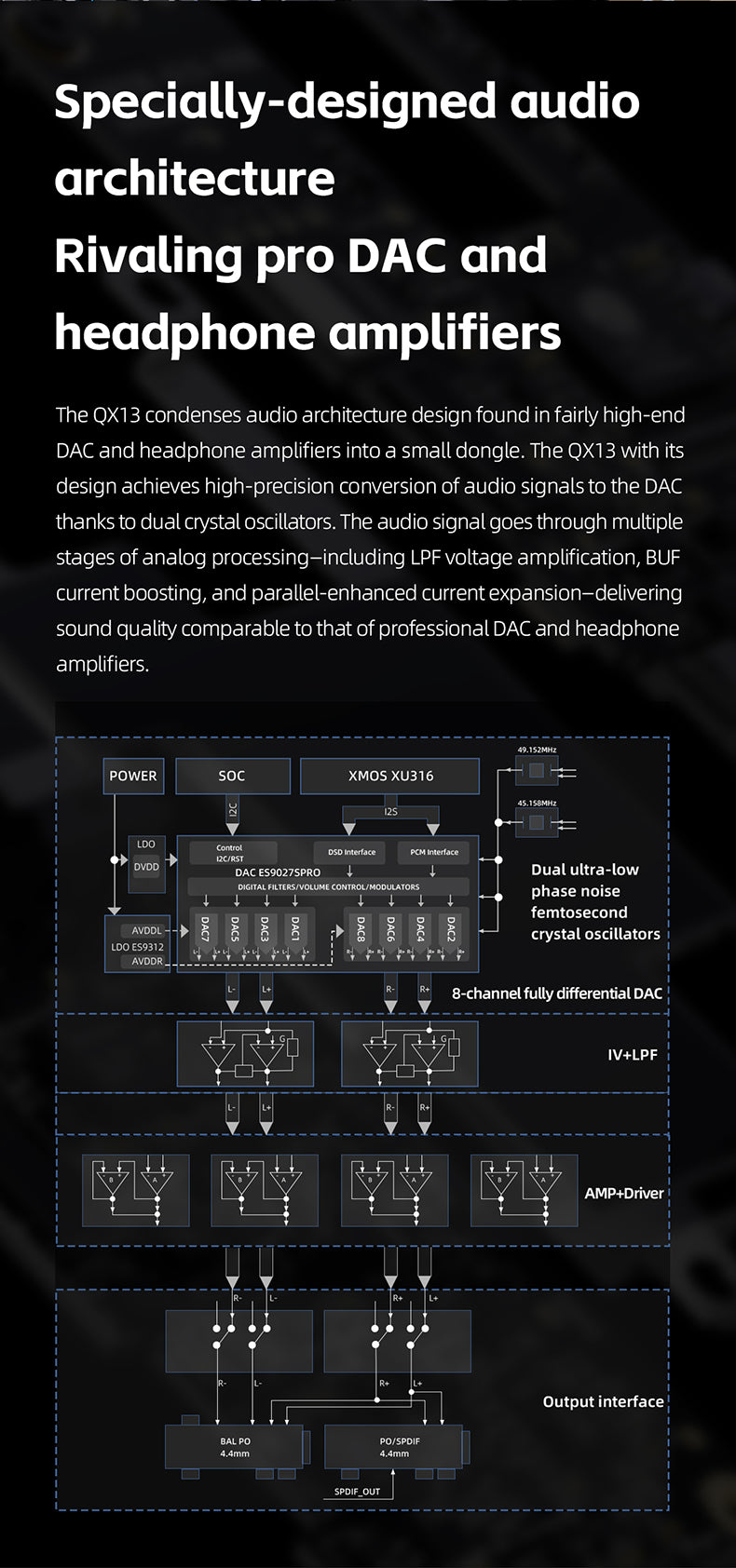

Eight-channel conversion with precise power regulation

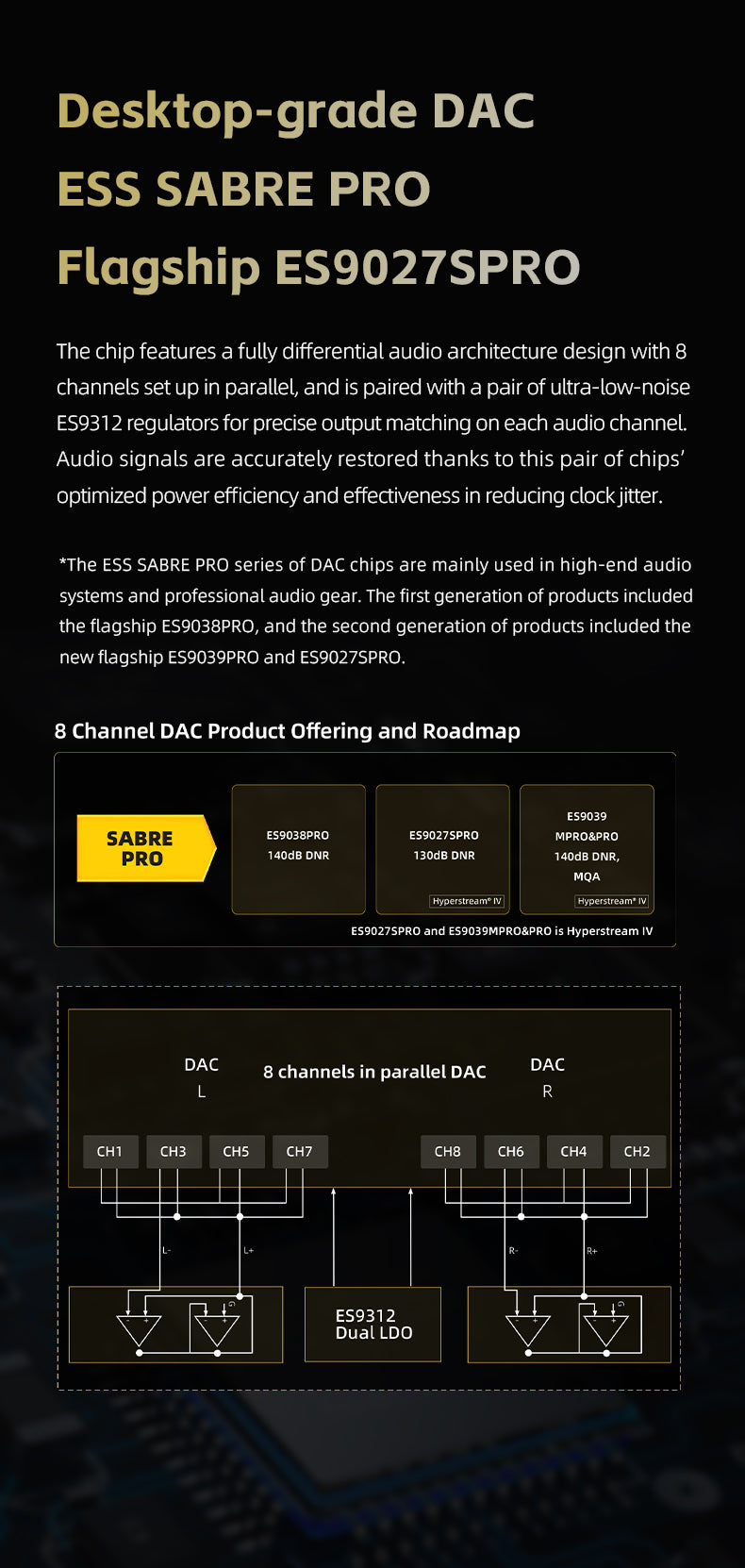

The ESS ES9027SPRO uses a fully differential architecture with eight DAC channels operating in parallel. Paired ES9312 low-noise regulators provide power to the conversion stage, helping preserve low-level detail. Dual femtosecond crystal oscillators supply timing for different sampling rates to reduce clock jitter.

Six op-amps for amplification and current delivery

Four TI INA1620 chips and two OPA1692 op-amps handle analog amplification. Each INA1620 integrates eight precision-matched thin-film resistors, an EMI filter, and a dual-channel audio op-amp. This arrangement helps reduce channel crosstalk and provides the current needed to drive headphones across different loads.

Desktop mode adds power when you need it

Desktop mode raises balanced output to 900mW per channel into 32Ω, compared with 605mW per channel in non-desktop mode. A dedicated side USB-C power port lets you connect an external supply, while the front USB-C port handles audio data and power. The QX13 assesses the connected USB source’s power capabilities and adjusts amplifier gain and output accordingly.

High-resolution playback through XMOS

The 16-core XMOS XU316 USB processor supports PCM playback up to 768kHz/32-bit, native DSD512, and full MQA decoding. Its USB audio processing works with dual low-phase-noise crystal oscillators to handle different sampling rates accurately.

Ten-band EQ to tailor your headphones

Use the Android FiiO Control app or FiiO’s web-based controls to adjust the 10-band parametric equalizer. Create custom profiles, start with built-in presets, or explore community tunings to modify your headphones’ frequency response. With PEQ enabled, supported playback is limited to PCM 192kHz/24-bit.

A color display with customizable themes

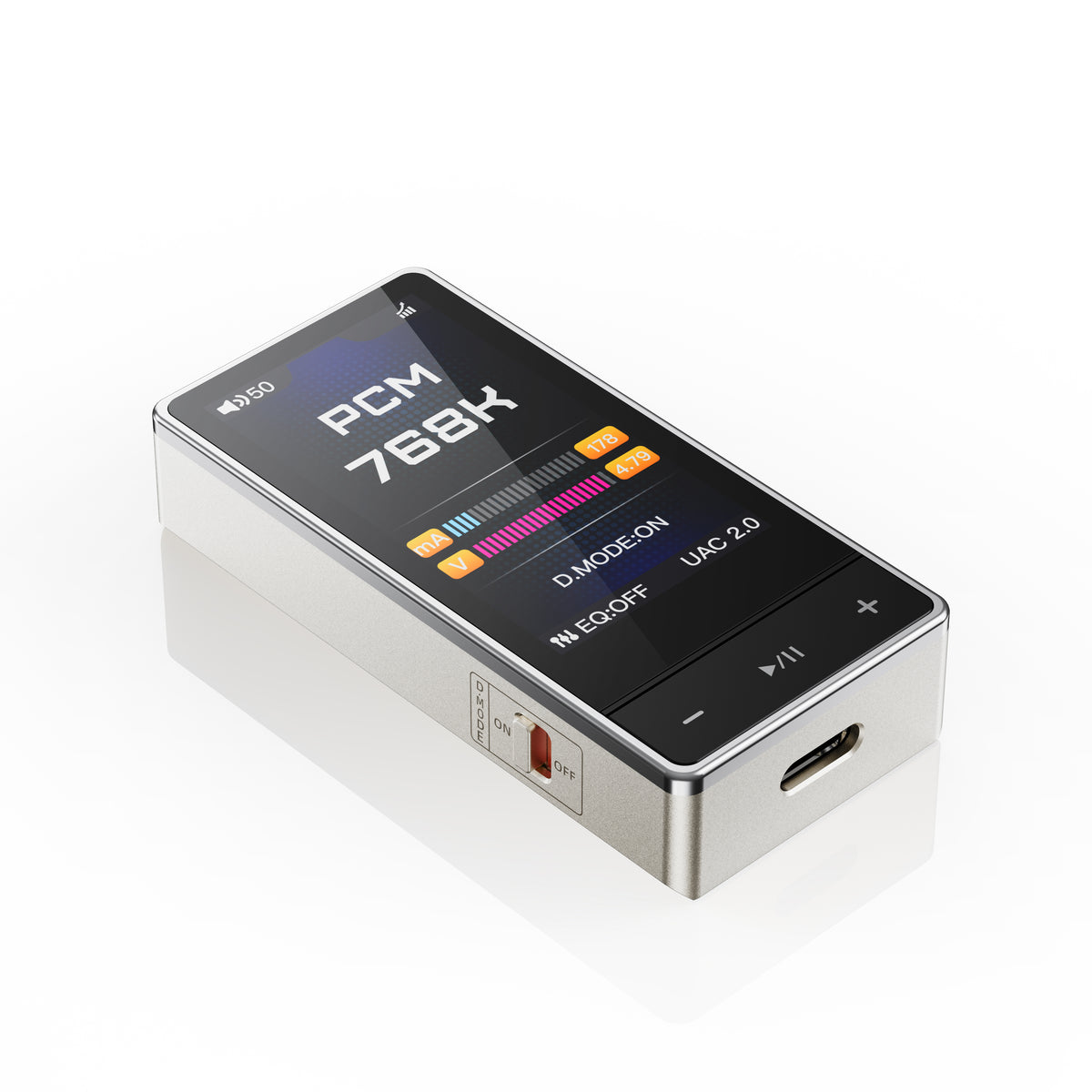

The 1.99-inch IPS display shows playback format, volume, and operating status. A 32-bit processor powers multiple interface themes for portrait and landscape viewing. Third-generation Corning high-strength glass covers the screen for added scratch resistance, and selectable 60-step or 120-step volume scales let you choose how finely you adjust listening levels.

Two body materials for portable listening

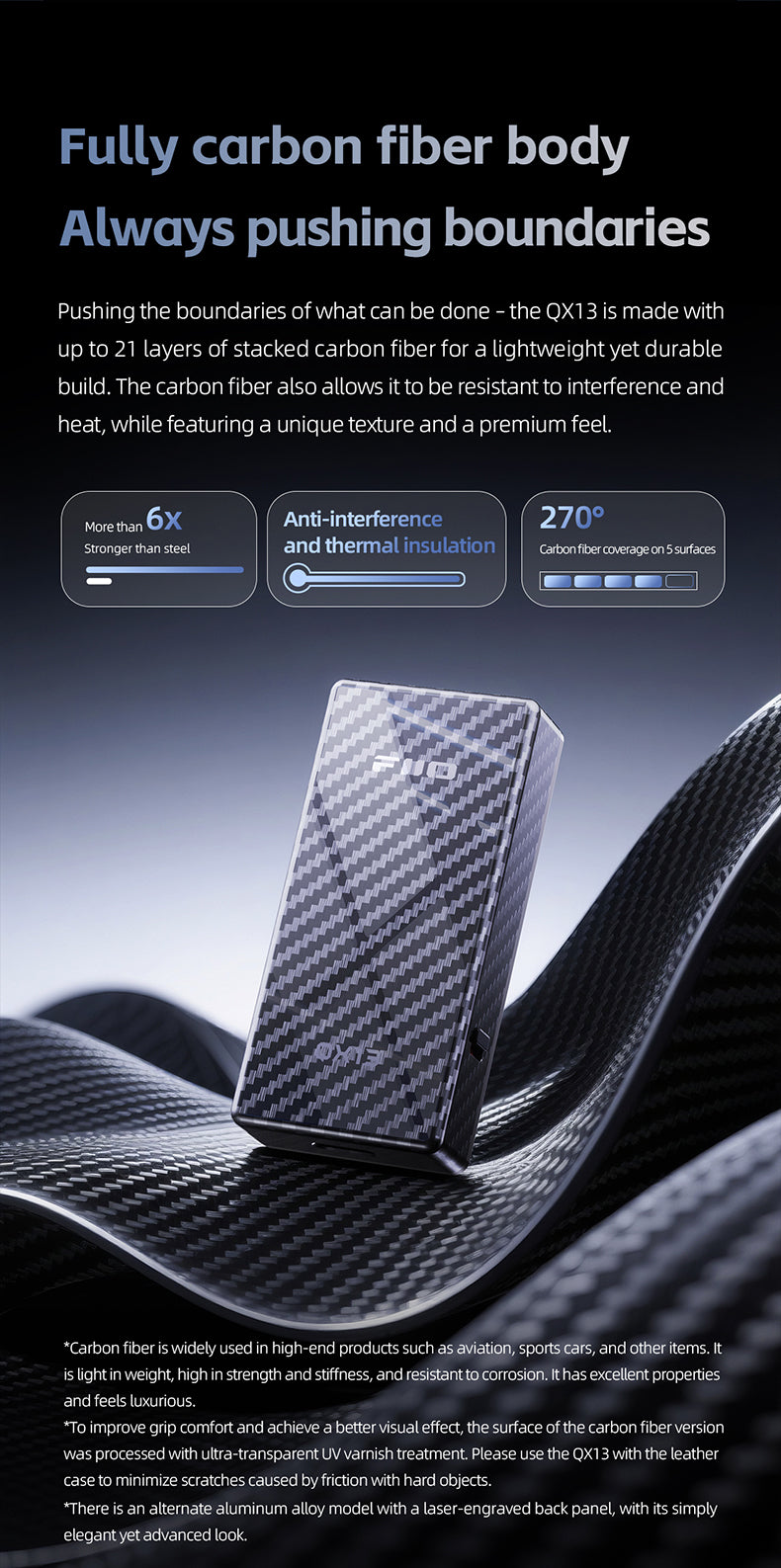

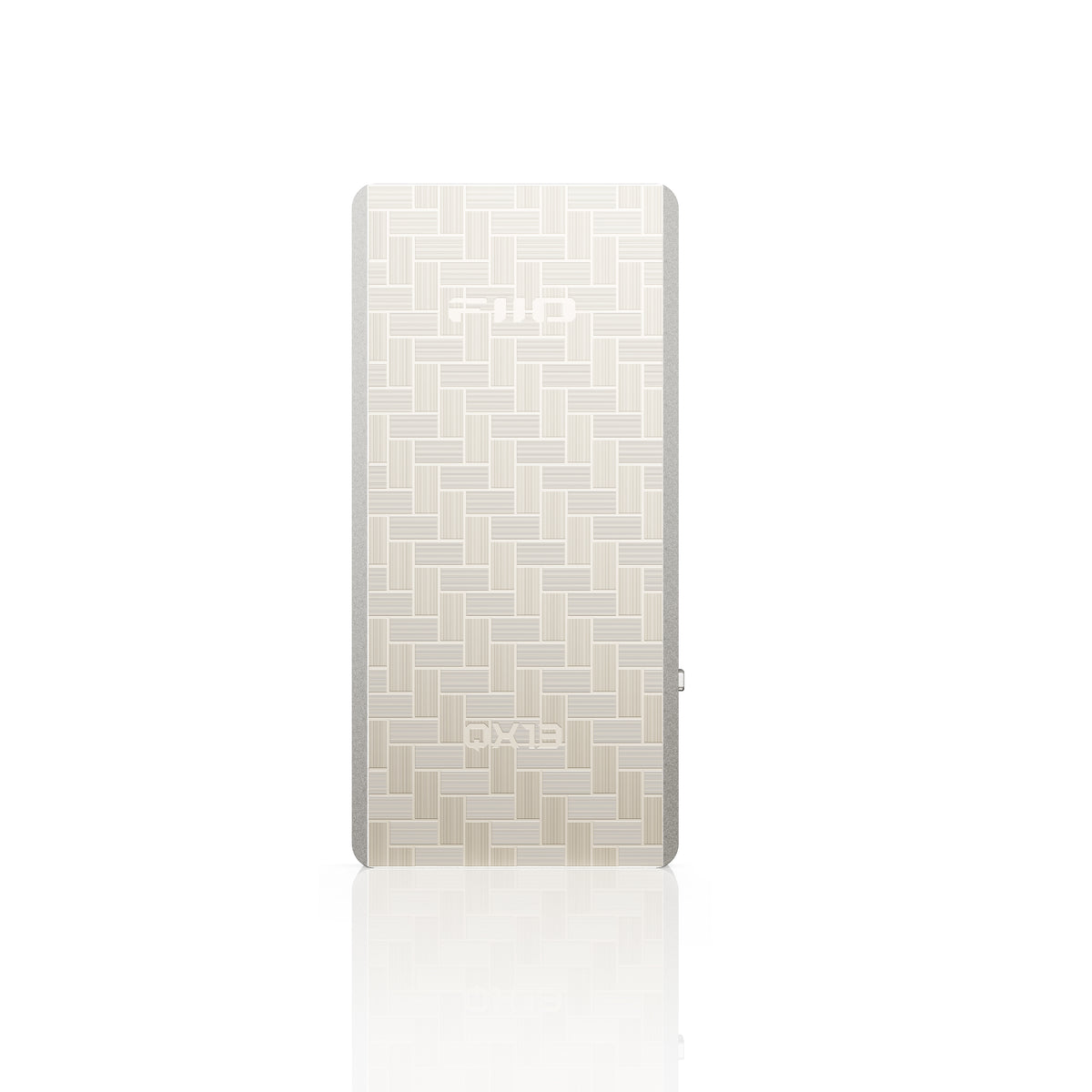

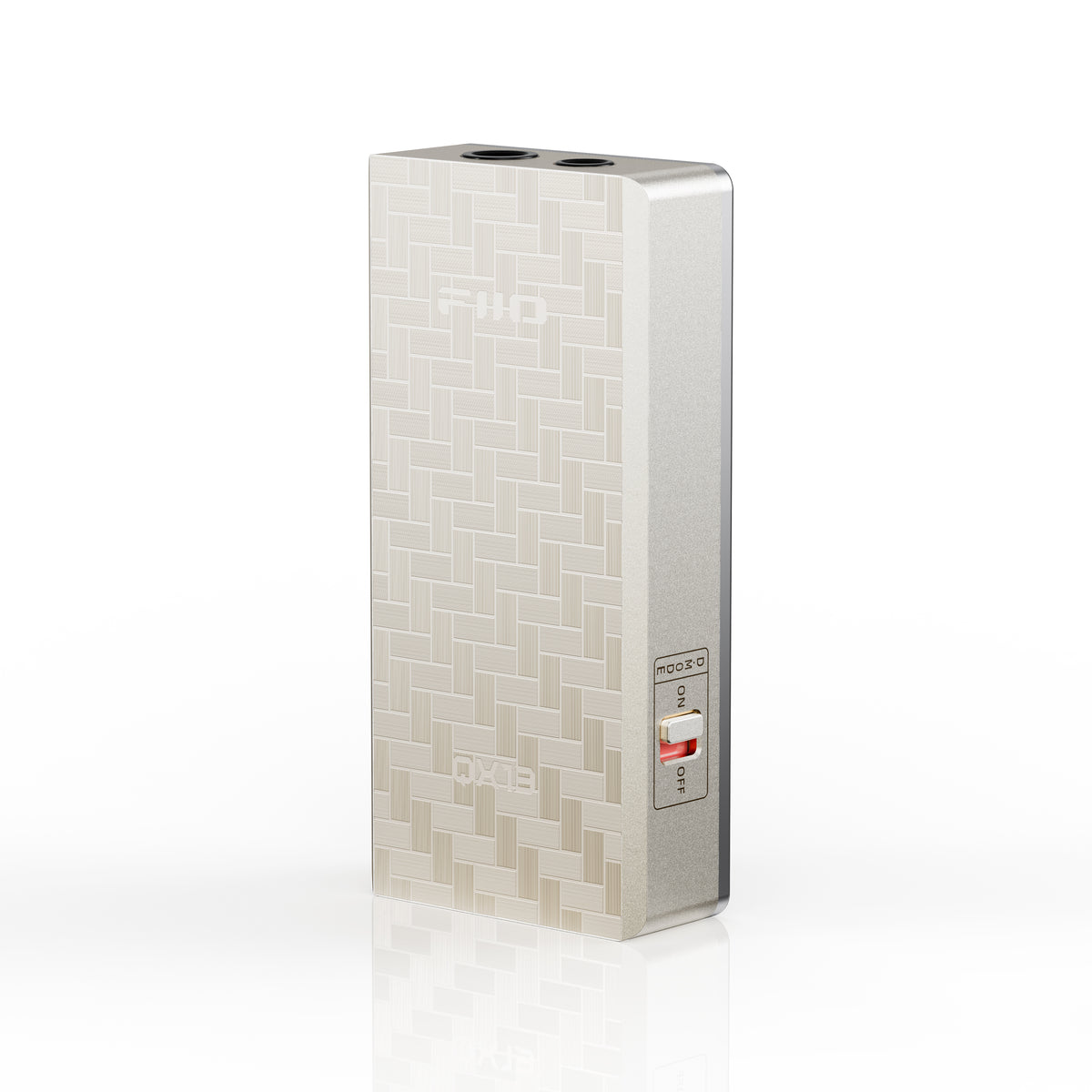

The black carbon fiber version uses up to 21 stacked layers and weighs approximately 1.19 ounces (33.7g). Carbon fiber covers five surfaces, giving the body its distinctive woven appearance. The titanium-colored aluminum alloy version features a laser-engraved back panel and weighs approximately 1.38 ounces (39.2g). An included leather case helps protect either version during daily use.

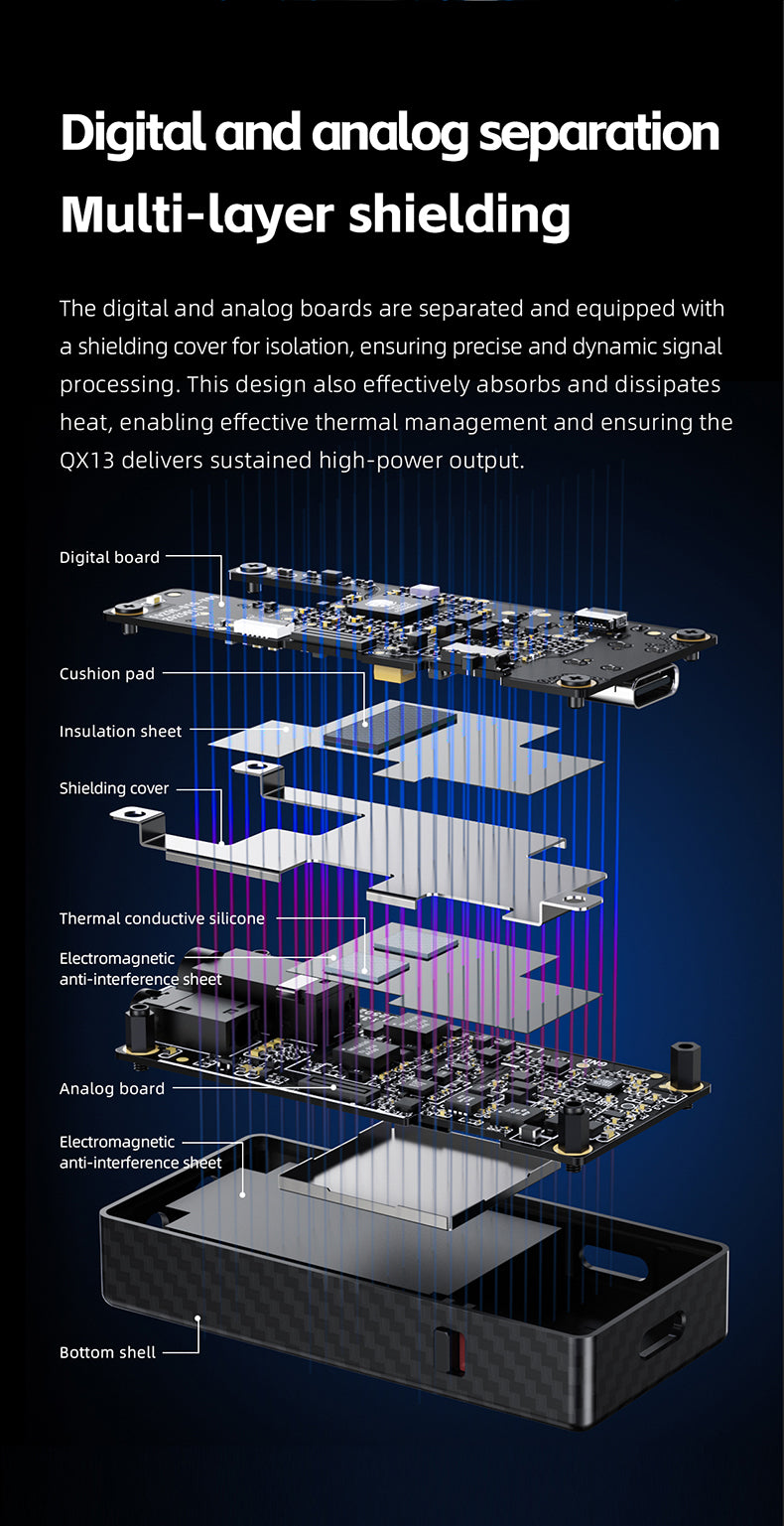

Separate boards with layered shielding

The digital and analog circuits occupy separate boards with a shielding cover between them. Insulation, electromagnetic interference sheets, and thermally conductive silicone help isolate the circuits and move heat away from internal components. This layered construction supports sustained high-power operation.

Headphone and digital connections

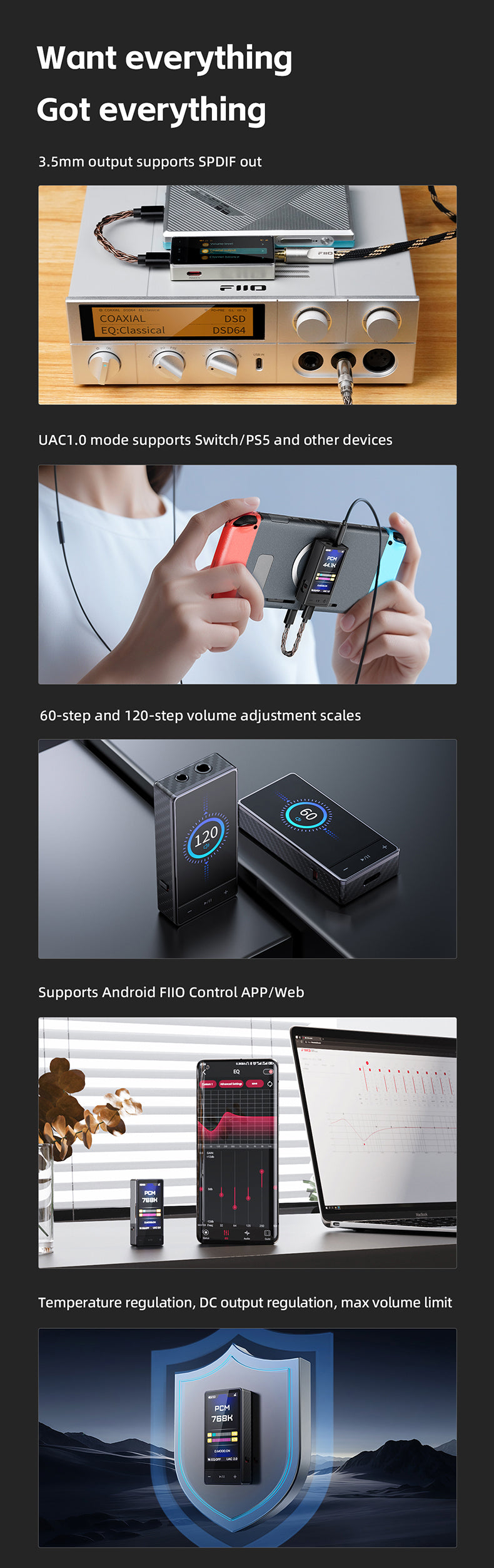

Connect headphones through the 3.5mm single-ended or 4.4mm balanced output. The 3.5mm connection also supports coaxial S/PDIF output for feeding an external DAC. UAC 1.0 mode adds compatibility with devices including Nintendo Switch and PlayStation 5.

Magnetic mounting for your phone

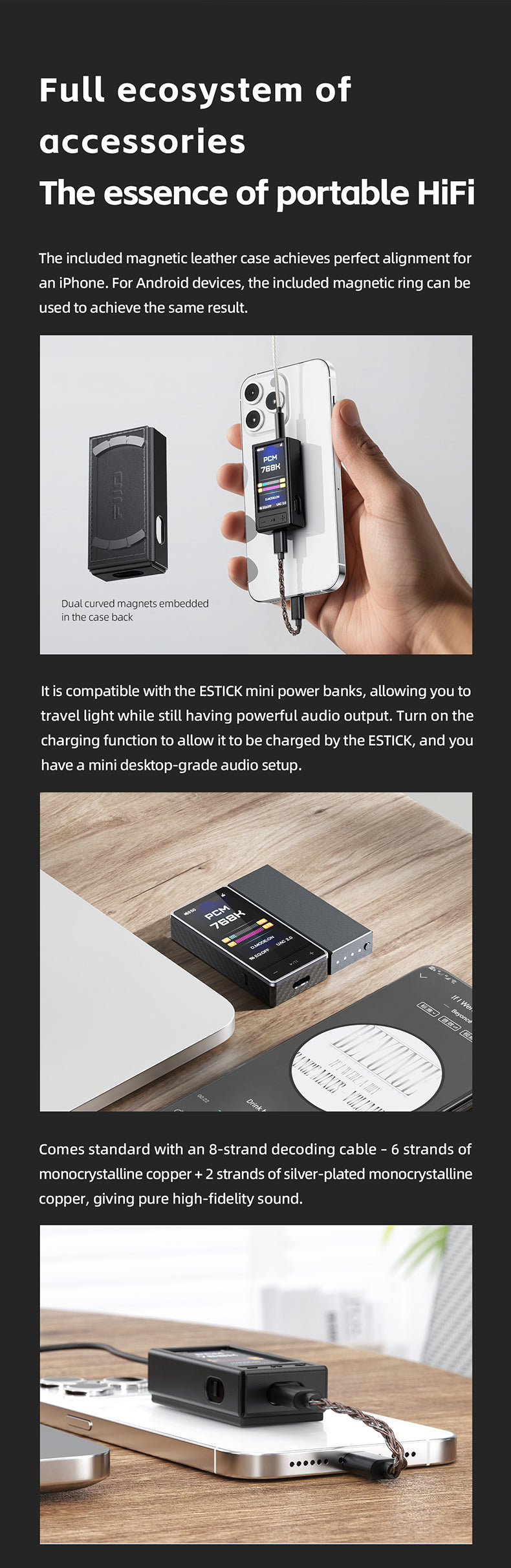

The supplied leather case contains dual curved magnets for attachment to a compatible iPhone. An included magnetic ring provides an attachment option for Android devices. The supplied USB-C cable uses six strands of monocrystalline copper and two strands of silver-plated monocrystalline copper. Compatibility with ESTICK mini power banks provides another external power option for portable use.

Controls for everyday listening

Adjust gain, digital filters, channel balance, and display brightness through the QX13’s controls. Temperature regulation, DC output regulation, and a maximum volume limit provide additional control over operation and listening levels.

Product highlights

• ESS ES9027SPRO eight-channel DAC

• Four TI INA1620 chips and two OPA1692 op-amps

• 900mW per channel balanced output into 32Ω in desktop mode

• Dedicated USB-C port for external power

• XMOS XU316 with PCM 768kHz/32-bit and native DSD512 support

• 10-band parametric EQ through Android app or web controls

• 1.99-inch IPS color display with customizable themes

• 3.5mm single-ended and 4.4mm balanced headphone outputs

• Coaxial S/PDIF output through the 3.5mm connection

• UAC 1.0 support for Nintendo Switch and PlayStation 5

• Carbon fiber and aluminum alloy body options

• Magnetic leather case and USB-C cable included

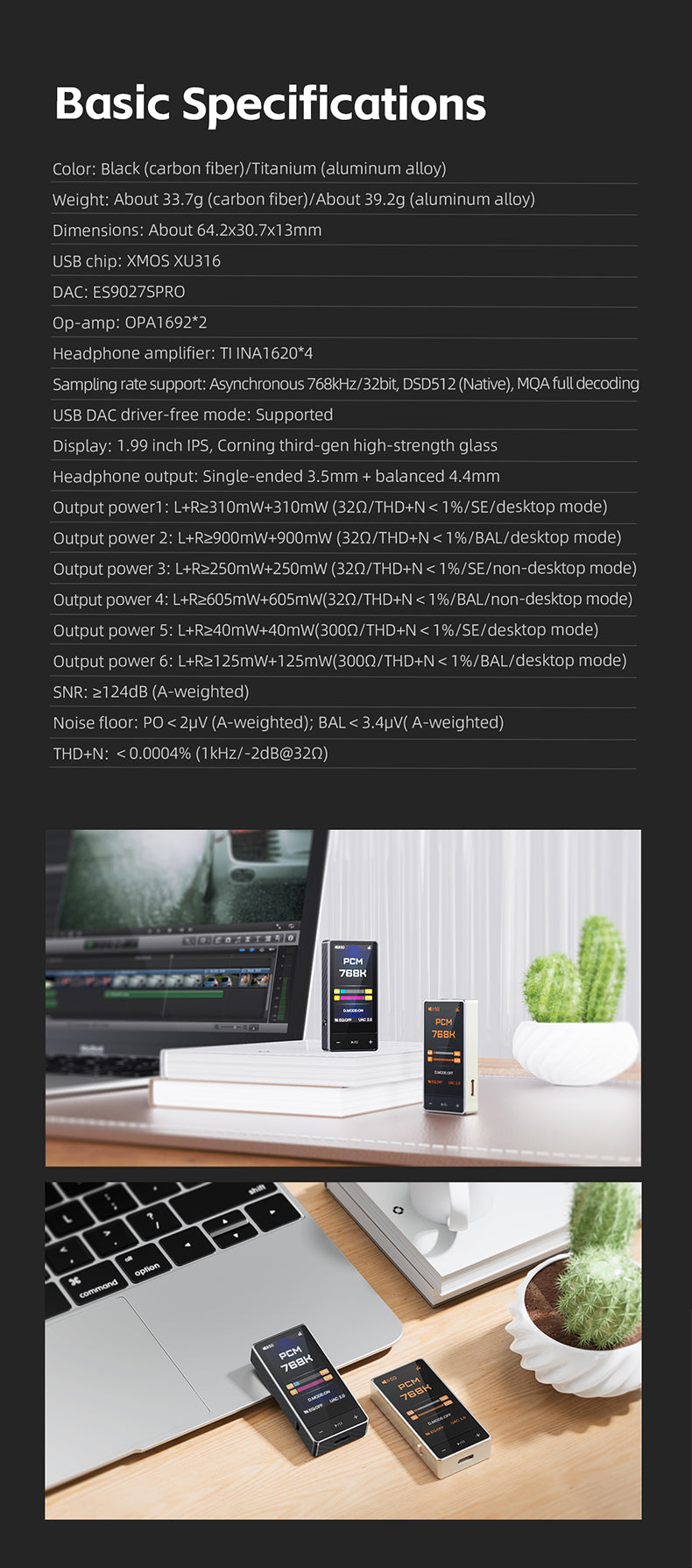

Specs

• Product type: Portable DAC and headphone amplifier

• Colors and materials: titanium-colored aluminum alloy

• Dimensions: Approximately 2.53 × 1.21 × 0.51 inches (64.2 × 30.7 × 13mm)

• Weight, aluminum alloy: Approximately 1.38 ounces (39.2g)

• USB processor: XMOS XU316

• DAC: ESS ES9027SPRO

• Op-amps: 2 × OPA1692

• Headphone amplifier chips: 4 × TI INA1620

• PCM support: Up to 768kHz/32-bit, asynchronous

• DSD support: Native DSD512

• MQA: Full decoding

• PEQ: 10-band parametric EQ

• Maximum playback with PEQ enabled: PCM 192kHz/24-bit

• USB DAC driver-free mode: Supported

• Display: 1.99-inch IPS with third-generation Corning high-strength glass

• Headphone outputs: 3.5mm single-ended and 4.4mm balanced

• Digital output: Coaxial S/PDIF through the 3.5mm output

• USB-C connections: Data/power port and dedicated external power port

• Desktop mode output, single-ended, 32Ω: ≥310mW + 310mW, THD+N <1%

• Desktop mode output, balanced, 32Ω: ≥900mW + 900mW, THD+N <1%

• Non-desktop mode output, single-ended, 32Ω: ≥250mW + 250mW, THD+N <1%

• Non-desktop mode output, balanced, 32Ω: ≥605mW + 605mW, THD+N <1%

• Desktop mode output, single-ended, 300Ω: ≥40mW + 40mW, THD+N <1%

• Desktop mode output, balanced, 300Ω: ≥125mW + 125mW, THD+N <1%

• Signal-to-noise ratio: ≥124dB, A-weighted

• Noise floor, single-ended: <2μV, A-weighted

• Noise floor, balanced: <3.4μV, A-weighted

• THD+N: <0.0004% at 1kHz, -2dB, 32Ω

• Volume adjustment: Selectable 60-step or 120-step scales

• Control software: Android FiiO Control app and web-based controls

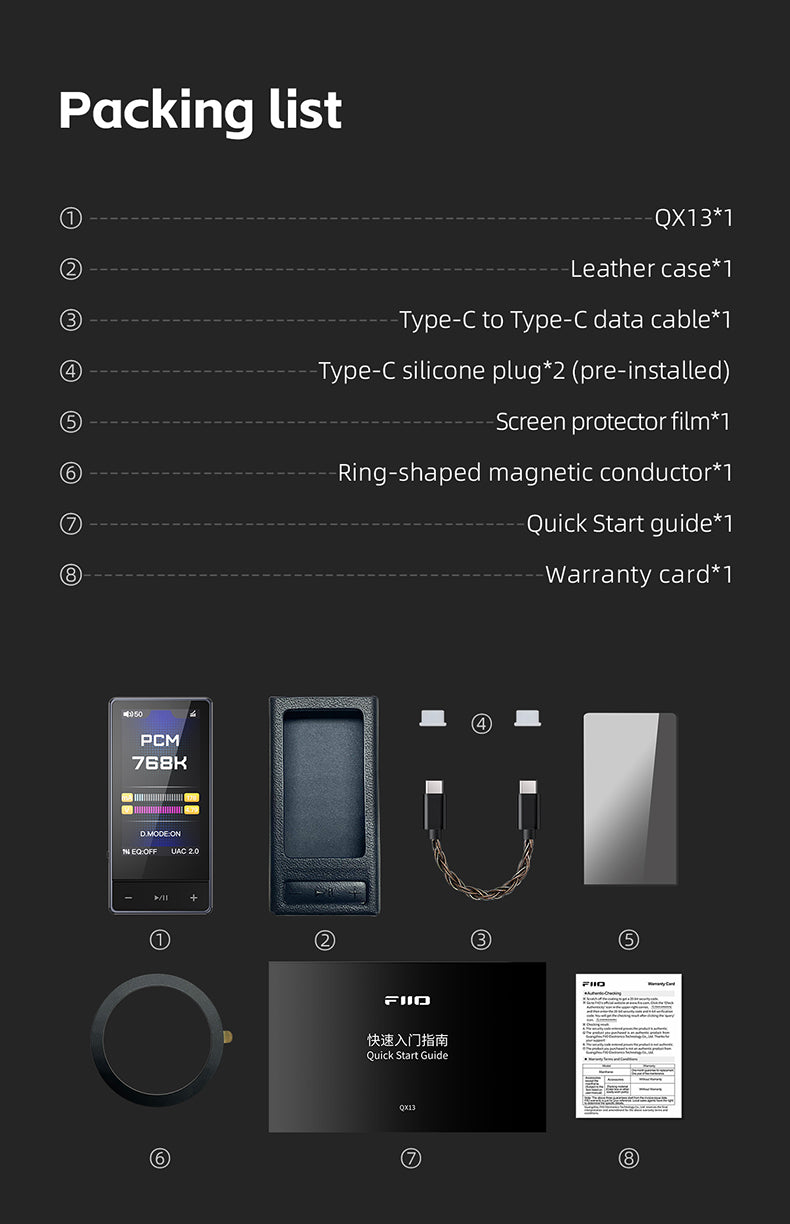

What’s included

• FiiO QX13 × 1

• Magnetic leather case × 1

• USB-C to USB-C data cable × 1

• USB-C silicone plugs × 2, pre-installed

• Screen protector film × 1

• Ring-shaped magnetic conductor × 1

• Quick start guide × 1

• Warranty card × 1
