Femto clock USB audio interface

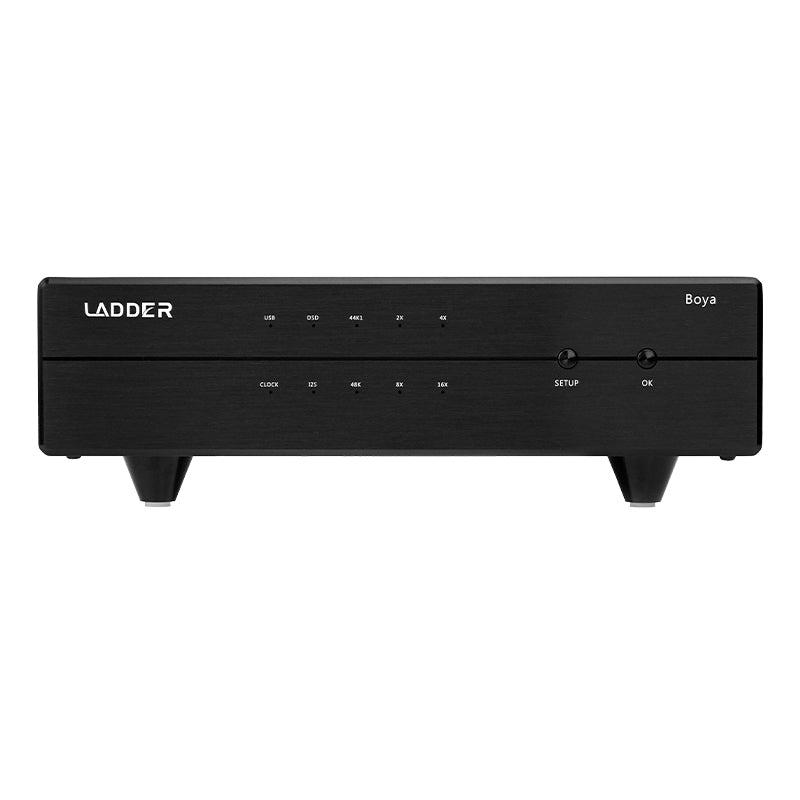

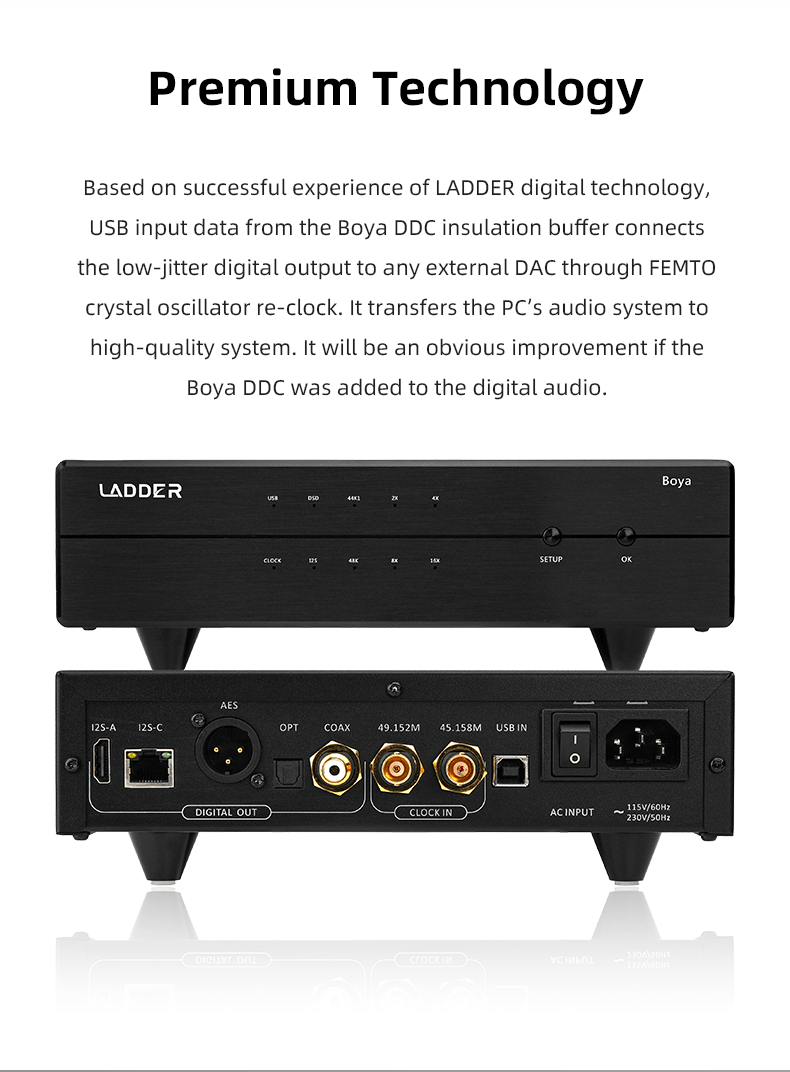

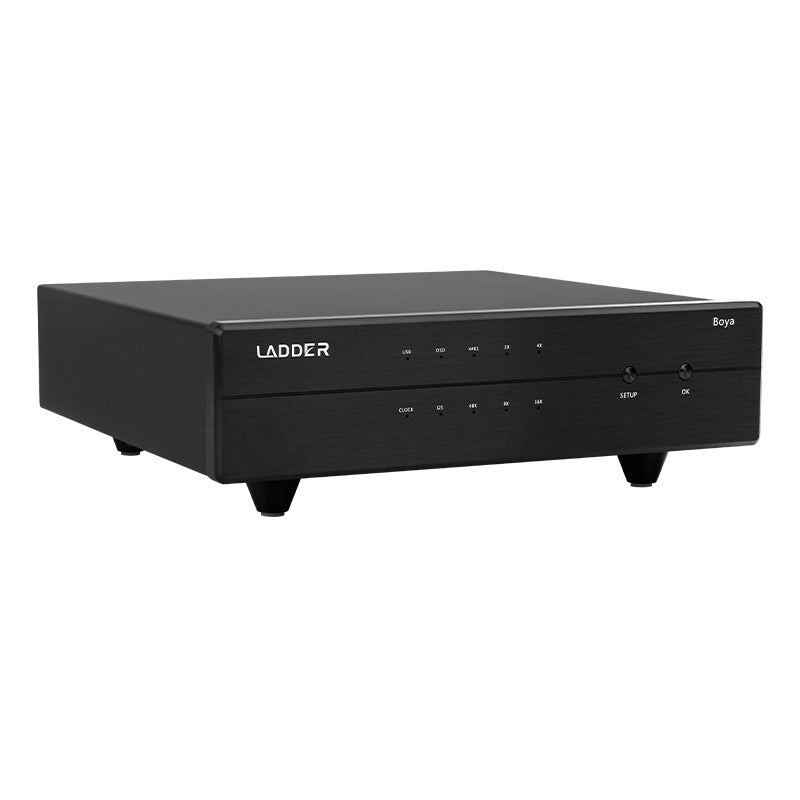

The LADDER Boya is a desktop USB digital audio interface (DDC) built to feed a cleaner, re-clocked digital signal to an external DAC. It takes USB 2.0 Type-B from your computer and outputs multiple digital formats—coax, optical, AES/EBU, and I2S—backed by FPGA DSP processing, FIFO buffering, and dual FEMTO clocks.

Make your computer a better digital source

If you listen from a PC, the Boya sits between your computer and DAC and handles the USB audio side with dedicated hardware. The goal is straightforward: stable data flow, clock recovery, and a regenerated digital output your DAC can lock to cleanly.

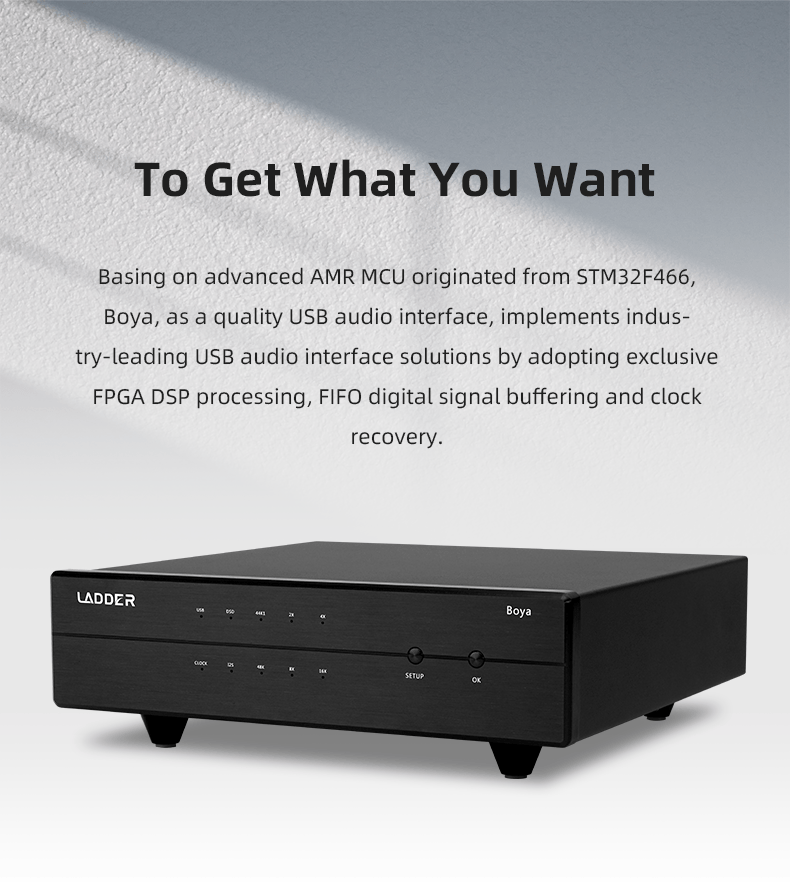

FIFO buffering and FPGA DSP processing

USB audio can arrive in bursts. Boya uses FIFO digital signal buffering and FPGA DSP processing to smooth the handoff, reduce timing irregularities, and keep the outgoing digital stream steady when your computer is doing computer things in the background.

Dual FEMTO clocks for re-clocking

The Boya re-clocks the outgoing signal with dual FEMTO oscillators: one for 44.1kHz and one for the 48kHz. That matters when you bounce between 44.1kHz music and 48kHz video because it means less clock confusion and fewer compromises.

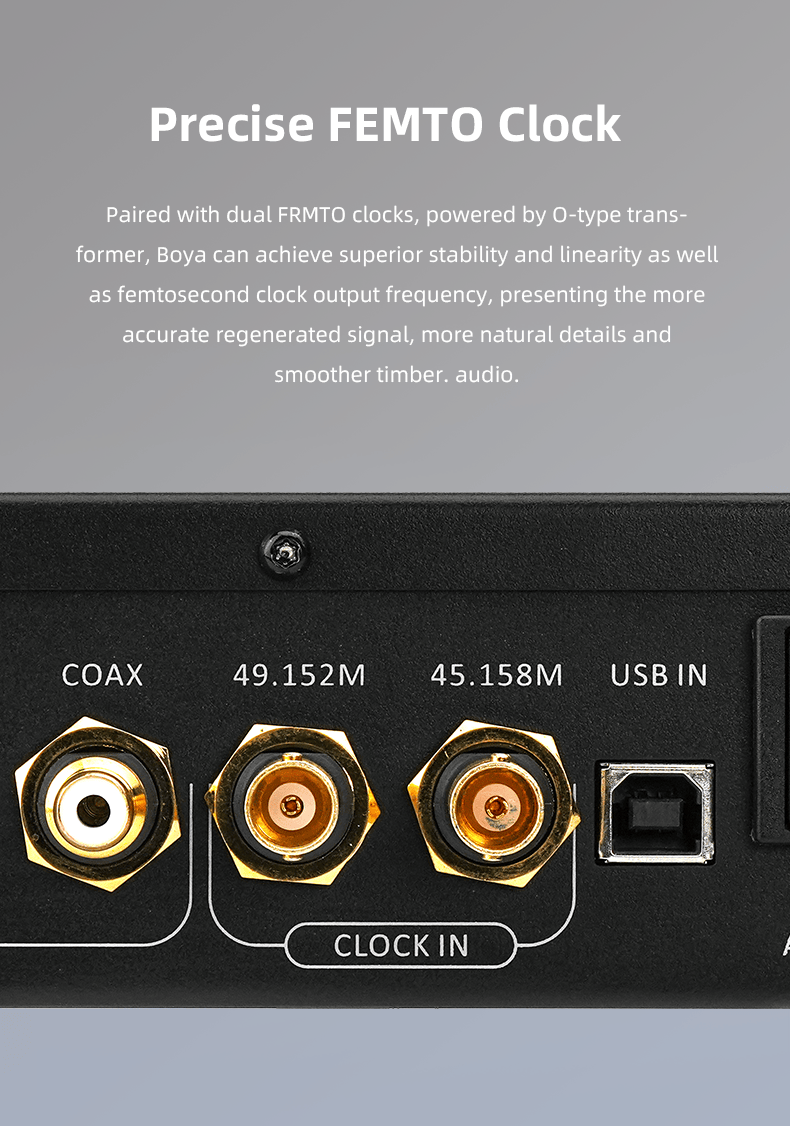

External 45.1548MHz and 49.152MHz clock input

If you run a master clock, the Boya includes clock inputs for 45.1548MHz and 49.152MHz. In a clocked digital chain, that gives you a clear place to anchor timing across devices without forcing everything to free-run.

Outputs that match how your DAC actually connects

The Boya gives you multiple digital outs so you can use the connection your DAC performs best with: coaxial S/PDIF, optical TOSLink, AES/EBU, or I2S. It's useful if you own more than one DAC, swap gear often, or just want to compare inputs without rewiring your whole setup.

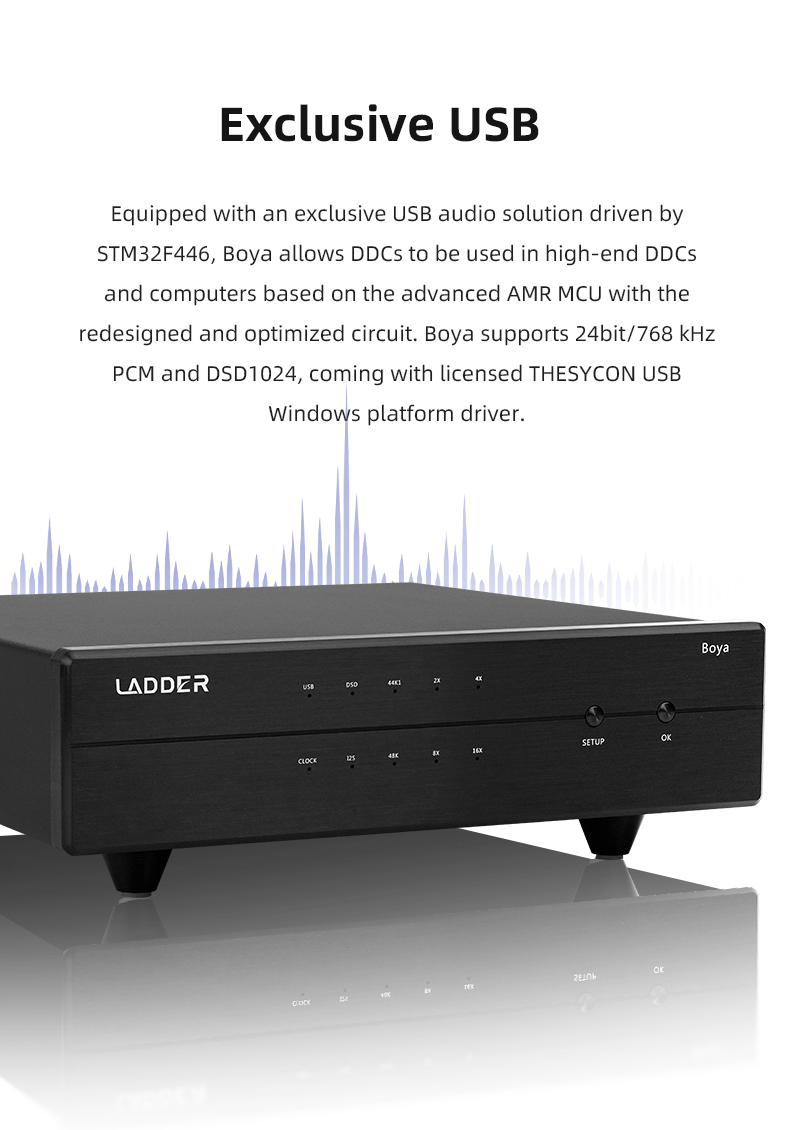

Windows driver support from Thesycon

For Windows, the Boya includes a licensed USB audio driver from Thesycon, which gives you stable USB audio performance, wide sample-rate support, and the kind of driver foundation you need when you're pushing high-rate PCM and DSD from a PC.

Product highlights

• Desktop USB DDC for feeding an external DAC

• USB input with insulation buffer, FIFO buffering, and clock recovery

• Dual FEMTO clocks for regenerated digital output

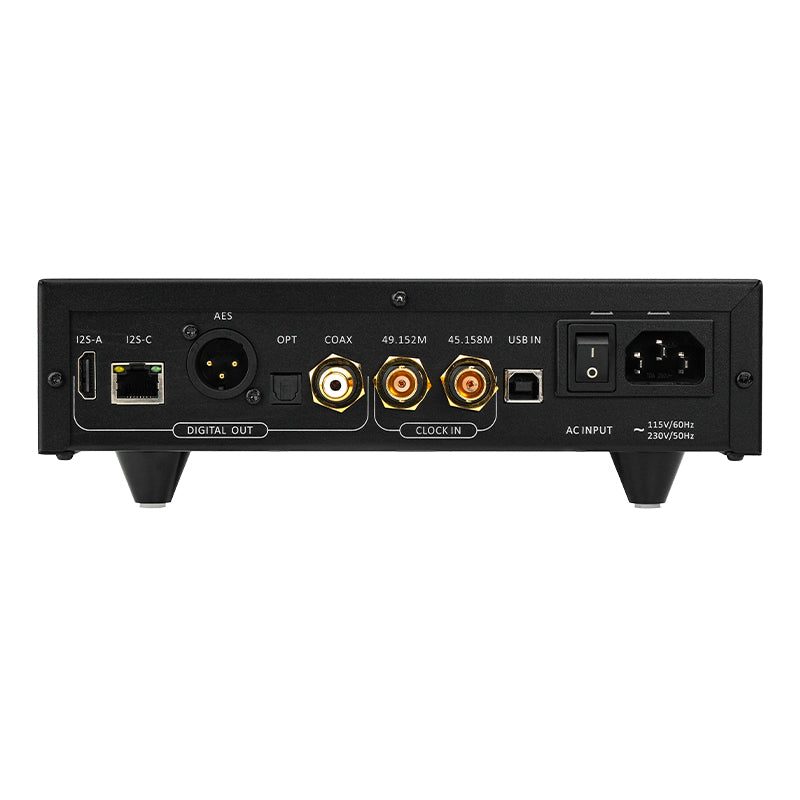

• Digital outputs: coaxial S/PDIF, optical TOSLink, AES/EBU, I2S over HDMI LVDS, I2S over RJ45 LVCMOS

• External clock input support: 45.1548MHz and 49.152MHz

• Windows support with licensed Thesycon USB driver

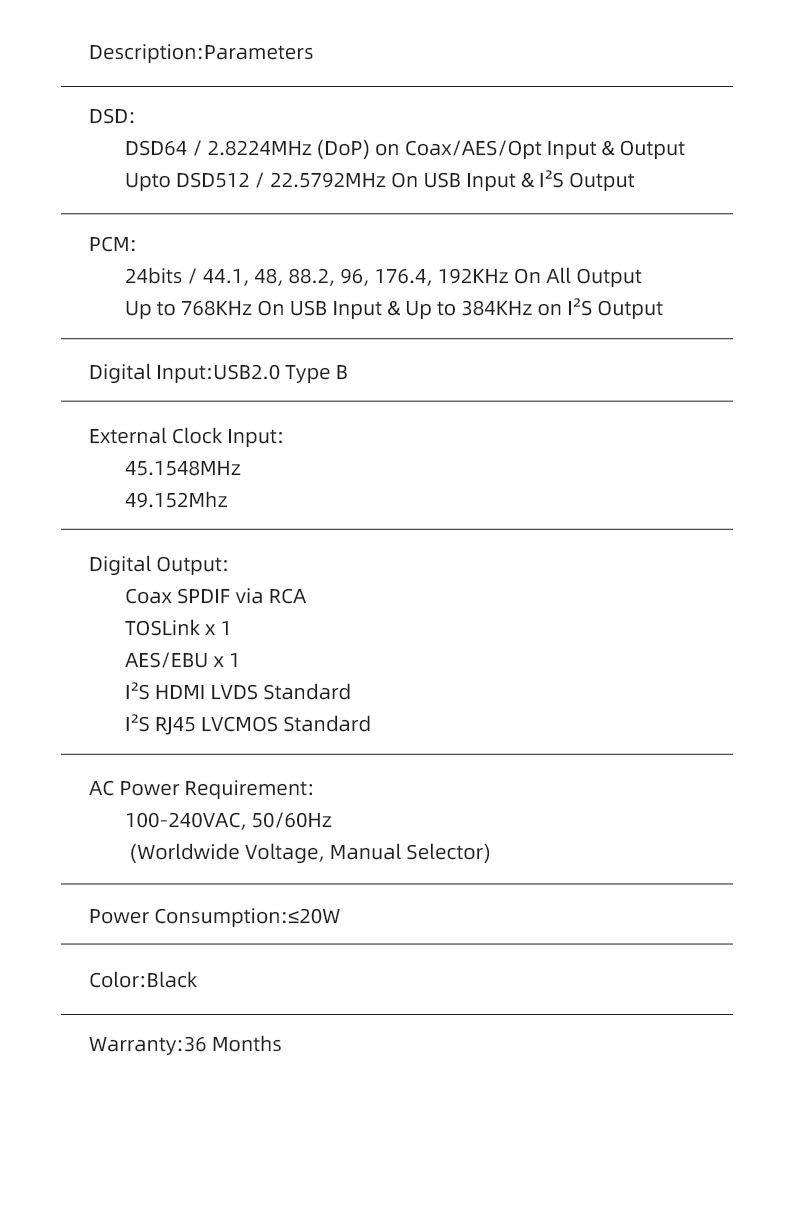

Specs

• Digital input: USB 2.0 Type B

• Digital outputs: Coax S/PDIF via RCA

• Digital outputs: TOSLink x 1

• Digital outputs: AES/EBU x 1

• Digital outputs: I2S HDMI LVDS Standard

• Digital outputs: I2S RJ45 LVCMOS Standard

• External clock input: 45.1548MHz

• External clock input: 49.152MHz

• PCM: 24bits / 44.1, 48, 88.2, 96, 176.4, 192kHz on all output

• PCM: Up to 768kHz on USB input

• PCM: Up to 384kHz on I2S output

• DSD: DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt input & output

• DSD: Up to DSD512 / 22.5792MHz on USB input & I2S output

• AC power requirement: 100–240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)

• Power consumption: ≤20W

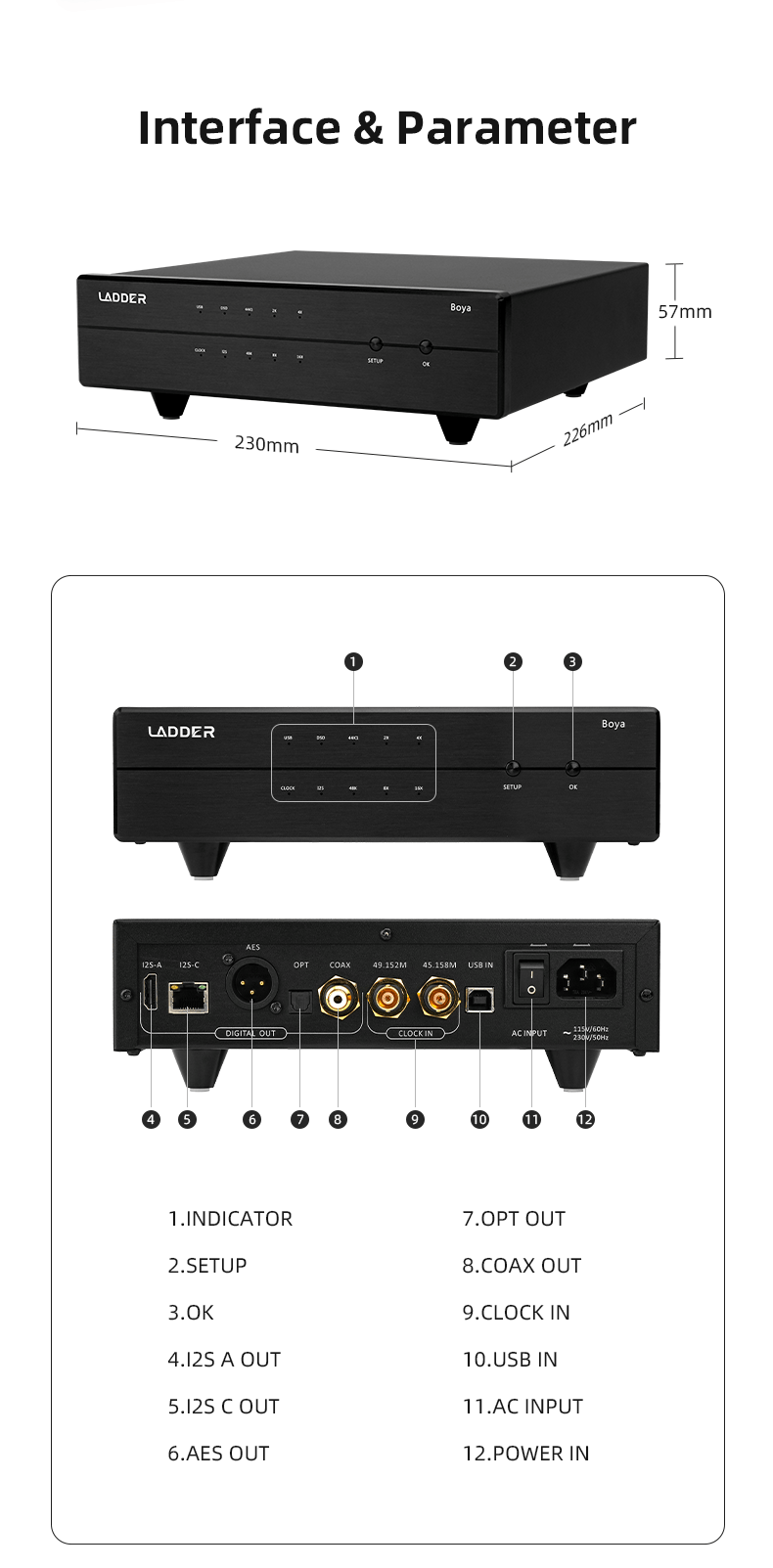

• Dimensions: 9.1 x 8.9 x 2.2 in (230 x 226 x 57 mm)

• Color: Black

• Warranty: 36 months

What’s included

• LADDER Boya USB audio interface
