fully-balanced Class-A Pre-amplifier

The Ladder Chopin is a fully discrete, pure Class-A line-stage preamplifier designed for transparent analog signal control. Built around a microprocessor-controlled 60-step relay attenuator, it combines precision channel matching with low distortion, balanced and single-ended connectivity, and a robust linear power supply. Its compact aluminum chassis is available in silver or black and is designed to integrate easily into high-performance two-channel audio systems.

Precision relay volume control

The Chopin uses a microprocessor-controlled, relay-based 60-step attenuator instead of a conventional potentiometer. Precision-matched resistors maintain accurate channel balance throughout the volume range while reducing distortion and preserving signal integrity.

Pure Class-A fully discrete circuitry

A fully-discrete Class-A analog circuit provides unity gain with low distortion and wide bandwidth. The differential output stage offers balanced operation with improved common-mode noise rejection for long cable runs and compatible balanced components.

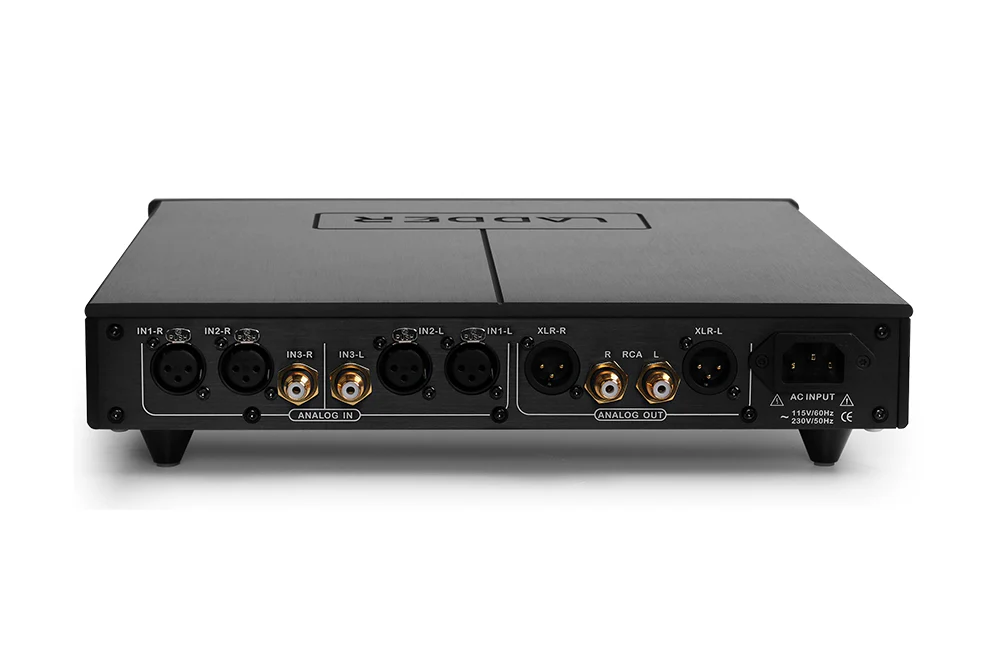

Balanced and single-ended connectivity

The rear panel includes two balanced XLR inputs and one RCA input, allowing easy integration with multiple analog sources. Balanced XLR and single-ended RCA outputs provide flexibility when connecting power amplifiers or downstream components.

Linear power supply

A 65W toroidal transformer works alongside multiple independent regulated power supplies and premium capacitors to deliver stable, low-noise power to the analog circuitry.

Compact aluminum construction

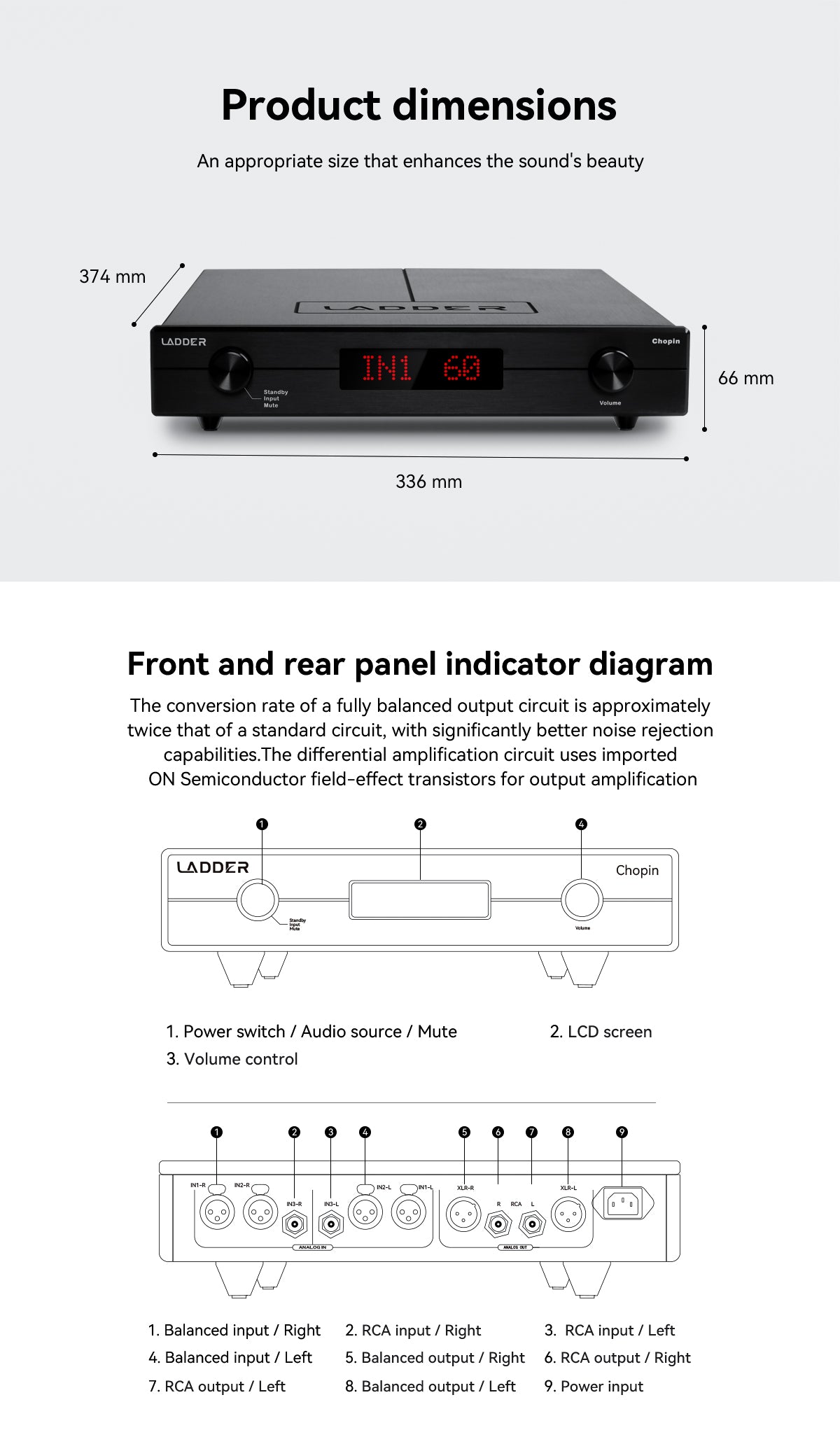

The aluminum alloy enclosure measures just 13.2 x 14.7 x 2.6 inches (336 × 374 × 66 mm), providing a space-efficient footprint without sacrificing internal component layout or power supply capacity.

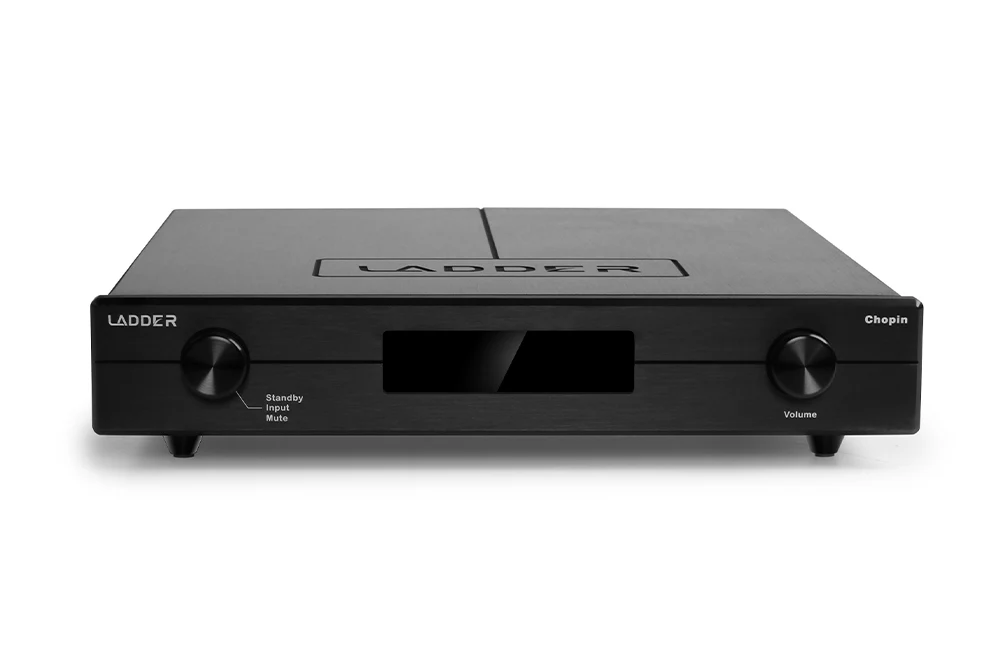

Front panel operation

The front panel combines a clear display with simple controls for power, input selection, mute, and volume adjustment. A remote control is included for convenient operation from the listening position.

Product highlights

• Pure Class-A fully discrete analog line stage

• Fully-balanced differential circuit design

• 60-step relay-based attenuator with microprocessor control

• Two balanced XLR inputs and one RCA input

• Balanced XLR and RCA outputs

• 65W toroidal transformer with eight regulated power supplies

• Precision-matched resistors for accurate channel balance

• Remote control included

• Aluminum alloy chassis

• Available in silver or black

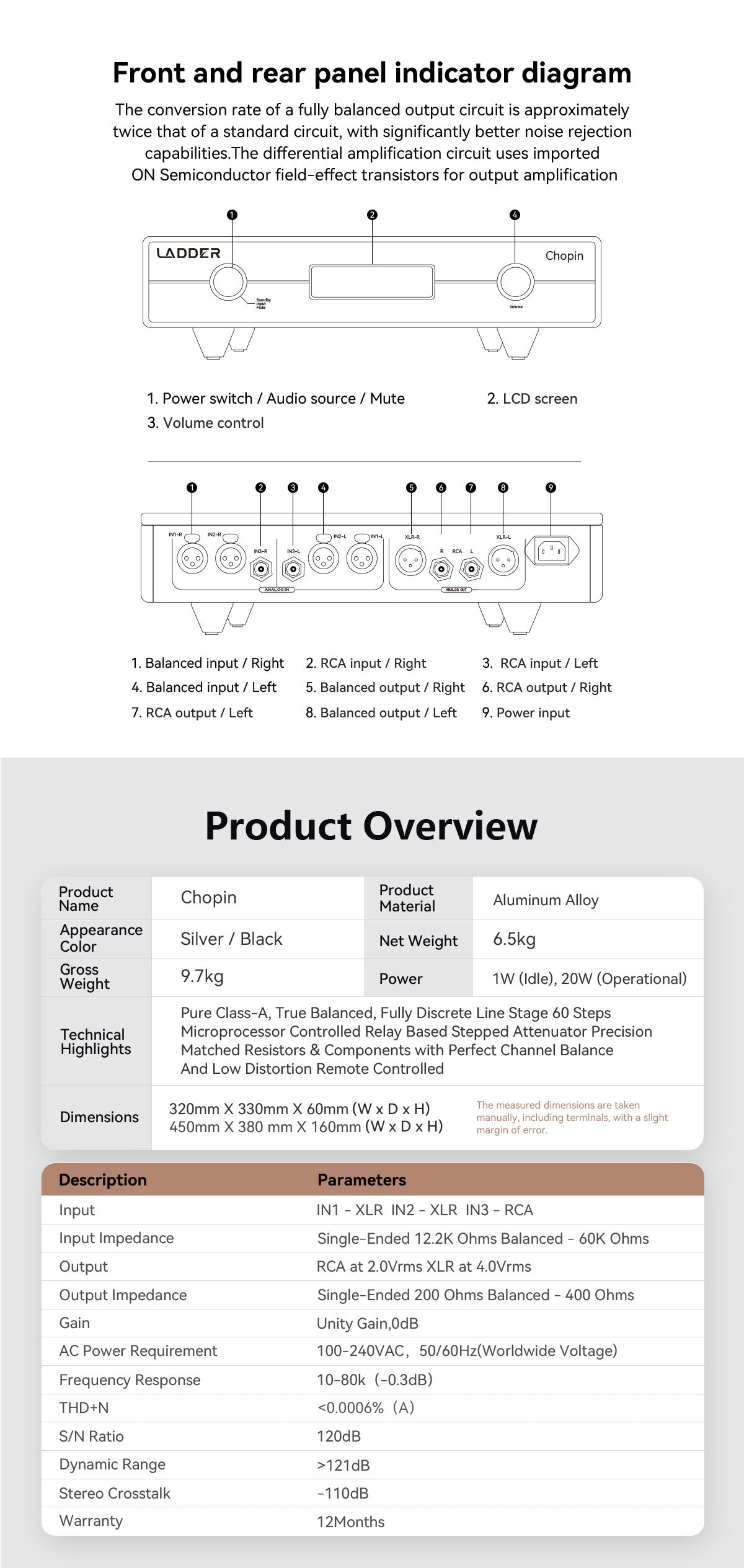

Specs

• Product: Ladder Chopin

• Type: Fully discrete Class-A line-stage preamplifier

• Circuit topology: Fully-balanced differential

• Gain: Unity gain (0dB)

• Inputs: 2 x XLR, 1 x RCA

• Outputs: XLR: 4.0Vrms

• Outputs: RCA: 2.0Vrms

• Input impedance: 60kΩ balanced, 12.2kΩ single-ended

• Output impedance: 400Ω balanced, 200Ω single-ended

• Frequency response: 10Hz–80kHz (-0.3dB)

• THD+N: <0.0006%

• Signal-to-noise ratio: 120dB

• Dynamic range: >121dB

• Stereo crosstalk: -110dB

• Power consumption: 1W idle, 20W operating

• Power requirement: 100–240VAC, 50/60Hz

• Chassis material: Aluminum alloy

• Dimensions: 13.2 x 14.7 x 2.6 inches (336 × 374 × 66 mm)

• Net weight: 14.3 lb (6.5 kg)

• Shipping weight: 21.4 lb (9.7 kg)

• Warranty: 12 months

What’s included

• Ladder Chopin preamplifier

• Remote control

• AC power cable

• User documentation
