Balanced line-stage preamplifier

The Ladder Chopin II is a fully-balanced, fully discrete Class-A line-stage preamplifier with precise analog volume control and low-noise power delivery. It combines XLR and RCA connectivity, a microprocessor-controlled 60-step relay attenuator, precision-matched components, a 65W toroidal transformer, and remote operation in an aluminum-alloy chassis.

Fully-balanced Class-A architecture

The Chopin II uses a fully-balanced differential amplification circuit with discrete field-effect transistors for output amplification. The signal path is designed for strong noise rejection and consistent channel balance, with a specified signal-to-noise ratio of 120 dB and stereo crosstalk of -110 dB.

60-step relay volume control

A microprocessor-controlled, relay-based 60-step attenuator handles volume adjustment. Precision-matched resistors and components support accurate level changes and channel tracking, while the front-panel display provides a clear indication of the selected input and volume setting.

Low-noise linear power supply

A 65W pure-copper toroidal transformer supplies the preamplifier, supported by a bank of ERSE capacitors. Eight independently regulated power supplies distribute power throughout the circuitry to help maintain stable operating conditions and limit electrical noise.

Balanced and single-ended connectivity

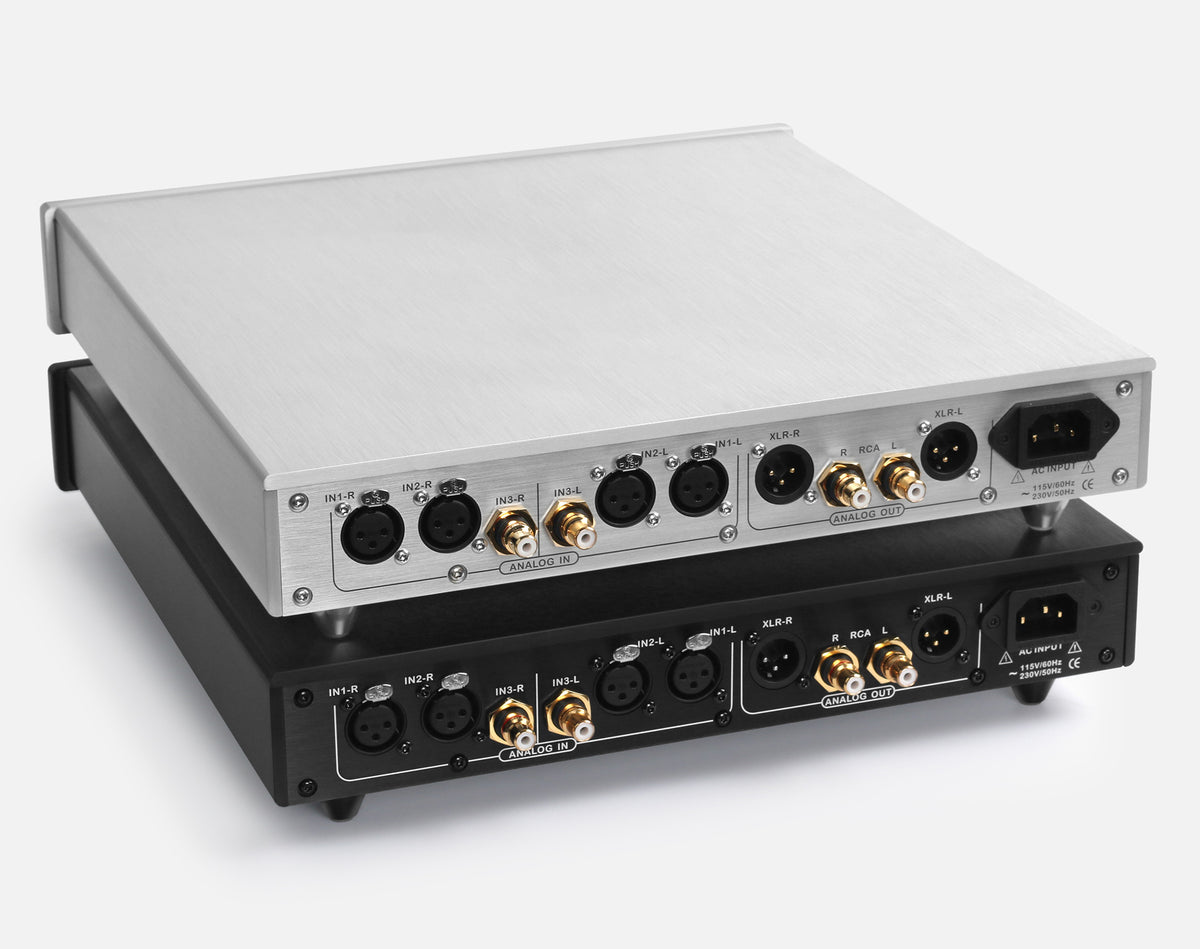

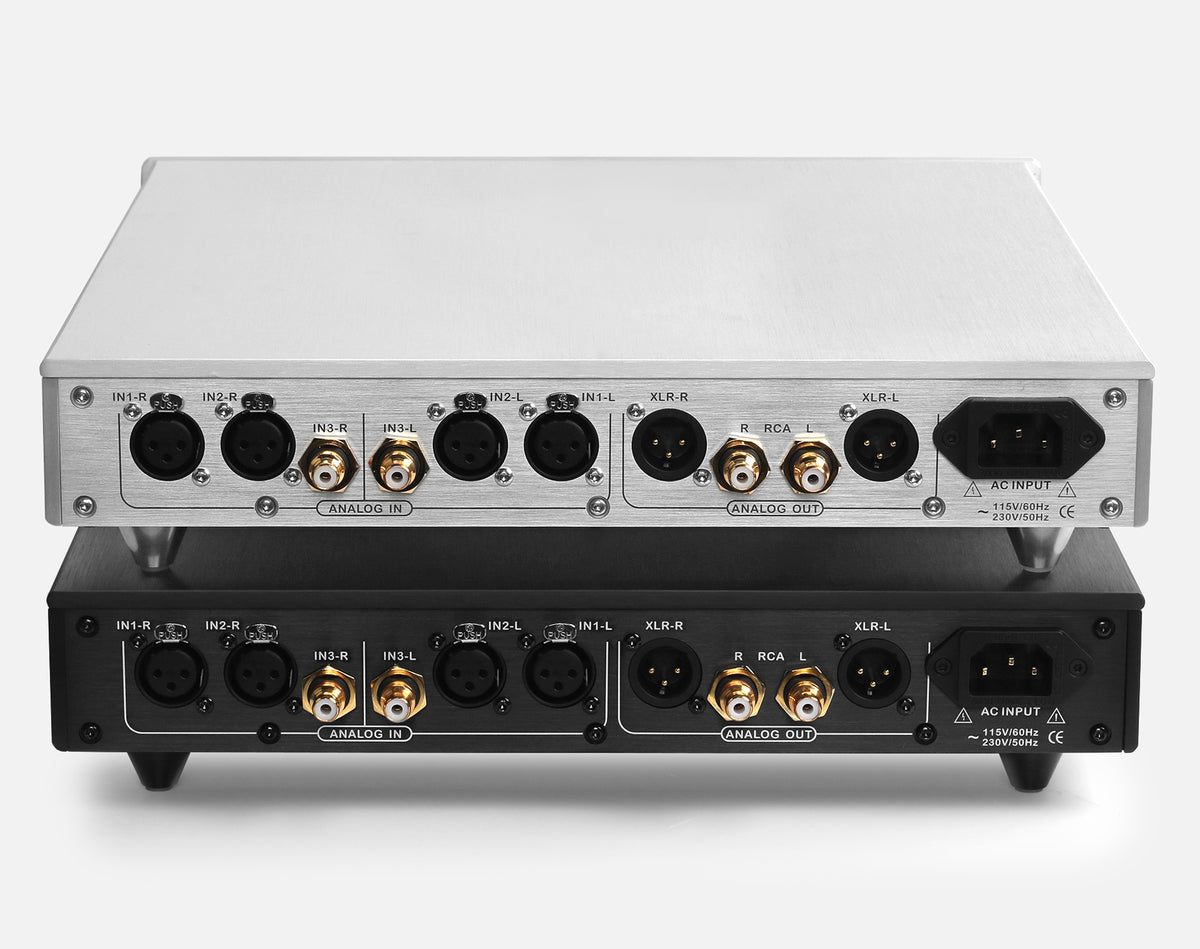

The rear panel provides two balanced XLR input pairs and one RCA input pair for source components. Outputs are available through both balanced XLR and single-ended RCA connections, making the Chopin II suitable for integration with a range of power amplifiers and active audio systems.

Gold-plated RCA terminals

Gold-plated single-crystal copper RCA terminals provide the single-ended analog connections. The connector design complements the preamplifier’s emphasis on precision components throughout the analog signal path.

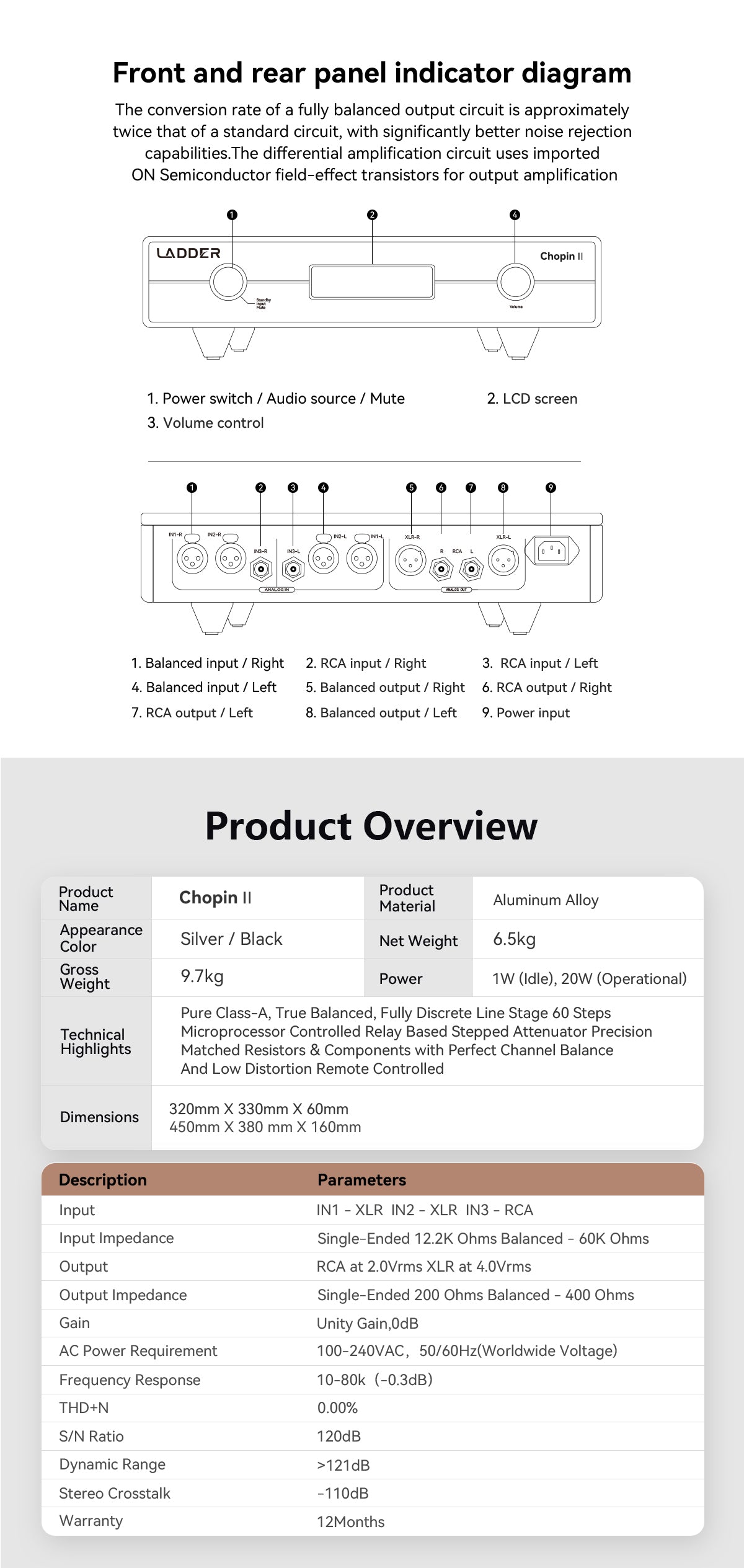

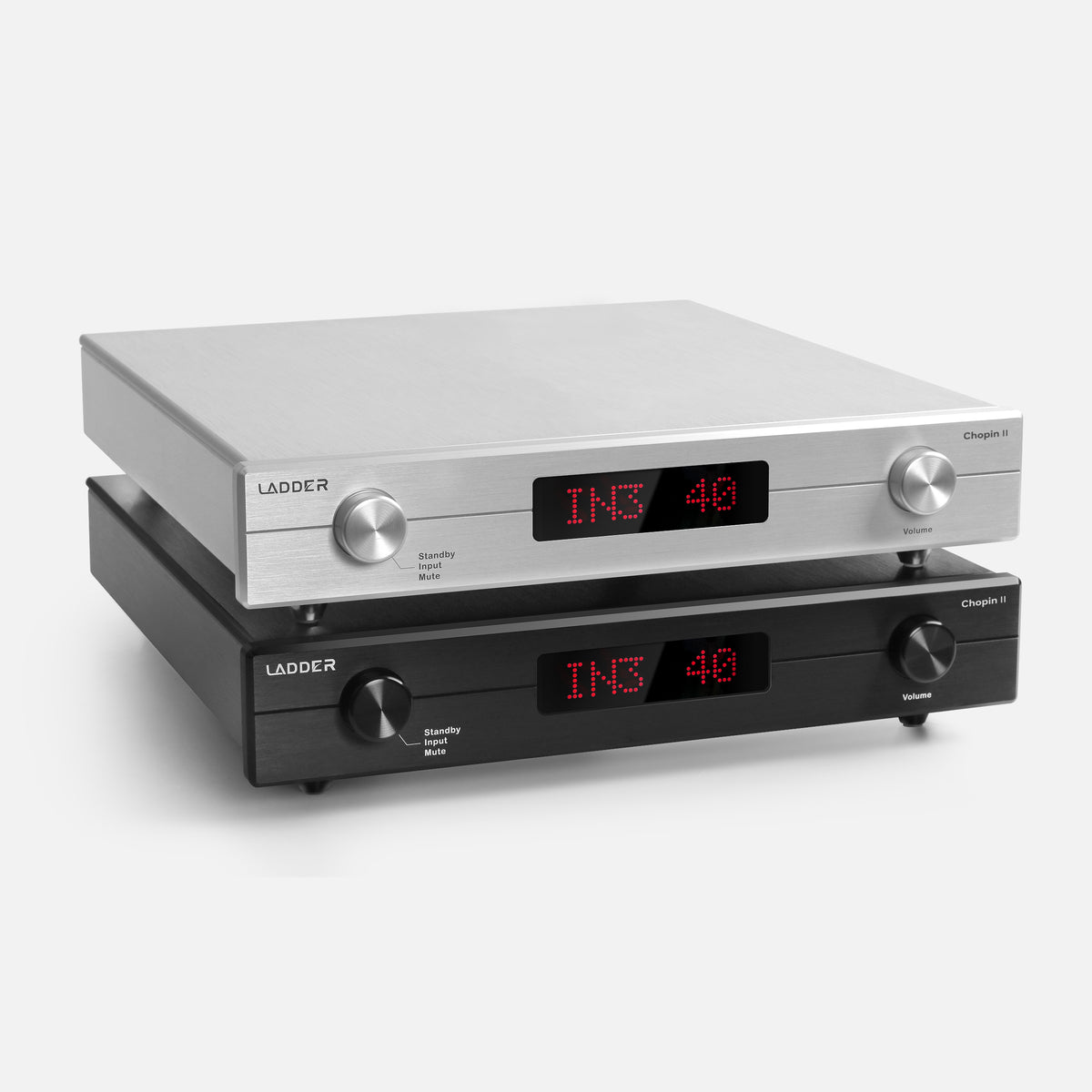

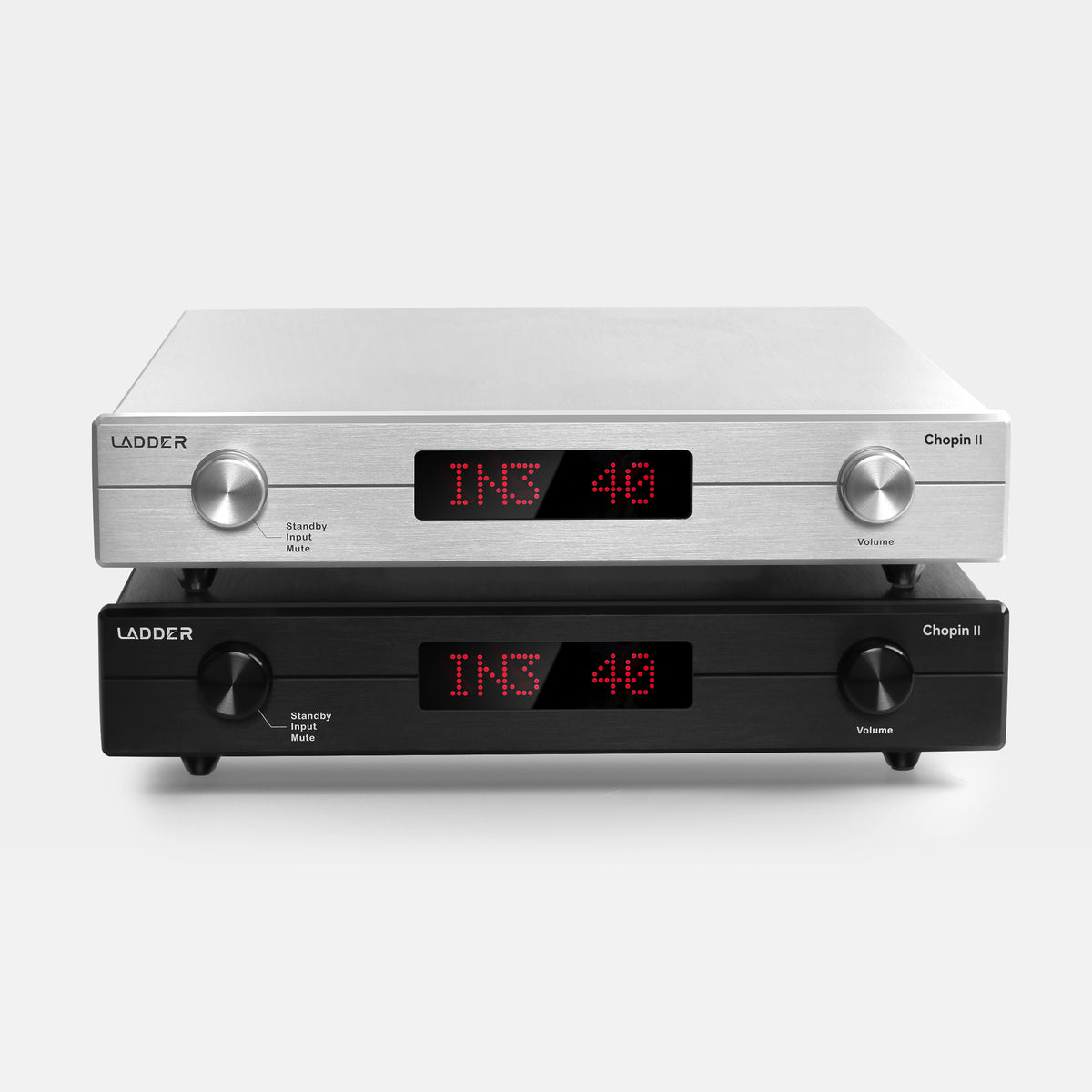

Front-panel controls and display

The left control provides power, source selection, standby, and mute functions, while the right control adjusts volume. A central display shows operating information at a glance. Remote control is also supported for convenient adjustment from the listening position.

Compact aluminum-alloy chassis

The aluminum-alloy enclosure keeps the component relatively compact while accommodating the discrete audio circuitry and substantial linear power supply. The product imagery specifies chassis dimensions of 12.6 x 13.0 x 2.4 in (320 x 330 x 60 mm).

Product highlights

• Pure Class-A, fully discrete line stage

• Fully-balanced differential circuit architecture

• Microprocessor-controlled 60-step relay attenuator

• Precision-matched resistors and components

• 65W pure-copper toroidal transformer

• Eight independently regulated power supplies

• Low-noise ERSE capacitor bank

• Two balanced XLR input pairs

• One stereo RCA input

• Balanced XLR and single-ended RCA outputs

• Gold-plated single-crystal copper RCA terminals

• Front-panel display

• Remote control

• Aluminum-alloy chassis

Specs

• Product name: Ladder Chopin II

• Amplifier architecture: Pure Class-A, fully-balanced, fully discrete line stage

• Volume control: 60-step microprocessor-controlled relay attenuator

• Inputs: 2 x stereo XLR, 1 x stereo RCA

• Input impedance: 12.2 kΩ single-ended, 60 kΩ balanced

• Outputs: Stereo RCA, stereo XLR

• Output level: 2.0 Vrms RCA, 4.0 Vrms XLR

• Output impedance: 200 Ω single-ended, 400 Ω balanced

• Gain: Unity gain, 0 dB

• Frequency response: 10 Hz–80 kHz, -0.3 dB

• THD+N: 0.00% as specified by manufacturer

• SNR: 120 dB

• Dynamic range: Greater than 121 dB

• Stereo crosstalk: -110 dB

• Power supply: 65W toroidal transformer

• AC power requirement: 100–240 VAC, 50/60 Hz

• Power consumption: 1W idle, 20W operational

• Chassis material: Aluminum alloy

• Dimensions: 12.6 x 13.0 x 2.4 in (320 x 330 x 60 mm)

• Net weight: 14.3 lb (6.5 kg)

• Gross weight: 21.4 lb (9.7 kg)

• Available colors: Silver, black

• Warranty: 12 months

What’s included

• Ladder Chopin II preamplifier

• Remote control
