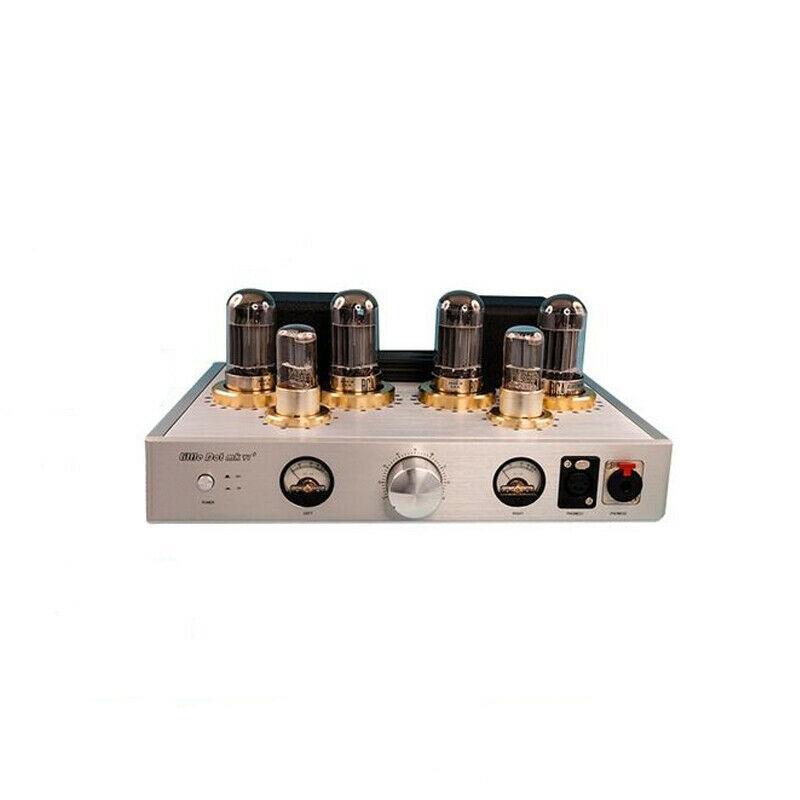

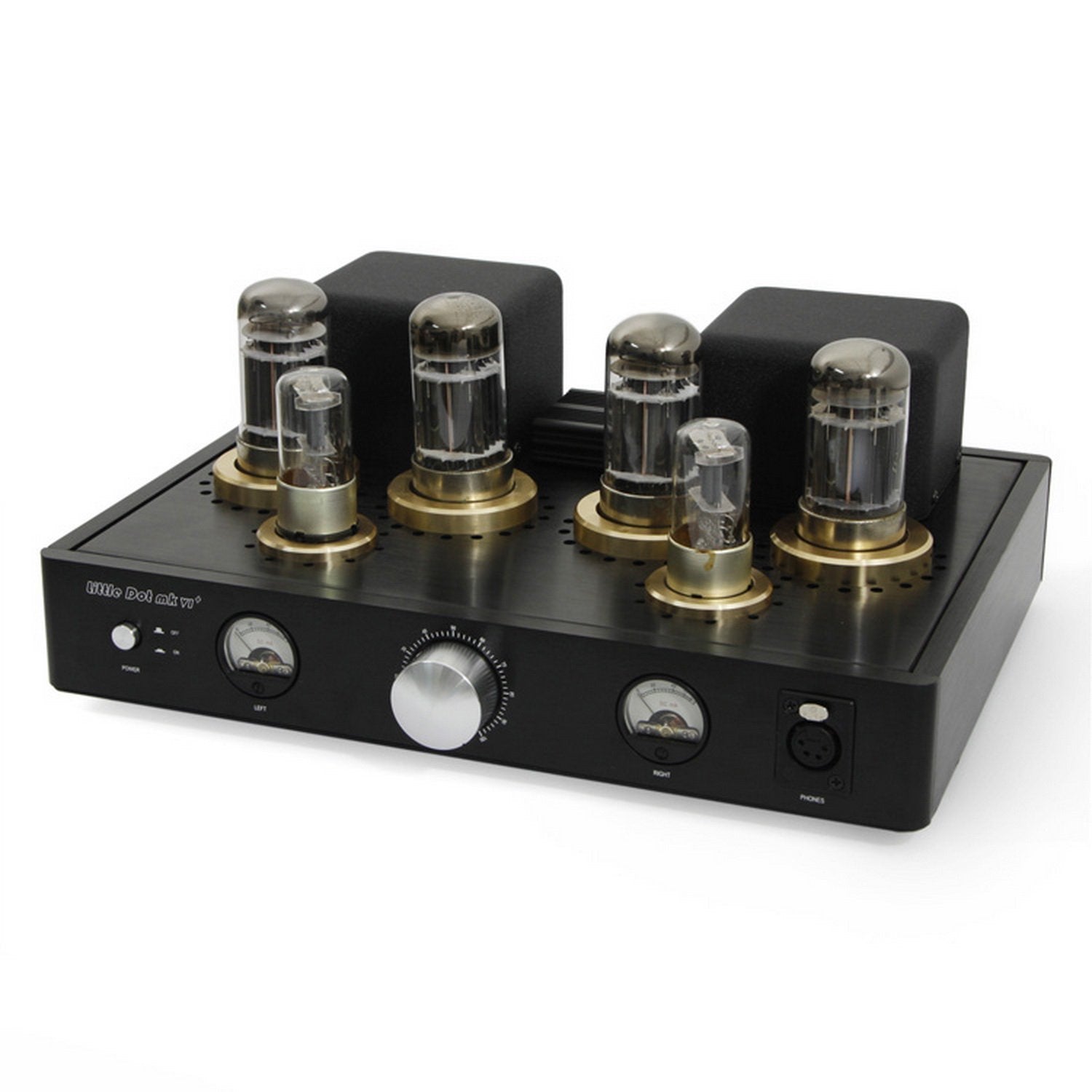

Little Dot MK6+ Tube Amp

$749.99 $854.99

Request A Price Match


The Little Dot MK6+ has a fully balanced architecture with exceptional dynamic range that can produce clean amplitudes of 70V p-p into 120 ohms. This flagship tube amplifier by Little Dot comes with a balanced Class-A SEPP (single-ended push pull) OCL circuit topology that delivers rich tones. It brute forces clean power to maximize dynamics while having a low frequency impact.

Specs:

  • Fully Balanced Architecture
  • SEPP (Single-ended Push Pull) OCL (Output CapacitorLess) in Class-A
  • Active 2 fan cooling
  • Driver Tubes: 2x 6H9C
  • Power Tubes: 4x RCA 6080
  • Inputs: Balanced: 2x 3-pin XLR; Single-ended: 2x RCA
  • Outputs: Balanced: 4-Pin XLR; Balanced Pre-Amp: 2x 3-pin XLR; Single-ended: 1/4" (6.35mm) TRS Stereo jack
  • Frequency Response: 5Hz–80KHz (-3dB), 10Hz–30KHz (-1dB)
  • Input Impedance: 50K ohms
  • Pre-Amplifier Output Impedance: 600 ohms
  • THD+N: 0.02% (2Vrms @ 1000Hz), 0.06% (10Vrms @ 1000Hz), 0.3% (20Vrms @ 1000Hz)
  • Signal-to-Noise: 92 dB
  • User Selectable Gain Settings: Low (10 dB) and High (15 dB)
  • Power Output: 1W per channel into 50 ohms, 5W per channel in 120 ohms
  • Power Consumption: 25 VA
  • Dimensions: 13.8 x 11.4 x 5.5 in (350 x 290 x 140 mm)
  • Weight: 21 lbs (9.6 kg)
