Musetec Audio

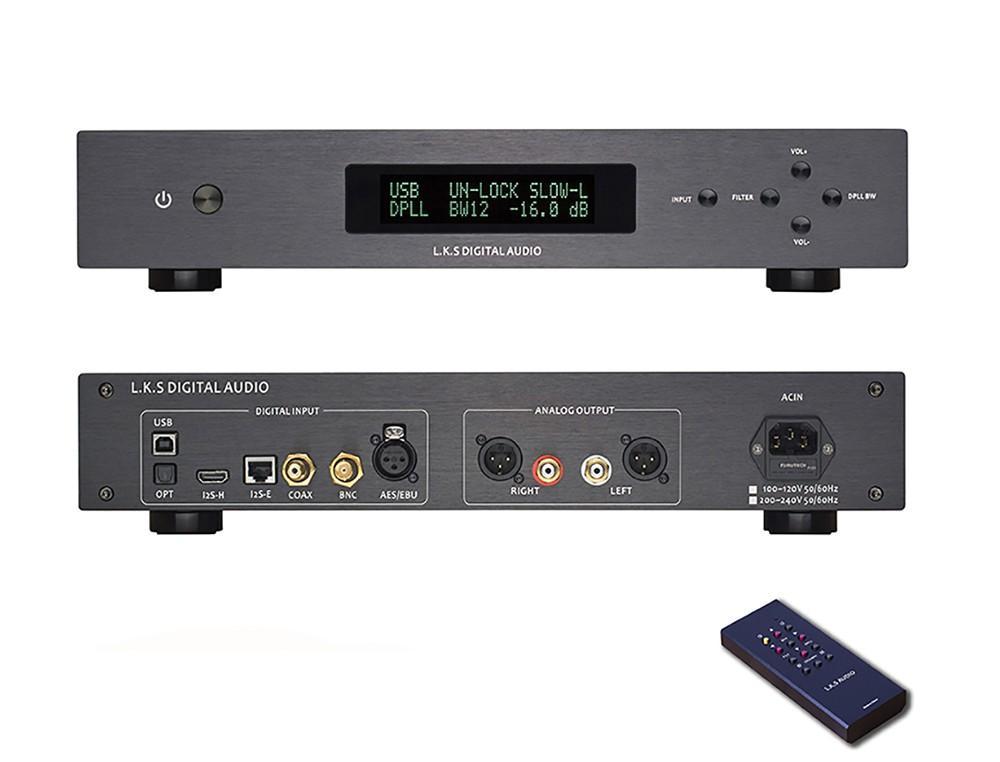

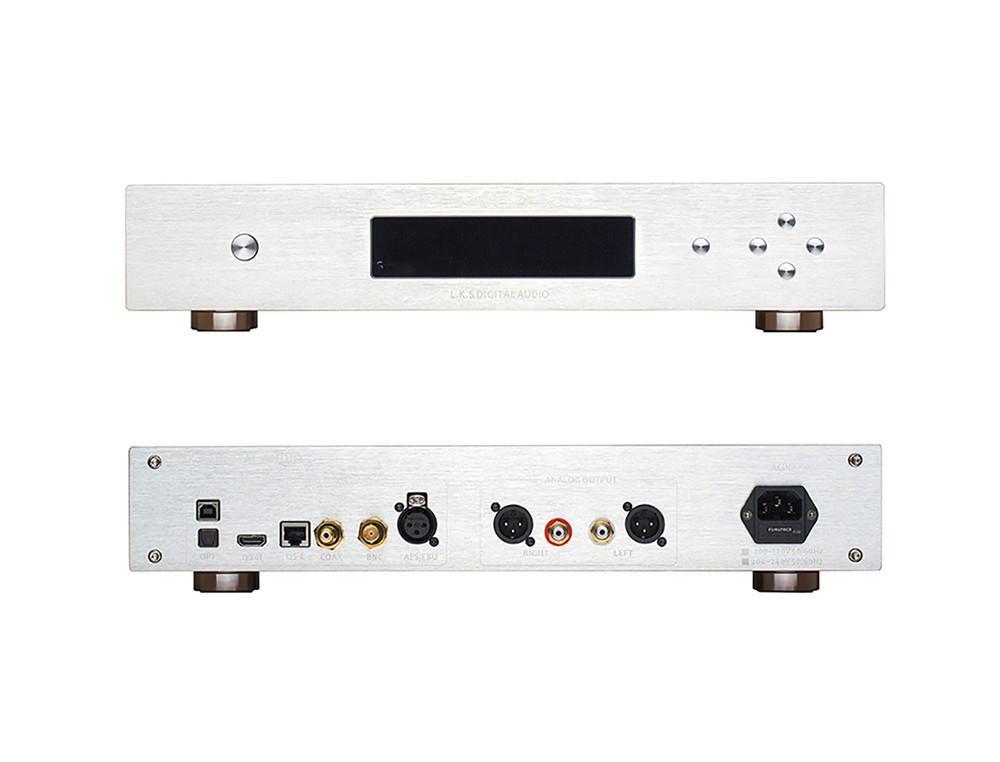

Musetec Audio (LKS Audio) MH-DA004 Dual ES9038pro DAC (Digital-to-Analog Converter)
$1,459.99
The Musetec Audio (LKS Audio) MH-DA004 has dual ESS flagship ES9038pro chips, each of which work both in a mono mode and also individually function for the left and right channel. For inputs this DAC comes with USB optical, I2S-H, I2S-E, coaxial, BNC, and EBU ports. For outputs, this DAC comes with a dual XLR and RCA ports. Needing proper power supply, the MH0DA004 has two high-quality transformers that result in a total of 13 groups of low-noise regulator circuits.
The Musetec Audio (LKS Audio) MH-DA004 has dual ESS flagship ES9038pro chips, each of which work both in a mono mode and also individually function for the left and right channel. For inputs this DAC comes with USB optical, I2S-H, I2S-E, coaxial, BNC, and EBU ports. For outputs, this DAC comes with a dual XLR and RCA ports. Needing proper power supply, the MH0DA004 has two high-quality transformers that result in a total of 13 groups of low-noise regulator circuits.
Specs:
- Dual mono-mode ESS ES9038pro chips

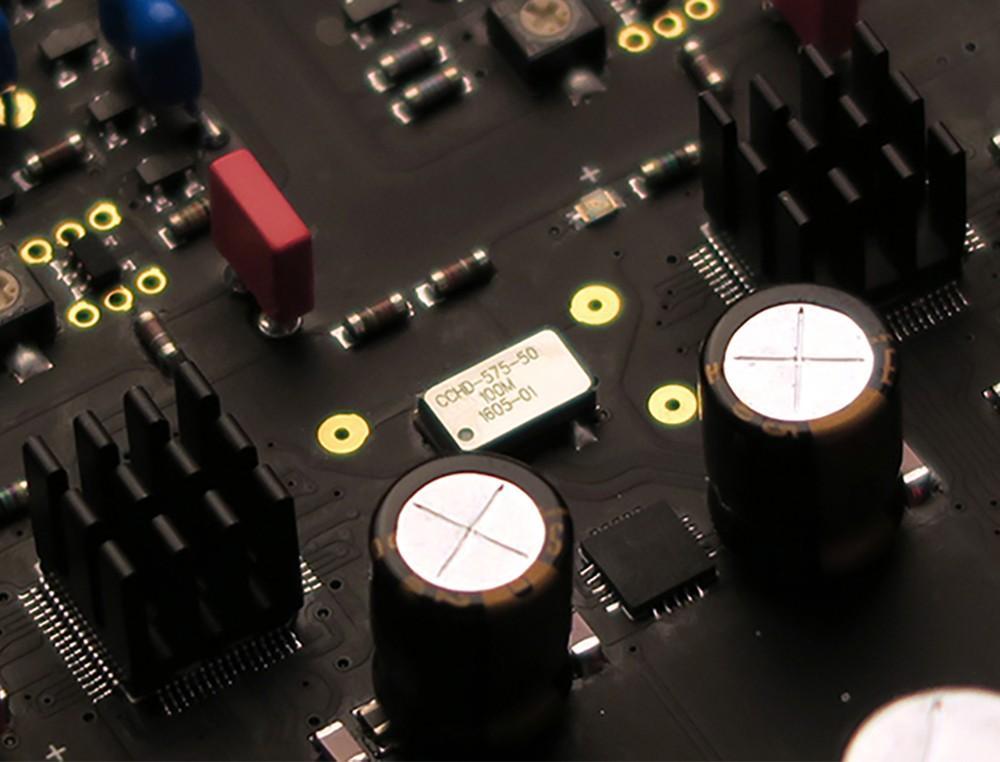

- Ultra-low-jitter 82fs clock at 100 MHz

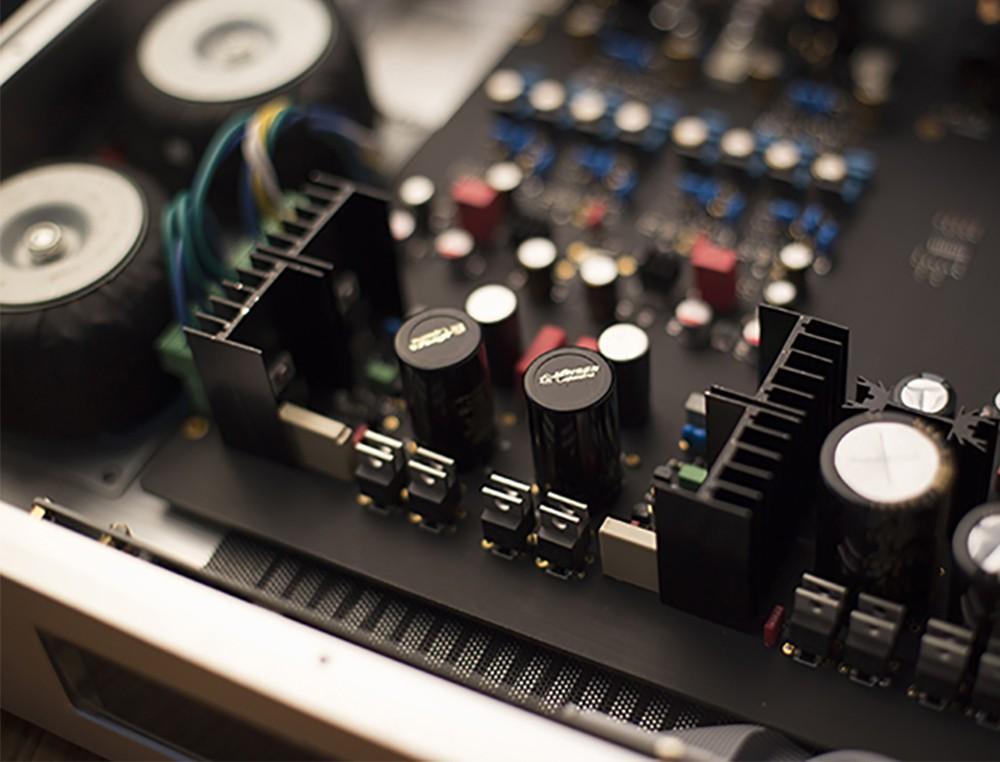

- Up to 13 groups linear power supply for different circuit part
- Discrete shunt power supply for analog output part

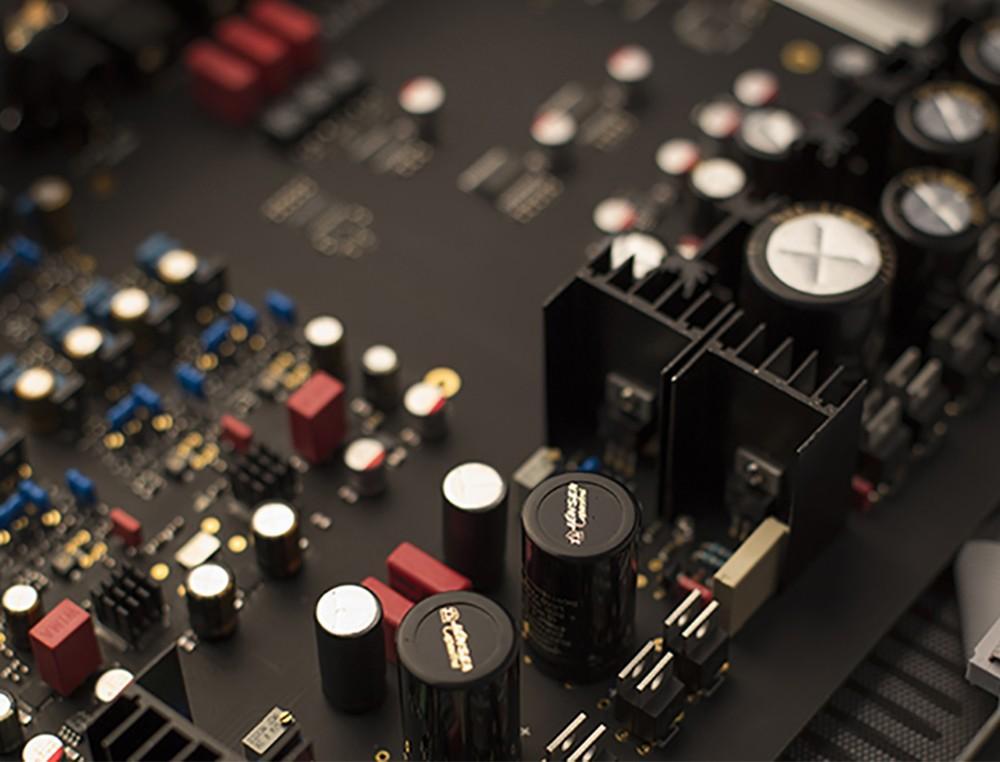

- Discrete circuit for I/V and LPF circuit
- Cardas rhodium-plated RCA output connector
- Furutech AC power socket
- 2 I2S Input Ports: RJ45 type and HDMI type for I2S/DSD source input
- Amanero Combo384 USB card: DSD64, DSD128, (Windows, DSD256, DSD512), PCM44.1K~384K
- AES/EBU, COAX, BNC, OPT support: 44.1K, 48K, 88.2K, 96K, 176.4K,192K S/PDIF input (DoP acceptable)
- XLR: 5 Vrms
- RCA: 2 Vrms
- Digital Volume Control: 0–127 dB (0.5 dB step)
- Large VFD display
- THD: <0.0003%
- Dynamic Range: > 125 dB
- SNR: > 120 dB
- Dimensions: 17.3 x 12.6 x 3.5 in (440 x 320 x 90 mm)
- Net weight: 17.2 lbs (7.8 kg)
- Dual mono-mode ESS ES9038pro chips
- Ultra-low-jitter 82fs clock at 100 MHz
- Up to 13 groups linear power supply for different circuit part
- Discrete shunt power supply for analog output part
- Discrete circuit for I/V and LPF circuit
- Cardas rhodium-plated RCA output connector
- Furutech AC power socket
- 2 I2S Input Ports: RJ45 type and HDMI type for I2S/DSD source input
- Amanero Combo384 USB card: DSD64, DSD128, (Windows, DSD256, DSD512), PCM44.1K~384K
- AES/EBU, COAX, BNC, OPT support: 44.1K, 48K, 88.2K, 96K, 176.4K,192K S/PDIF input (DoP acceptable)
- XLR: 5 Vrms
- RCA: 2 Vrms
- Digital Volume Control: 0–127 dB (0.5 dB step)
- Large VFD display
- THD: <0.0003%
- Dynamic Range: > 125 dB
- SNR: > 120 dB
- Dimensions: 17.3 x 12.6 x 3.5 in (440 x 320 x 90 mm)
- Net weight: 17.2 lbs (7.8 kg)
Included:
- Remote control
- Manual
- Product certificate
- Power cord
- USB cable
- USB driver
- Remote control
- Manual
- Product certificate
- Power cord
- USB cable
- USB driver
