Wireless network streaming power amplifier

The Matrix Audio MD-1 and MD-1P combine a full-featured network streamer with a high-power stereo amplifier in a single chassis, giving you Roon Ready playback, HDMI ARC, Wi-Fi 6, HD Bluetooth, NVMe storage, and serious output power for passive speakers. One component, a pair of speakers, and you have a clean, modern Hi-Fi system that handles vinyl, TV, streaming services, local files, and CD rips without extra boxes.

Minimalist streaming hub for passive speakers

The MD-1 and MD-1P are designed to replace stacks of separates with one focused component that lives at the heart of your listening room. They integrate a streamer, DAC, preamp, and power amplifier, so you can connect passive speakers directly and handle every source from one front panel and one remote. You get a simple signal path, fewer cables, and a calmer shelf or rack without sacrificing flexibility.

Power that matches real-world speakers

The MD-1 delivers 150 W per channel into 8 ohms, while the MD-1P doubles that to 300 W per channel into 8 ohms. That means you can pair them confidently with both compact bookshelf designs and demanding floor-standers. High-efficiency amplification keeps energy use and heat down even at higher playback levels, so long listening sessions feel relaxed and controlled rather than hot and stressed.

Dual-speaker output made practical

The MD-1P adds a second set of binding posts, giving you two pairs of speaker outputs on the same amplifier. You can connect two pairs of speakers at once and switch between them via the included IR remote, which is ideal for A/B comparisons or for sharing one amplifier between a main listening area and a secondary pair in the same room. Gold-plated solid pure copper terminals keep resistance low and grip cables securely, preserving fine detail and dynamic nuance.

Mastering-grade AKM DAC with VELVETSOUND

An AK4493SEQ DAC chip with AKM’s VELVETSOUND architecture handles digital-to-analog conversion for both networked and physical sources. It supports up to 32-bit 768 kHz PCM and high-rate DSD, so high-resolution files from local storage and streaming platforms are decoded without downsampling. With a dynamic range up to 120 dB and very low harmonic distortion, it presents a clear, low-fatigue sound that still feels natural and warm.

Clocking and FPGA for cleaner timing

Inside the digital section, a high-speed FPGA works alongside dual custom femtosecond clocks—one for 44.1 kHz families and one for 48 kHz families. This division keeps the timing reference closely aligned to the source format and reduces phase jitter, which in turn can improve imaging and low-level detail. The result is a presentation that feels stable and spacious, with precise localization across the stereo field.

Precision preamp volume and balance

Instead of a traditional analog pot, the MD-1 and MD-1P use a digitally controlled analog volume architecture with 256 steps from -80 dB to +12 dB in 0.5 dB increments. You get fine control at low levels without one channel dropping out or wandering. A 12-step channel balance control lets you compensate for small differences in speaker placement or room asymmetry, so the center image stays locked where you actually sit.

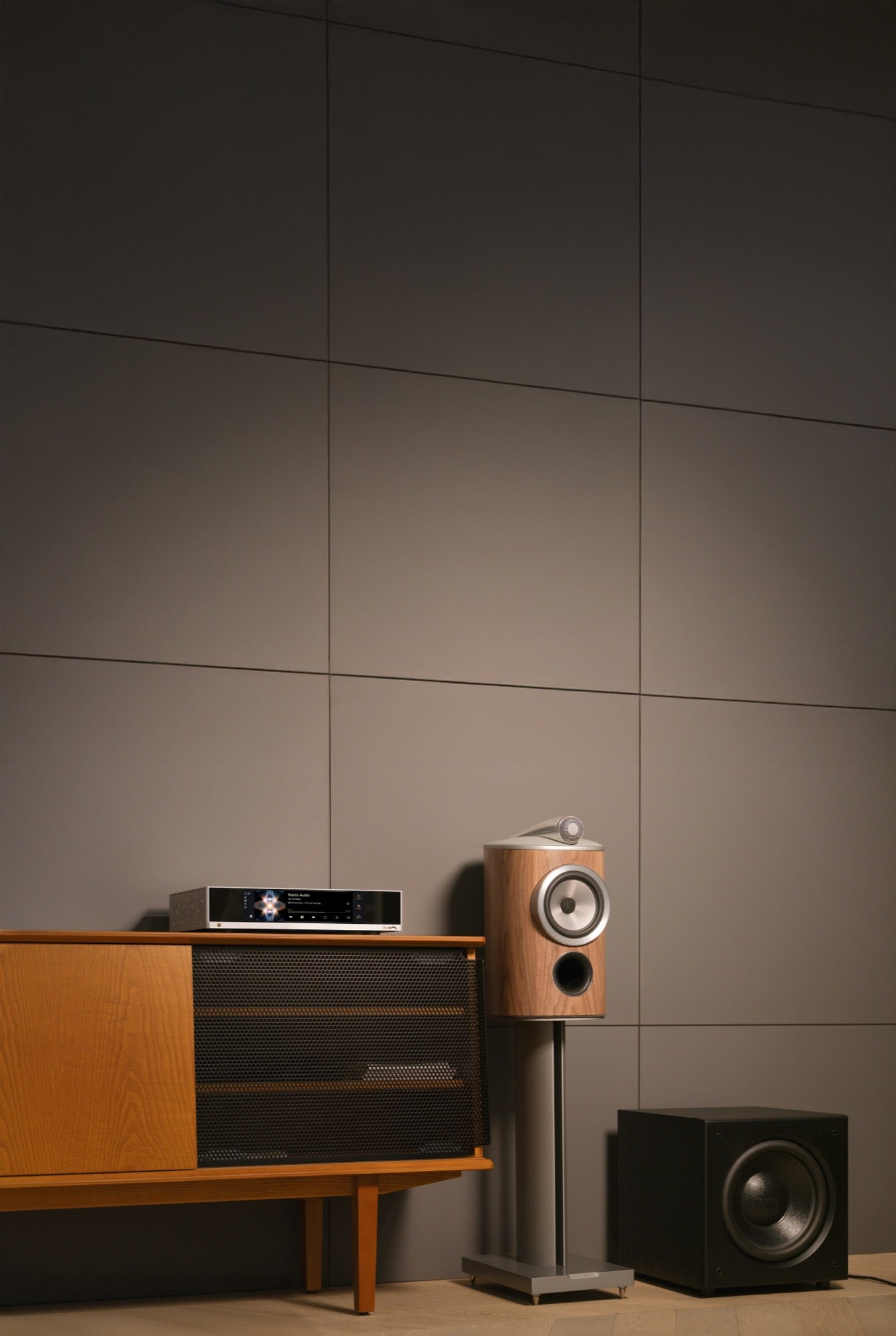

Preamp and subwoofer integration

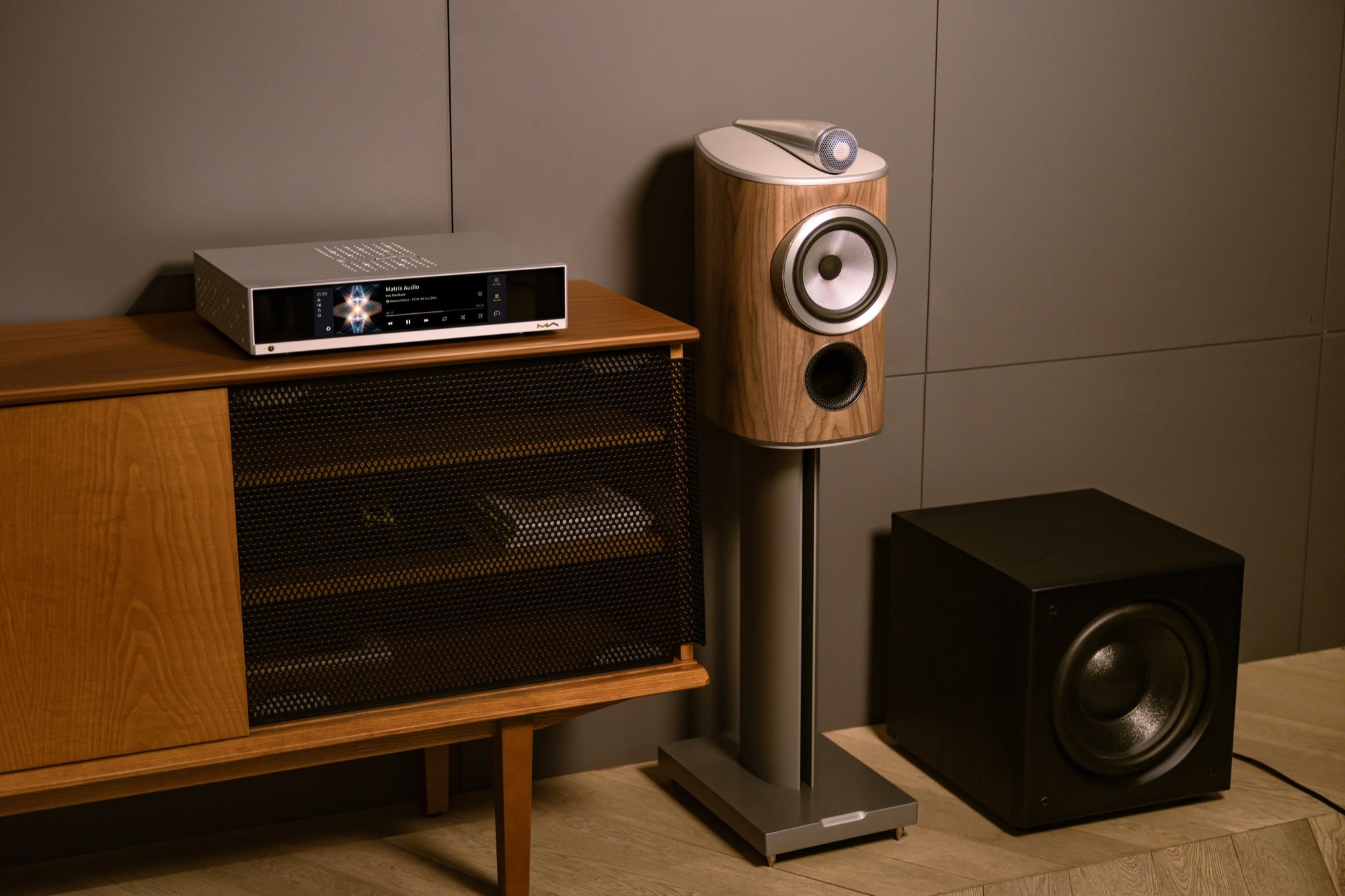

Preamp outputs and subwoofer outputs share volume control with the main speaker outputs, so adding external power amplifiers or subwoofers feels straightforward. Low-frequency output is filtered to carry content below 150 Hz, which helps active subs integrate more cleanly with your main speakers. The MD-1P offers dual sub outputs for larger rooms or dual-sub systems, and a trigger interface allows synchronized power control with connected active components.

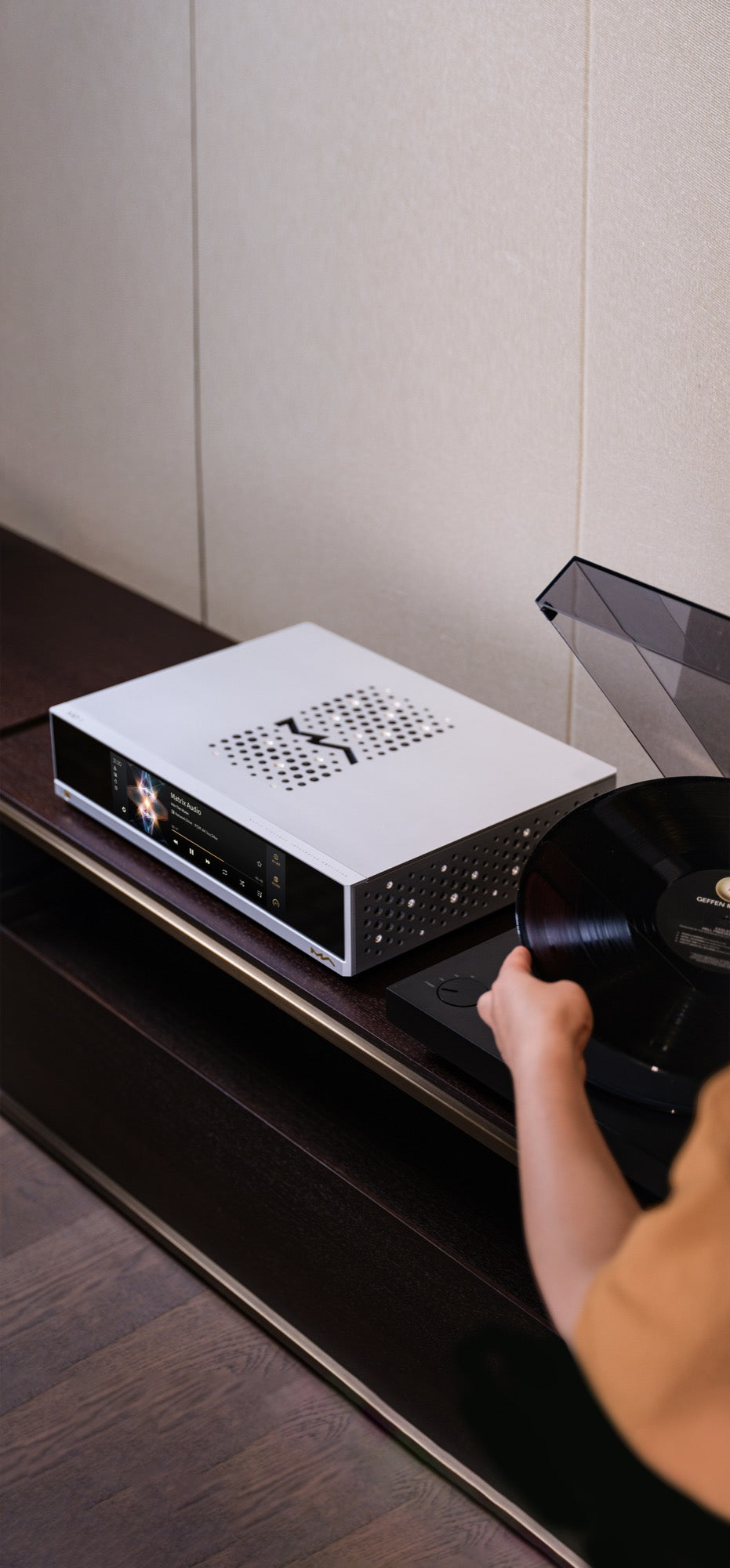

Vinyl-ready MM phono input

A dedicated moving magnet phono stage with a low-noise RIAA curve is built in, so you can connect a turntable’s phono output directly. There is no need for an external phono preamp or extra cables. If you are just starting with records, this keeps the path into vinyl simple. If you already have a turntable dialed in, the MD-1 and MD-1P give it a direct lane into your main system.

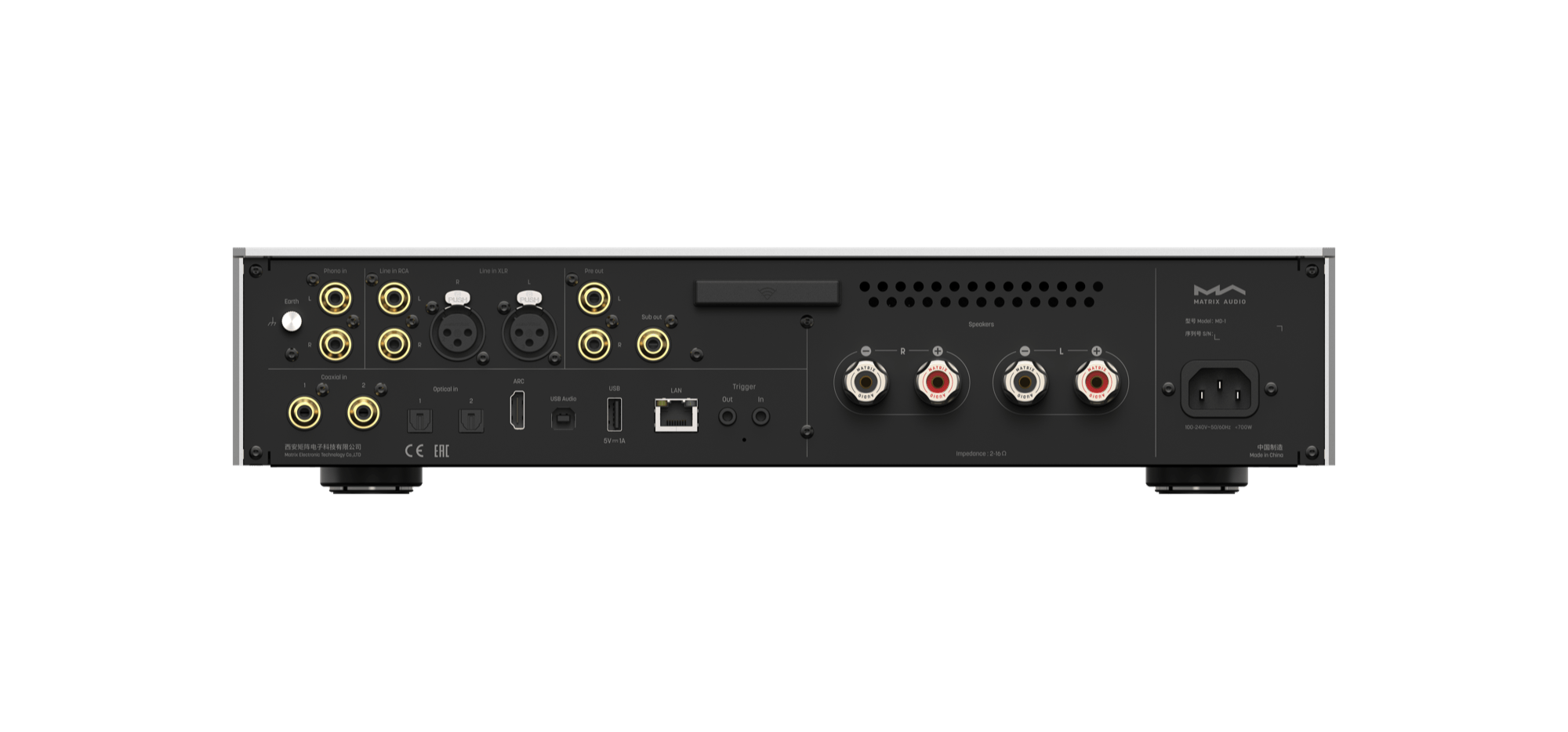

Balanced and single-ended line inputs with bypass

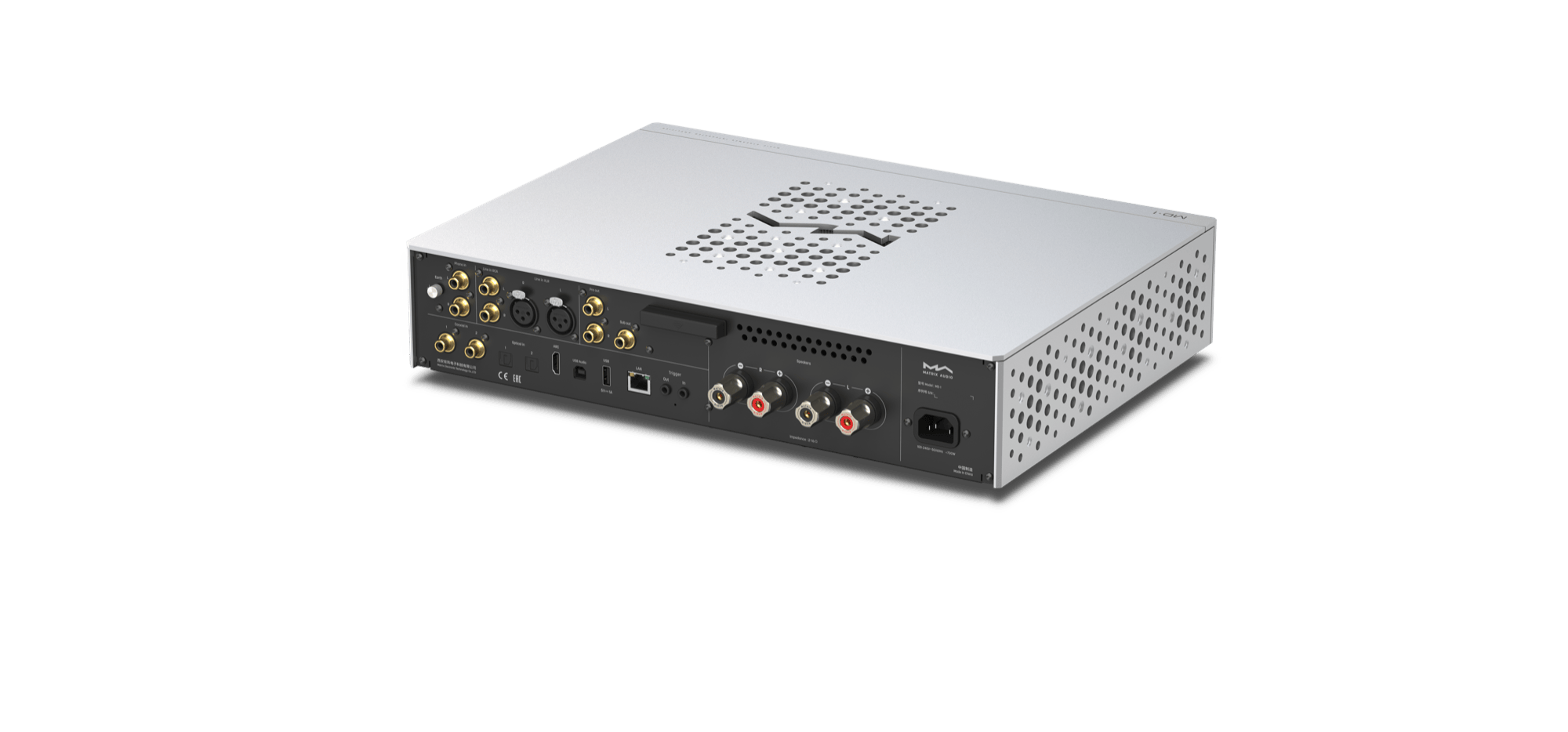

The MD-1 and MD-1P include balanced XLR and unbalanced RCA analog inputs, making it easy to integrate everything from studio interfaces to classic line-level sources. A dedicated bypass mode lets the unit operate as a pure power amplifier, passing incoming analog signals directly to the power stage with volume handled upstream. That makes it flexible for use with external preamps or multichannel home cinema processors.

Digital inputs for the whole living room

Up to four optical and coaxial digital inputs give you room for set-top boxes, game consoles, disc players, and streamers. An HDMI ARC connection lets your TV send audio directly to the MD-1 or MD-1P, so film soundtracks and shows play through your main speakers instead of TV drivers. USB audio support covers a computer source, letting you run a single cable from a laptop or desktop into the amplifier for bit-perfect playback from your preferred player.

HD Bluetooth when convenience matters

When casual listening is the goal, Bluetooth 5.0 with high-resolution codecs keeps wireless playback viable. Support for LDAC, aptX, aptX HD, AAC, and SBC means you can stream from phones, tablets, and laptops at up to 96 kHz where supported, with minimal compression. It is a simple way to share music with guests or to play something quickly without opening an app on the front panel.

Networked for serious streaming

Gigabit Ethernet support provides a stable path for high-rate PCM and DSD playback from local servers, online services, and other network sources. If running cable is not practical, Wi-Fi 6 offers fast and resilient wireless networking that can keep up with high-resolution streaming. In both cases, the MD-1 and MD-1P act as the networked center of your listening room rather than a peripheral device.

Software that feels familiar

Built on the same streaming hardware platform as Matrix Audio’s M Series, the MD-1 and MD-1P run the MA Player Hi-Fi Streaming OS and work with the MA Remote app on iOS and Android. From your phone or tablet, you can browse music libraries, change inputs, and manage playback without leaving the listening position. The front-panel display mirrors that control with clear status information and album art.

Streaming services and protocols

Out of the box, the MD-1 and MD-1P support native clients or integrations for services like TIDAL, Qobuz, HIGHRESAUDIO, and internet radio stations. They also tie into a wider ecosystem via Roon Ready support, Audirvana integration, TIDAL Connect, Spotify Connect, AirPlay 2, QPlay, and UPnP/DLNA. Whether you keep your library on a NAS, stream from the cloud, or mix both approaches, the amplifier slots into that pattern without friction.

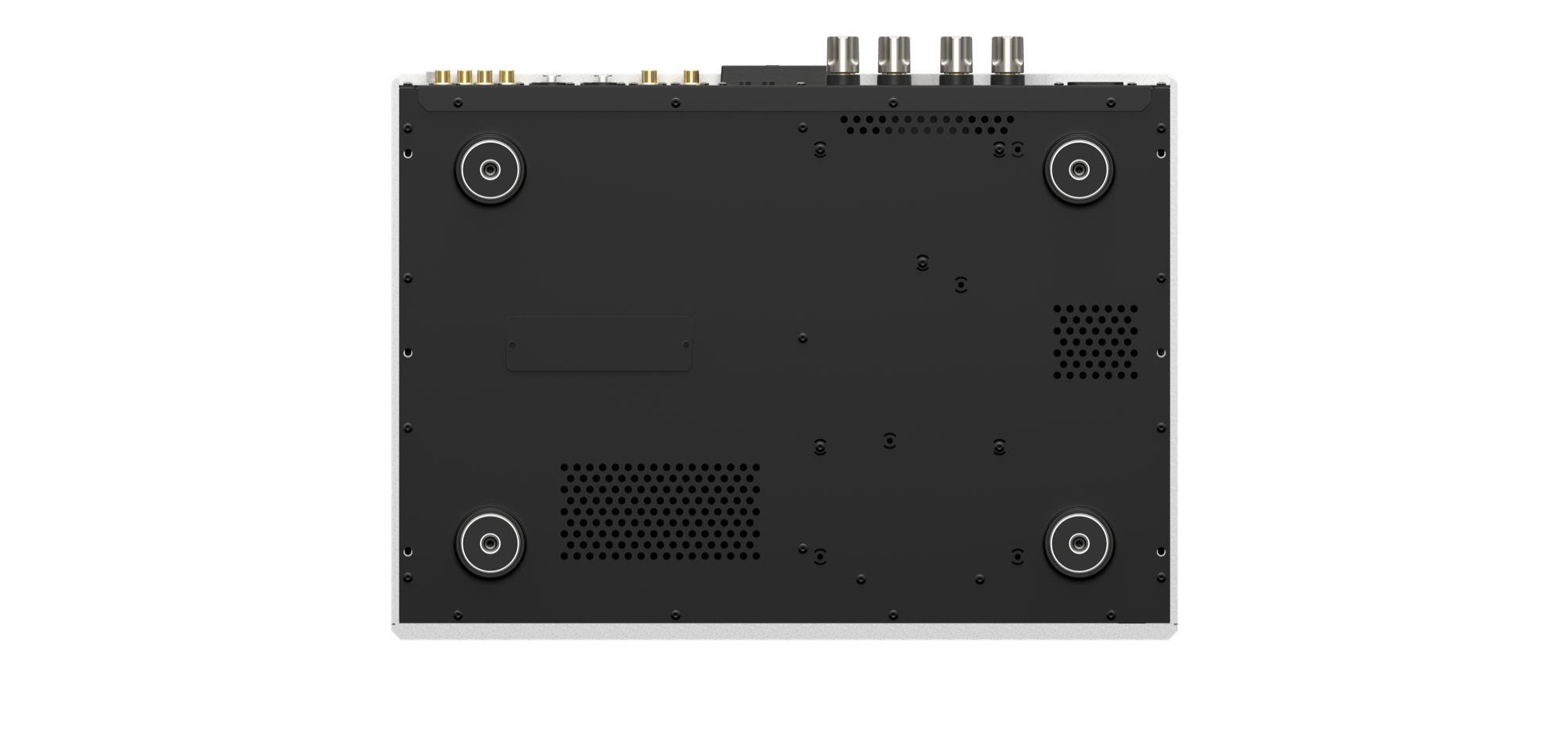

Shareable internal storage and NAS mode

A bottom-mounted NVMe SSD slot lets you add fast internal storage that behaves more like a quiet, audio-focused server than a general-purpose computer. The SSD has its own low-noise power supply to minimize electrical hash inside the chassis. Using the SMB protocol, computers on the same network can read and write to this storage, so maintaining your library feels like working with any shared drive. The MD-1 and MD-1P can also present that storage to other streamers on the network, acting as a small NAS for your music.

CD library, digitized and organized

By connecting a USB CD drive and using the MA Remote app, you can rip CDs directly to the internal SSD. The amplifier converts discs to digital files and adds them to the onboard library, so you keep the ritual of loading a disc while gaining the convenience of indexed, instant playback. Over time, shelves of discs become a browsable, lossless library that any supported control app can access.

Product highlights

• Integrated network streamer and stereo power amplifier in one chassis

• MD-1 output power: 150 W per channel at 8 ohms

• MD-1P output power: 300 W per channel at 8 ohms

• Gold-plated solid pure copper speaker terminals

• Dual speaker outputs and dual subwoofer outputs on MD-1P

• AK4493SEQ VELVETSOUND DAC with up to 32-bit 768 kHz PCM and high-rate DSD support

• Dual femtosecond clocks and FPGA-based clock management

• 256-step digitally controlled analog volume with 0.5 dB increments and channel balance trim

• Integrated MM phono preamp with RIAA equalization

• Balanced XLR and unbalanced RCA line inputs with power amplifier bypass mode

• Multiple optical and coaxial inputs, HDMI ARC, and USB audio input

• Bluetooth 5.0 with LDAC, aptX, aptX HD, AAC, and SBC

• Gigabit Ethernet and Wi-Fi 6 network connectivity

• Roon Ready and support for TIDAL, Qobuz, HIGHRESAUDIO, Spotify Connect,
• AirPlay 2, QPlay, UPnP/DLNA, and Audirvana

• NVMe SSD slot with low-noise power supply and SMB file sharing

• CD ripping from USB CD drive directly to internal storage via MA Remote app

Specs

• Digital Input
  • COAXIAL & OPTICAL
    • PCM 16–24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD 2.8MHz (DoP)
  • HDMI ARC
    • PCM 16–24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • USB Audio
    • PCM 16–24Bit / 44.1kHz–768kHz
    • DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
    • DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
• HD Bluetooth
  • High-Res Bluetooth Sample Rate: PCM 16Bit/44.1kHz, 48kHz, 96kHz
  • aptX / aptX HD / AAC / SBC / LDAC
  • Bluetooth Version: V5.0
  • Operating Distance: 10–15m
• Line in
  • XLR
    • Input Impedance: 47kΩ
    • Max Input Level: 8VRMS
  • RCA
    • Input Impedance: 47kΩ
    • Max Input Level: 4VRMS
• Phono Input
  • MM Phono Stage
    • Frequency Response: RIAA
    • Input Impedance: 47kΩ / 100pF
    • Gain: +40dB
• Pre out
  • RCA
    • Output Impedance: <20Ω
    • Output Level: 0–2.2VRMS Adjustable
    • SNR: 120dB A-weighting
    • THD+N: <0.0005%@1k, <0.0005%@20Hz–20kHz
    • Frequency Response: 20Hz–20kHz ±0.2, −3dB@80kHz
    • Crosstalk: >−115dB
  • SUB
    • Output Impedance: <20Ω
    • Cutoff Frequency: 150Hz
    • Output Level: 0–2.2VRMS Adjustable
• Speaker Output
  • MD-1
    • Output Power: 2 × 150W RMS @ 8Ω
    • Output Impedance: <5mΩ
    • Frequency Response: 20Hz–20kHz ±0.1, 45kHz@−3dB
    • SNR: 122dB A-weighting
    • Crosstalk: −120dB
    • Gain: +30dB
    • Speaker Impedance: 2–16Ω
  • MD-1P
    • Output Power: 2 × 300W RMS @ 8Ω
    • Output Impedance: <3mΩ
    • Frequency Response: 20Hz–20kHz ±0.1, 45kHz@−3dB
    • SNR: 122dB A-weighting
    • Crosstalk: −120dB
    • Gain: +33dB
    • Speaker Impedance: A or B 2–16Ω, A and B 4–16Ω
• Network
  • LAN: 10/100/1000 Mbps
  • Wi-Fi: 2.4 GHz / 5 GHz
• USB 3.0
  • Max Power: 5V/1A
  • Supports FAT, FAT32, exFAT, NTFS storage (compatibility not guaranteed)
• MA Player
  • Controller App: MA Remote App
  • Local Playback Supported Formats: MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE, ISO
  • PCM: 16–24Bit / 44.1kHz–768kHz
  • DSD: 2.82MHz–24.58MHz
  • Roon Ready
    • PCM 16–24Bit / 44.1kHz–768kHz
    • DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz
  • Streaming Services: QQ音乐, AirPlay 2, DLNA/UPnP, TIDAL Connect, Qobuz Connect, Spotify Connect, vTuner, Radio Paradise (audio specs depend on provider)
• Trigger
  • Trigger In: DC 6–12V <10mA
  • Trigger Out: DC 12V / 50mA Max
• Storage Extension
  • M.2 2280 / 2242 / 2230 NVMe PCIe SSD Slot
  • Supports PCIe 3.0 / 4.0 / 5.0
  • Max Power: DC 3.3V 3A
• Power
  • AC 100V–240V 50/60Hz
  • MD-1
    • Standby: <5W
    • Idle: <35W
    • Max: <700W
  • MD-1P
    • Standby: <5W
    • Idle: <45W
    • Max: <1250W
• Weight & Size
  • MD-1
    • Weight: 7.0kg (15.4 lbs)
    • Dimensions: 430mm × 331mm × 96mm (16.93in × 13.03in × 3.78in)
  • MD-1P
    • Weight: 7.6kg (16.7 lbs)
    • Dimensions: 430mm × 331mm × 96mm (16.93in × 13.03in × 3.78in)

What's included?

• Power cable ×1
• IR Remote ×1
• Printed material ×1
