24 Driver Flagship IEM

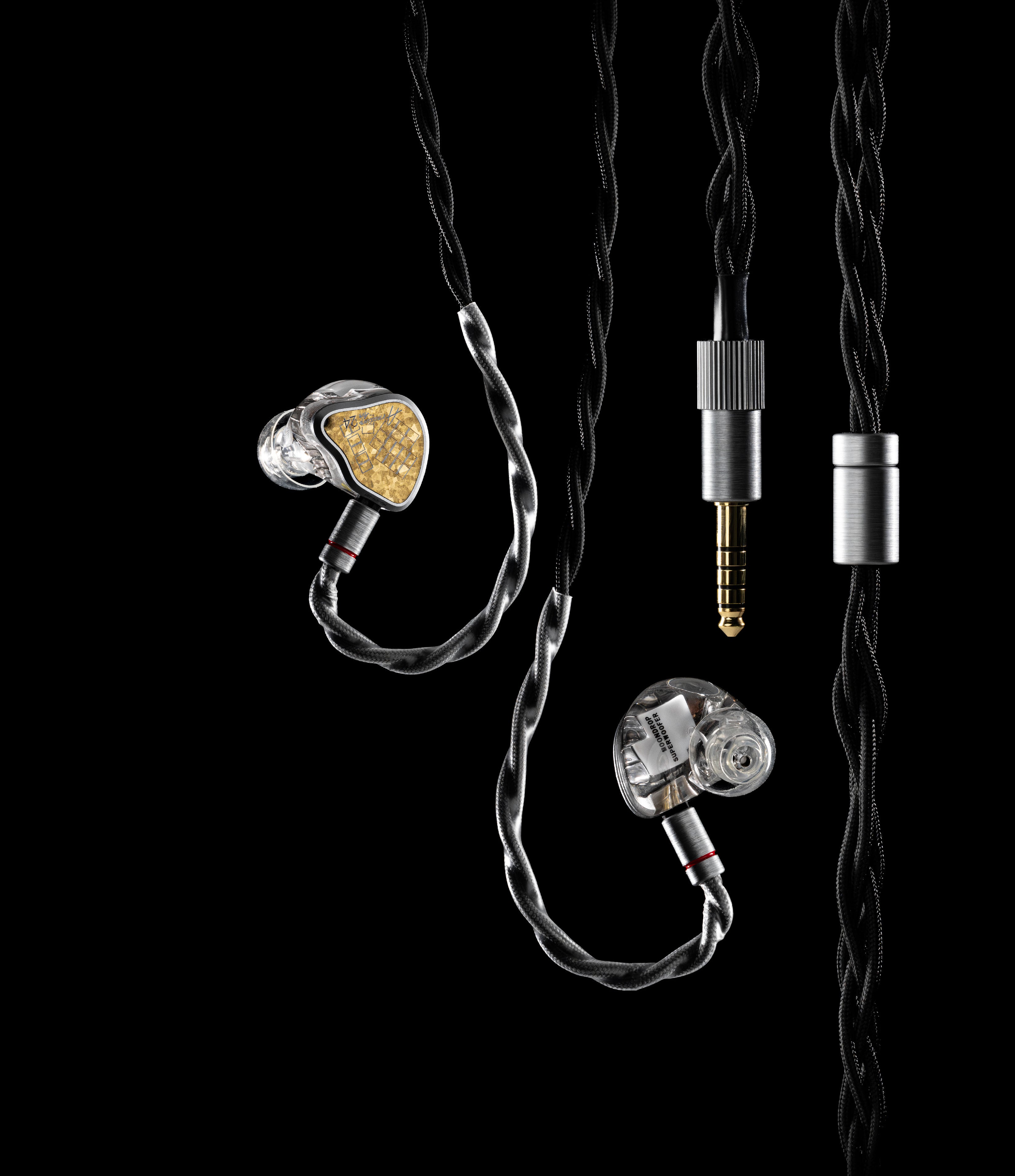

The MOONDROP Armature Art 24 is a flagship all-balanced-armature in-ear monitor built around a 24-driver configuration. Each earpiece combines a patented 16-driver bass module, four custom midrange balanced armatures, and four upper-treble balanced armatures to deliver a coherent, high-resolution presentation. Developed as part of MOONDROP's advanced XTM series, the Armature Art 24 combines innovative acoustic engineering, precision 3D-printed internal structures, and an Ice Flower faceplate design.

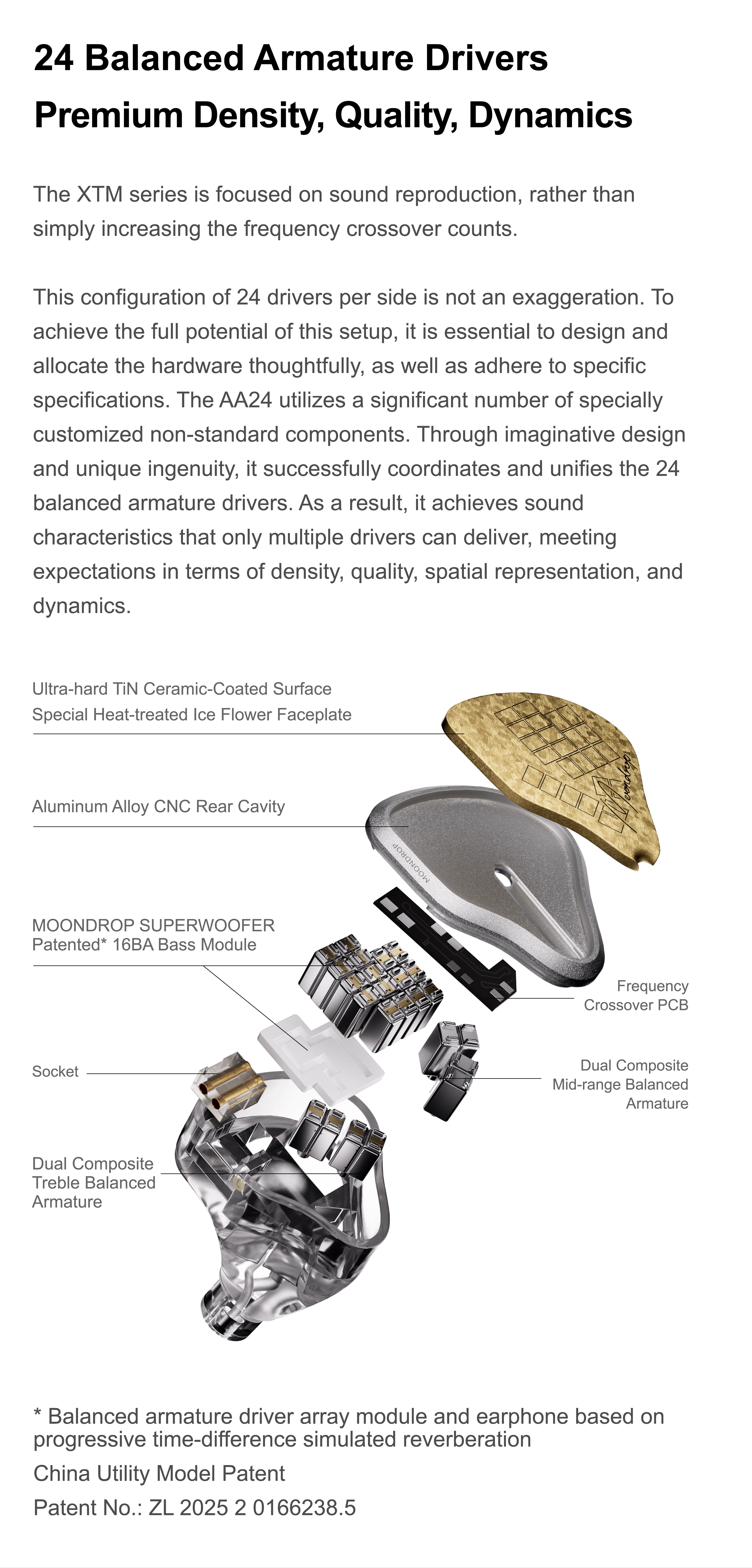

24-driver balanced armature architecture

Unlike many modern flagship IEMs that rely on hybrid driver systems, the Armature Art 24 pursues a fully-balanced armature approach. Each side houses 24 balanced armature drivers, carefully coordinated through a complex crossover network and acoustic pathway design. The result is a unified presentation that preserves the speed, detail retrieval, and consistency that balanced armature designs are known for while achieving the scale and authority typically associated with much larger driver systems.

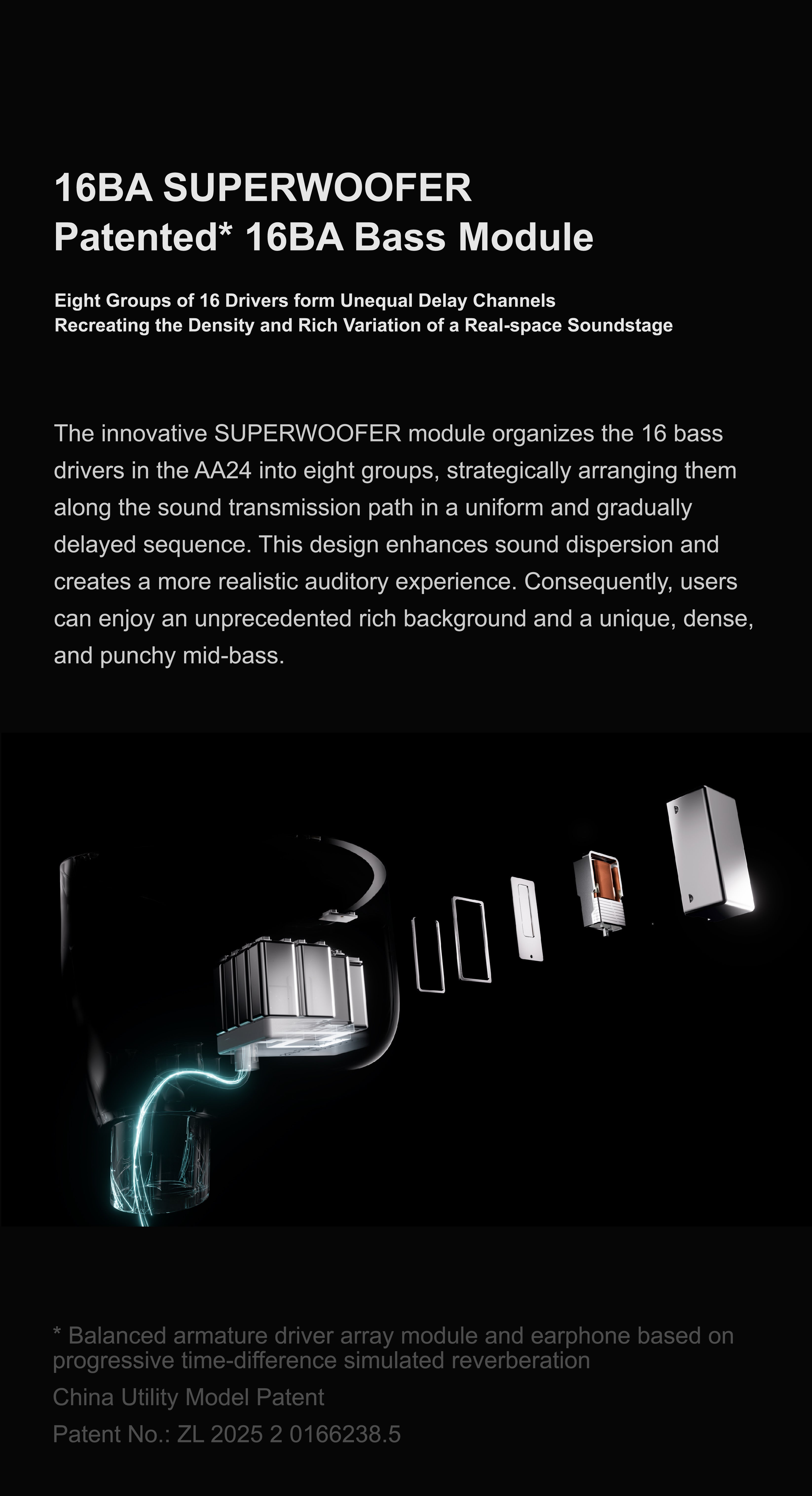

Patented 16-driver bass system

The foundation of the Armature Art 24 is MOONDROP's patented SUPERWOOFER module. Sixteen bass balanced armatures are arranged into eight groups and positioned along progressively delayed acoustic channels. This design helps create a more natural sense of depth and spatial layering while delivering substantial mid-bass weight, strong note density, and convincing low-frequency impact without sacrificing control.

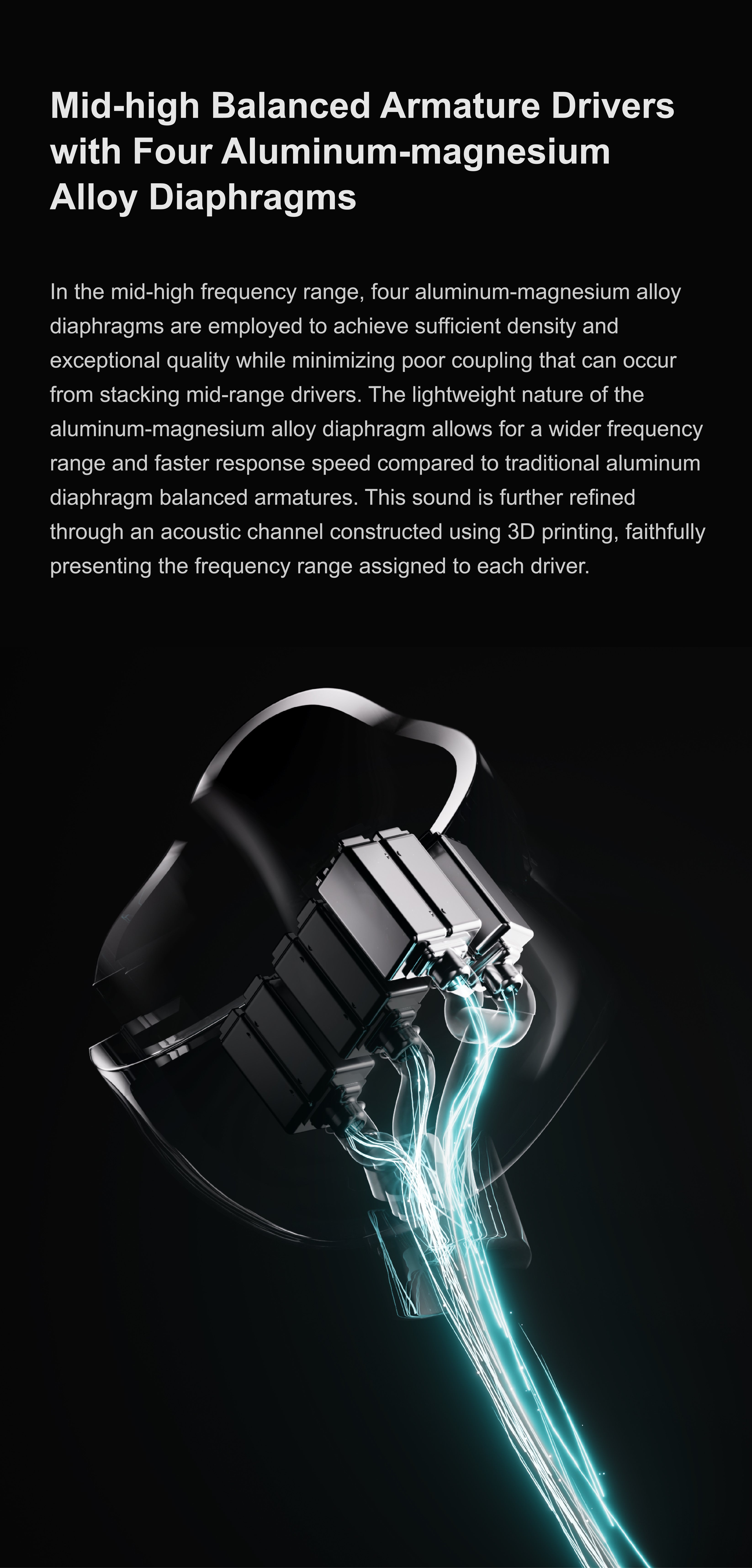

Custom aluminum-magnesium midrange drivers

Four custom balanced armature drivers equipped with aluminum-magnesium alloy diaphragms handle the critical midrange frequencies. Their lightweight construction allows for fast transient response and extended bandwidth while minimizing unwanted coupling effects that can occur in complex multi-driver systems. Dedicated 3D-printed acoustic channels ensure each driver operates within its intended frequency range.

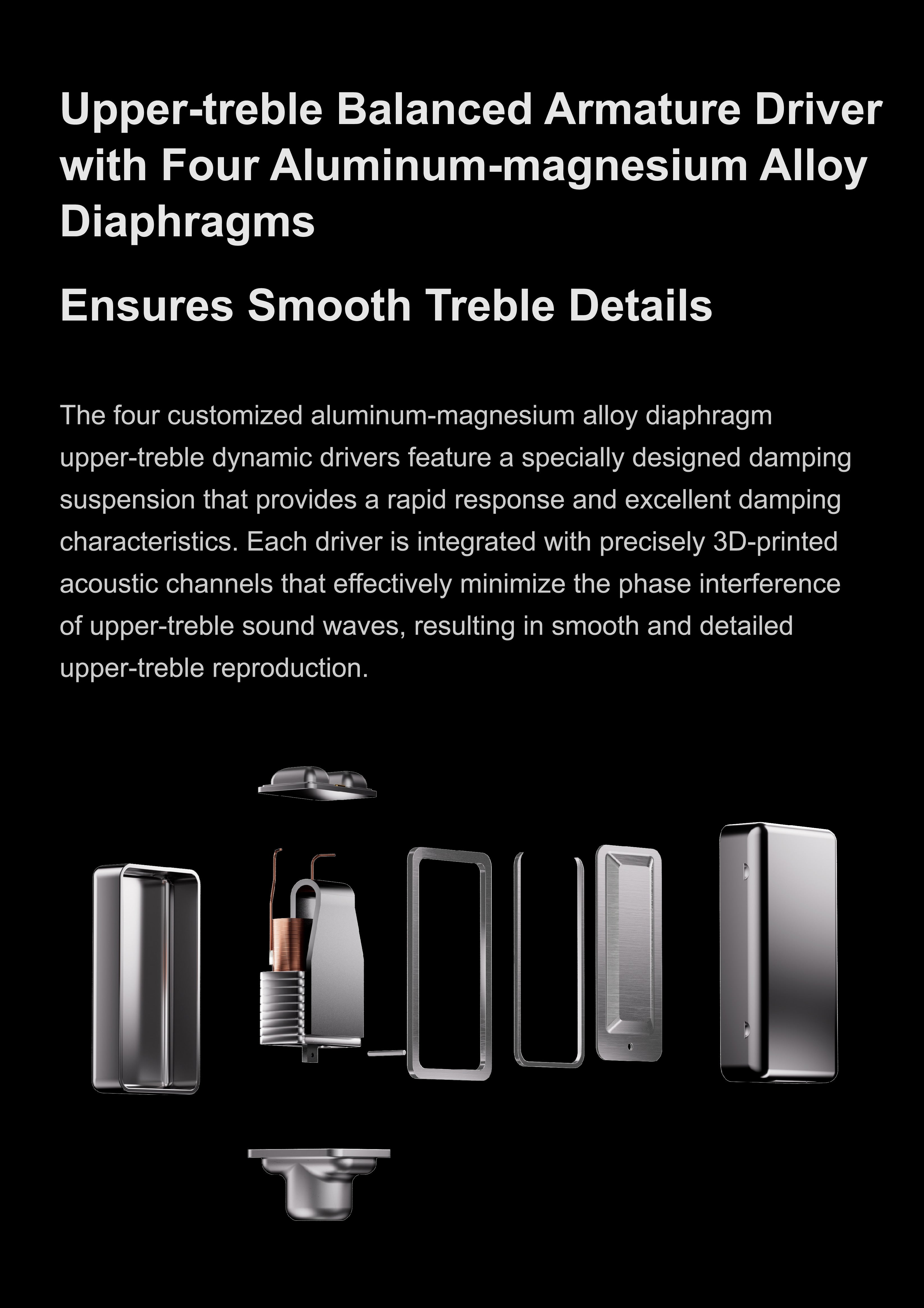

Dedicated upper-treble driver array

Four additional aluminum-magnesium alloy balanced armatures are dedicated to upper-treble reproduction. A specialized damping structure and precisely engineered acoustic pathways help maintain smooth extension and fine detail retrieval while reducing phase interference. This results in an airy presentation that preserves subtle nuances and microdetail without introducing excessive sharpness.

Precision phase and acoustic control

Managing phase alignment becomes increasingly challenging as driver counts increase. MOONDROP developed the Armature Art 24 with extensive subjective evaluation and objective measurement to maintain accurate phase relationships and stable imaging across the frequency spectrum. This careful tuning helps preserve realistic instrument placement and a cohesive soundstage.

Advanced 3D-printed acoustic structure

The intricate internal architecture of the Armature Art 24 is manufactured through a long-term collaboration with HeyGears, a leader in high-precision DLP 3D printing. This process enables the production of complex acoustic chambers and channels with the consistency and precision required for a flagship multi-driver design.

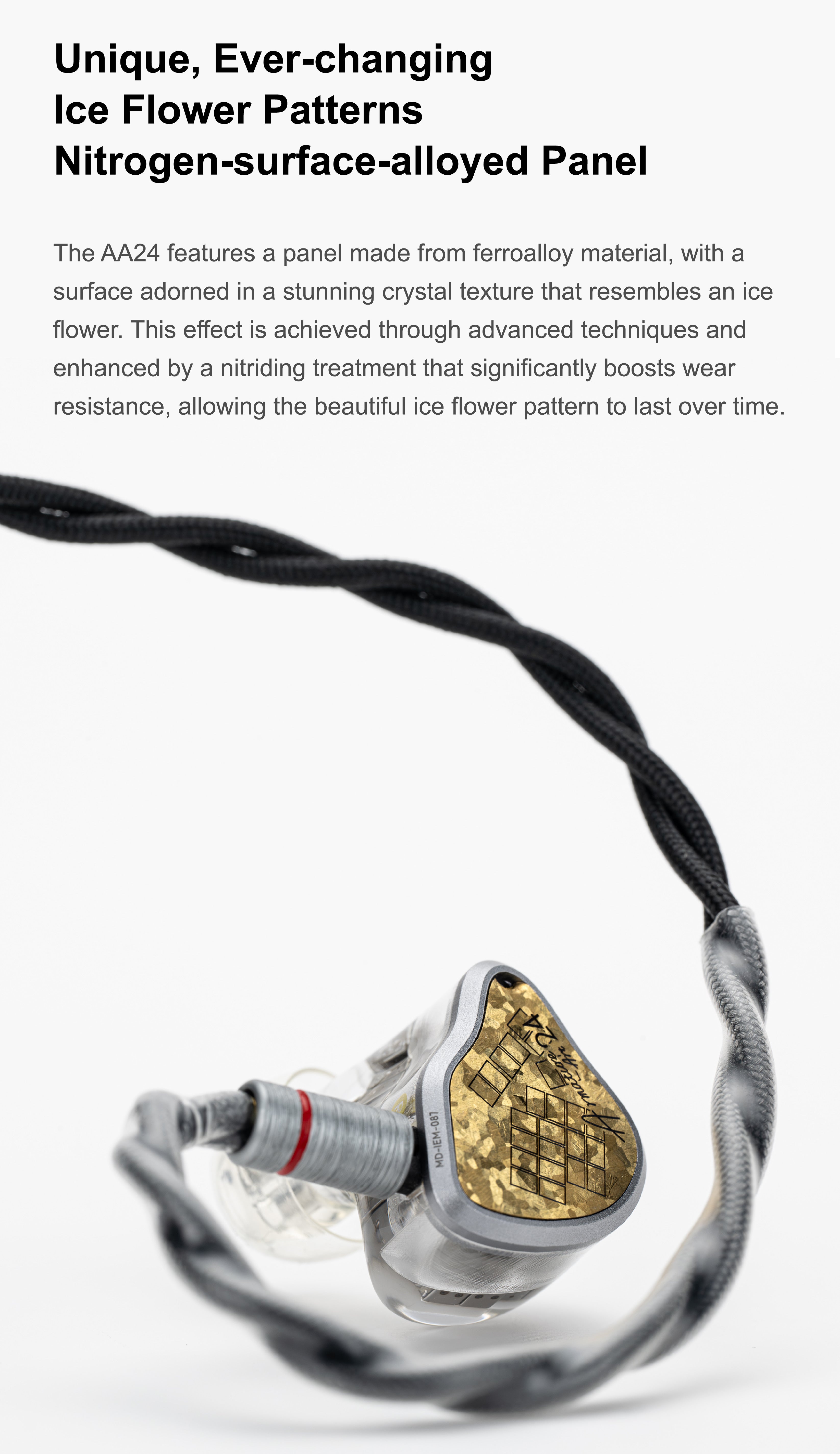

Ice Flower faceplate design

The distinctive faceplate uses a ferroalloy panel finished with a crystal-like Ice Flower pattern. A nitriding treatment increases surface durability and wear resistance while preserving the unique appearance. Because of the manufacturing process, each faceplate exhibits subtle pattern variations that make every set visually distinctive.

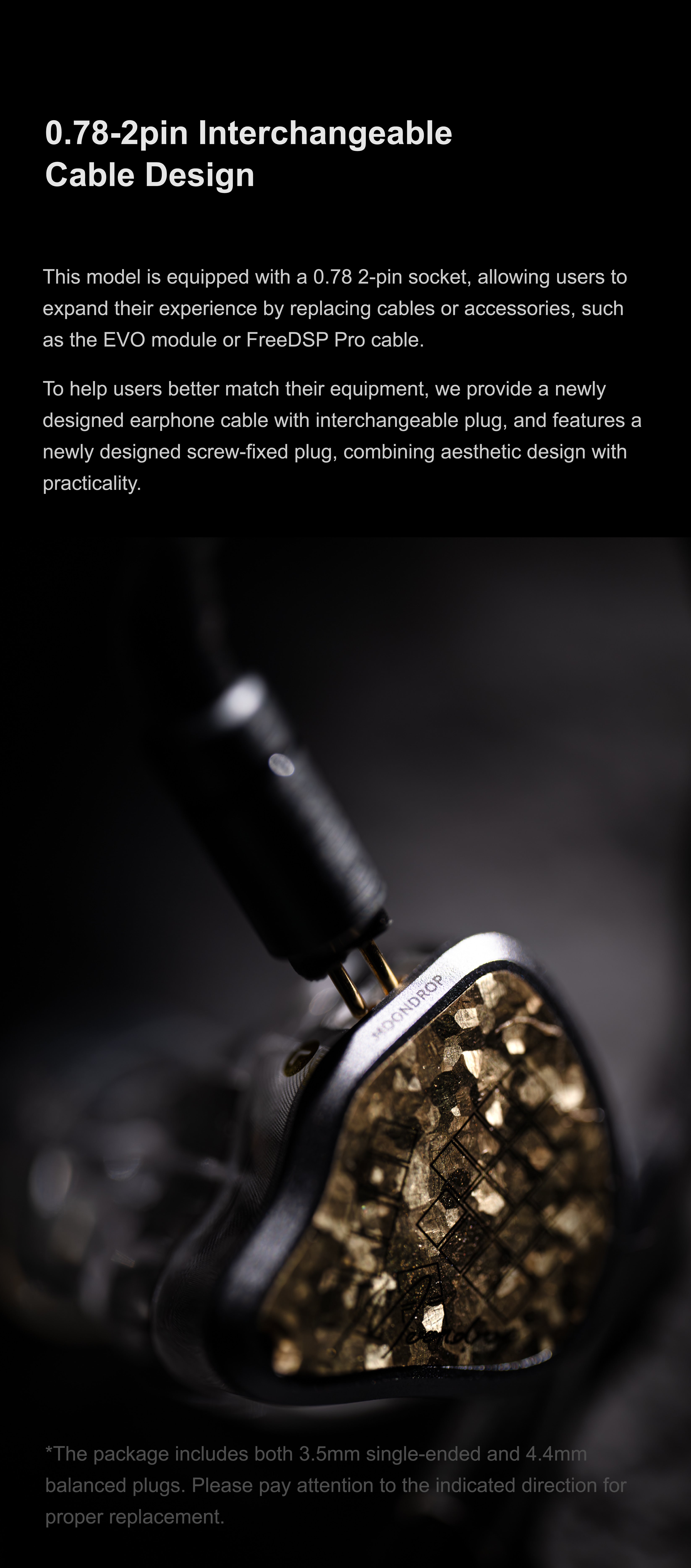

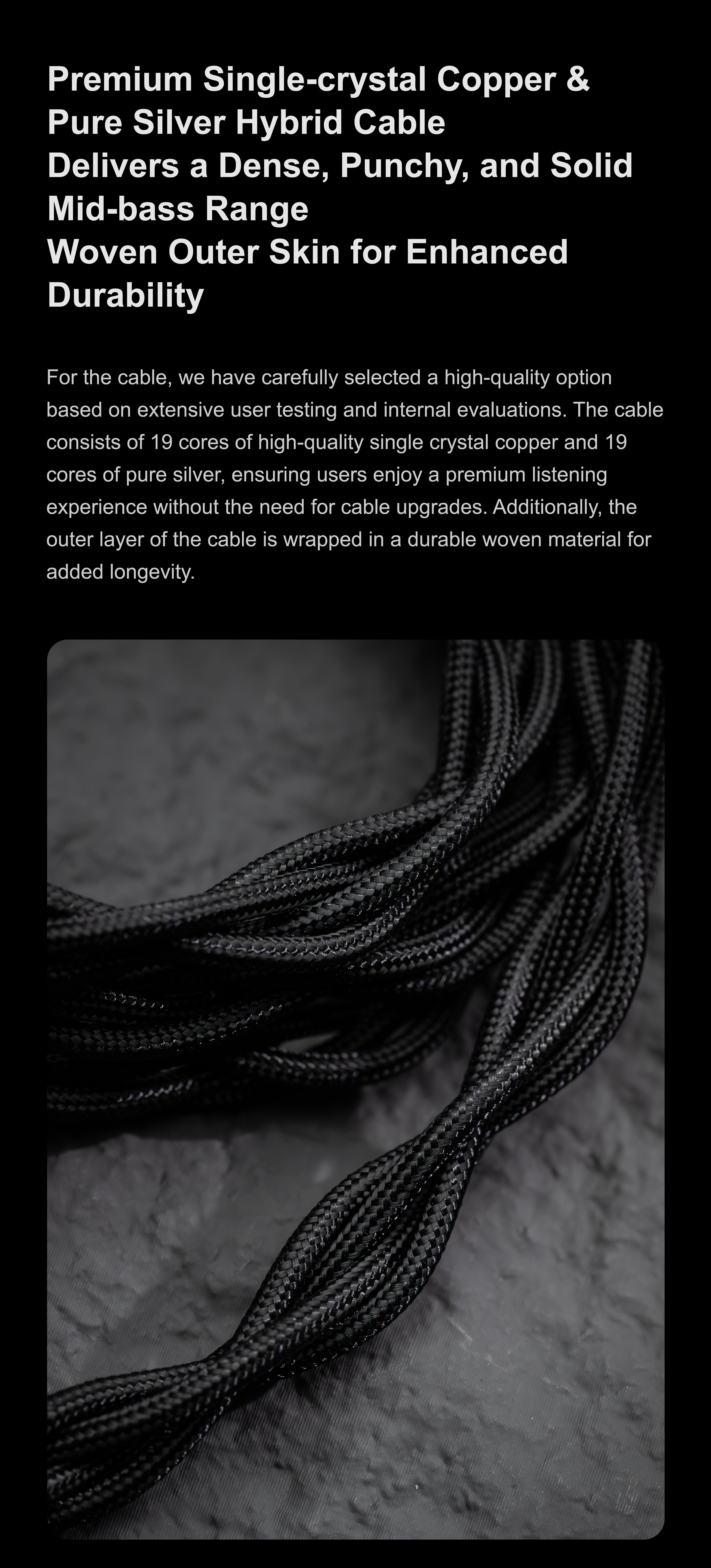

Premium interchangeable cable system

The included cable uses a hybrid construction consisting of 19 cores of single-crystal copper and 19 cores of pure silver. A woven outer jacket improves durability while maintaining flexibility. The detachable cable connects through standard 0.78mm 2-pin connectors and includes interchangeable 3.5mm single-ended and 4.4mm balanced terminations for compatibility with a wide range of portable and desktop audio equipment.

Comfort-focused fit and accessories

To help users achieve an optimal fit, MOONDROP includes three different ear tip styles. Alongside traditional silicone and UC ear tips, the package includes the company's ATF sponge-silicone hybrid tips, which combine memory foam characteristics with silicone construction to improve comfort, isolation, and long-term wearability while minimizing the sonic compromises often associated with traditional foam tips.

Product highlights

• 24 balanced armature drivers per side

• Patented 16-driver SUPERWOOFER bass module

• Four custom midrange balanced armatures with aluminum-magnesium diaphragms

• Four dedicated upper-treble balanced armatures

• High-precision 3D-printed acoustic structure

• Ice Flower nitrided alloy faceplate

• 0.78mm 2-pin detachable cable system

• Interchangeable 3.5mm and 4.4mm terminations

• Hybrid single-crystal copper and pure silver cable

• Three included ear tip styles

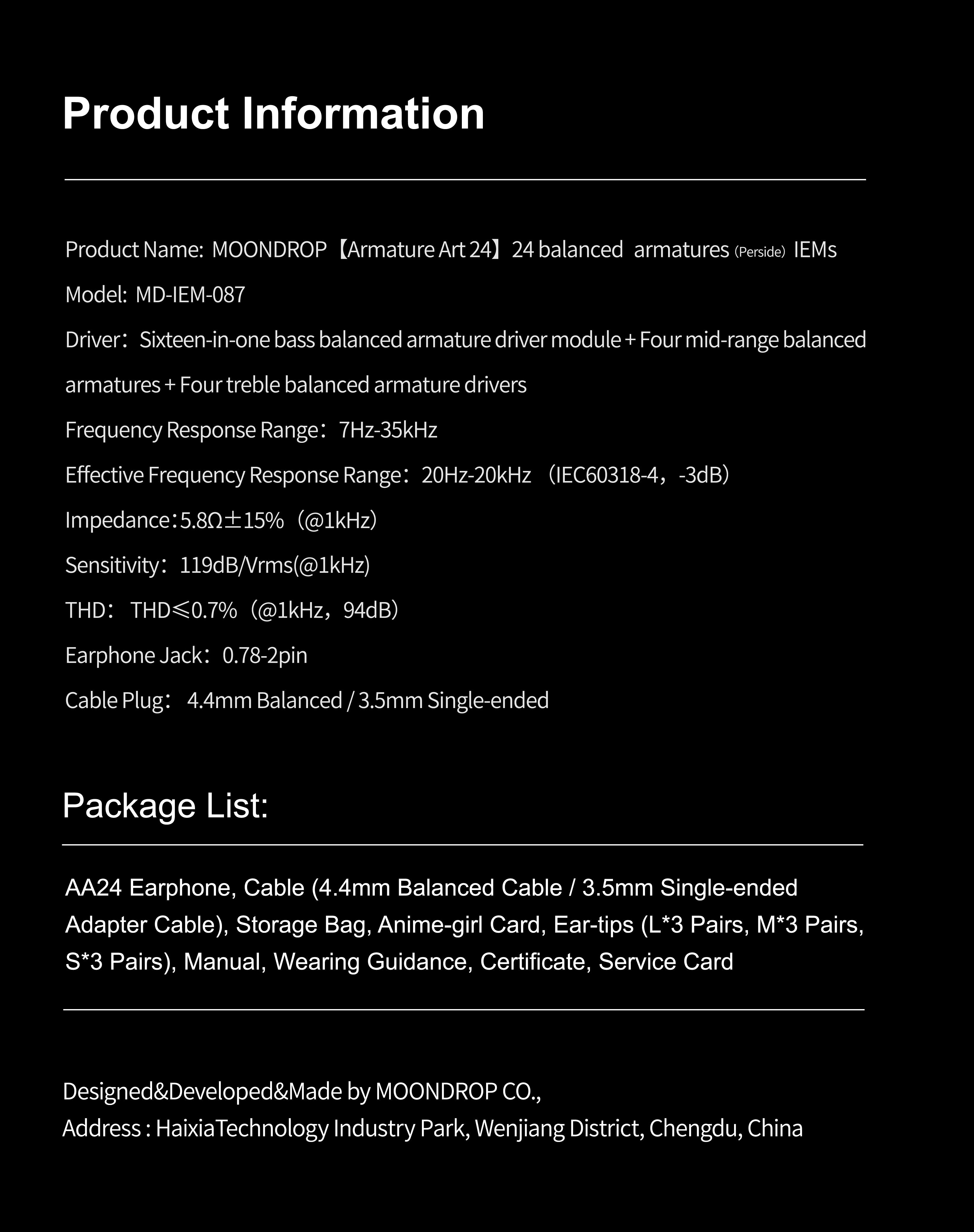

Specs

• Product Name: MOONDROP Armature Art 24

• Model: MD-IEM-087

• Driver Configuration: 16-driver bass balanced armature module + 4 midrange
• balanced armatures + 4 treble balanced armatures per side

• Frequency Response Range: 7Hz–35kHz

• Effective Frequency Response Range: 20Hz–20kHz (IEC60318-4, -3dB)

• Impedance: 5.8Ω ±15% (@1kHz)

• Sensitivity: 119dB/Vrms (@1kHz)

• THD: ≤0.7% (@1kHz, 94dB)

• Connector Type: 0.78mm 2-pin

• Included Plugs: 4.4mm balanced and 3.5mm single-ended

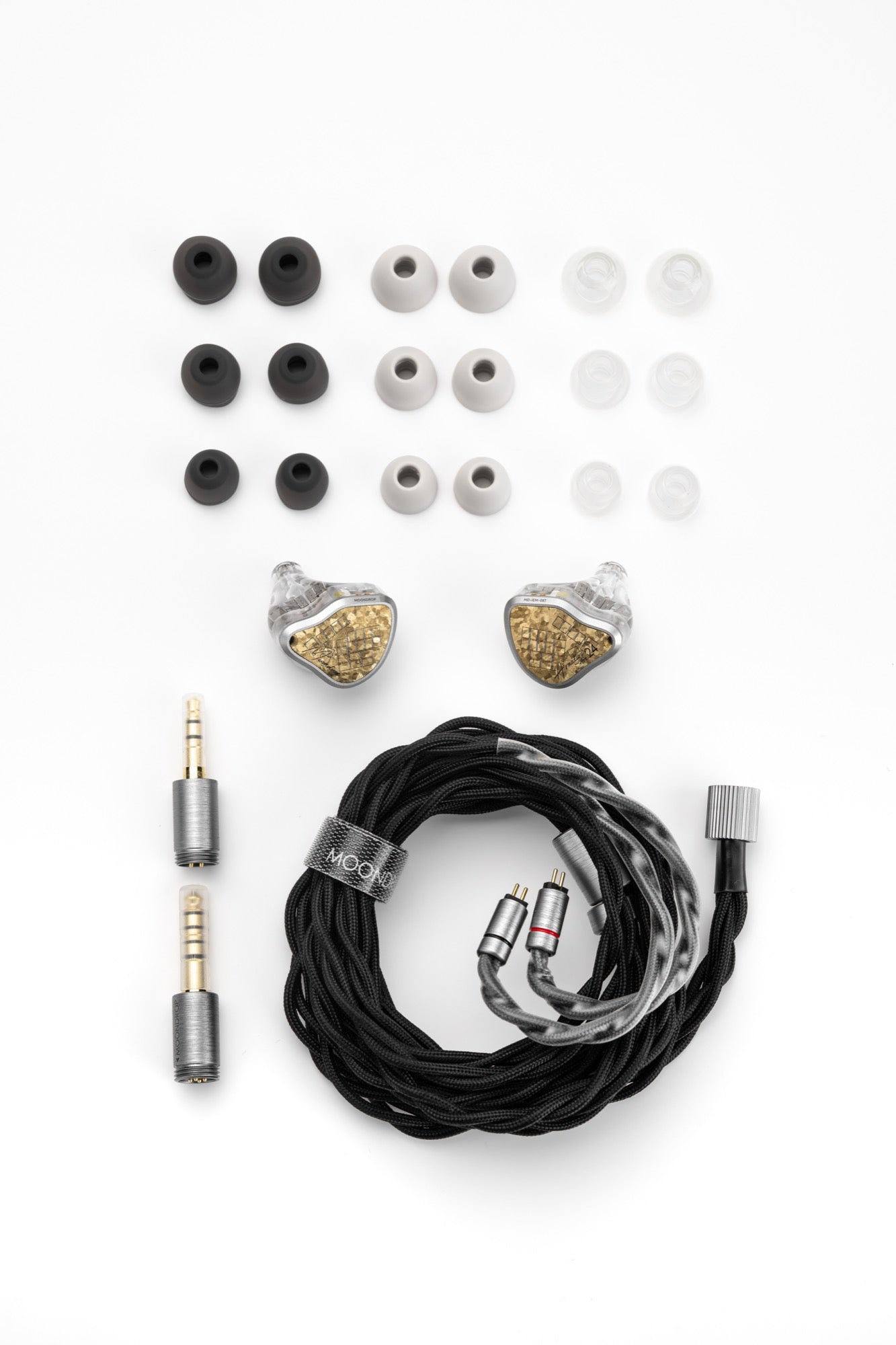

What’s included

• MOONDROP Armature Art 24 earphones

• Hybrid cable with interchangeable terminations

• 4.4mm balanced plug

• 3.5mm single-ended plug

• Storage bag

• Anime character card

• Ear tips in S, M, and L sizes

• ATF sponge-silicone ear tips

• Manual

• Wearing guide

• Certificate

• Service card
