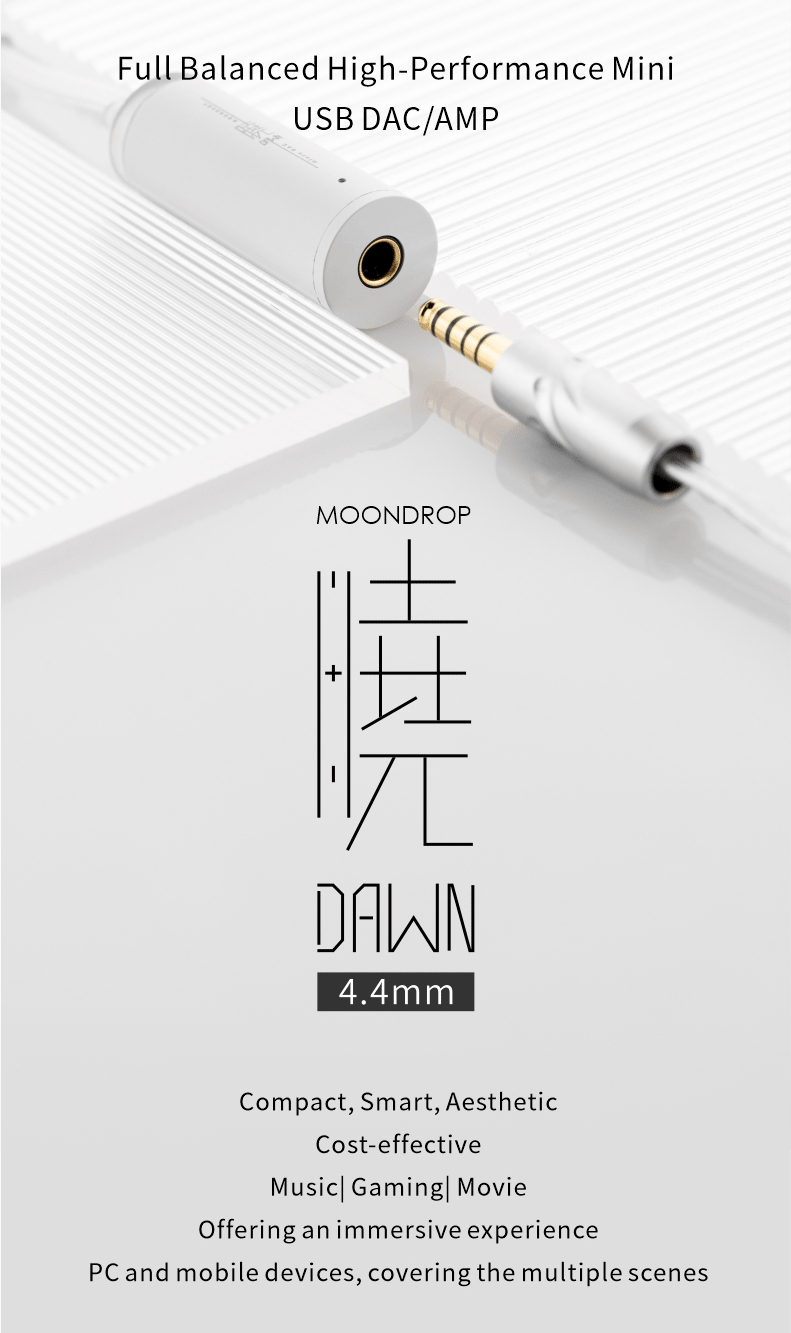

Moondrop DAWN 4.4mm Full Balanced Mini USB DAC/Amp

$59.49 $69.99

Request A Price Match


The dawn of a new era

The Moondrop DAWN is a fully-balanced portable DAC/amp for use with PCs, laptops, phones, tablets, and other devices. It features audiophile-grade architecture like full-balanced decoding and stunning specs like 132dB dynamic range. This dead-simple, super portable device is the perfect addition to any traveling audiophile’s packing list.

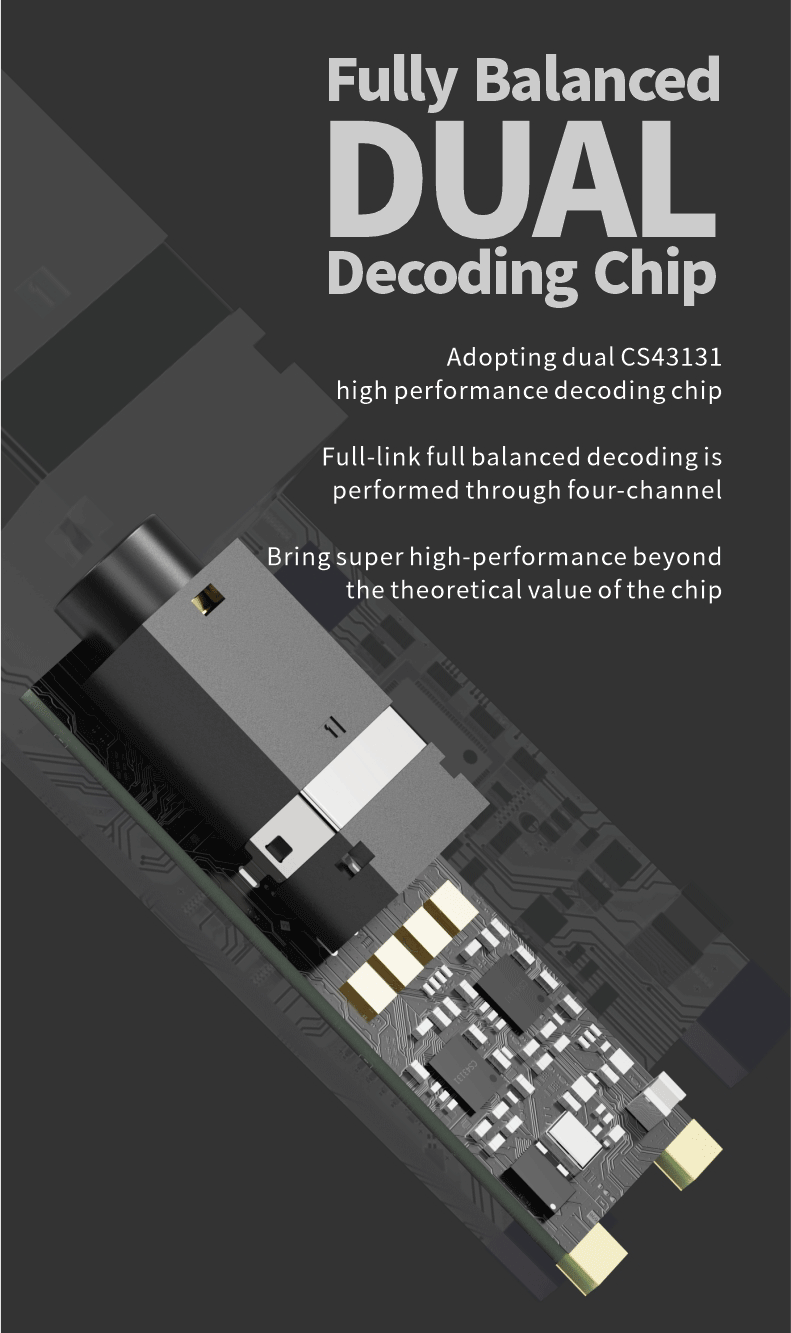

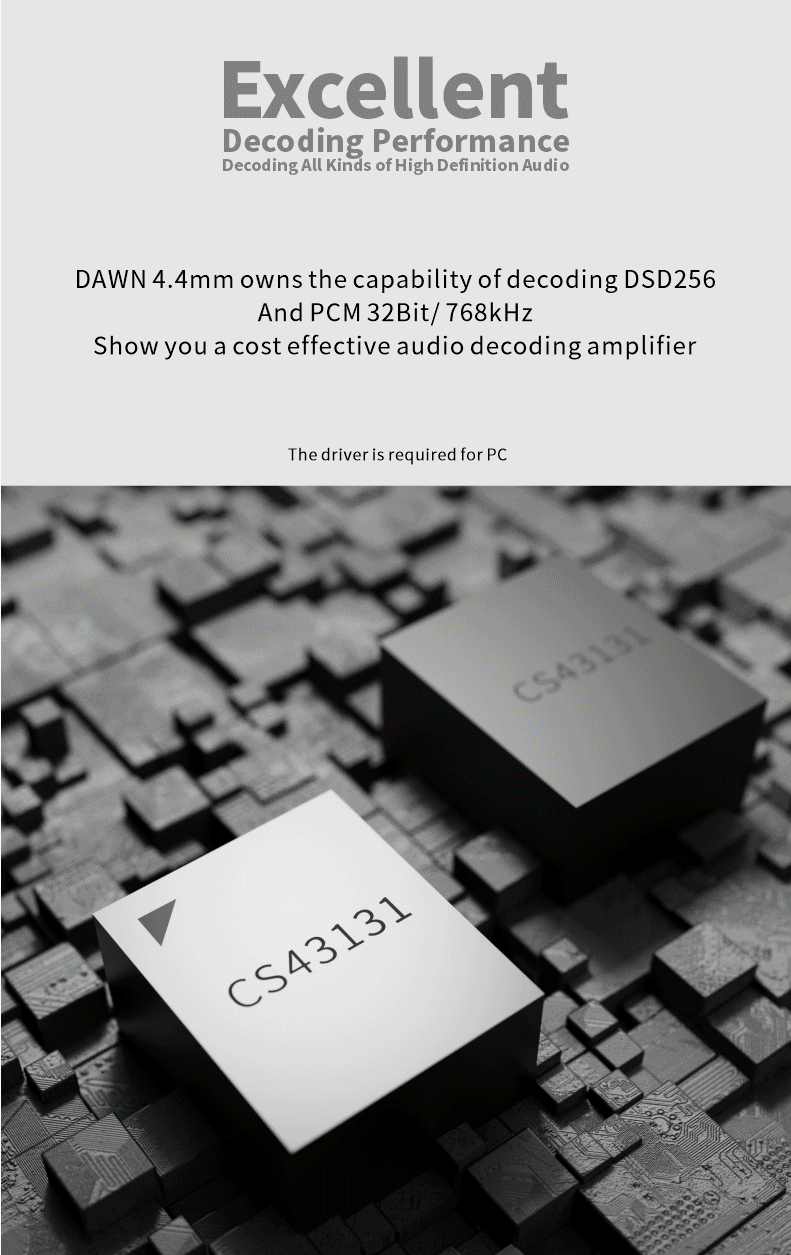

Fully-balanced dual decoding chips

The Moondrop DAWN uses dual CS43131 high-performance DAC chips for full-balanced decoding through four channels. It supports playback types of up to DSD256 and PCM 32-bit/768kHz.

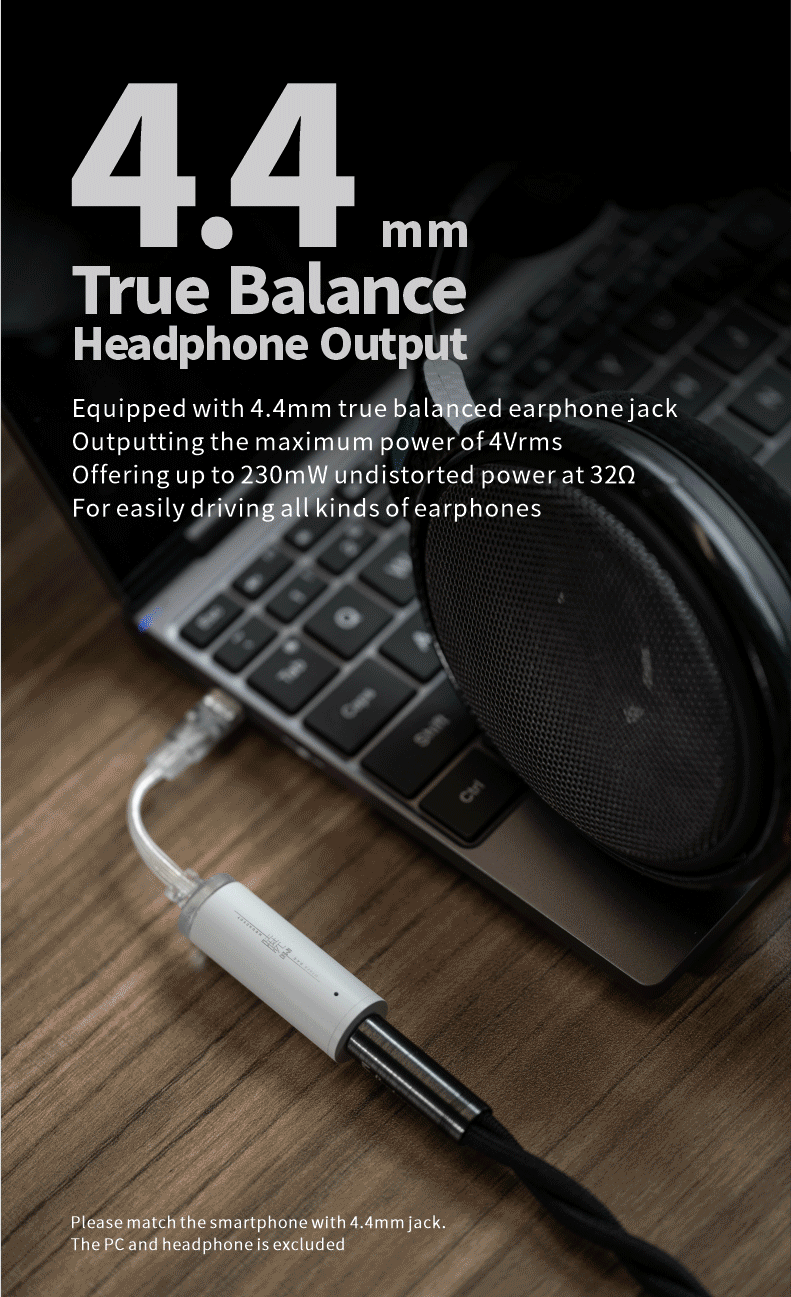

4.4mm true balanced headphone output

A 4.4mm true balanced earphone jack outputs up to 4Vrms of power, offering up to 230mW of undistorted power at 32Ω.

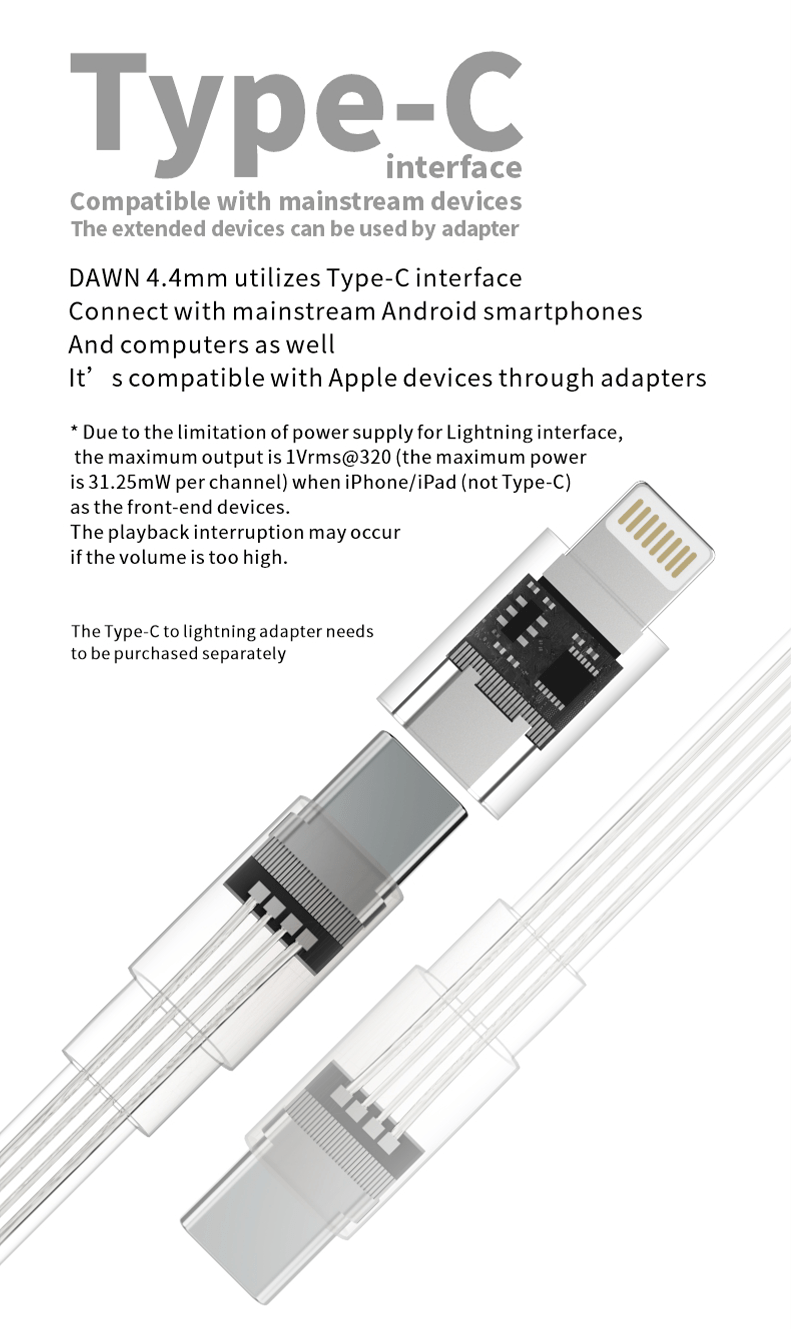

Type-C interface

Equipped with a USB Type-C interface, the DAWN is compatible with current-gen devices, including Android and Apple, and can be adapted with a dongle for even more compatibility.

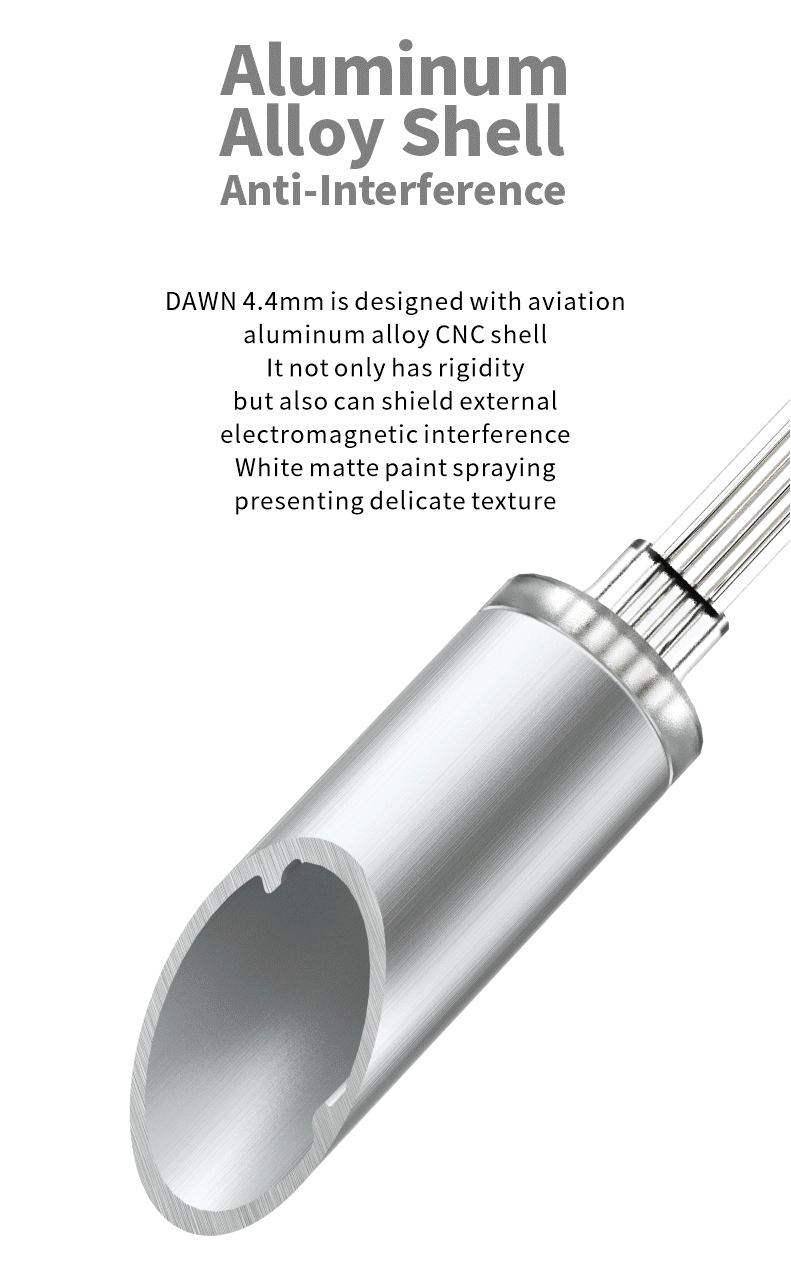

Aviation-grade aluminum alloy shell

Designed with an aviation-grade aluminum alloy CNC shell, the DAWN is strong in the face of drops and bumps, and shields the electronics from external electromagnetic interference.

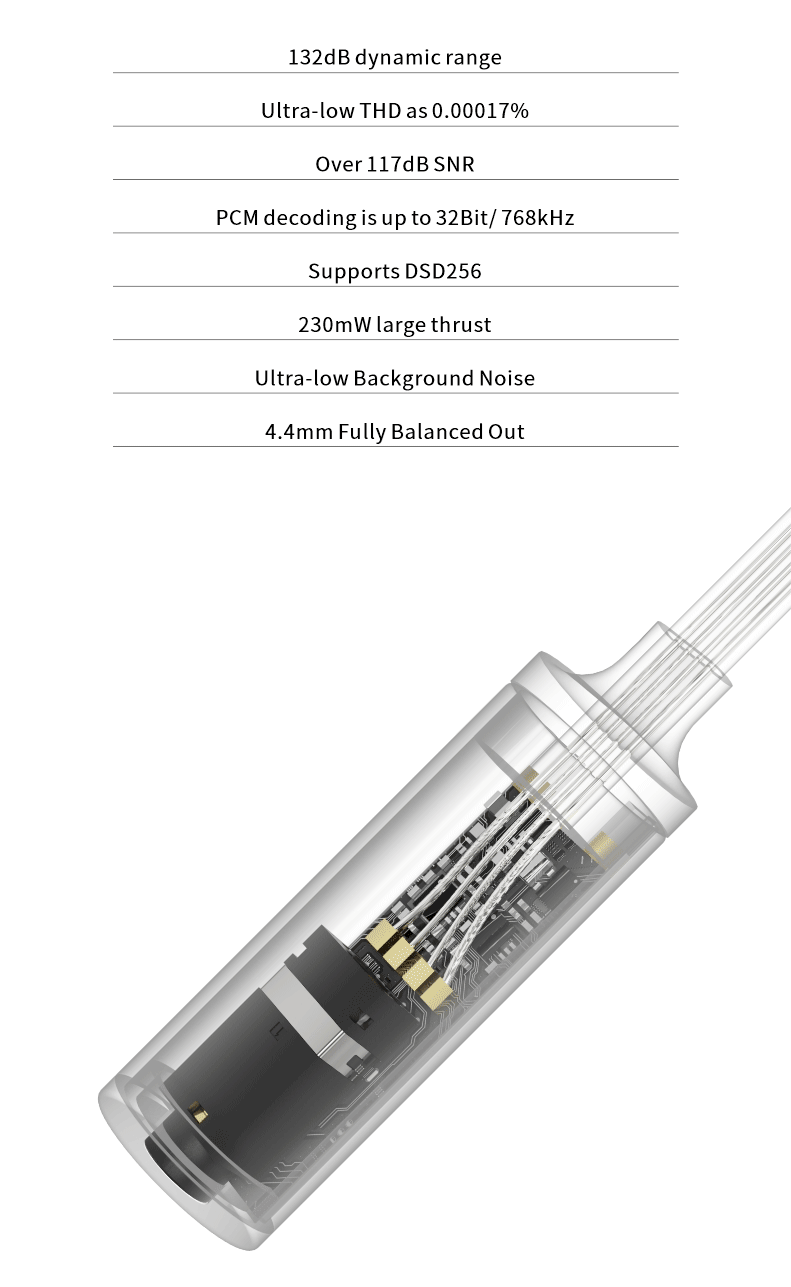

Product highlights

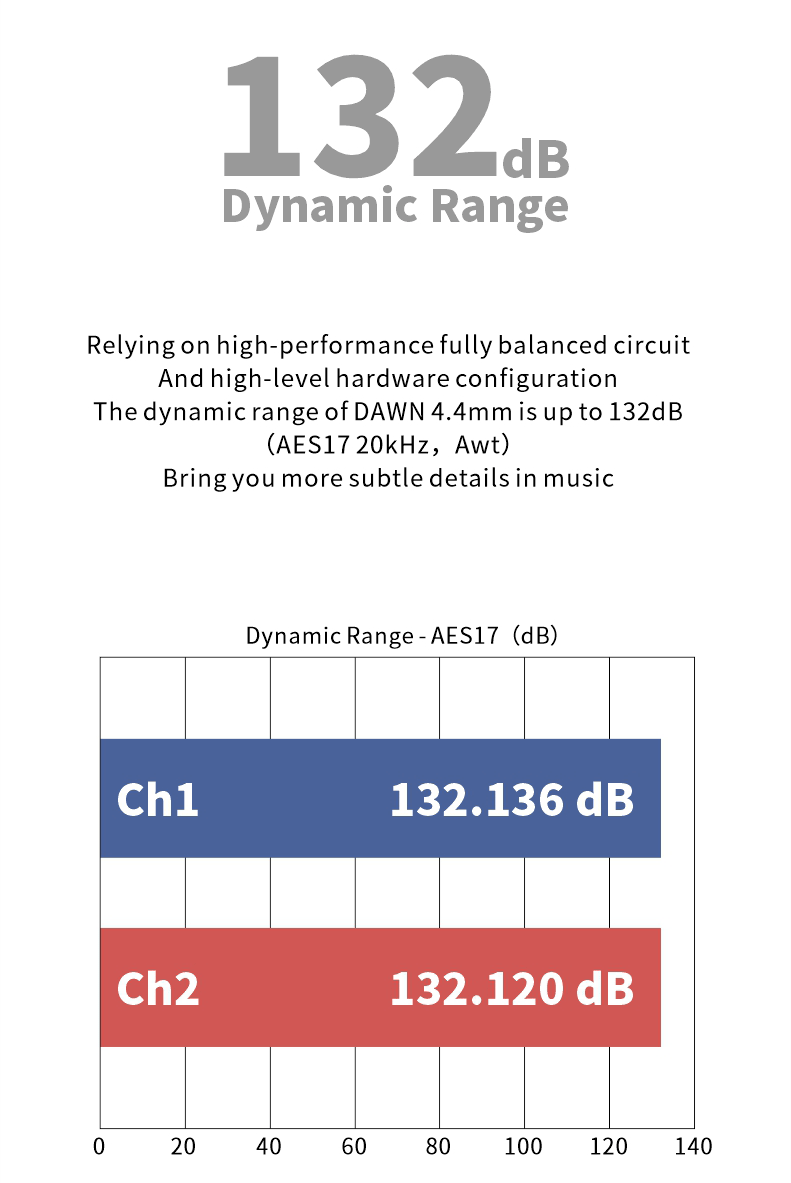

  • 132dB dynamic range

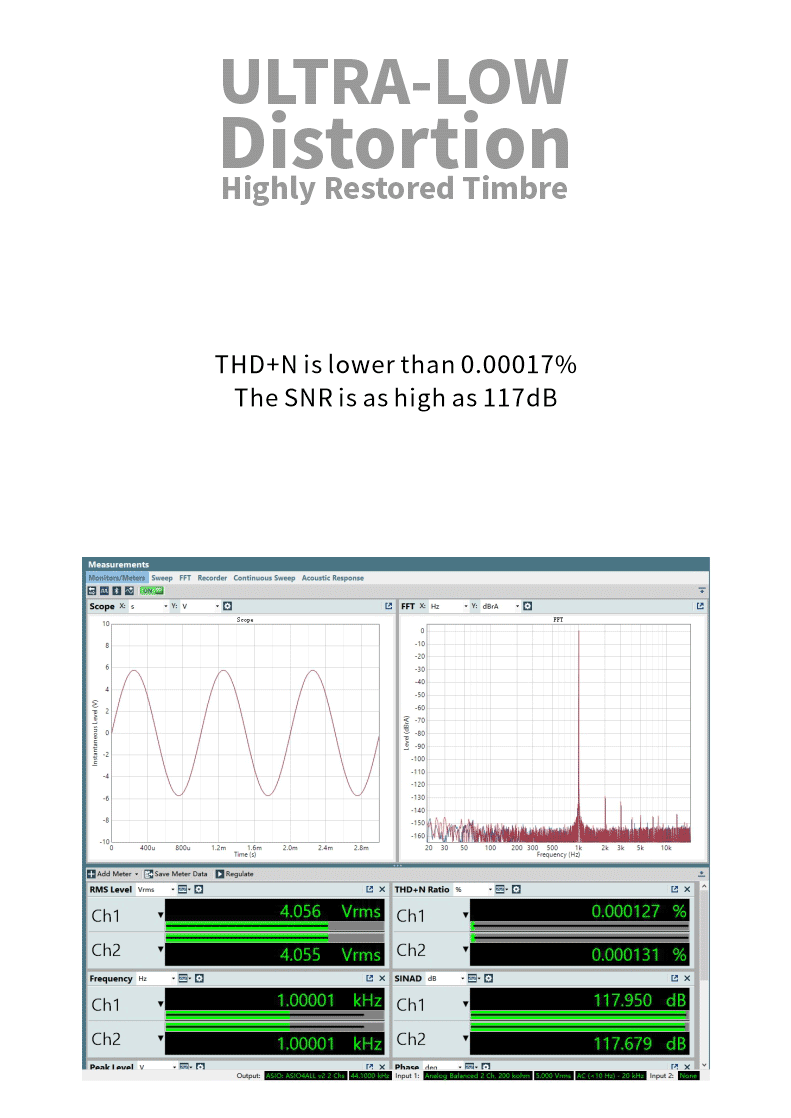

  • Ultra low 0.00017% THD+N
  • >117dB SNR
  • PCM 32-bit/768kHz
  • DSD256
  • 230mW output
  • 4.4mm fully balanced output

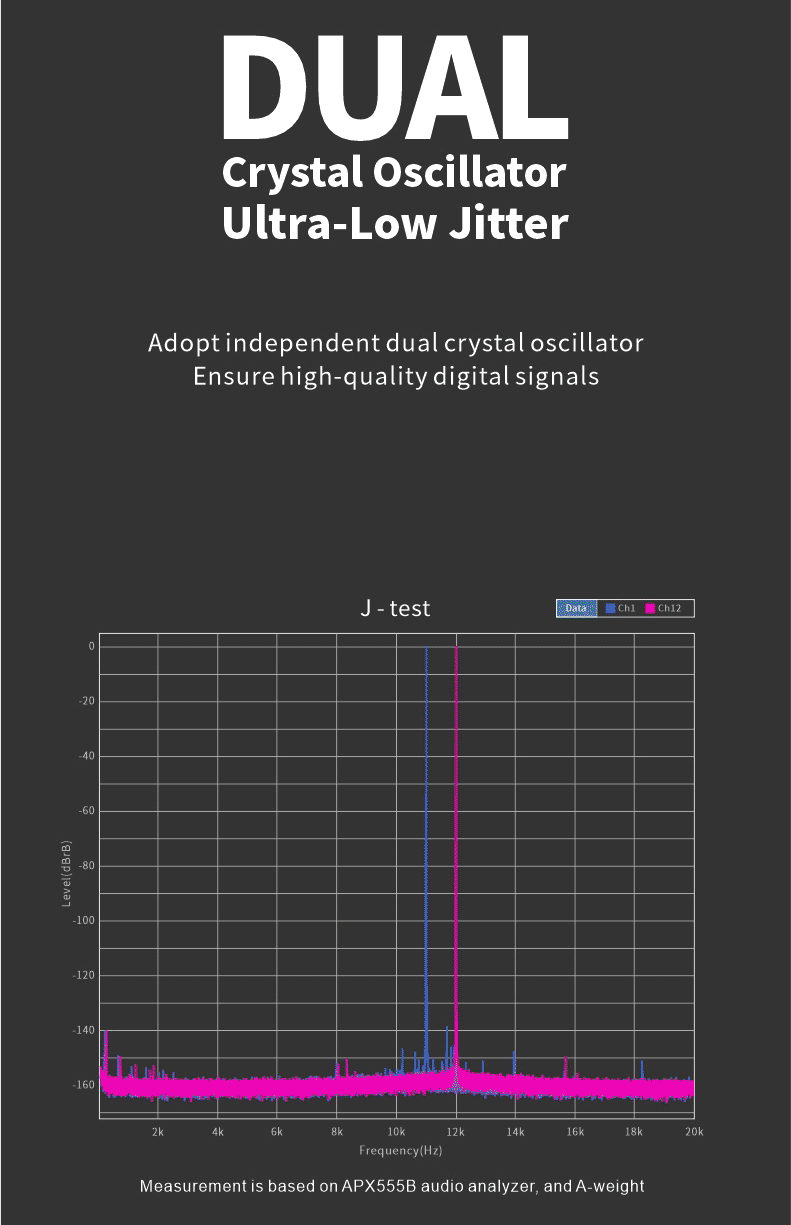

  • Dual crystal oscillator

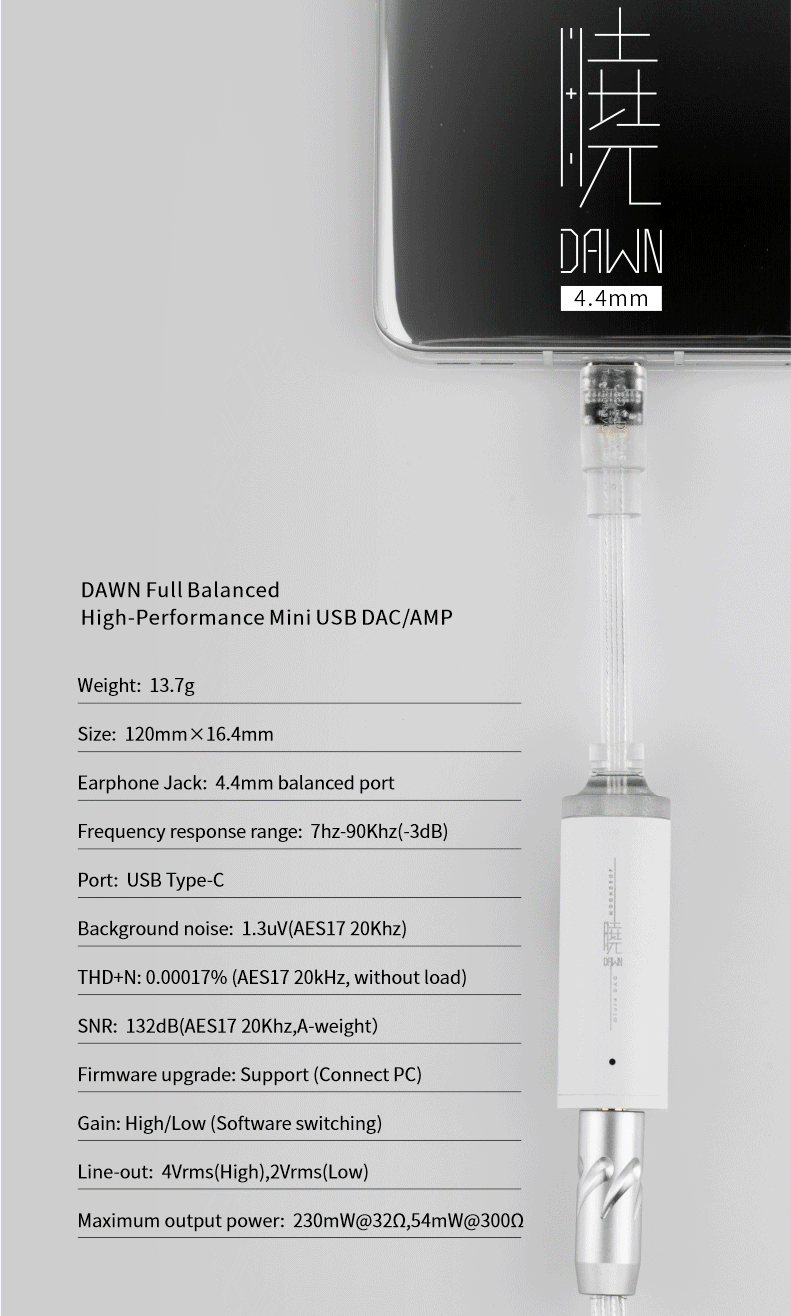

Specs

  • Earphone jack: 4.4mm balanced

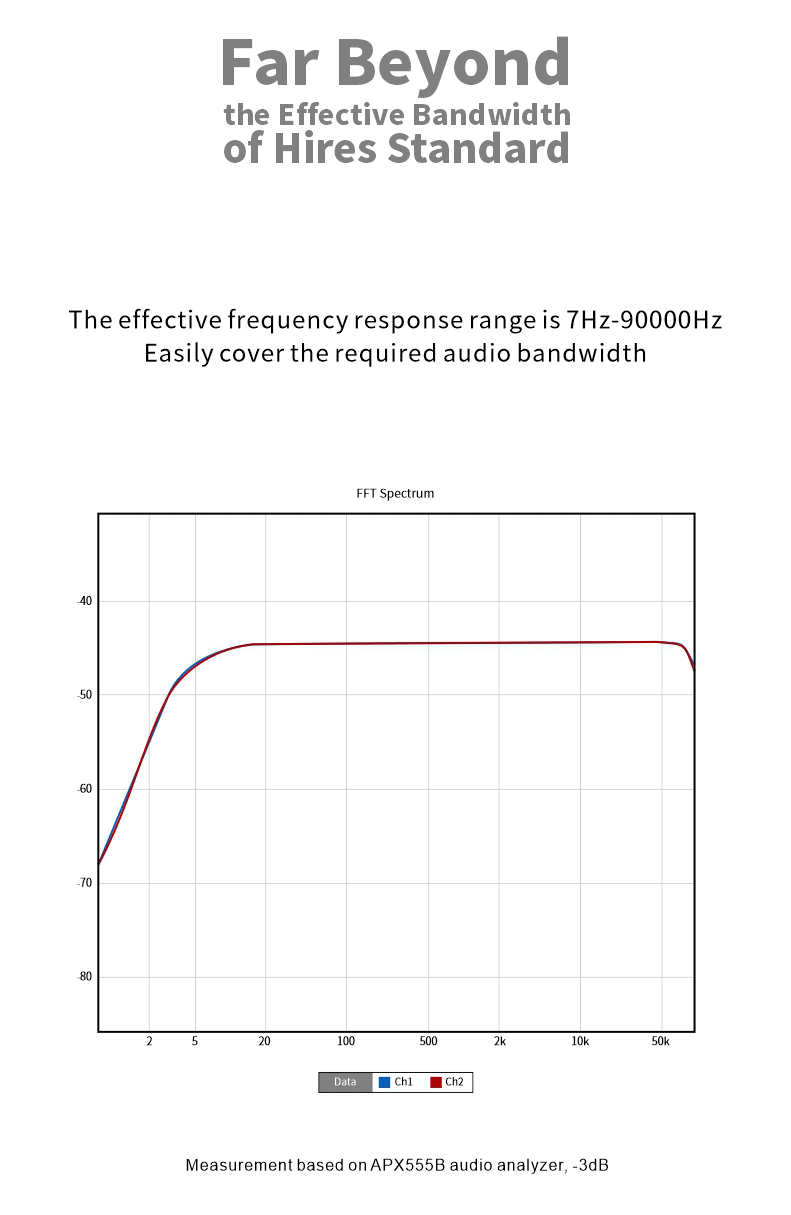

  • Frequency response range: 7Hz - 90kHz (-3dB)
  • Port: USB Type-C

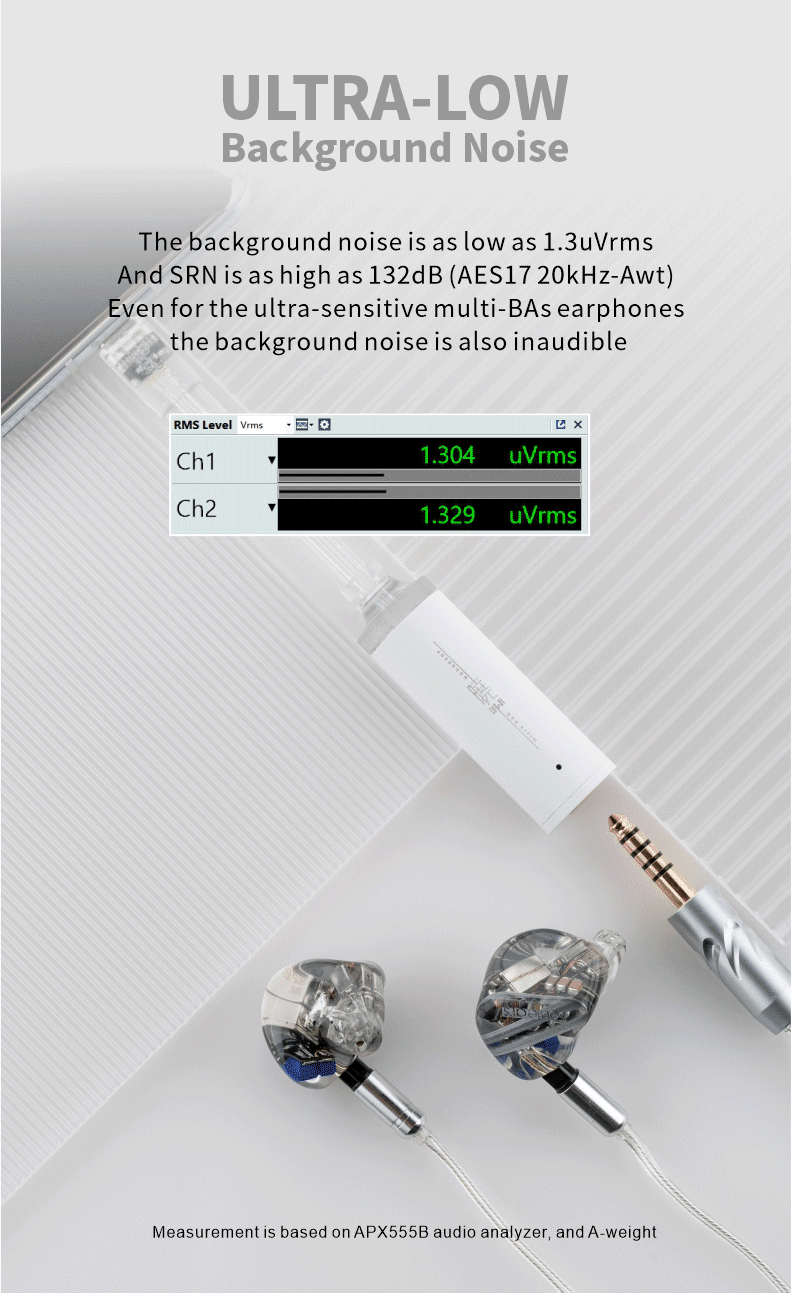

  • Background noise: 1.3uV(AES17 20kHz)
  • THD+N: 0.00017% (AES17 20kHz, without load)
  • SNR: 132dB (AES17 20kHz, A-weighted)
  • Gain: high/low (software switching)
  • Line out: 4Vrms (high), 2Vrms (low)
  • Maximum output power: 230mW @32Ω, 54mW @300Ω
  • Weight: 0.4oz (13.7g)
  • Size: 4.7" x 0.64" (120mm x 16.4mm)
