Moondrop DAWN 3.5mm Mini USB DAC/Amp


Dang it.

This product has been discontinued. Luckily, we have a great alternative in the Moondrop Dawn Pro Dual Portable DAC/Amp.

The dawn of a new era

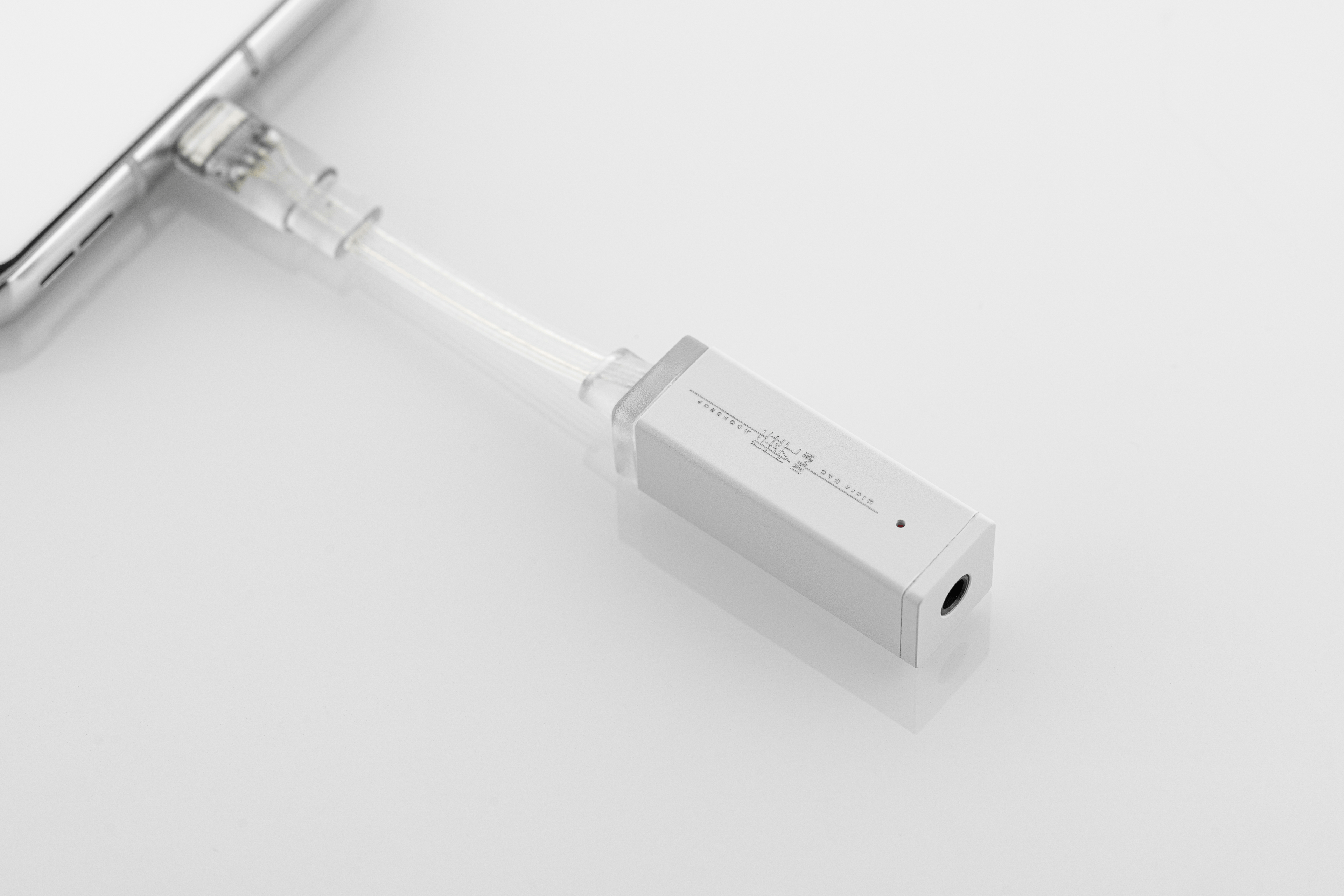

The Moondrop DAWN is a portable DAC/amp for use with PCs, laptops, phones, tablets, and other devices. It features a USB-C input, 3.5mm output, and stunning specs like 127dB dynamic range. This dead-simple, super portable device is the perfect addition to any audiophile’s packing list.

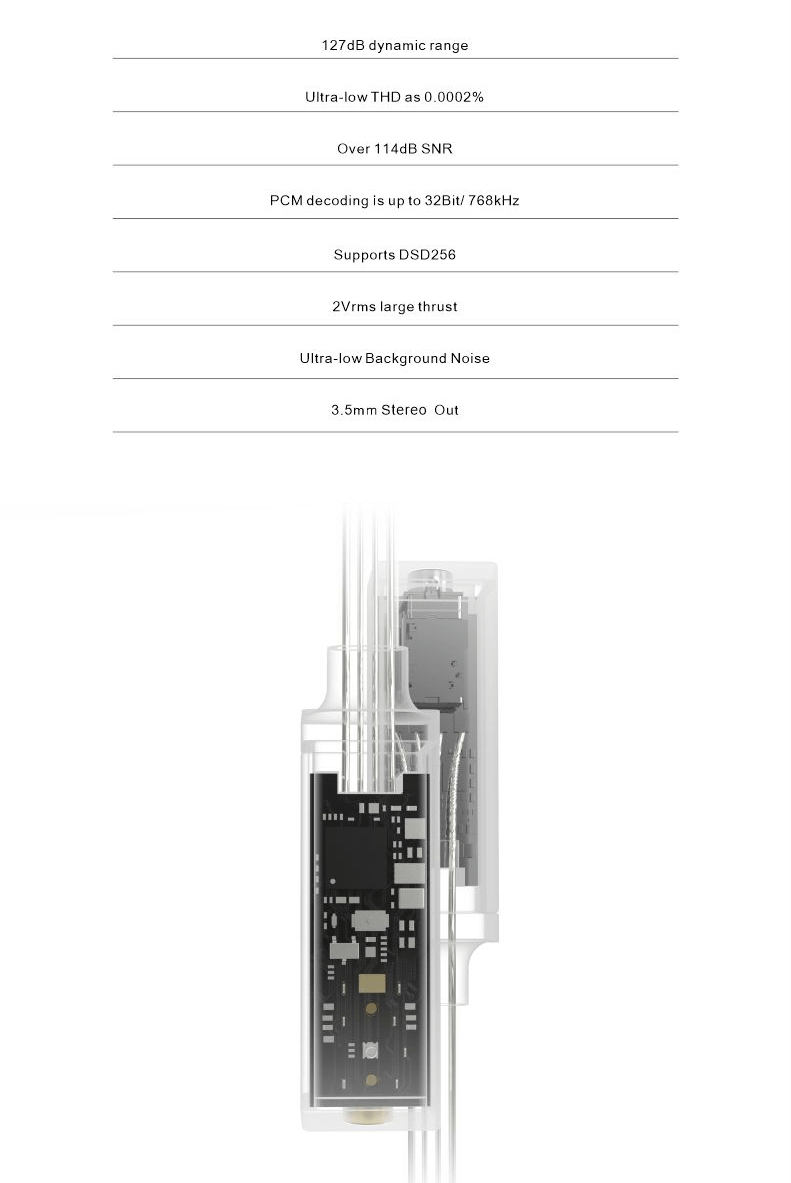

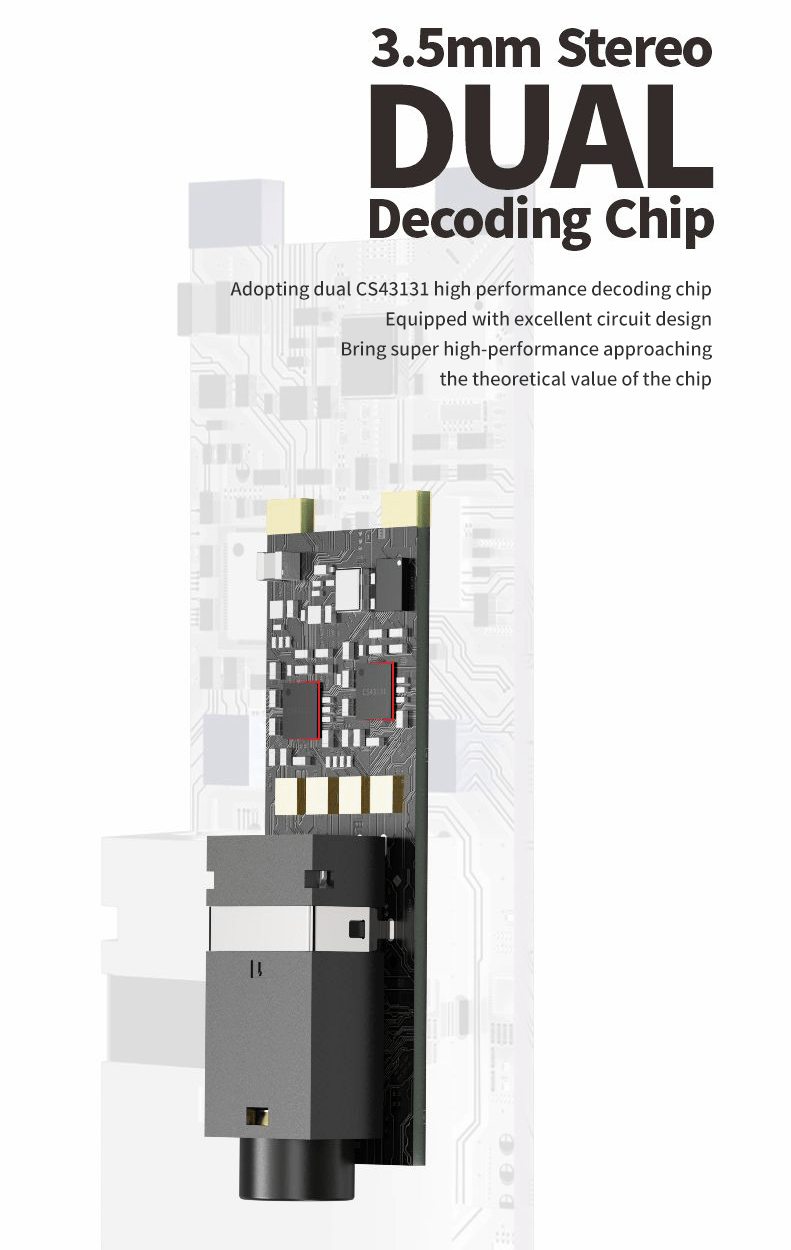

3.5mm stereo dual decoding chips

The Moondrop DAWN uses dual CS43131 high-performance DAC chips. It supports playback types of up to DSD256 and PCM 32-bit/768kHz.

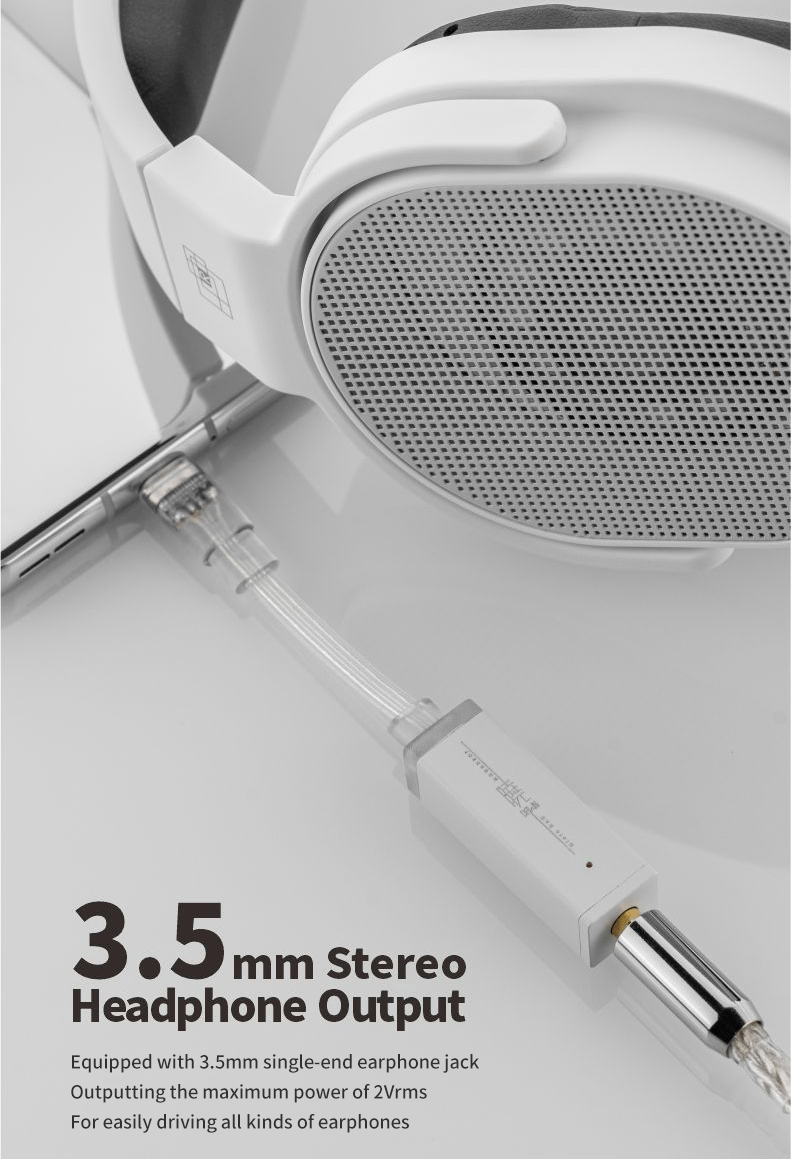

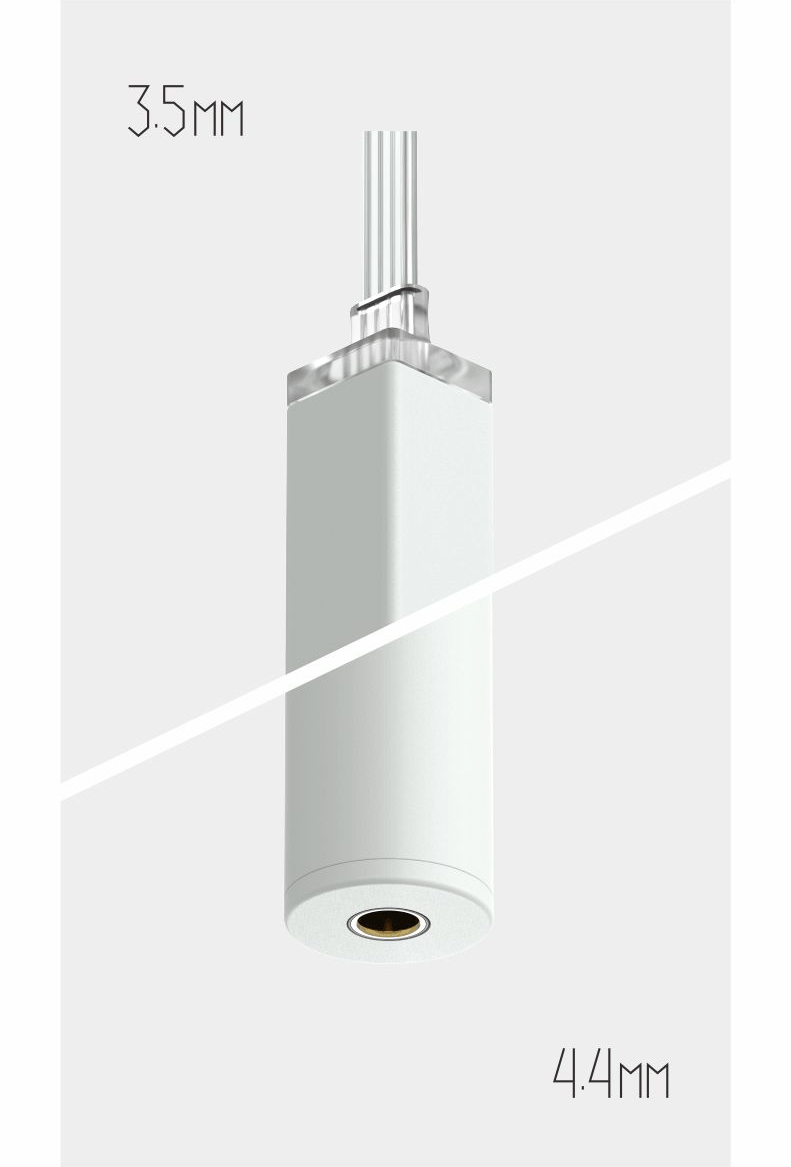

3.5mm headphone output

A 3.5mm headphone jack outputs up to 2Vrms of power, easily driving headphones of all types.

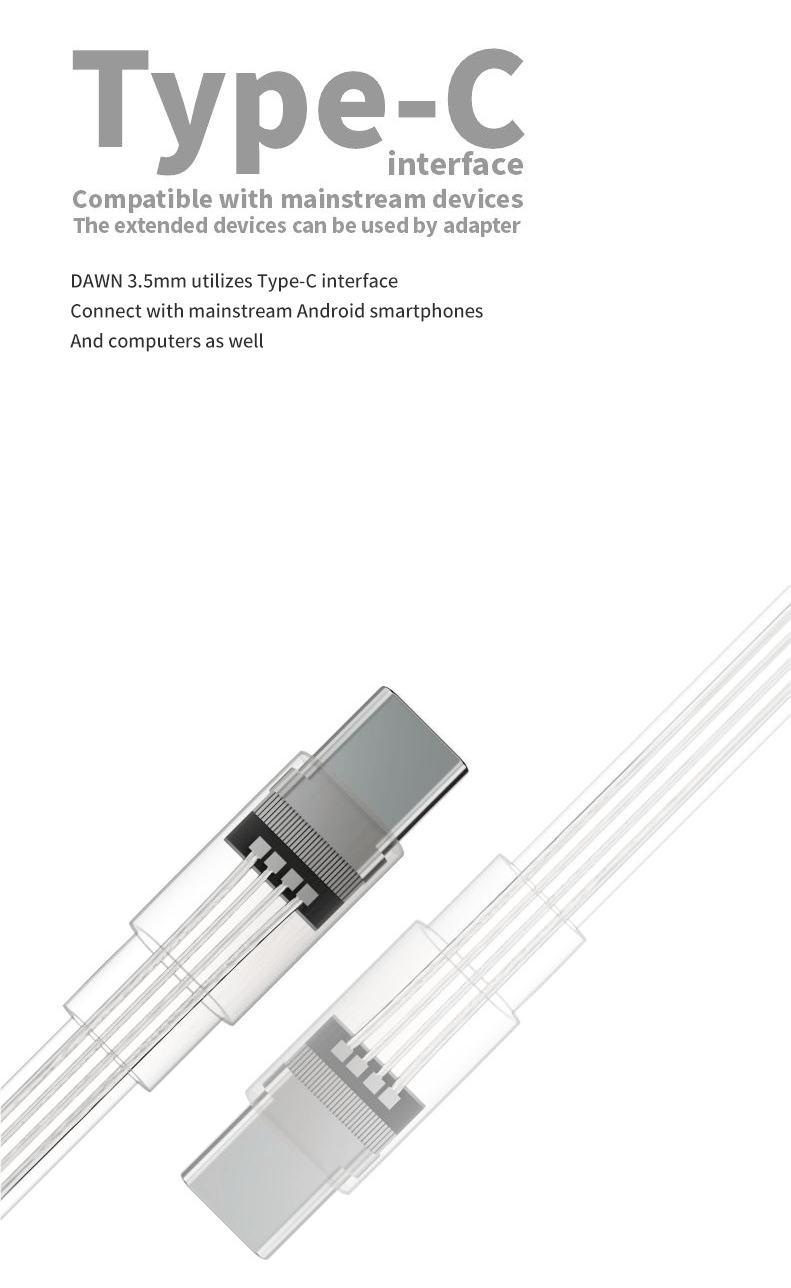

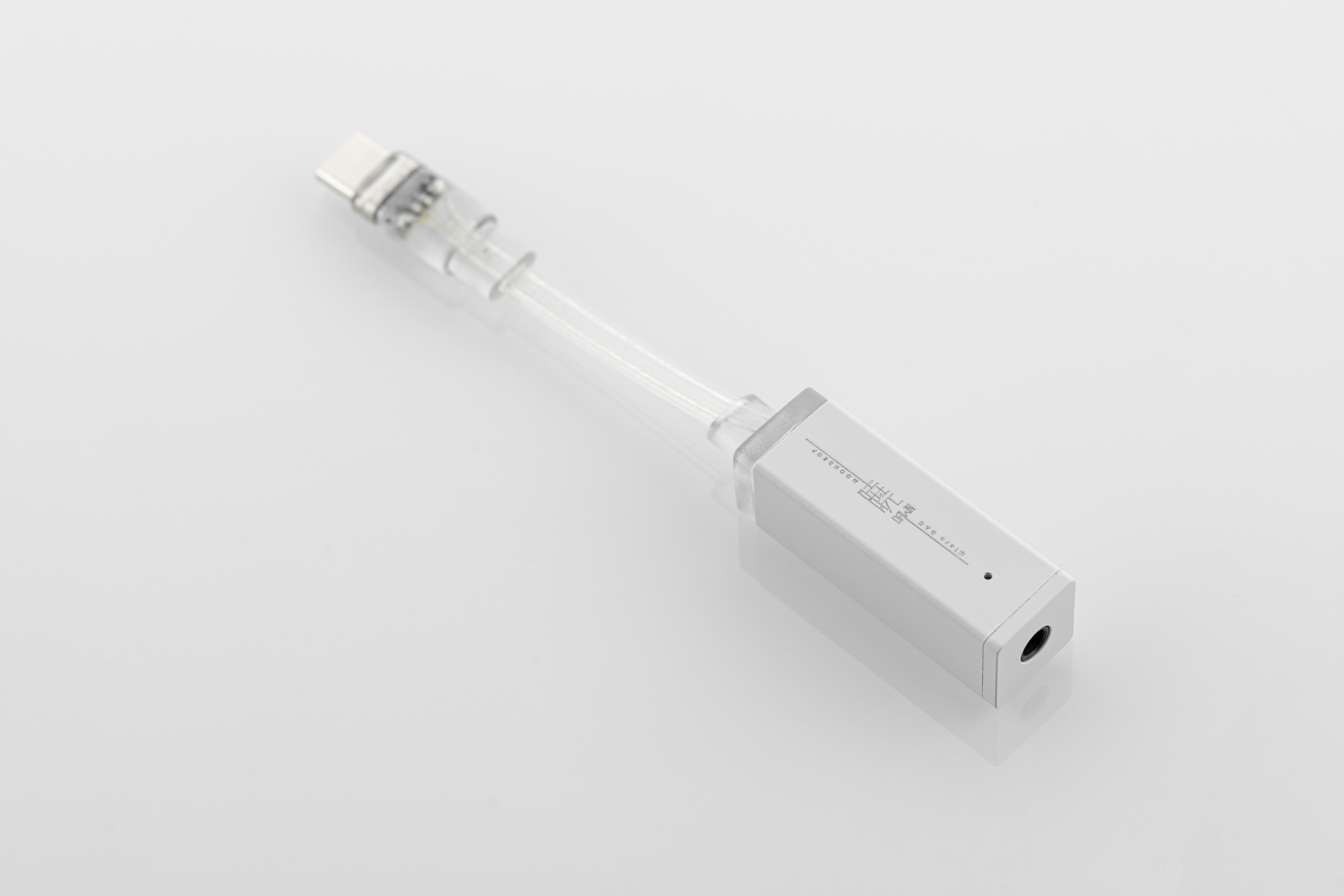

Type-C interface

Equipped with a USB Type-C interface, the DAWN is compatible with current-gen devices, including Android and Apple, and can be adapted with a dongle for even more compatibility.

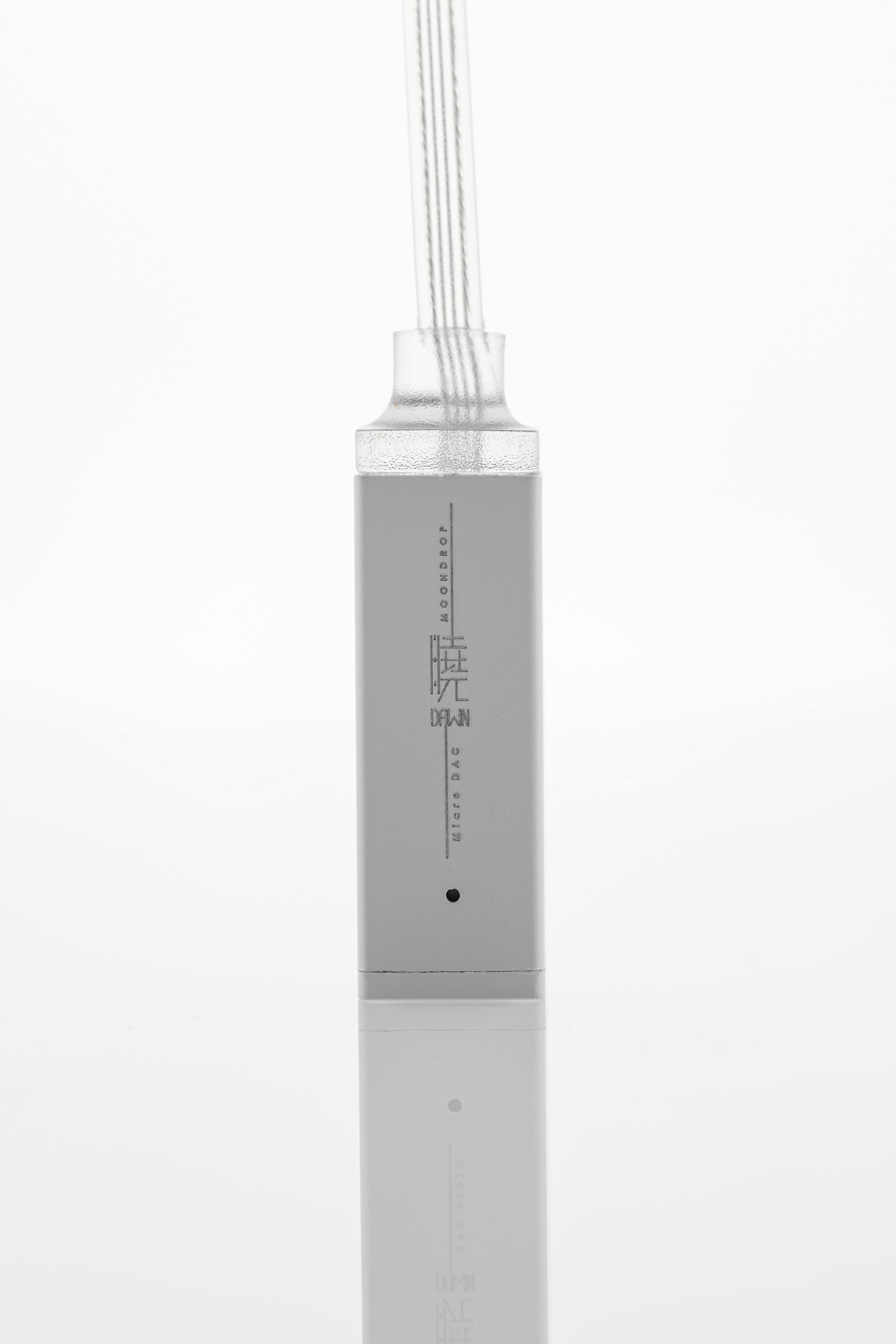

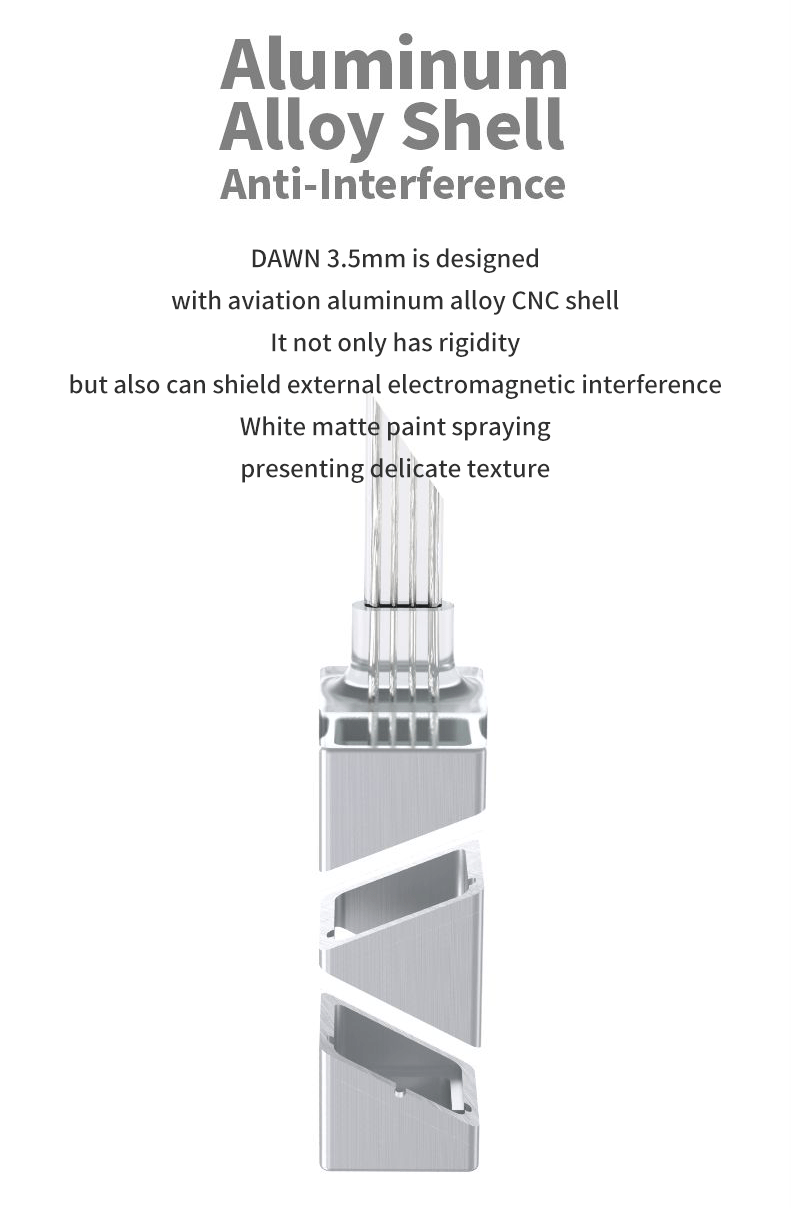

Aviation-grade aluminum alloy shell

Designed with an aviation-grade aluminum alloy CNC shell, the DAWN is strong in the face of drops and bumps, and shields the electronics from external electromagnetic interference.

Product highlights

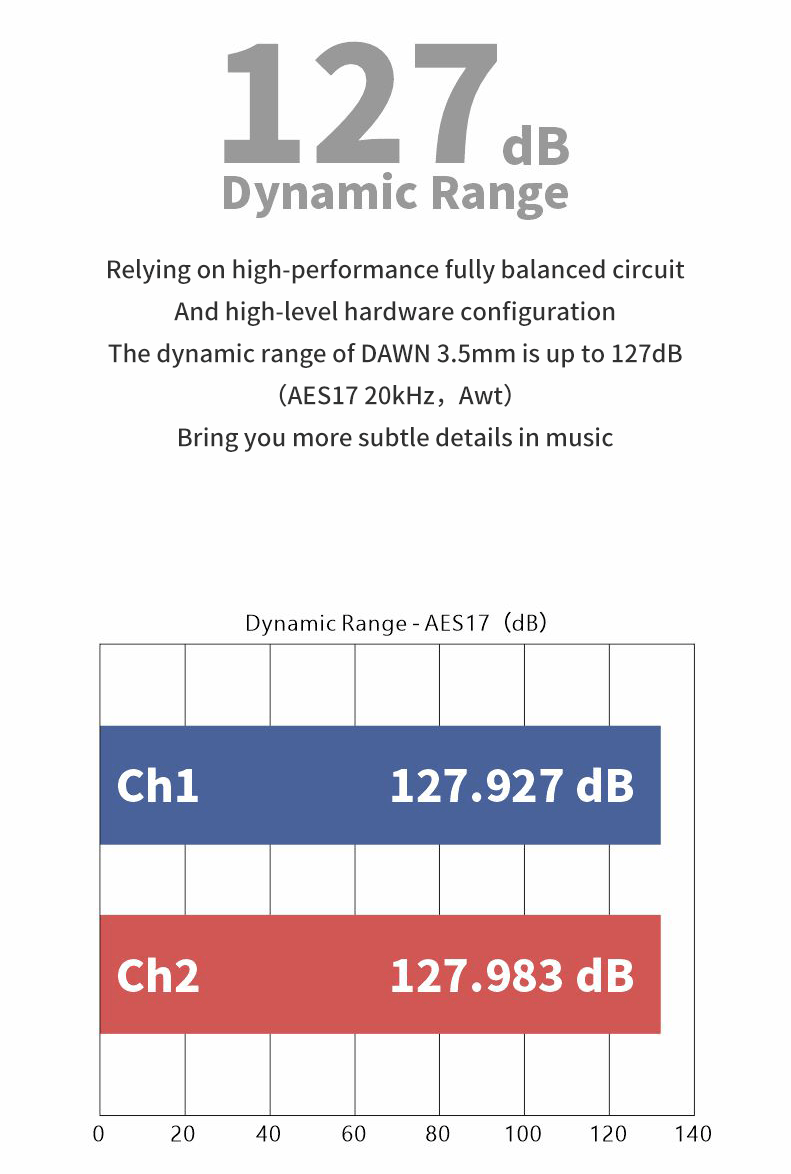

  • 127dB dynamic range

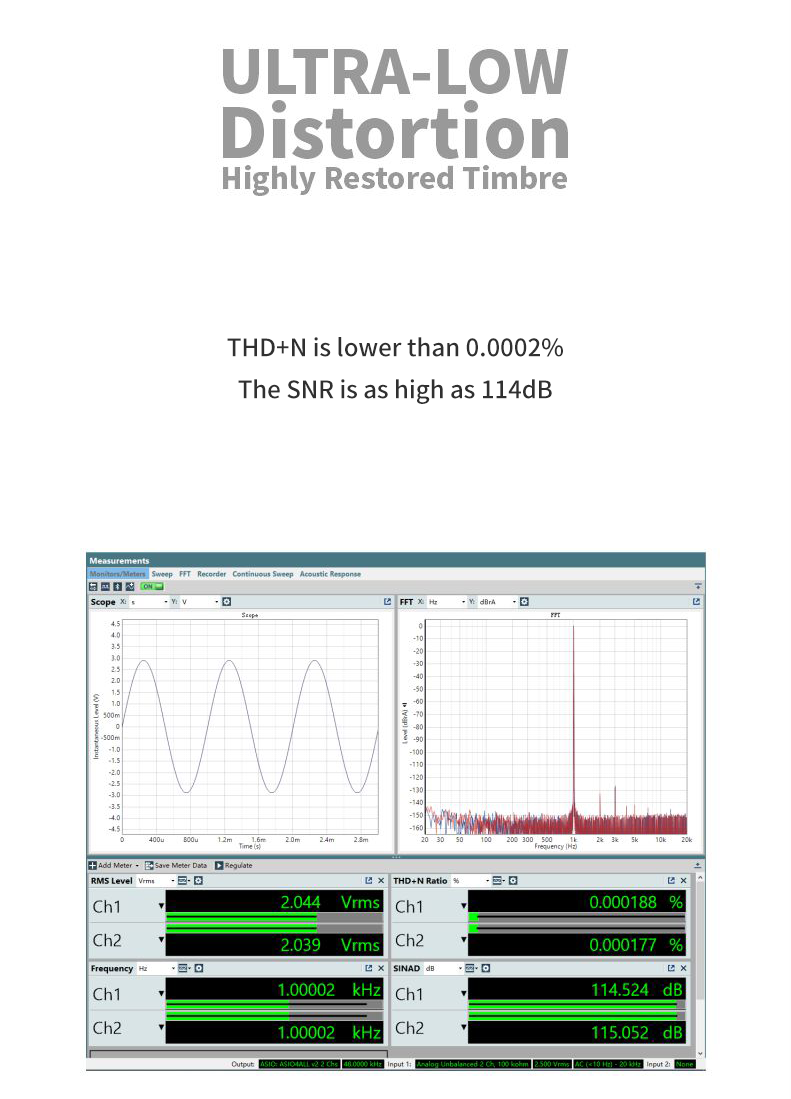

  • Ultra-low 0.0002% THD+N
  • >114dB SNR
  • 32-bit/768kHz PCM decoding
  • DSD256
  • 2Vrms output
  • 3.5mm stereo output

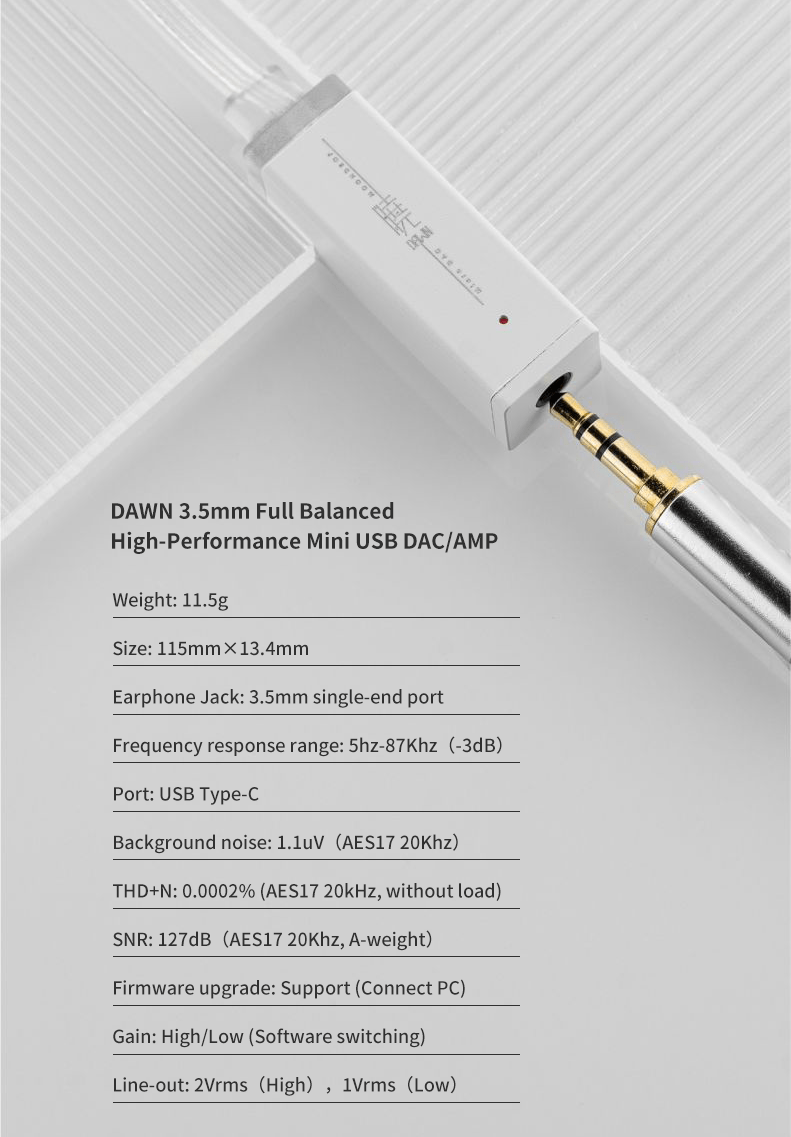

    • Earphone jack: 3.5mm single-ended

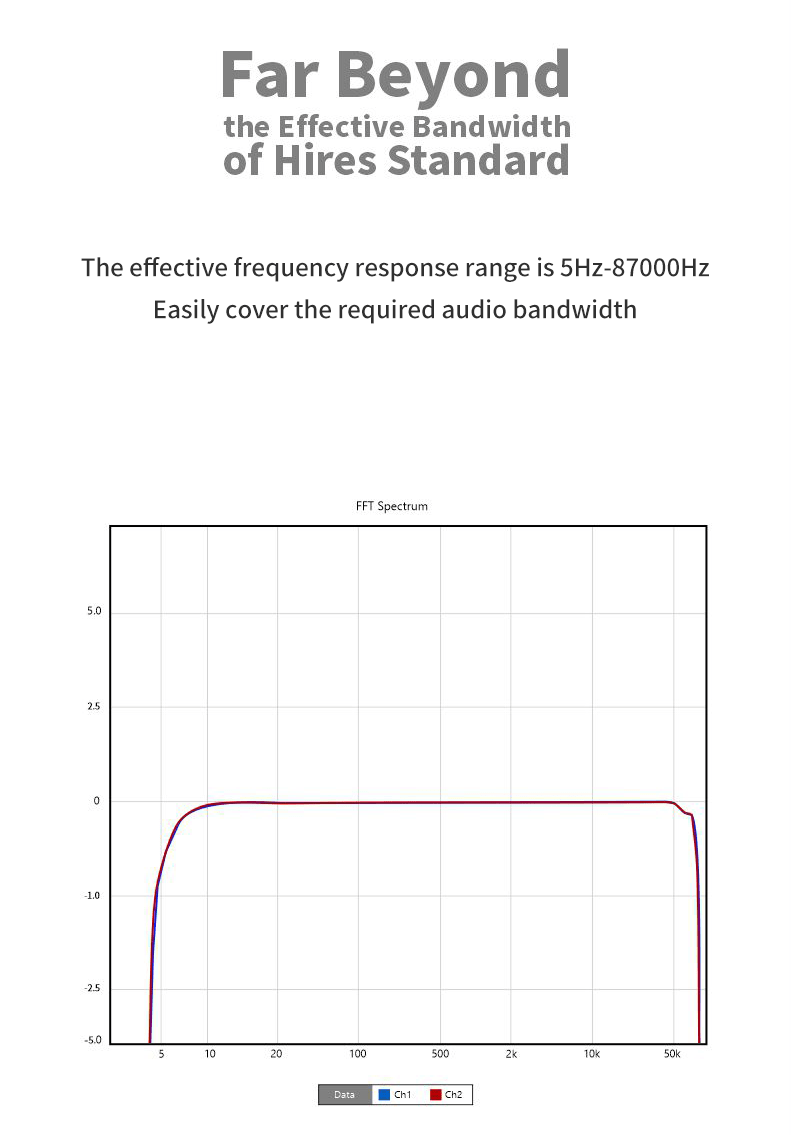

    • Frequency response range: 5Hz - 87kHz (-3dB)
    • Port: USB Type-C

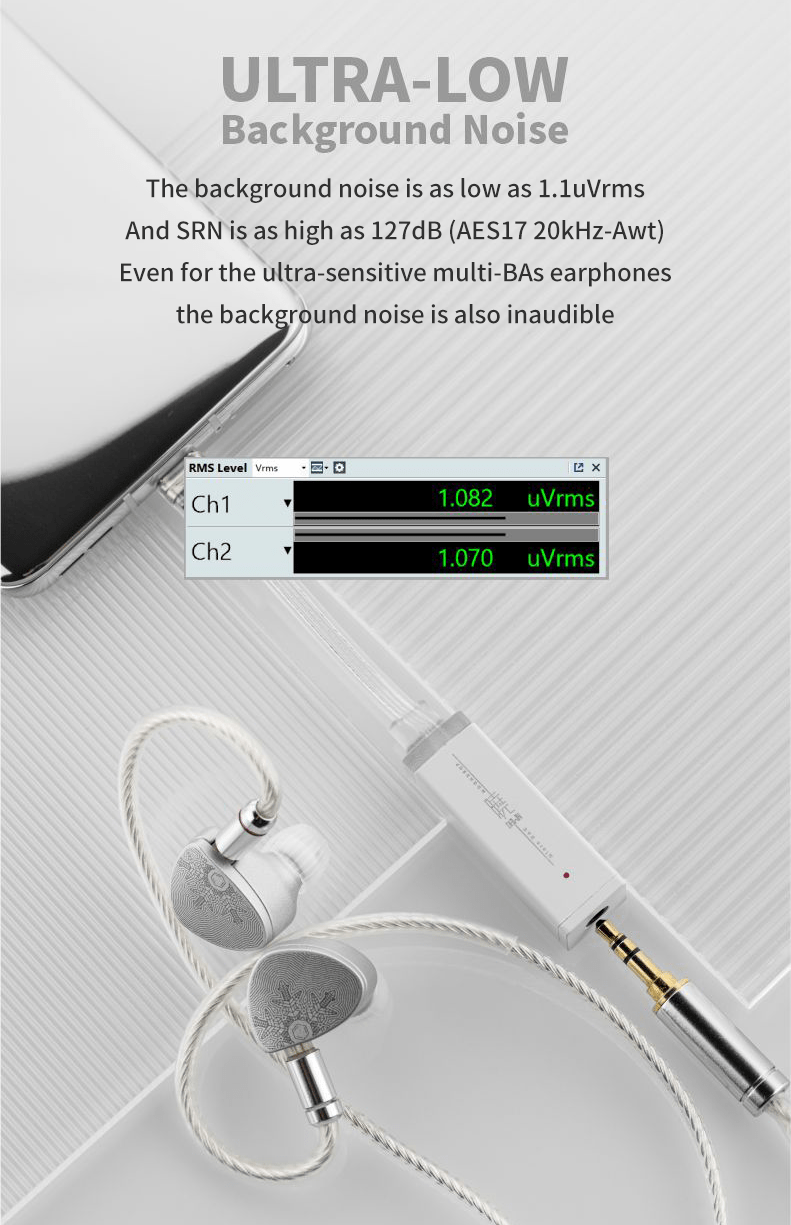

    • Background noise: 1.1uV(AES17 20kHz)
    • THD+N: 0.0002% (AES17 20kHz, without load)
    • SNR: 127dB (AES17 20kHz, A-weighted)
    • Gain: high/low (software switching)
    • Line out: 2Vrms (high), 1Vrms (low)
    • Weight: 0.4oz (11.5g)
    • Size: 4.5" x 0.52" (115mm x 13.4mm)
