The new standard for pocket-sized DAC/Amps
The Moondrop Dawn Pro 2 is a portable DAC/amp built for listeners who want reference-grade sound in their pocket. With dual flagship Cirrus Logic CS43198 DAC chips, 132dB dynamic range, ultra-low distortion, and an almost lossless 100-level hardware volume control, it delivers detail and delicacy that usually belongs to full-sized desktop gear. Whether you’re pairing it with sensitive IEMs or demanding headphones, the Dawn Pro 2 balances finesse with drive.
What’s new in Dawn Pro 2
The original Dawn Pro used dual Cirrus Logic CS43131 DACs. The Dawn Pro 2 raises the bar with dual flagship CS43198 chips, paired with independent power regulation and a dedicated crystal oscillator for lower noise and more precise decoding. On top of that, it introduces Moondrop’s second-generation DSP engine, accessible through both Android and web browsers. This lets you fine-tune EQ curves, apply Auto EQ, and even share profiles with the community.

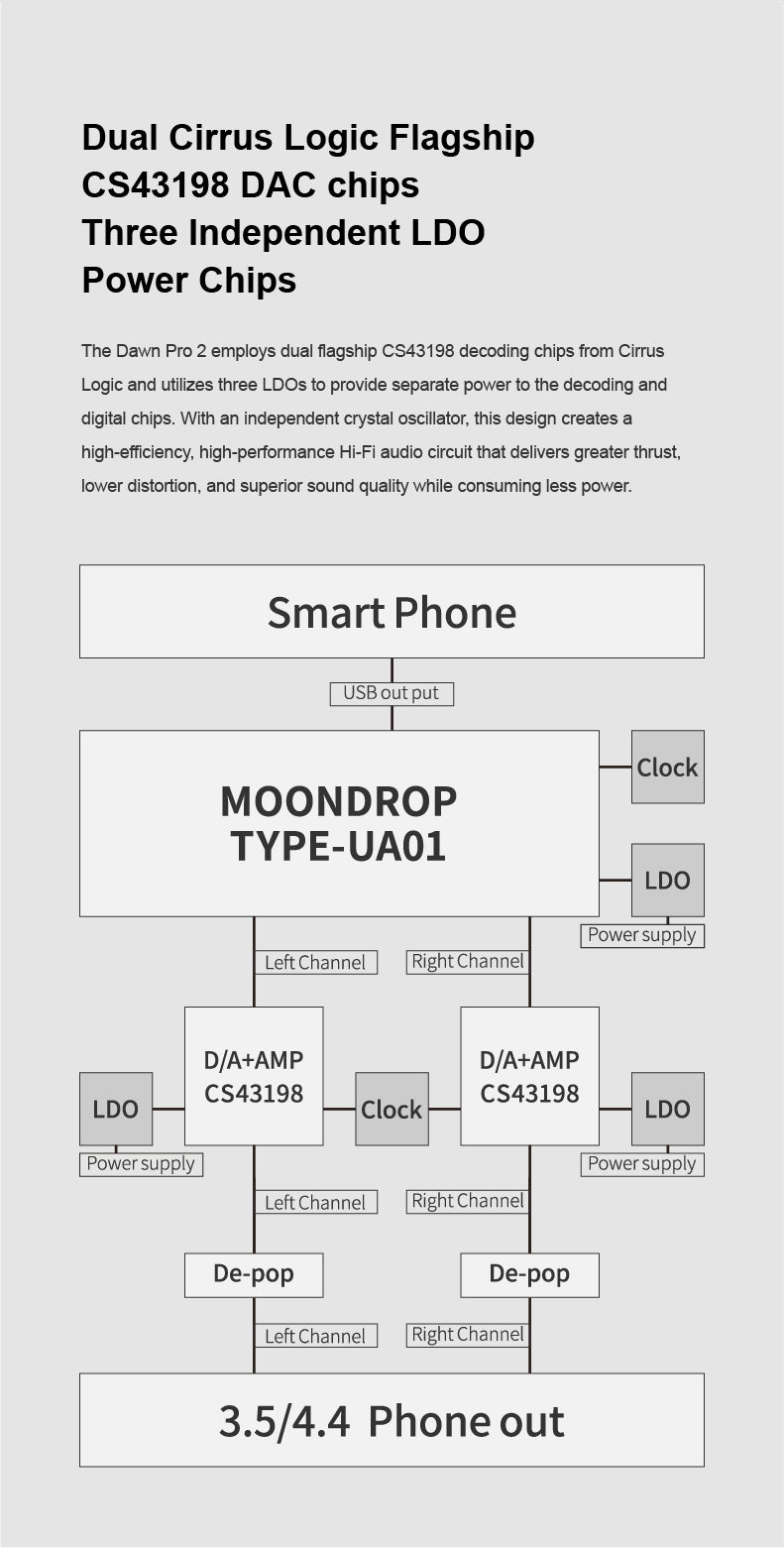

Dual flagship DAC architecture
At its heart are two CS43198 decoding chips from Cirrus Logic, working in tandem with three independent LDO power supplies and a dedicated crystal oscillator. This layout ensures high-efficiency, low-noise performance with a clean digital-to-analog conversion path. The Dawn Pro 2 supports PCM up to 32-bit/384kHz and native DSD256 for uncompromised decoding.

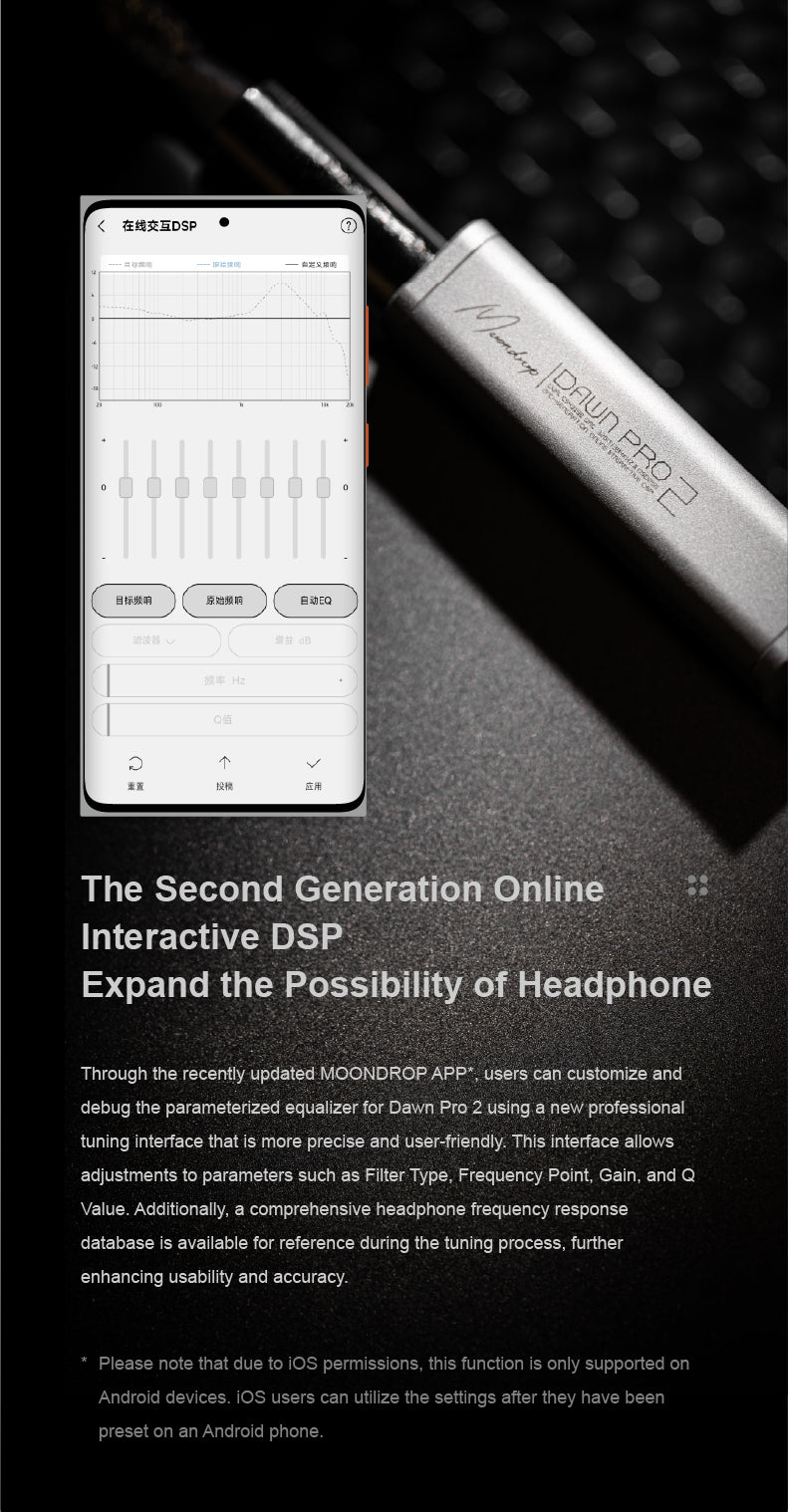

Second-generation online interactive DSP

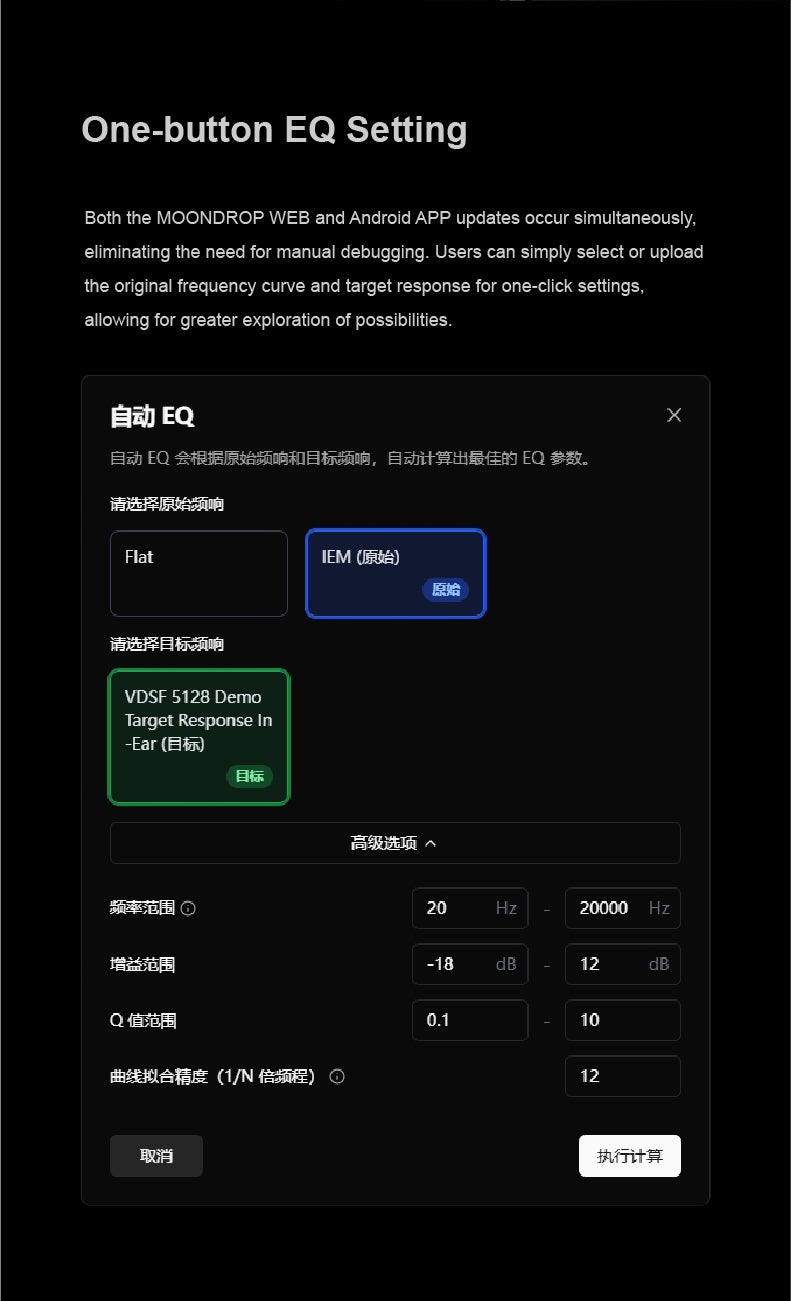

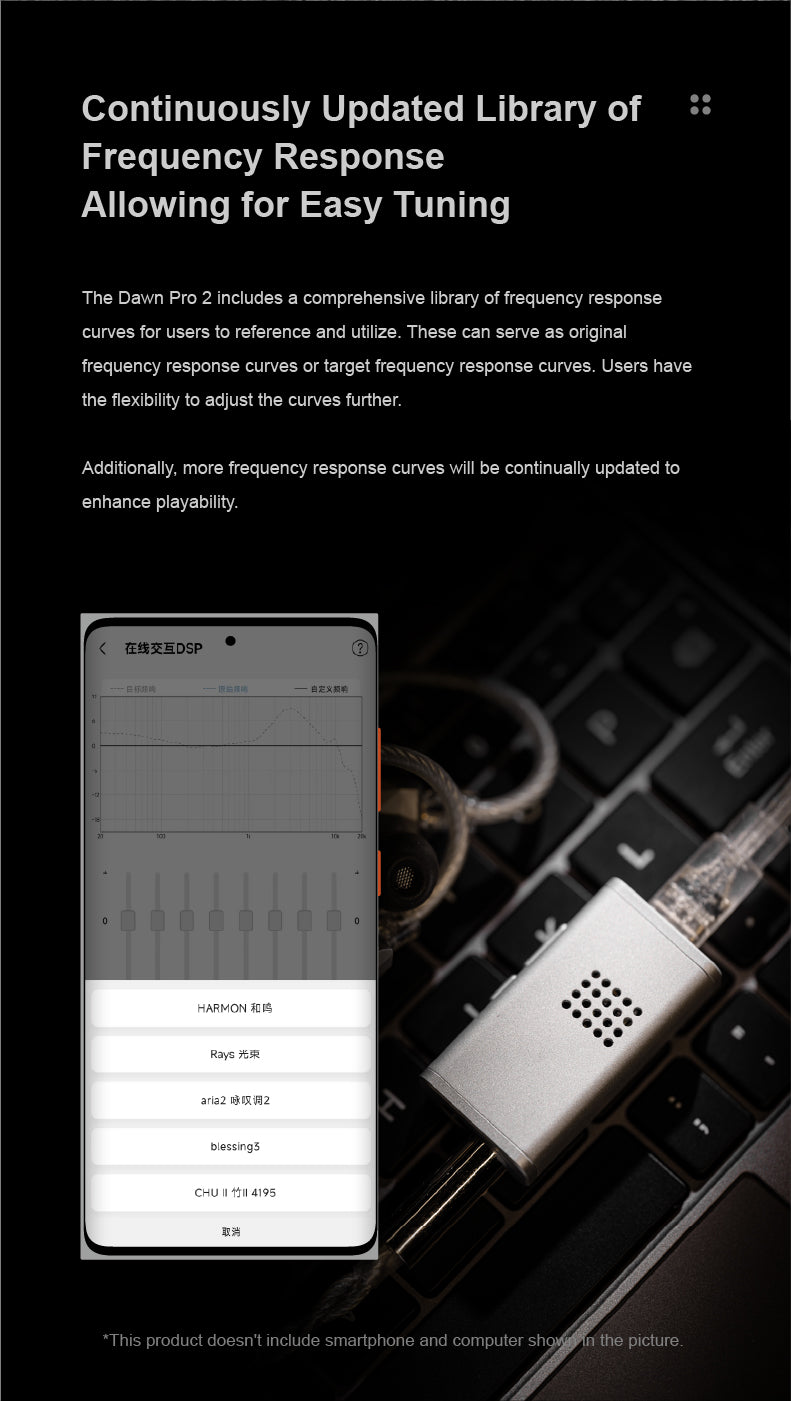

The Dawn Pro 2 introduces Moondrop’s latest DSP engine, accessible through the Moondrop Android app or web interface. This allows precise parameter adjustments—filter type, frequency point, gain, and Q value—using a professional tuning interface. A continuously updated library of headphone frequency response curves provides starting points for EQ, while one-click Auto EQ functions simplify the process even further.
• Android support: full DSP tuning and preset management

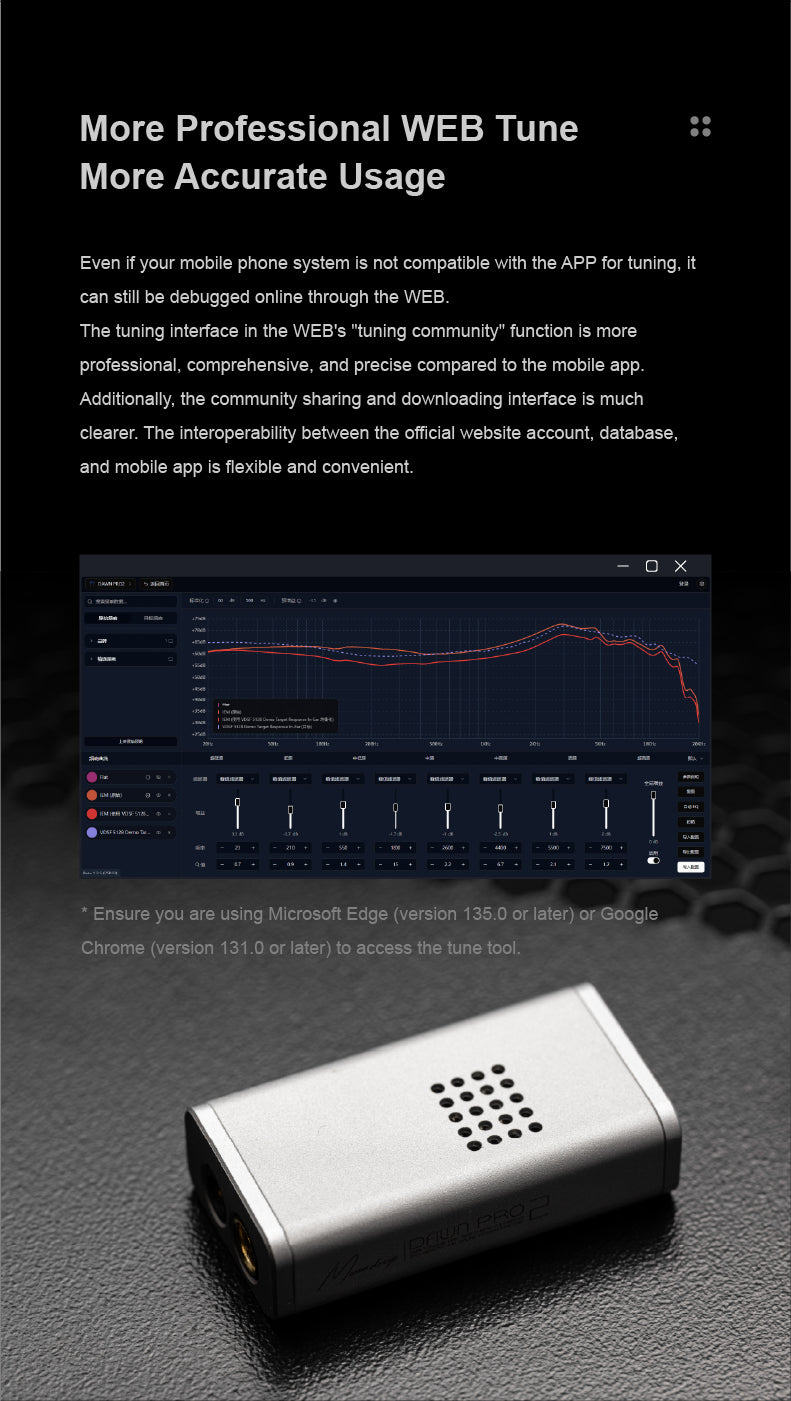

• Web tuning: professional browser-based interface (Edge 135+ / Chrome 131+)

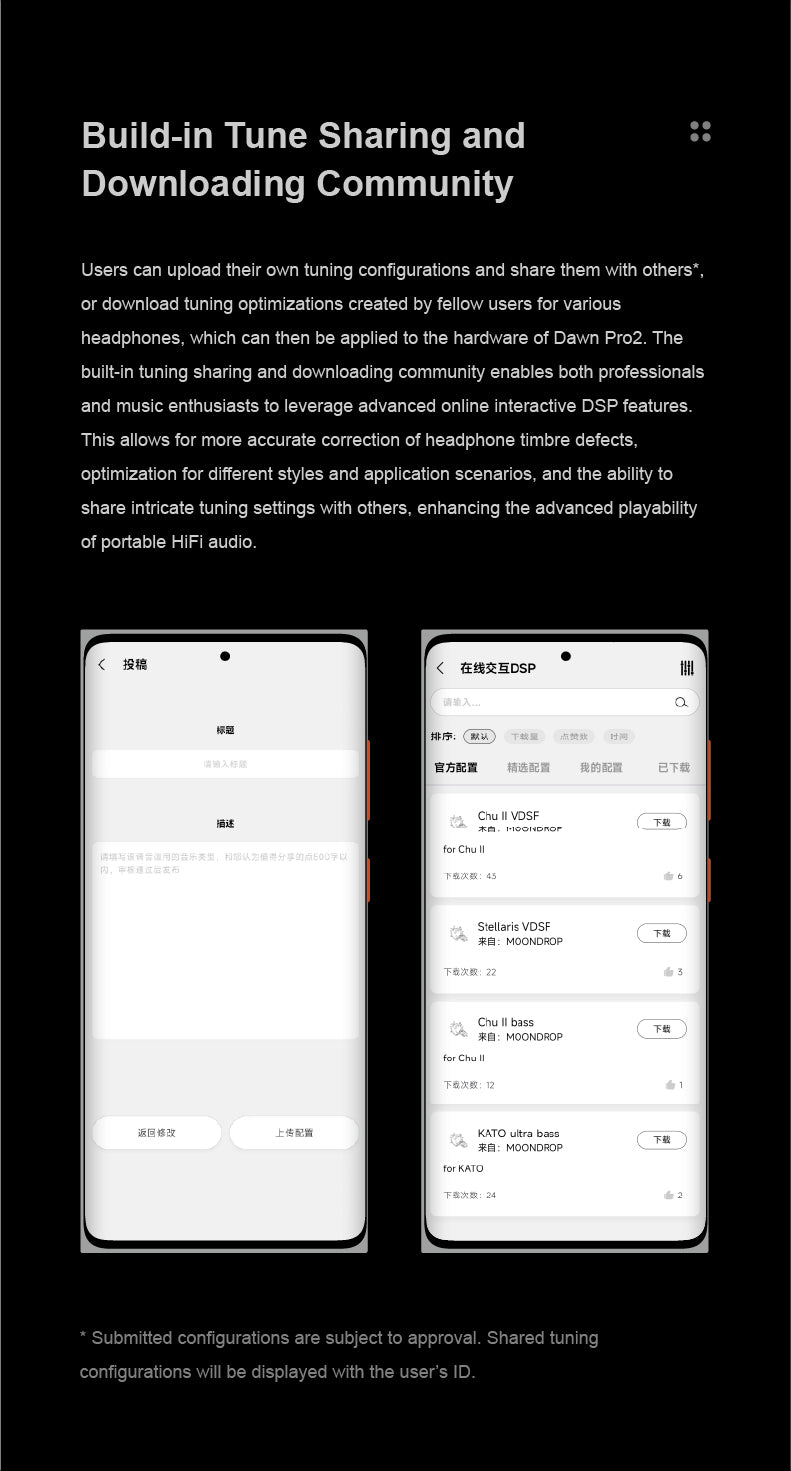

• Community sharing: upload and download EQ profiles with ease

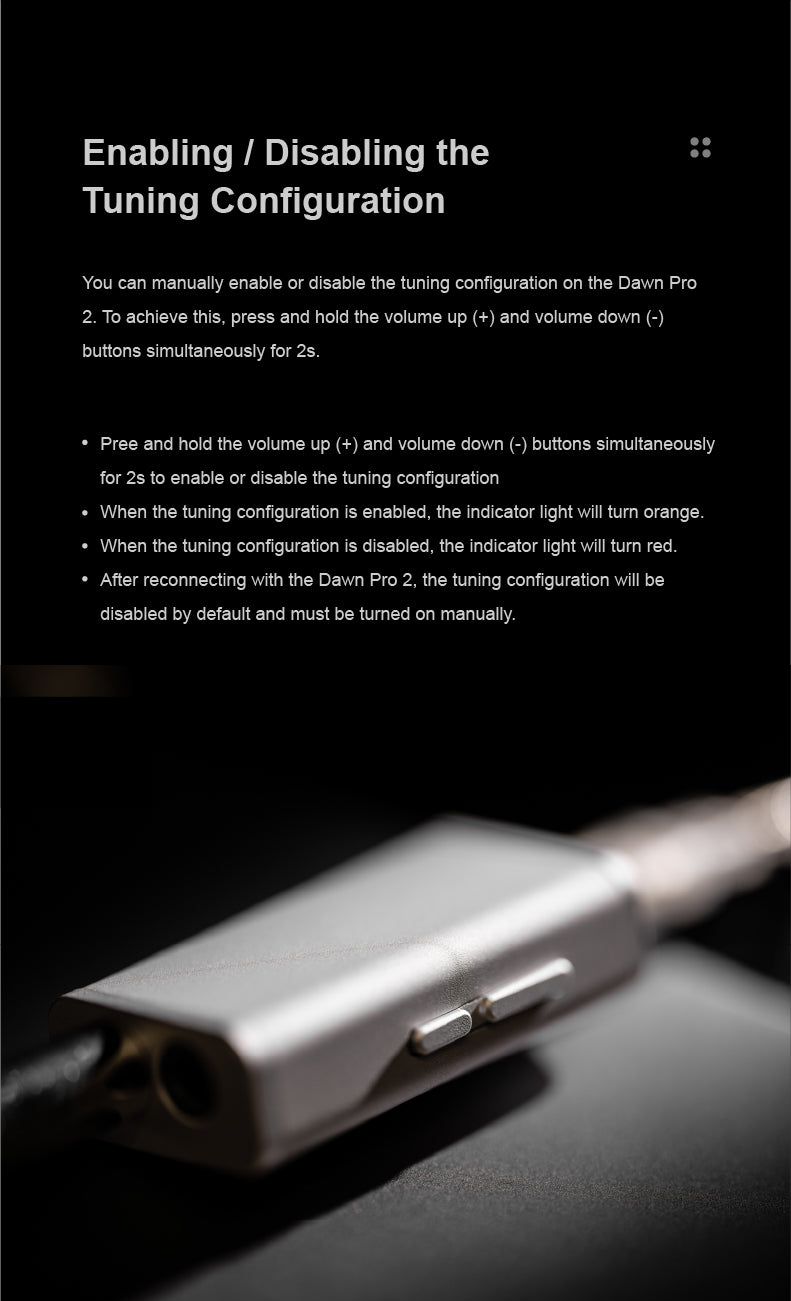

• One-button toggle: press and hold both volume buttons for 2s to enable/disable DSP, with color-coded indicator lights

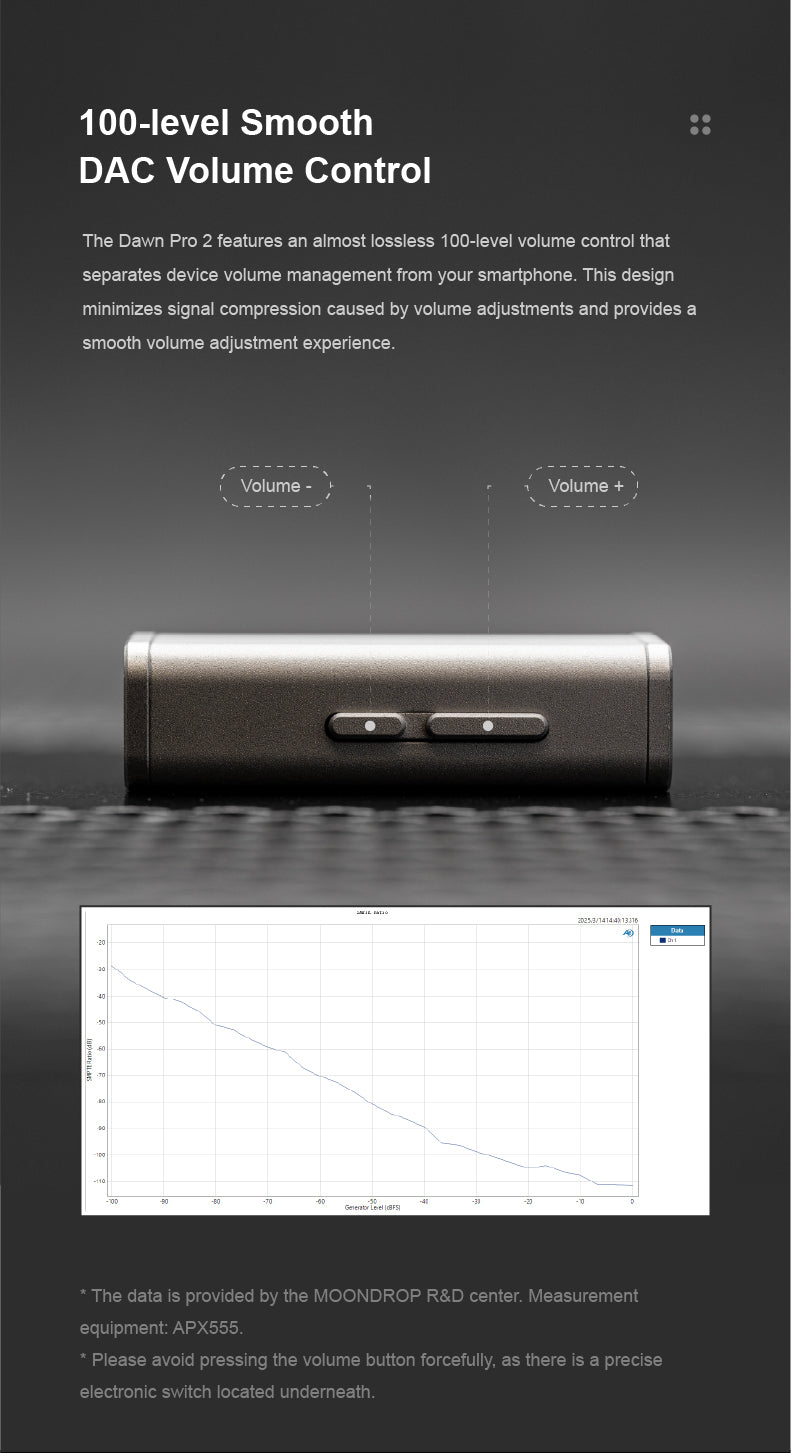

100-level smooth DAC volume control
Instead of relying on your phone’s software volume, which can compress the signal, the Dawn Pro 2 uses its own 100-step electronic volume system. Adjustments feel smooth and precise, and because it bypasses your smartphone’s digital control, music stays clean and dynamic. Just don’t mash the button—underneath is a finely tuned electronic switch.

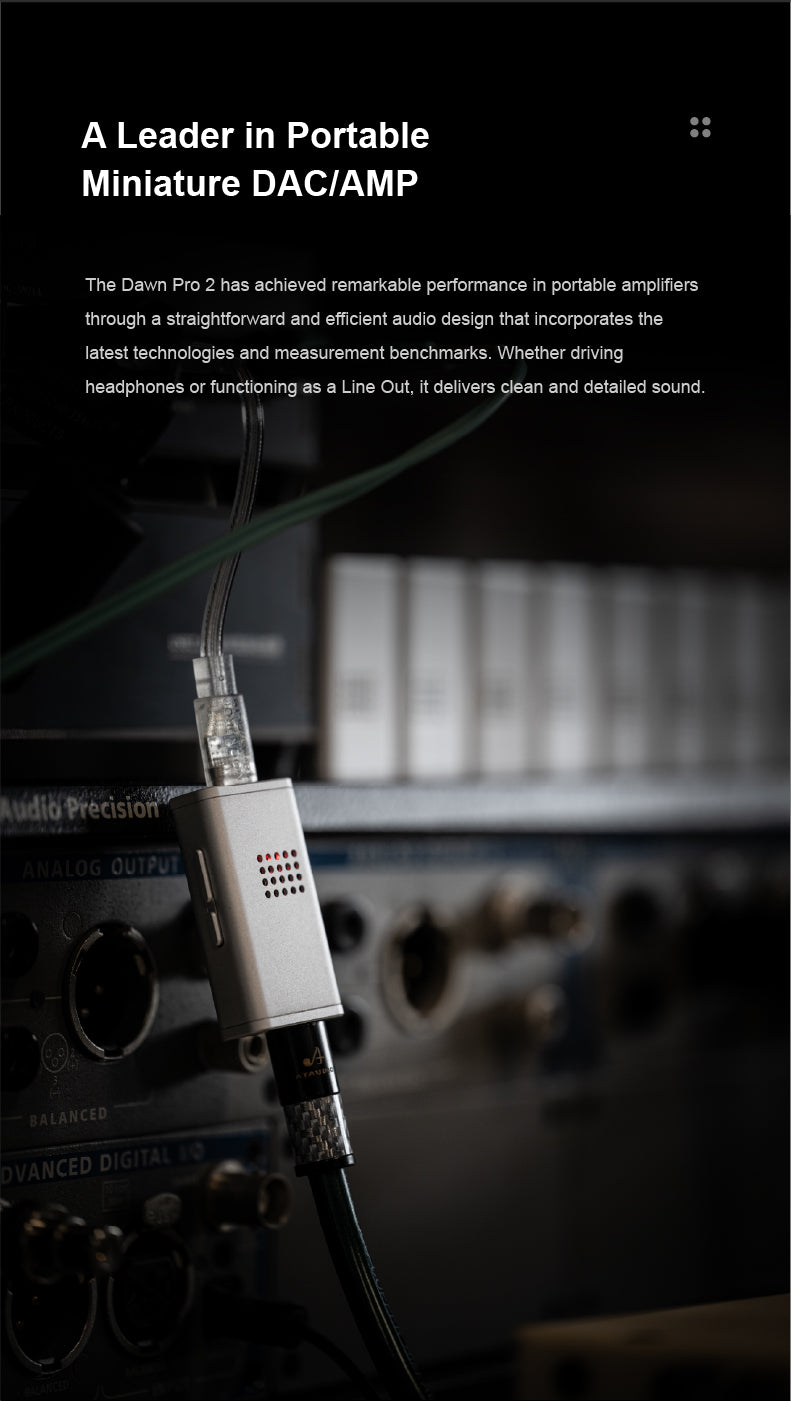

Master-level measurements

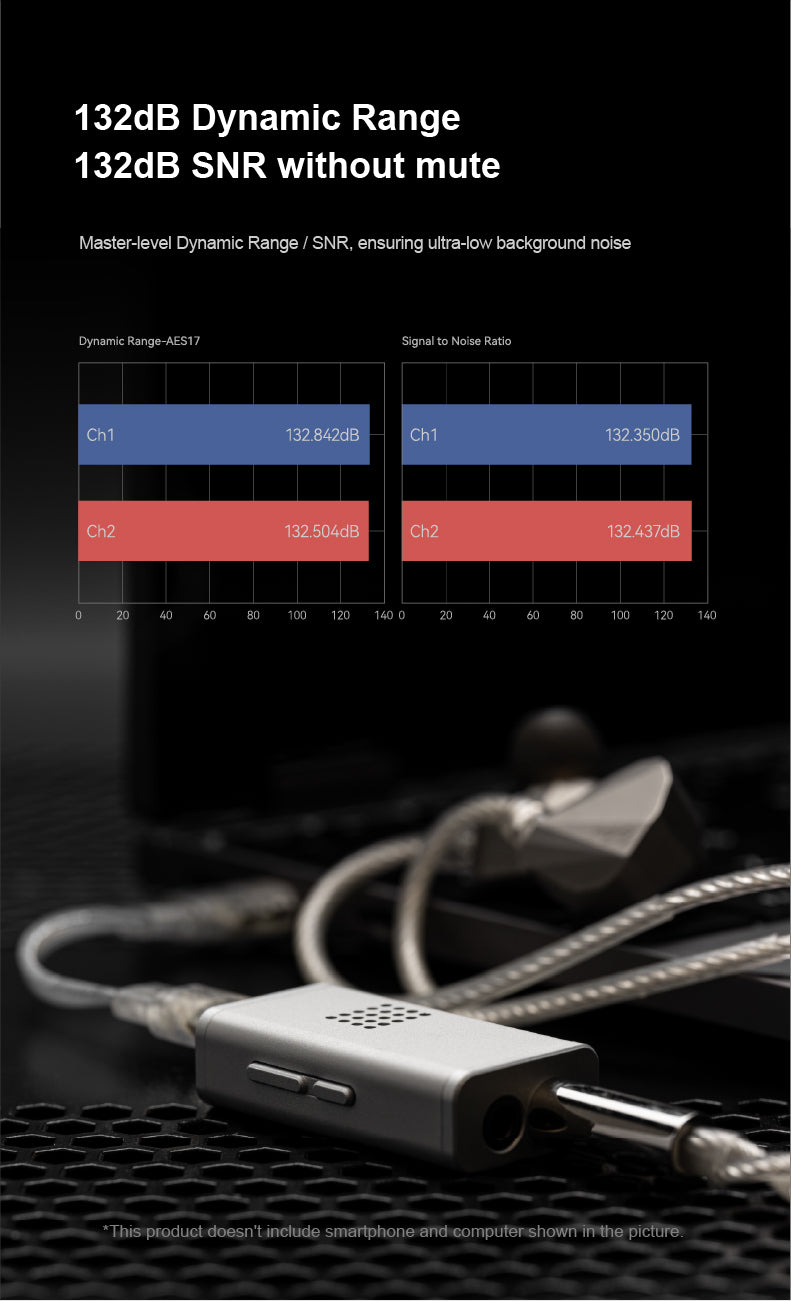

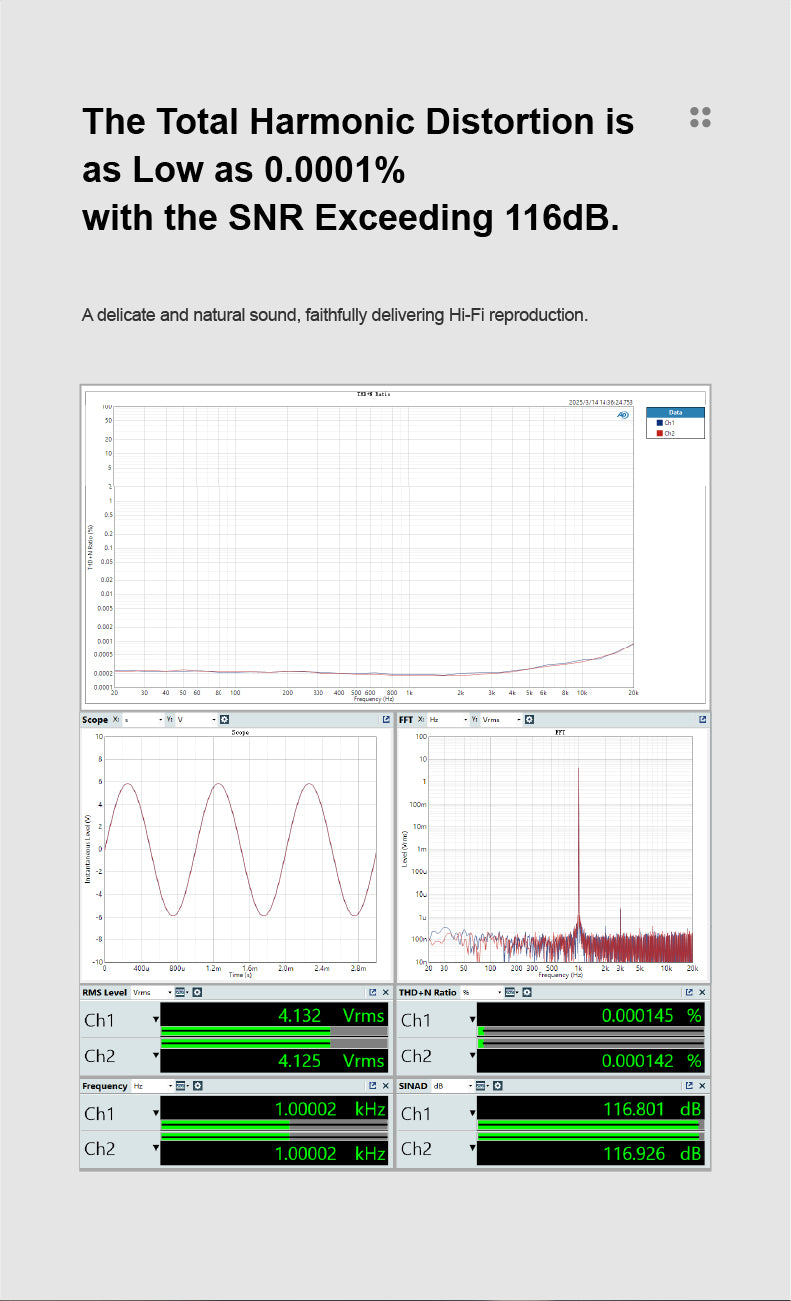

With a measured 132dB dynamic range and THD+N as low as 0.0001%, the Dawn Pro 2 keeps the noise floor so low it practically disappears. Quiet passages stay quiet, loud ones hit with impact, and distortion is below the threshold of audibility.
Compact and pocket-ready

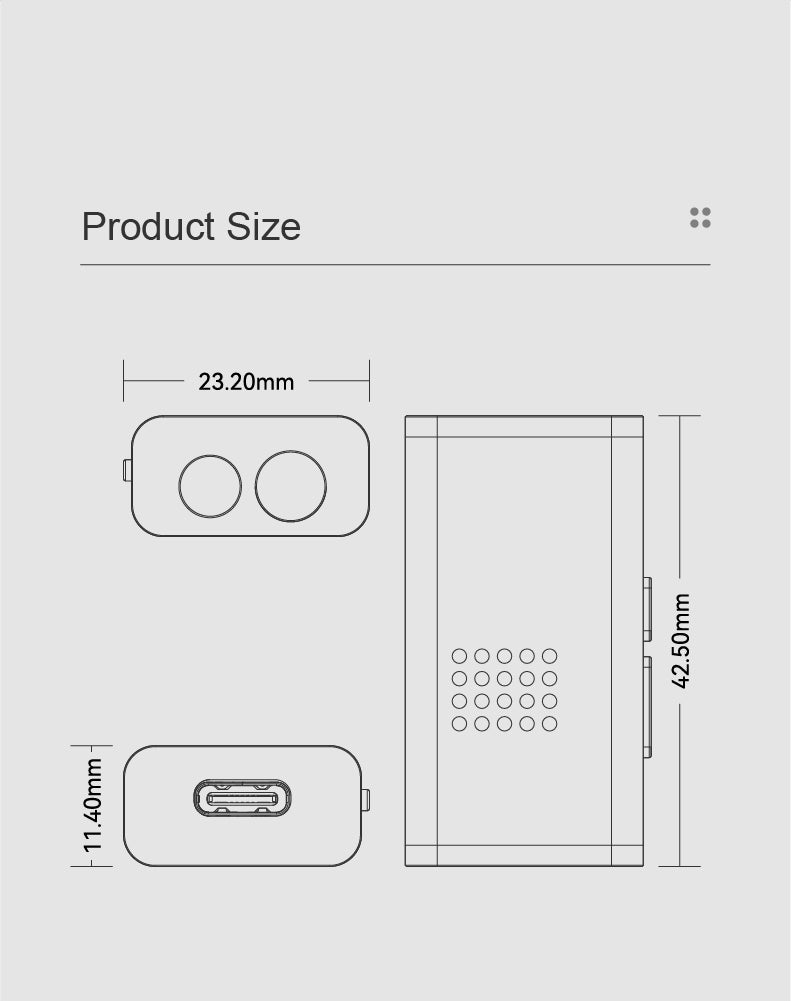

At just 1.67in (42.5mm) long, 0.91in (23.2mm) wide, and 0.45in (11.4mm) tall, the Dawn Pro 2 slips into a pocket or clips into your audio chain without getting in the way.
Product highlights
-
Dual Cirrus Logic CS43198 flagship DAC chips
-
Hardware decoding for PCM 32-bit/384kHz and DSD256
-
2nd-generation online interactive DSP with Android app & web support
-
100-level independent DAC volume control for smooth, near-lossless adjustment
-
132dB dynamic range and SNR for ultra-low noise performance
-
THD+N as low as 0.0001% with SINAD above 116dB
-

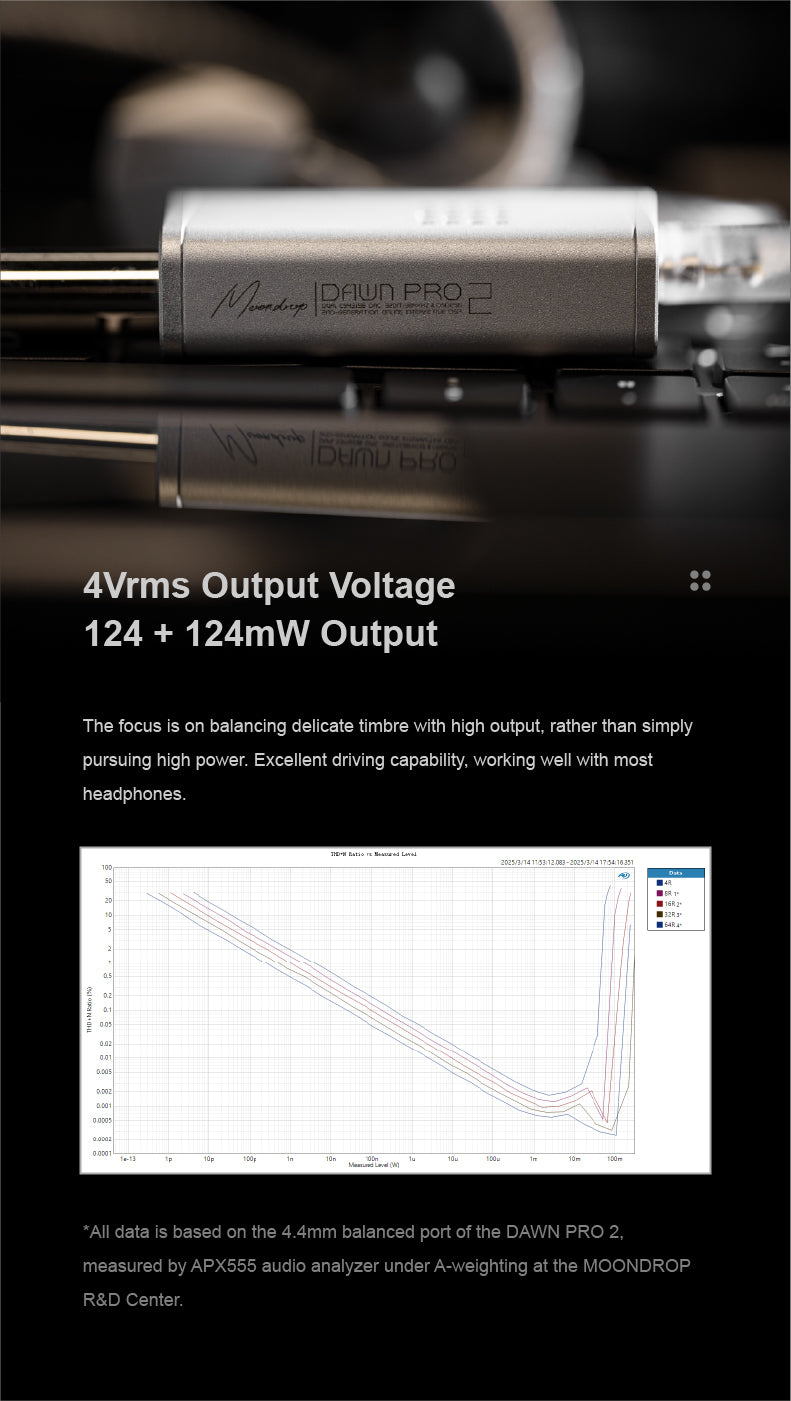

4Vrms balanced output with 124mW + 124mW power
-
Three independent LDO power chips with separate regulation
-

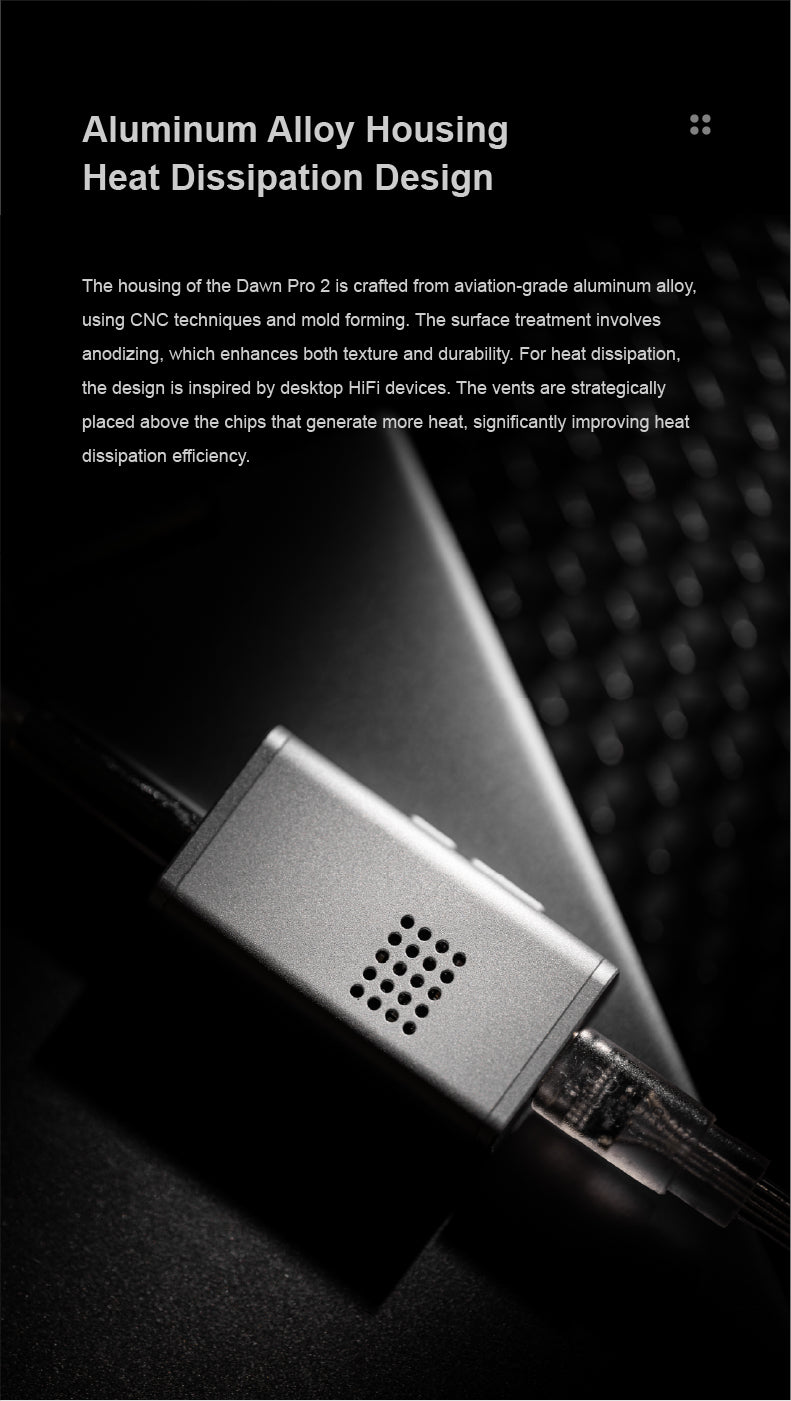

Aluminum alloy housing with heat-vent design for thermal efficiency
-
3.5mm single-ended and 4.4mm balanced headphone jacks
-
Interchangeable USB-C cable design
-
Compact form factor—1.67 × 0.91 × 0.45in (42.5 × 23.2 × 11.4mm)
-

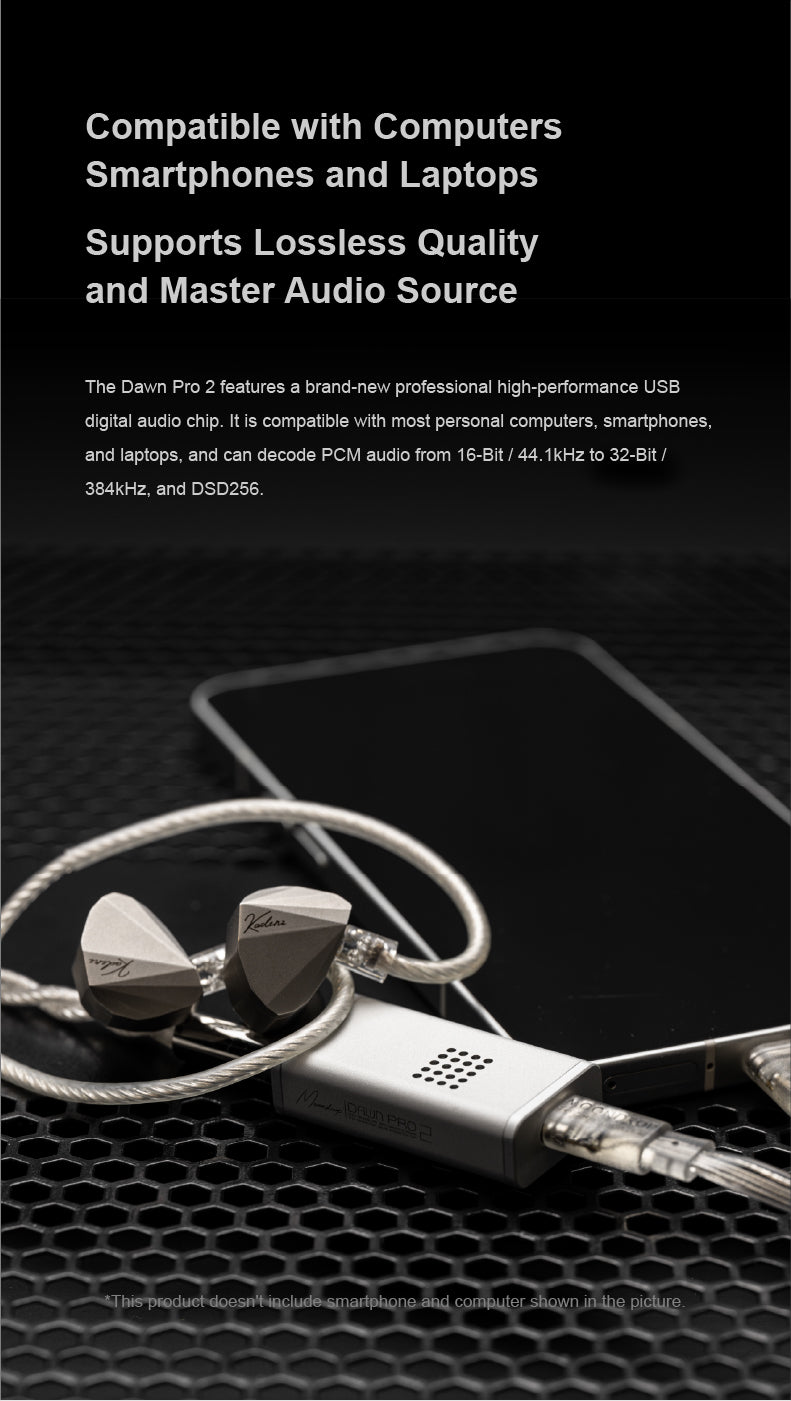

Compatible with computers, smartphones, and laptops
-
Designed and developed by Moondrop in Chengdu

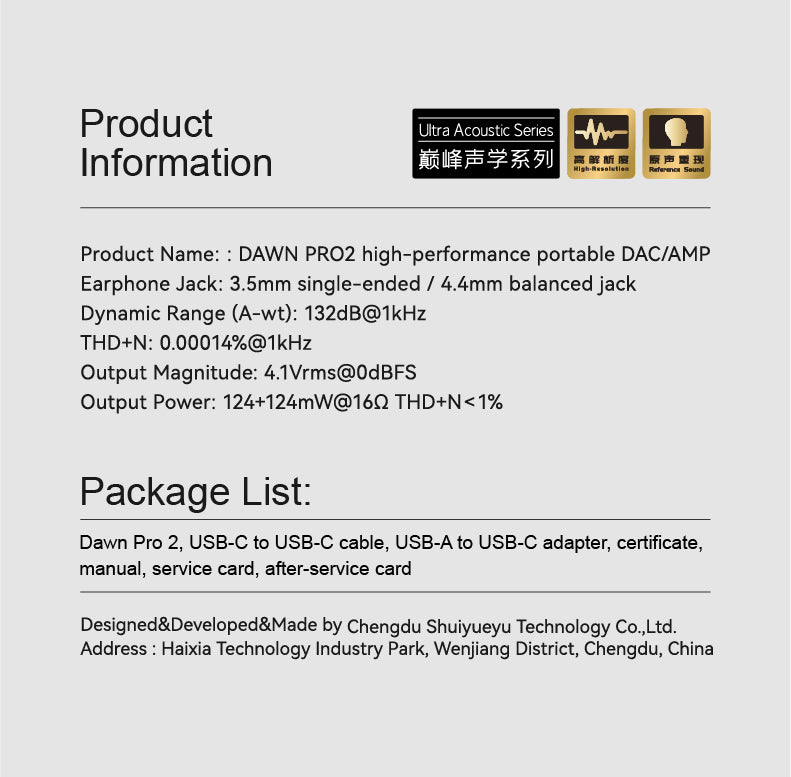

Specs
-
DAC chip: Dual Cirrus Logic CS43198
-
Supported formats: PCM 16–32bit / 44.1–384kHz, DSD up to 256
-
Earphone jacks: 3.5mm single-ended / 4.4mm balanced
-
Dynamic range (A-wt): 132dB @ 1kHz
-
THD+N: 0.00014% @ 1kHz
-
Output voltage: 4.1Vrms @ 0dBFS
-
Output power: 124mW + 124mW @ 16Ω, THD+N < 1%
-
SINAD: >116dB
-
Dimensions: 1.67 × 0.91 × 0.45in (42.5 × 23.2 × 11.4mm)
