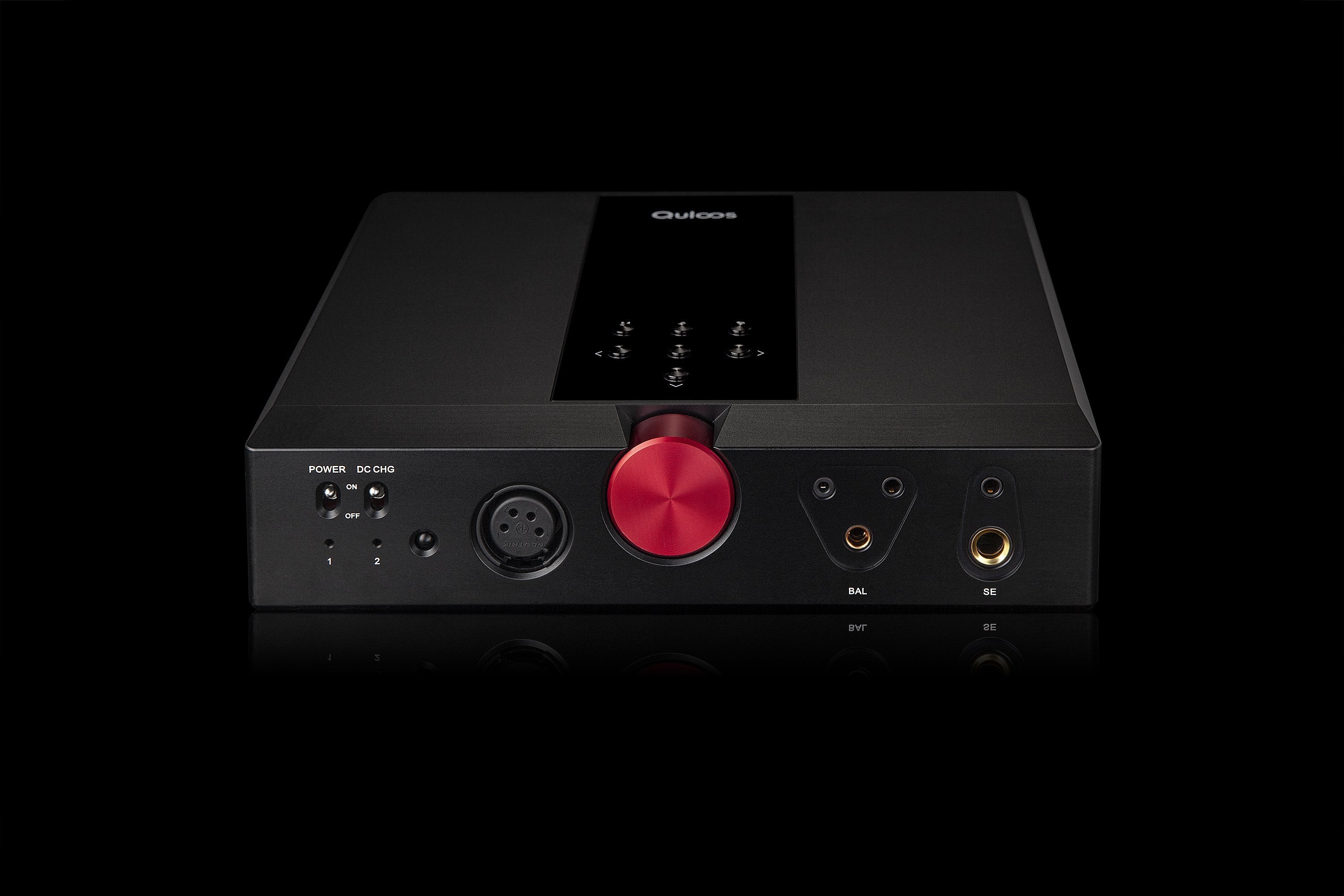

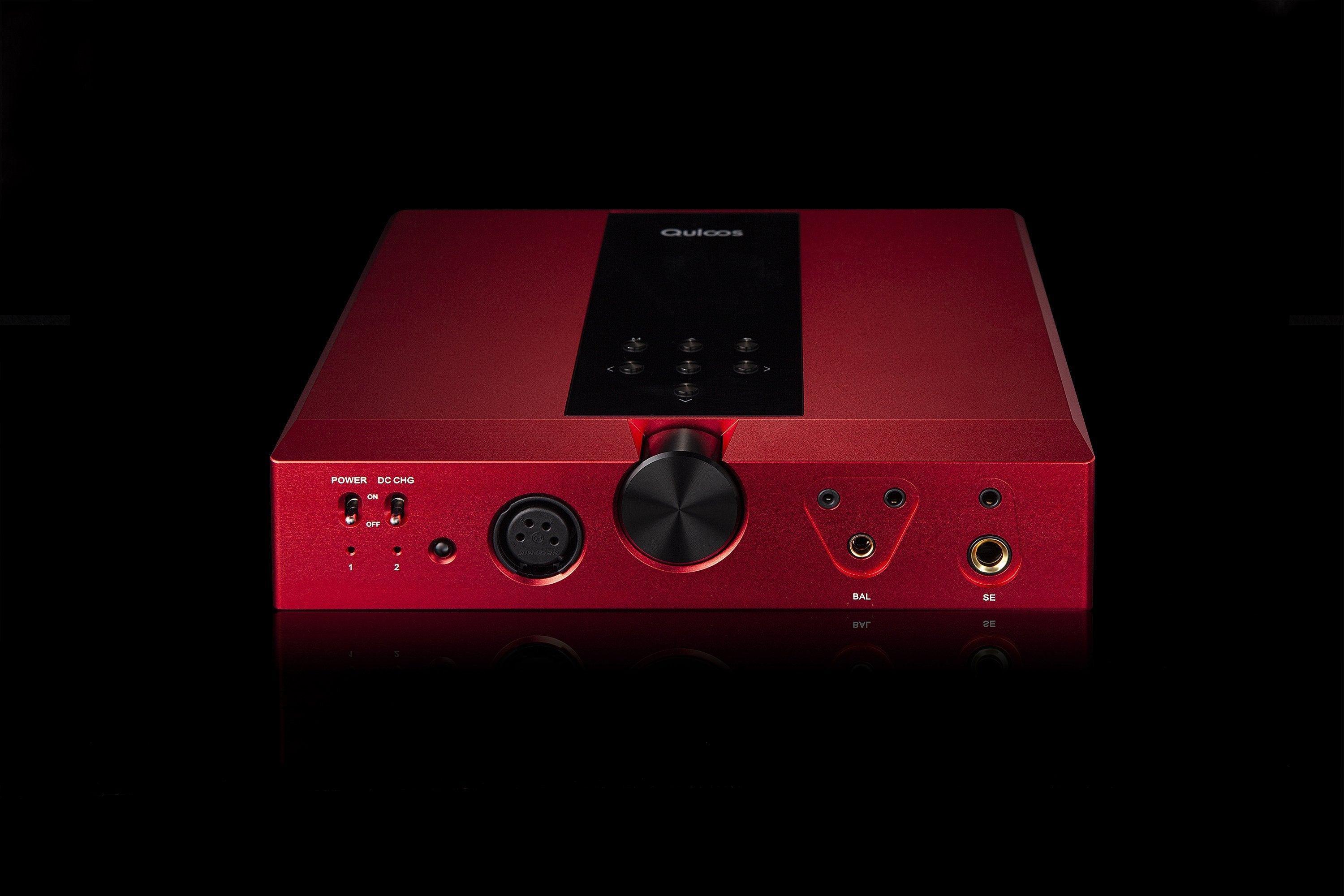

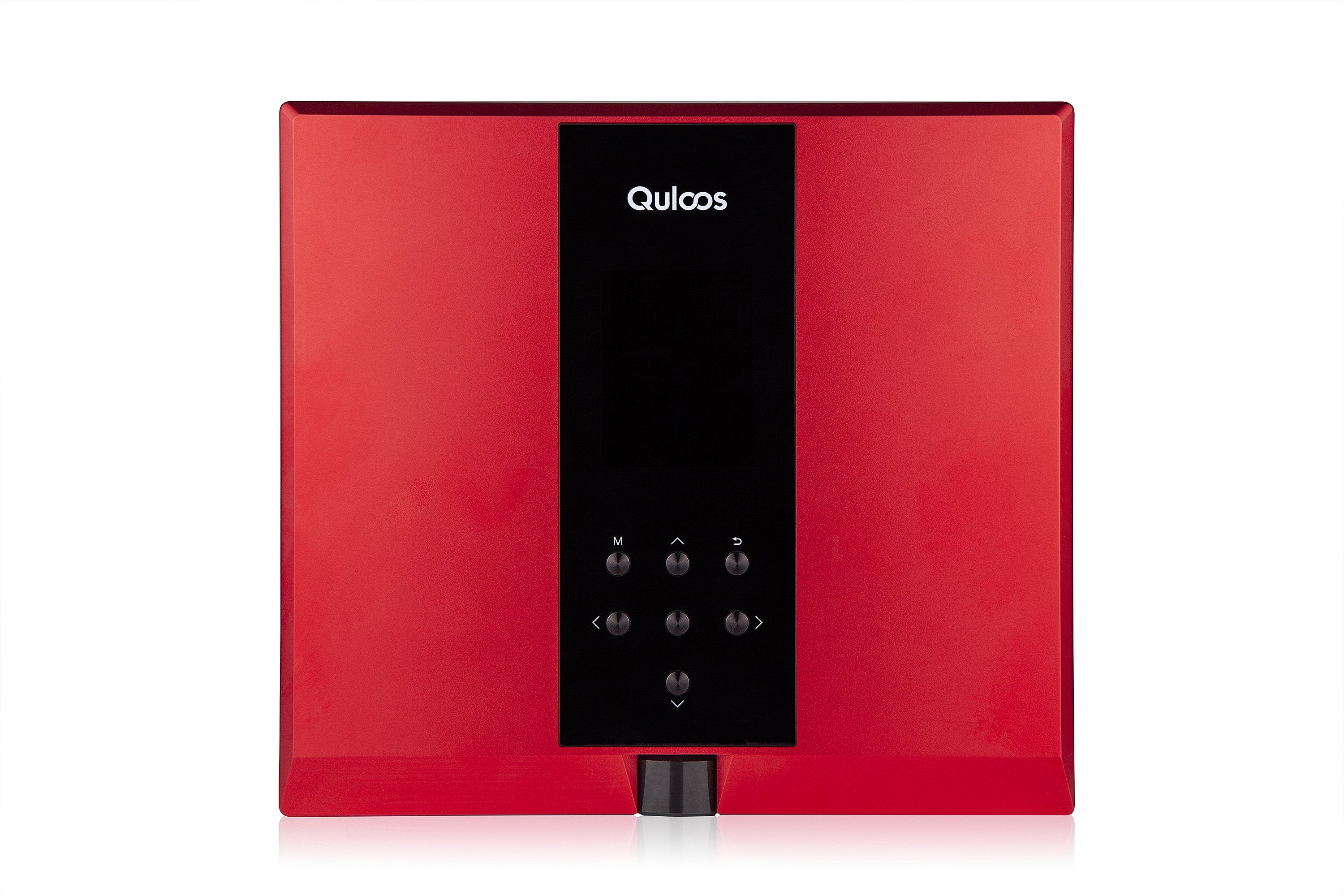

Quloos QLS QA390 Digital Music Player


The Quloos QA390 is a hi-fi lossless music player, DAC, decoder, and headphone amplifier combined into an all-in-one mobile unit. It is powered by four 3300mAh Panasonic 18650 batteries that makes for a truly mobile hi-fi unit with 8-10 hours of high quality music listening. Its balanced amp can output more that 20V and easily drive high impedance headphones. On top of this, with a final stage power tube current output capability of 2700mA, the QA390 can drive low resistance and low sensitivity headphones as well. More than 30 ultra-low noise power chips provide clean power for each circuit device for a clean sound experience.

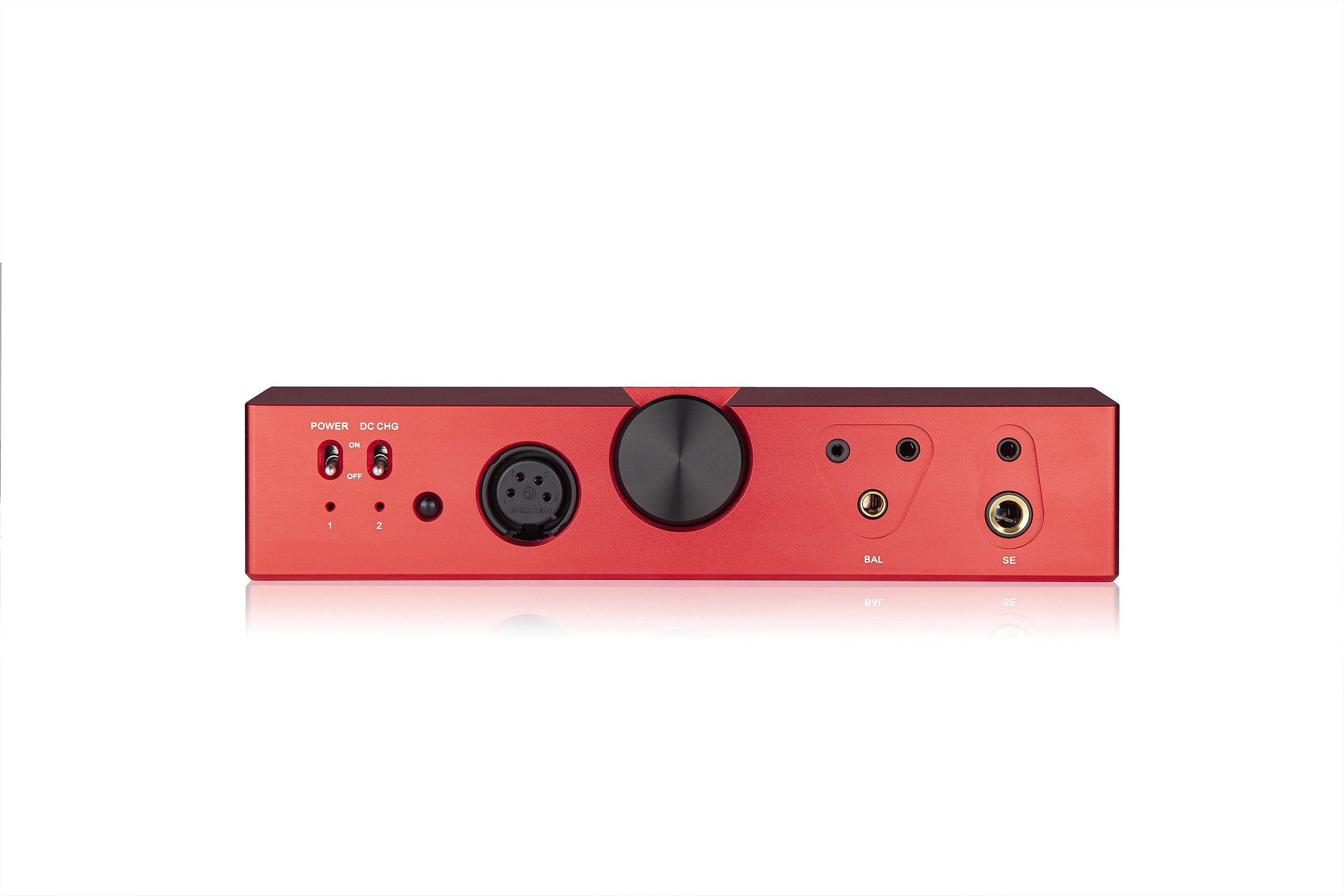

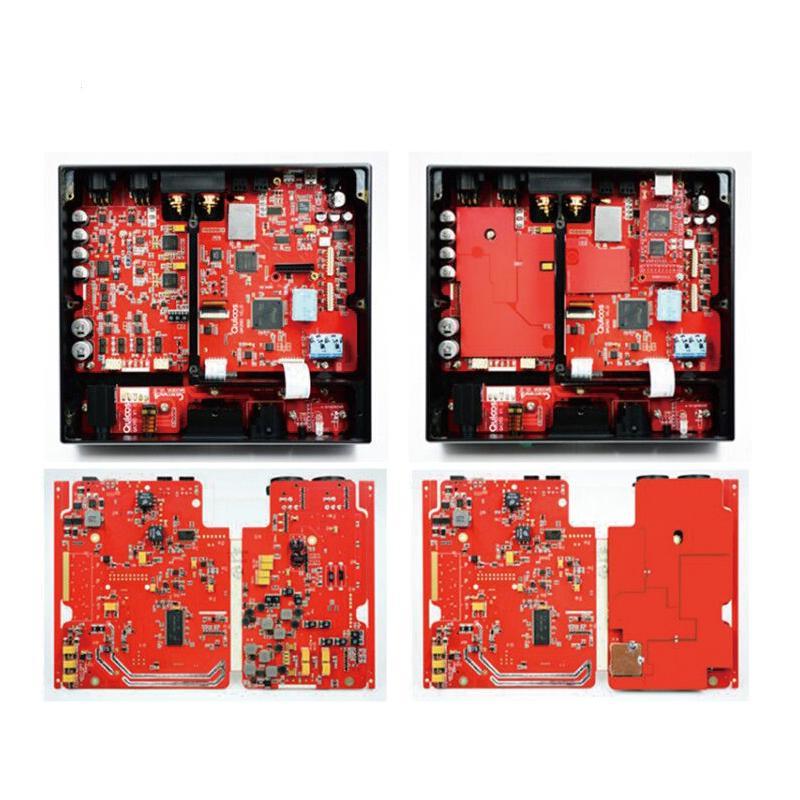

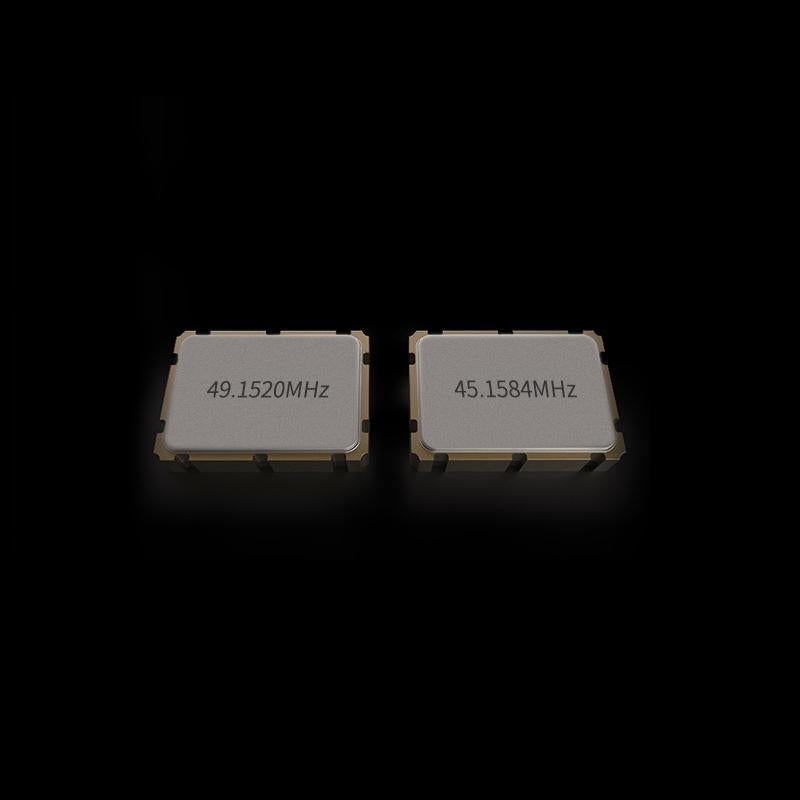

The QA390 comes with two AK4497EQ D/A chips, 1000000uF low internal resistance super capacitor for digital and analog partial isolation power supply, two femtosecond crystal designs, high-speed precision-controlled CPLD clock processing, and global clock unified/synchronous operation mode. It has a built-in single-chip single-threaded SD card pure tone player, a two-way USB interface, and a bluetooth input for easy connection to mobile phones. Finally, it comes with complete headphone interface - 3.5mm, 6.5mm single-ended interface and 2.5mm, 3.5mm, 4.4mm, XLR balanced interface.

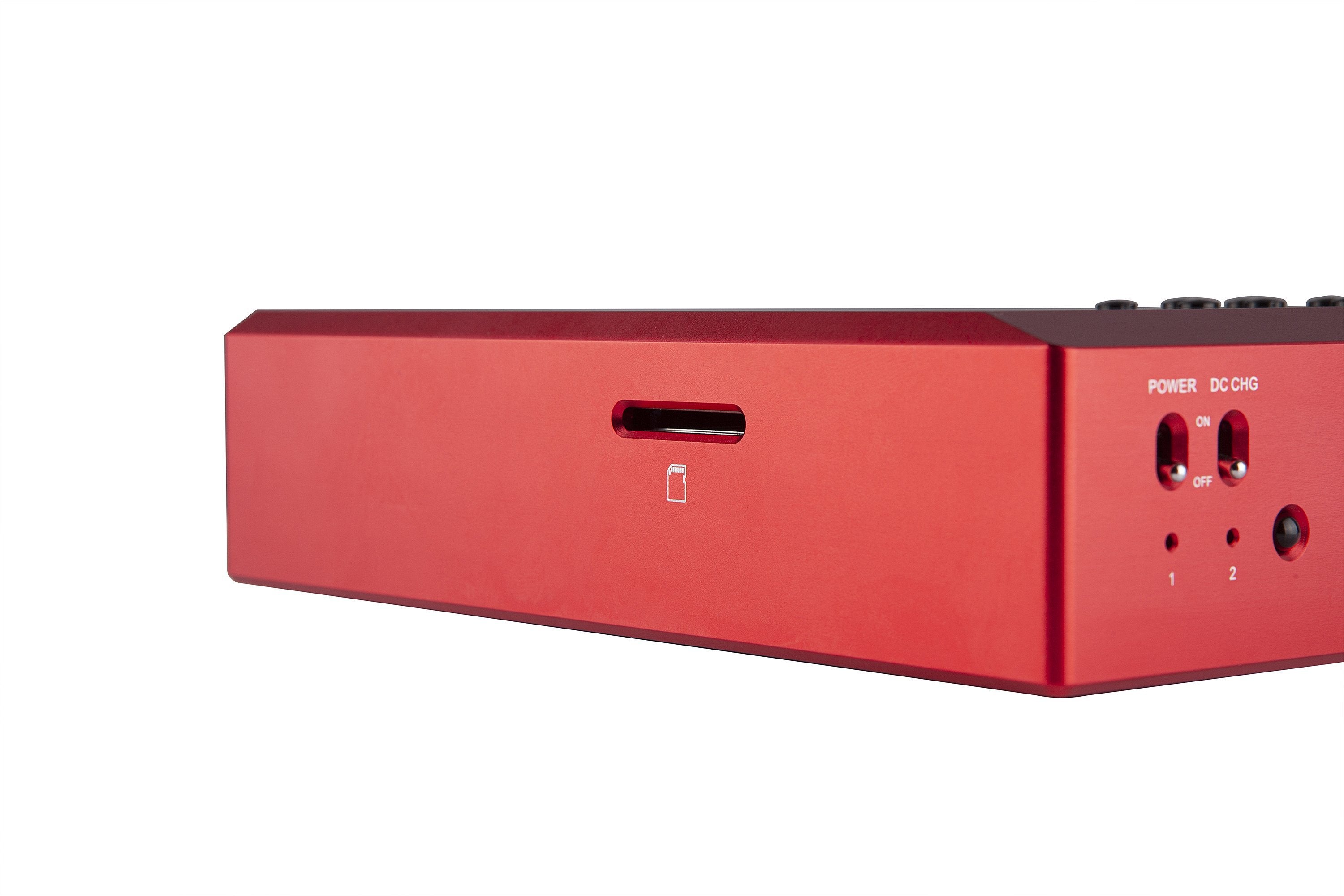

  • Internal Playback Storage Media: External SD card or TF card, FAT32 format, currently supports a maximum capacity of 512GB
  • Internal Playback Support Code Rate: 16-32Bit, 44.1kHz-352.8kHz, DSD64-DSD128

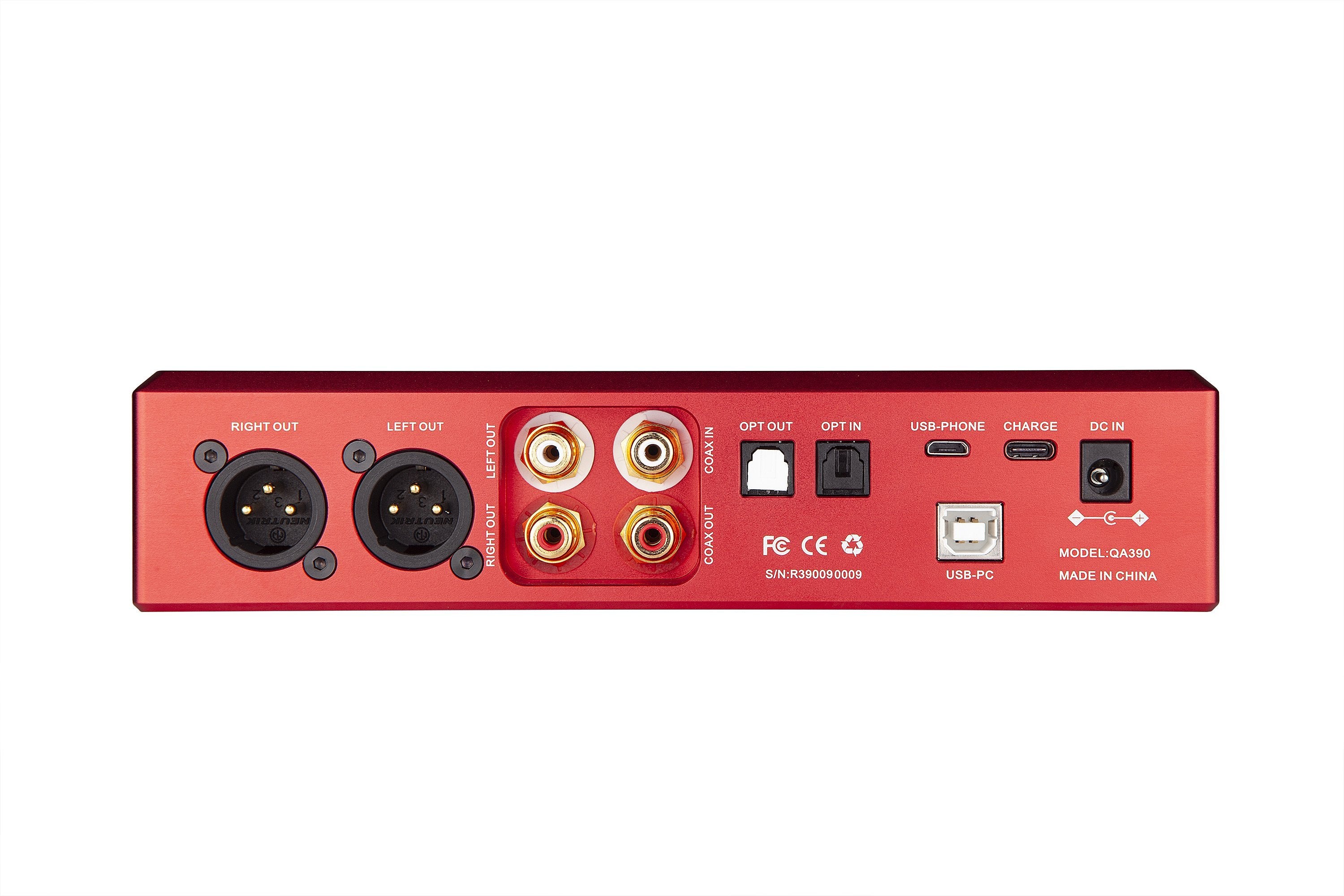

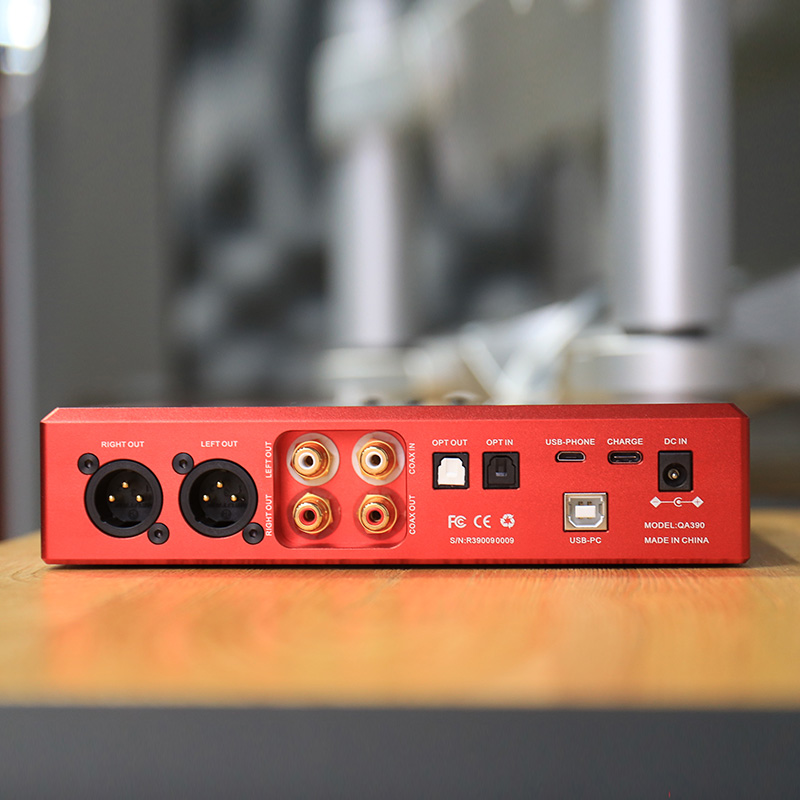

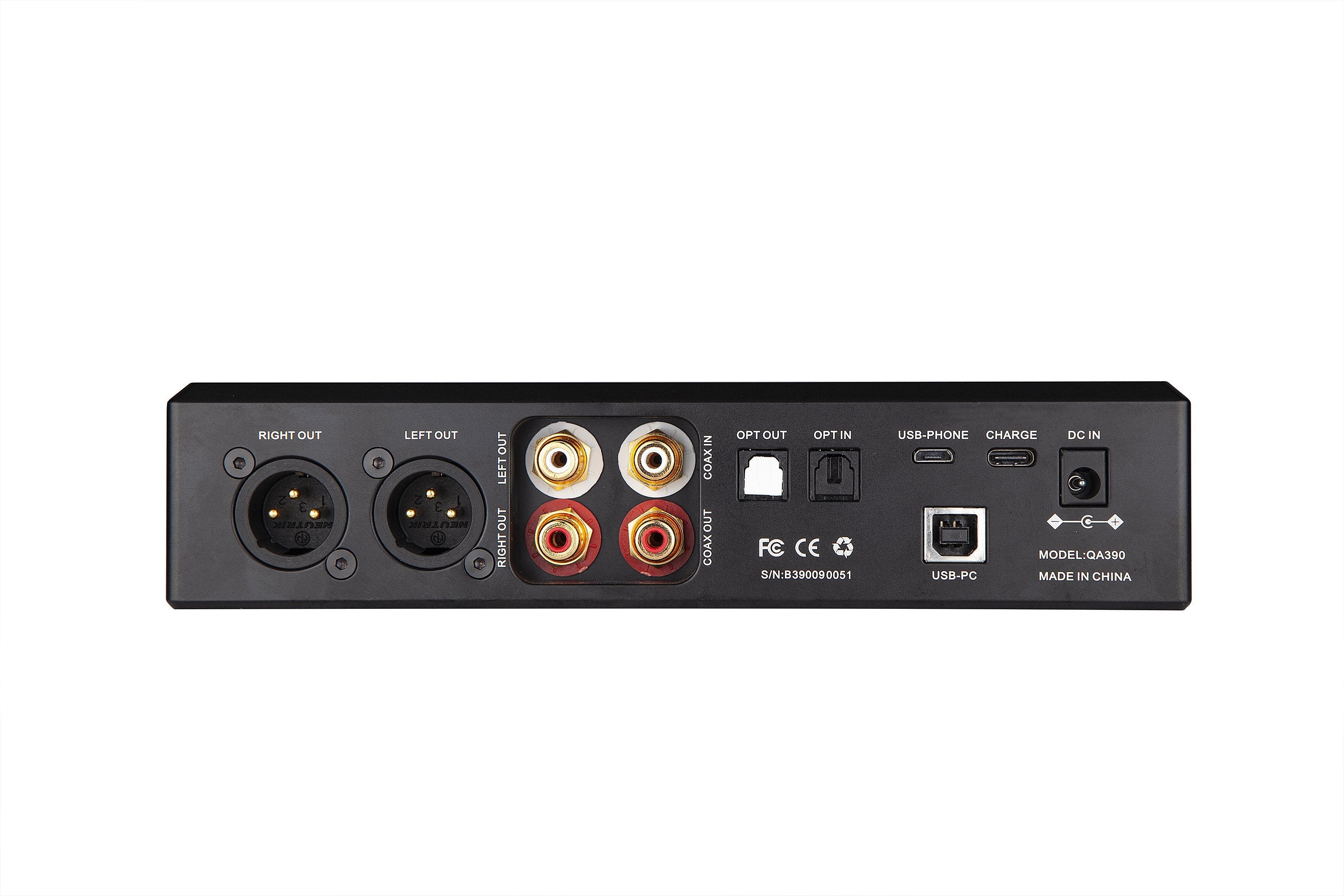

  • USB Interface
    • USB B Port: Supports 32Bit/384KHz4 PCM and DSD256
    • Micro USB Port: Supports 32Bit/384 KHz PCM and DSD128
  • Bluetooth: Bluetooth 5.0, LHDC, AAC encoding
  • Coaxial Input: 75Ω matched impedance, Supports 24Bit/192KHz and DSD64 (DoP)
  • Fiber Input: Supports 24Bit/192KHz and DSD64 (DoP)
  • Coaxial Output: 0.5Vp-p75Ω, Supports 24Bit/192KHz and DSD64 (DoP)
  • Fiber Output: Supports 24Bit/192KHz and DSD64 (DoP)
  • Analog Output:
    • Frequency Response: 20Hz-20kHz
    • Signal to Noise Ratio: 122dB
    • Dynamic range: 121dB
    • Resolution: 120dB
    • Distortion: 0.0005%
  • Output Level:
    • RCA (L&R) 2.5V (closed pre-level)
    • XLR (L&R) 5.0V (closed pre-level)
    • SE (unbalanced) maximum 10.5Vms (high amp voltage, ultra high gain, 600Ω load)
    • BAl (balance) up to 21Vms (high amp voltage: ultra high gain, 600Ω load)
  • Amp Output Impedance:
    • Unbalanced: 0.13Ω
    • Balanced: 0.2Ω
  • Headphone Matching Impedance: 8Ω-600Ω
  • Single-Ended Headphone Port Rated Output Power:
    • 32Ω, 1000mW/ch amp high voltage, high gain
    • 300Ω, 360mw/ch amp high voltage, super high gain
    • 600Ω, 180mW/ch amp high voltage, super high gain
  • Balanced Headphone Port Rated Output Power:
    • 32Ω, 1300mW/ch amp voltage, high gain
    • 300Ω, 1200mW/ch amp high voltage, super high gain
    • 600Ω, 720mW/ch amp high voltage, super high gain
  • Decoding Chip: Dual AK4497EQ
  • LPF: Dual AD797
  • Volume Control (including preamp volume control): PGA2311UA analog program control volume
  • Reference clock jitter: 0.088 picoseconds (88 femtoseconds)
  • Charging Interface: Available Type-C port, DC port, fast charging, QC compatible
  • External Power Supply: DC5.5 x 2.1 port, can also be charged (panel switch selection)
  • Battery Life: 8 to 10 hours
  • Charging Time:
    • Type-C General Charge: 8 to 9 hours
    • Type-C Fast Charge / DC Port: 4 to 5 hours

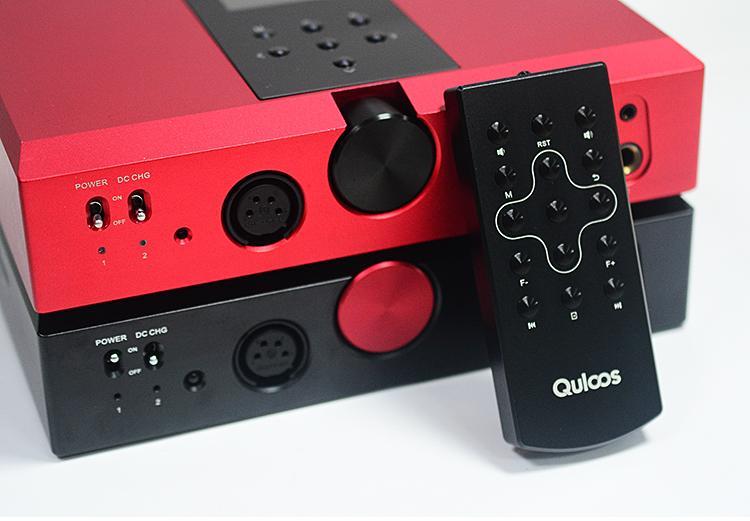

  • Product & Remote Control Material: Aluminum CNC Integrated Finishing
  • Product Weight: 1.8kg
  • Product size: 20cm x 18cm x 4.45cm
