Shanling

Shanling M5S Digital Audio Player (DAP)

$389

Request A Price Match

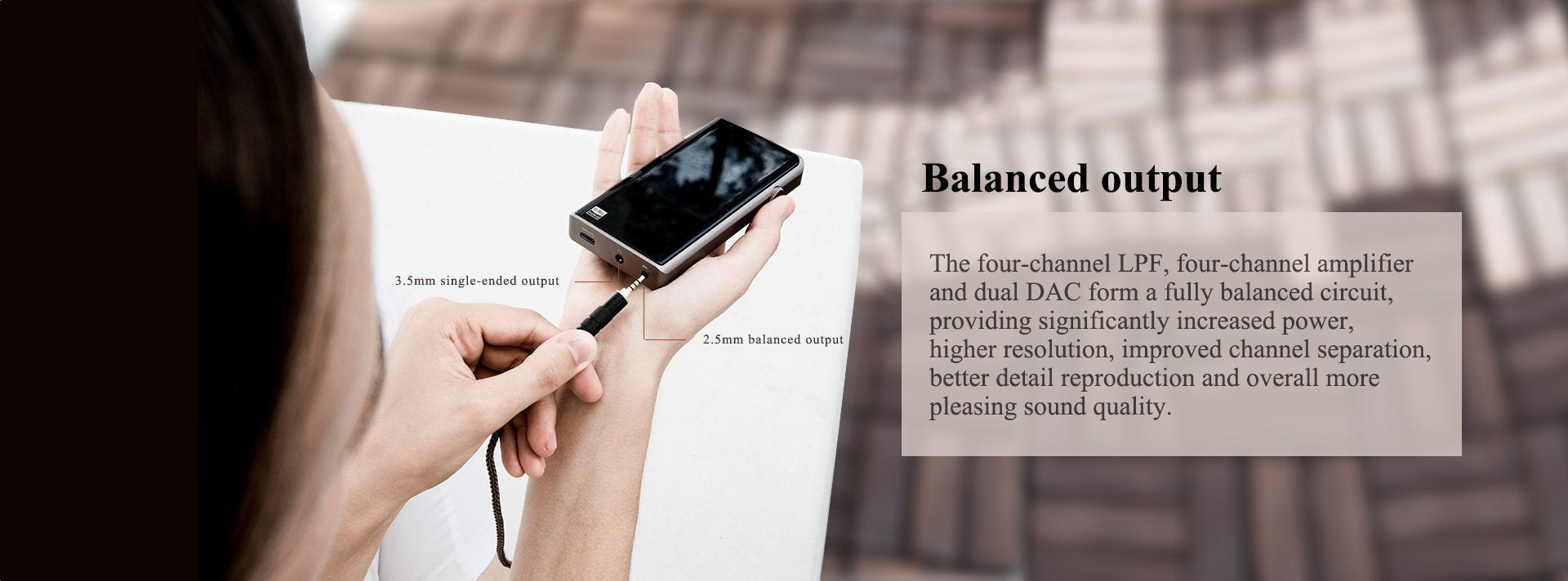

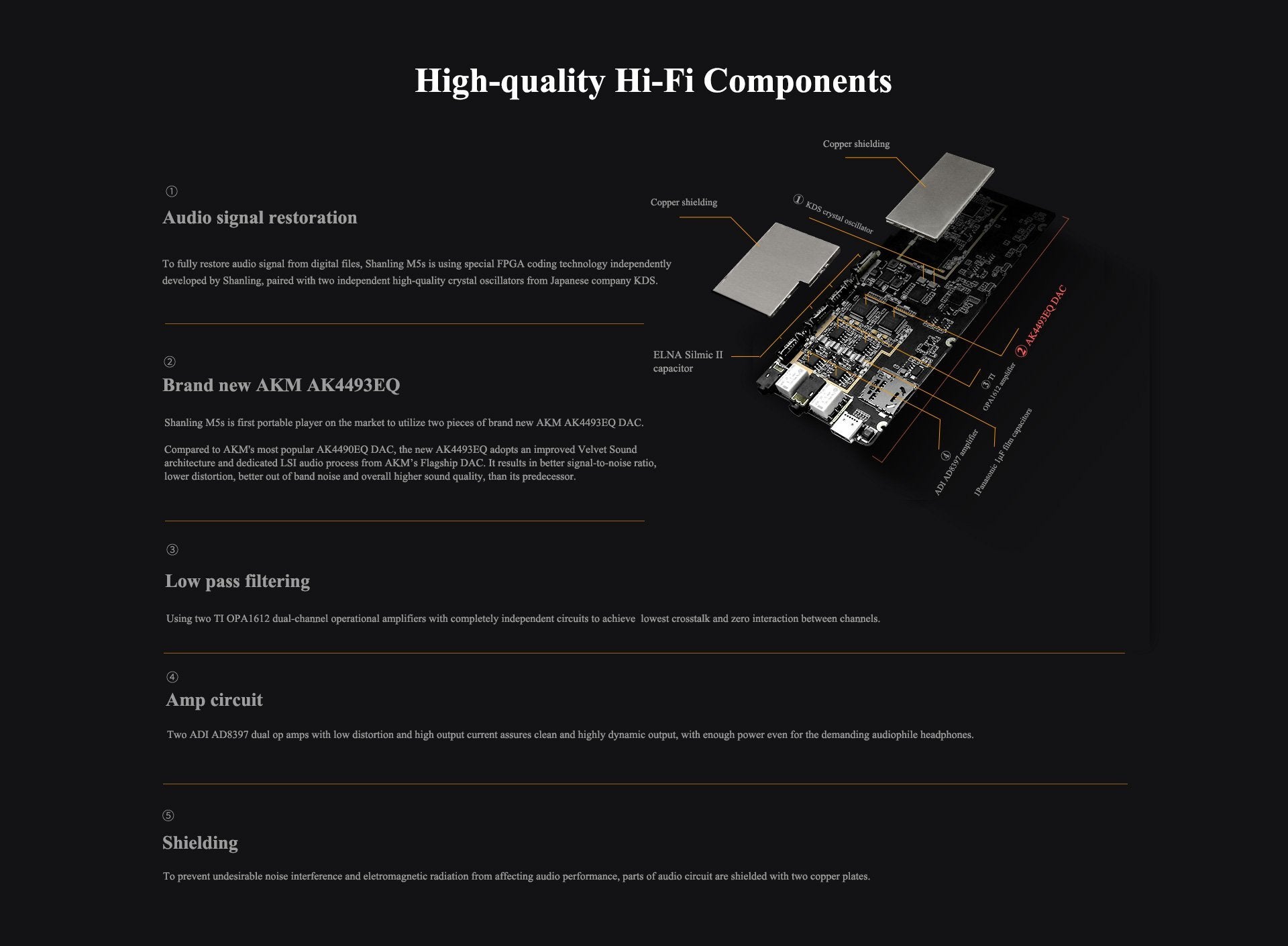

The Shanling M5S Digital Audio Player is a hi-res music player that comes with two AKM AK4493EQ DACs, two TI OPA1612 acting as the low-pass filters, and two AD8397 amplifiers. It comes with two-way high quality bluetooth, built in Wi-Fi for DLNA and AirPlay, bidirectional USB audio, and a new MTouch 2.0 operating system created by Shanling. Finally, Apos Audio found that the Shanling M5S comes with 3.5mm single-ended out and a 2.5mm balanced out, outputs many different audio formats listed below, and has a long battery life.

Specs:
  • D/A Chip: AK4493EQ (x2)
  • Bluetooth Version: Bluetooth 4.2
  • Bluetooth Codecs:
    • Bi-directional: LDAC & AAC
    • Transmit Only: aptX
  • Audio Formats: DSF / DFF / ISO / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA / ACC / OGG / ALAC / MP2 / M4C / AC3 / M3U / M3U8
  • Supports: 32 bit / 768 kHz DSD 256
  • Gain: High/Low
  • Storage: External Micro SD Card (up to 2TB)
  • Output Impedance: < 0.3 ohms
  • Single Ended Output
    • Output Power: 240 mW @ 16 ohms, 130 mW @ 32 ohms, 13 mW @ 300 ohms
    • SNR: 121 dB (A-weighting)
    • Channel Separation: 65 dB @ 32 ohms, 85 dB @ 300 ohms
    • Dynamic Range: 121 dB
    • THD + N: 0.001%
  • Balanced Output
    • Output Power: 540 mW @ 16 ohms, 300 mW @ 32 ohms, 29 mW @ 300 ohms
    • SNR: 121 dB (A-weighting)
    • Channel Separation: 109 dB
    • Dynamic Range: 121 dB
    • THD + N: 0.001%
  • Wi-Fi Standards: IEEE 802.11b/g/n
  • Wi-Fi Features: DLNA, AirPlay, OTA Firmware Upgrade
  • Battery Life: 17 hours (single-ended), 10 hours (balanced)
  • Battery Capacity: 3400 mAh
  • Charge Time: 3-4 hours
  • Charging: DC5V 2A / USB Type-C
  • Screen: 3.2 inch, 320 x 480 Resolution

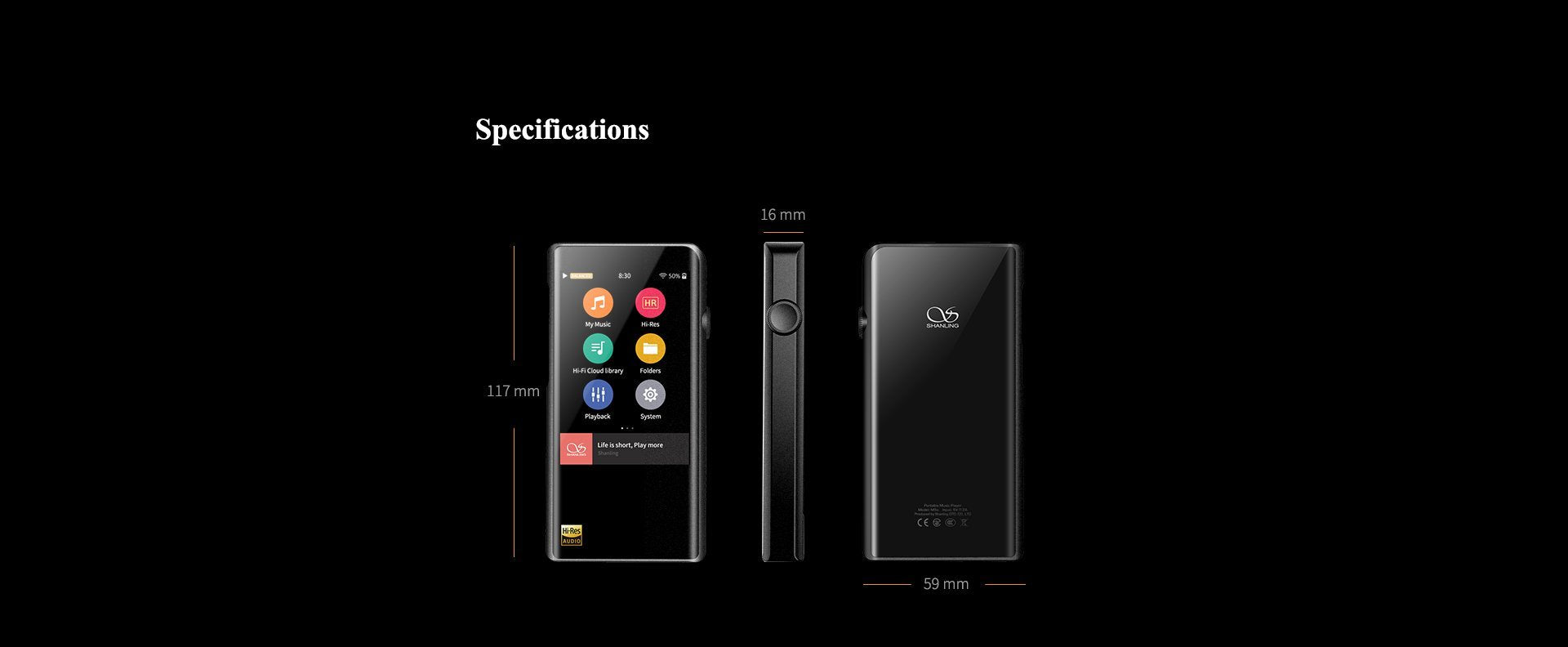

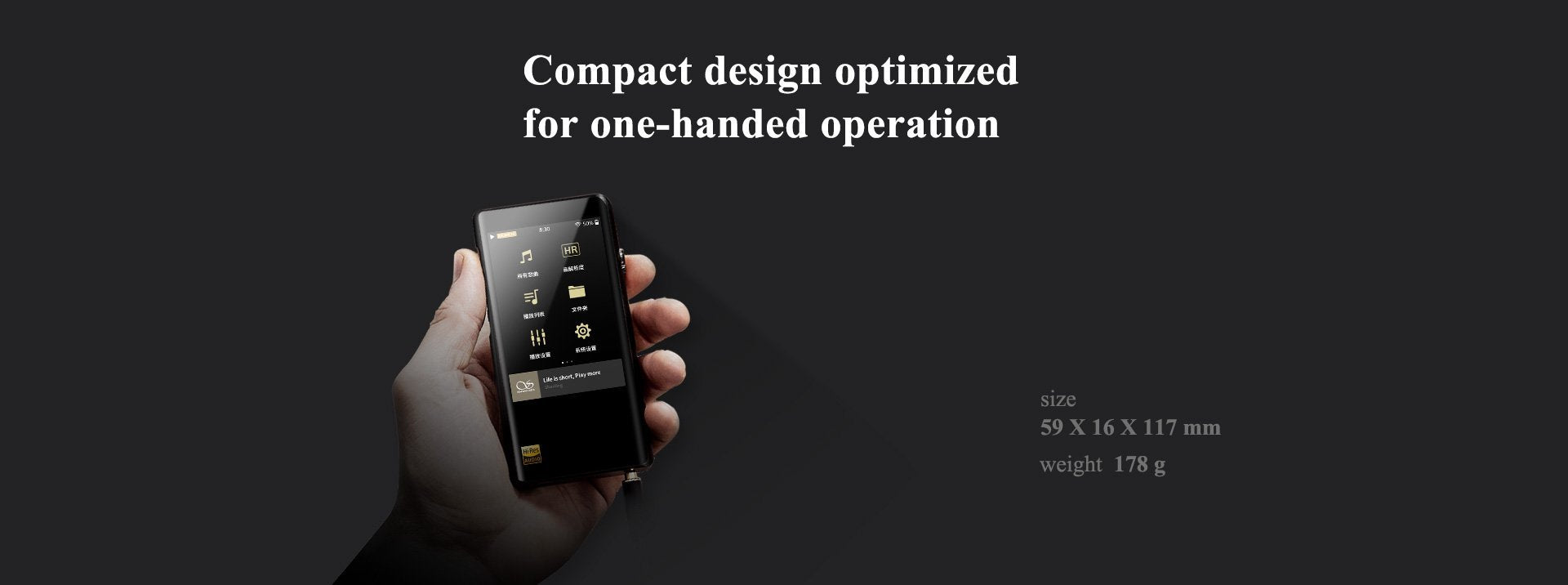

  • Size: 59 x 16 x 117 mm
  • Weight: 178g
