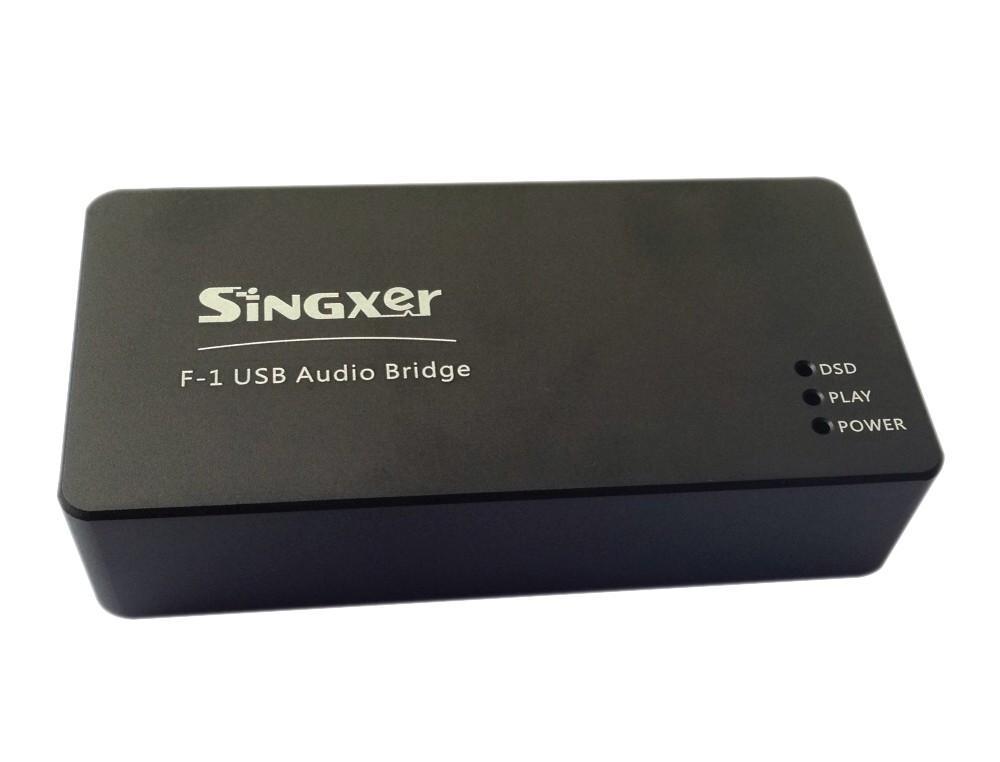

Singxer F-1 USB Digital Interface

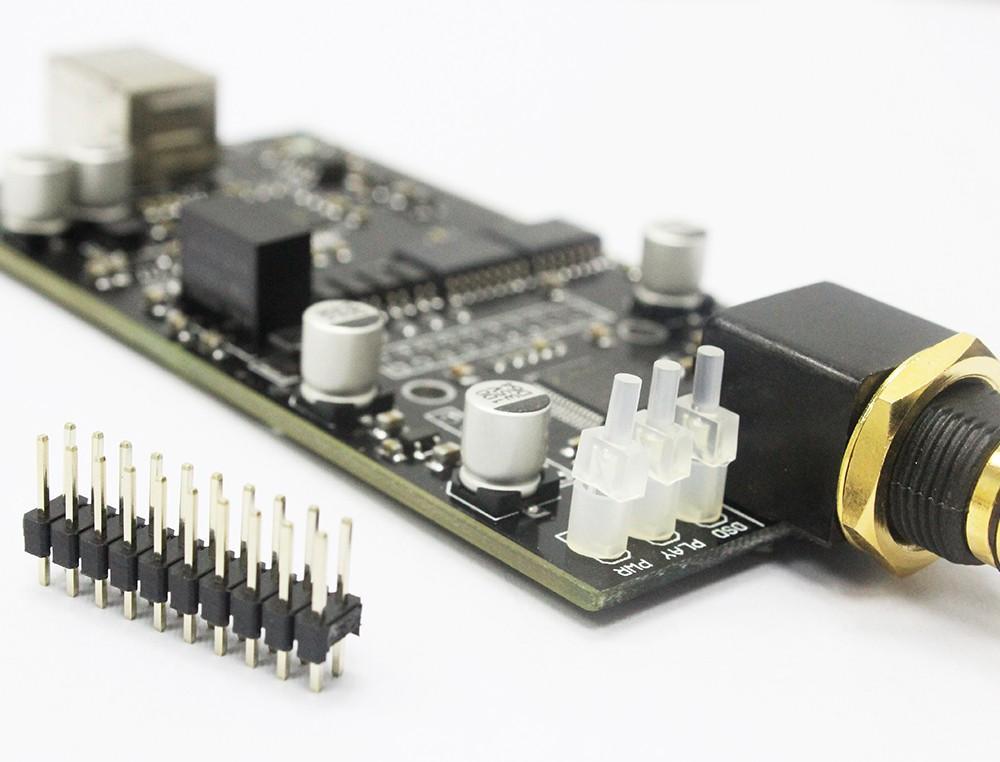

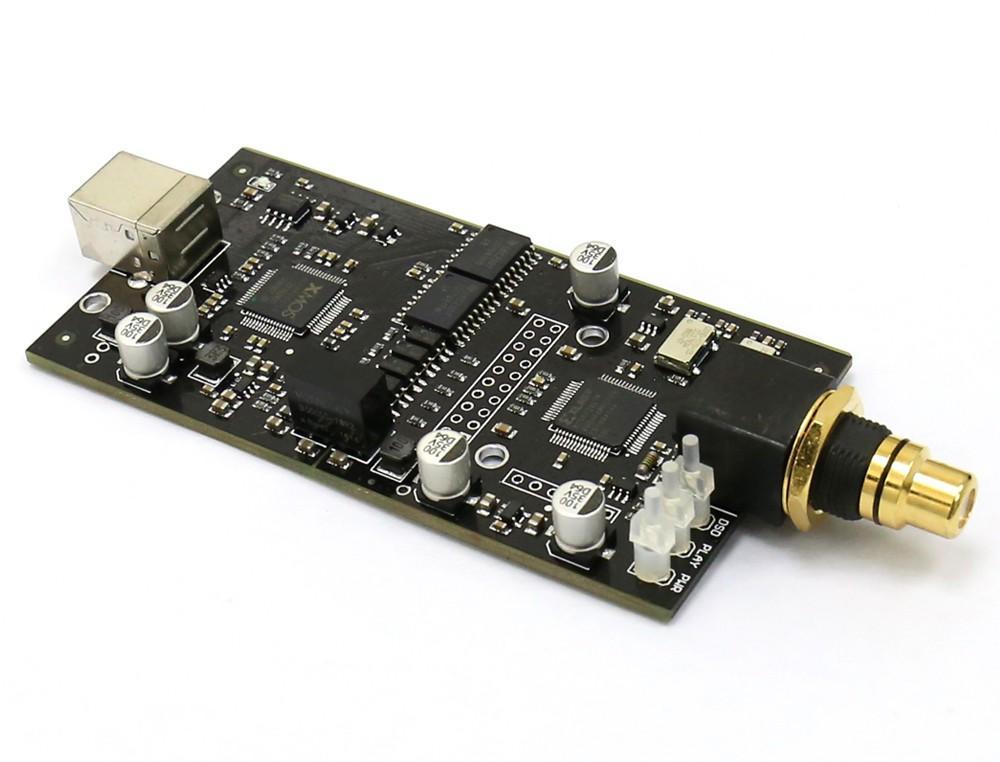

The Singxer F-1 comes with XMOS XU208 chip, low jitter clock system, and outputs including coaxial RCA and I2S interfaces. The device is powered by USB and requires no external power source to operate. It's also compatible with Windows, Mac OS X, Linux, and Android.

Specs:

• Output interface supports PCM 44.1 kHz,48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
• I2S out supports full sample rate
• S/PDIF supports up to 192 kHz
• Output interface DSD: 2.8 MHz (DSD64) DoP, native; 5.6 MHz (DSD128) DoP, native; 11.2 MHz (DSD256) native
• I2S out supports all DSD format
• S/PDIF and AES/EBU support DSD64 DOP mode
• Bits wide: The highest 32 bit over I2S output; the highest 24 bit over S/PDIF
• Screw position, I2S is compatible with Amanero board
• 3 active crystal oscillators (CRYSTEK CCHD audio crystal oscillator)
• 1 x USB input socket is standard USB-B type female; USB power supply range: 4.5V–5.1V
• 2 x RCA connector outputs standard S/PDIF; electricity level 550 mV (standard connection load), output impedance 75 ohms
• System compatibility: Windows 7 and 8, 32/64 bit, install driver; Native Mac OS 10.6 and later, use own driver; native Linux with UAC2-compliant kernel, use own driver; Android OS 4.2 and above, requires support for OTG function
