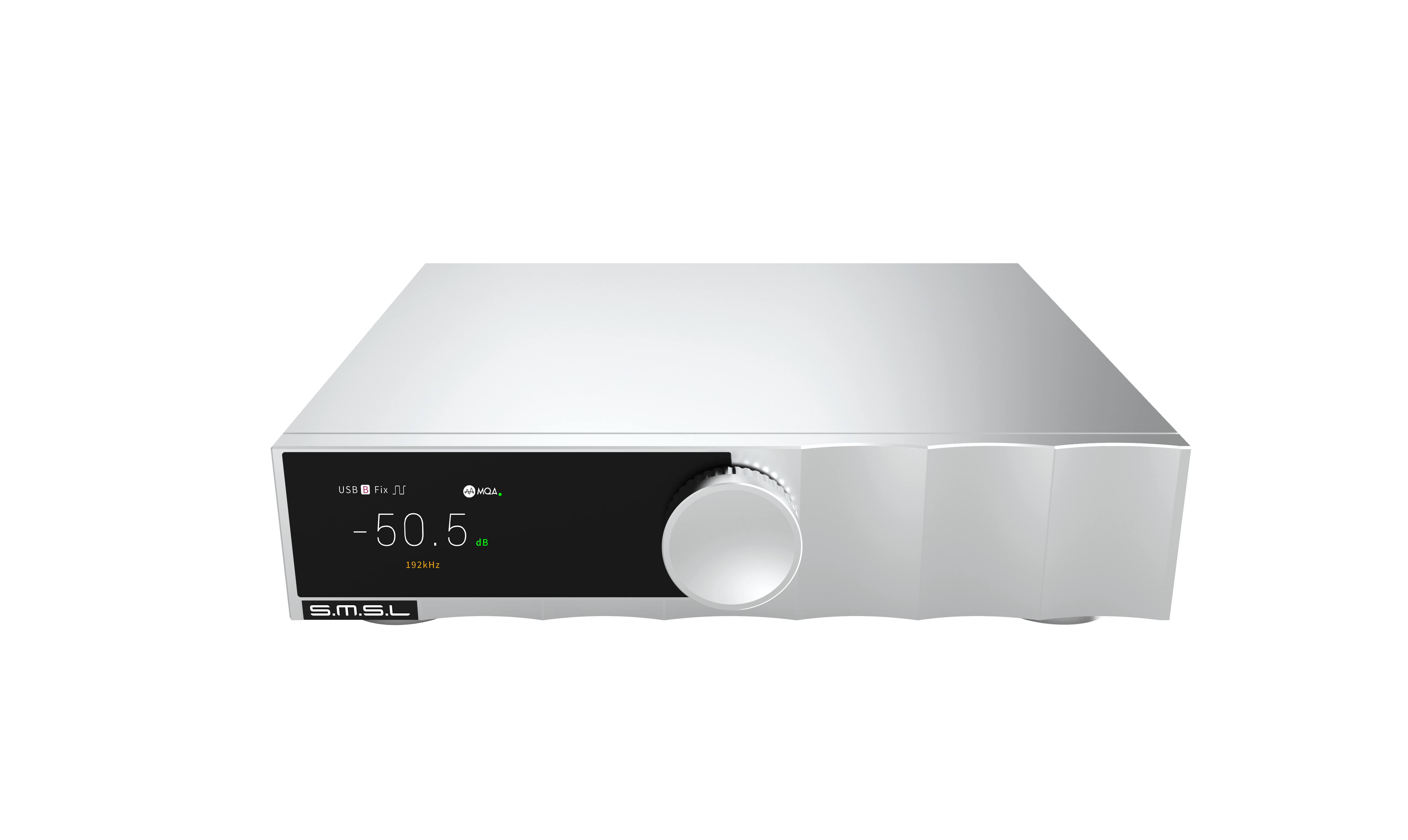

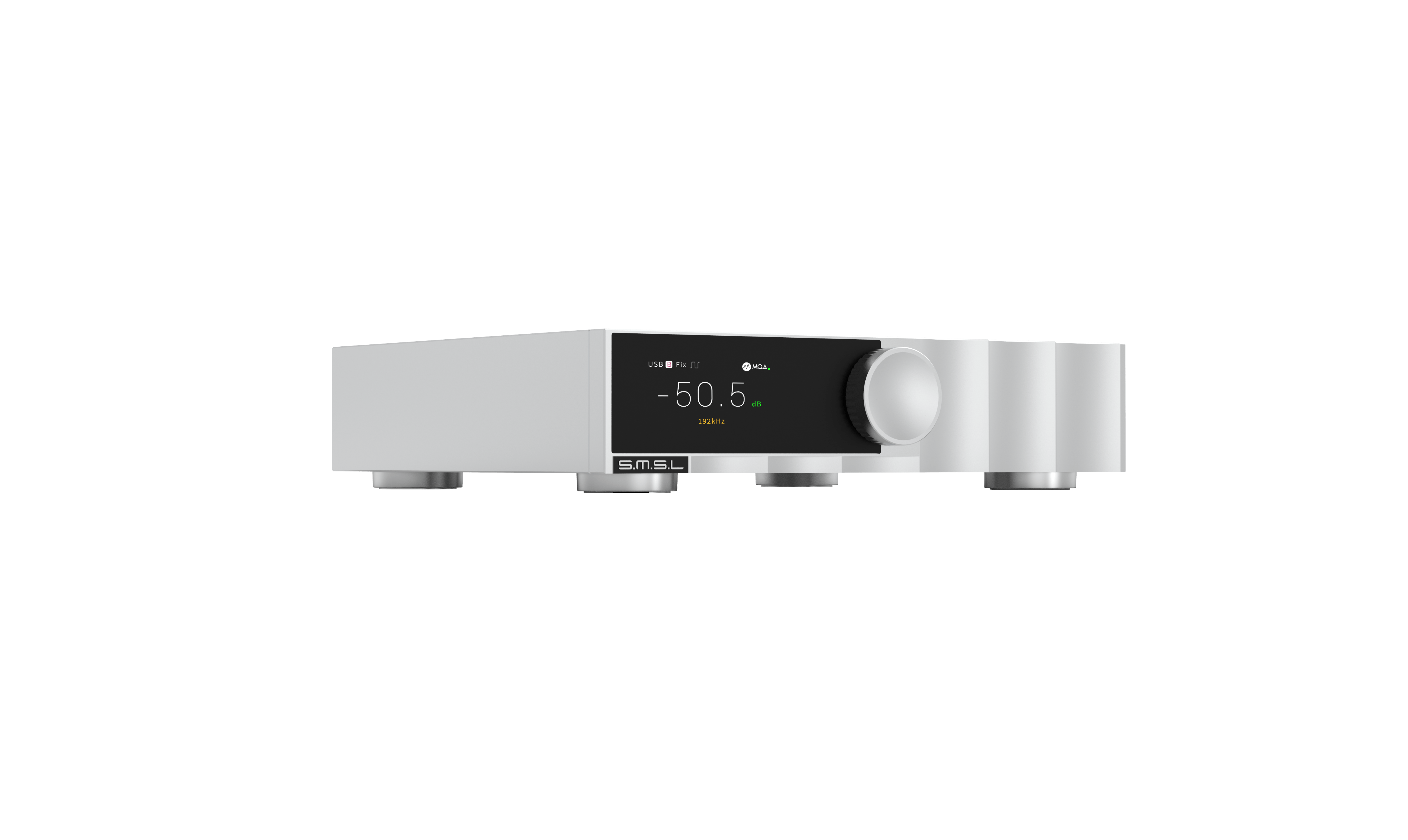

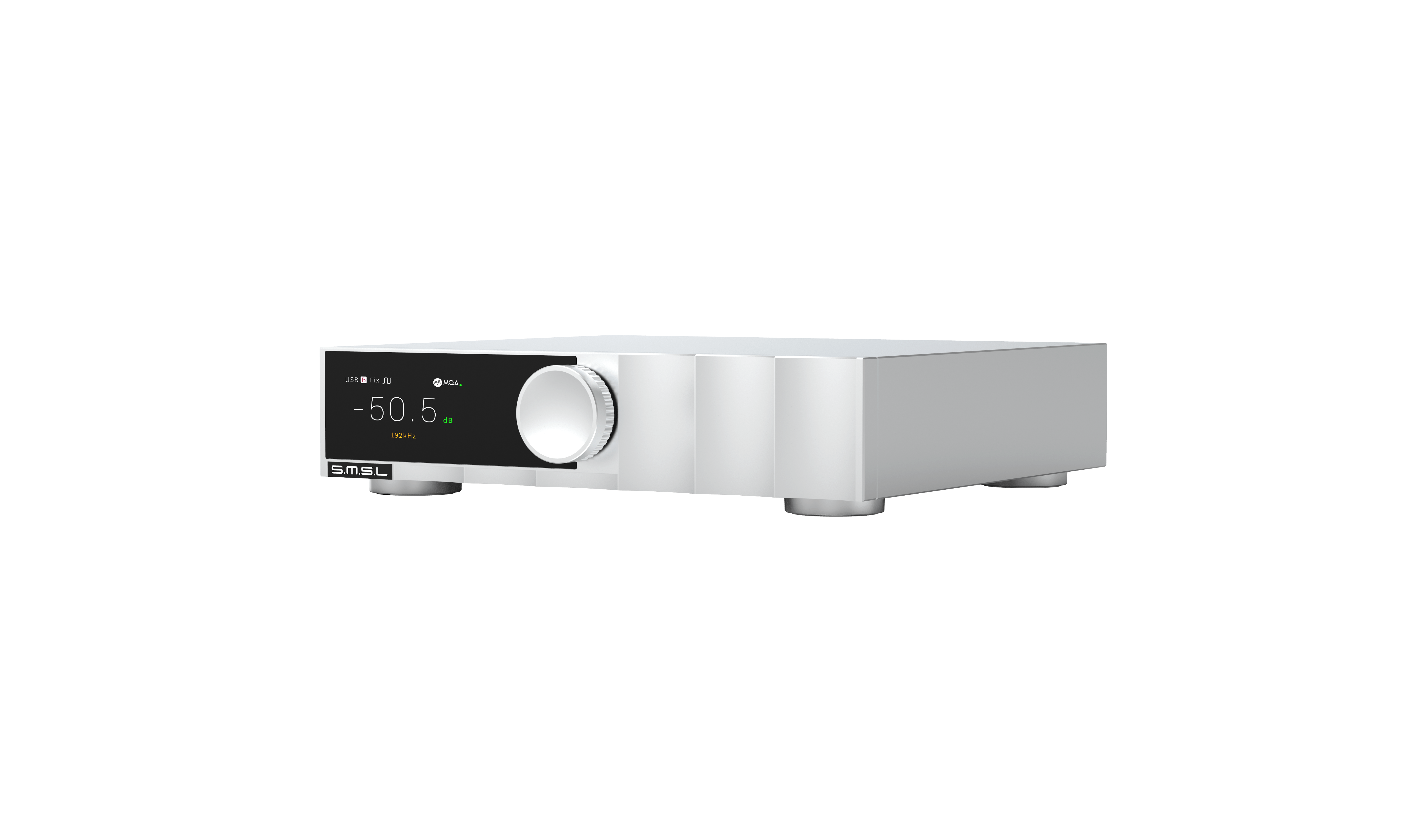

A decoder built for the real world

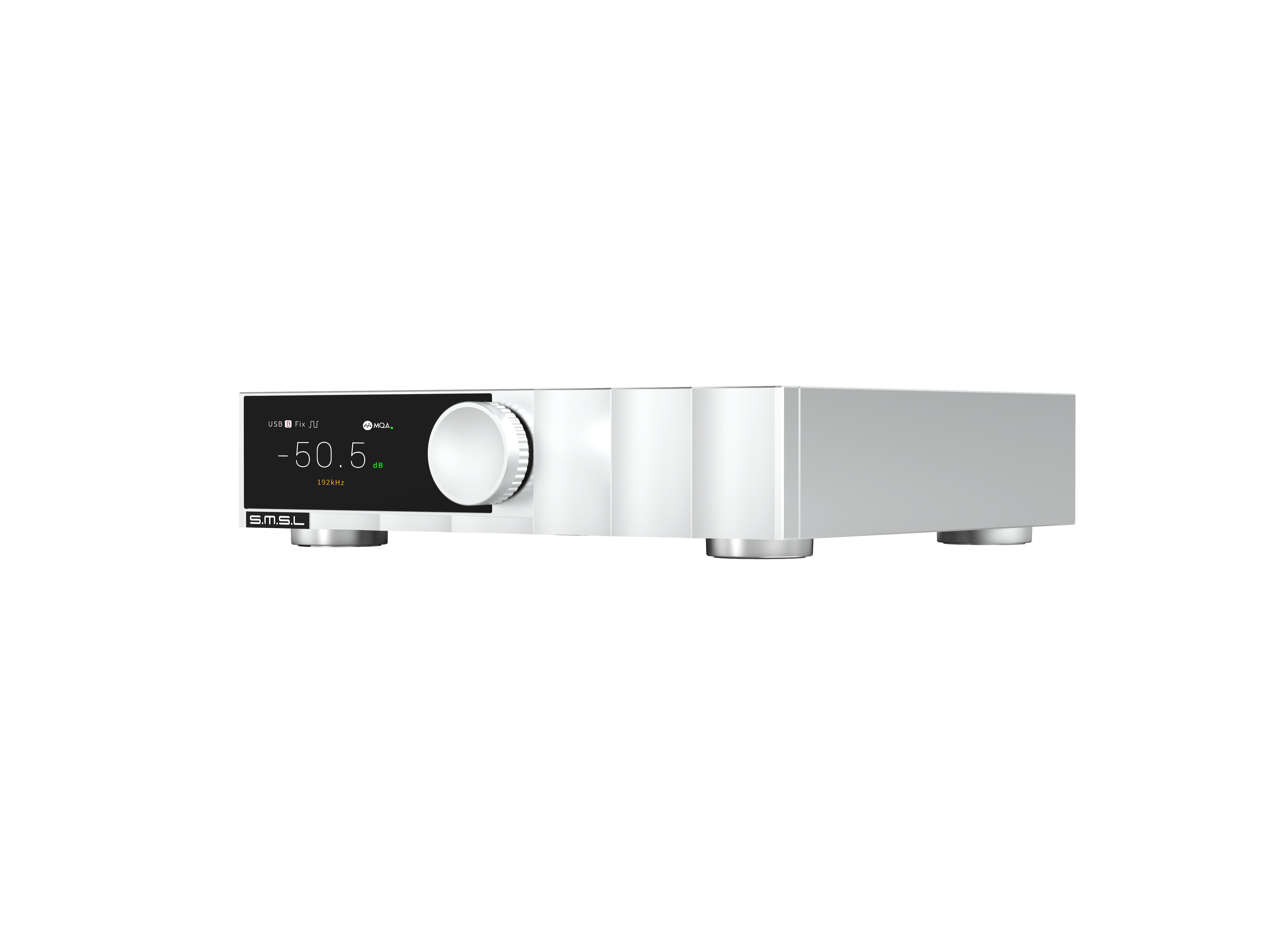

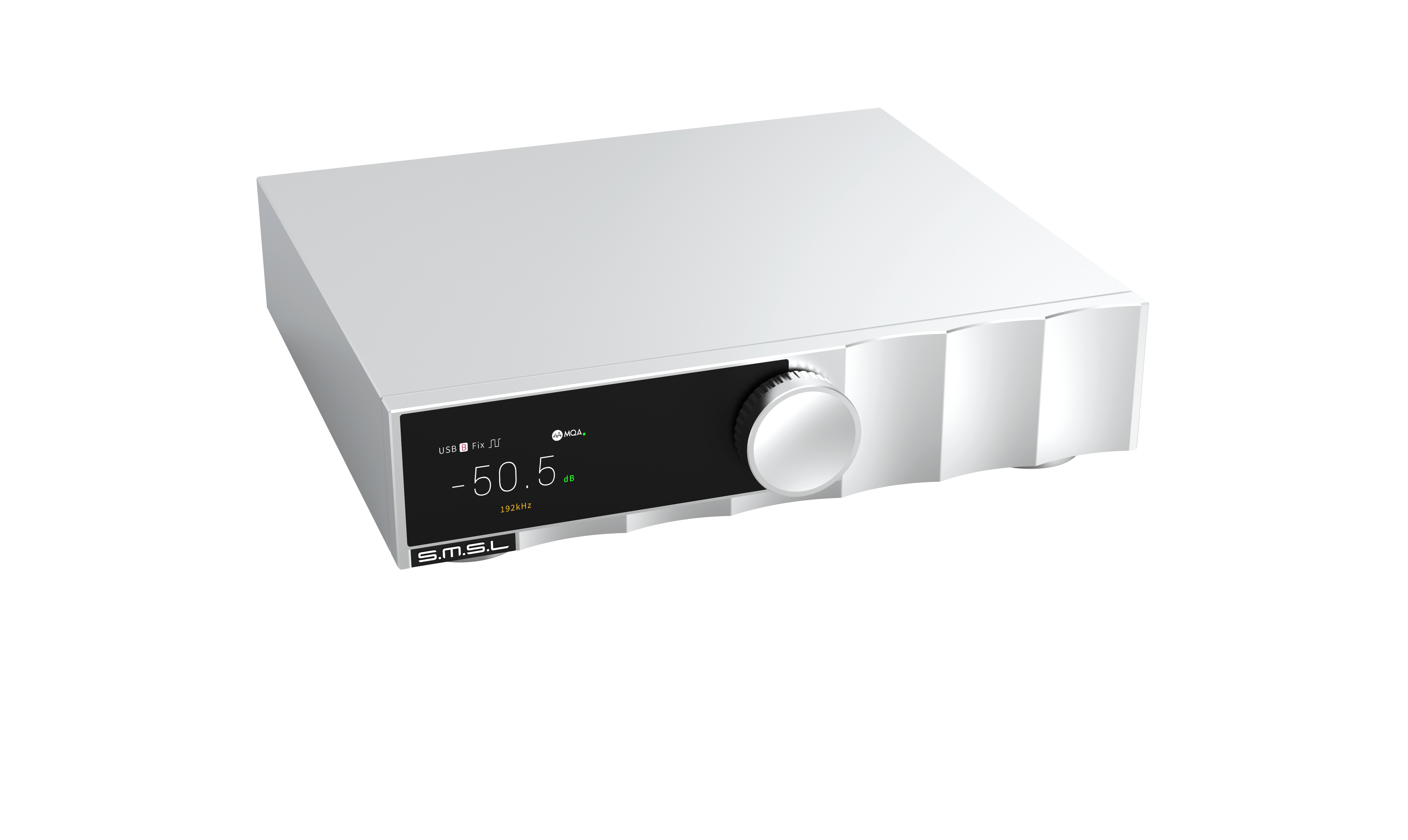

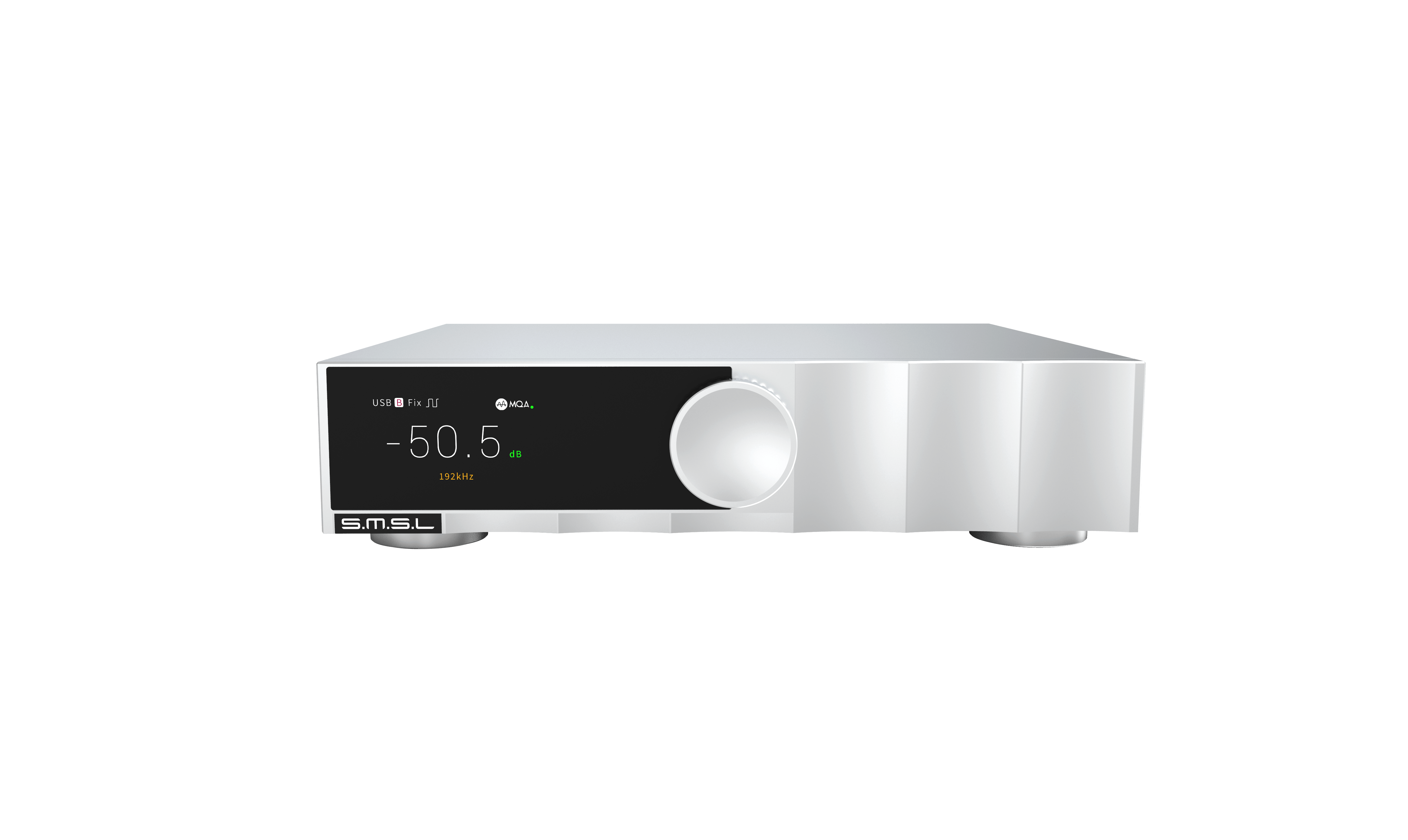

The SMSL D200 is a desktop DAC and preamp that blends reference-grade measurements with features you’ll want to use every day. Handling decoding is the ROHM BD34352EKV DAC chip, supported by a custom CK-03 clock circuit and an ultra-low distortion balanced preamp stage. Add in Bluetooth playback with lyrics display, a laminated glass display, external clock input, and MQA/MQA-CD decoding, and you’ve got a digital hub that can handle it all.

ROHM DAC Chip

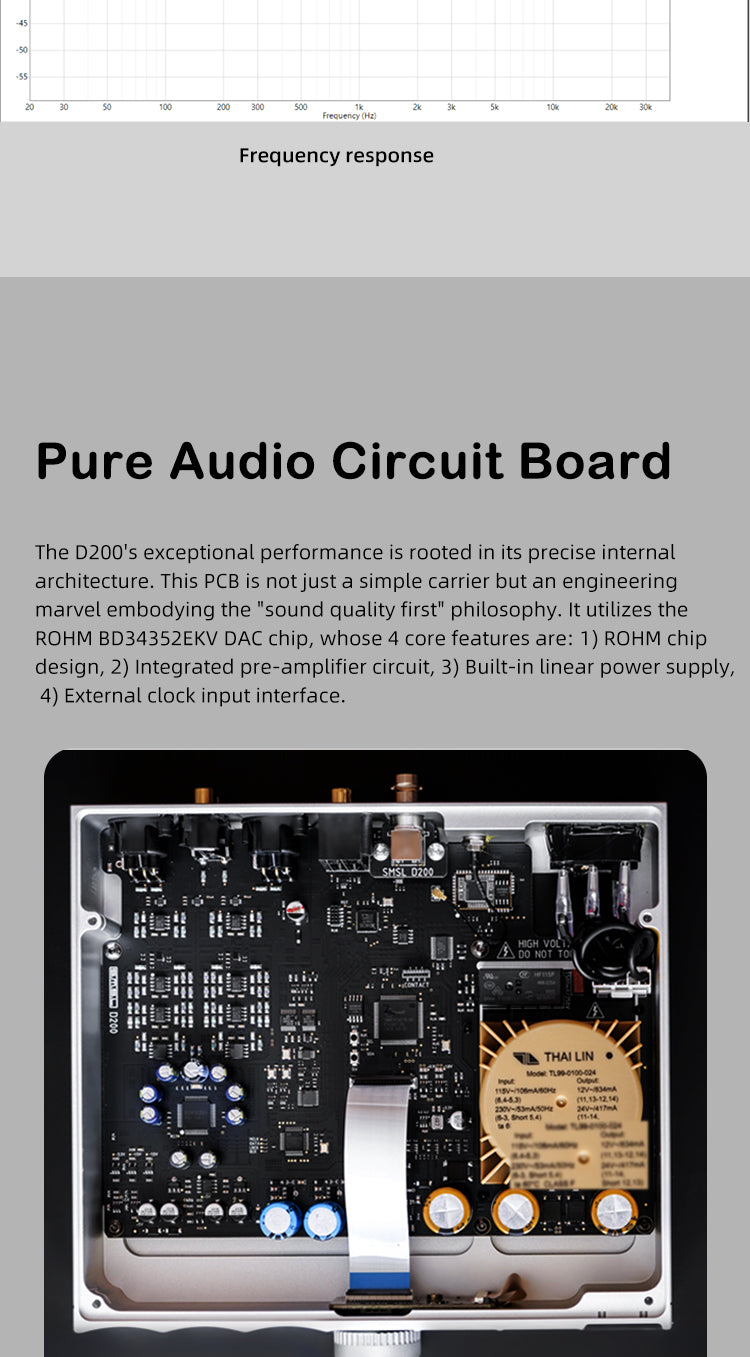

The D200 uses the ROHM BD34352EKV, a chip chosen for its high linearity and natural presentation. Paired with a fully-balanced preamp stage made of dual NJU72315 chips, distortion is kept to 0.00019% and SINAD reaches 115.9dB.

Clocking done right

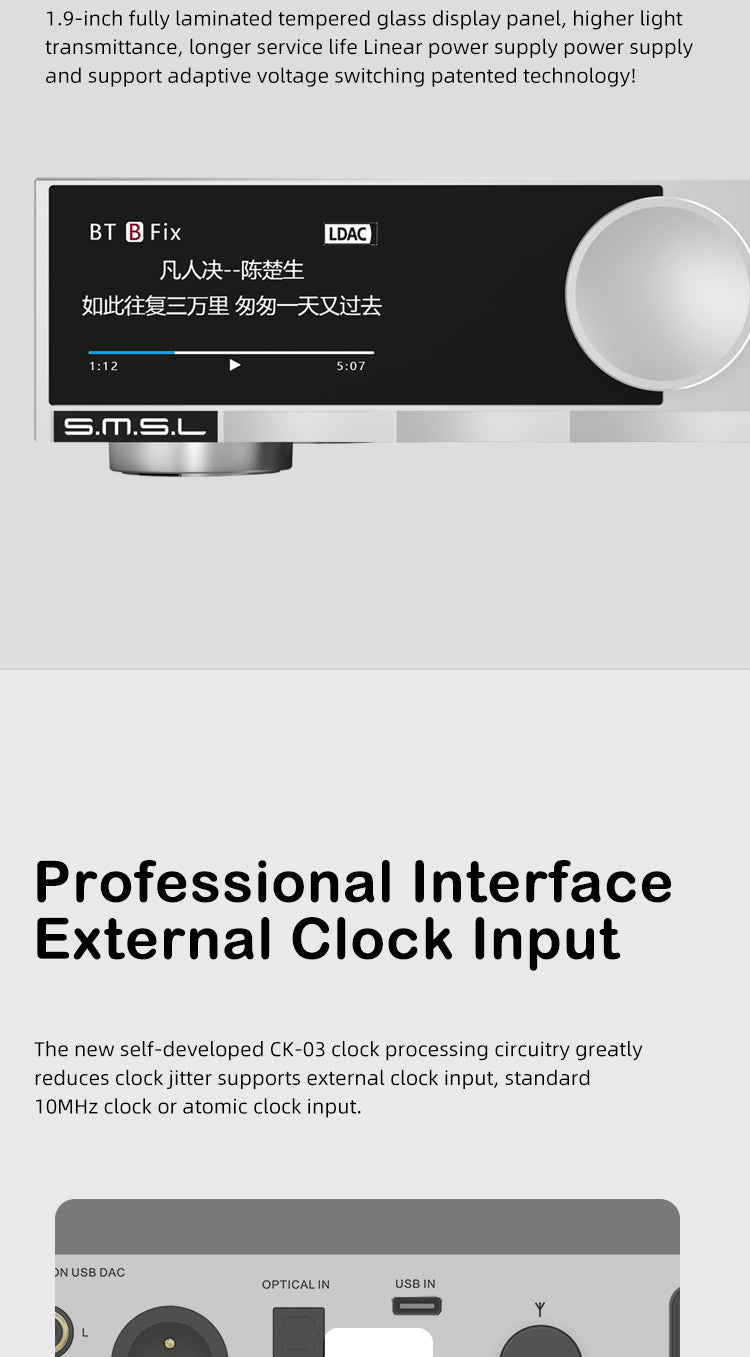

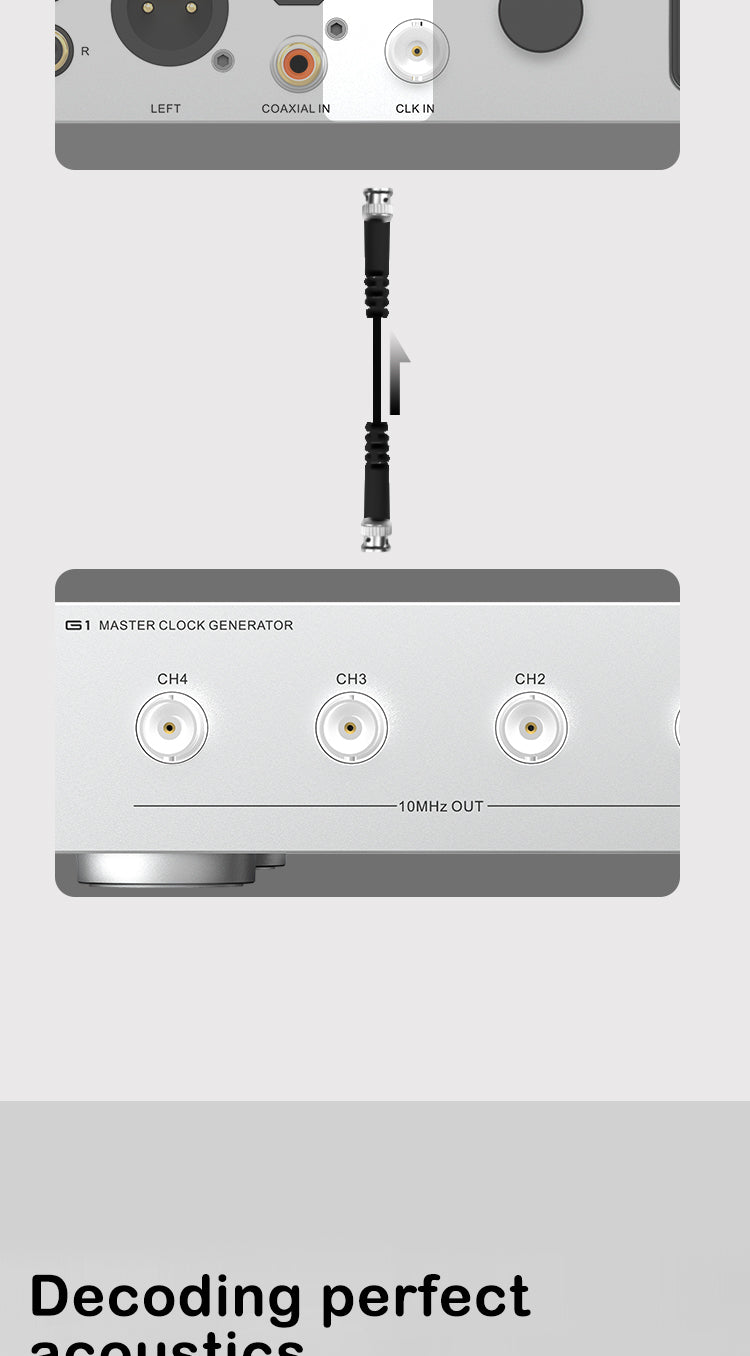

SMSL’s self-developed CK-03 clock circuit is built to reduce jitter at the source. For those who want to take it further, the D200 accepts external clock input—standard 10MHz or atomic clock—locking your system to an ultra-precise timing reference.

Bluetooth that doesn’t cut corners

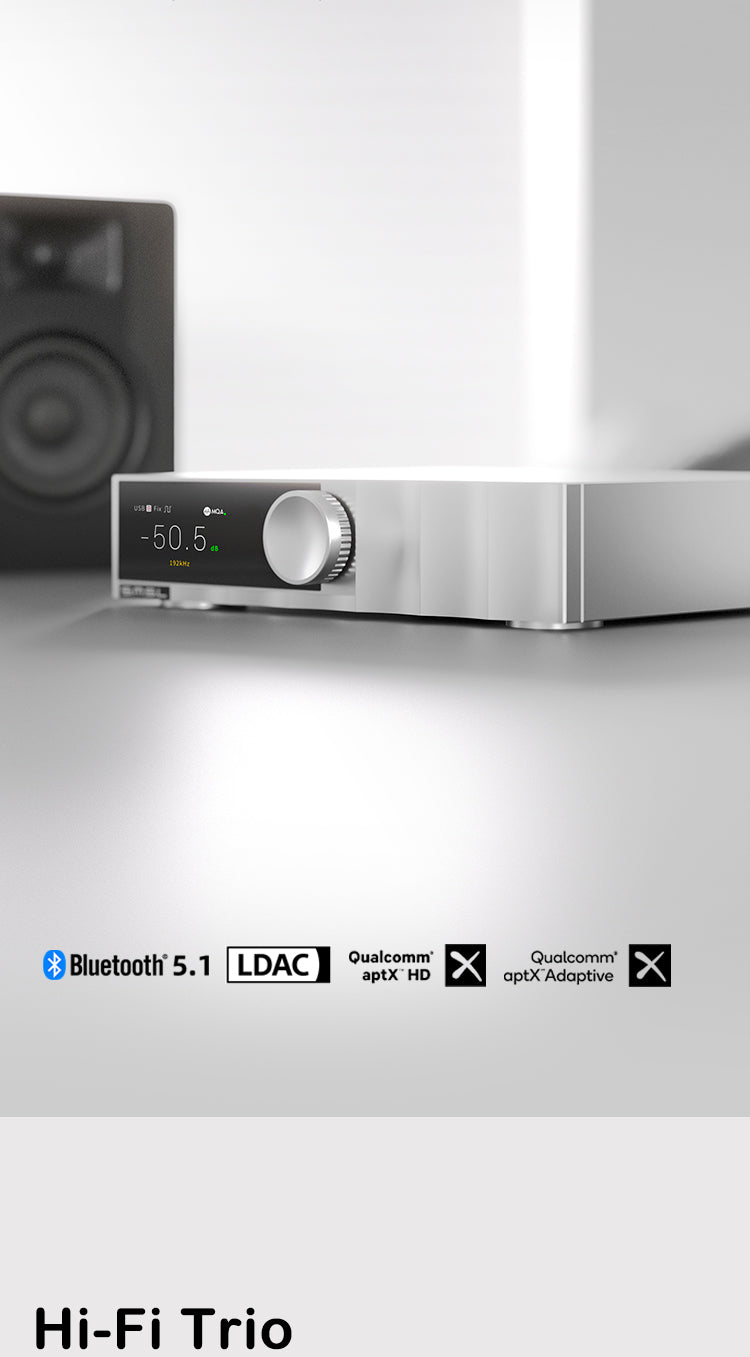

Wireless playback is handled by Qualcomm’s latest Bluetooth chip with LDAC and aptX HD support. You can control play, pause, and track selection with the included remote, while the D200 displays track and lyrics info on its screen.

A screen that lasts

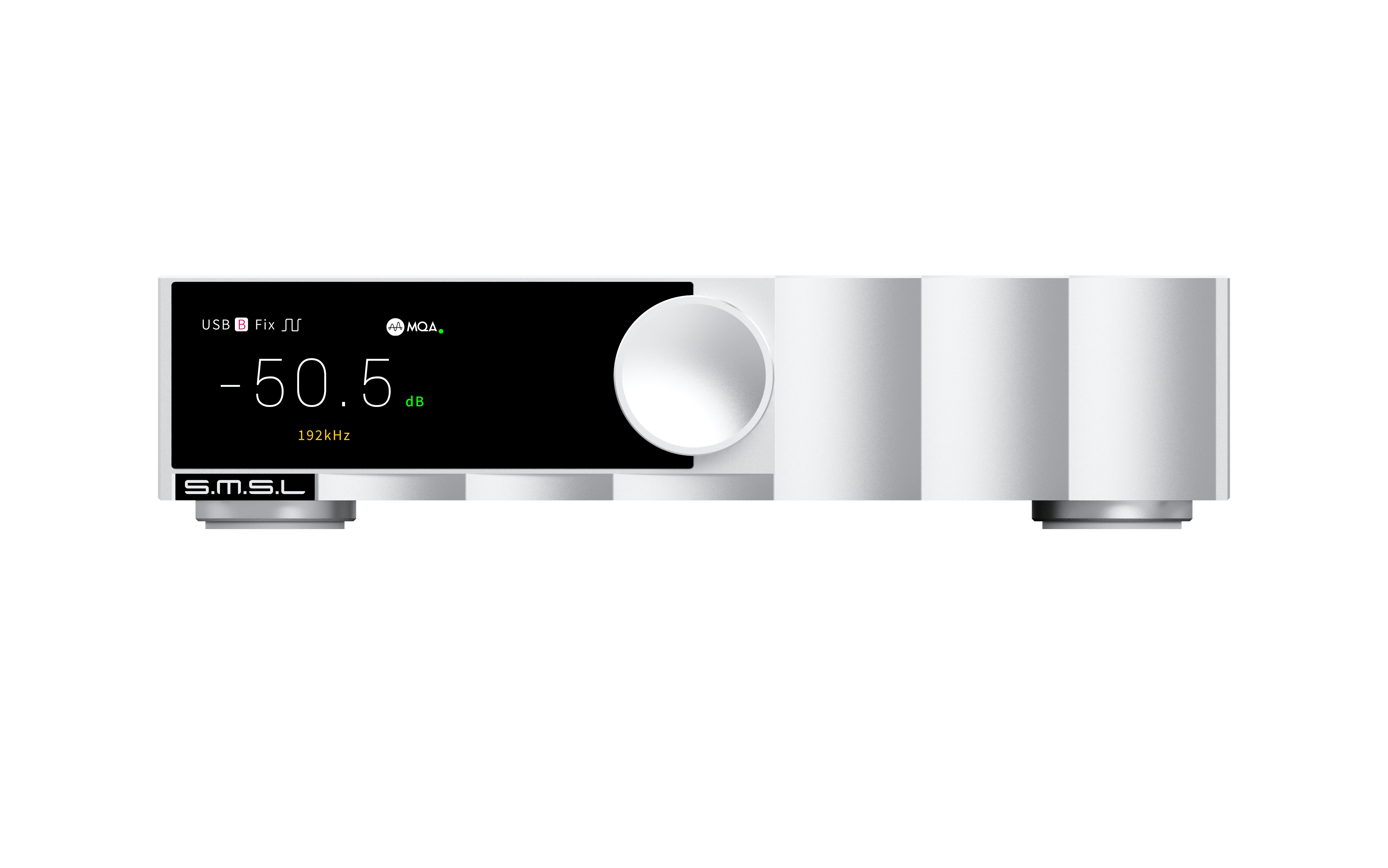

The 1.9-inch fully-laminated tempered glass display improves visibility and longevity compared to standard panels.

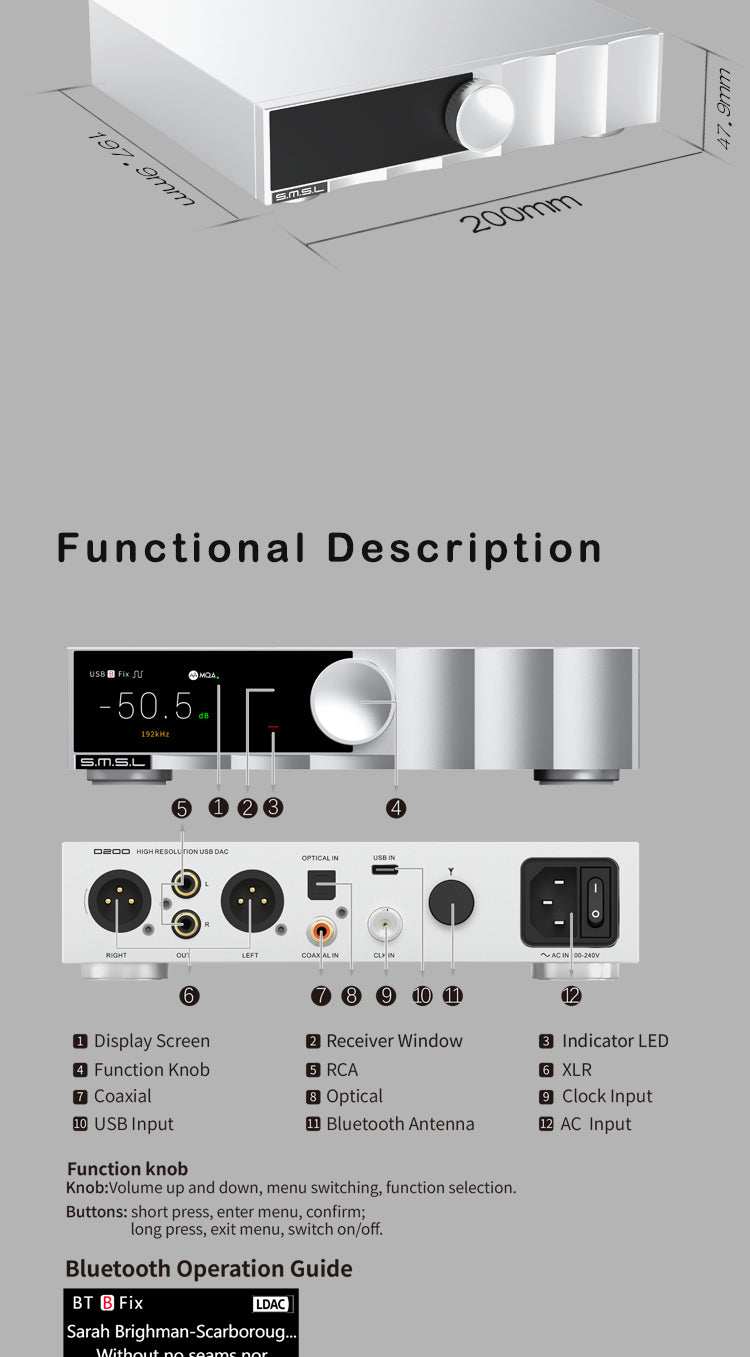

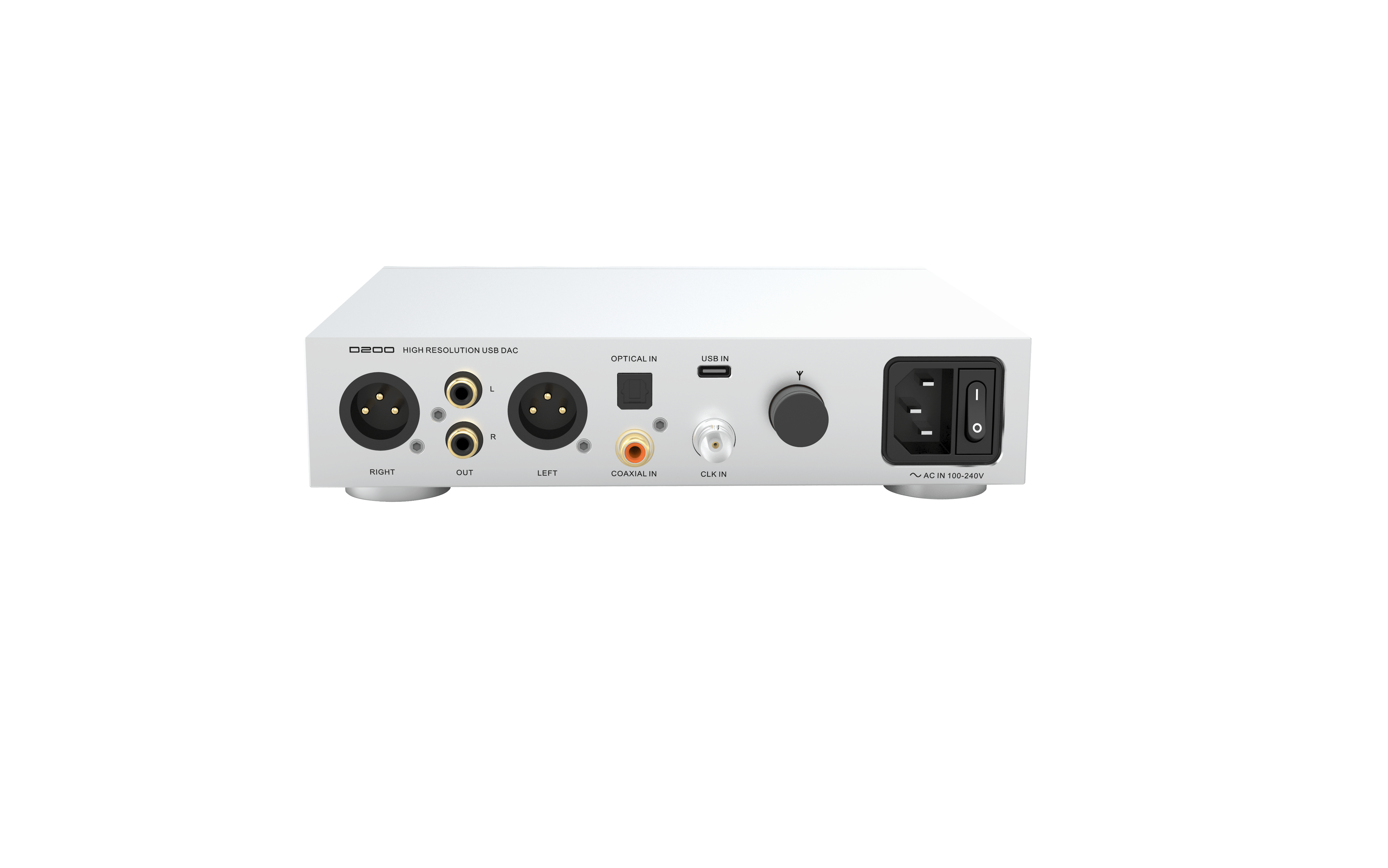

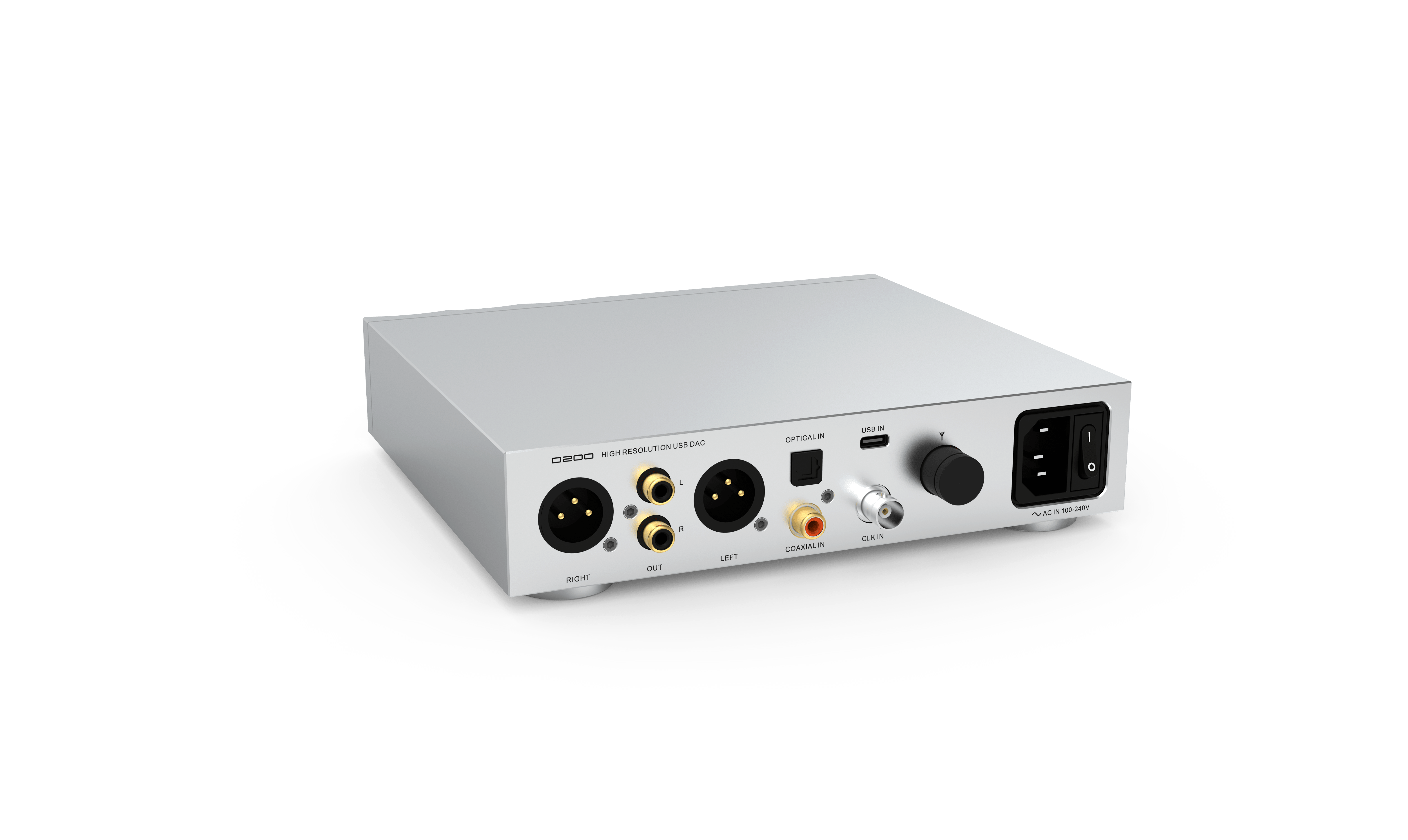

Built to connect

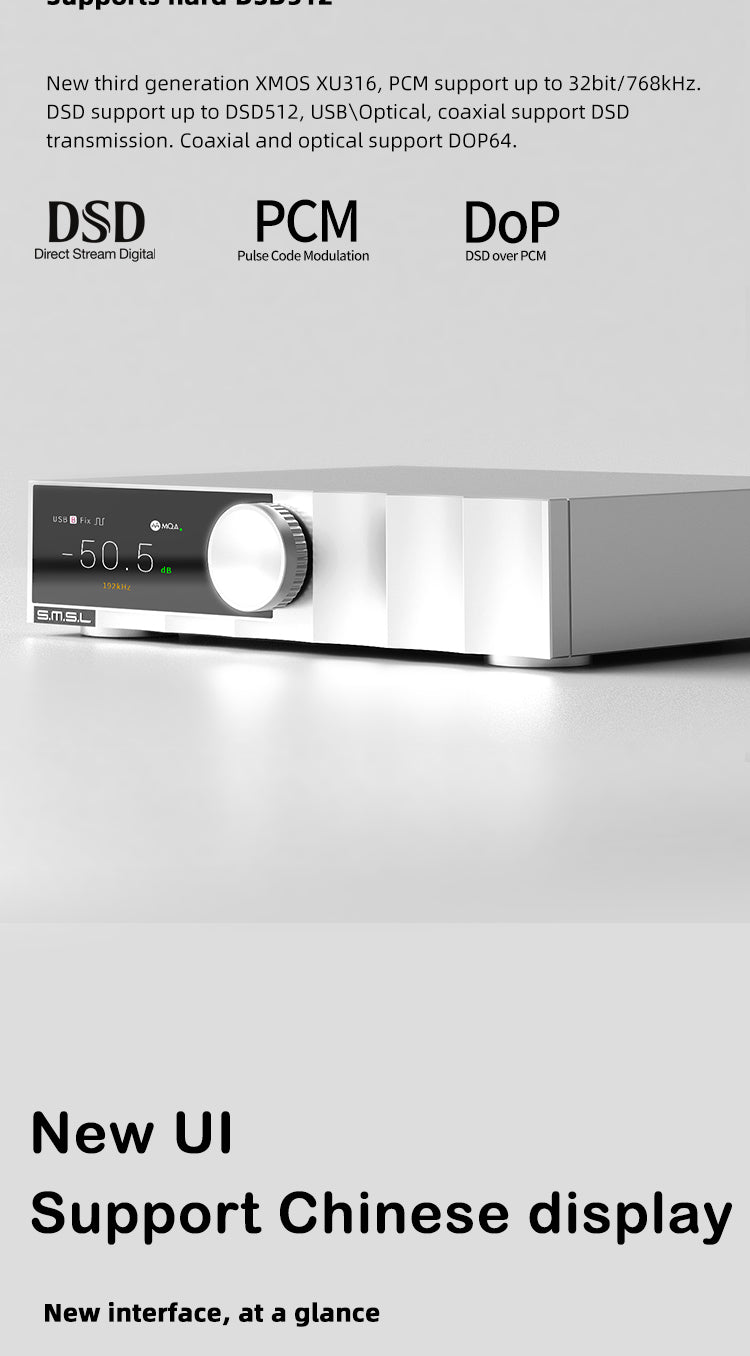

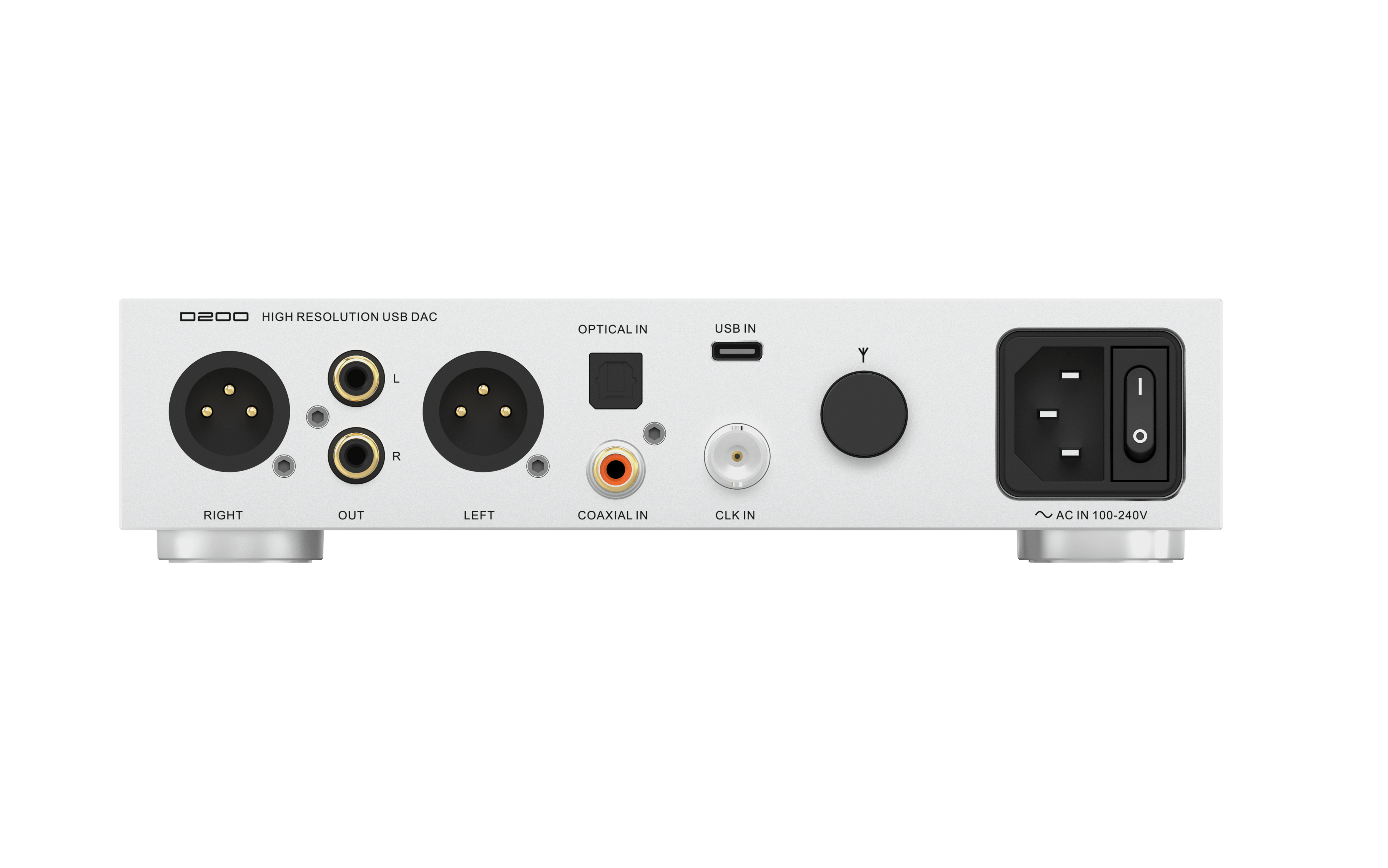

USB, coaxial, and optical inputs handle PCM up to 32-bit/768kHz and native DSD512. Coaxial and optical also support DoP DSD64, while USB supports DSD512 native. Outputs include RCA and XLR, with output levels of 2.5Vrms and 5Vrms respectively.

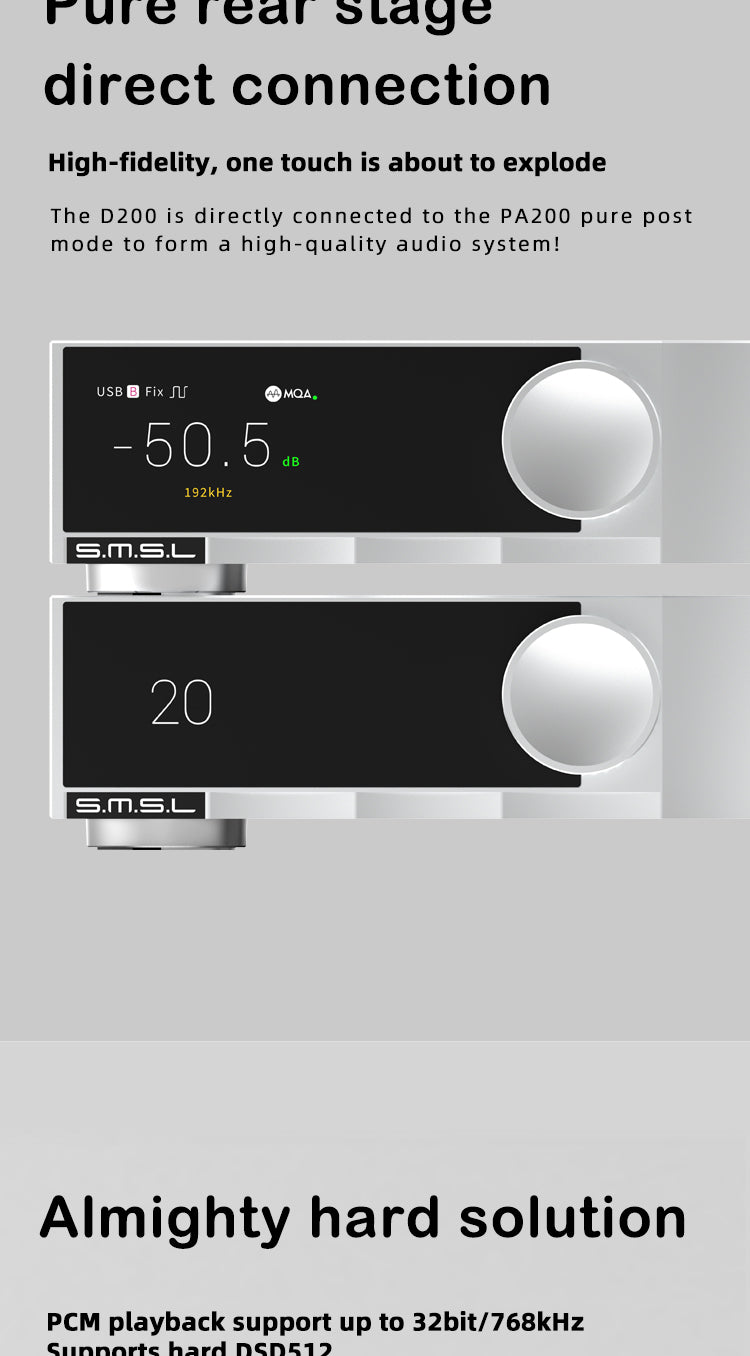

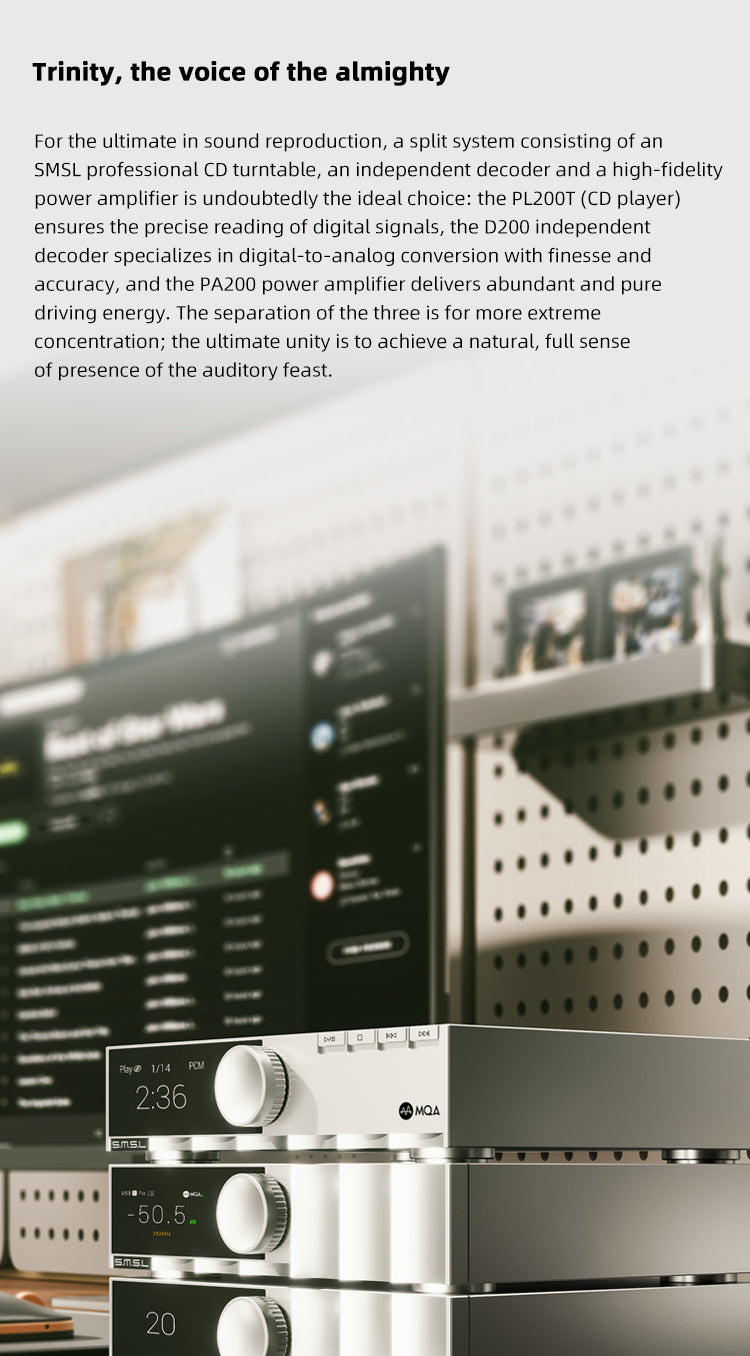

Designed to work with the PA200 and PL200

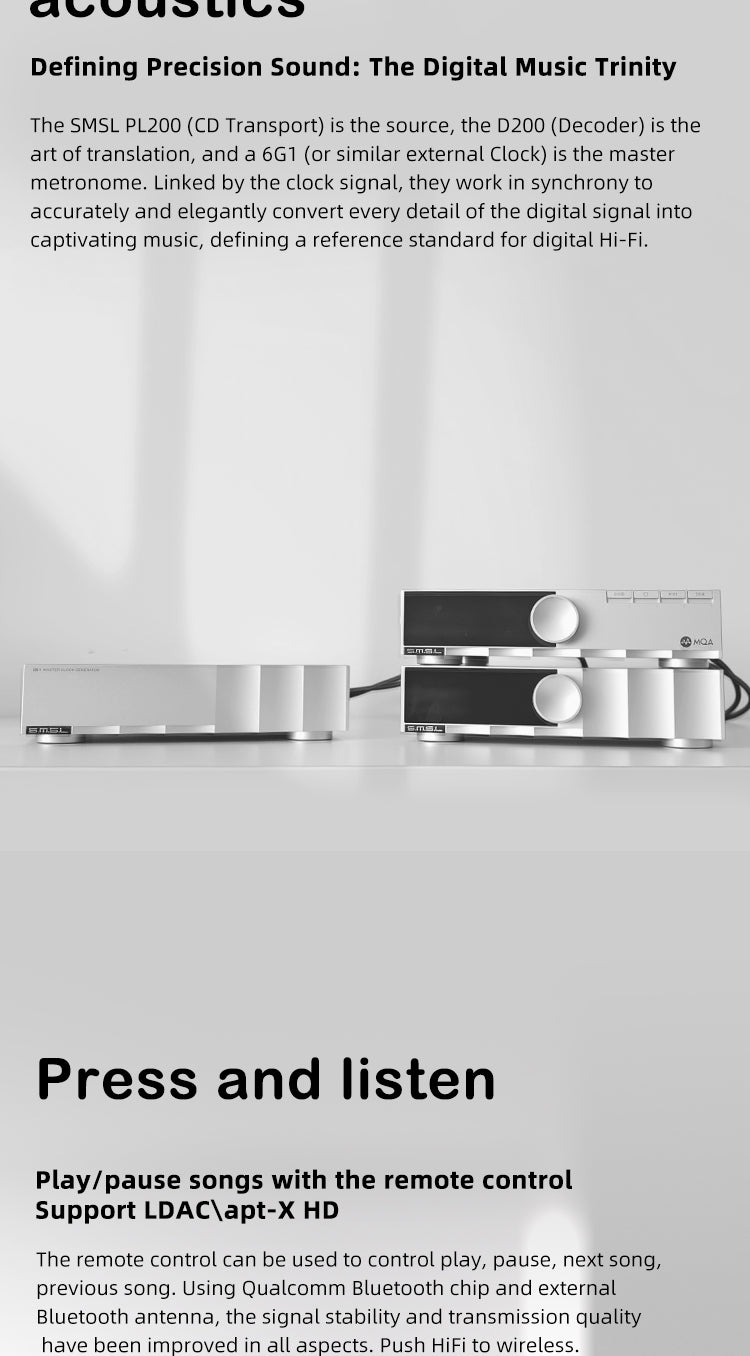

The D200 pairs seamlessly with SMSL’s PL200 CD transport and PA200 amplifier. In this trio, the PL200 reads, the D200 decodes, and the PA200 drives, all locked in sync through an external clock.

Flexible sound controls

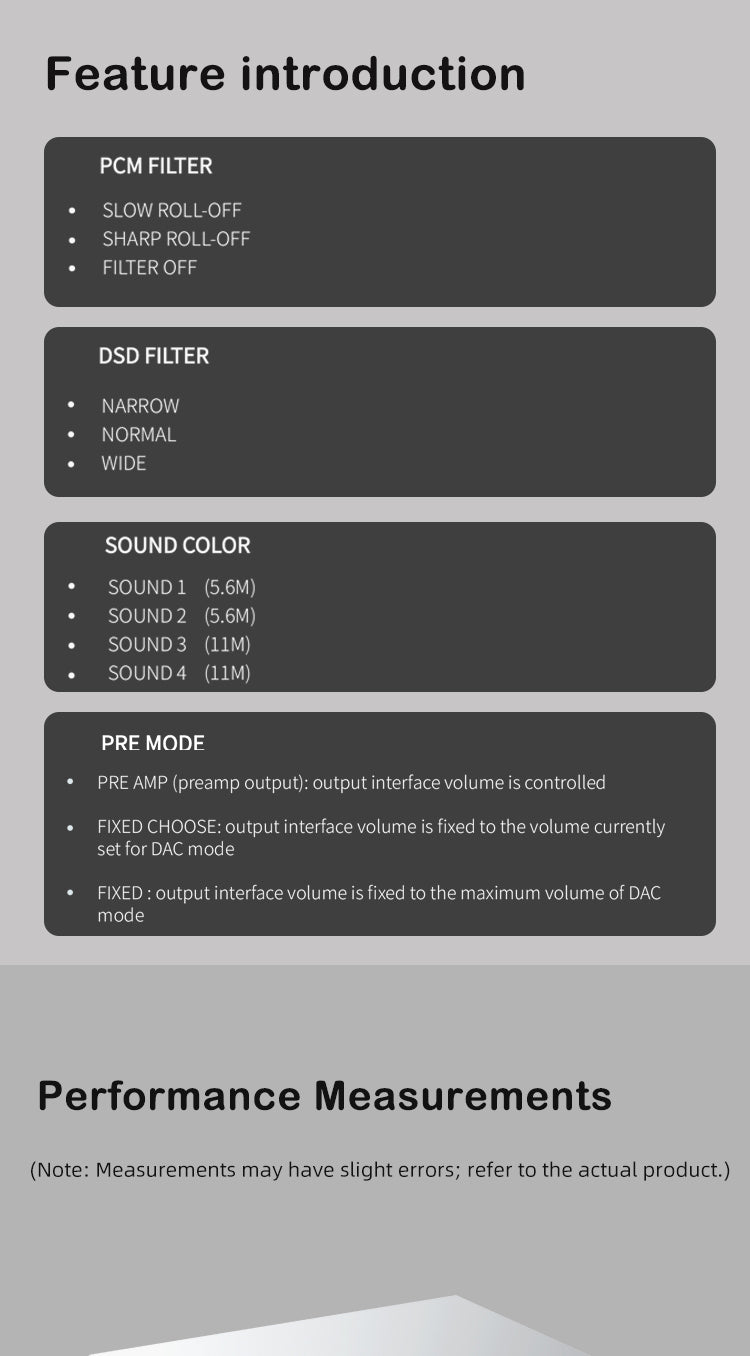

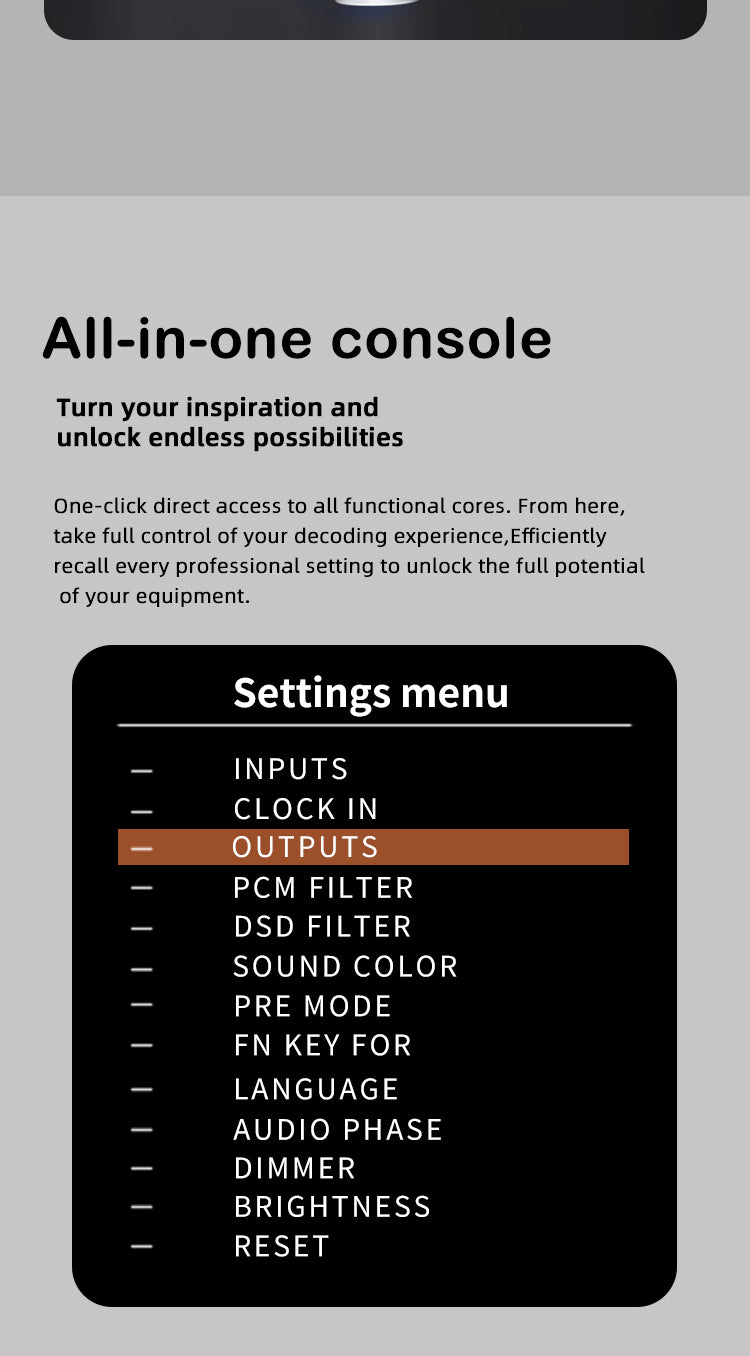

Inside the menu you’ll find selectable PCM and DSD filters, sound color modes, and output modes for fixed DAC or variable preamp. It’s all controlled by a front-panel knob or the included remote, giving you one-click access to the features you’ll use most.

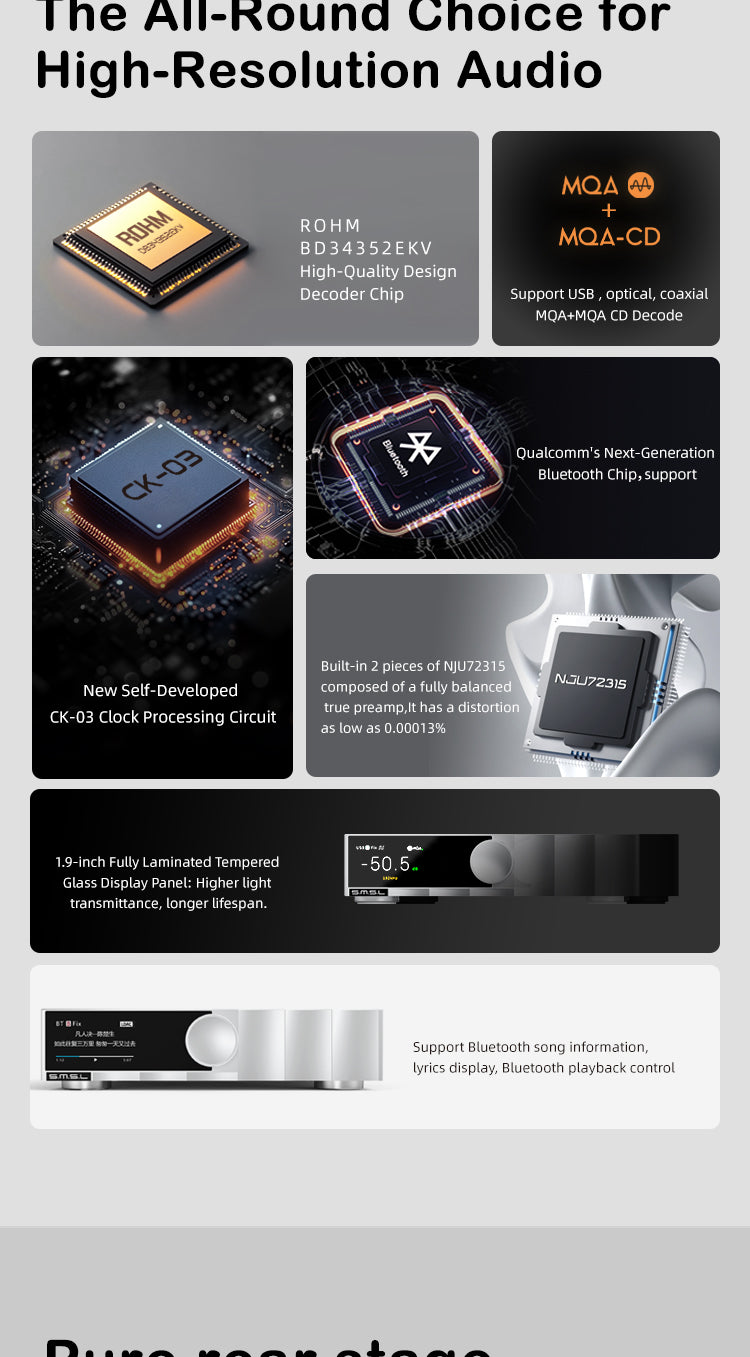

Product highlights

• ROHM BD34352EKV DAC chip

• Dual NJU72315 balanced preamp stage with THD+N as low as 0.00019%

• SMSL self-developed CK-03 clock circuit

• External 10MHz or atomic clock input support

• Fully laminated 1.9-inch tempered glass display

• Automatic screen wake-up and Chinese UI support

• USB, optical, coaxial, and Bluetooth inputs

• RCA and XLR outputs

• PCM up to 32-bit/768kHz, DSD512 native support

• Full MQA and MQA-CD decoding

• Qualcomm Bluetooth with LDAC and aptX HD

• Remote playback control with lyrics display

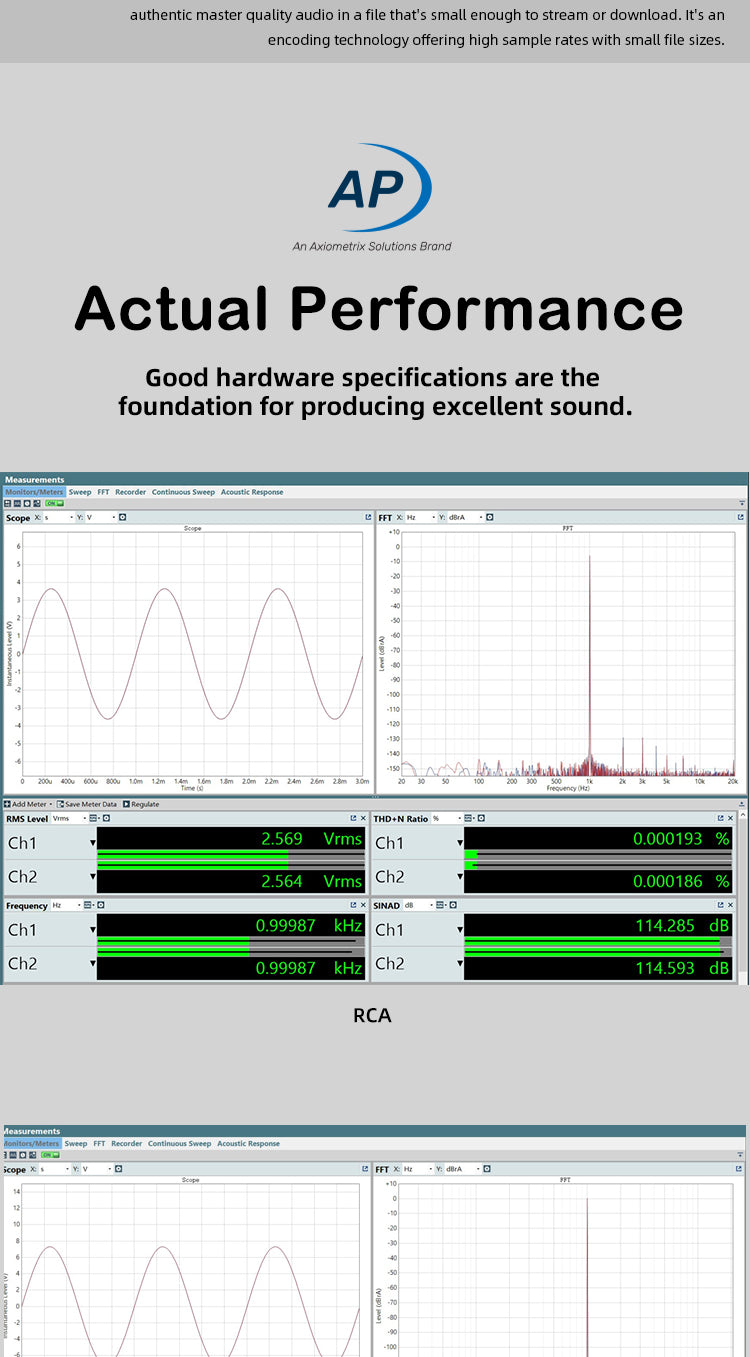

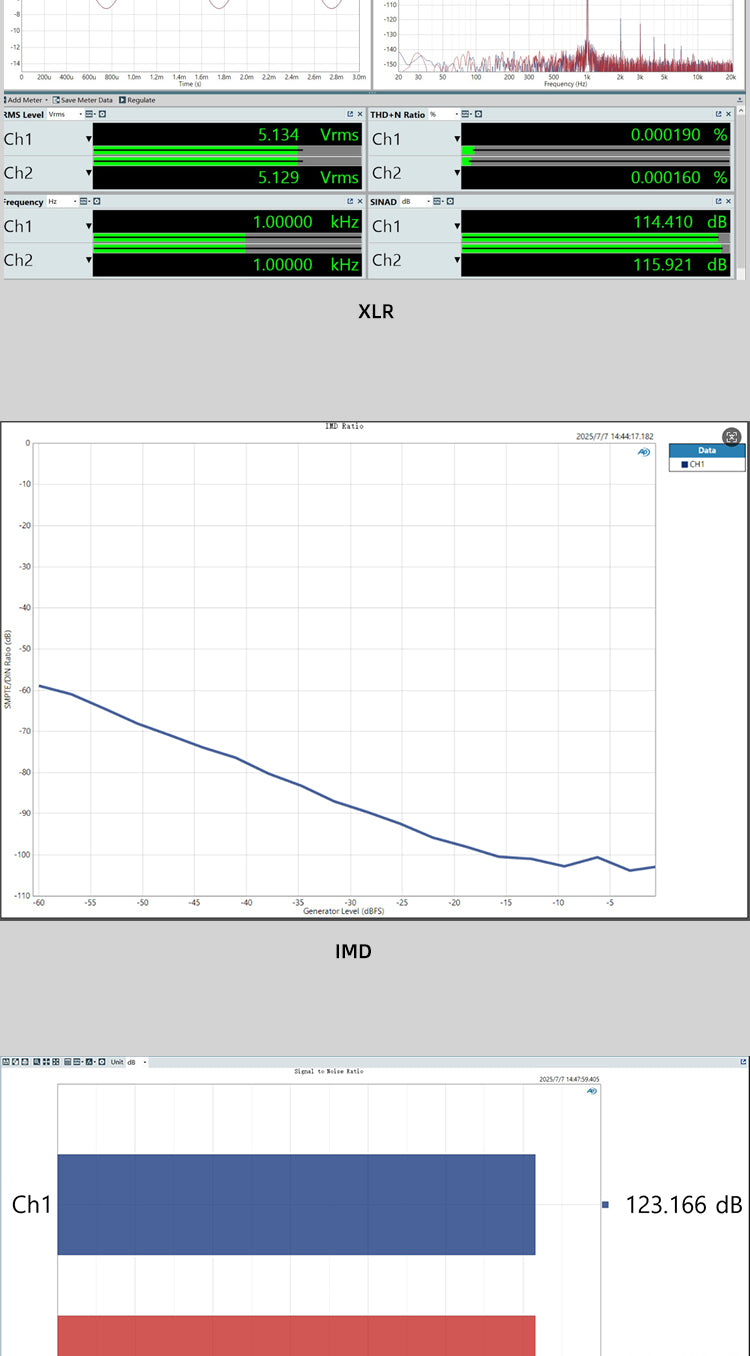

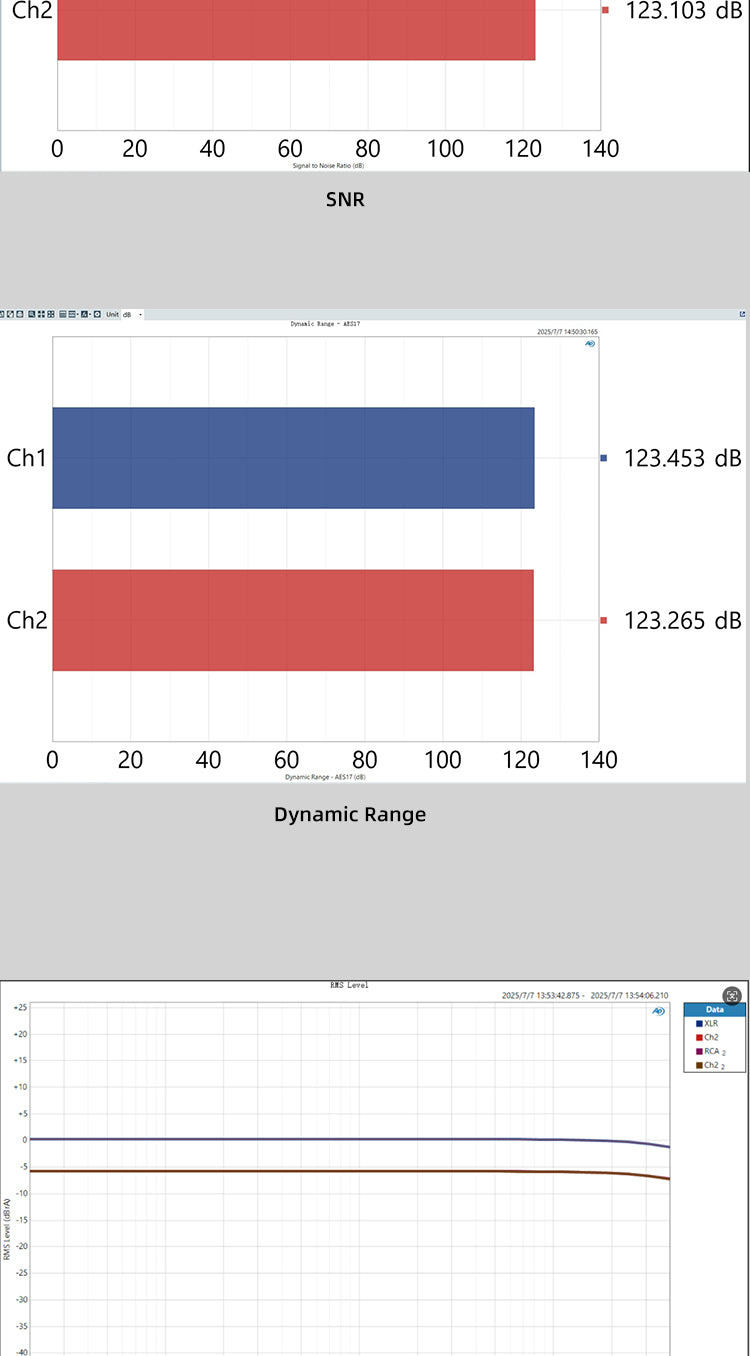

• SINAD up to 115.9dB, SNR up to 123dB

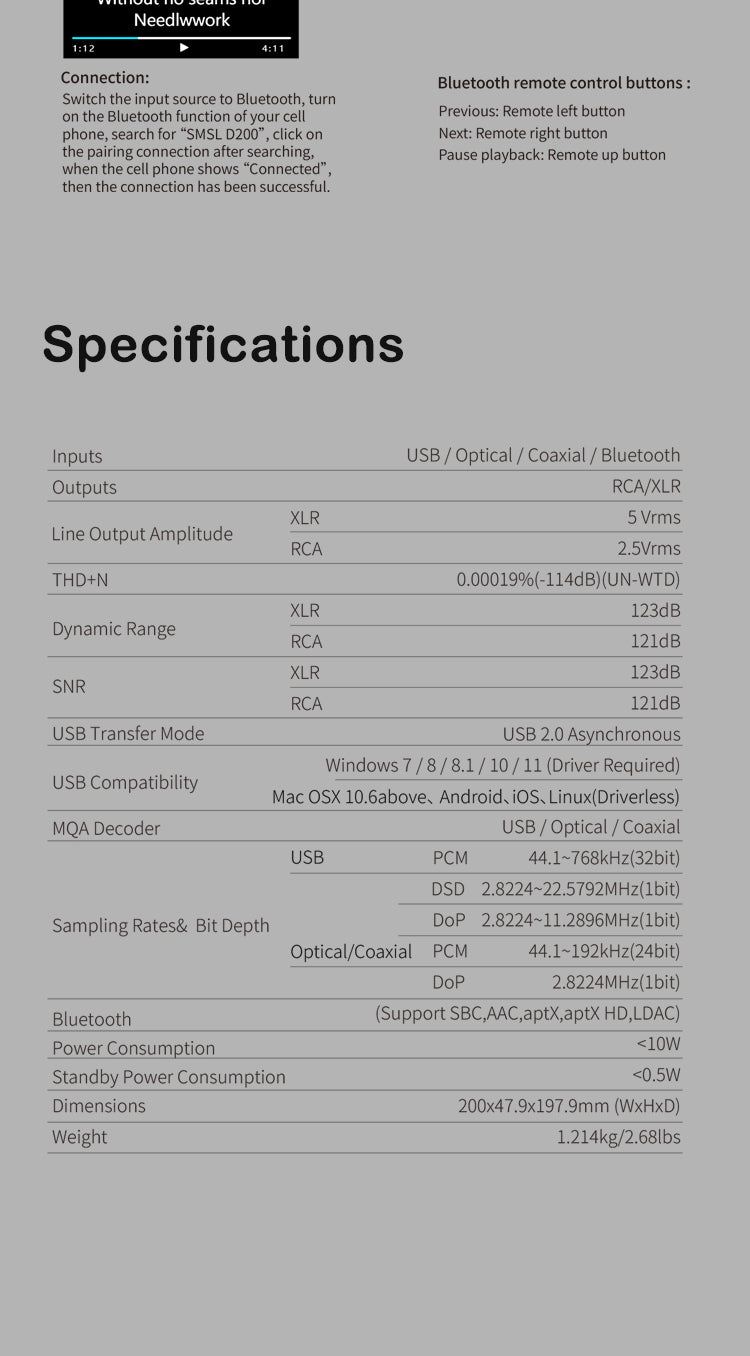

Specs

• Inputs: USB, optical, coaxial, Bluetooth

• Outputs: RCA, XLR

• Line output amplitude: XLR: 5 Vrms; RCA: 2.5 Vrms

• THD+N: 0.00019% (–114 dB)

• Dynamic range: XLR 123 dB; RCA 121 dB

• SNR: XLR 123 dB; RCA 121 dB

• USB transfer mode: USB 2.0 asynchronous

• Compatibility: Windows 7/8/8.1/10/11 (driver required), Mac OSX 10.6+, Android,
• iOS, Linux (driverless)

• MQA decoding: USB, optical, coaxial

• PCM support: USB: 44.1–768 kHz (32-bit); Optical/Coaxial: 44.1–192 kHz (24-bit)

• DSD support: USB: DSD64–DSD512 native; Optical/Coaxial: DoP DSD64

• Bluetooth: SBC, AAC, aptX, aptX HD, LDAC

• Power consumption: <10W

• Standby power: <0.5W

• Dimensions: 7.87 × 1.89 × 7.79 in (200 × 47.9 × 197.9 mm)

• Weight: 2.68 lbs (1.214 kg)

What’s included

• SMSL D200 DAC and preamp

• Bluetooth antenna

• AC power cable

• Remote control

• USB cable

• User manual
