SMSL M3 DAC/Amp

$83.99

Request A Price Match


The SMSL M3 is a  all in one DAC/Amp with USB, optical, and coaxial inputs. It comes with a CS4398 DAC chip and can be powered by a computer. The LED indicators on the front panel indicate the input mode and the full frequency sampling rate can be found on the front panel. Finally, the M3 is a solid construction with a high quality aluminum alloy shell and solid aluminum buttons/knobs.

Specs:

  • DAC chip: CS4398
  • Channels: 2
  • Output power level: 1.9 Vrms

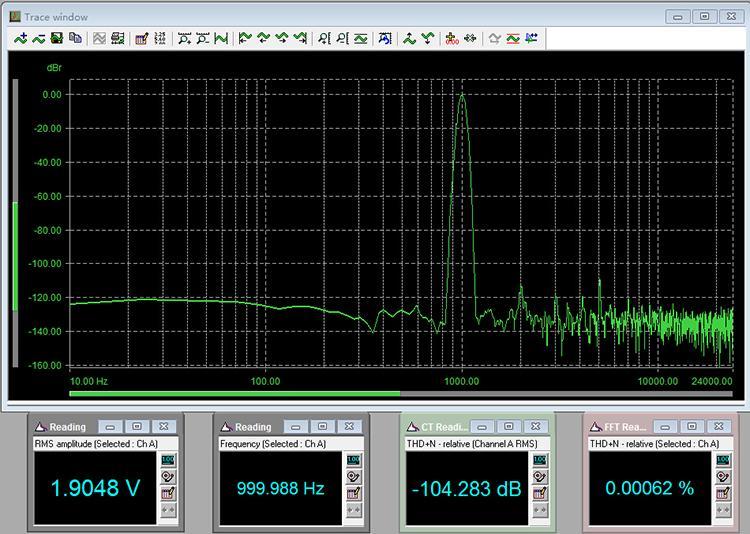

  • THD+N: < 0.006%
  • Dynamic range: > 112 dB
  • SNR: > 107 dB
  • Channel separation: > 105 dB
  • Sample rate, USB: 96 kHz (24 bit)
  • Sample rate, optical and coaxial: 192 kHz (24 bit)
  • Output power, 108 mw: 32 ohm at THD 0.1%
  • Output power, 85 mW: 64 ohm at THD 0.1%
  • Output power, 49 mW: 150 ohm at THD 0.001%
  • Output power, 24 mW: 300 ohm at THD 0.001%

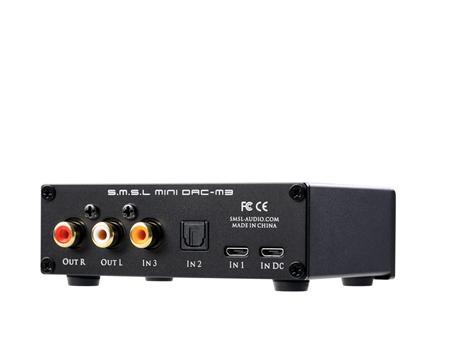

  • Inputs: USB, optical, coaxial
  • Outputs: Line, headphone amp
  • Size: 9.5 x 7.6 x 3 cm
  • Weight: 212 g

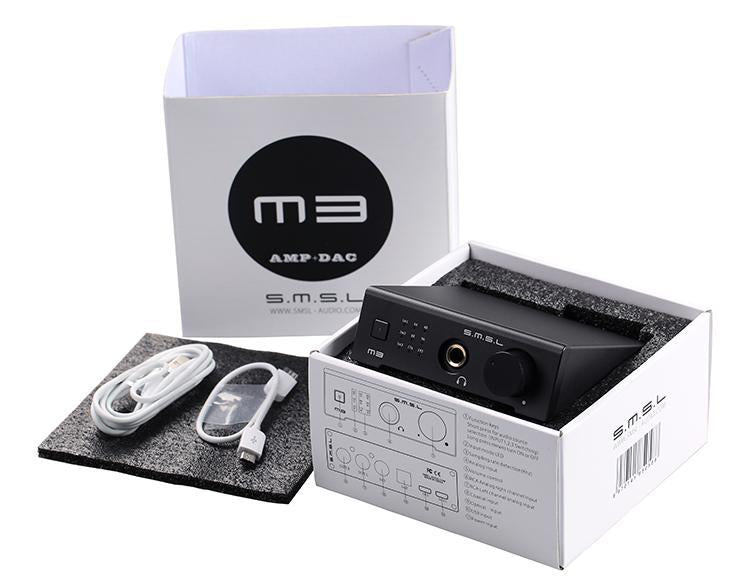

  • Included
    • Micro-USB to Micro-USB cable
    • Micro-USB to Micro-B cable
    • 3.5 mm to ¼ in gold-plated adapter
