SMSL PH-1 MM Phono Amp
Performance, price, and simplicity
The SMSL PH-1 isn’t trying to be everything for everyone. It’s a phono amp built solely for moving magnet (MM) cartridges. By skipping moving coil support entirely, SMSL was able to simplify the circuit, lower the cost, and improve performance across the board. No relay switching. No compromise in headroom. Just a clean, solid phono stage built for a fraction of the cost of typical phono amps. Add a milled aluminum chassis, an integrated headphone amp, and a tuned 46dB gain stage, and you’ve got a true hi-fi component.
More volume, less compromise
Most phono amps hover around 38–40dB of gain. Not the PH-1. After testing MM cartridges ranging from budget-friendly to boutique, SMSL landed on a fixed 46dB gain—enough to bring your signal to around 1Vrms. This gives you a fuller, more dynamic signal that meets the demands of modern amplifiers without overdriving them.
MM only—on purpose
No switches. No MC circuit. The PH-1 is optimized exclusively for MM cartridges, which make up the overwhelming majority of what vinyl listeners use. By dropping MC support, SMSL was able to streamline the signal path and boost performance, achieving 50% better circuit metrics.
Compact, solid, and ready for real systems

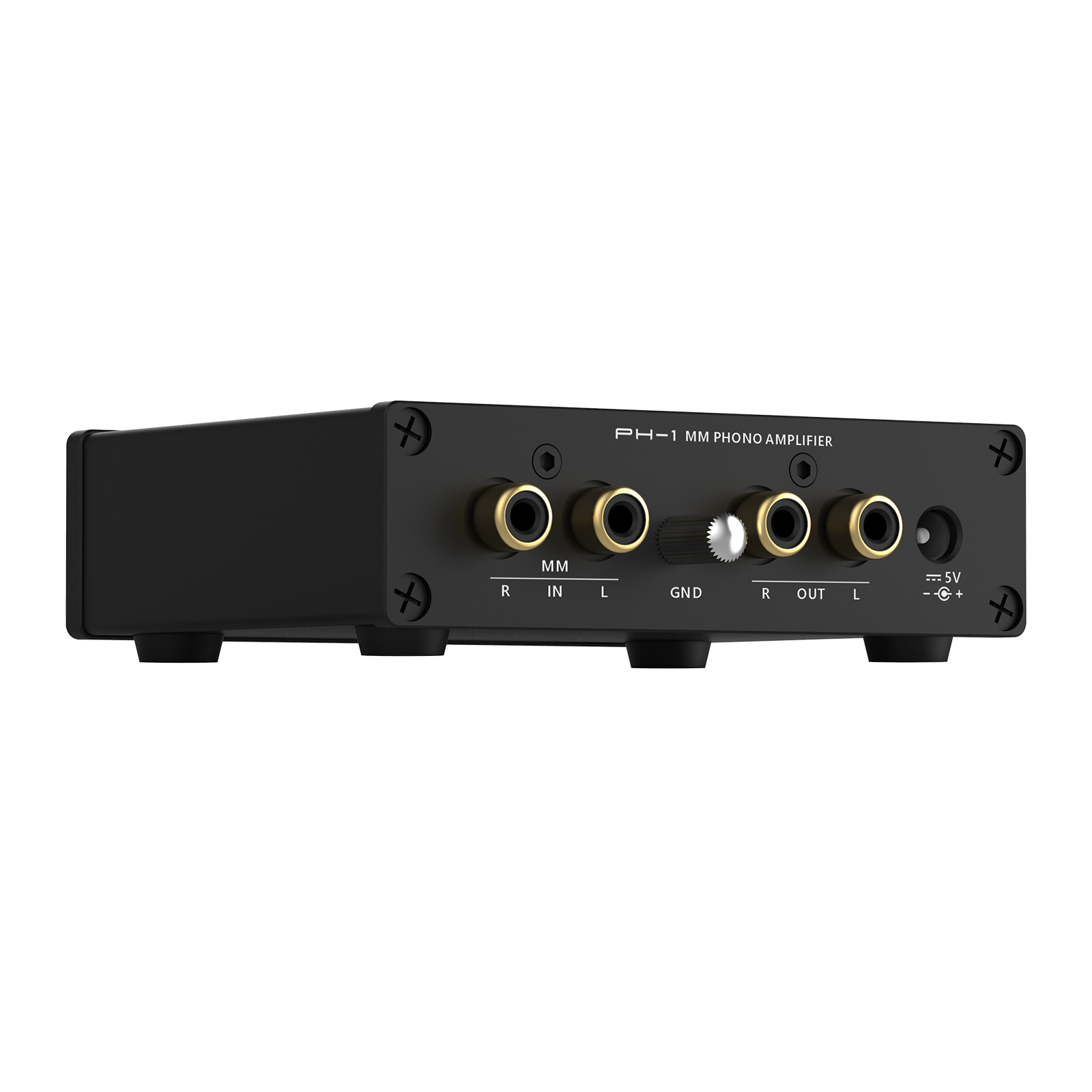

The PH-1 is carved from high-precision aluminum, giving it the mechanical strength and EMI resistance needed for analog playback. It’s compact—just 3.7 x 3.7 x 1.2” (94 x 96 x 30mm)—but still offers RCA jacks, USB power, a ground post, and a 6.35mm headphone output, all laid out with enough spacing to keep cable management painless.
Private listening, built in

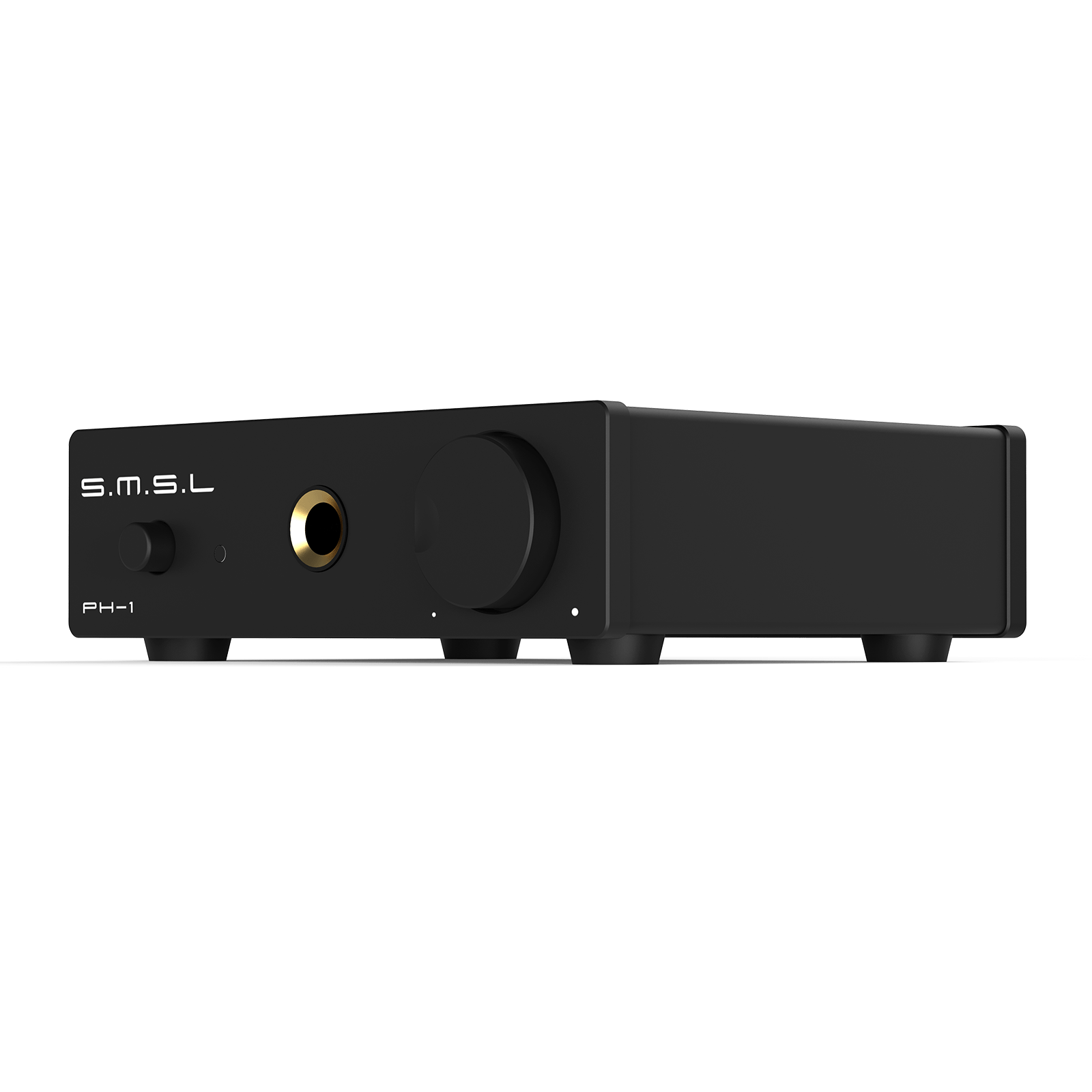

Sometimes you don’t want to fire up the speakers. That’s why the PH-1 includes a dedicated 6.35mm headphone amp with front-panel volume control. It also works great as a preamp for active speakers, giving you front-stage volume control without needing another box in the chain.
Clean power, clean signal
The PH-1 keeps noise out of the equation with an isolated dual power supply that rejects hum, buzz, and ground loop interference. Internally, the circuit layout is tight and deliberate, with short signal paths, low-noise op-amps, and gold-plated jacks all working together to preserve detail and minimize interference.
Two years of tuning
The PH-1 wasn’t rushed. Over 50 op-amps were tested. The board was revised more than five times. Dozens of MM cartridges were auditioned. The end result is a phono amp that sounds refined, getting the best out of a wide range of gear.
Product highlights
- High-fidelity MM-only phono stage with 46dB gain

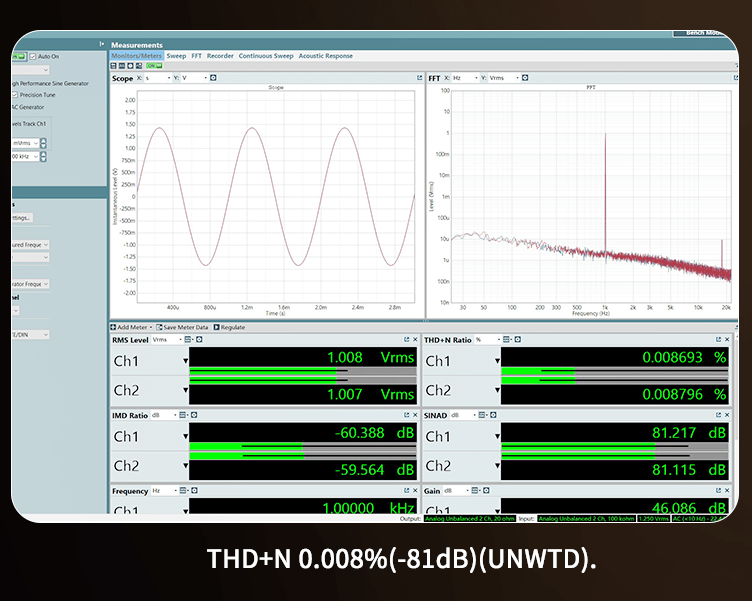

- Ultra-low THD+N: 0.008% (-81dB)
- Integrated headphone amp with 6.35mm jack and volume control
- High-precision CNC-machined chassis for EMI resistance
- Built-in advanced power processing circuit with USB power input
- Fixed 150pF input capacitance for easy compatibility
- Gold-plated RCA jacks for corrosion resistance and low signal loss
- Compact 3.7 x 3.7 x 1.2 in (94 x 96 x 30 mm) form factor
- Front-panel ON/OFF switch and volume knob
Specs
- Headphone output power: 90mW x2 (32Ω)
- Frequency response: 20Hz–20kHz
- THD+N: 0.008% (-81dB, unweighted)
- Channel separation: -77dB @ 1kHz
- Gain: 46dB
- SNR: 84dB
- Power consumption: 1W
- Power input: DC 5V 500mA
- Dimensions: 3.7 x 1.2 x 3.7 in (94 x 30 x 96mm)
- Weight: 0.45lbs (0.205kg)
What’s included
- SMSL PH-1 MM Phono Amplifier
- USB power cable
- User manual
