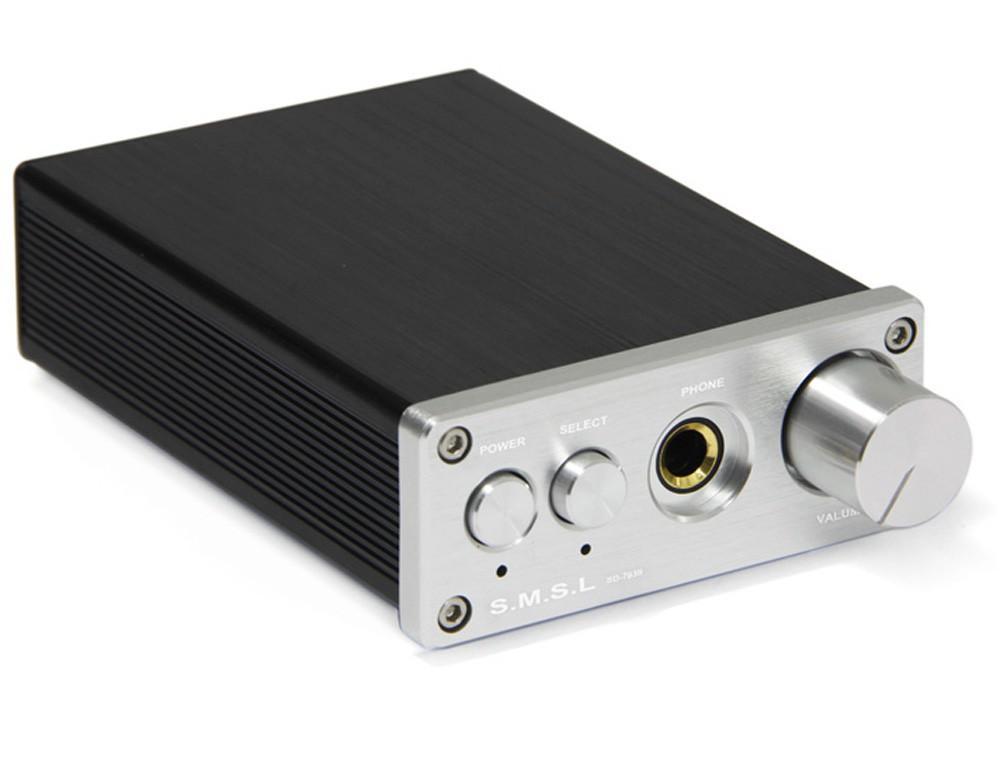

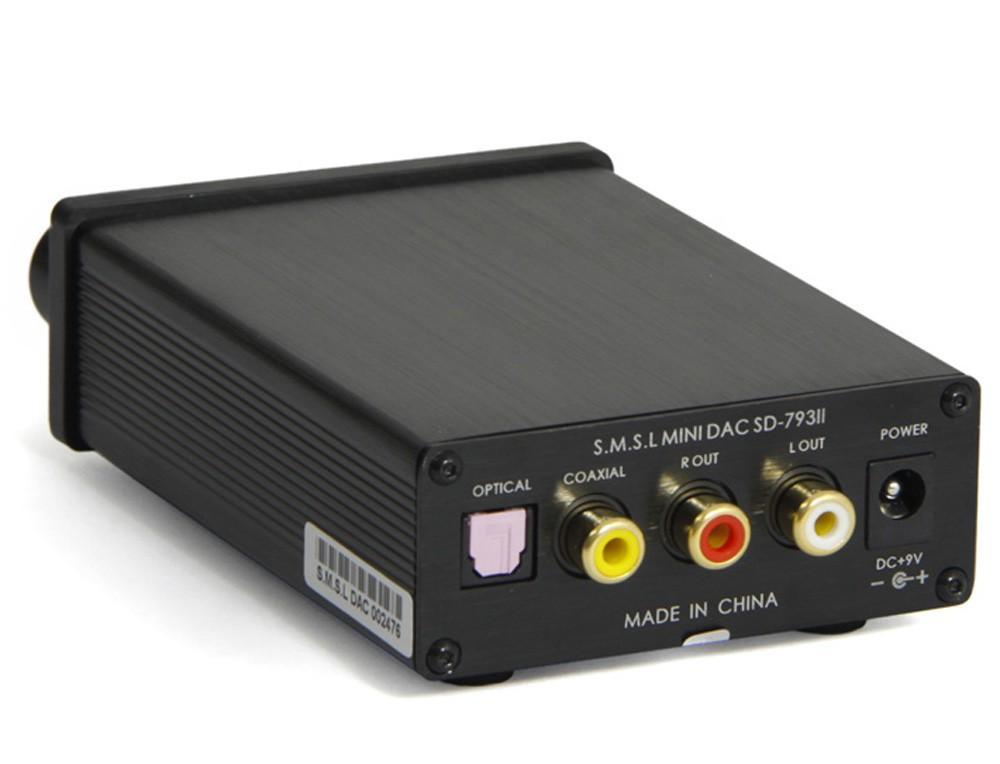

SMSL SD-793II DAC/Amp

$67.99

Request A Price Match

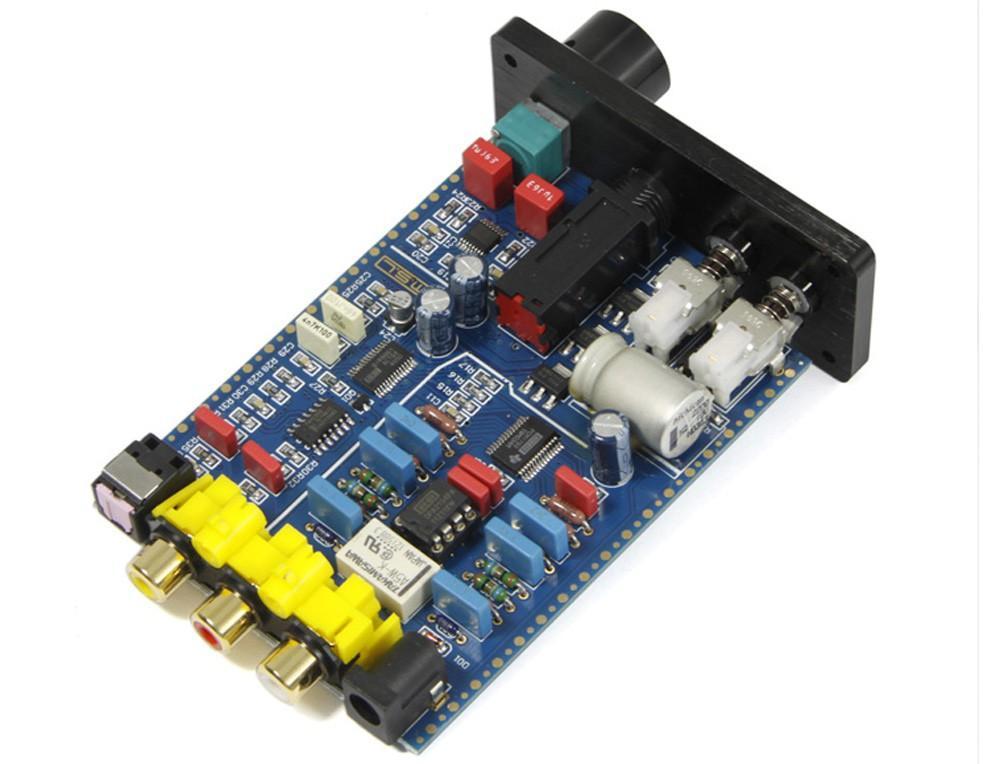

The SMSL SD-793II DAC/Amp can power both low and high impedance headphones. It includes the low-jitter DIR9001 digital receiver chip, PCM1793 DAC chip, and the OPA2134 opamp that support signals up to 24 bit/96 kHz. This DAC comes with a quarter-inch headphone out, and both coaxial and optical interfaces for connecting to your computer, TV, DVD player, and more.

Specs:

  • Body: Laser-engraved aluminum
  • Digital Receiver: DIR9001
  • DAC Chip: PCM1793
  • OPA2134 Opamp and WIMA Capacitors
  • Signal Output: RCA 2-channel
  • Input Interfaces: Coaxial, optical (with switch)
  • Input Frequency: 44.1, 48, 96 kHz / 16, 24 bit
  • Signal-to-Noise Ratio: > 113 dB
  • Dynamic Range: 105 dB
  • Rated Output: 1.7 VPP
  • Frequency Response: 20 Hz – 20 kHz (-0.2 dB)
  • Total Power: < 8 W
  • Output Power: 65 mW at 16 ohm, 130 mW at 32 ohm
  • Distortion: 0.01% THD+N at 100 mW, 32 ohm
  • Voltage: 100 – 240 ACV global power
  • Dimensions, Including Protrusions: 5 x 3 x 1.4 in (12.8 x 7.7 x 3.5 cm)
  • Weight: 1.1 lb (0.5 kg)
