STAX SRM-700T Electrostatic Tube Amp


    The STAX SRM-700T is an electrostatic tube amplifier with 6SN7 vacuum tubes with custom-made low-noise dual FET at the first stage. The clear vacuum tubes have been improved further to polish up warm and spacious reproduction.

    • Type: FET input + vacuum tube output hybrid DC amplification driver unit

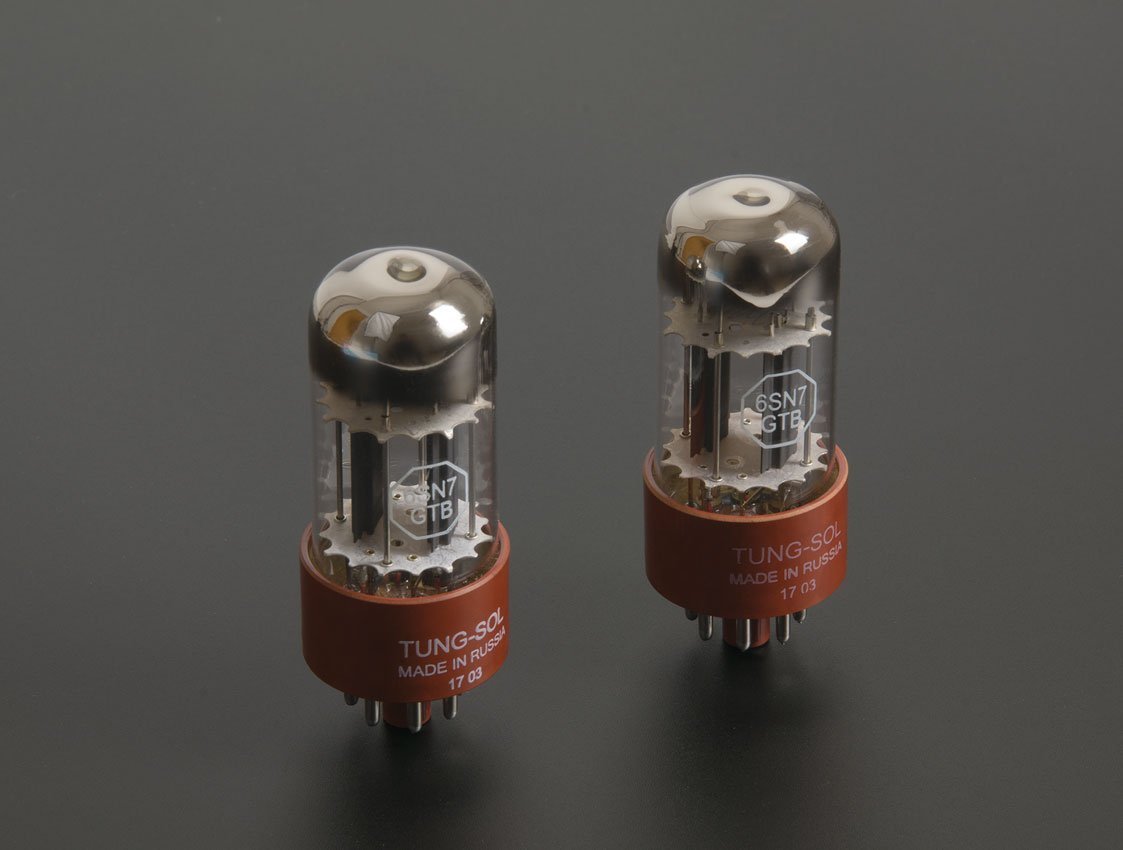

    • Vacuum Tube: 6SN7
    • Frequency Response: DC - 100kHz (with one SR-009S)
    • Gain: 60dB
    • Total Harmonic Distortion: 0.01% or less (1kHz/100Vrms output)
    • Input Impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
    • Number of Inputs: RCA x 1, XLR x 1
    • Output: RCA parallel output terminal
    • Maximum Output Voltage: 340Vrms (1kHz)
    • Standard Bias Voltage: PRO 580 V
    • Power Consumption: 54W
    • Temperature Range for Use: Between 0º and 35ºC, max. 90% (no condensation)
    • Dimensions: 240W x 103H x 393D mm (maximum protruding portion included)
    • Weight: 5.7 Kg
