Music as it was meant to be heard

The STAX SR-L500 is an open-back electrostatic earspeaker headphone with a thin-film diaphragm and stainless steel fixed electrodes. Its driver design delivers deep bass, a smooth midrange, and delicate high frequencies in a balanced presentation. A 10-position headband, synthetic leather earpads, and low-capacitance HiFC copper cable support comfortable listening and excellent signal transmission.

A thin-film diaphragm for balanced reproduction

The SR-L500 pairs a hand-selected thin-film diaphragm with rigid stainless steel fixed electrodes. These components form the electrostatic driver, supporting a presentation that gives bass depth, vocal texture, and high-frequency detail room to be heard. Its specified frequency response extends from 7Hz to 41kHz.

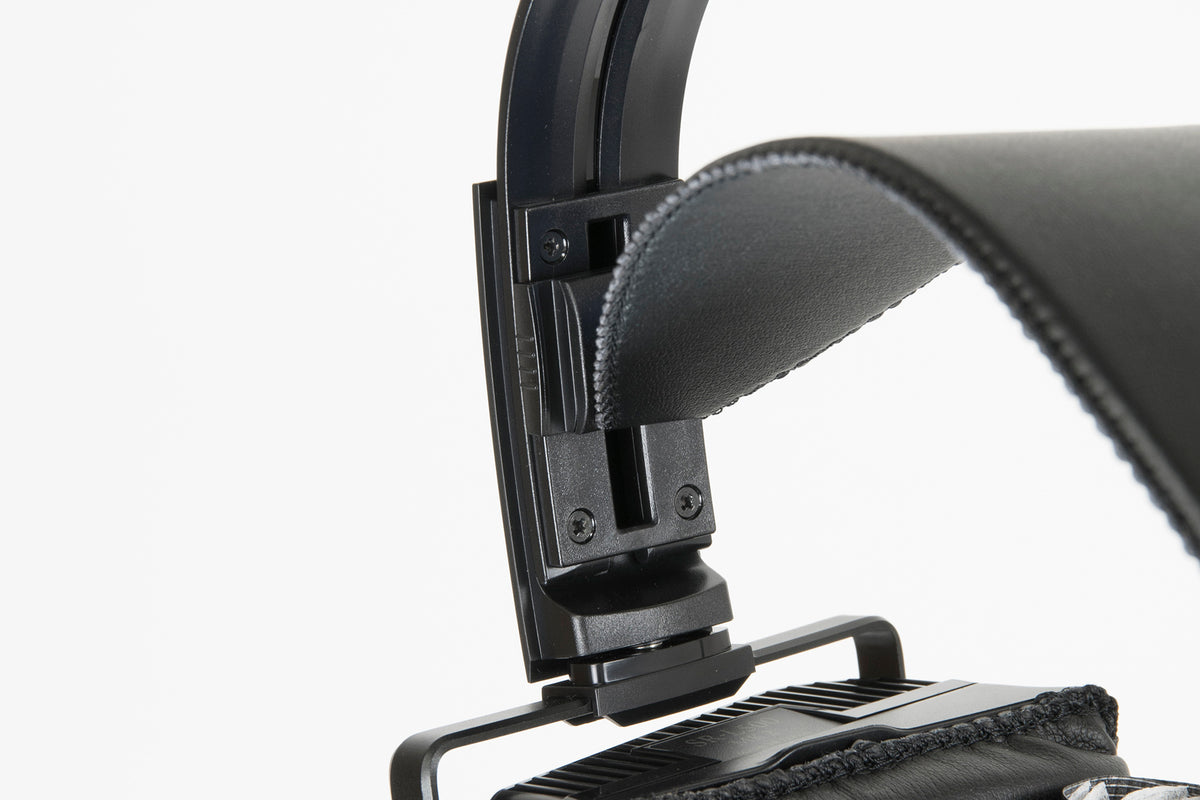

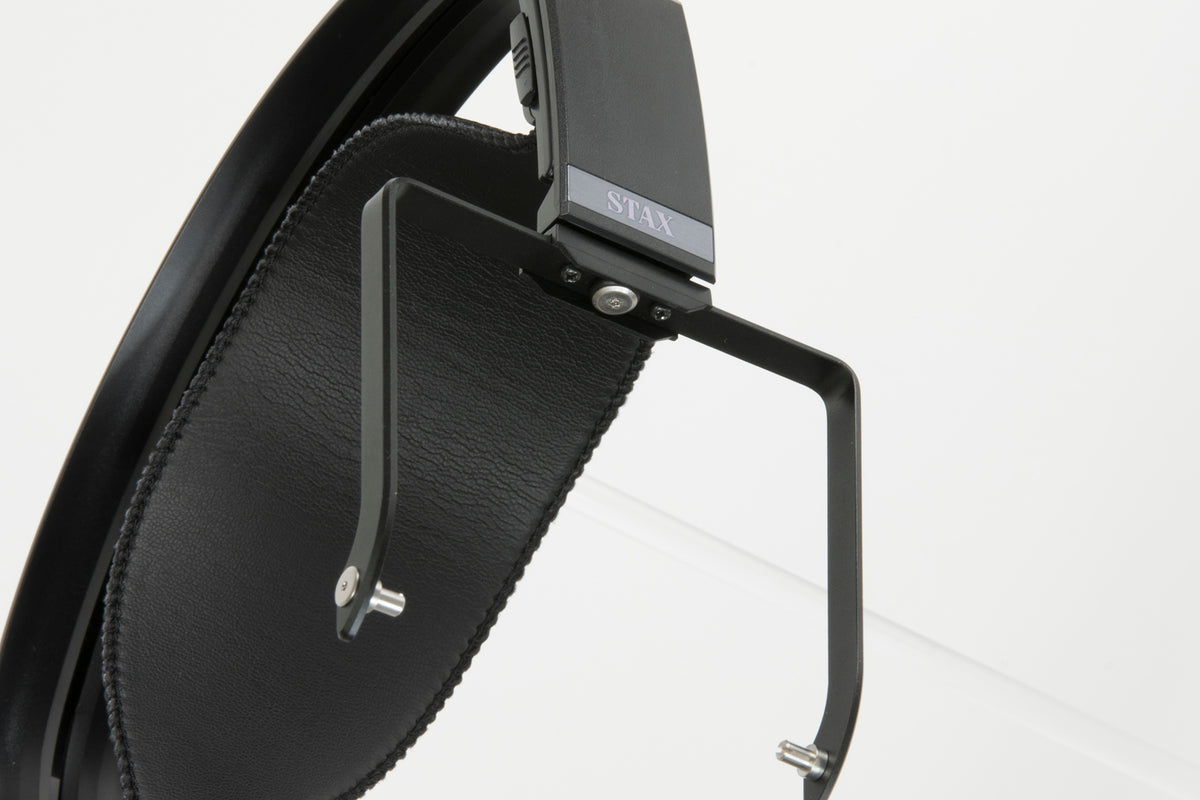

Ten positions to find your fit

The headband uses the 10-click height adjustment mechanism adopted from the STAX SR-009 and SR-507. Each position holds securely once selected, helping you maintain a consistent fit between listening sessions. Adjust the head pad height to place the earcups comfortably around your ears.

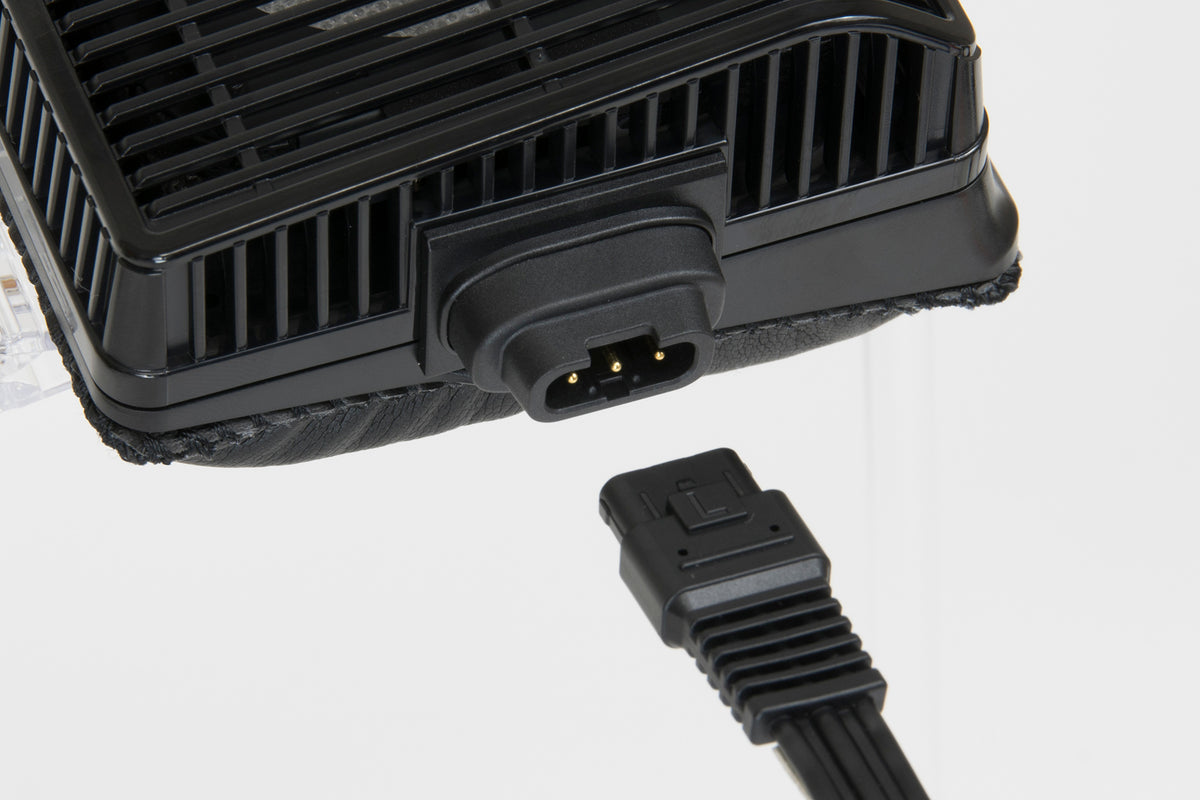

HiFC copper in a low-capacitance cable

Developed by Hitachi, HiFC copper forms the cable’s conductors. The six-strand parallel cable uses a flat, wide arrangement to reduce capacitance between the wires, providing a structure suited to driving an electrostatic earspeaker. Its 8.2-foot (2.5m) length gives you room to sit comfortably beside your amplifier.

Synthetic leather pads for extended listening

Handcrafted synthetic leather earpads provide a comfortable contact surface while supporting the headphone’s acoustic performance. Together with the adjustable headband, they help keep the SR-L500 comfortably positioned through longer albums and listening sessions.

Product highlights

• Push-pull electrostatic driver design

• Open-back oval earcups

• Hand-selected thin-film diaphragm

• Rigid stainless steel fixed electrodes

• 10-click headband height adjustment

• HiFC copper cable with a low-capacitance flat configuration

• Handcrafted synthetic leather earpads

• 580V DC bias voltage

Specs

• Model: STAX SR-L500

• Type: Push-pull, open-back oval electrostatic earspeaker headphone

• Frequency response: 7–41,000Hz

• Electrostatic capacitance: 110pF, including cable

• Impedance: 145kΩ at 10kHz, including cable

• Sound pressure sensitivity: 101dB at 100V RMS, 1kHz

• Maximum sound pressure: 118dB at 400Hz

• Bias voltage: 580V DC

• Headband adjustment: 10-click slider mechanism

• Earpad material: Synthetic leather

• Cable: HiFC parallel six-strand, low-capacitance wide copper cable

• Cable length: 8.2ft (2.5m)

• Weight without cable: 0.75lb (approximately 340g)

• Weight with cable: 1lb (approximately 454g)

• Channel identification: L and R markings on the headband assembly

• Cable identification: Solid line for the left channel, dotted line for the right channel

What’s included

• STAX SR-L500 electrostatic earspeaker headphones
• 8.2-foot (2.5m) cable
