TOPPING DX5 Lite Desktop DAC/Amp

Name: TOPPING DX5 Lite Desktop DAC/Amp
Brand: TOPPING
Price: 349.00 USD
Availability: OutOfStock

$349

Dang it.

This product has been discontinued. Luckily, we have a great alternative in the TOPPING DX7 Pro+.

Beautiful, benchmark

The TOPPING DX5 Lite DAC/Amp is a multi-award-winning device, renowned for its stunning design and exceptional performance. Equipped with dual ESS DAC chips and TOPPING's top-of-the-line built-in NFCA amplifier, this device has been finely tuned to deliver benchmark performance with an impressive 0.00009% total harmonic distortion.

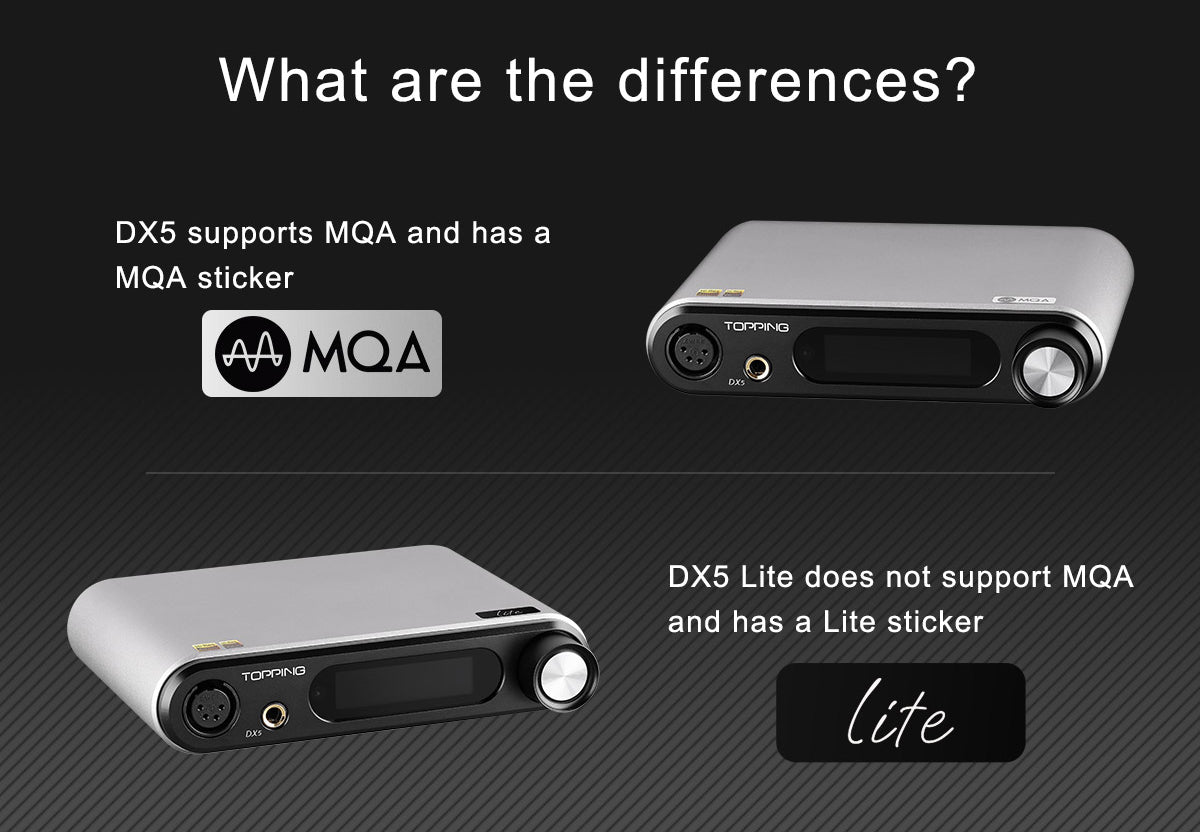

DX5 Lite vs DX5?

The only difference between these two models is that the DX5 features MQA rendering while the DX5 Lite does not. Where the DX5 has an “MQA” sticker, the DX5 Lite has a “Lite” sticker. Other than that, these devices share the same great specs and features.

One-for-all

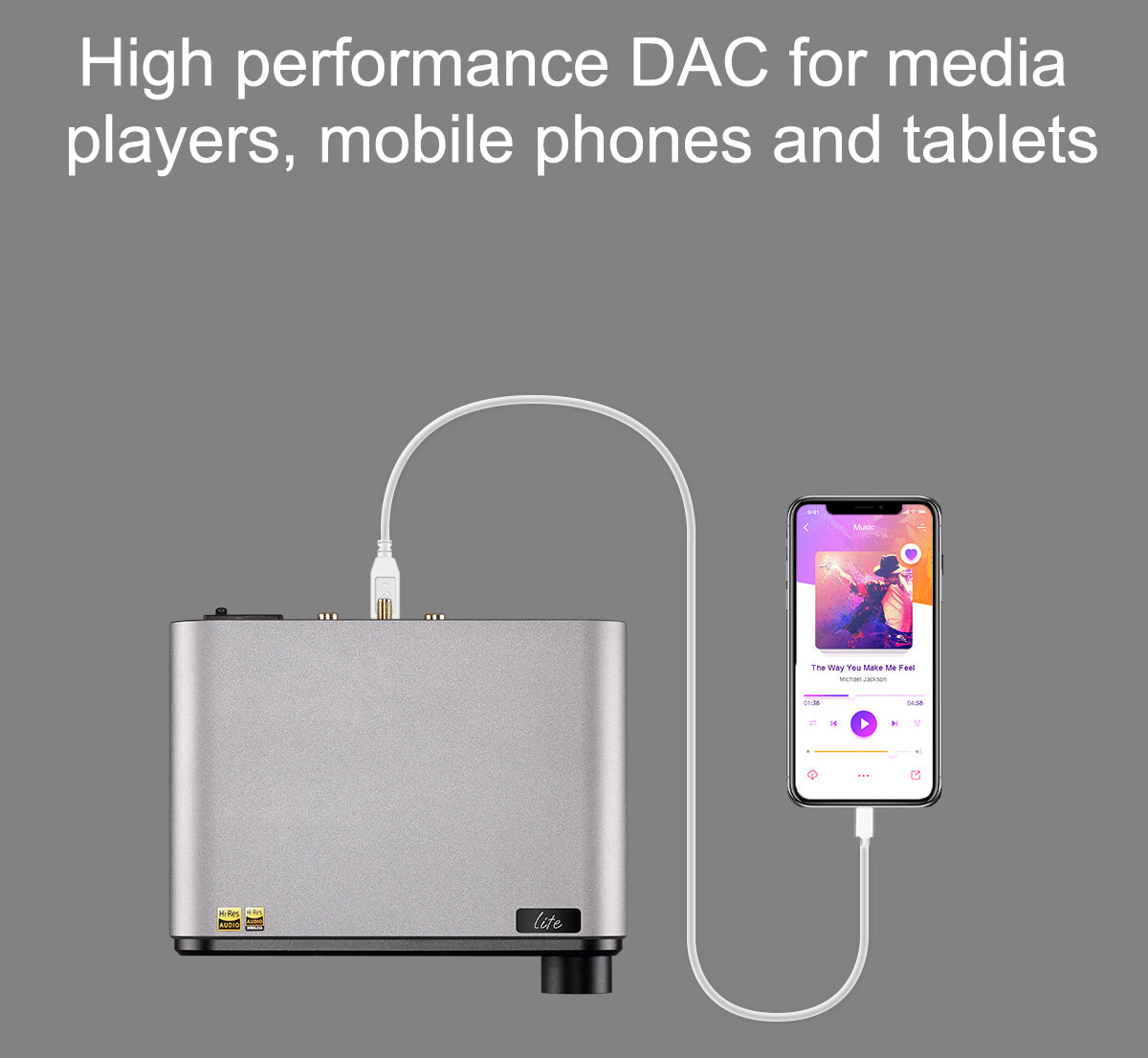

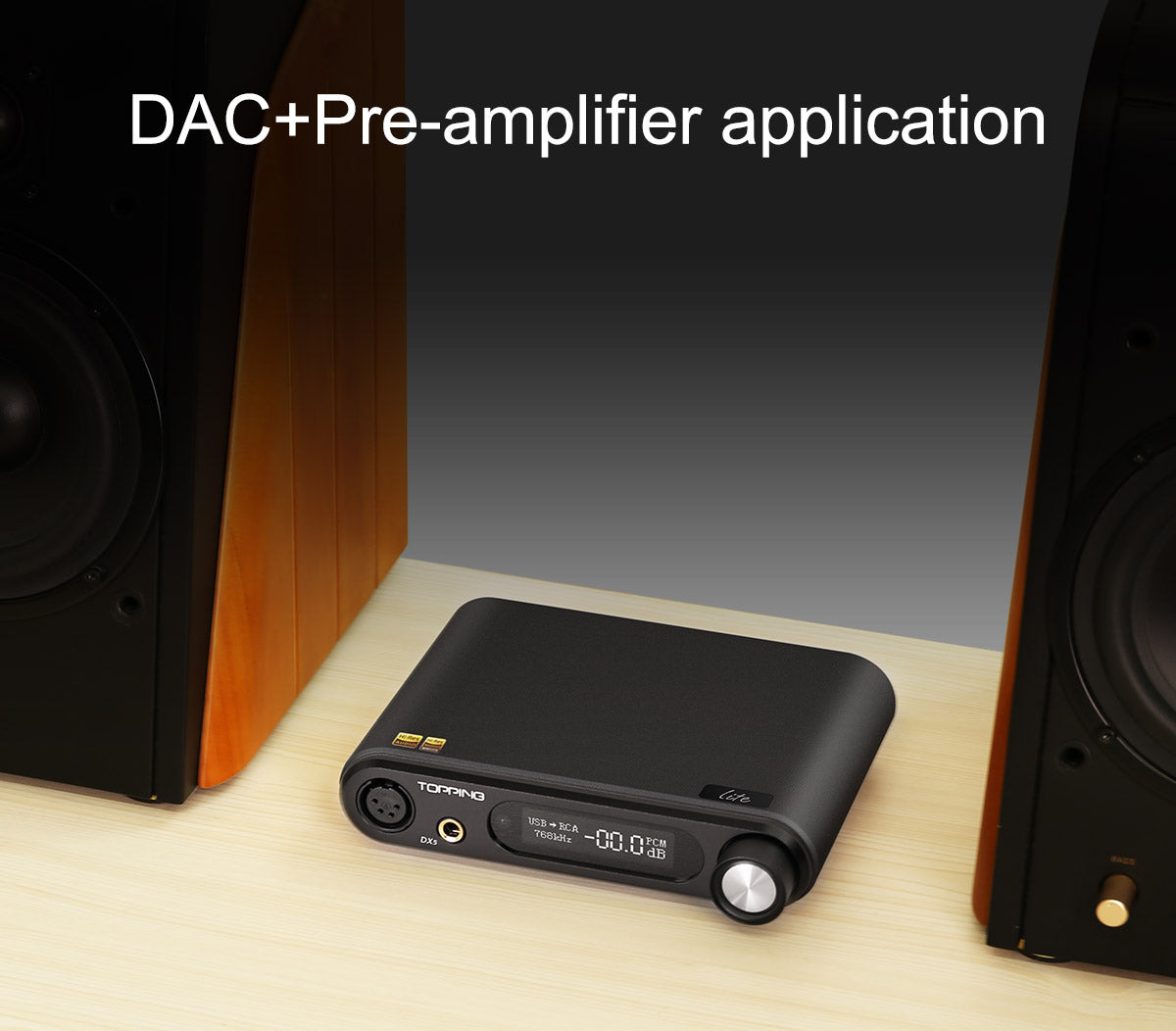

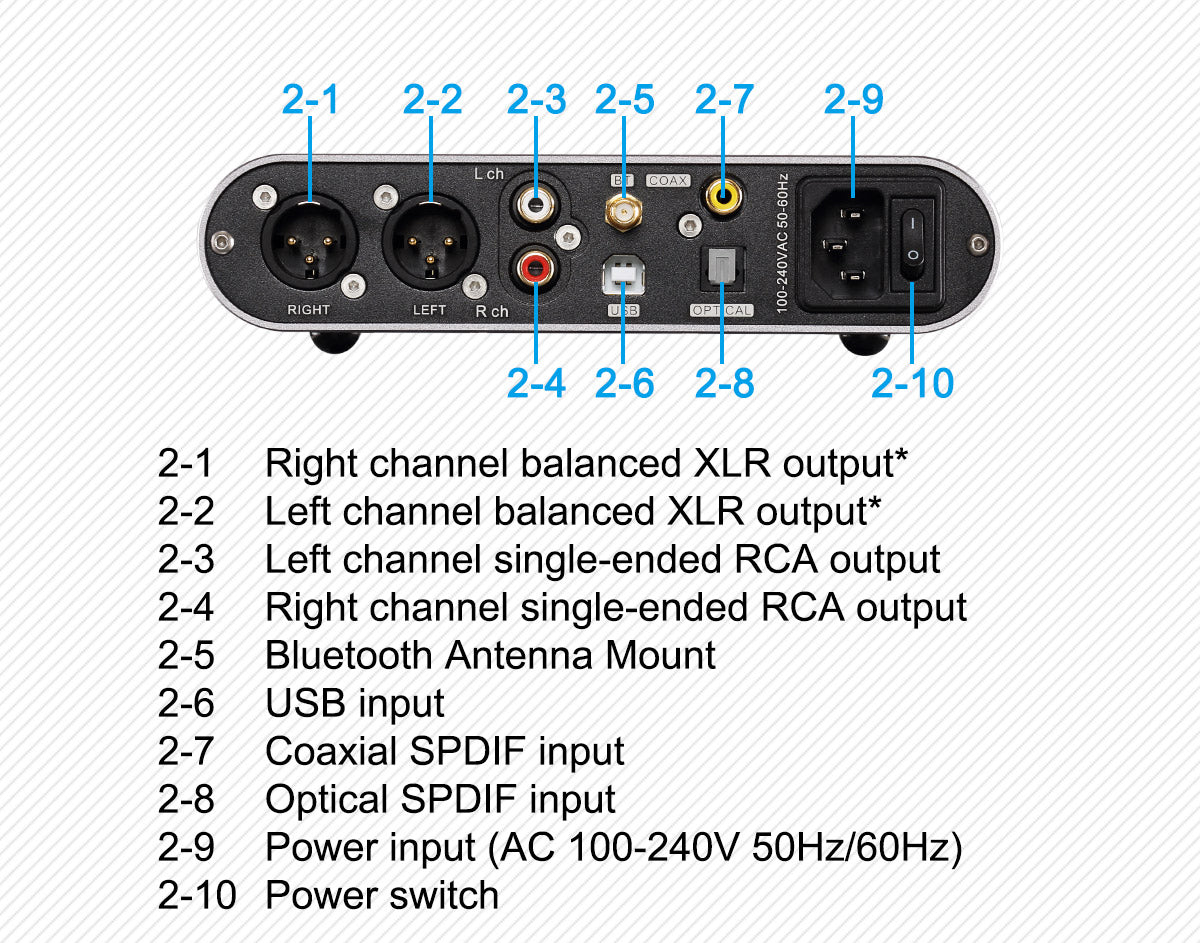

This "one-for-all" DAC/amp is perfect for any entertainment center, boasting multiple high-end inputs that allow for seamless connectivity with a range of devices. Connect your Macbook, PC, or other source via USB, and game consoles, phones, and players via Bluetooth or coaxial. You can even watch your favorite movies and TV shows via optical connection.

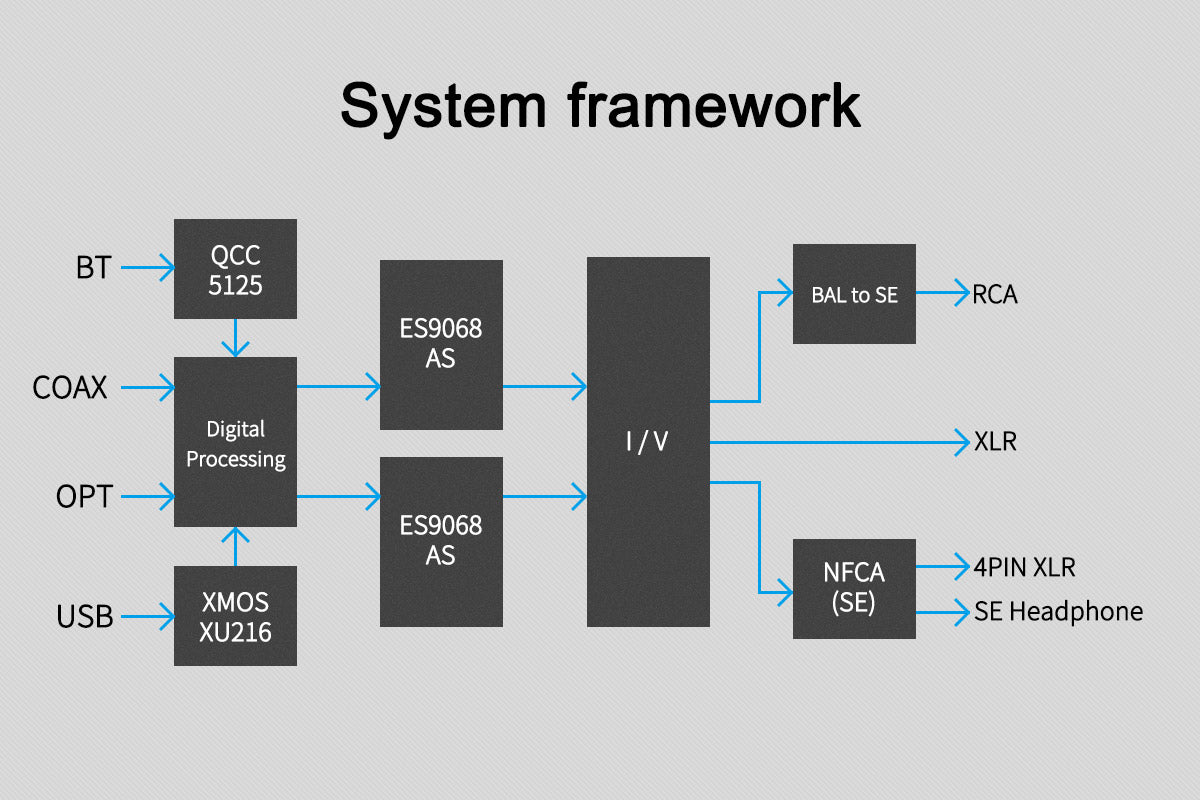

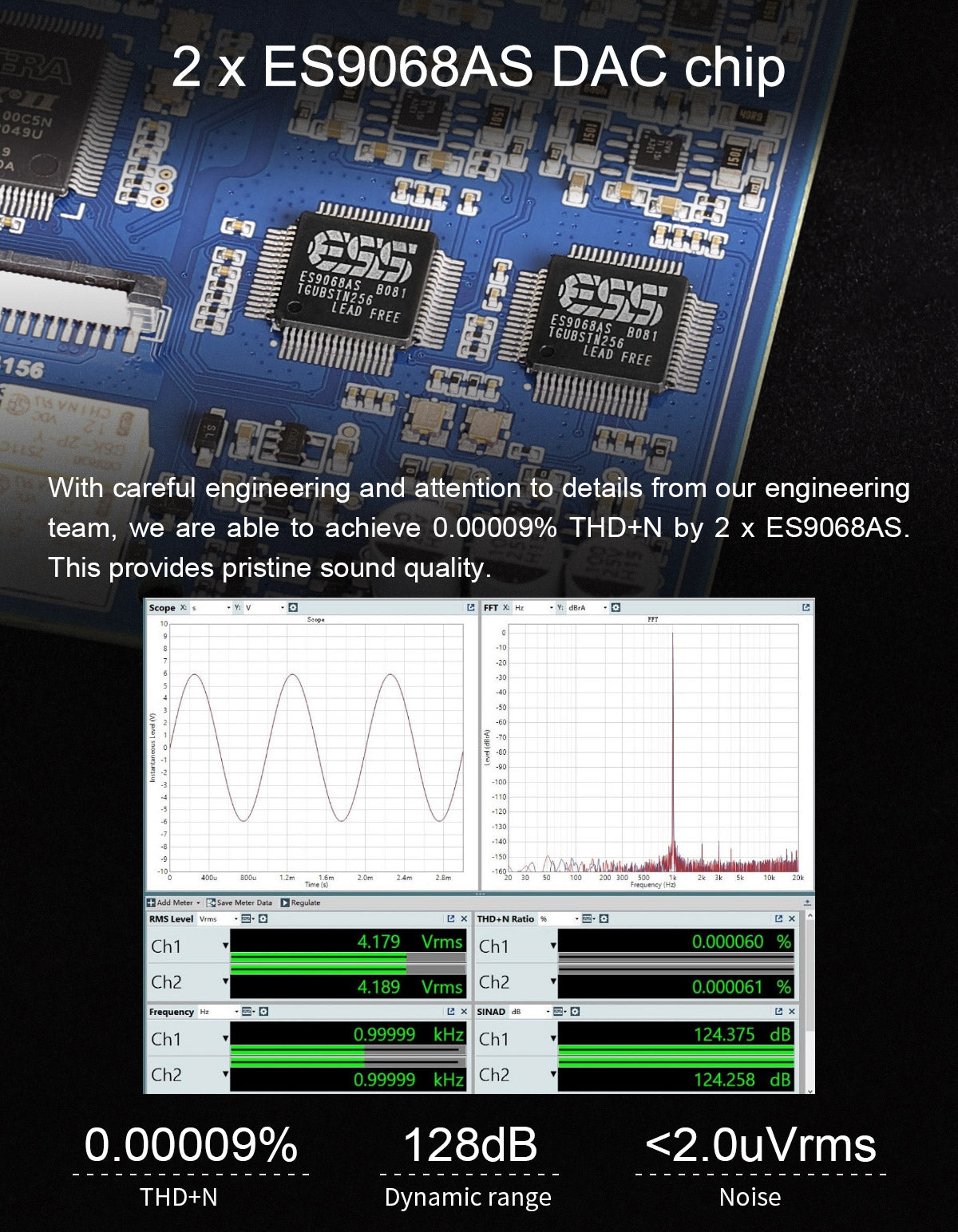

2x ES9068AS DAC chips

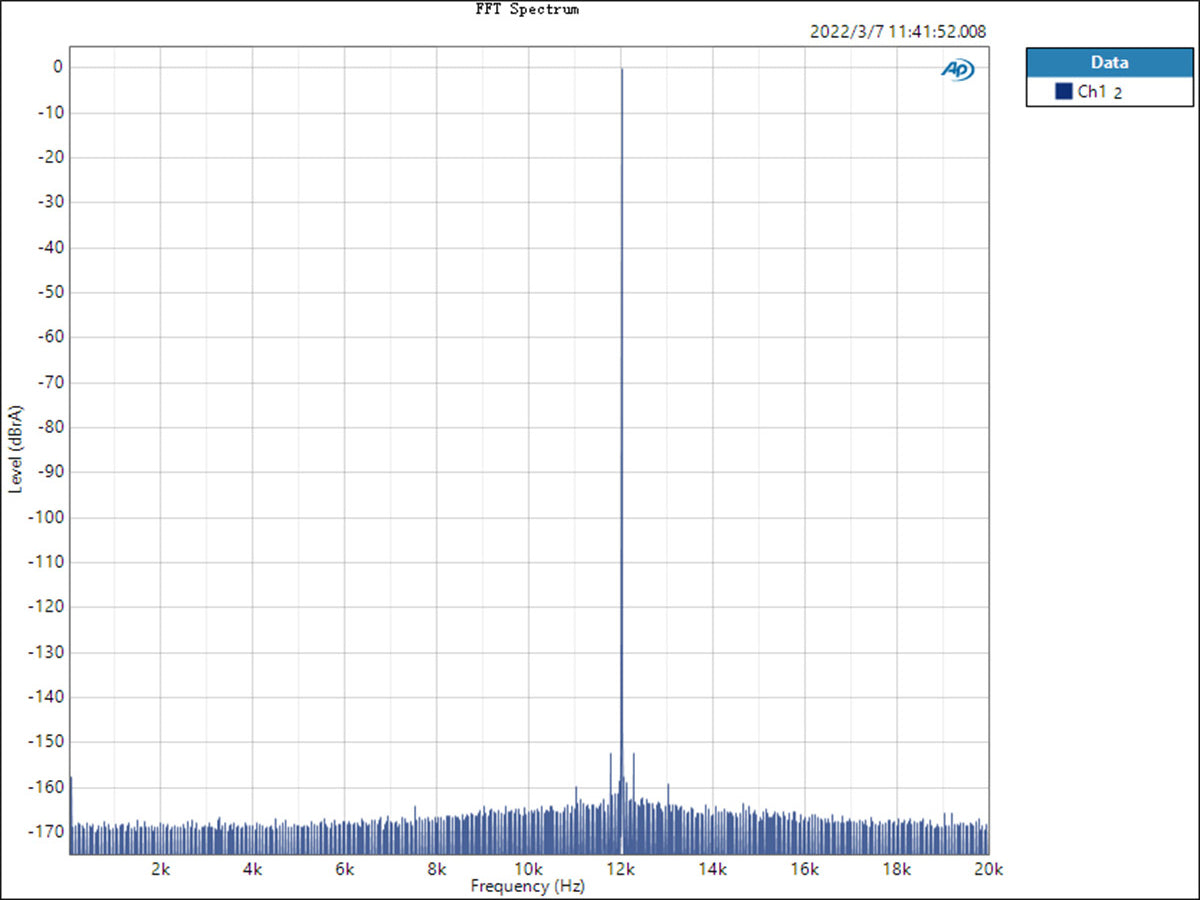

TOPPING has engineered the DX5 Lite with great attention to detail, resulting in incredible performance from its dual ESS DAC chips. With a THD+N of 0.00009%, a dynamic range of 128dB, and noise levels under 2.0uVrms, this device is sure to deliver unparalleled sound quality.

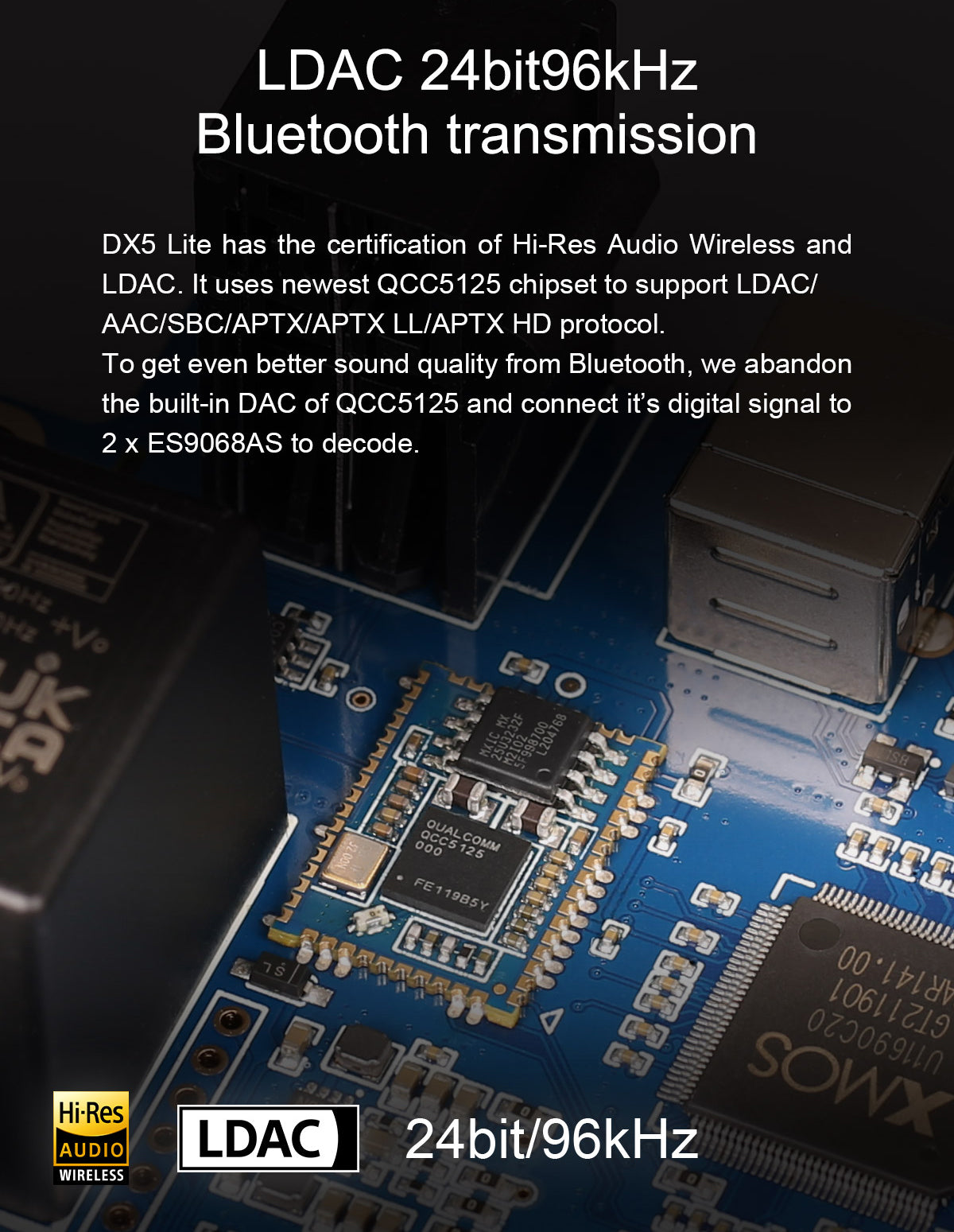

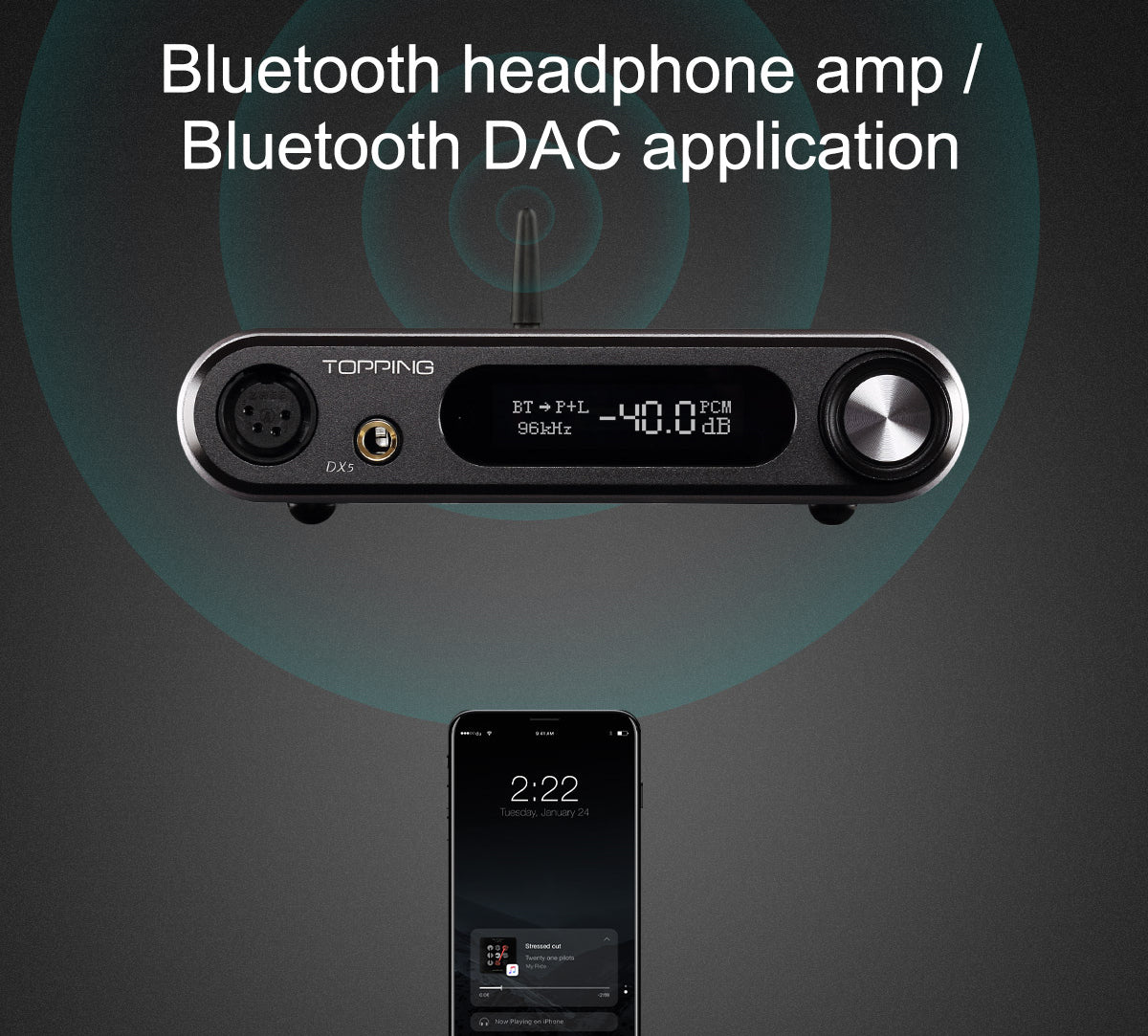

LDAC 24bit/96kHz Bluetooth transmission

The DX5 Lite features LDAC 24bit/96kHz Bluetooth transmission, utilizing the latest QCC5125 Bluetooth chipset that supports various protocols such as LDAC, AAC, SBC, aptX, aptX LL, and aptX HD. The Bluetooth input signal bypasses the QCC5125's built-in DAC chip, and the dual ESS chips decode the signal to achieve the best possible sound quality.

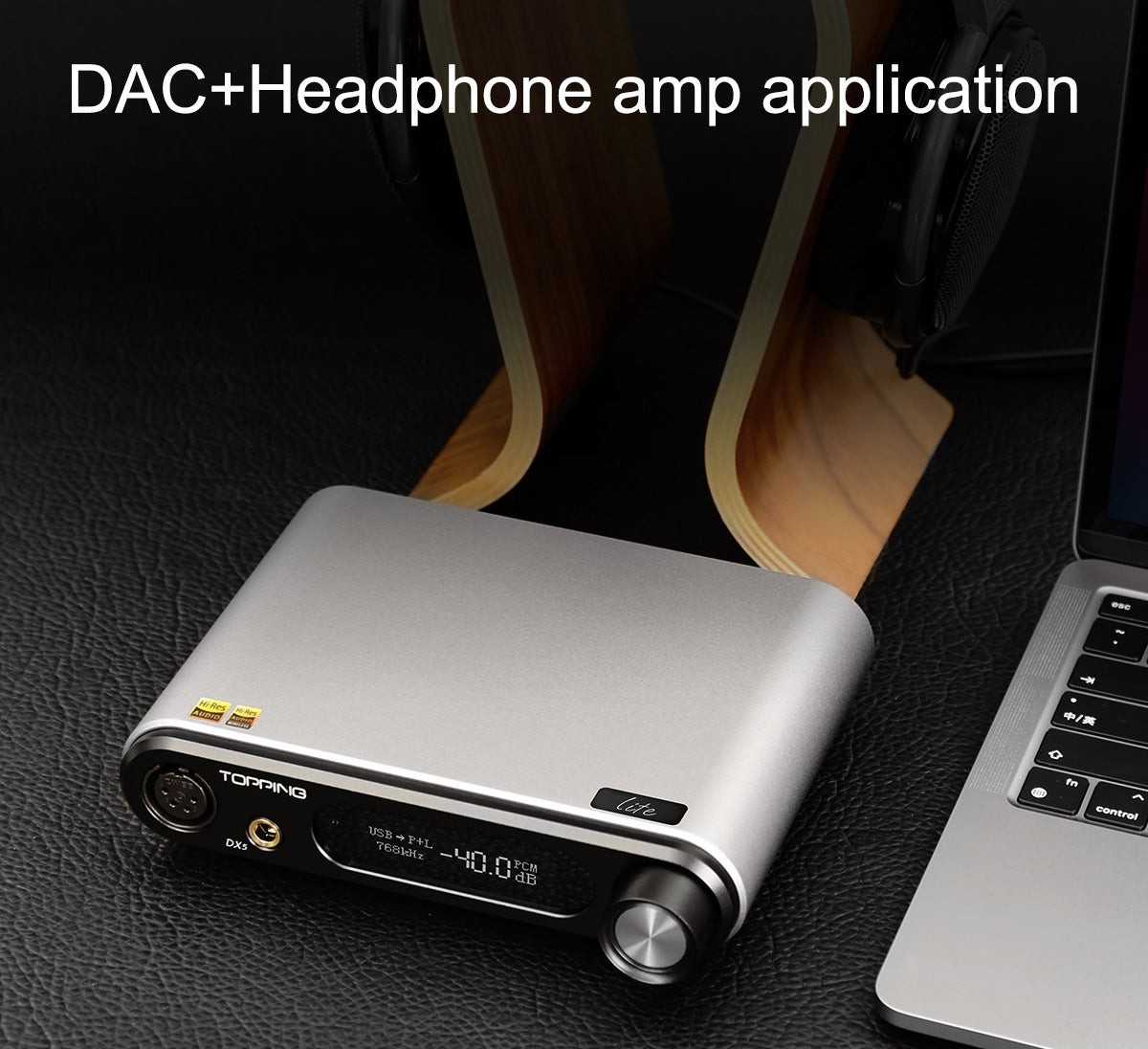

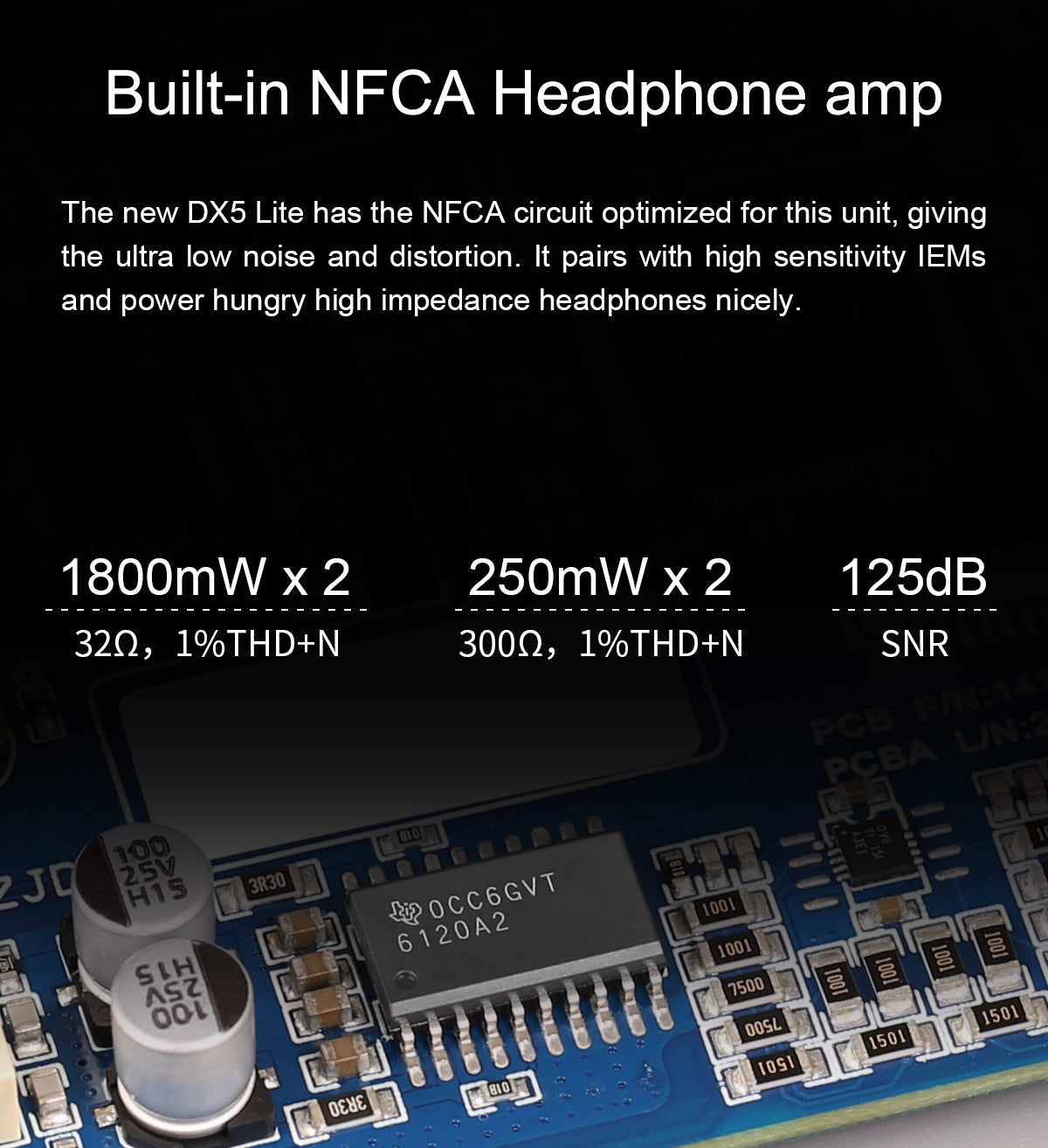

Built-in NFCA headphone amp

The DX5 Lite comes equipped with a built-in NFCA headphone amp that provides ultra-low noise and distortion. With 125dB SNR and 1800mW x2 @32Ω of output power, it pairs perfectly with high-sensitivity IEMs and high-impedance full-sized headphones.

Product highlights

iF Design Award winner
Reddot award winner
Golden pin design award winner
LDAC audio support
2x ES9068AS DAC chips
32-bit/768kHz PCM
DSD512

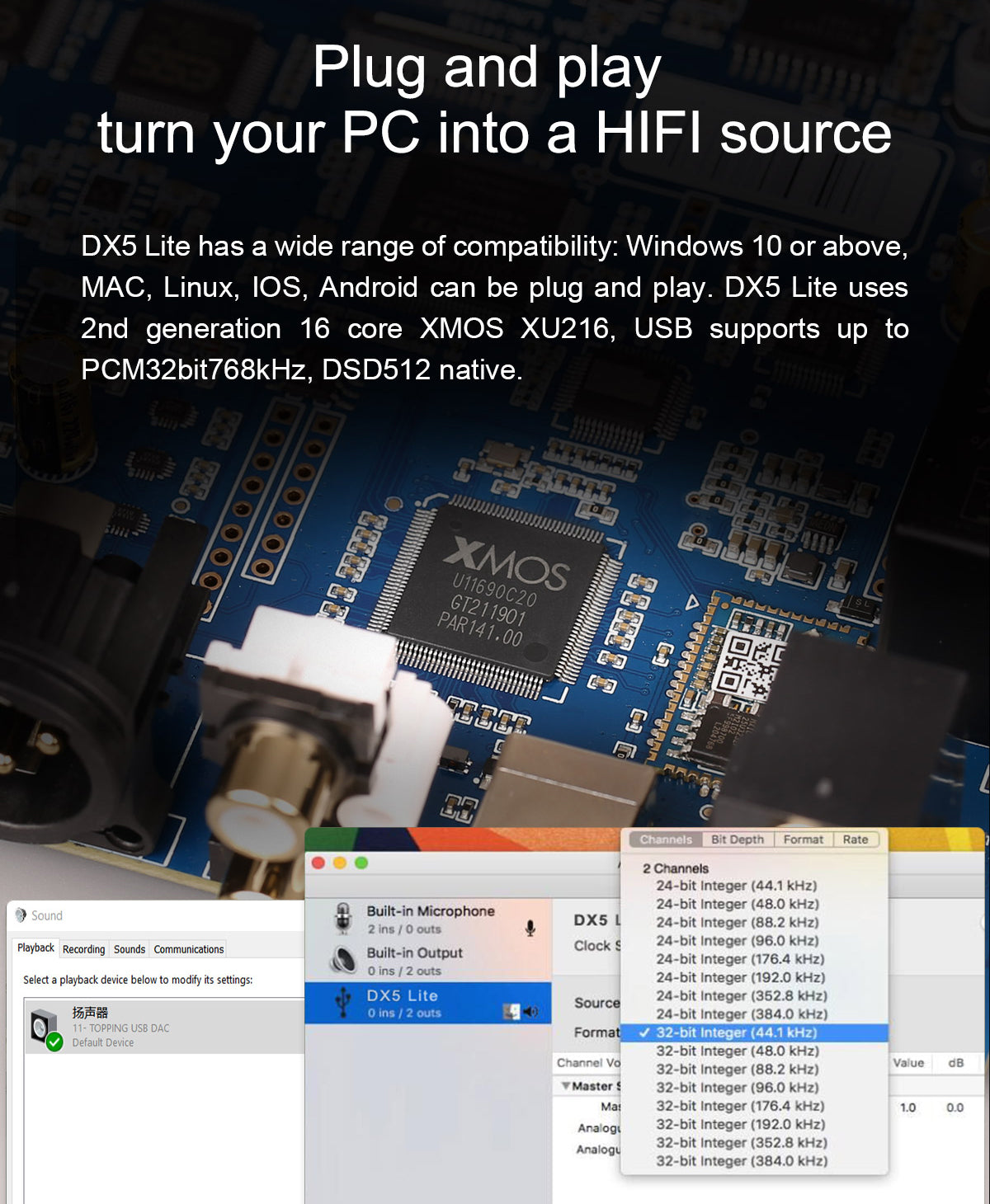

16-core XMOS XU216 USB controller
NFCA headphone amp

Specs

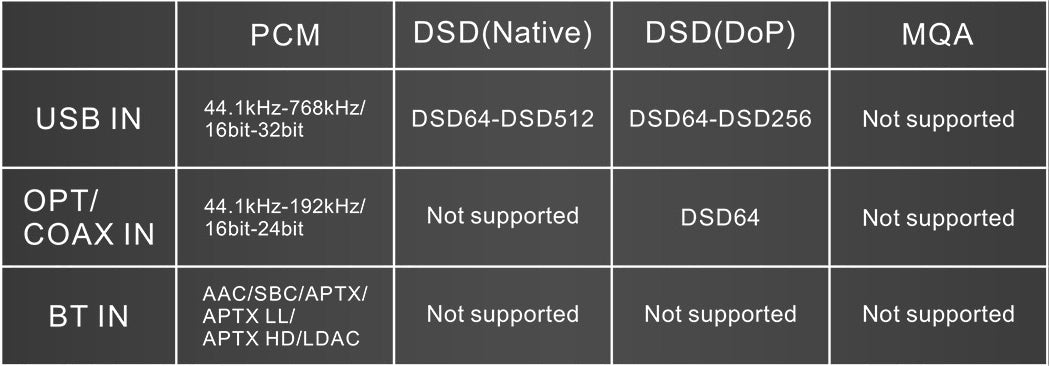

Max sample rate playback

PCM: 32-bit/768kHz
DSD(Native): DSD512
DSD(DoP): DSD256

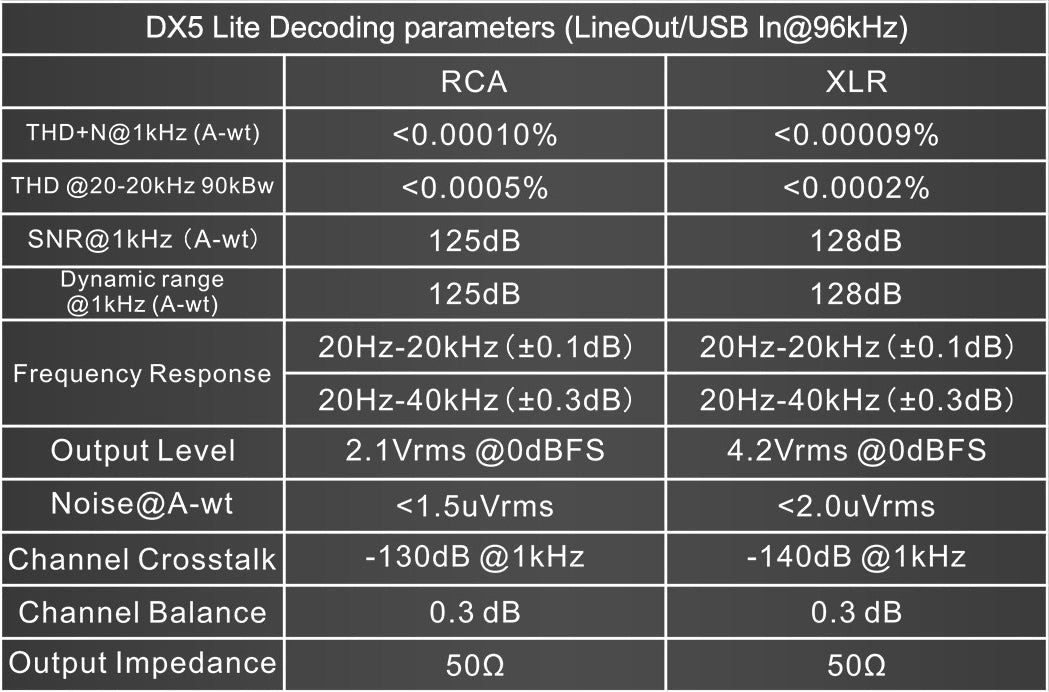

RCA in decoding specs

THD+N@1KHZ (A-wt): <0.00010%
THD @20-20kHz 90kBw: <0.0005%
SNR@1kHz (A-wt): 125dB
Dynamic range @1KHZ (A-wt): 125dB
Frequency Response

20Hz-20kHz (‡0.1dB)
20Hz-40kHz (‡0.3dB)

Output Level: 2.1 Vrms @OdBFS
Noise@A-wt: <1.5uVrms
Channel Crosstalk: -130dB @1kHz
Channel Balance: 0.3 dB
Output Impedance: 50Ω

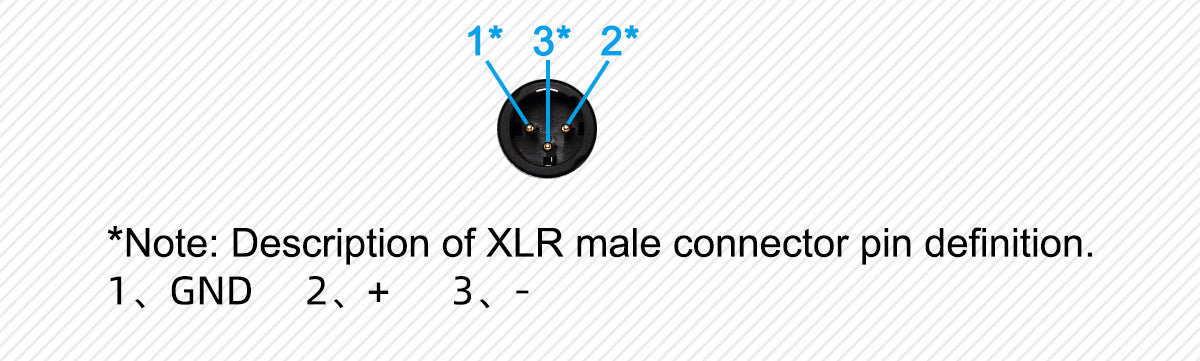

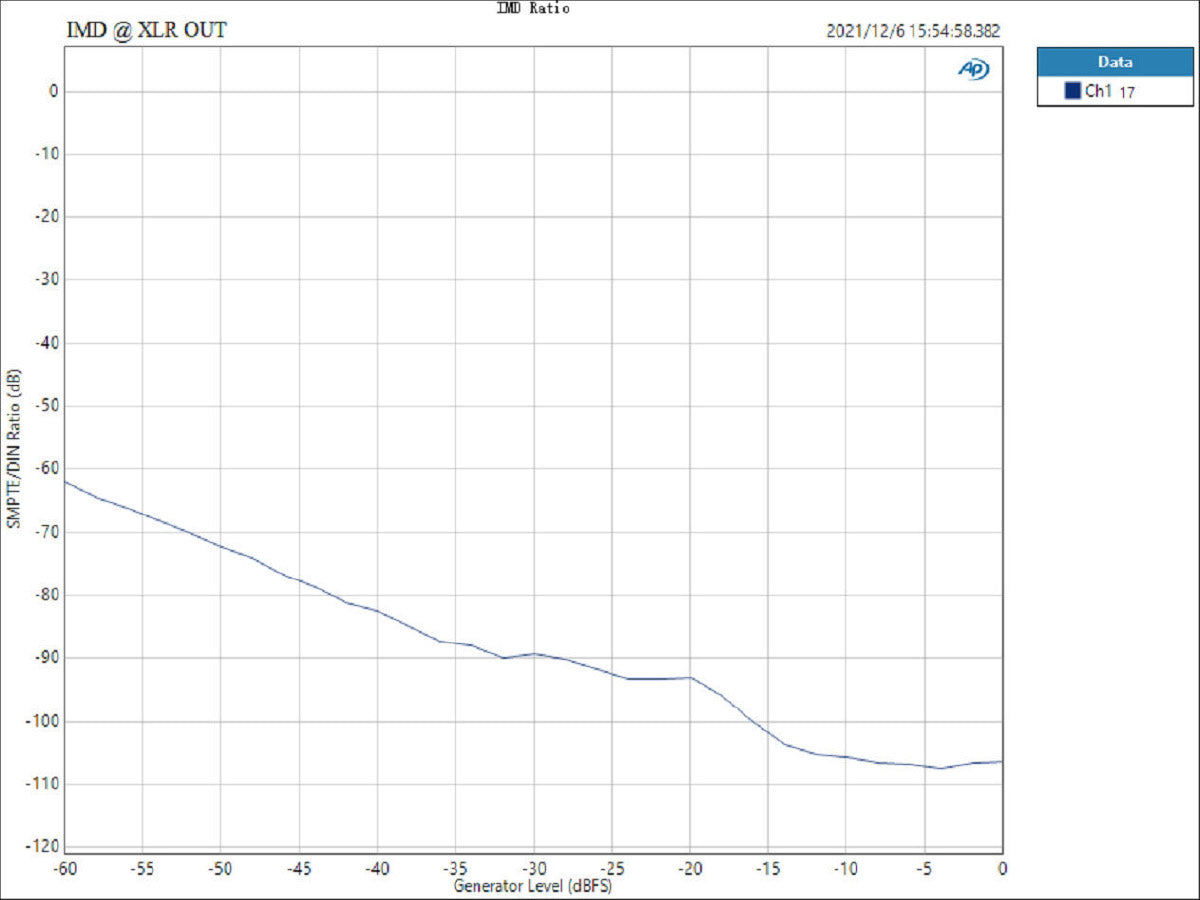

XLR in decoding specs

THD+N@1KHZ (A-wt): <0.00009%

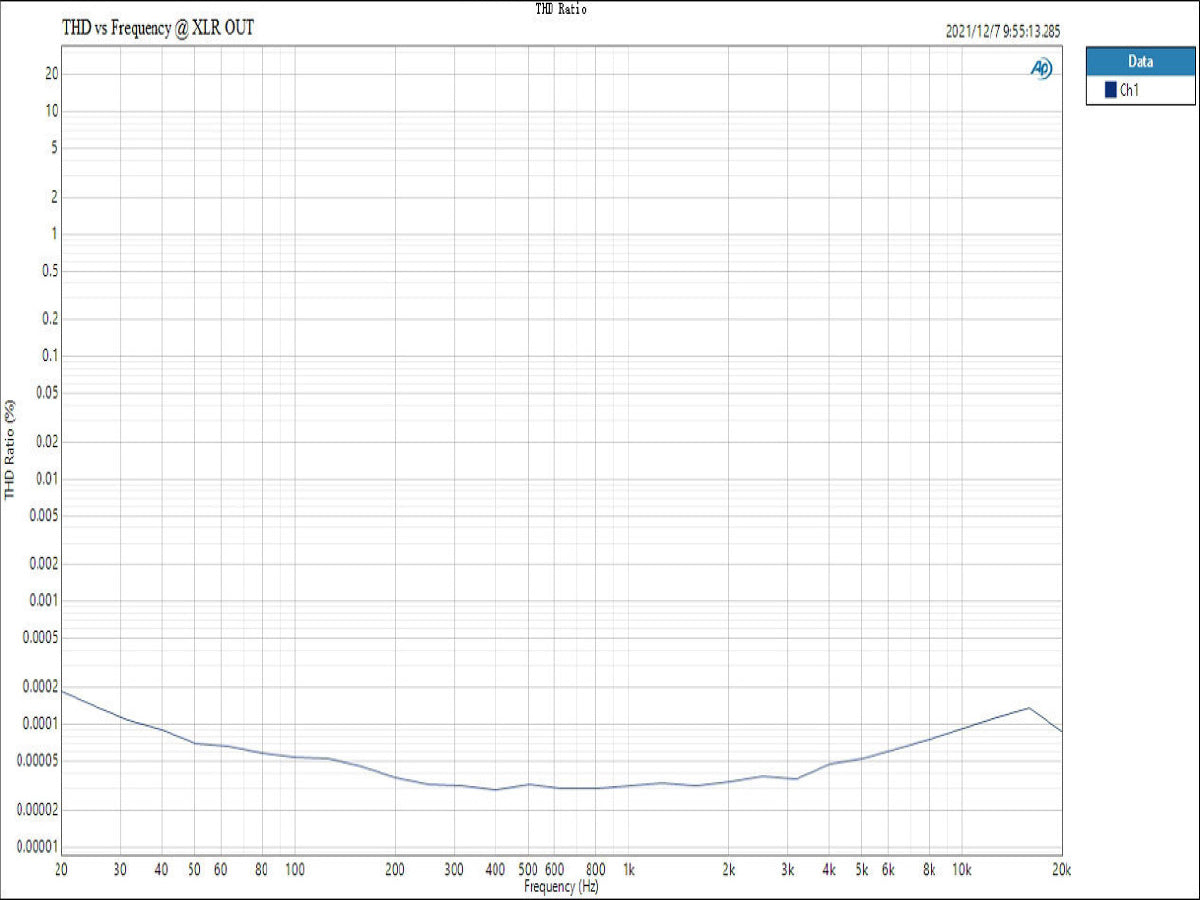

THD @20-20kHz 90kBw: <0.0002%
SNR@1kHz (A-wt): 128dB
Dynamic range @1KHZ (A-wt): 128dB

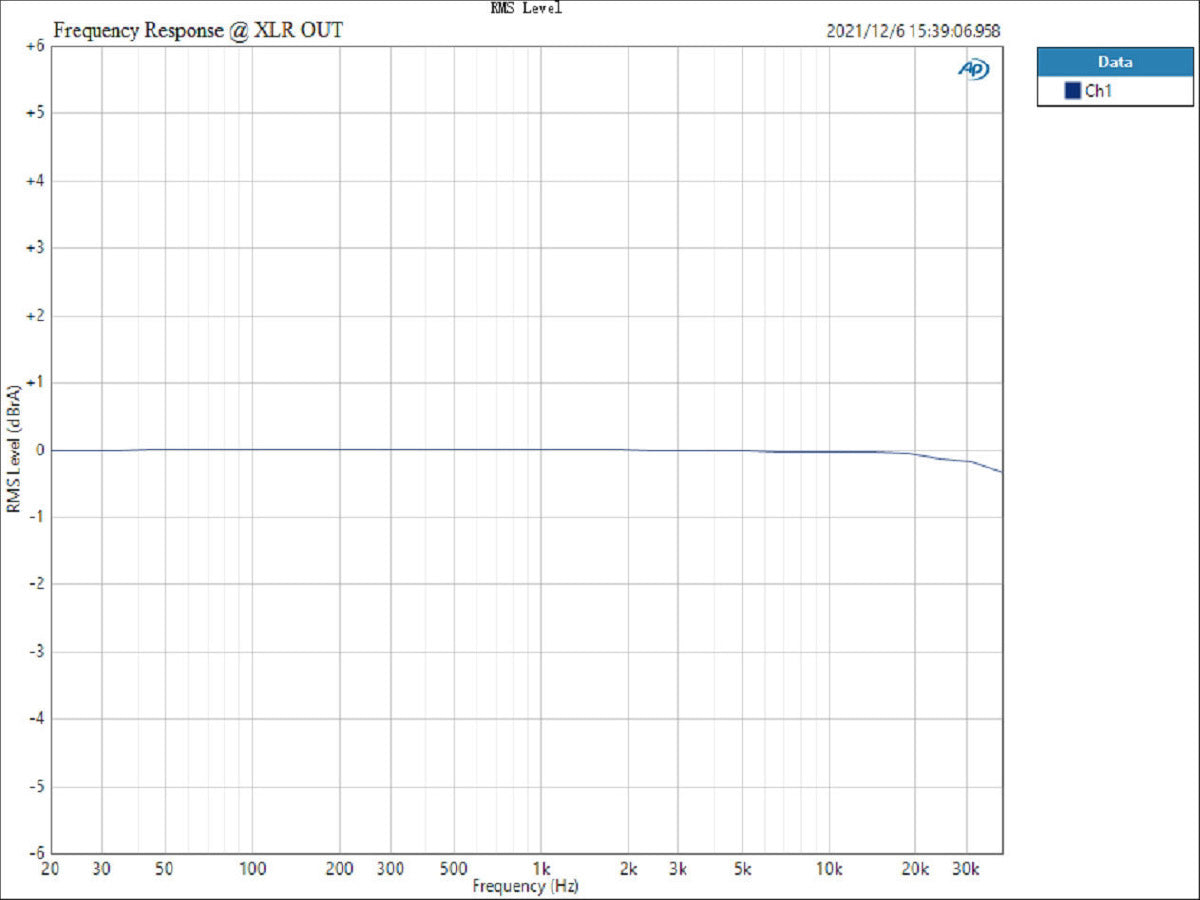

Frequency Response

20Hz-20kHz (‡0.1dB)
20Hz-40kHz (‡0.3dB)

Output Level: 4.2 Vrms @OdBFS
Noise@A-wt: <2.0uVrms
Channel Crosstalk: -140dB @1kHz
Channel Balance: 0.3 dB
Output Impedance: 50Ω

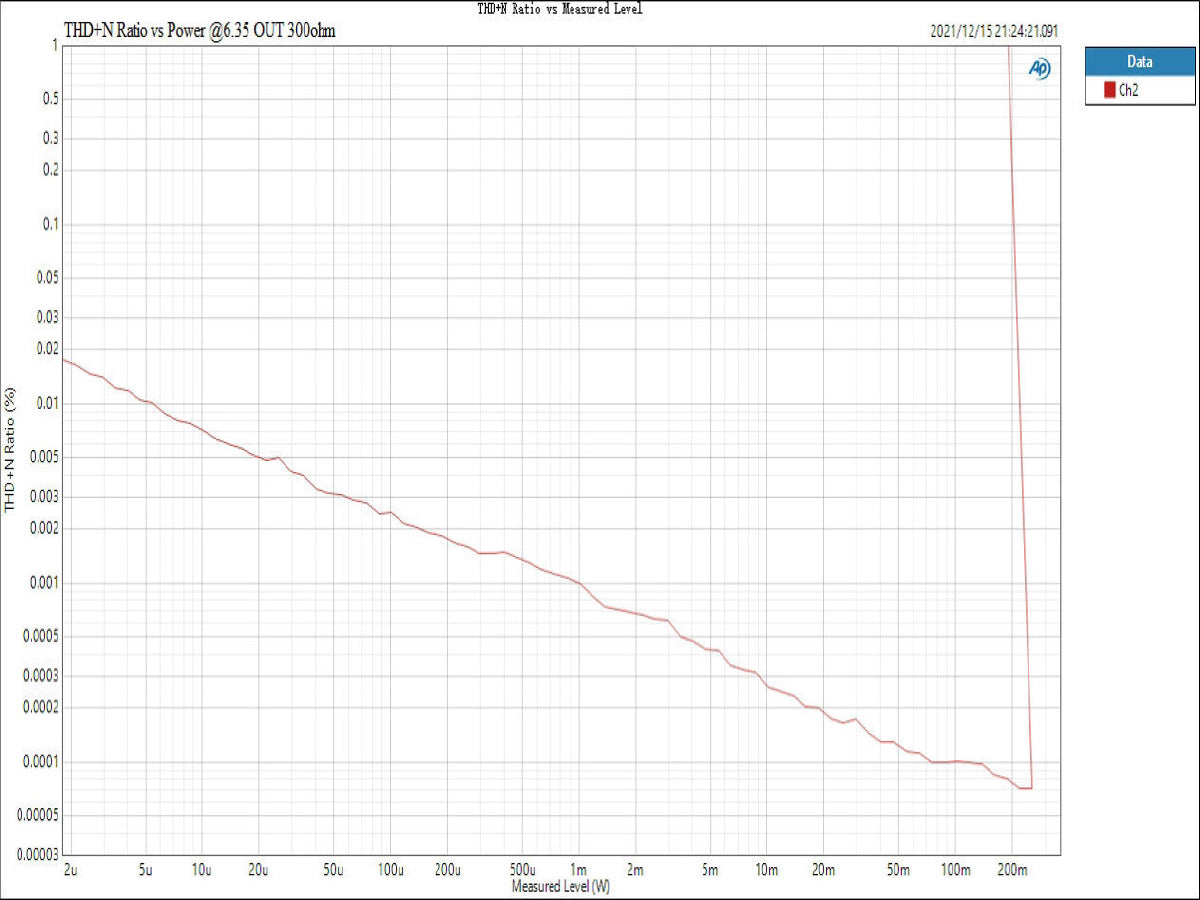

Headphone amp specs via 6.35mm headphone jack

THD+N@1kHz (A-wt):

<0.00010% @Output=145mW(32Ω)
<0.00009% @Output=15mW (300Ω)

THD@20-20kHz 90kBW

<0.00050% @Output=145mW (32Ω)
<0.00020% @Output=15mW (300Ω)

SNR@MAX OUT 1KHZ (A-wt)

125dB @1 kHz

Dynamic Range @1kHz

125dB @1kHz

Frequency response

20Hz-20kHz (‡0.1dB)
20Hz-40kHz (+0.3dB)

Output Level

6Vpp @G=L
25Vpp @G=H

Noise @A-wt

<1.7uVrms @G=L
<5.5uVrms @G=H

Channel Crosstalk

-114dB @1kHz

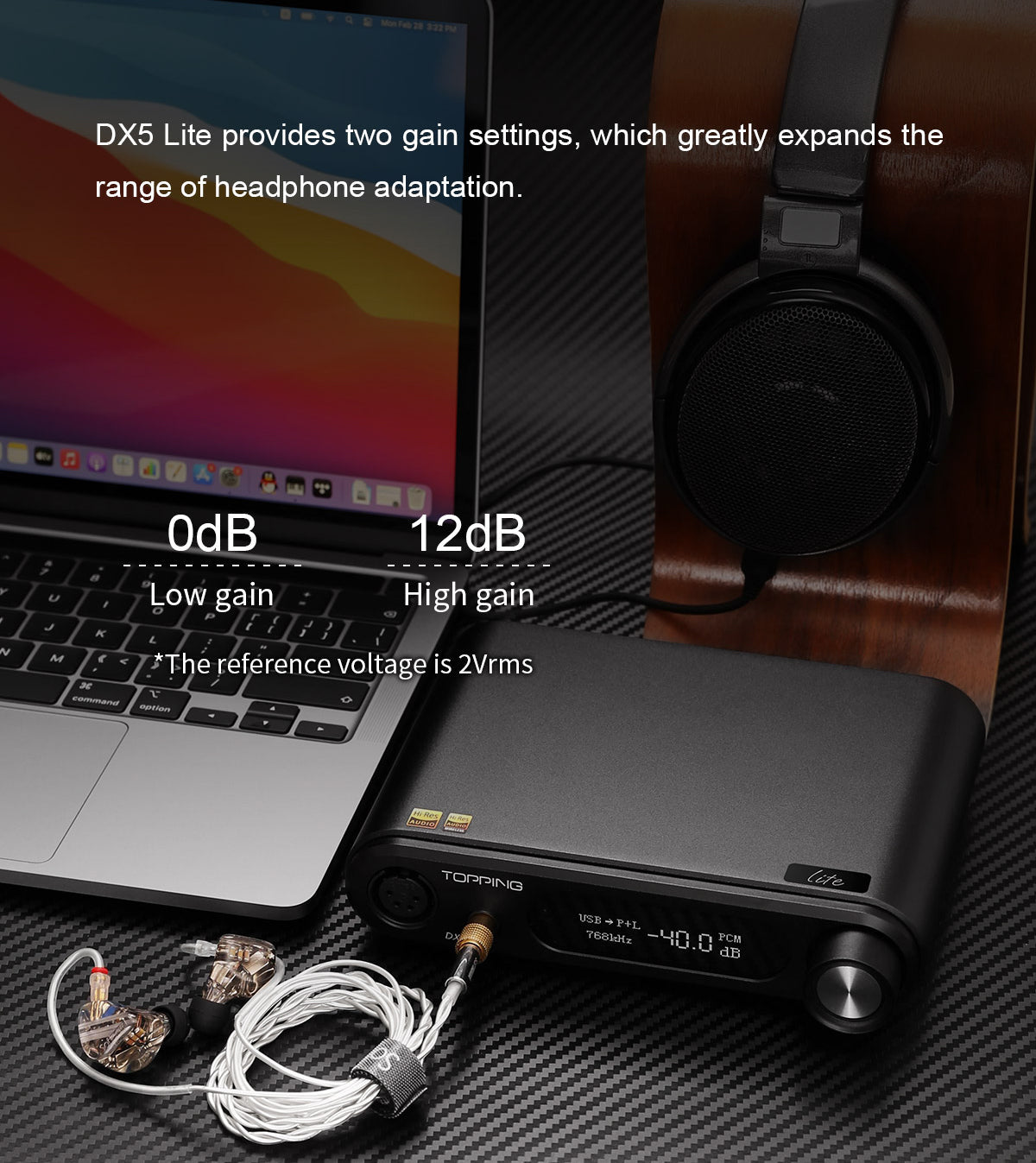

Gain

G=L 6.7dB (Vrms/FS)
G=H 19dB (Vrms/FS)

Channel Balance

0.3dB

Output Impedance

< 0.1Ω

Output Power

1800mW × 2 @32Ω THD+N<1%
1000mW × 2 @64Ω THD+N<1%
250mW × 2 @300Ω THD+N<1%

Load impedance

>8Ω

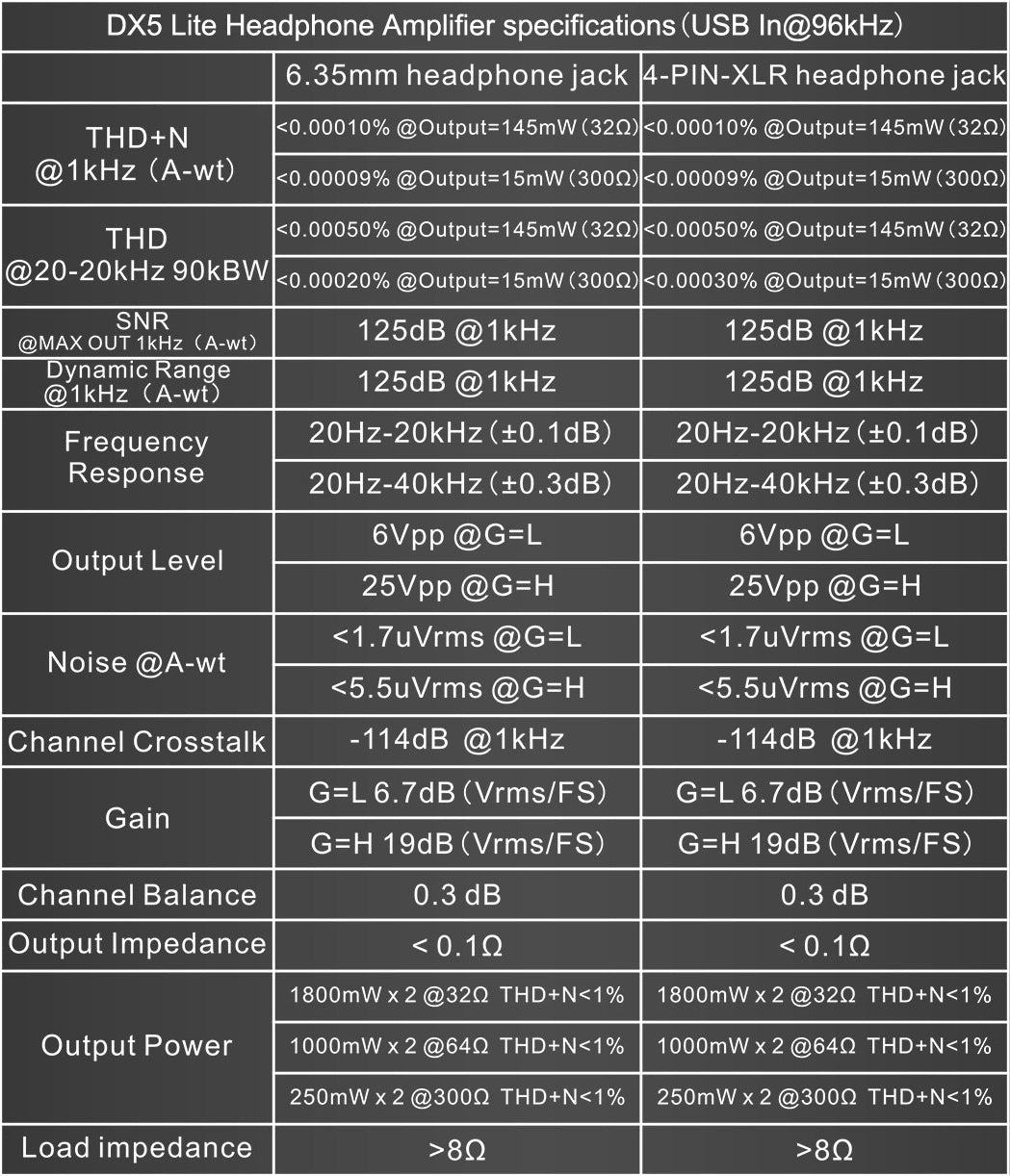

Headphone amp specs via 4-pin XLR jack

THD+N@1kHz (A-wt):

<0.00010% @Output=145mW(32Ω)
<0.00009% @Output=15mW (300Ω)

THD@20-20kHz 90kBW

<0.00050% @Output=145mW (32Ω)
<0.00030% @Output=15mW (300Ω)

SNR@MAX OUT 1KHZ (A-wt)

125dB @1 kHz

Dynamic Range @1kHz

125dB @1kHz

Frequency response

20Hz-20kHz (‡0.1dB)
20Hz-40kHz (+0.3dB)

Output Level

6Vpp @G=L
25Vpp @G=H

Noise @A-wt

<1.7uVrms @G=L
<5.5uVrms @G=H

Channel Crosstalk

-114dB @1kHz

Gain

G=L 6.7dB (Vrms/FS)
G=H 19dB (Vrms/FS)

Channel Balance

0.3dB

Output Impedance

< 0.1Ω

Output Power

1800mW × 2 @32Ω THD+N<1%
1000mW × 2 @64Ω THD+N<1%
250mW × 2 @300Ω THD+N<1%

Load impedance

>8Ω

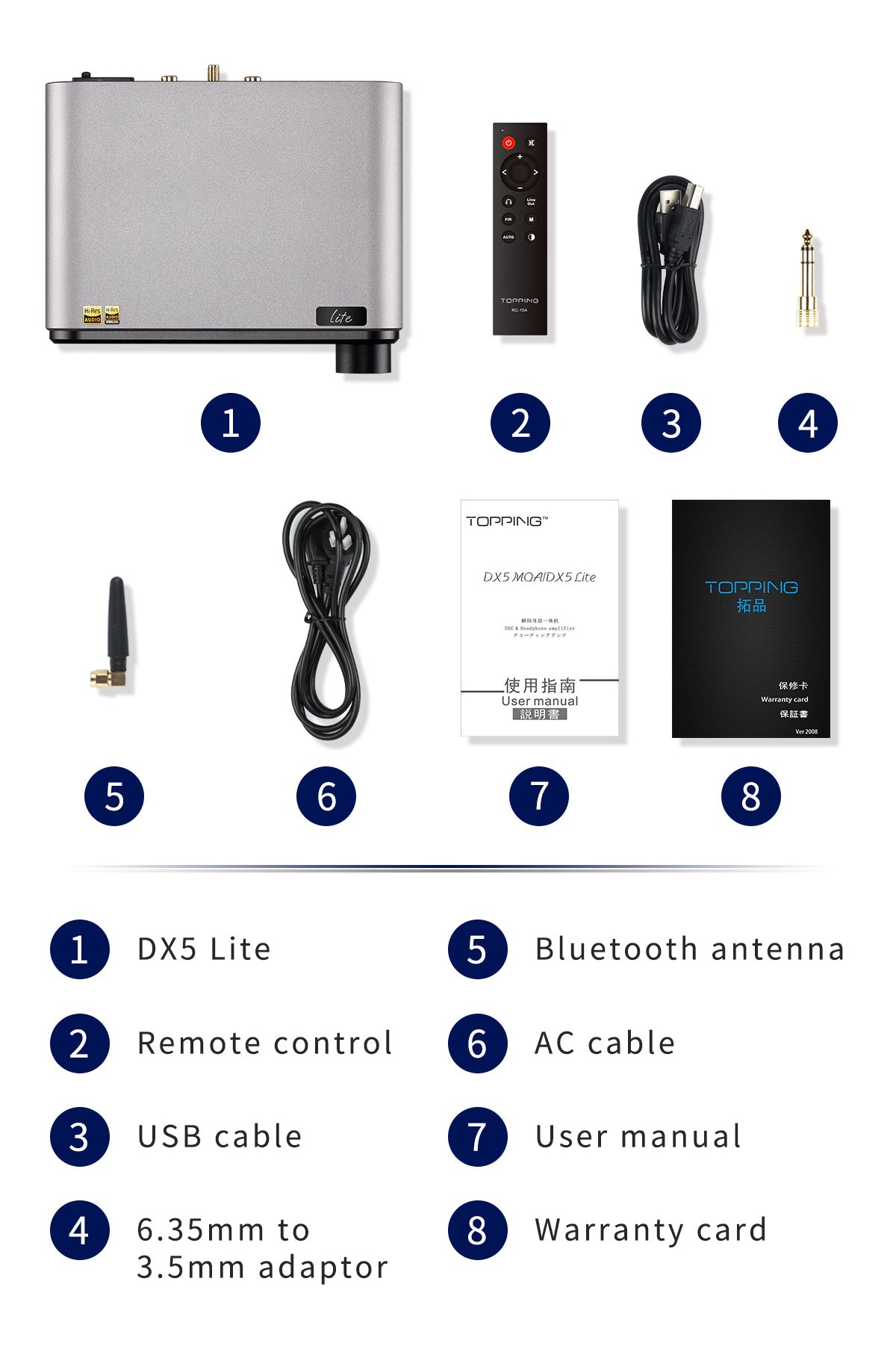

What’s included

TOPPING DX5 Lite
Remote control
USB cable
6.35mm to 3.5mm adapter
Bluetooth antenna
AC cable
User manual
Warranty card
