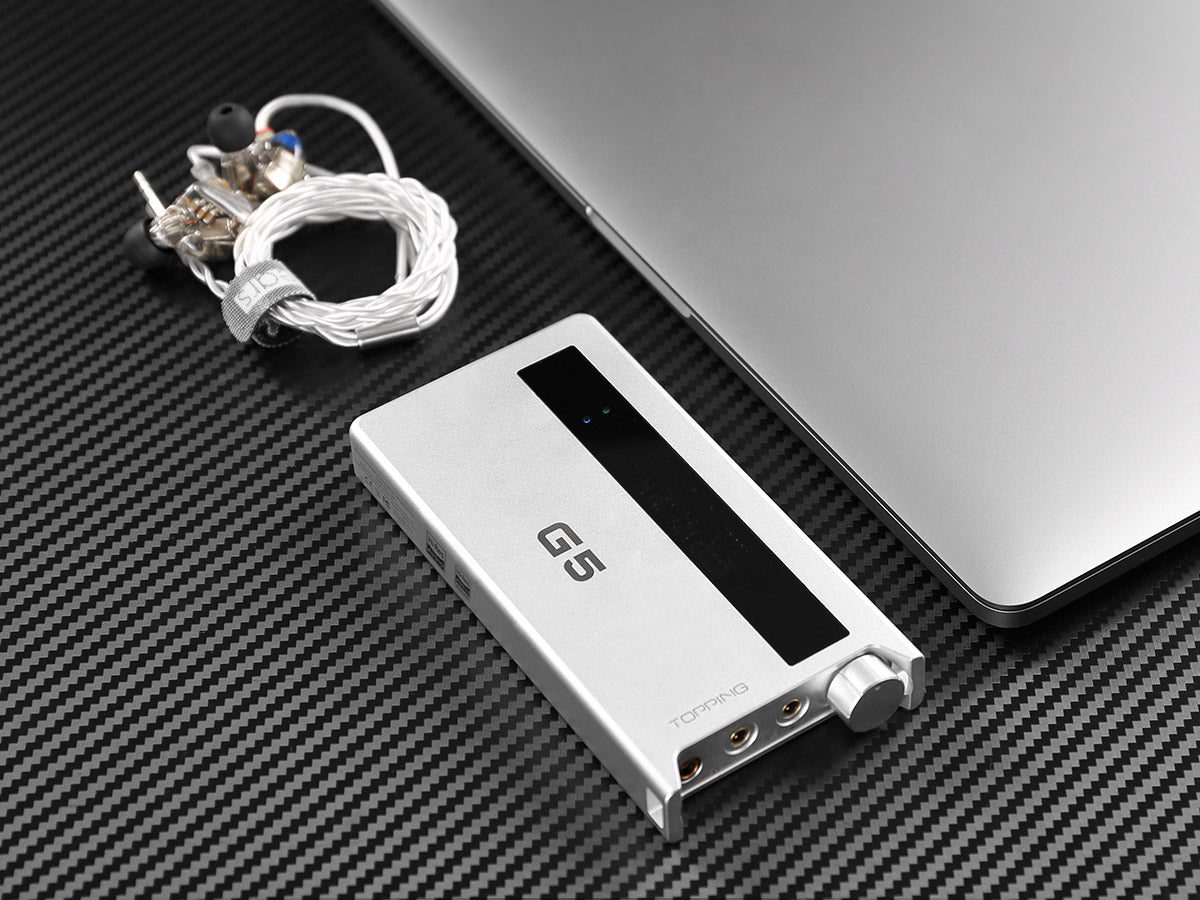

TOPPING G5 Portable DAC/Amp

Name: TOPPING G5 Portable DAC/Amp
Brand: TOPPING
Price: 299.00 USD
Availability: InStock

$299

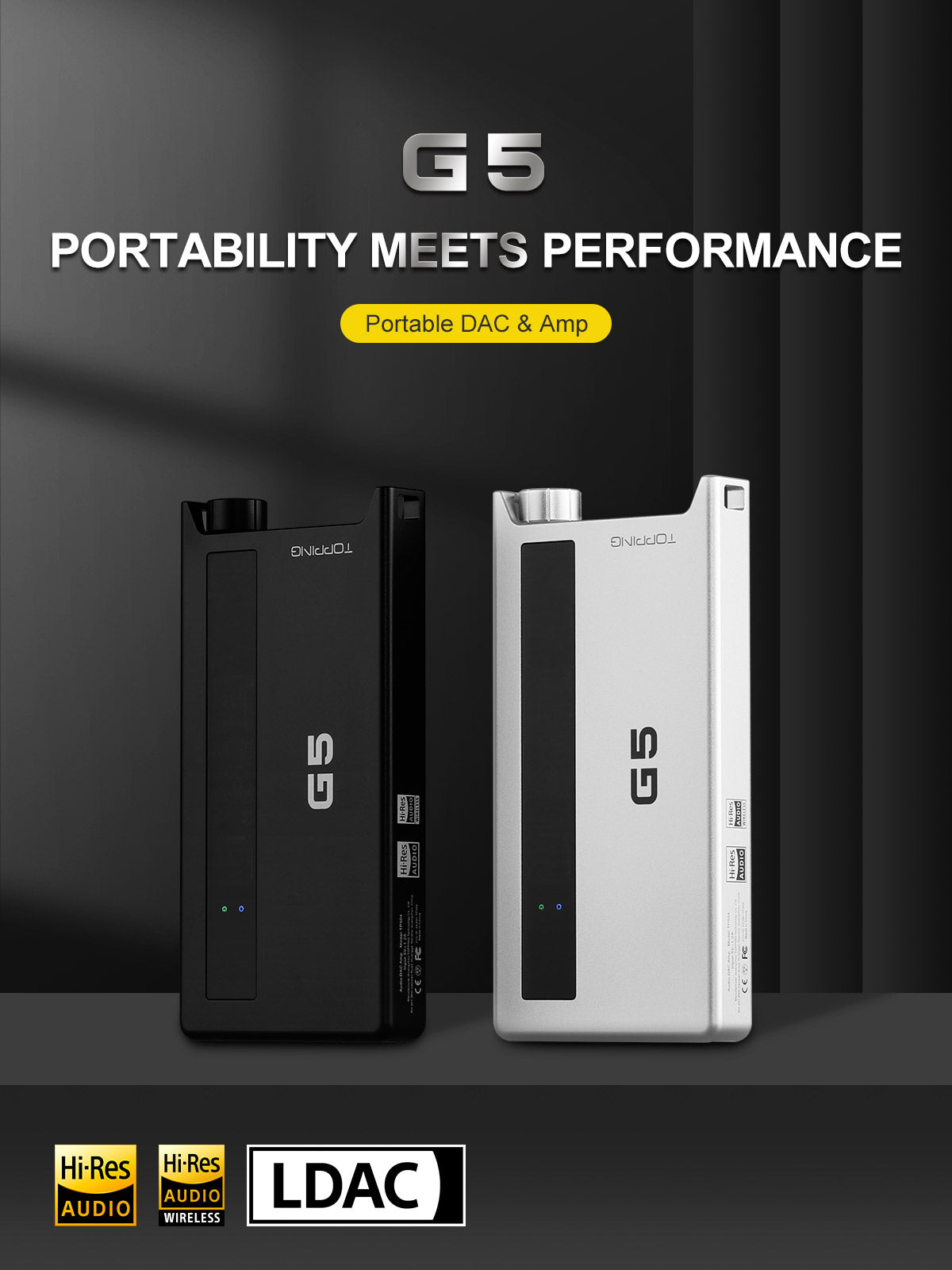

Portability meets performance

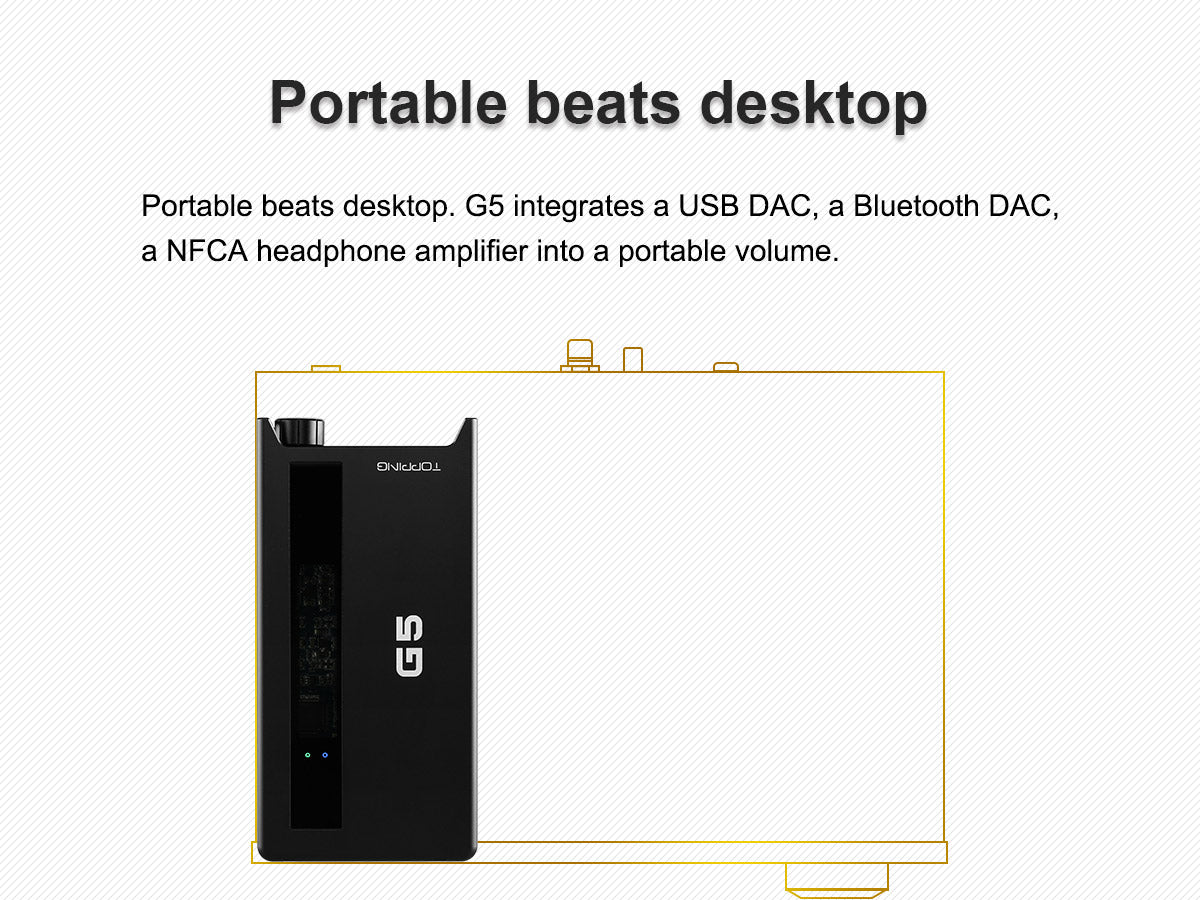

The TOPPING G5 is a DAC/Amp that packs TOPPING’s classic NFCA architecture into a portable package. With 24-bit Bluetooth audio and top-of-the-line specs, it’s an ideal unit for audiophiles and enthusiasts alike.

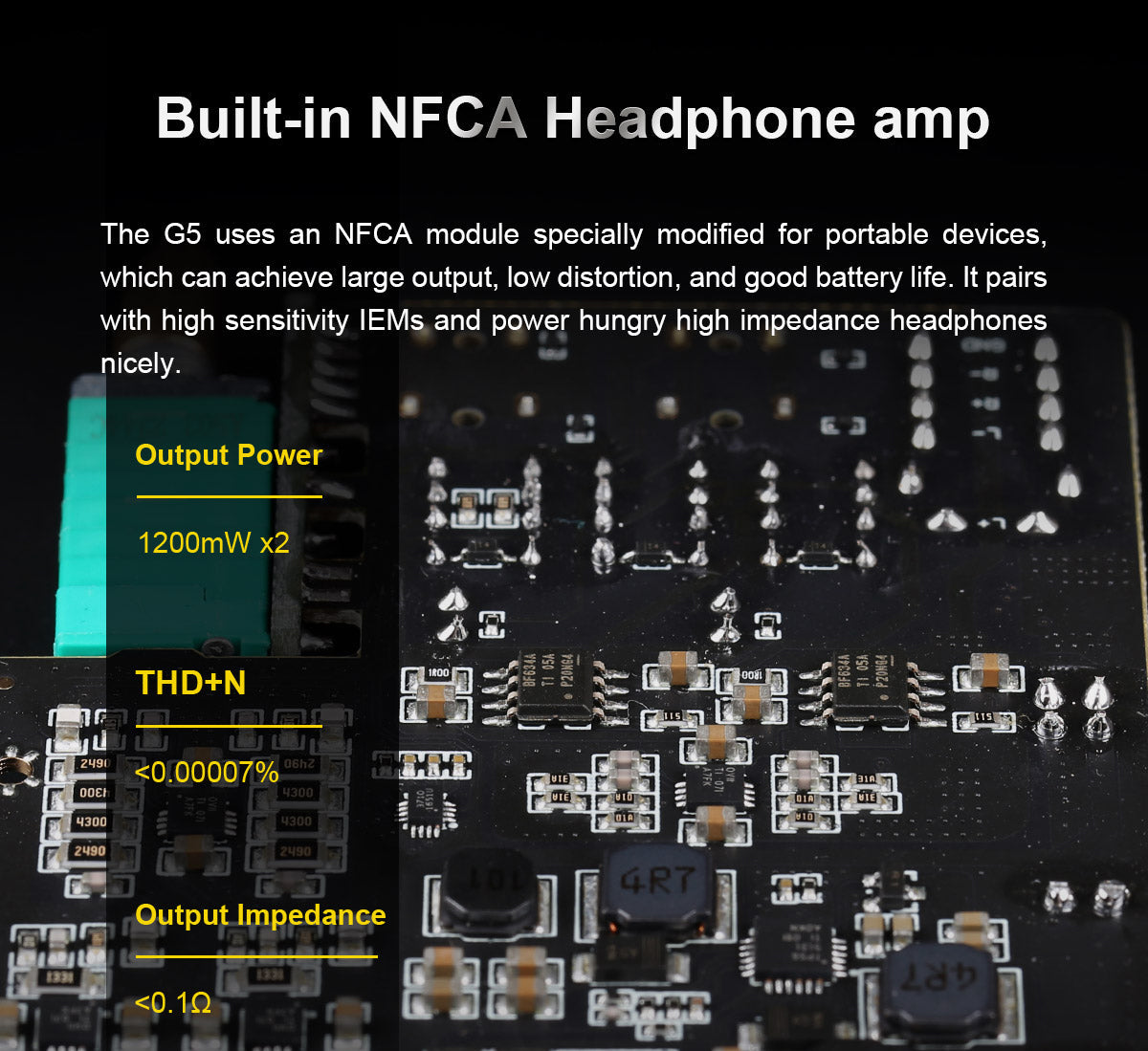

Built-in NFCA headphone amp

The G5 uses an NFCA module specially developed for portable devices. It achieves an output power of 1200mW x 2, THD+N of 0.00007%, and an output impedance of <0.1Ω.

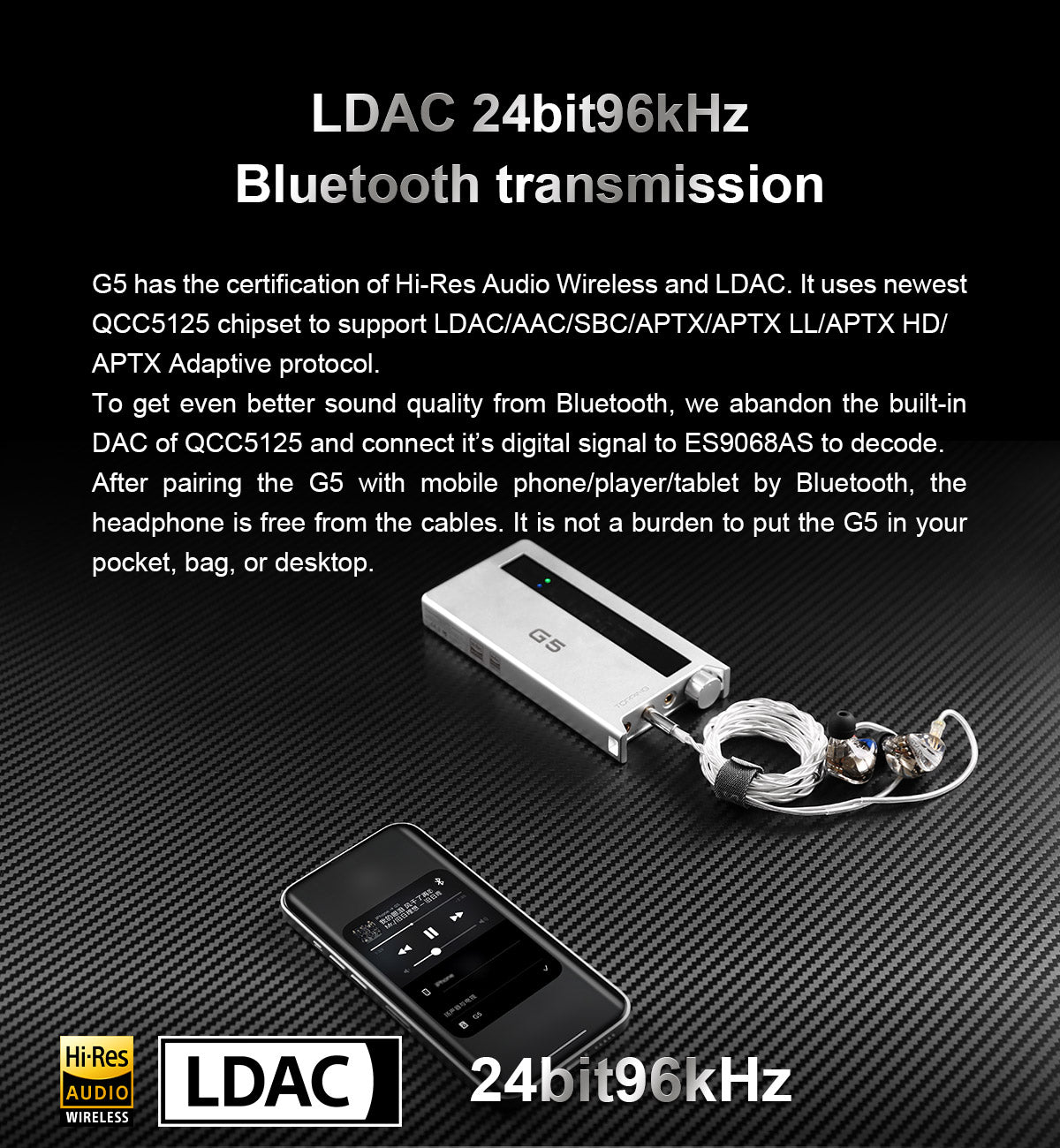

24bit hi-def Bluetooth

The G5 is certified Hi-Res Audio Wireless. It uses the newest Qualcomm QCC5125 chipset, which supports 24-bit/96kHz Bluetooth formats like LDAC and aptX HD.

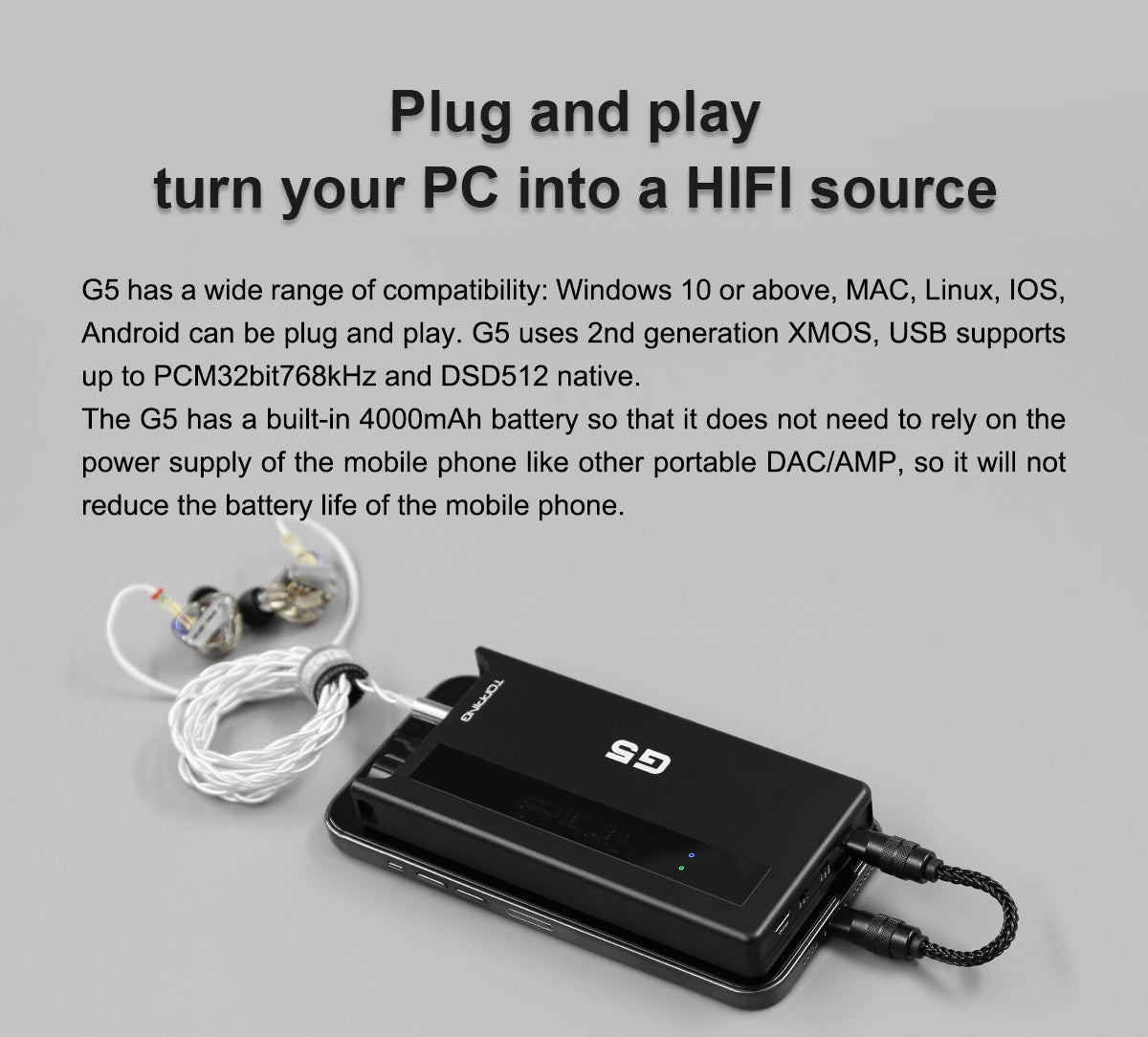

Plug and play

Plug and play the G5 with devices running Windows 10 (or above), Mac, Linux, iOS, or Android. The G5 is powered by a built-in 4000mAh battery, so it won’t drain your portable device’s battery.

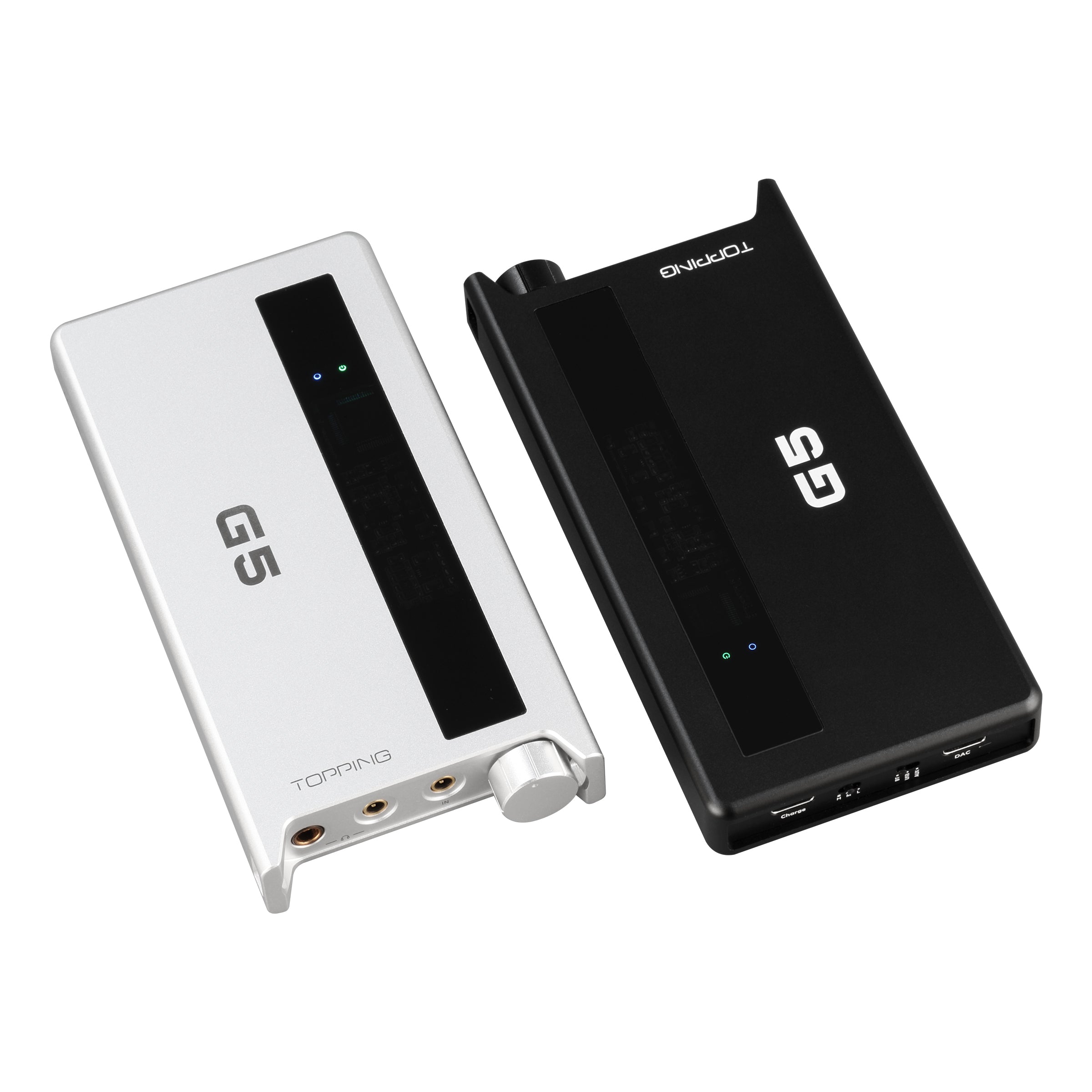

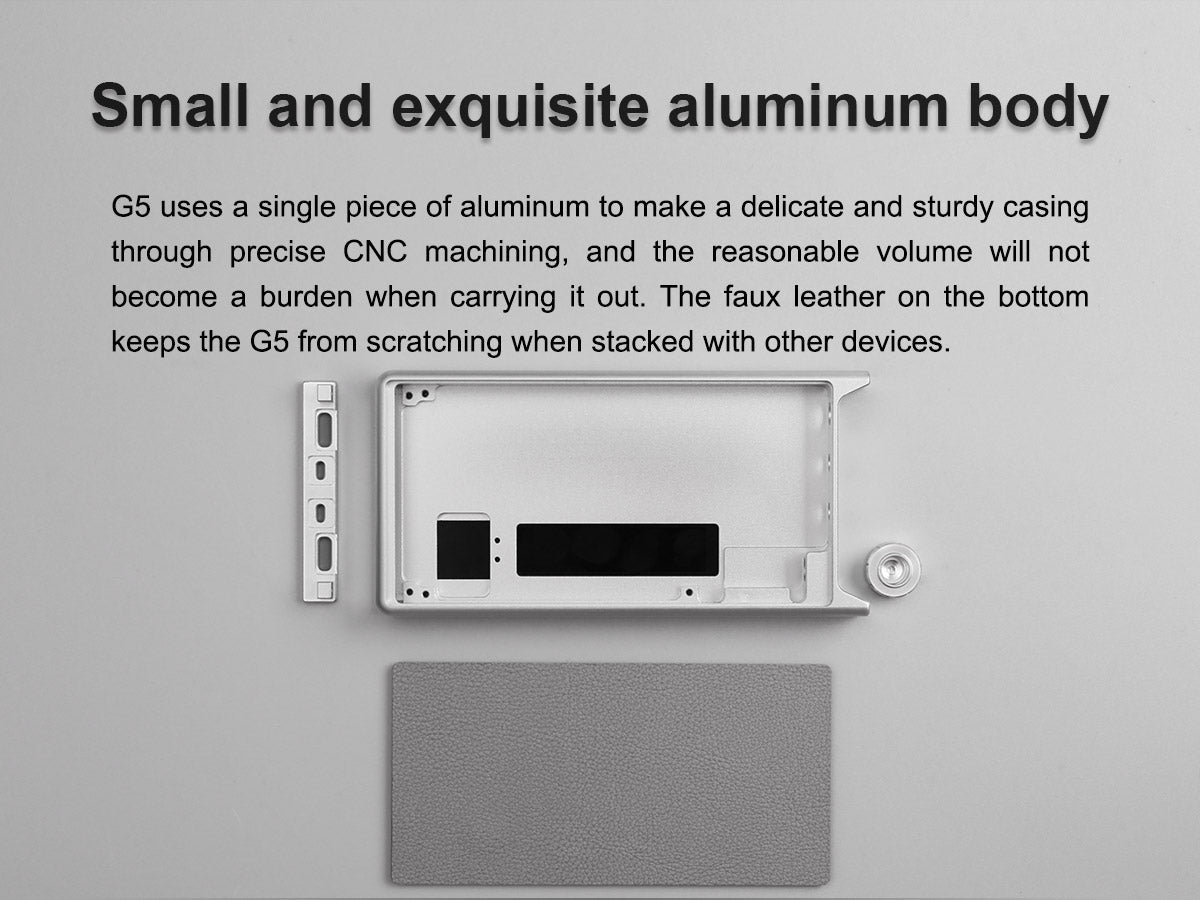

Aluminum + leather

The G5 is gorgeously encased in a single sturdy piece of CNC aluminum. A faux leather bottom prevents the case from scratching other devices when stacked.

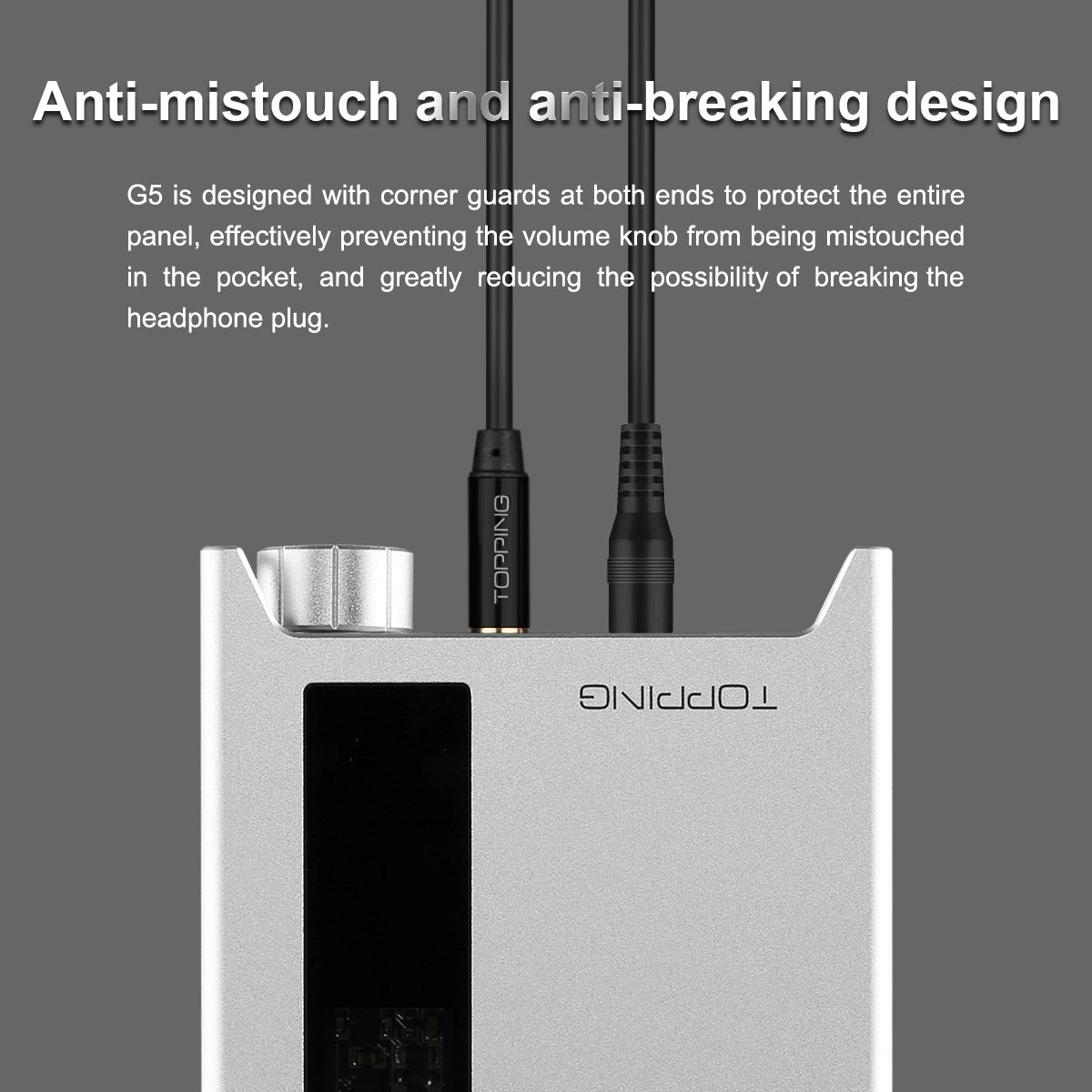

Protective corner guards

The G5 is designed with corner guards at both ends to protect the end panels, effectively preventing the volume knob from being accidentally adjusted in your pocket and greatly reducing the possibility of breaking the headphone plug.

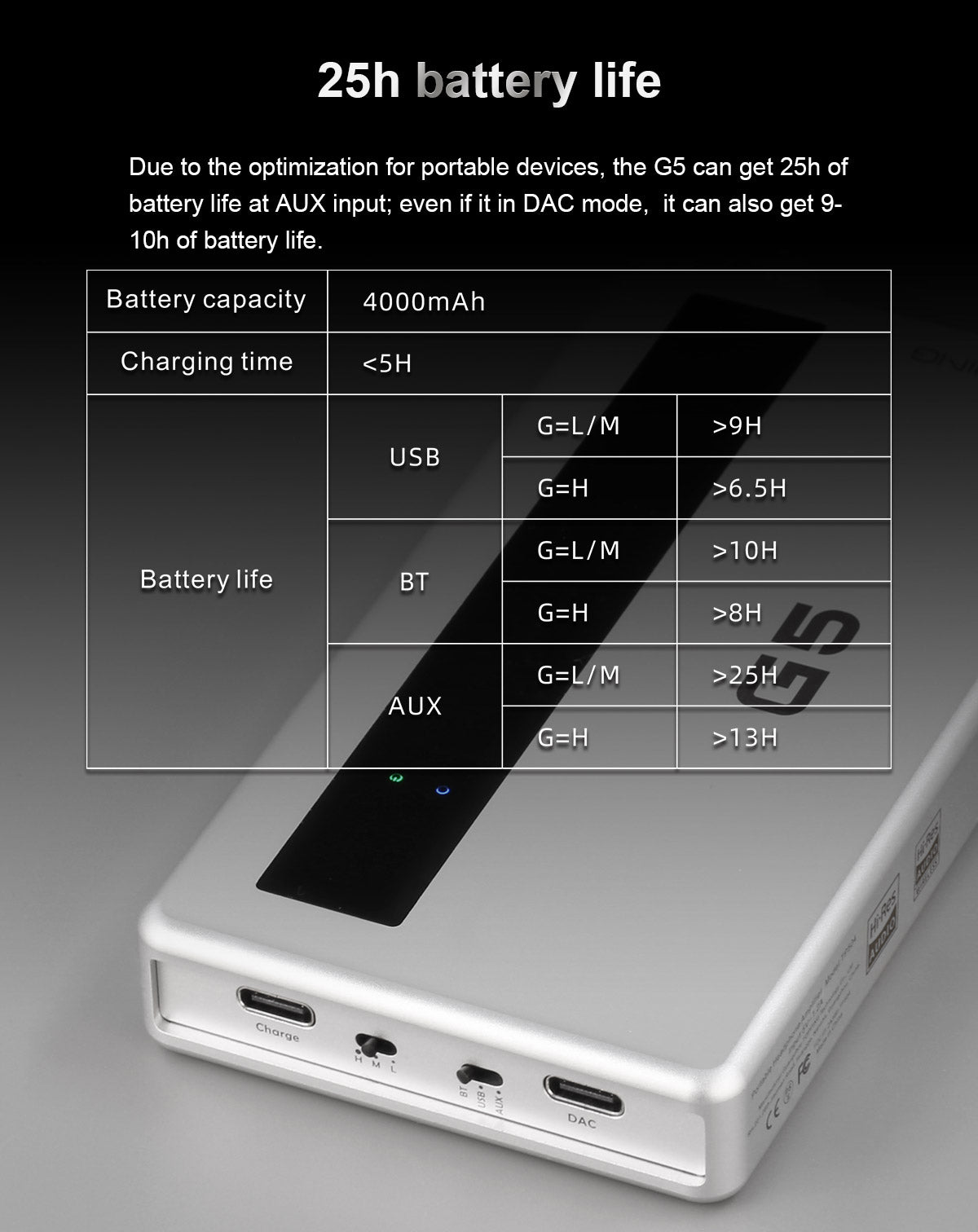

25 hour battery life

TOPPING optimized the G5 architecture for maximum battery life. With less than five hours of charging time, the G5 can last 25 hours in Aux mode, 10 hours in Bluetooth mode, and 9 hours in USB mode.

Bundle it with a FiiO LT-LT1 cable

Get 24-bit/192kHz lossless output from your Apple device by connecting the G5 to it with the FiiO LT-LT1 cable. The skin-friendly yet durable multi-strand cotton mesh sheath feels great to the touch and is durable to withstand daily wear and tear for years to come.

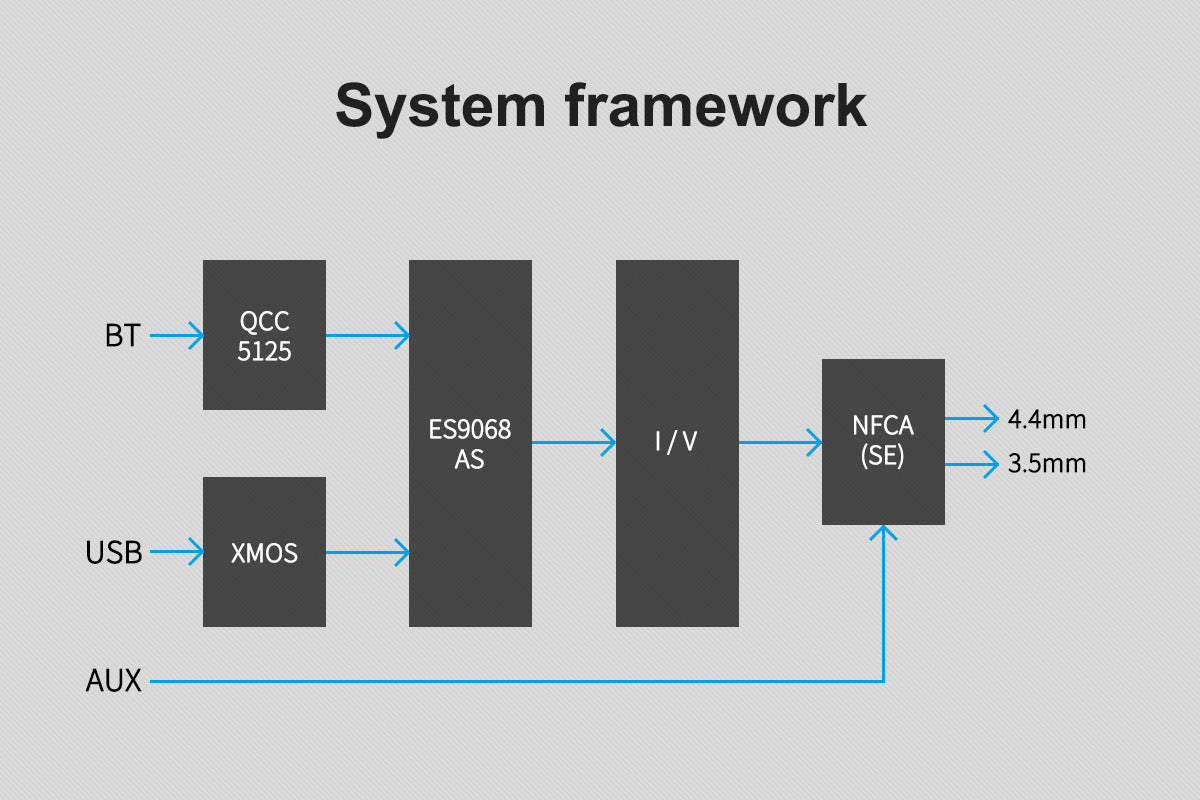

Product highlights

Built-in NFCA headphone amp

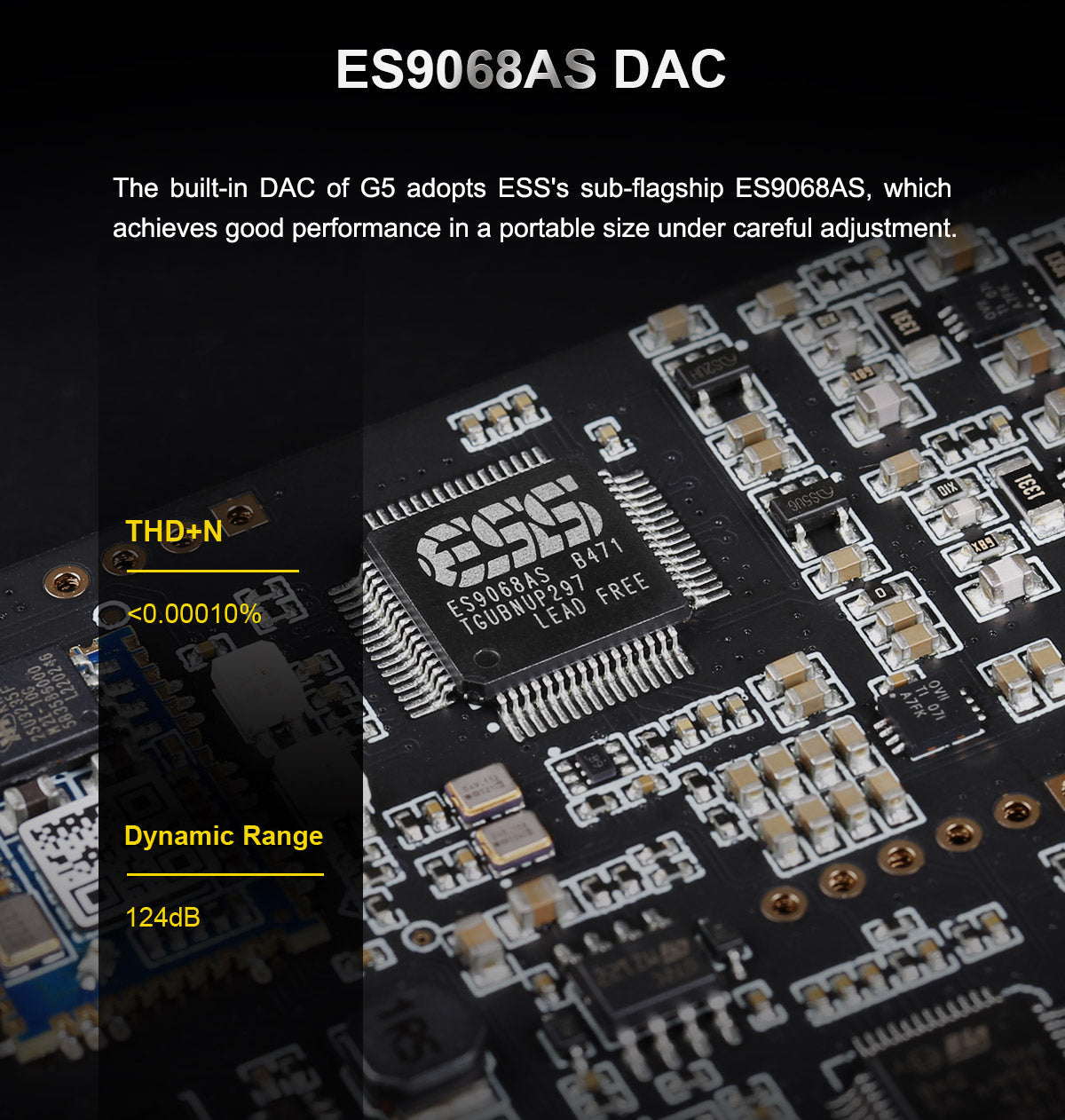

ESS ES9068AS DAC chip
24-bit LDAC audio
Hi-Res certified

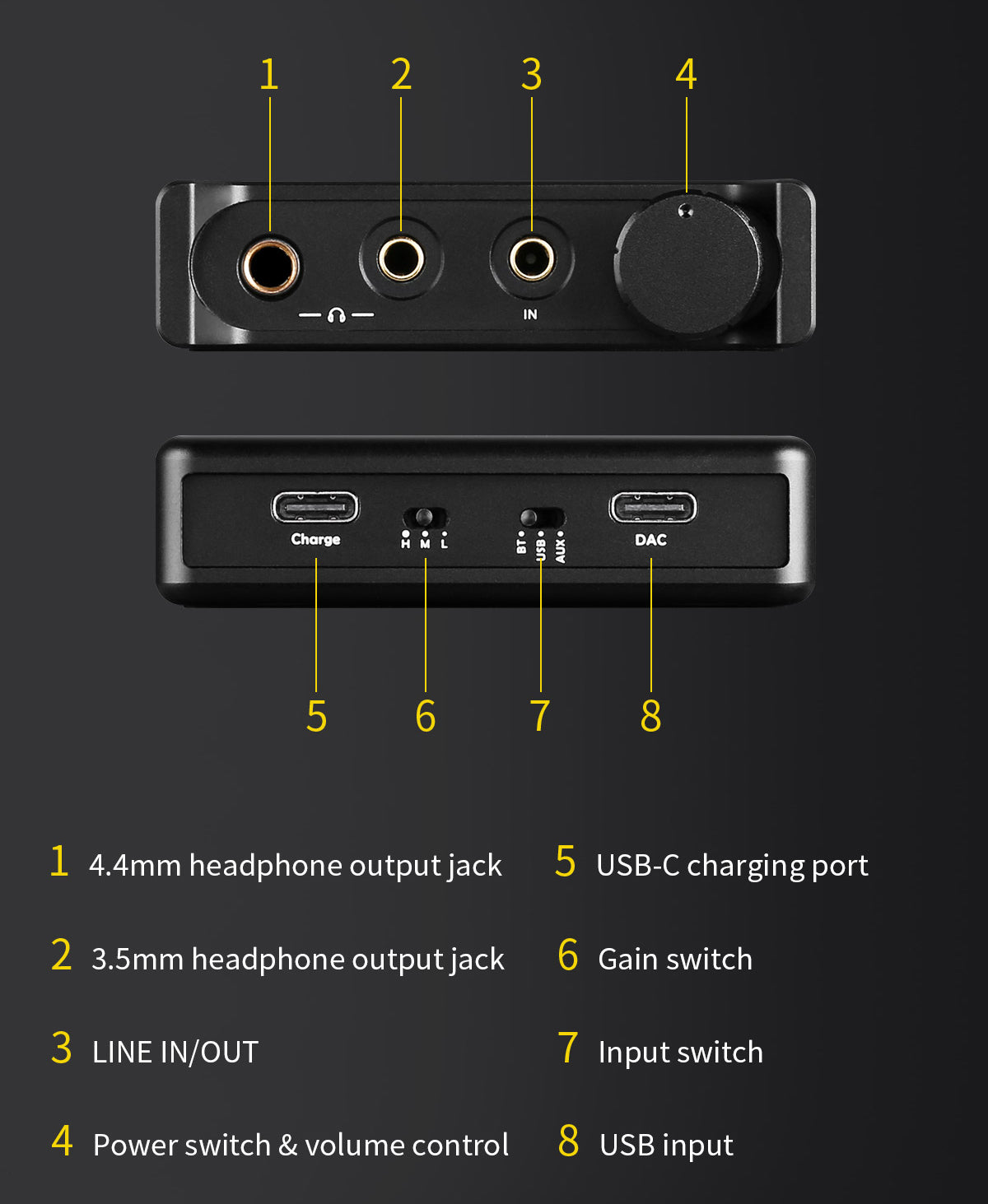

Three inputs: USB, BT, AUX
Two outputs: 4.4mm bal, 3.5mm SE

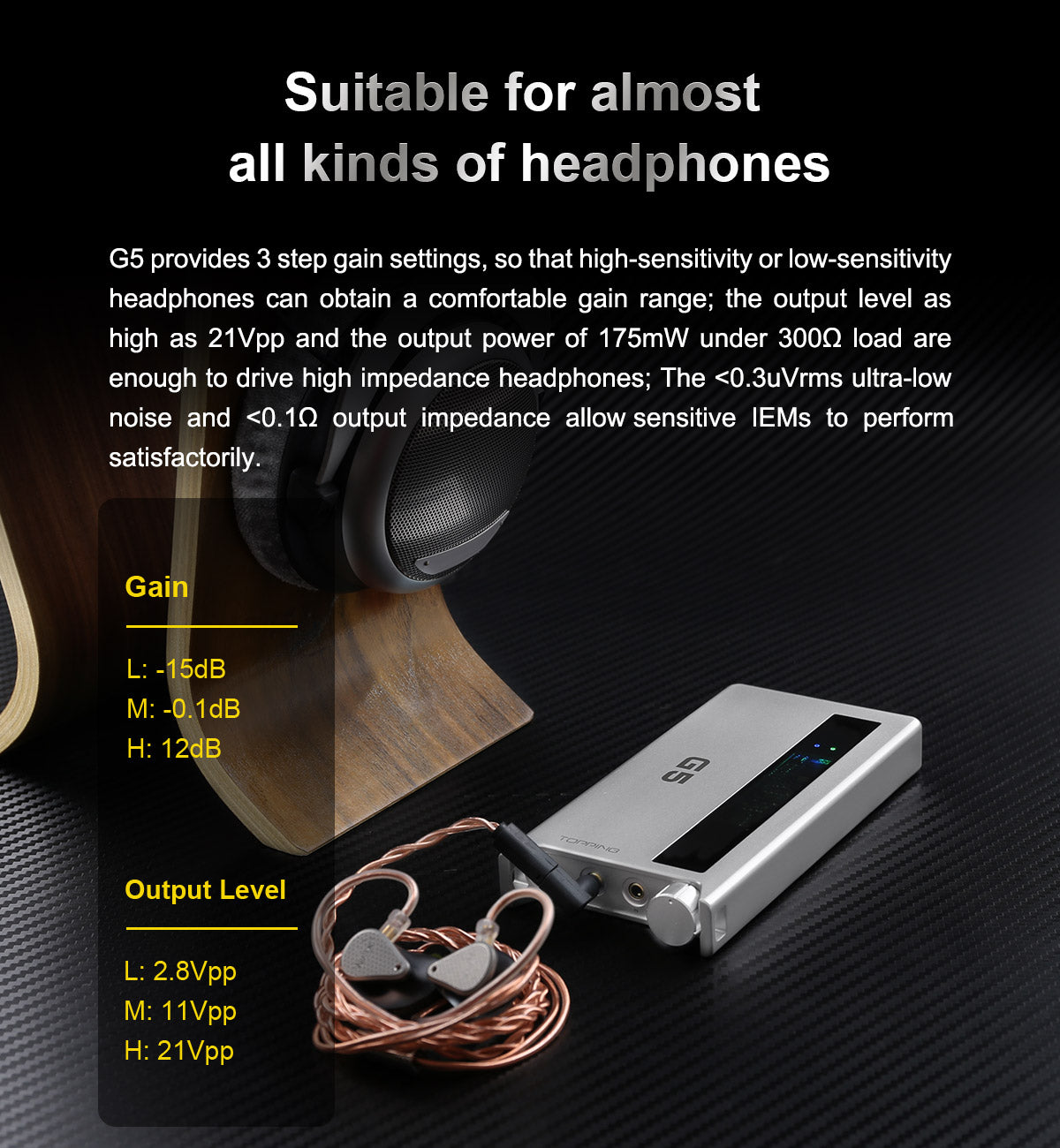

3 -step gain setting
Up to 25 hours on a single charge
0.00009% THD+N
PCM 768kHz
DSD512
<0.1Ω output impedance
1200mW x 2 output power
Aluminum body

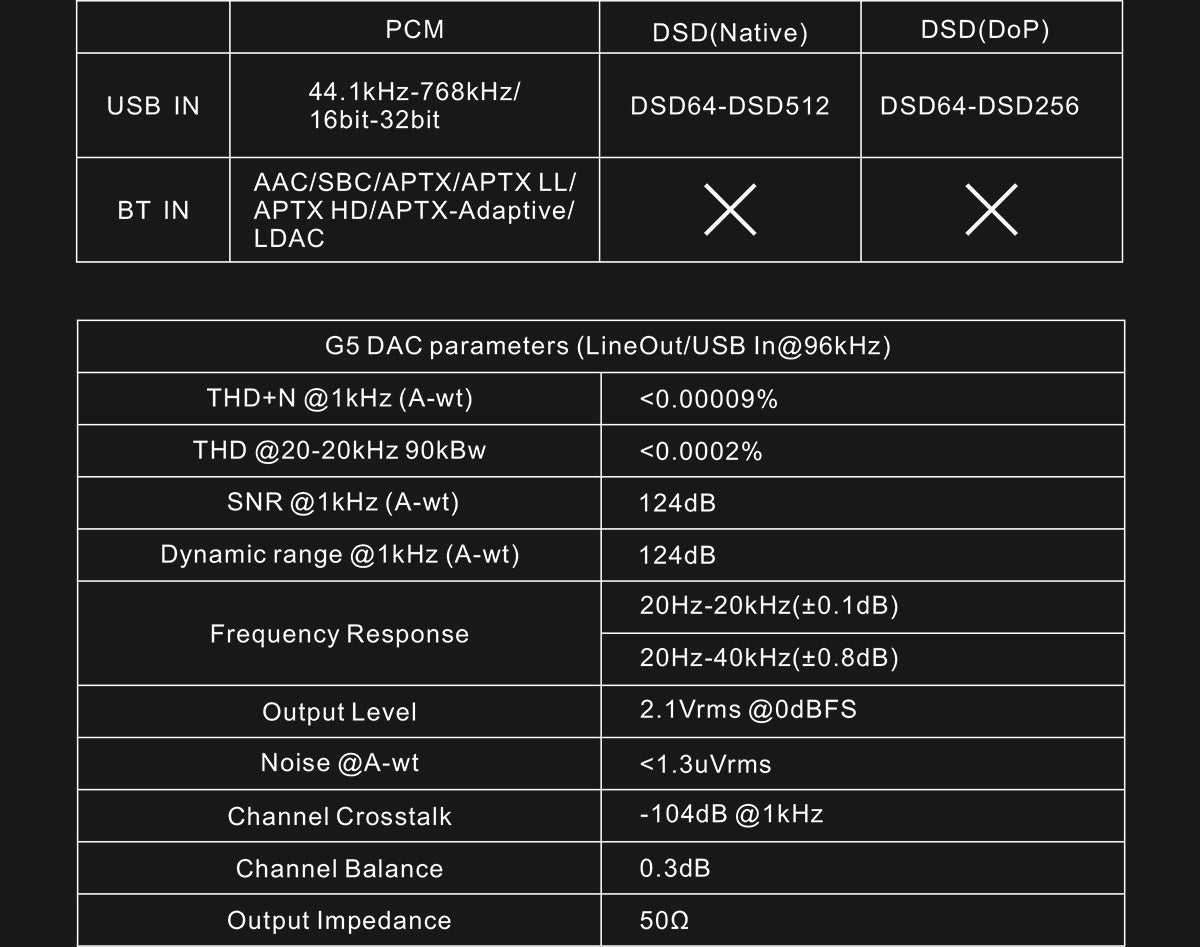

Specs

USB IN maximum playback support

PCM: 32-bit/768kHz
DSD (Native): DSD512
DSD (DoP): DSD256

Bluetooth IN playback support

AAC, SBC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC

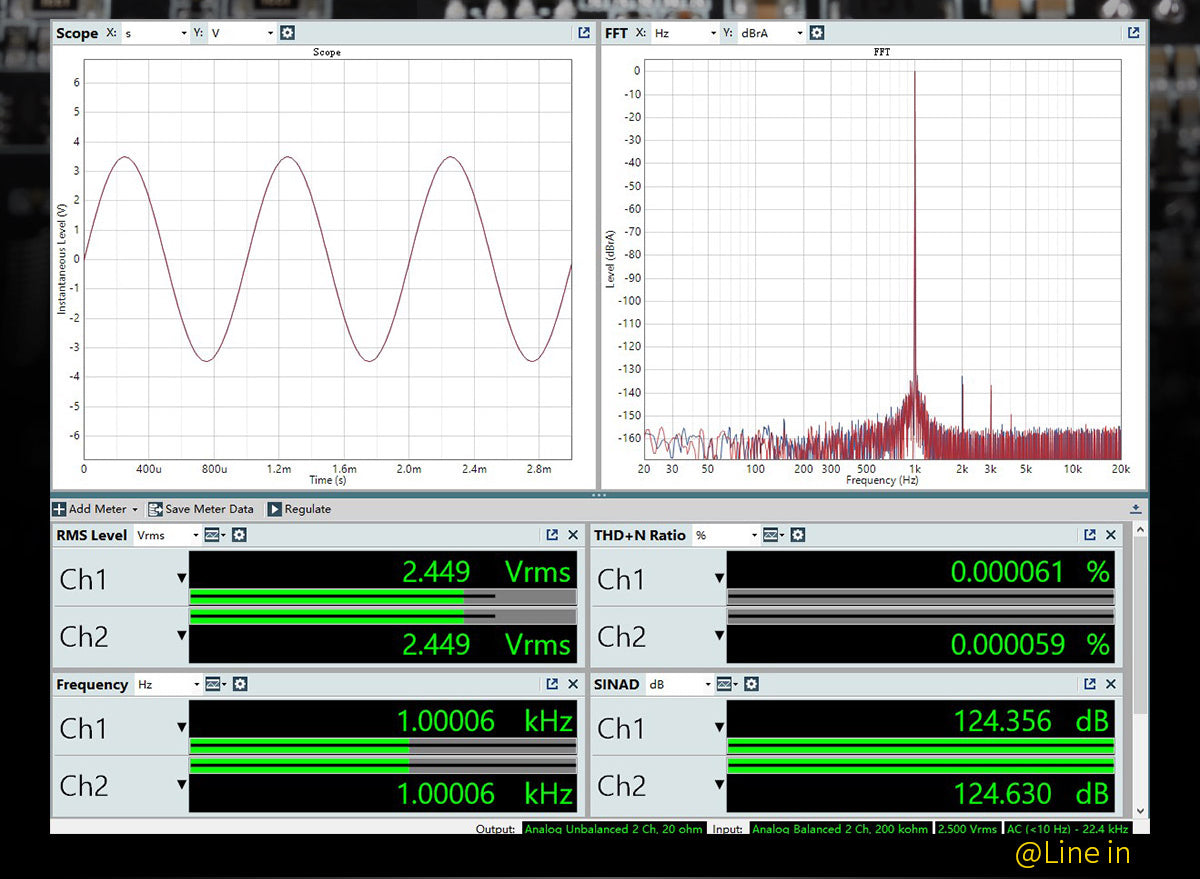

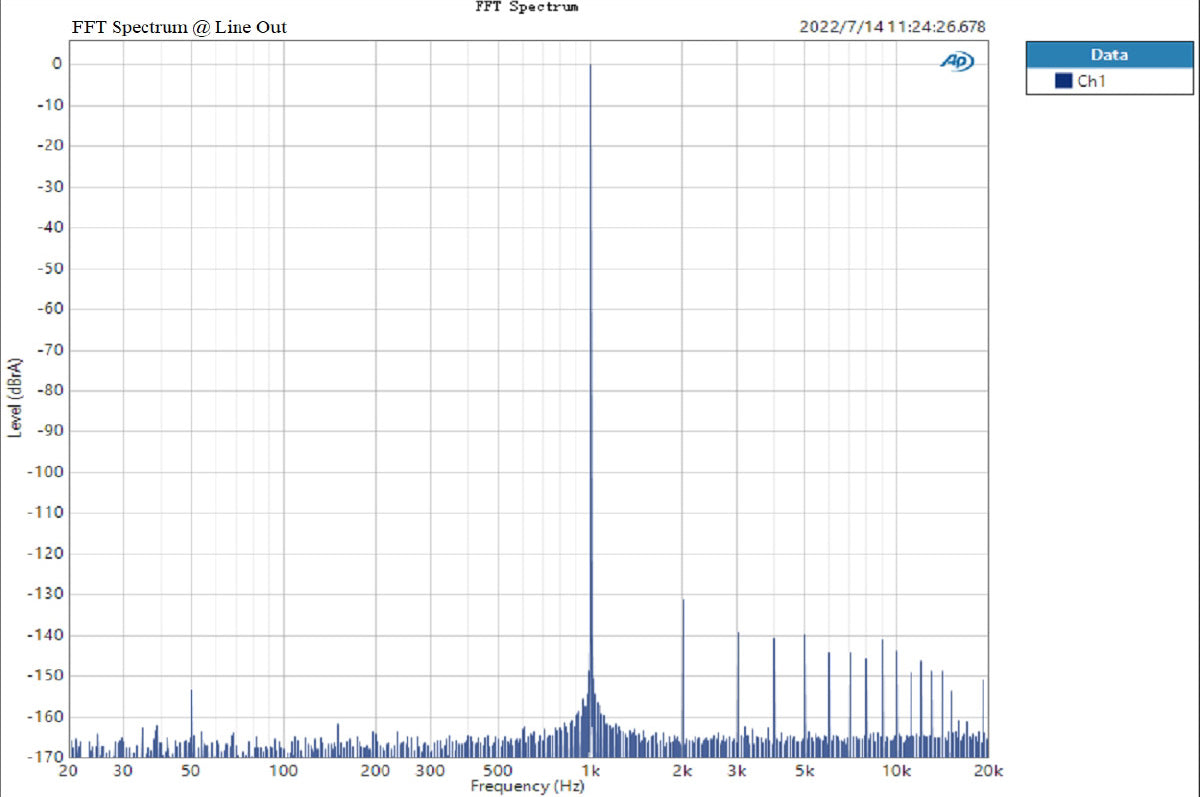

G5 DAC parameters

THD+N @1kHz (A-wt): <0.00009%

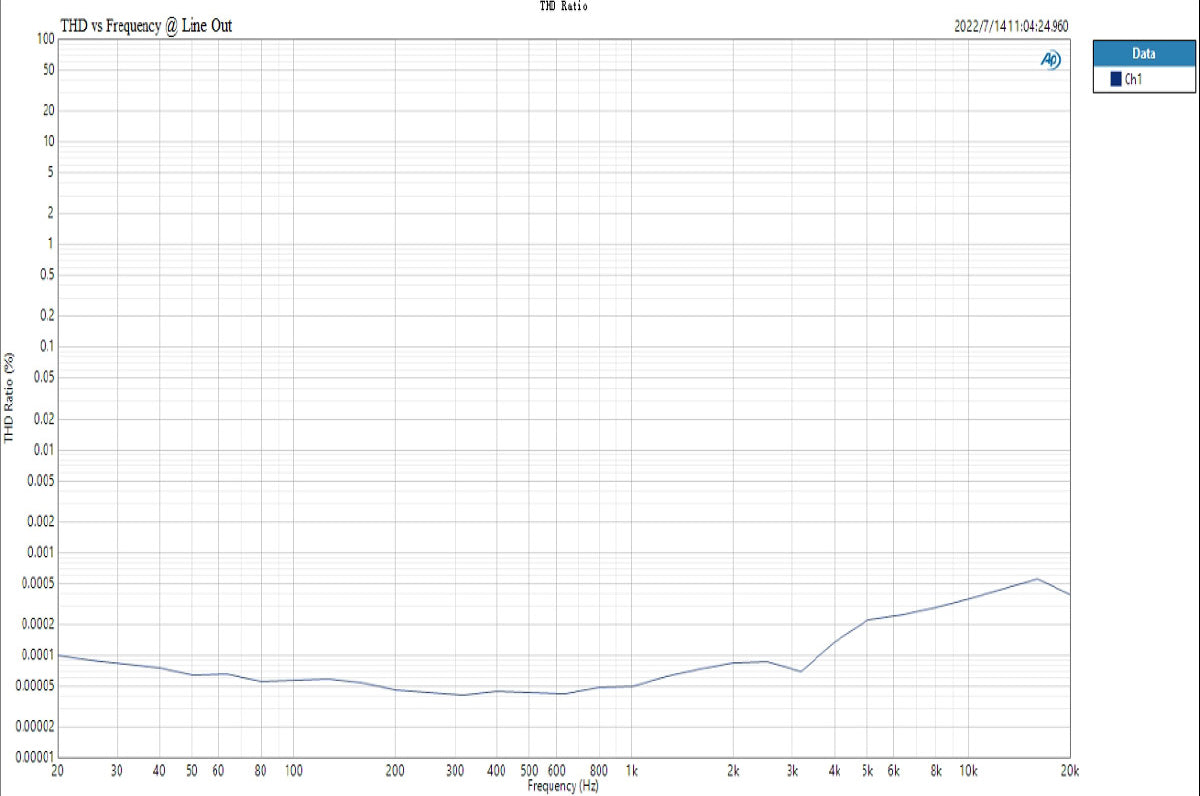

THD @20-20kHz 90kBw: <0.0002%
SNR @1kHz (A-wt): 124dB
Dynamic range @1kHz (A-wt): 124dB

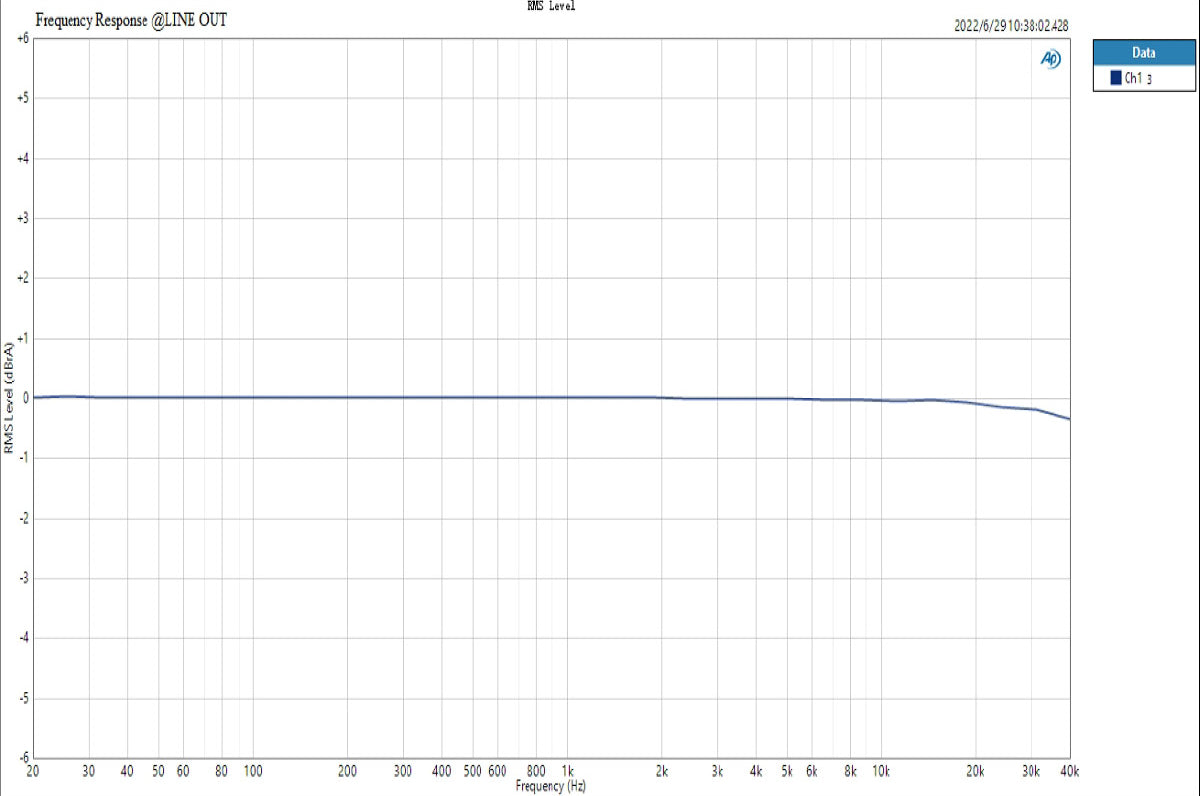

Frequency response:

20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.8dB)

Output level: 2.1Vrms @0dBFS
Noise (A-wt): <1.3uVrms
Channel crosstalk: -104dB @1kHz
Channel balance: 0.3dB
Output impedance: 50Ω

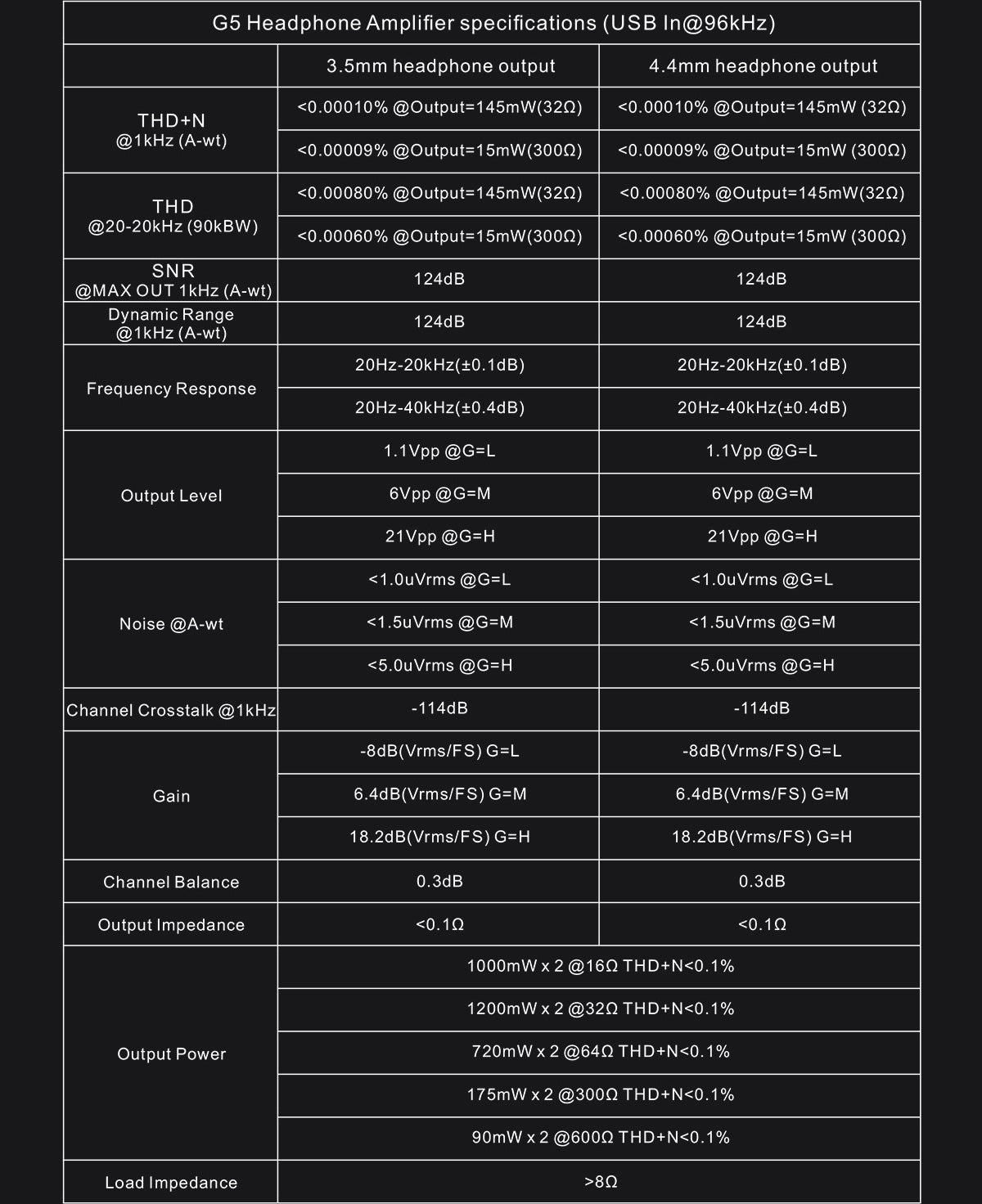

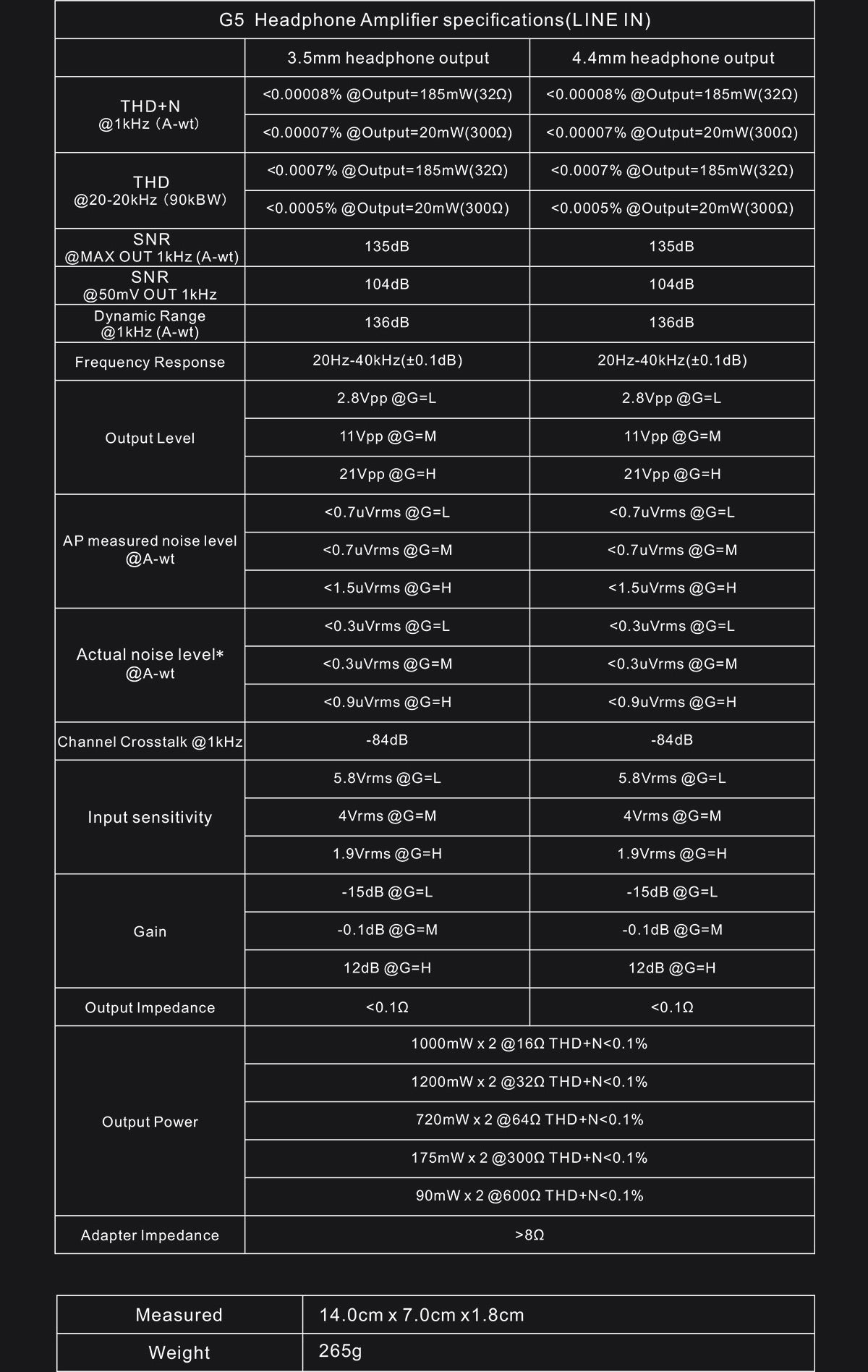

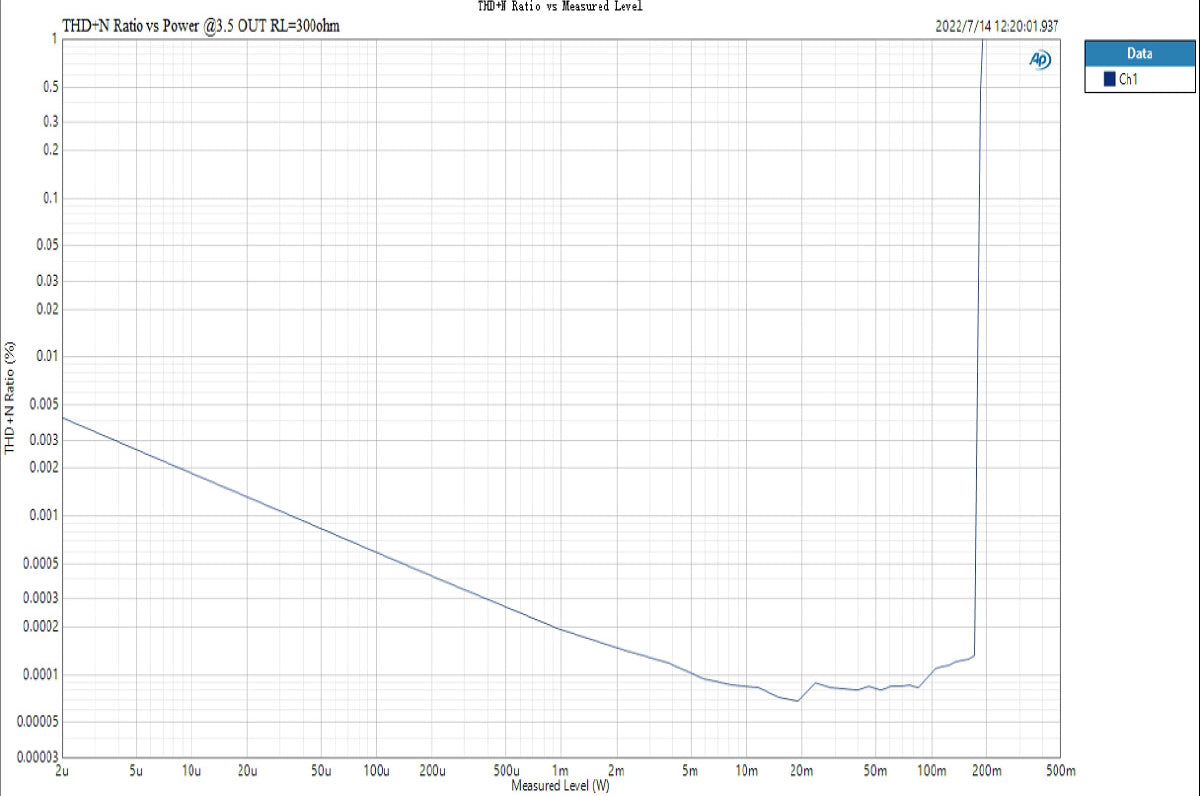

G5 headphone amplifier parameters

THD+N @1kHz (A-wt): <0.0001% @145mW (32Ω)
THD @20-20kHz (90kBW)

<0.0008% @145mW (32Ω)
<0.0006% @15mW (300Ω)

SNR @ Max out 1kHz (A-wt): 124dB @1kHz
Dynamic range @1kHz (A-wt): 124dB@1kHz
Frequency response

20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.4dB)

Output level

Low gain: 1.1Vpp
Medium gain: 6Vpp
High gain: 21Vpp

Noise (A-wt)

Low gain: <1.0Vrms
Medium gain: <1.5uVrms
High gain: 5.0uVrms

Channel crosstalk: -114dB @1kHz
Gain

Low gain: -8dB
Medium gain: 6.4dB
High gain: 18.2dB

Channel balance: 0.3dB
Output impedance: <0.1Ω

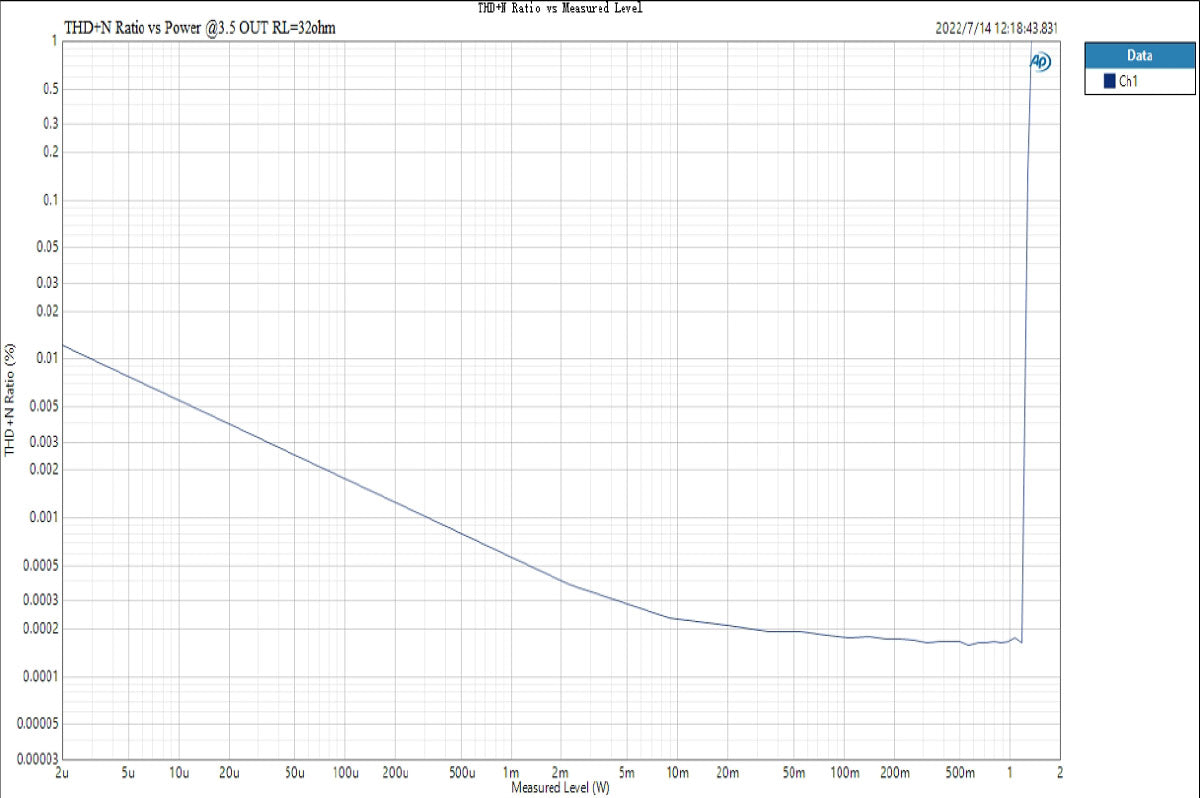

Output power

1000mW x 2 @16Ω THD+N <0.1%
1200mW x 2 @32Ω THD+N <0.1%
720mW x 2 @64Ω THD+N <0.1%
175mW x 2 @300Ω THD+N <0.1%
90mW x 2 @600Ω THD+N <0.1%

Load impedance: >8Ω

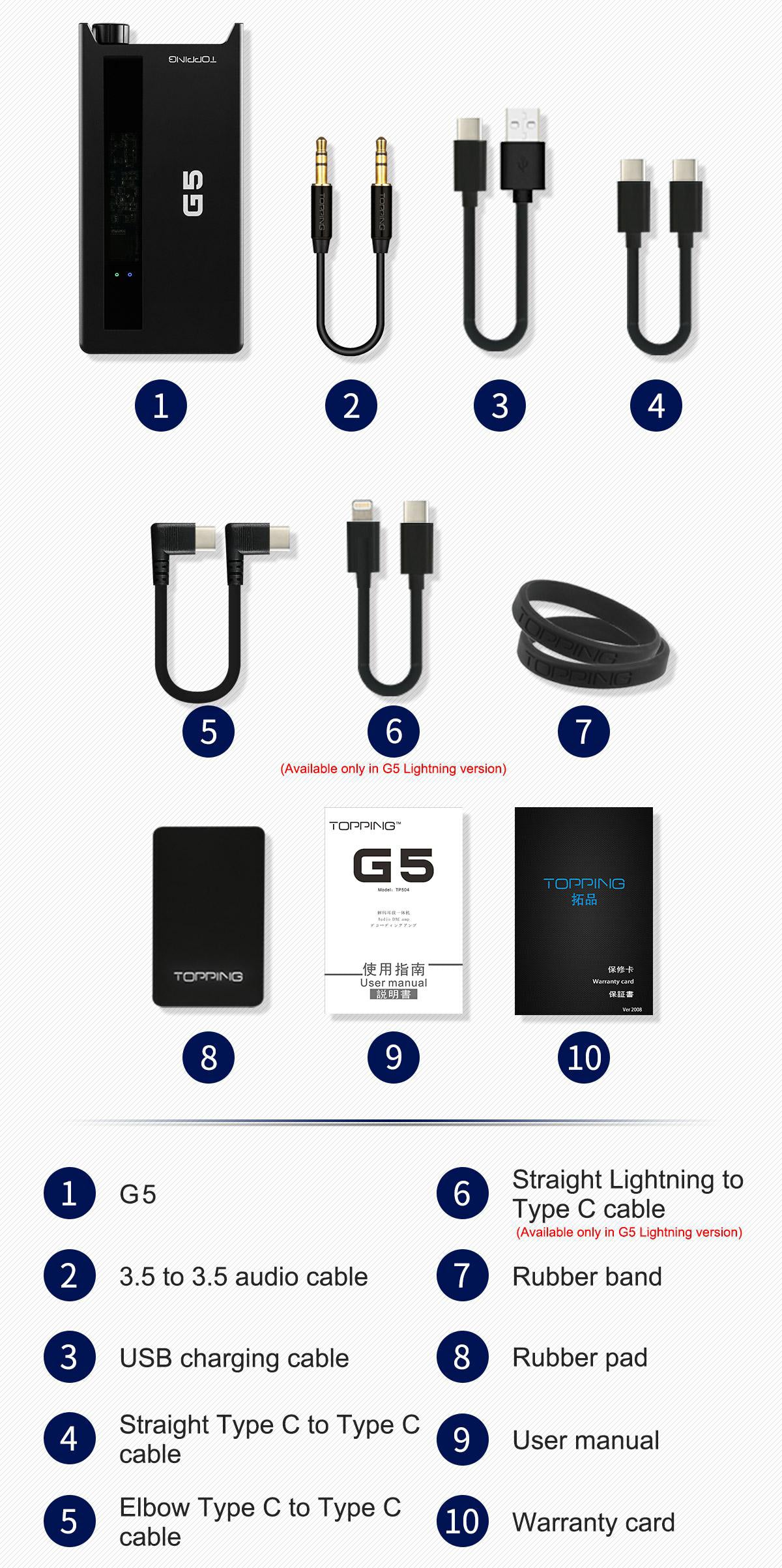

What’s included

TOPPING G5
3.5 to 3.5 audio cable
USB charging cable
Straight Type-C to Type-C cable
Elbow Type-C to Type-C cable
Straight lightning to Type-C cable
Rubber band
Rubber pad
User manual
Warranty card
