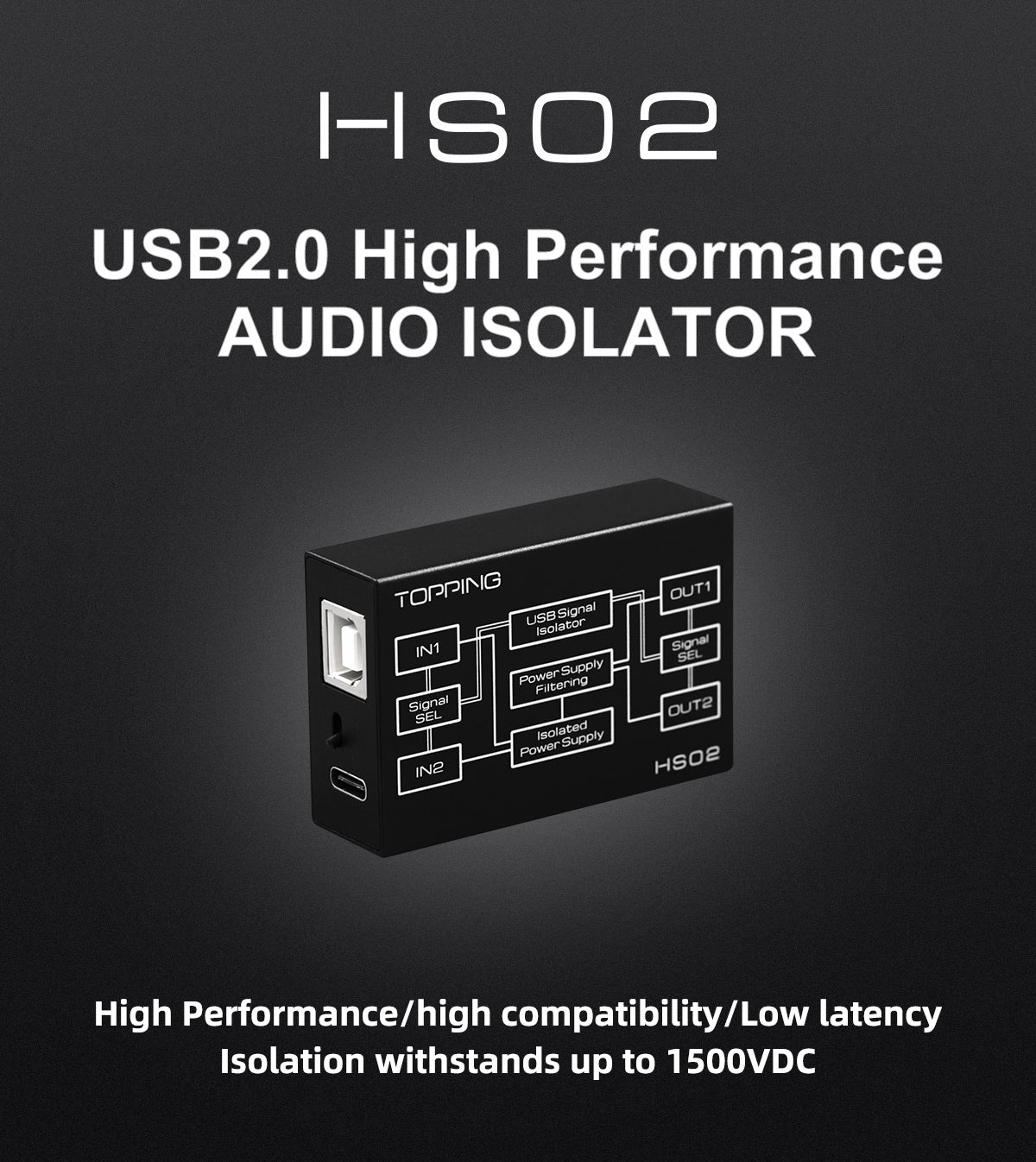

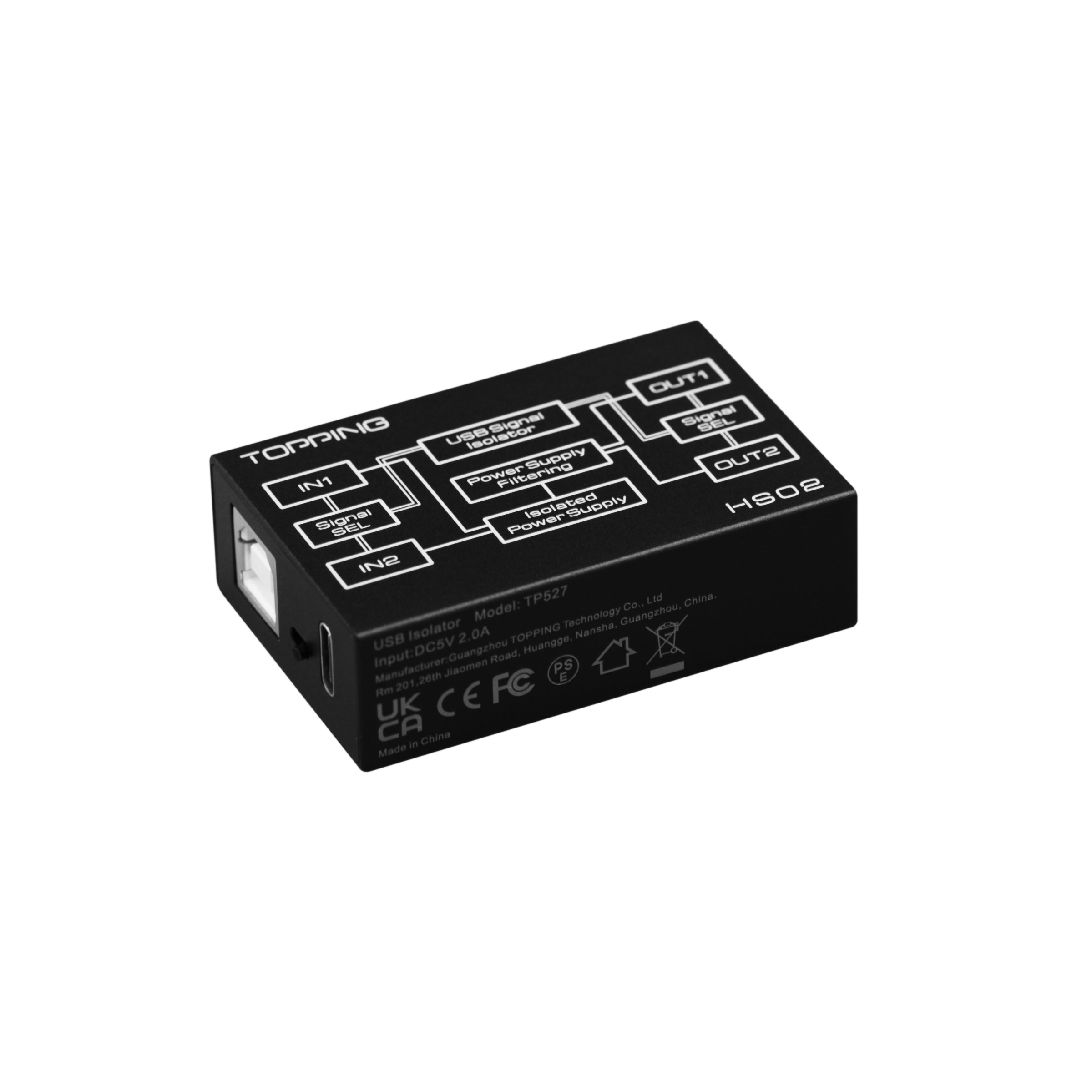

TOPPING HS02 USB2.0 Audio Isolator
Let’s bury ground noise
After painstakingly assembling your audio rig, there’s nothing more annoying than plugging in your headphones and hearing…ground loop noise. It can take hours to troubleshoot this issue—or no time at all with TOPPING’s HS02 Audio Isolator.

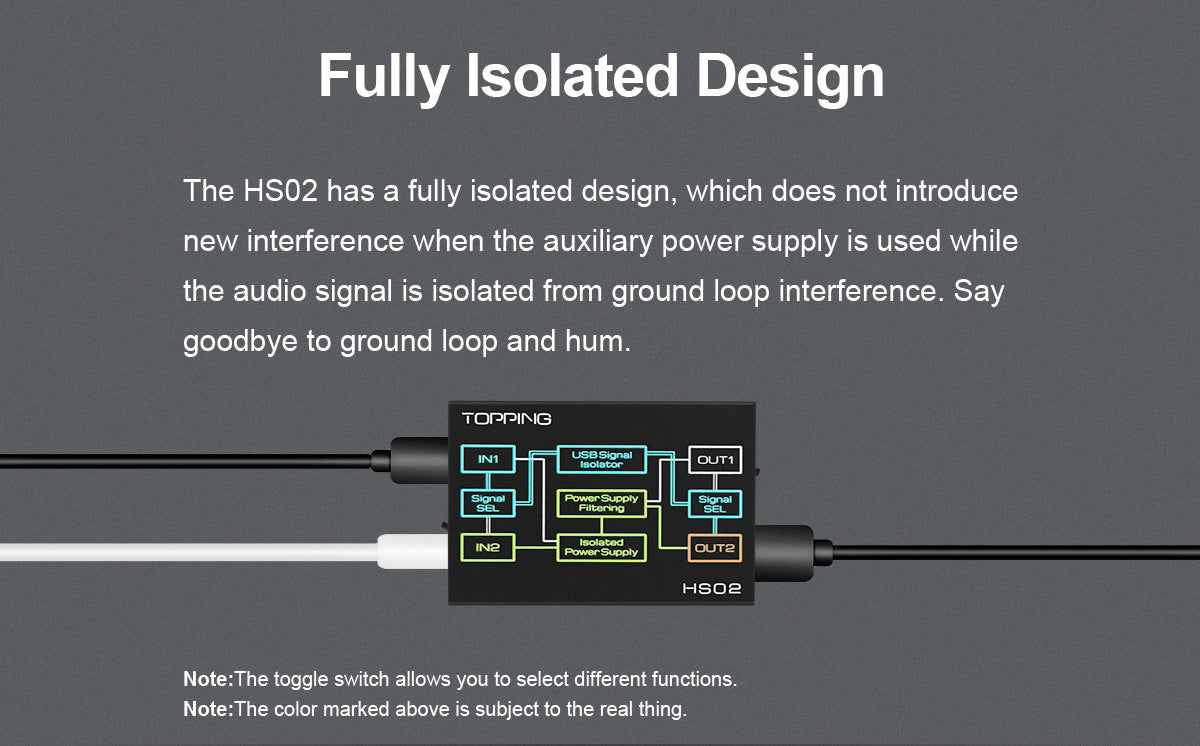

The HS02’s fully-isolated design keeps your audio signal protected from interference, including the auxiliary power supply, stopping ground loop noise in its tracks.
This thing knows its ABCs

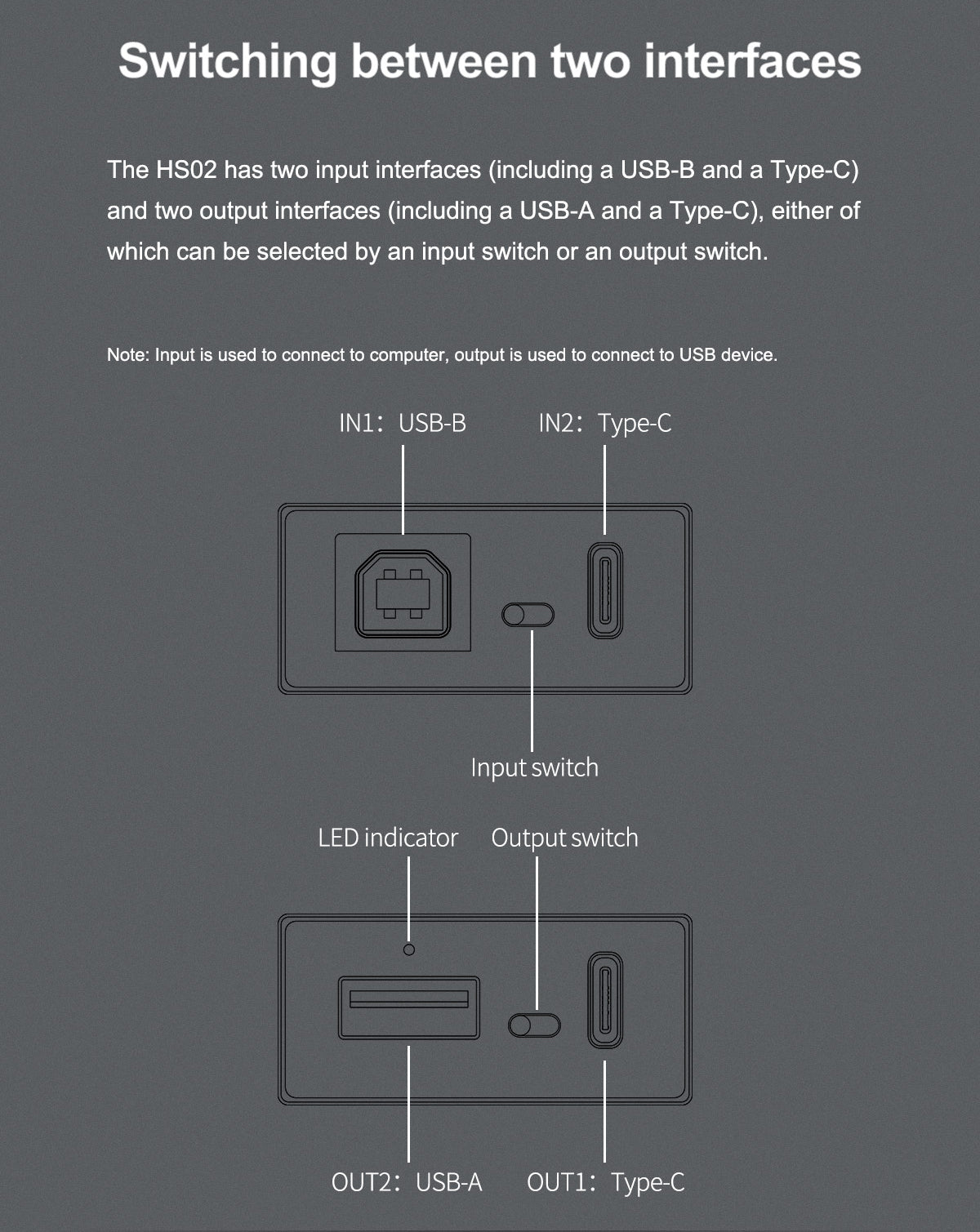

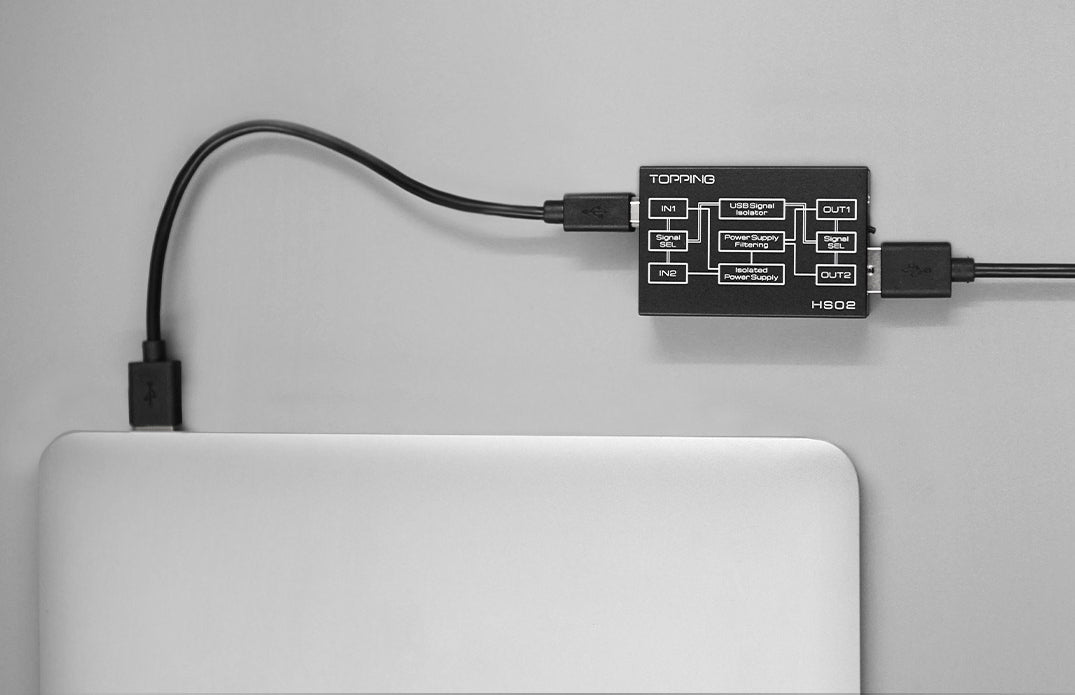

With inputs for USB B and C, and outputs for USB A and C, the HS02 can handle a number of interface scenarios. Simply plug in the cables you need and select the appropriate path with the input and output switches.
Ready for the Hi-fi life

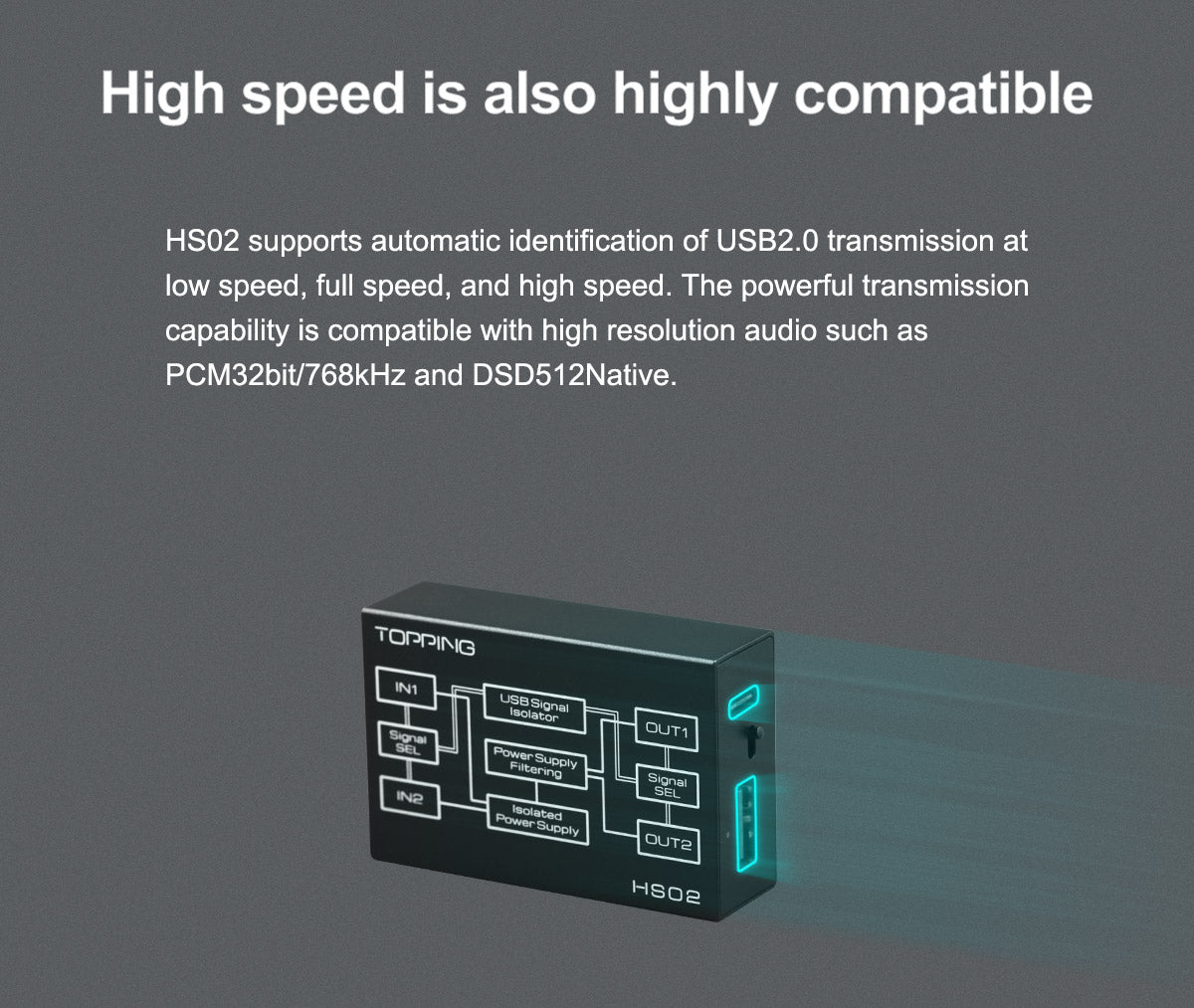

The HS02 is compatible with high resolution audio such as 32-bit/768kHz PCM and DSD512 Native.
Need for speed

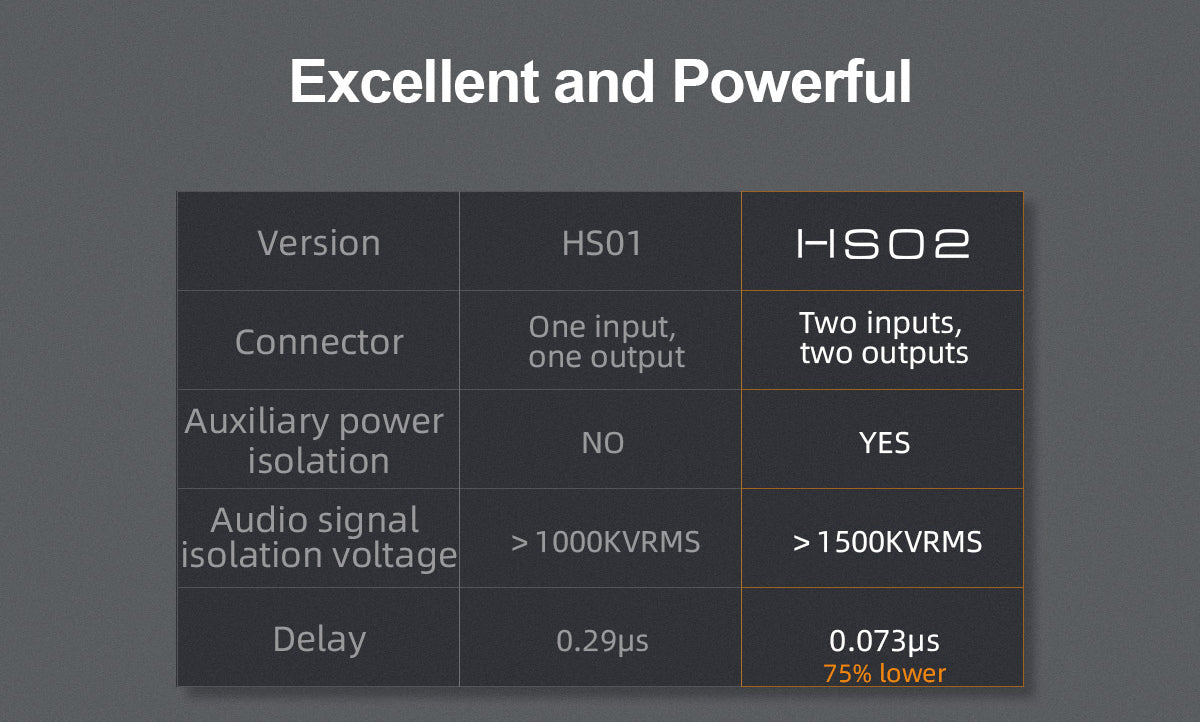

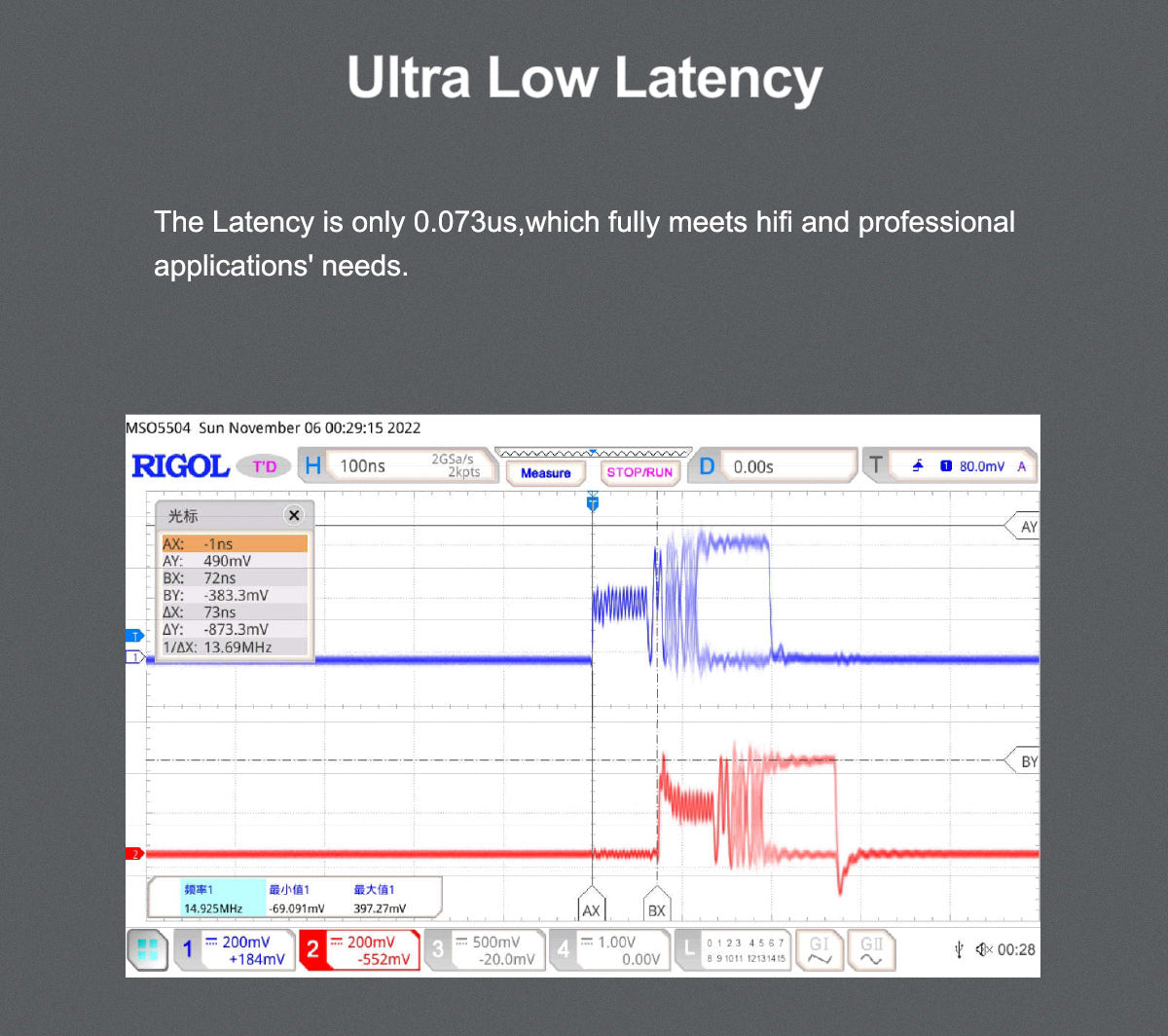

With a latency speed of 0.073us, the HS02 fully meets hi-fi and professional application needs.
Works with all power requirements

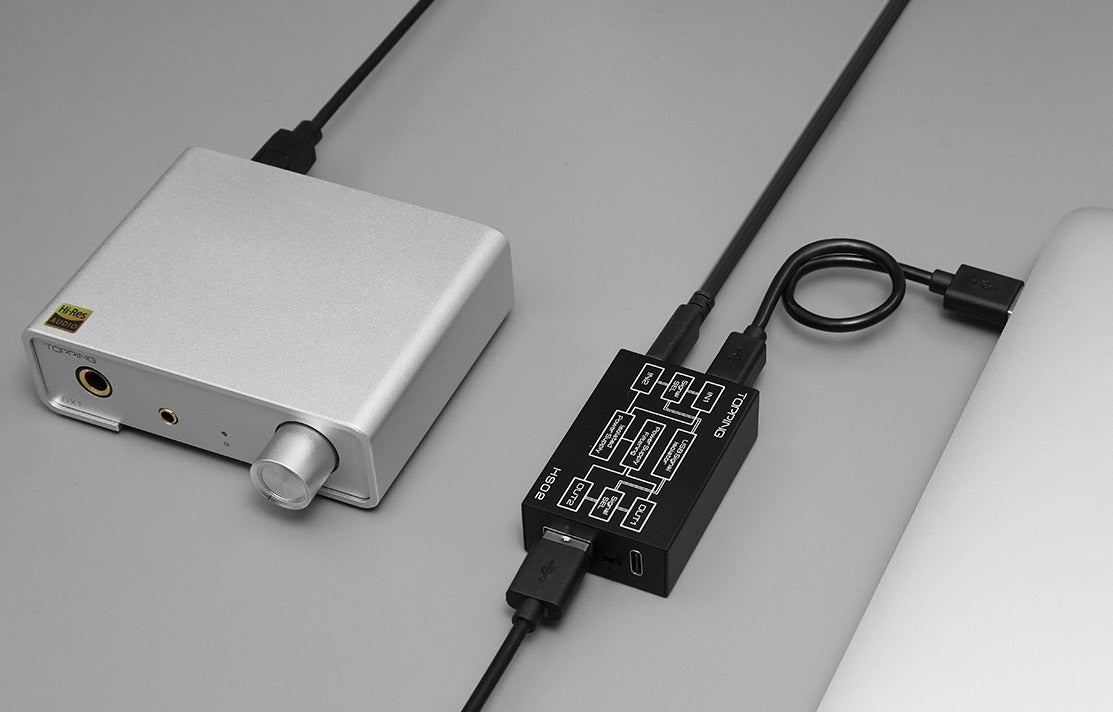

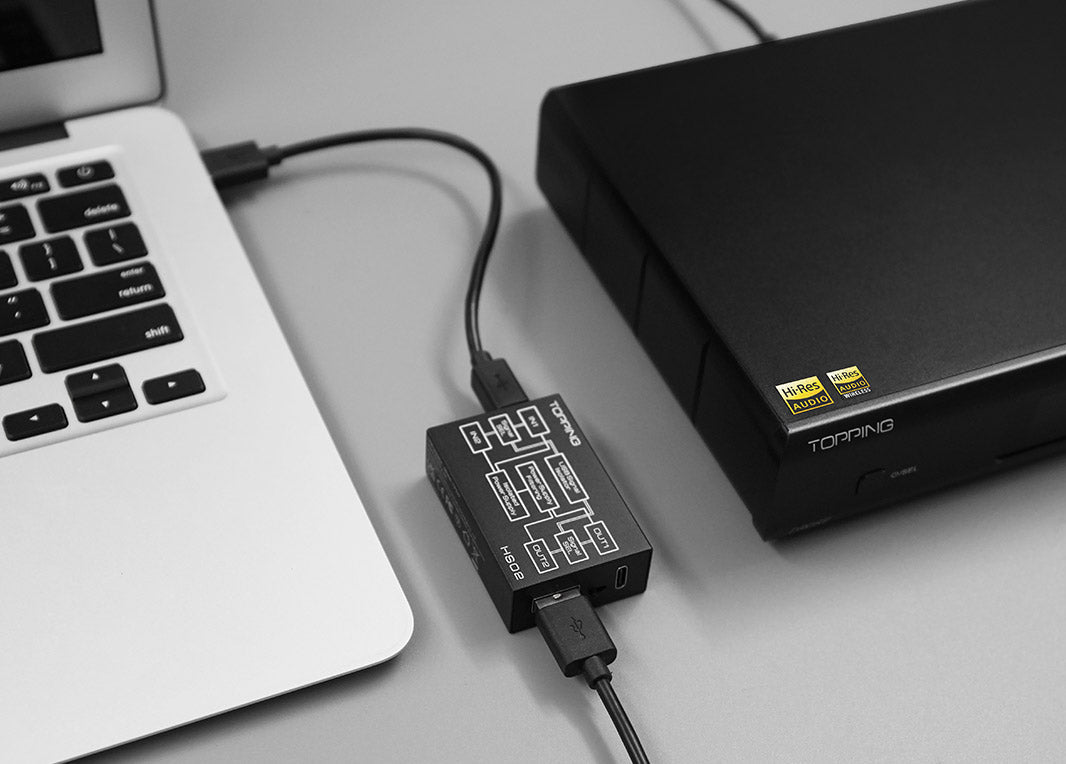

If your DAC receives audio information and power from the same USB cable, simply plug a 5V charger into the USB-C input of the HS02. Don’t worry: the auxiliary power supply will not add noise. If your DAC only receives audio information from the USB input, plugging a 5V charger into the HS02 isn’t necessary.

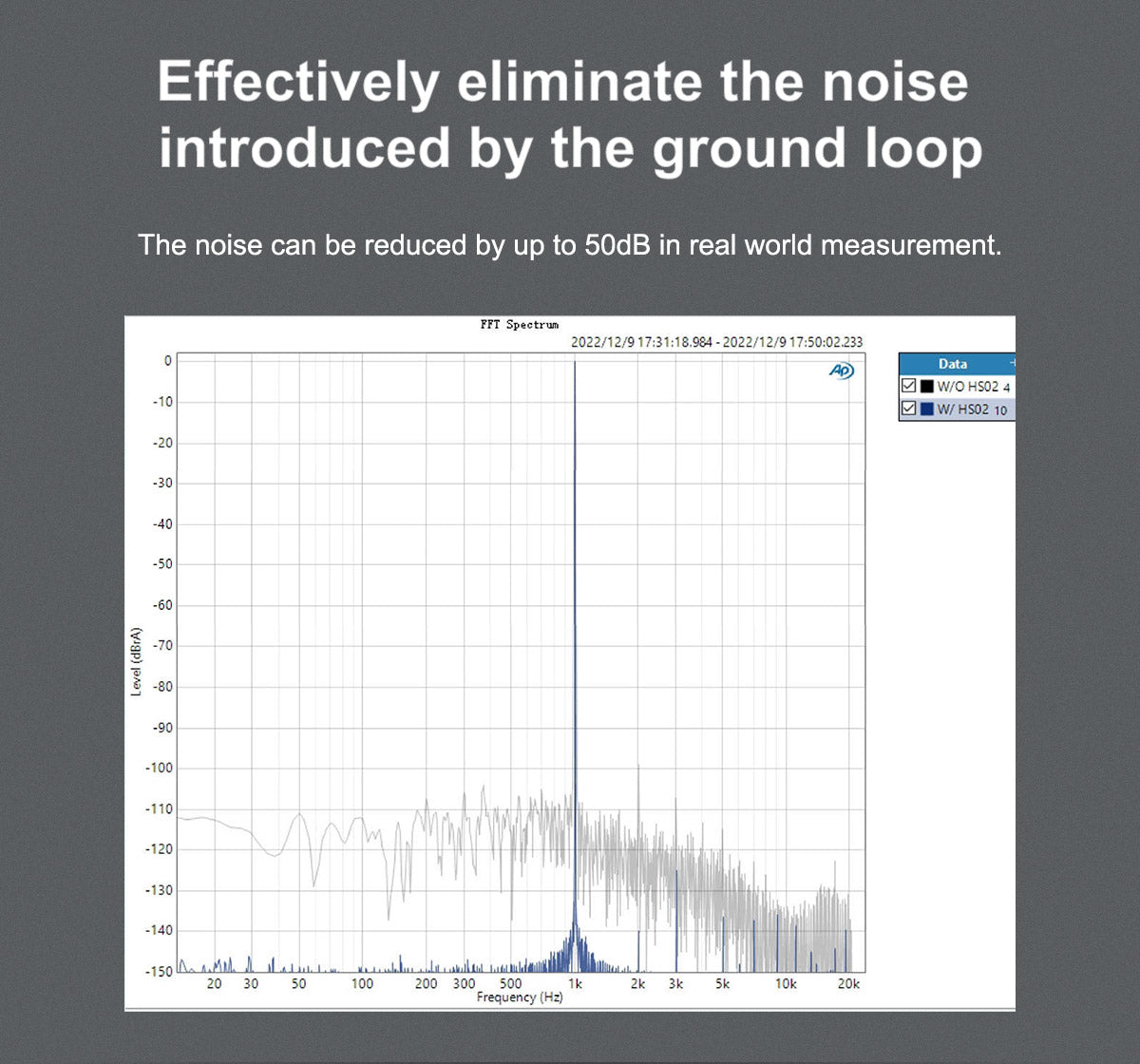

- Reduces up to 50dB of ground loop noise
- 0.074us latency speed
- 32-bit/768kHz PCM compatible
- DSD512 Native compatible
- Audio signal isolation voltage: >1500KVRMS
- Auxiliary power isolation: Yes
- Inputs: USB-B, USB-C
- Outputs: USB-A, USB-C

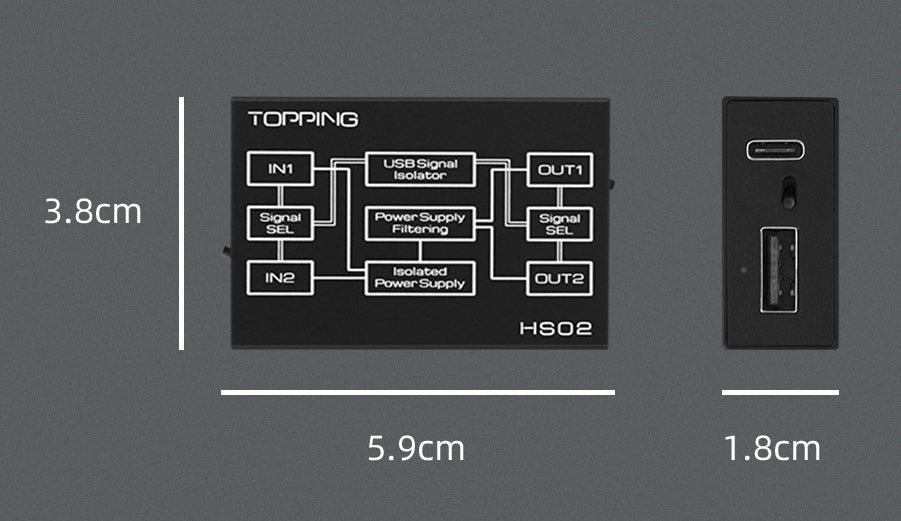

- Dimensions: 5.9cm x 3.8cm x 1.8cm

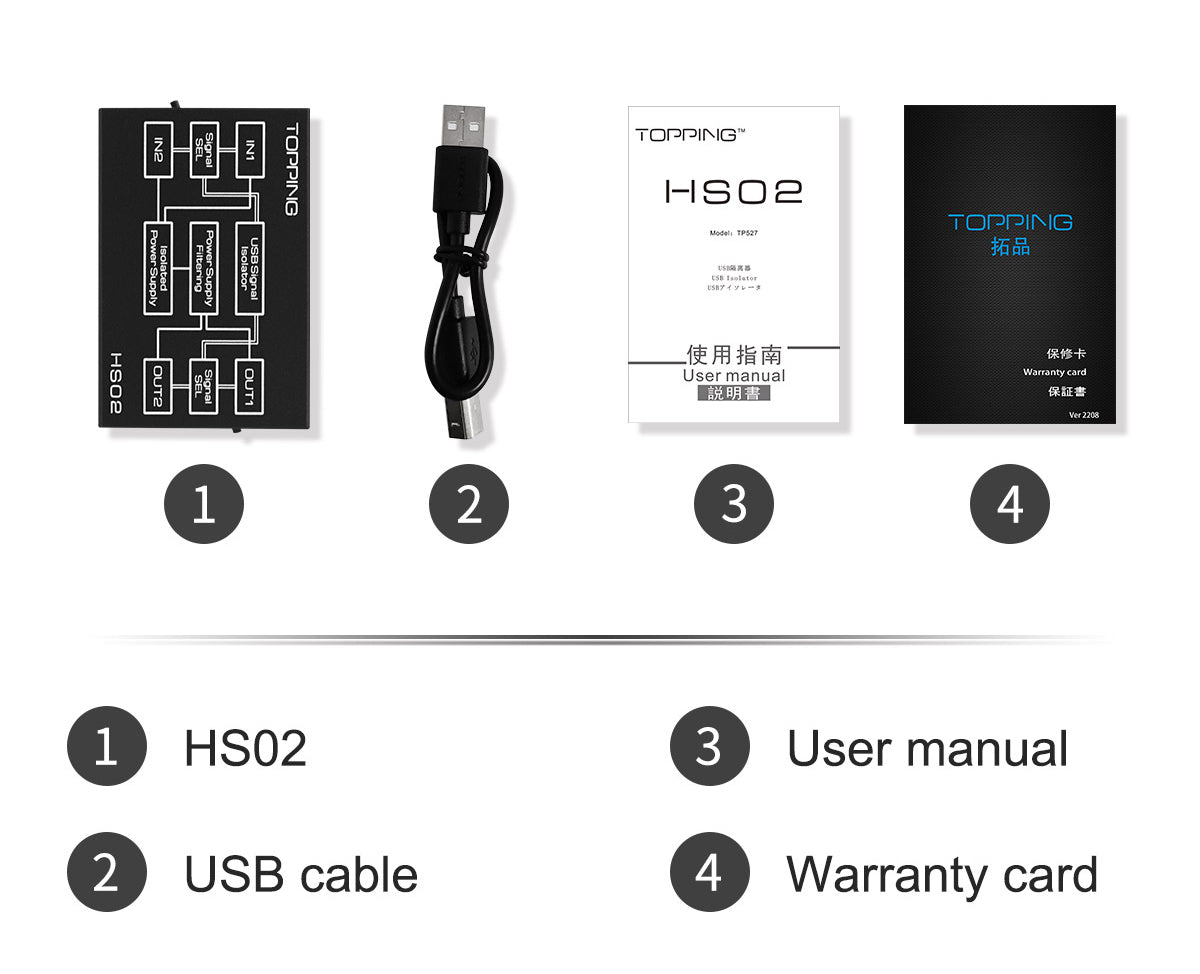

- HS02 Audio Isolator
- USB cable
- User manual
- Warranty card
