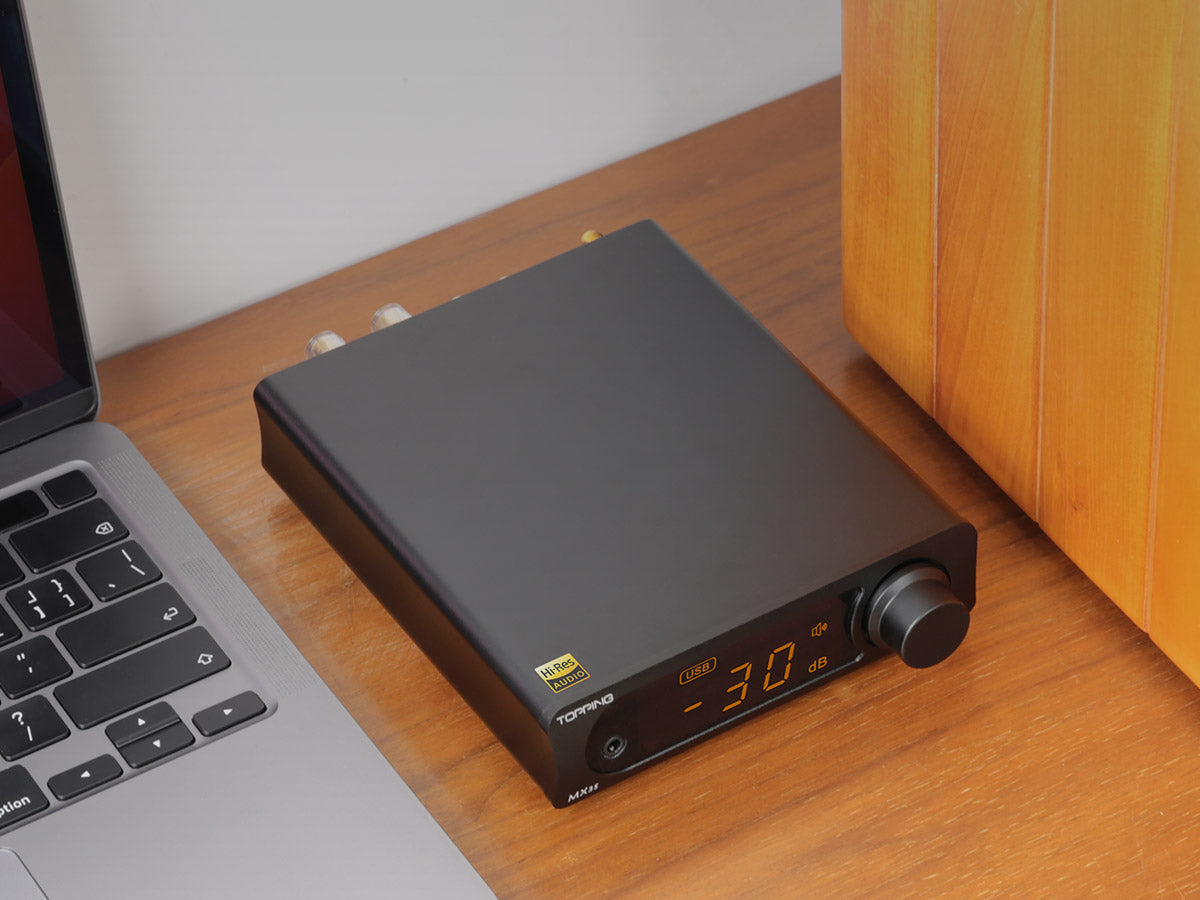

TOPPING MX3s Desktop DAC/ Headphone Amp/ Power Amp

$199

Request A Price Match

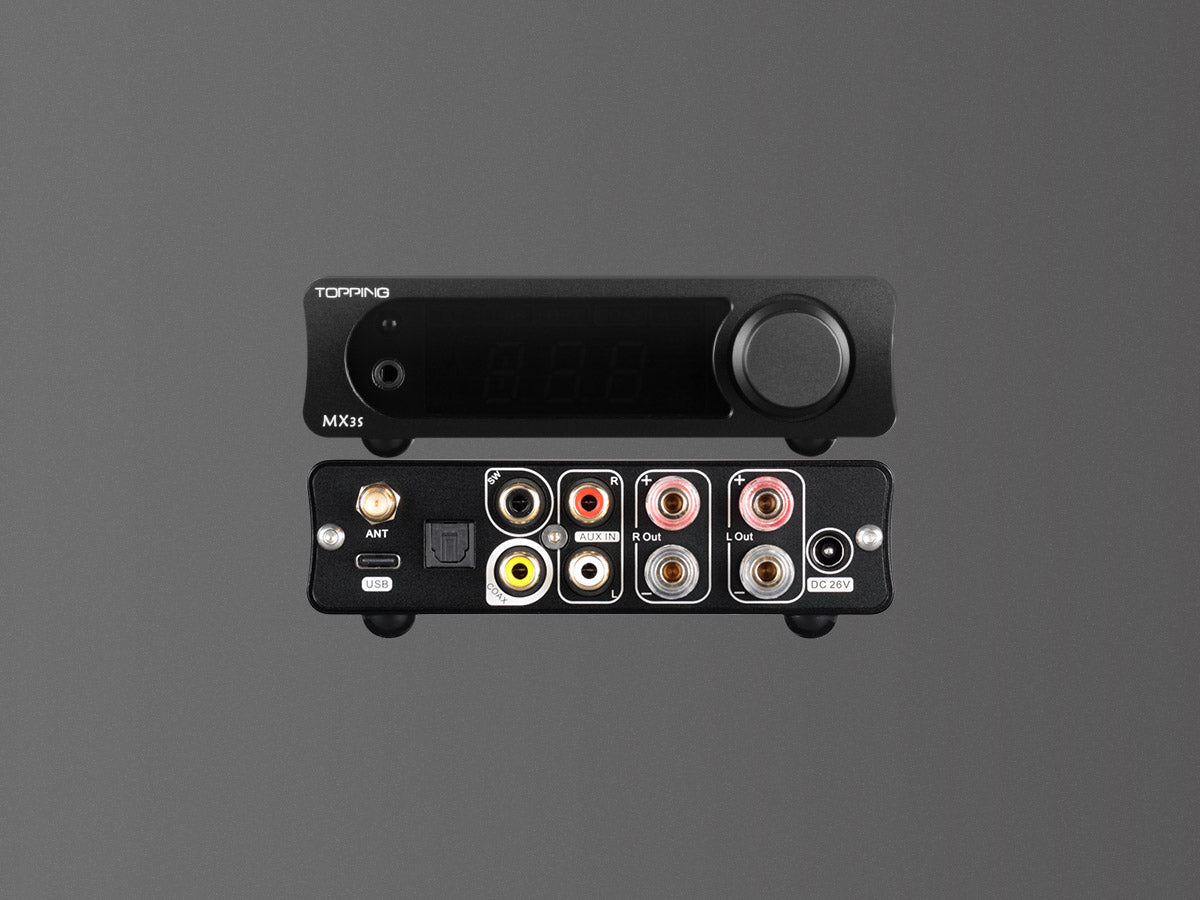

A system in a box

The TOPPING MX3s is a comprehensive audio solution that combines a DAC, headphone amplifier, and power amplifier. With this versatile system, you can experience your favorite music and movies through a variety of devices, including in-ear monitors, full-sized headphones, and even a 2.1 speaker system.

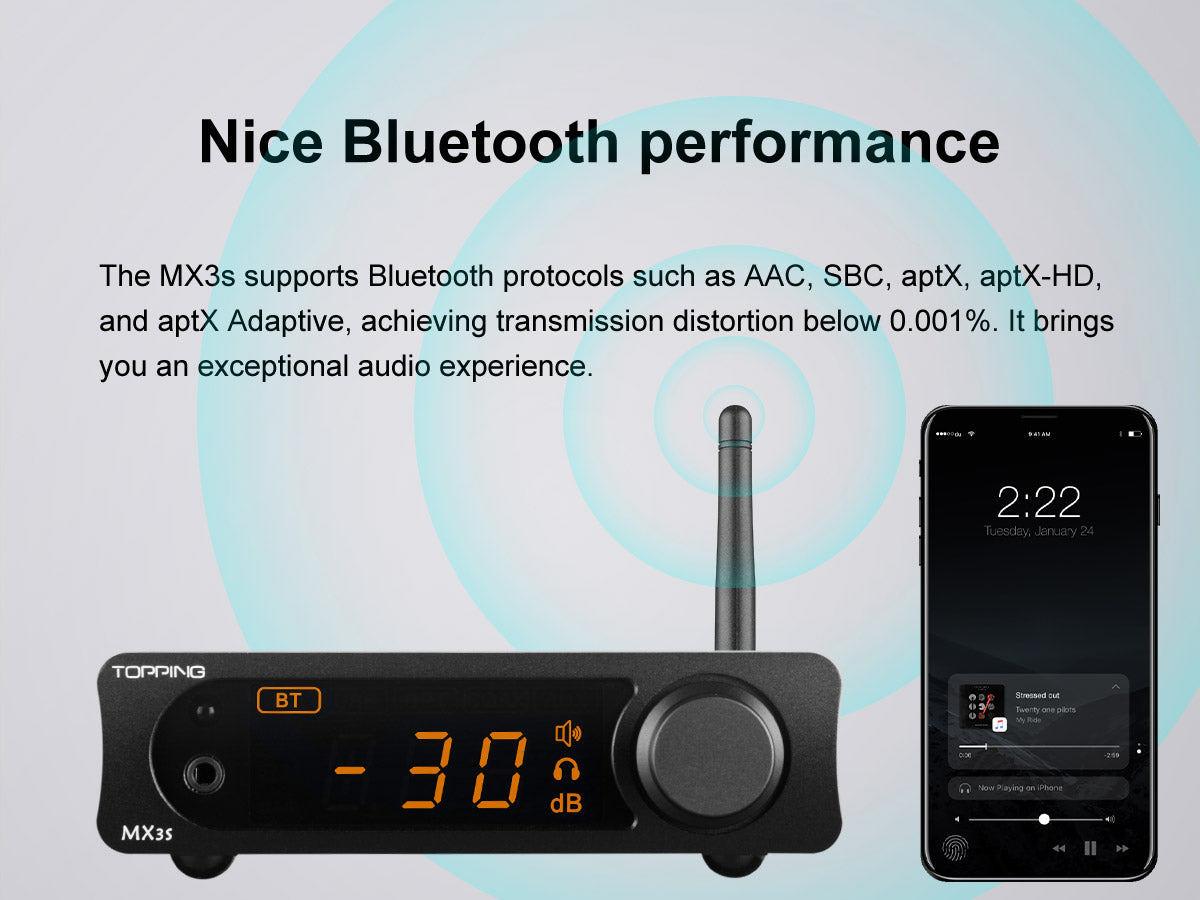

24-bit Bluetooth

Stream hi-def music from all of your devices, such as tablets, phones, and laptops. The 24-bit Bluetooth chip supports AAC, SBC, aptX, aptX HD, and aptX Adaptive, achieving lossless transmission with distortion below 0.001%.

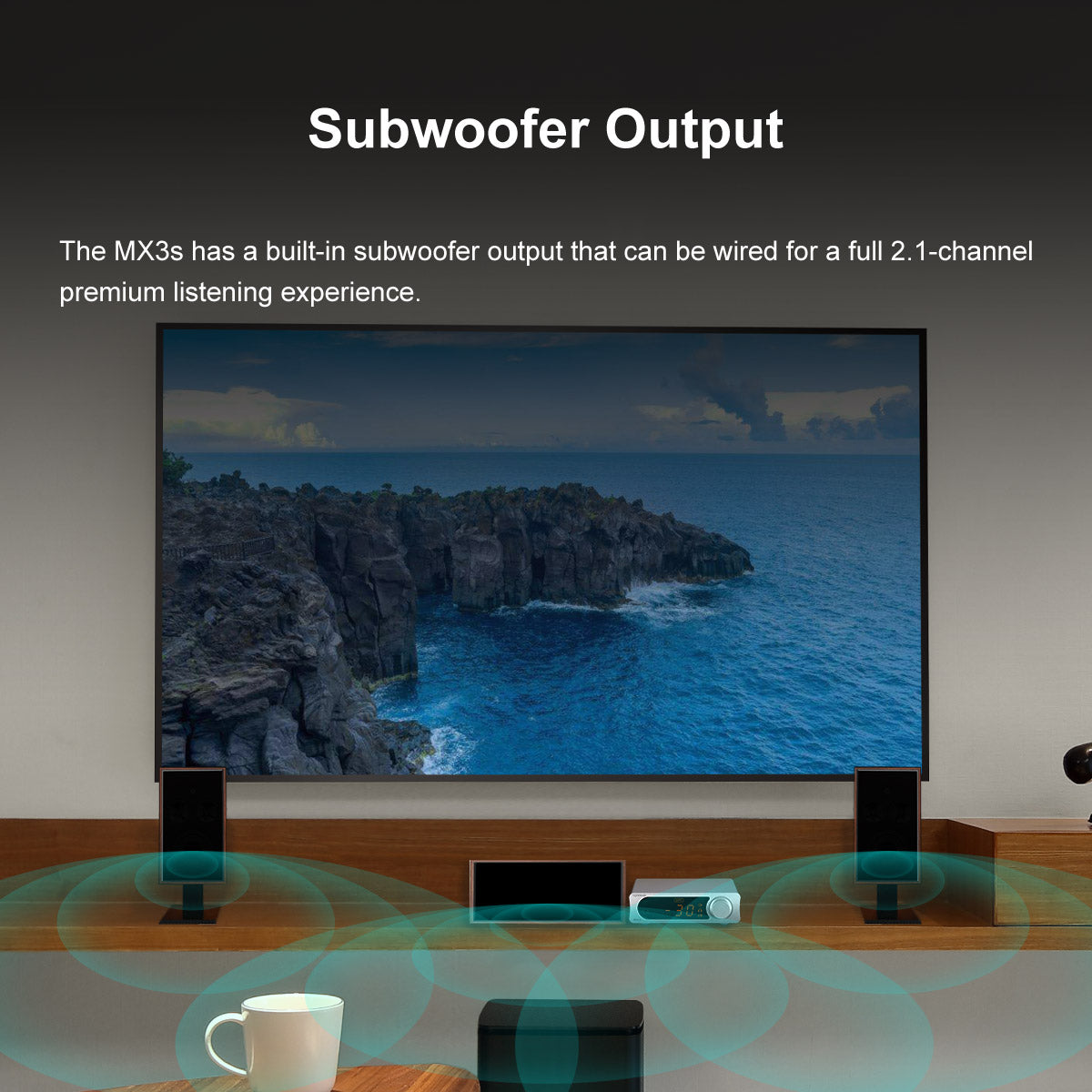

Subwoofer output

Don’t just hear the music—feel it with a subwoofer. Connect a subwoofer to the MX3s for a full 2.1-channel premium entertainment experience.

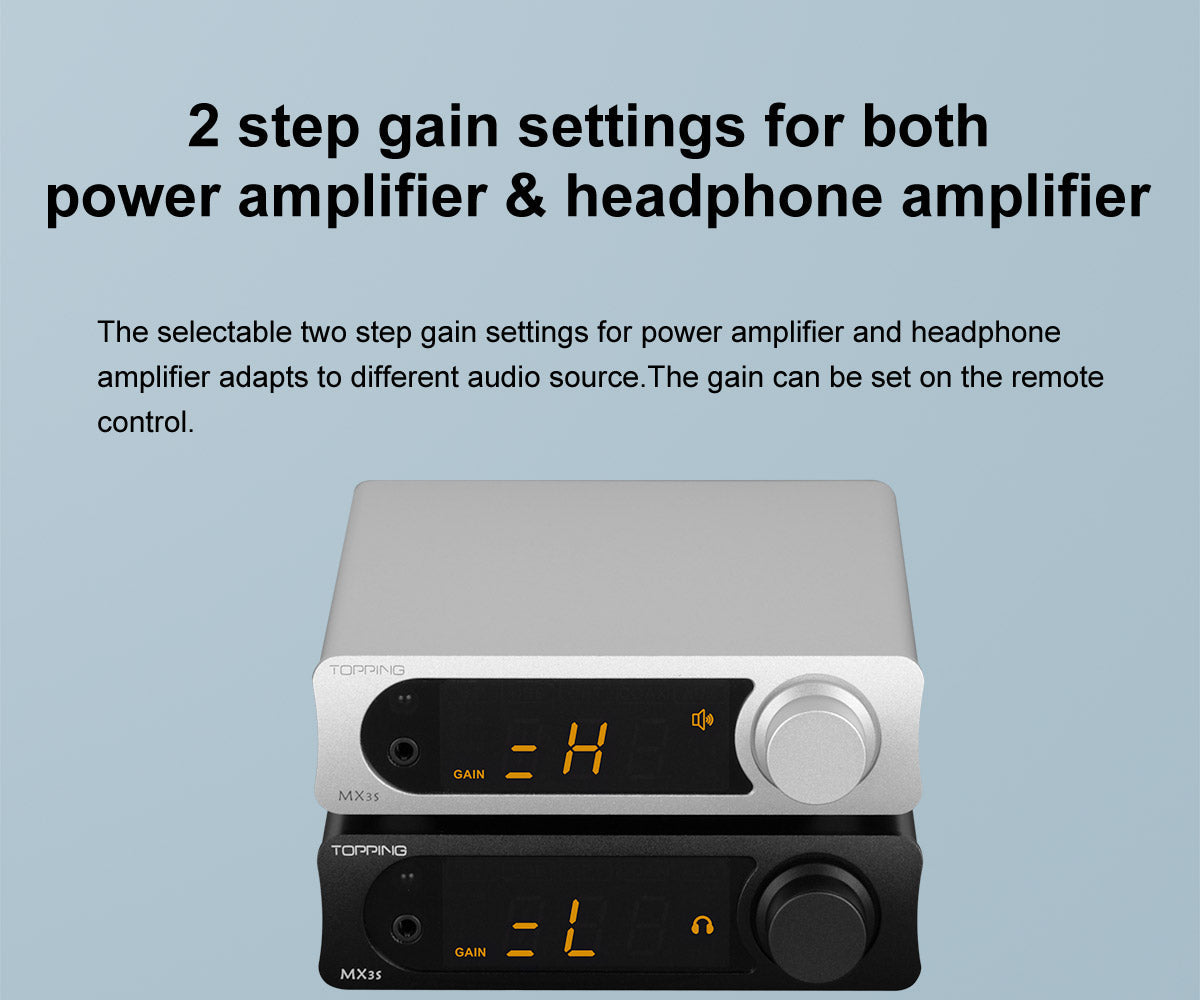

Two-step gain

The MX3s plays well with headphones and speakers of all impedances. Choose high gain or low gain, whether you’re listening to a pair of headphones through the headphone output or a pair of speakers + subwoofer.

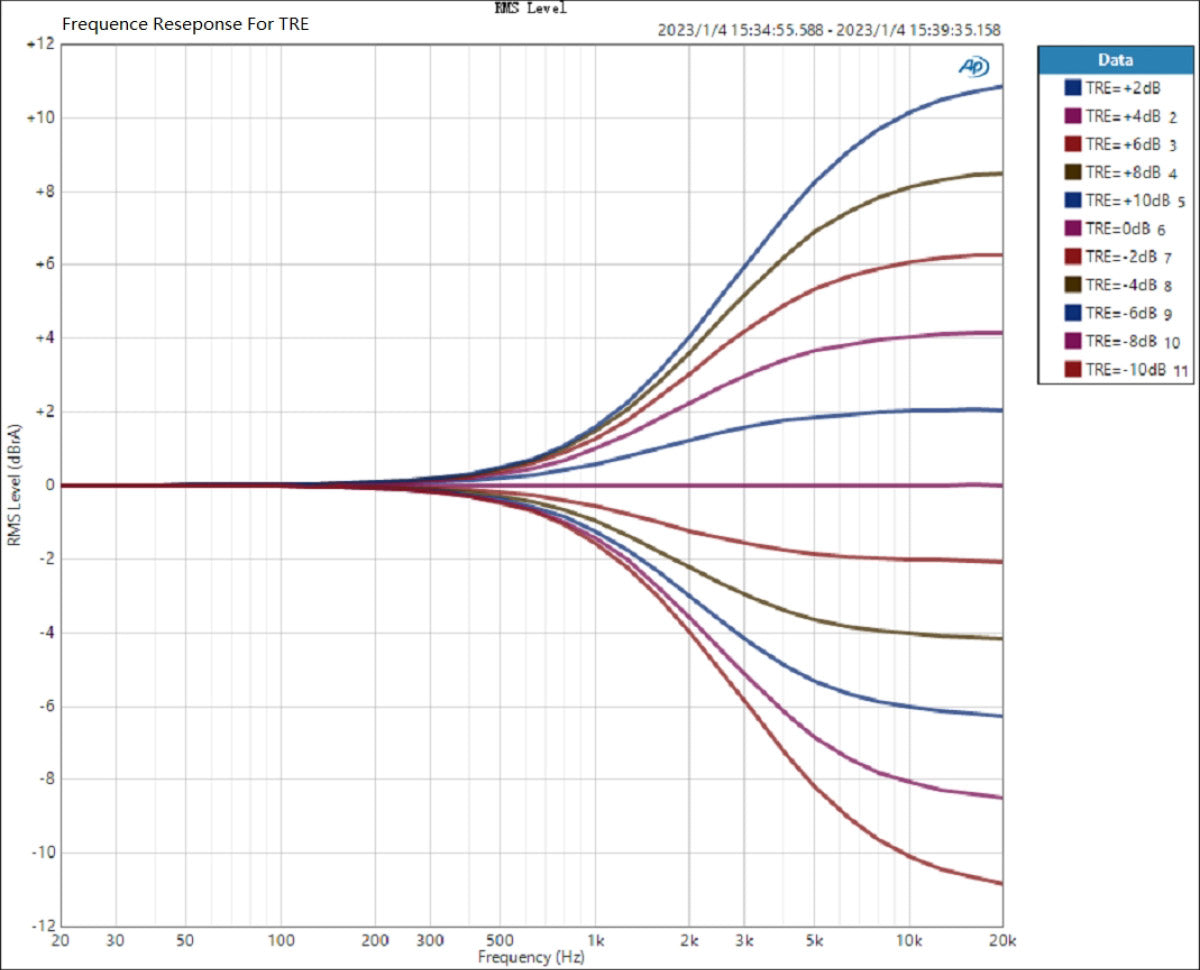

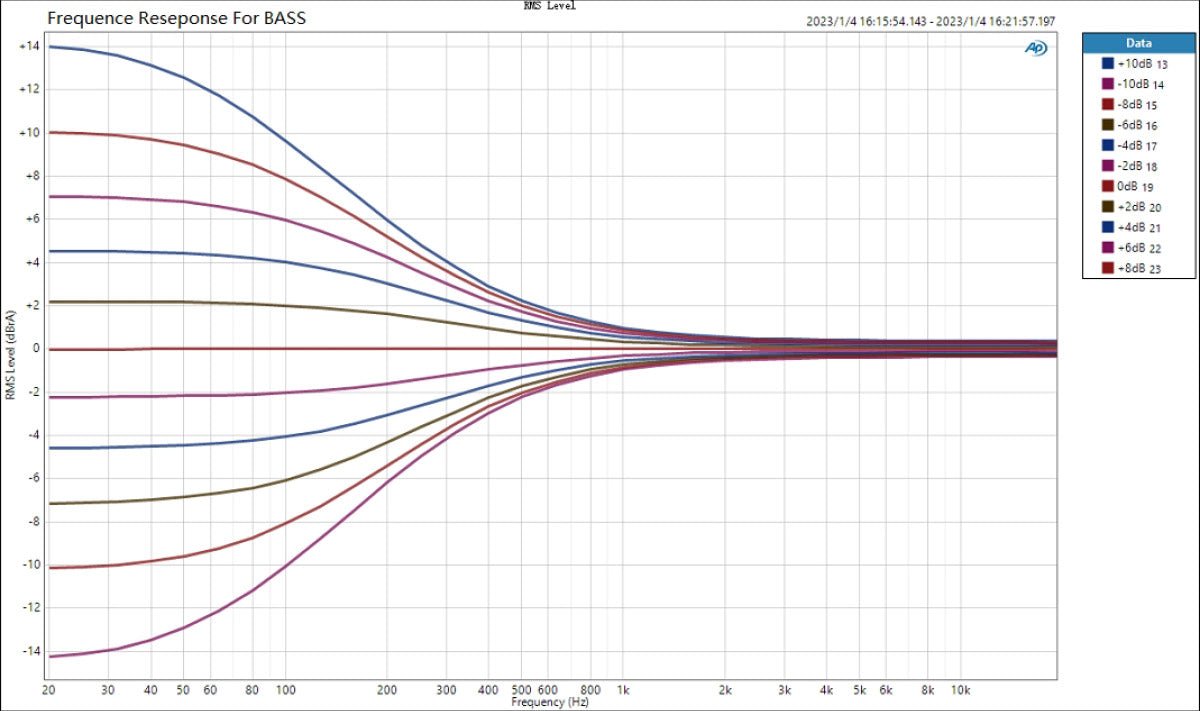

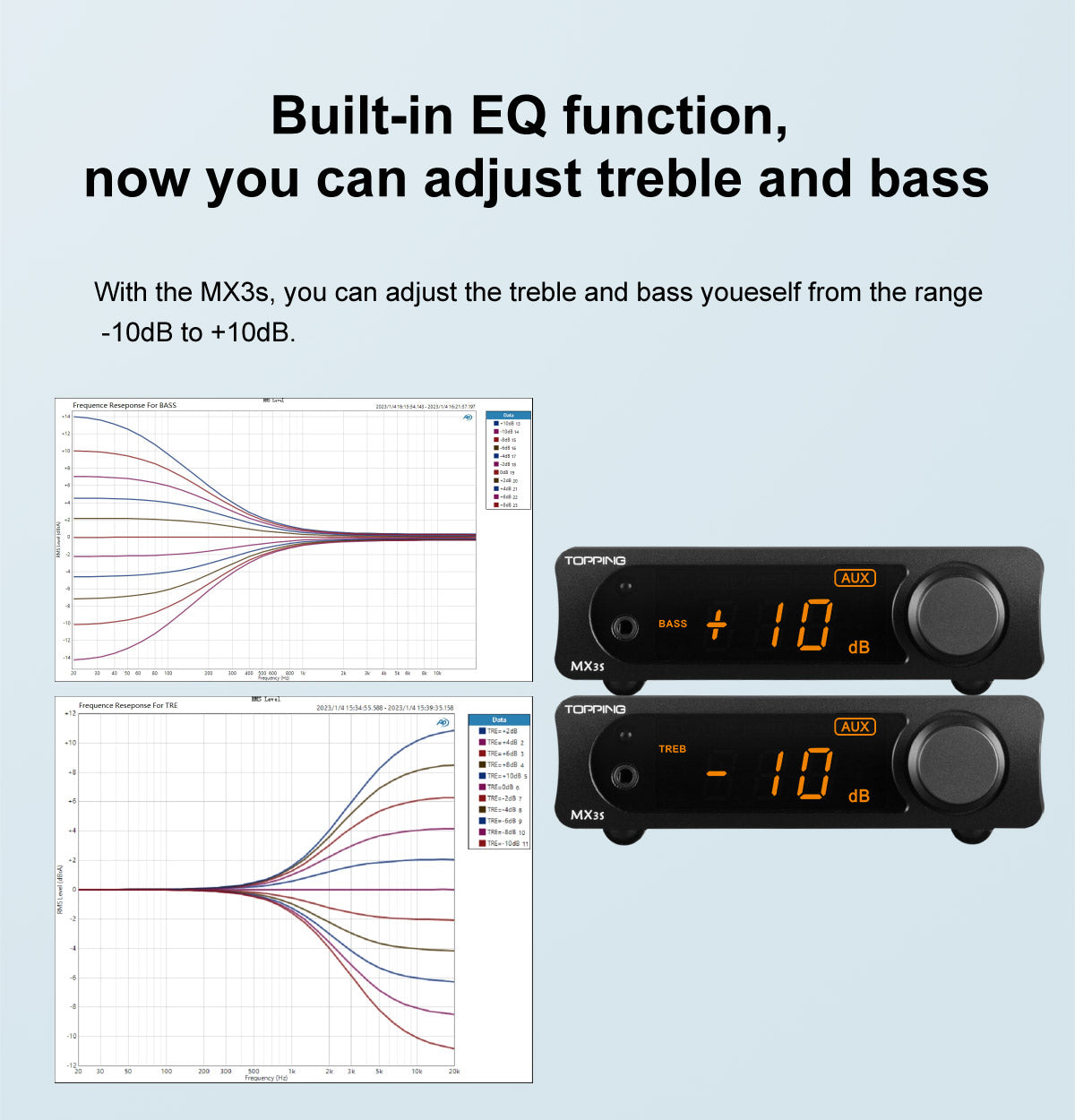

On-the-fly EQ adjustments

Grab your remote and make quick adjustments to the bass and treble. Movie night? Increase the treble to bring out that too-subtle dialogue. House party? Bump the bass by a full 10 decibels.

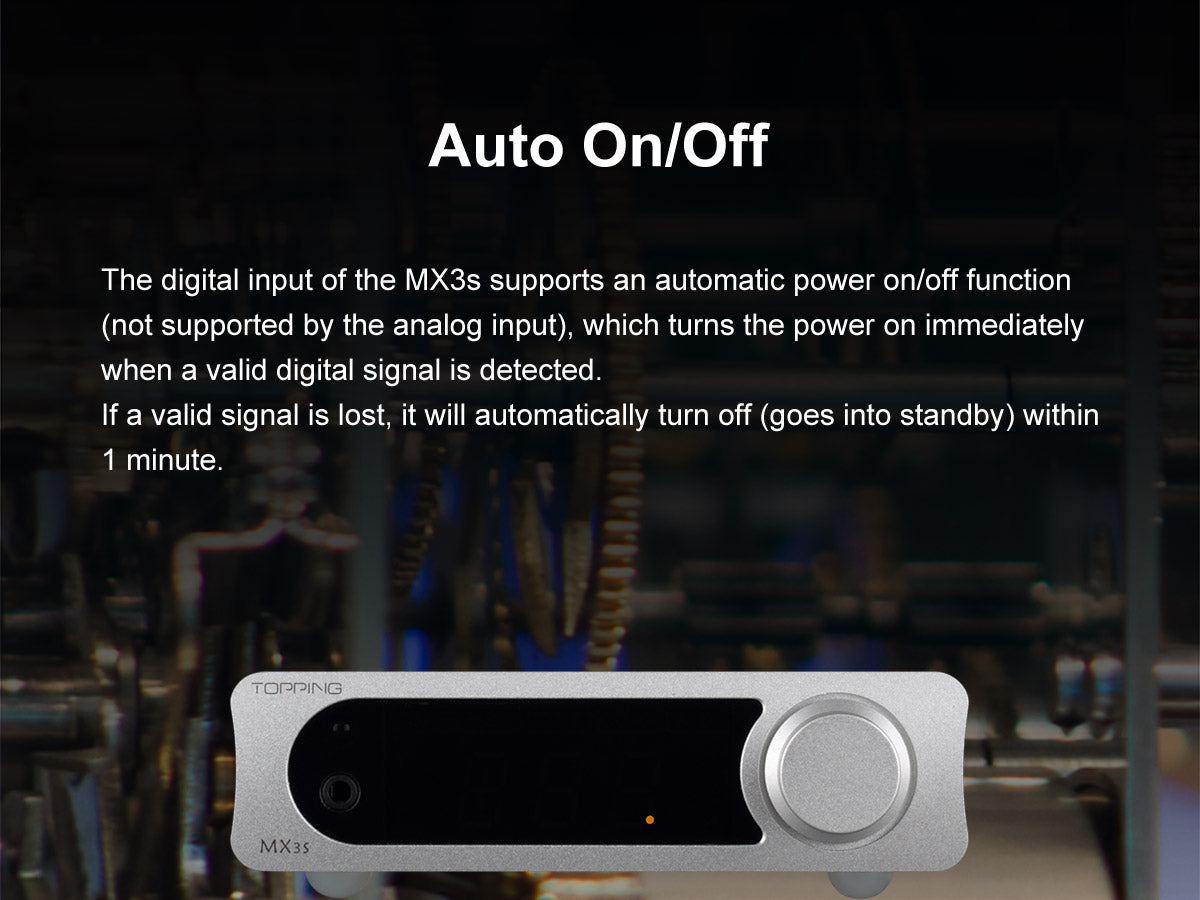

Auto off

A true set-it-and-forget-it unit, the MX3s will automatically go into standby mode sixty seconds after you stop playing music.

Product highlights

  • 62W x 2 Class D speaker output
  • 700mW x 2 headphone amp

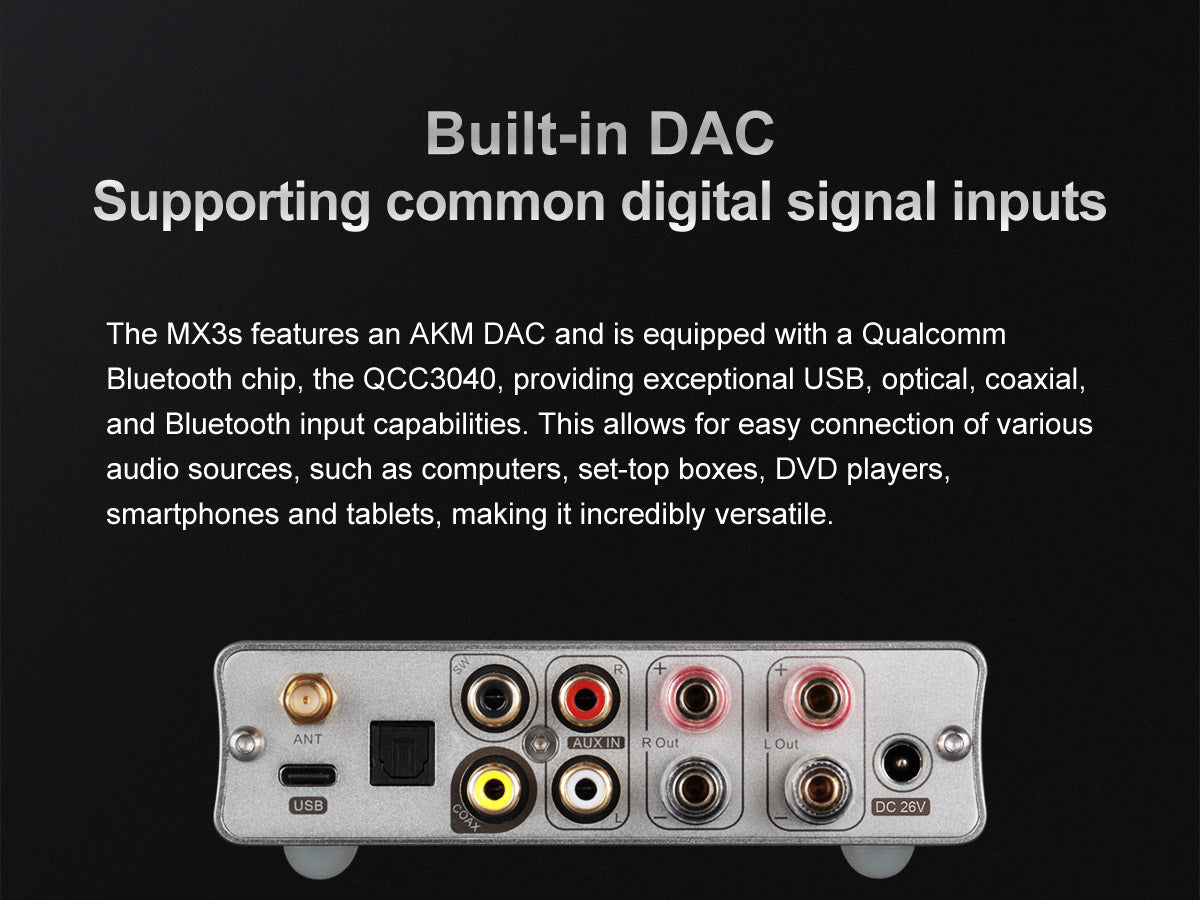

  • 24-bit/192kHz AKM DAC chip
  • Bluetooth support
  • Bass & treble EQ
  • Subwoofer out
  • Remote control

Specs

  • Max playback support
    • USB: 24-bit/192kHz
    • Coax/opt: 24-bit/192kHz
    • Bluetooth: AAC, SBC, aptX, aptX HD, aptX Adaptive

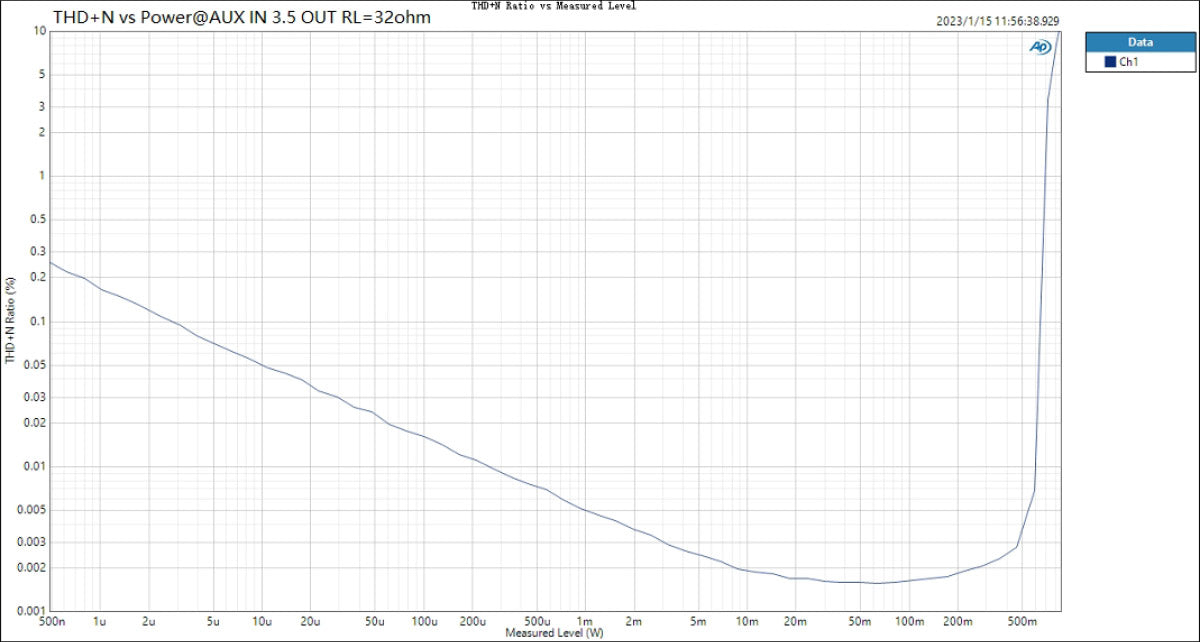

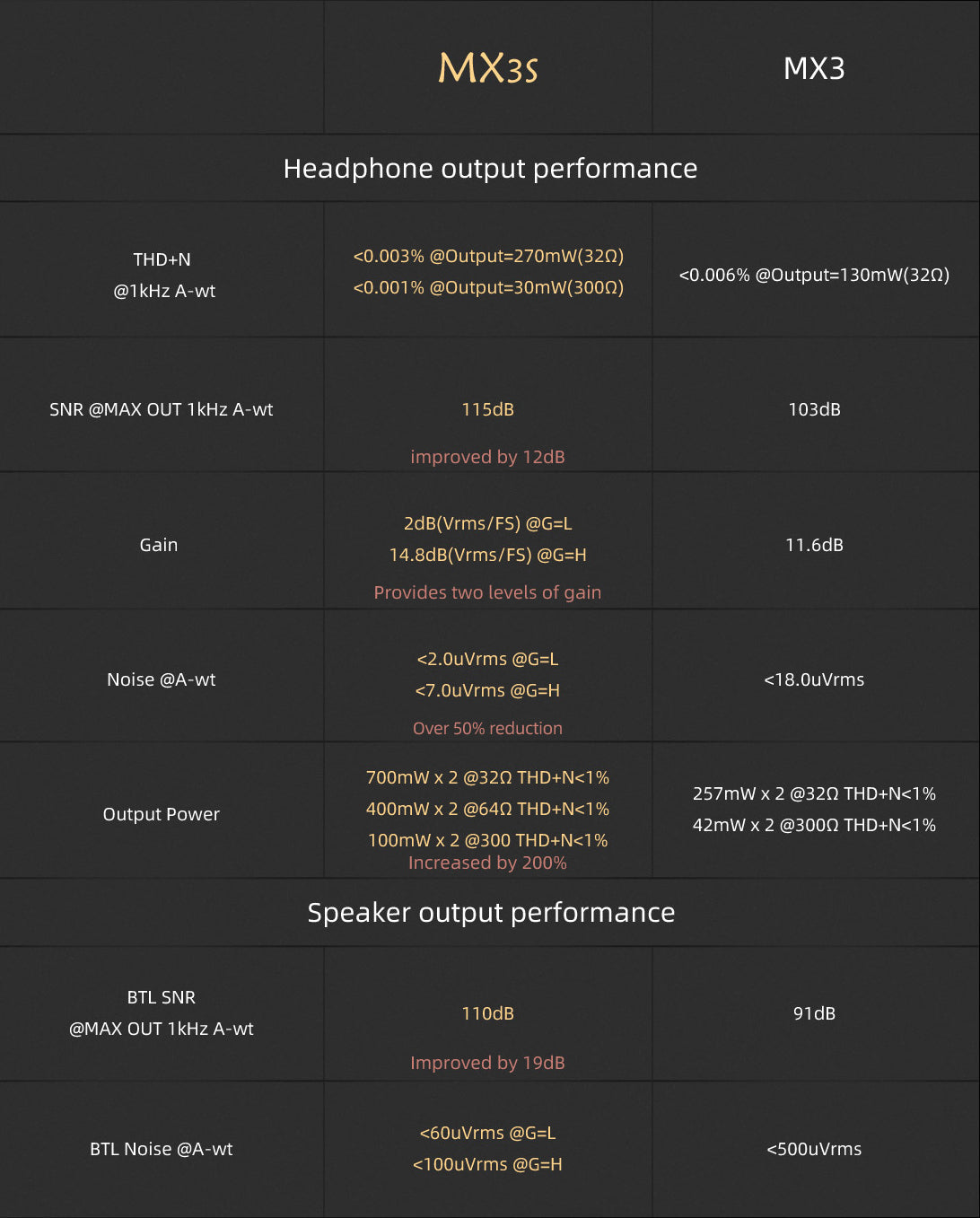

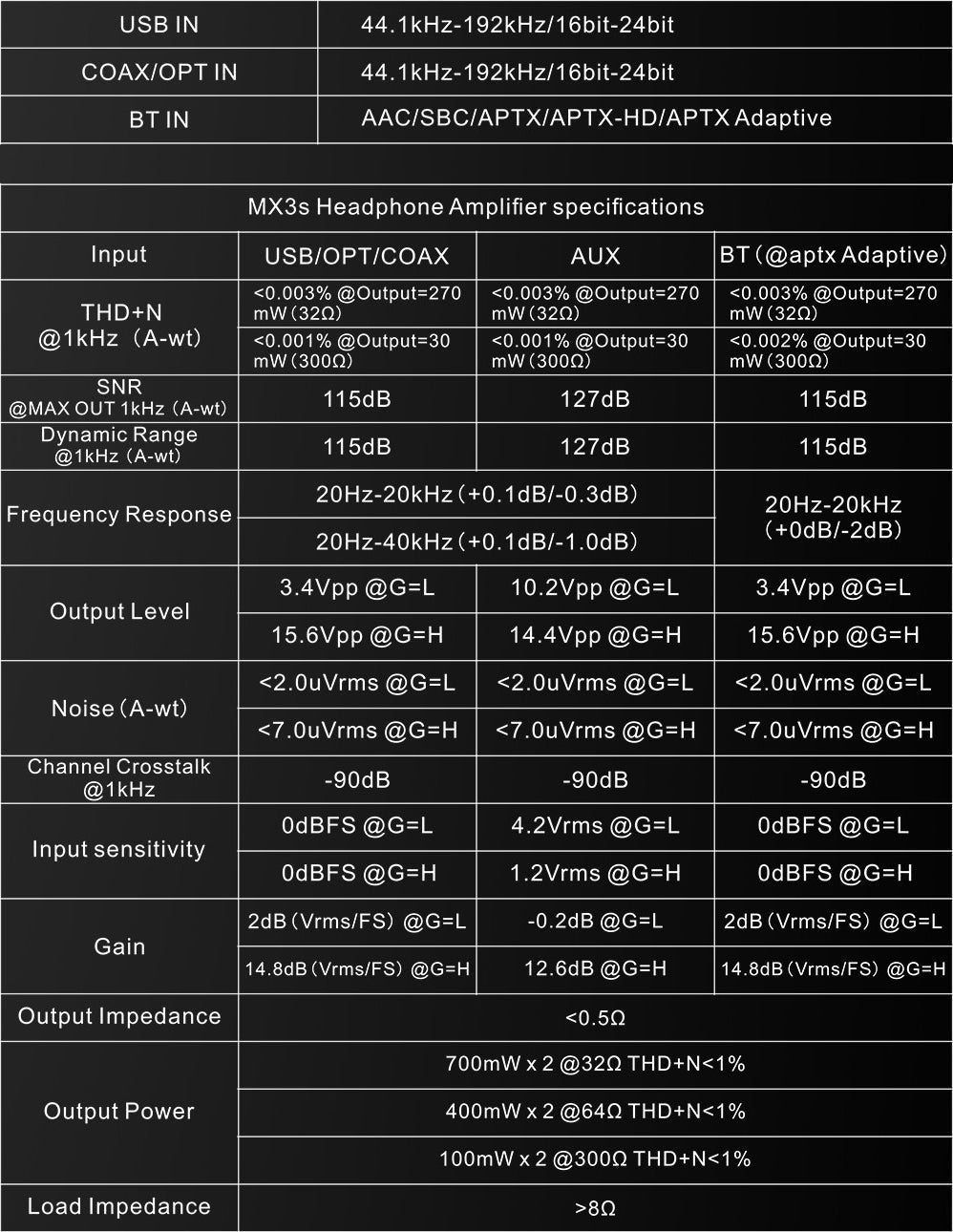

  • MX3s headphone amplifier specs

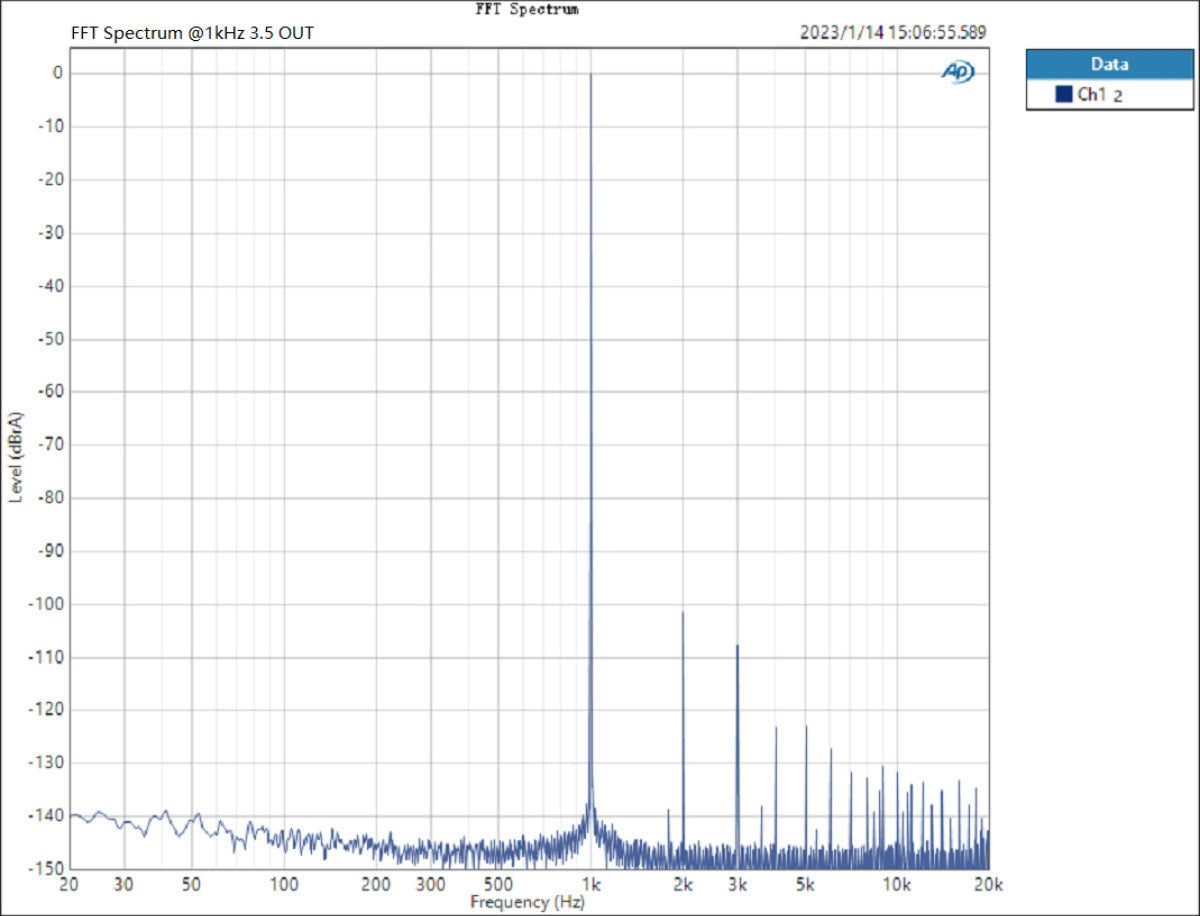

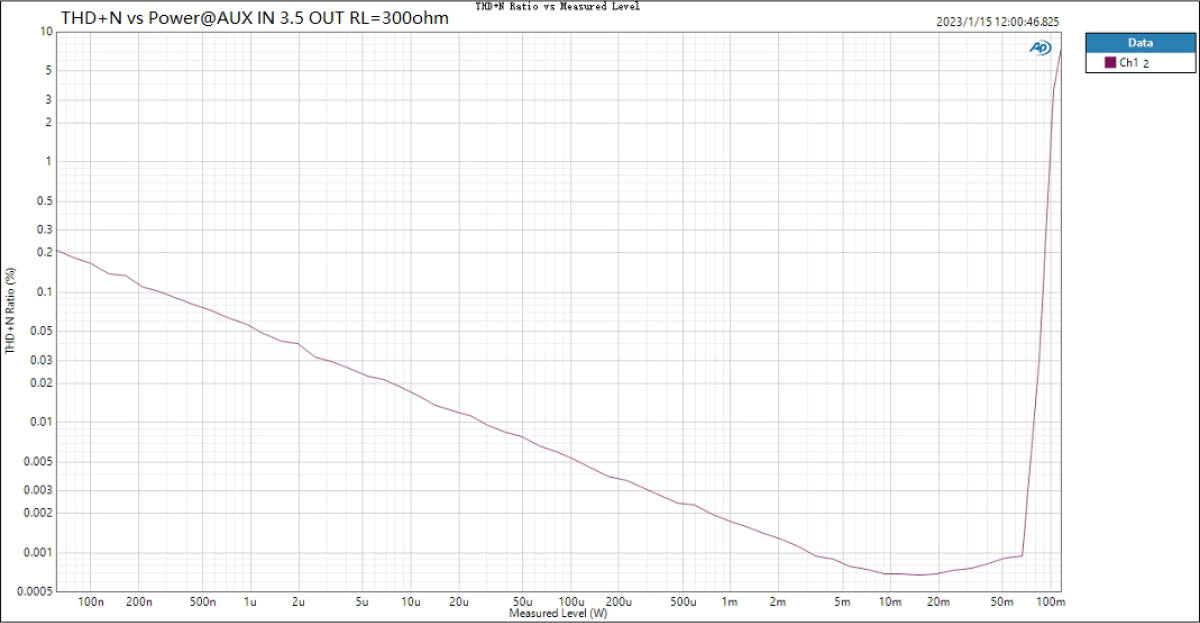

    • THD+N@1kHz (A-wt)
      • USB/OPT/COAX: <0.003% @270mW (300Ω) / <0.001% @30mW (300Ω)
      • AUX: <0.003% @270mW (32Ω) / <0.001% @30mW (300Ω)
      • Bluetooth (aptX adaptive): <0.003% @270mW (32Ω) / <0.002% @30mW (300Ω)

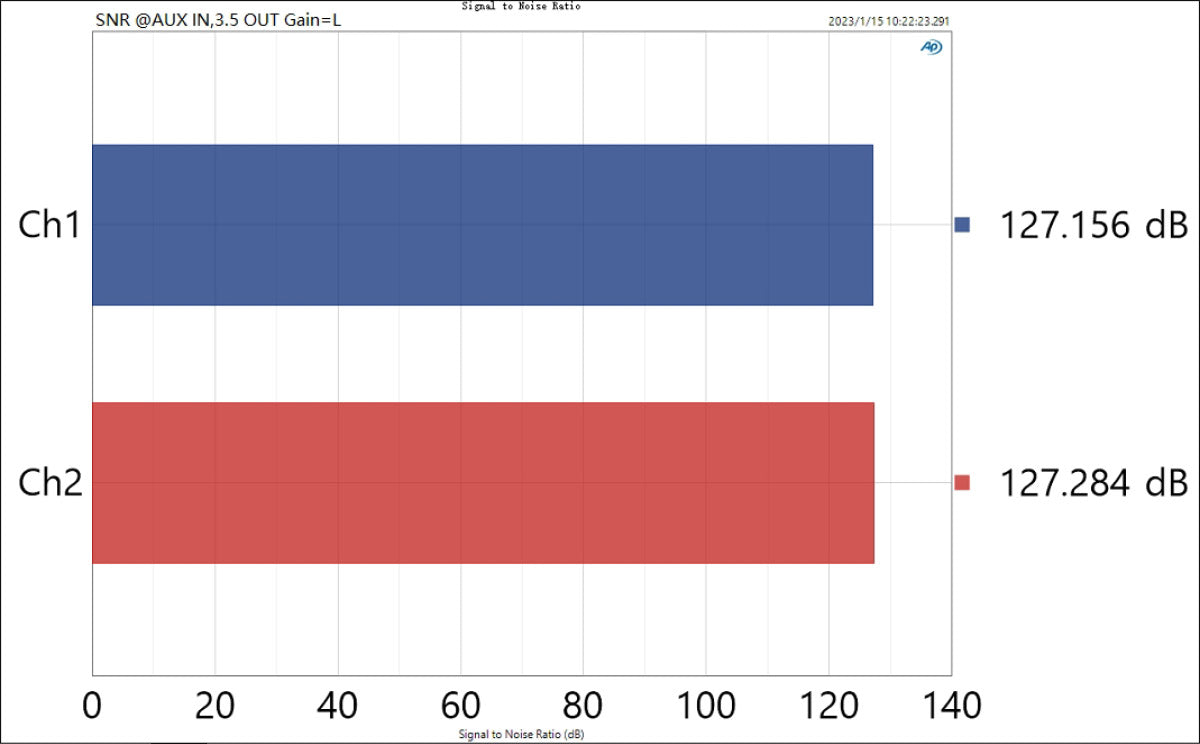

    • SNR @ 1kHz (A-wt)
      • USB/OPT/Coax: 115dB
      • AUX: 127dB
      • Bluetooth: 115dB
    • Dynamic range @1kHz (A-wt)
      • USB/OPT/Coax: 115dB
      • AUX: 127dB
      • Bluetooth: 115dB
    • Frequency response
      • USB/OPT/Coax: 20Hz - 20kHz (+0.1dB/-0.3dB)
      • AUX: 20Hz - 20kHz (+0.1dB/-0.1dB)
      • Bluetooth: 20Hz - 20kHz
    • Output level
      • USB/OPT/Coax: 3.4Vpp (low gain) / 15.6Vpp (high gain)
      • AUX: 10.2Vpp (low gain) / 14.4Vpp (high gain)
      • Bluetooth: 3.4Vpp (low gain) / 15.6Vpp (high gain)
    • Noise (A-wt)
      • USB/OPT/Coax: <2.0uVrms (low gain) / <7.0uVrms (high gain)
      • AUX: <2.0uVrms (low gain) / <7.0uVrms (high gain)
      • Bluetooth: <2.0uVrms (low gain) / <7.0uVrms (high gain)
    • Channel crosstalk
      • USB/OPT/Coax: -90dB
      • AUX: -90dB
      • Bluetooth: -90dB
    • Input sensitivity
      • USB/OPT/Coax: 0dBFS (low gain) / 0dBFS (high gain)
      • AUX: 4.2Vrms (low gain) / 1.2Vrms (high gain)
      • Bluetooth: 0dBFS (low gain) / 0dBFS (high gain)
    • Gain
      • USB/OPT/Coax: 2dB (low gain) / 14.8dB (high gain)
      • AUX: -0.2dB (low gain) / 12.6dB (high gain)
      • Bluetooth: 2dB (low gain) / 14.8dB (high gain)
    • Output impedance: <0.5Ω
    • Output power
      • 700mW x2 @32Ω THD+N <1%
      • 400mW x2 @64Ω THD+N<1%
      • 100mW x2 @300Ω THD+N<1%
    • Load impedance: >8Ω

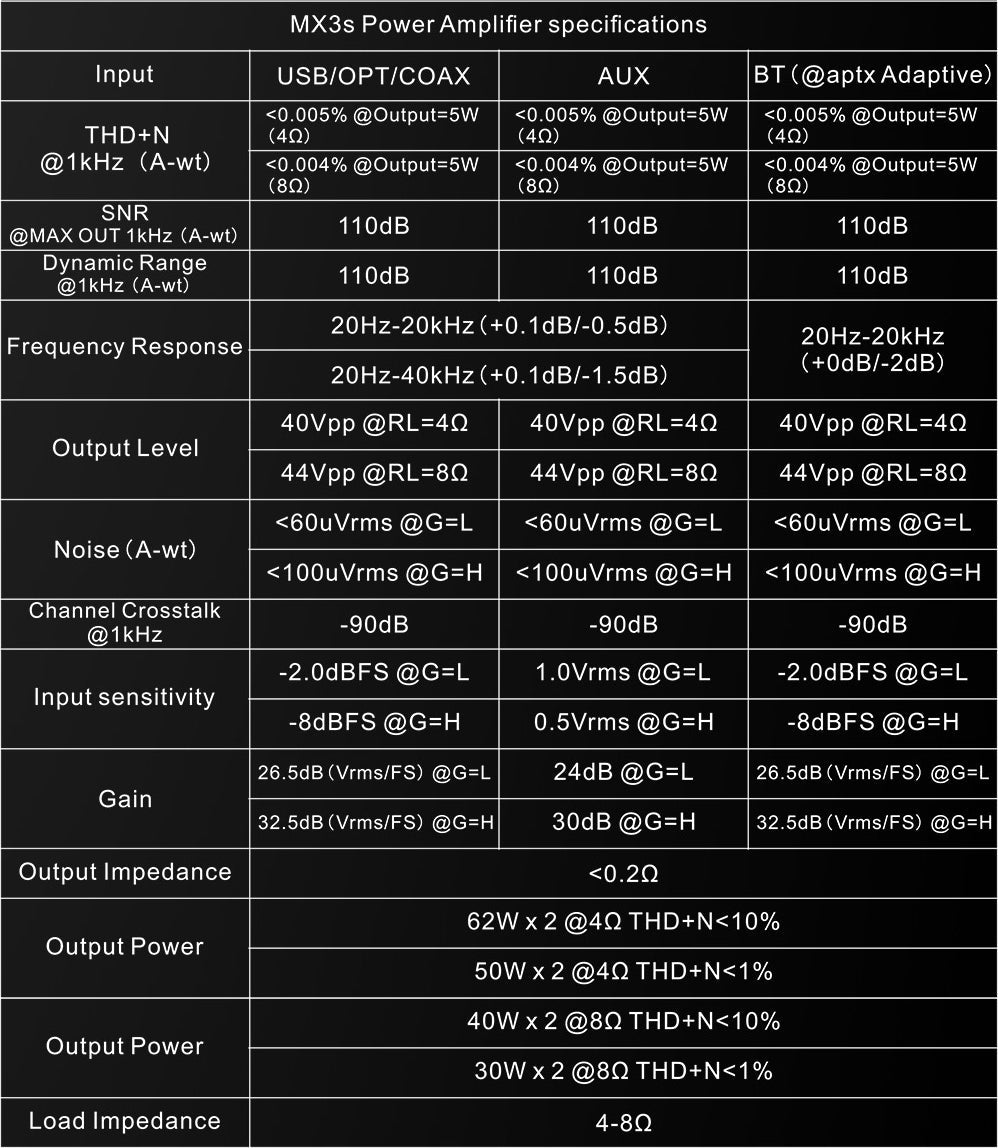

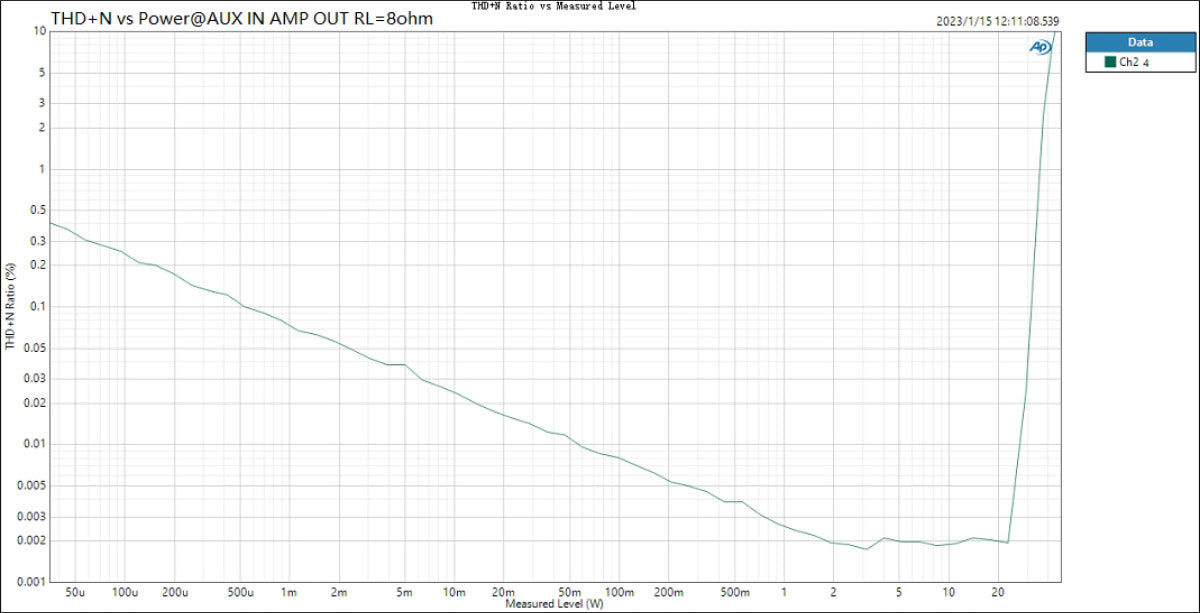

  • MX3s power amplifier specs

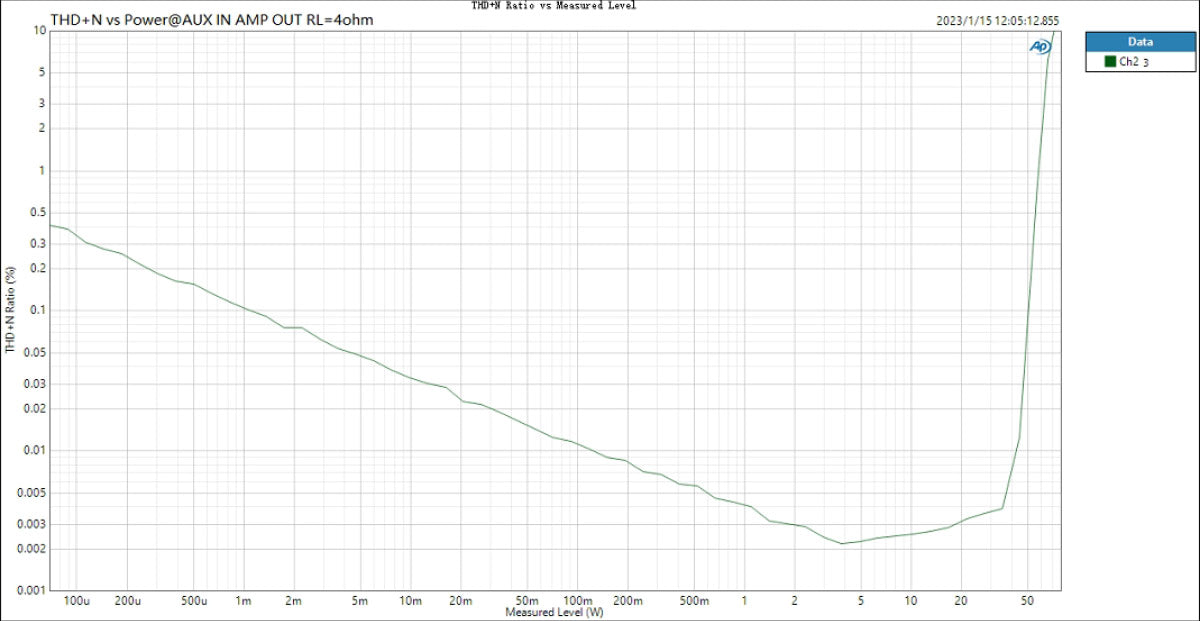

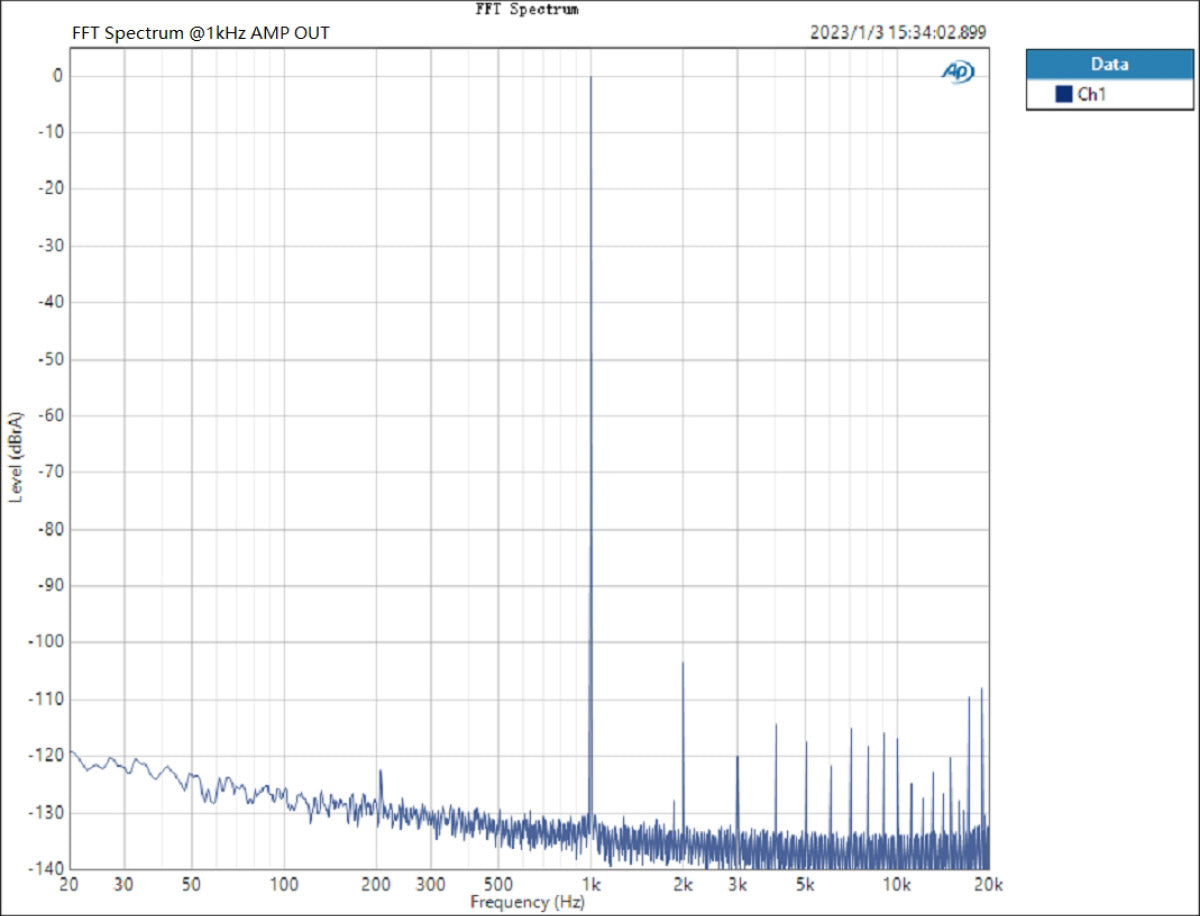

    • THD+N@1kHz (A-wt)
      • USB/OPT/COAX: <0.005% @5W (4Ω) / <0.004% @5W (8Ω)
      • AUX: <0.005% @5W (4Ω) / <0.004% @5W (8Ω)
      • Bluetooth (aptX adaptive): <0.005% @5W (4Ω) / <0.004% @5W (8Ω)
    • SNR @ 1kHz (A-wt)
      • USB/OPT/Coax: 110dB
      • AUX: 110dB
      • Bluetooth: 110dB
    • Dynamic range @1kHz (A-wt)
      • USB/OPT/Coax: 110dB
      • AUX: 110dB
      • Bluetooth: 110dB

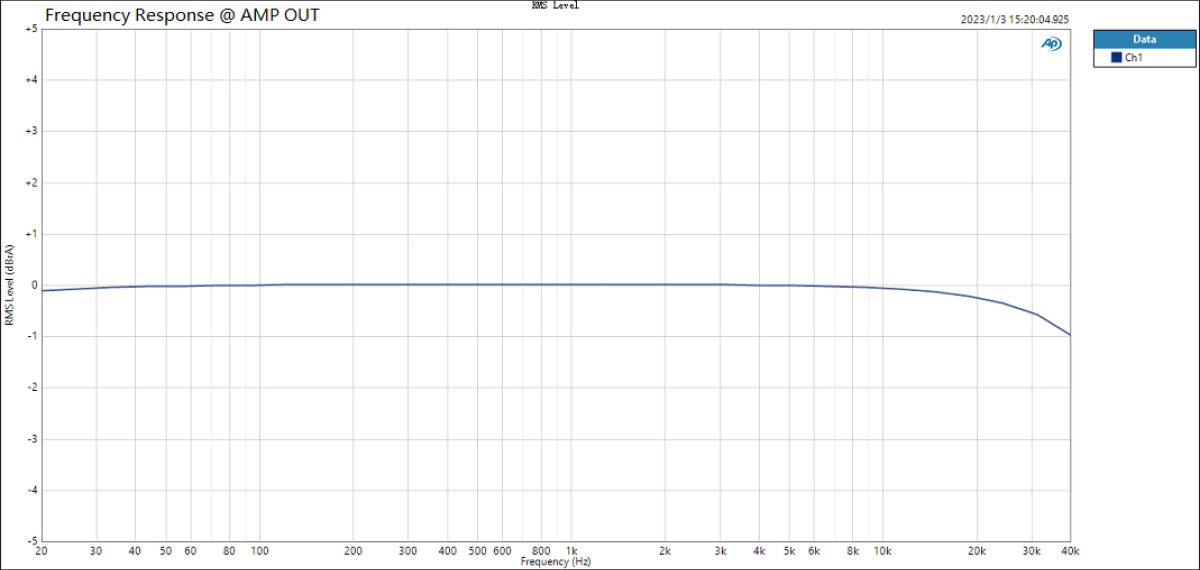

    • Frequency response
      • USB/OPT/Coax: 20Hz - 20kHz (+0.1dB/-0.5dB)
      • AUX: 20Hz - 20kHz (+0.1dB/-01.5dB)
      • Bluetooth: 20Hz - 20kHz
    • Output level
      • USB/OPT/Coax: 40Vpp (4Ω) / 44Vpp (8Ω)
      • AUX: 40Vpp (4Ω) / 44Vpp (8Ω)
      • Bluetooth: 40Vpp (4Ω) / 44Vpp (8Ω)
    • Noise (A-wt)
      • USB/OPT/Coax: <60uVrms (low gain) / <100uVrms (high gain)
      • AUX: <60uVrms (low gain) / <100uVrms (high gain)
      • Bluetooth: <60uVrms (low gain) / <100uVrms (high gain)
    • Channel crosstalk
      • USB/OPT/Coax: -90dB
      • AUX: -90dB
      • Bluetooth: -90dB
    • Input sensitivity
      • USB/OPT/Coax: -2.0dBFS (low gain) / -8dBFS (high gain)
      • AUX: 1.0dBFS (low gain) / 0.5dBFS (high gain)
      • Bluetooth: -2.0dBFS (low gain) / -8dBFS (high gain)
    • Gain
      • USB/OPT/Coax: 26.5dB (low gain) / 32.5dB (high gain)
      • AUX: 24dB (low gain) / 30dB (high gain)
      • Bluetooth: 26.5dB (low gain) / 32.5dB (high gain)
    • Output impedance: <0.2Ω
    • Output power
      • 62W x2 @4Ω THD+N<10%
      • 50W x2 @4Ω THD+N<1%
      • 40W x2 @8Ω THD+N<1%
      • 30W x2 @8Ω THD+N<1%
    • Load impedance: 4-8Ω

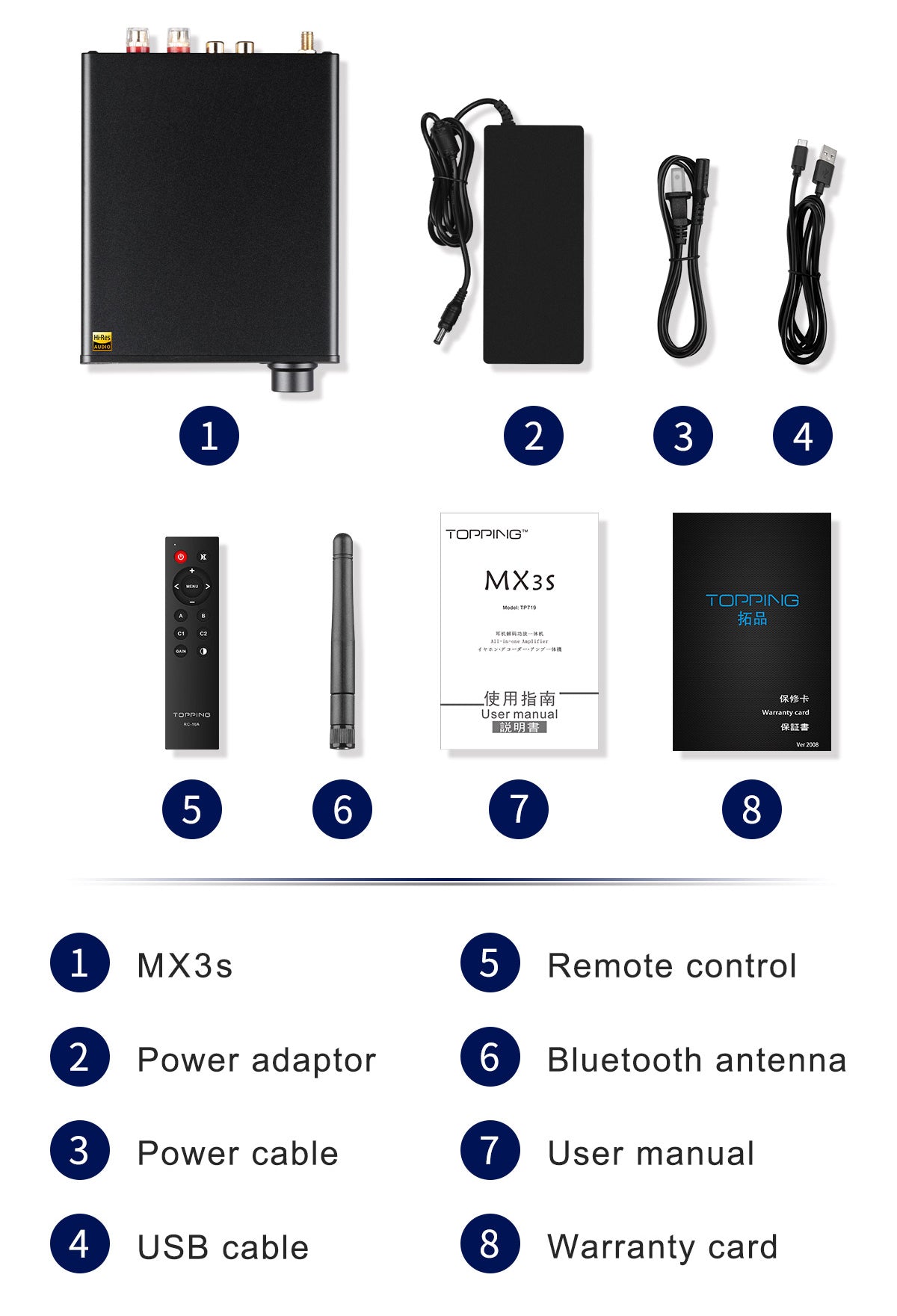

What’s included

  • TOPPING MX3s
  • Power adapter
  • Power cable
  • USB cable
  • Remote control
  • Bluetooth antenna
  • User manual
  • Warranty card
