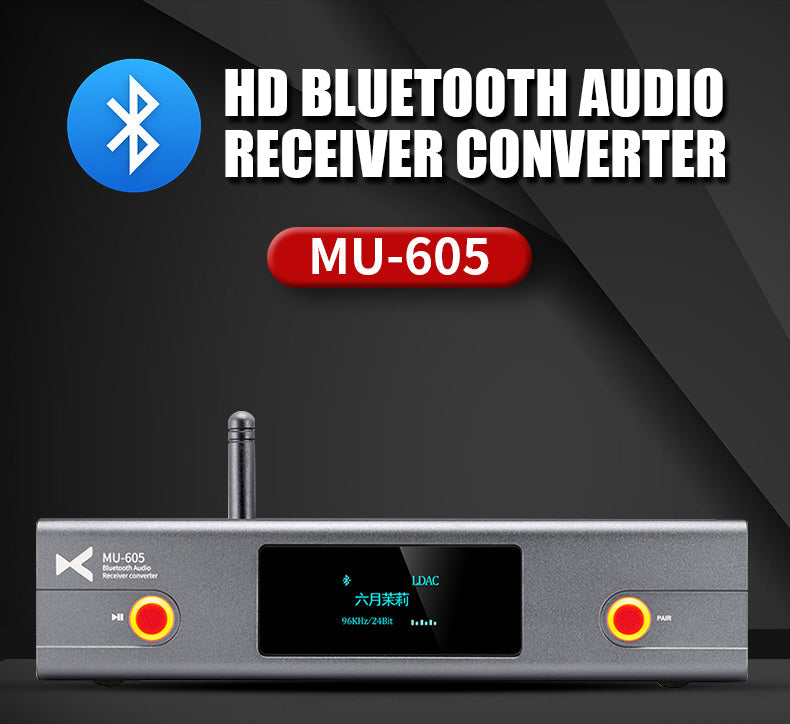

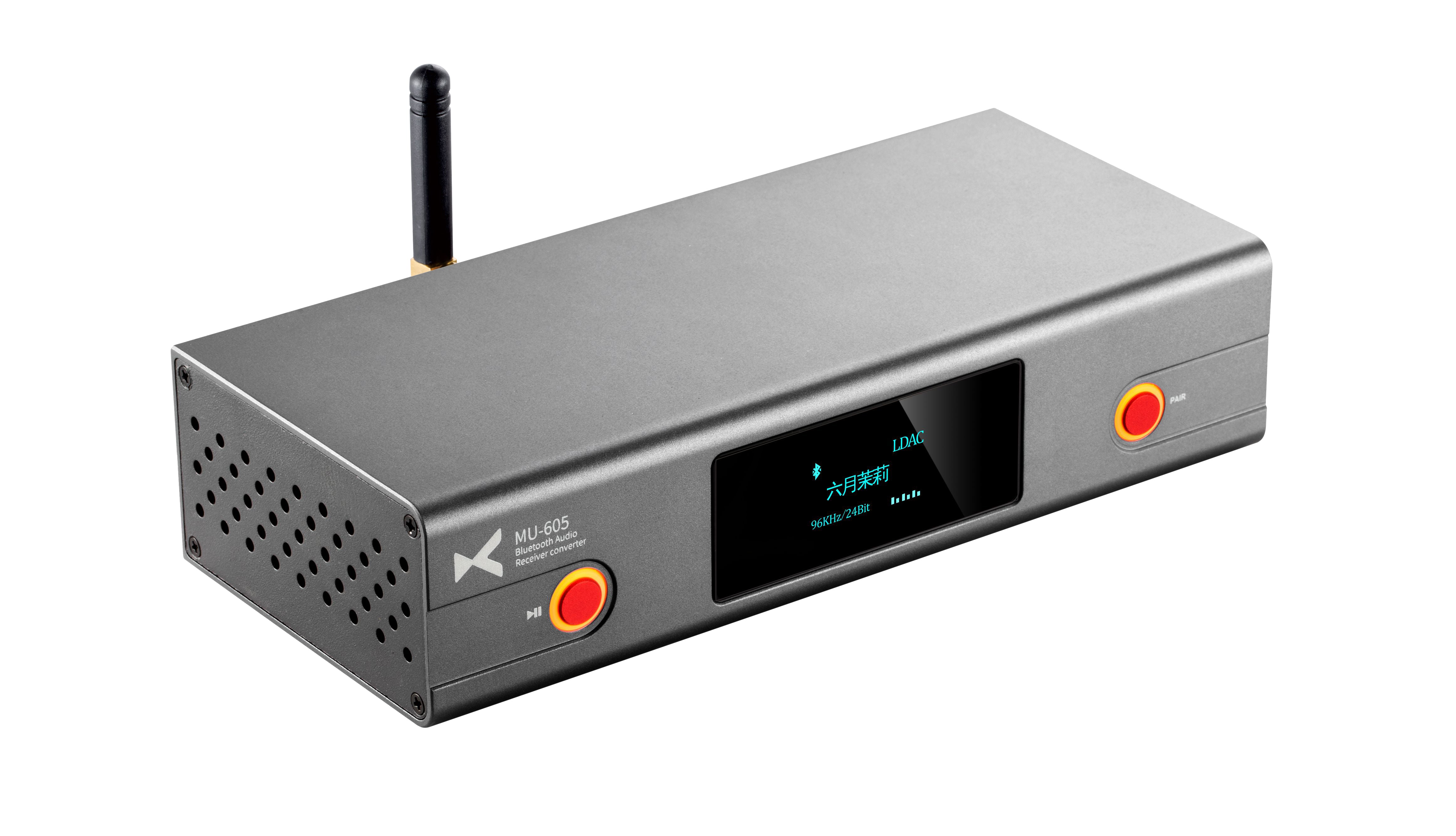

xDuoo MU-605 HD Bluetooth Receiver

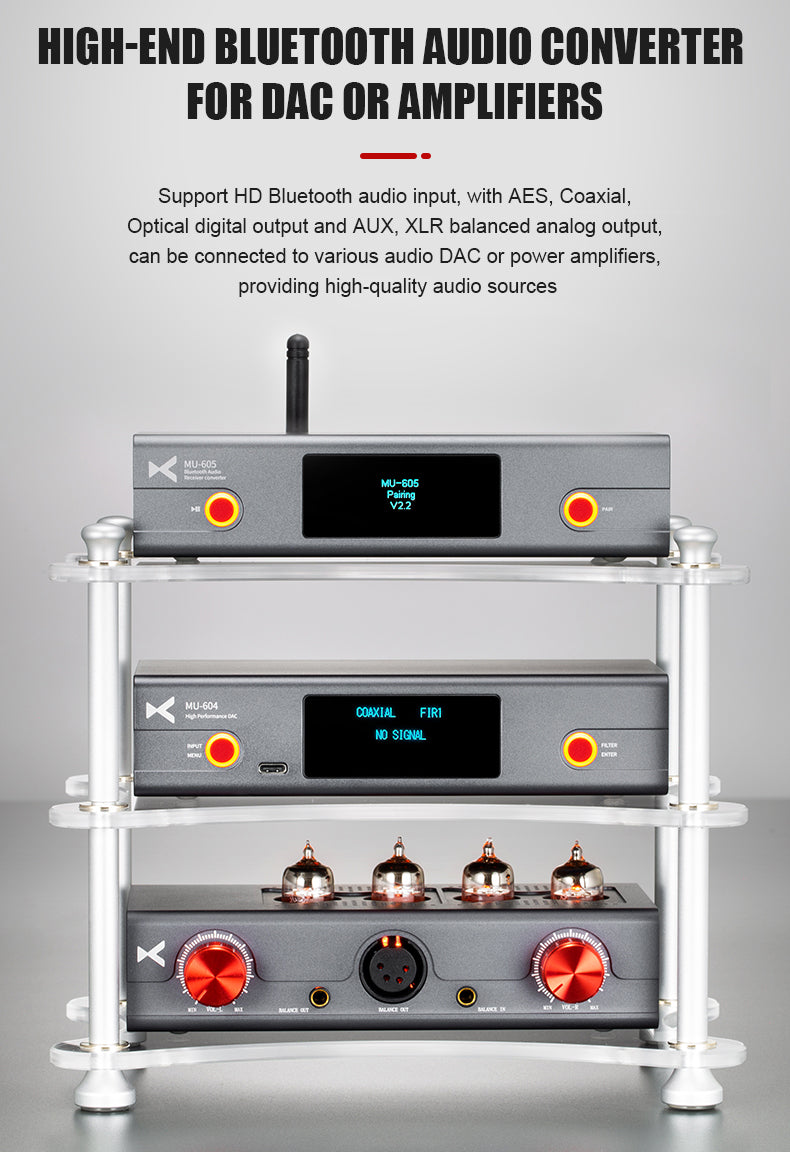

The MU-605 is an HD Bluetooth receiver that allows you to stream music from your phone, laptop, or tablet directly to your audio chain. With coaxial, optical, AUX, and XLR balanced outputs, this super versatile unit can be connected to various DACs or power amps.

Hi-def Bluetooth

Thanks to a Qualcomm Bluetooth chip, the MU-605 supports hi-def Bluetooth codecs like aptX_HD, LDAC, aptX_LL, and more.

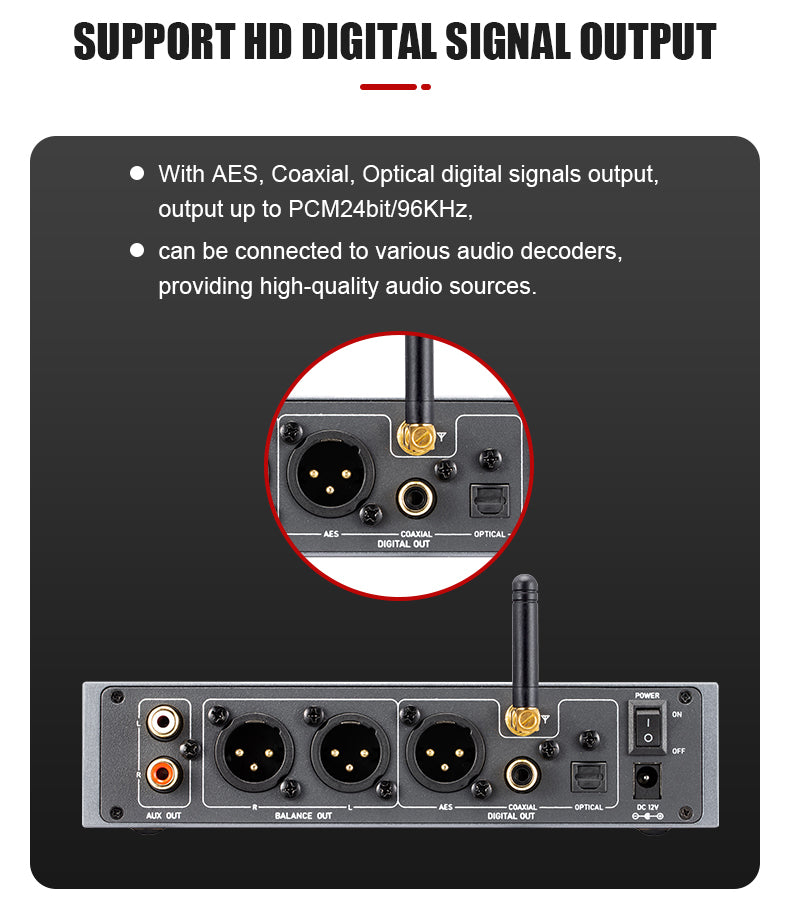

HD digital signal output

With AES, coaxial, and optical digital signal outputs, the MU-605 supports up to PCM 24bit/96kHz high-definition playback.

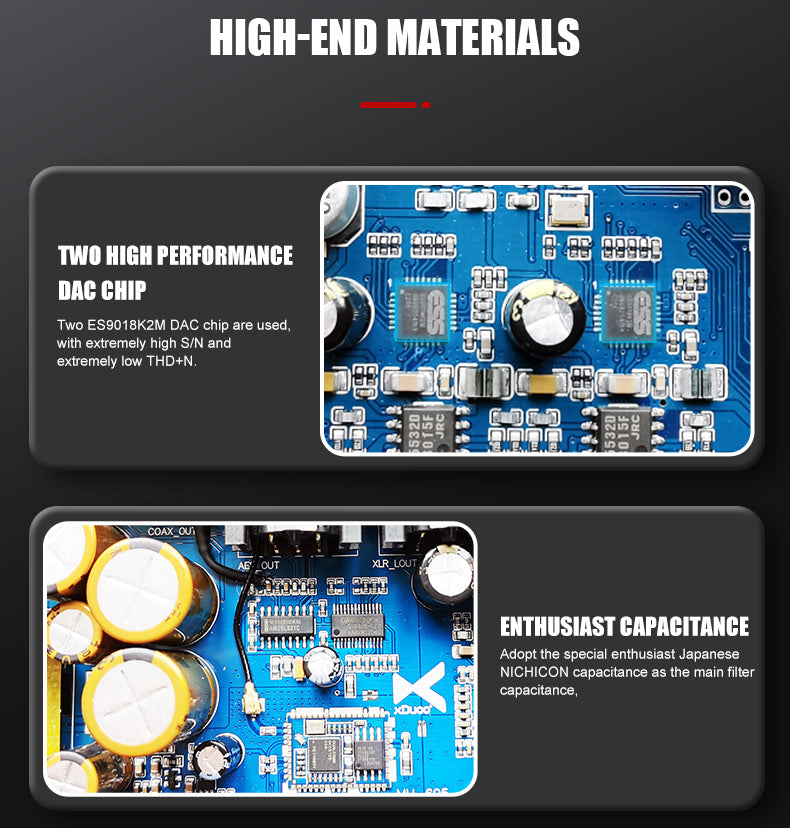

Dual high-performance DAC chips

Dual ESS DAC chips provide excellent playback, with 120dB SNR and 0.003% THD+N.

Product highlights

• Bluetooth 5.1

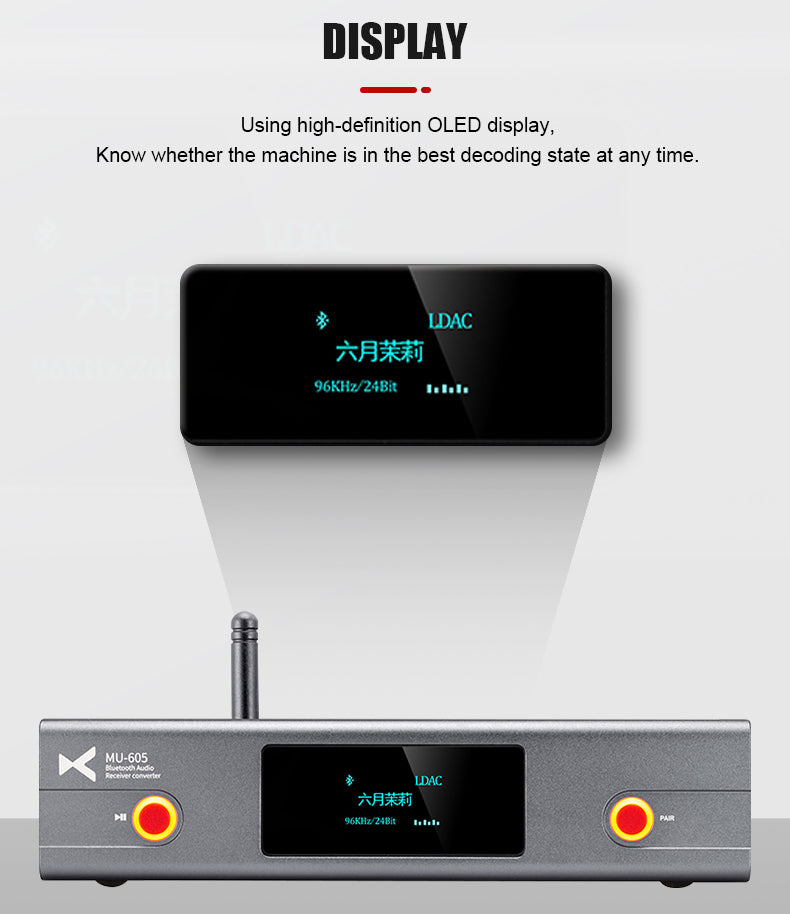

• OLED screen
• Coaxial and optical outputs
• Dual DAC chips

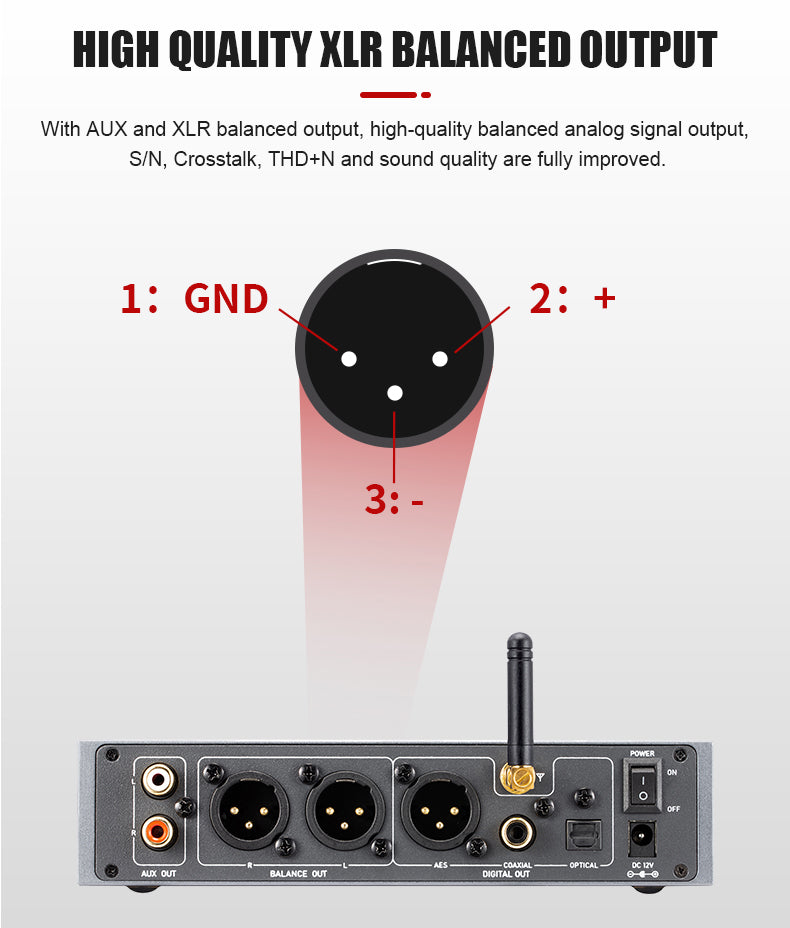

• XLR balanced output

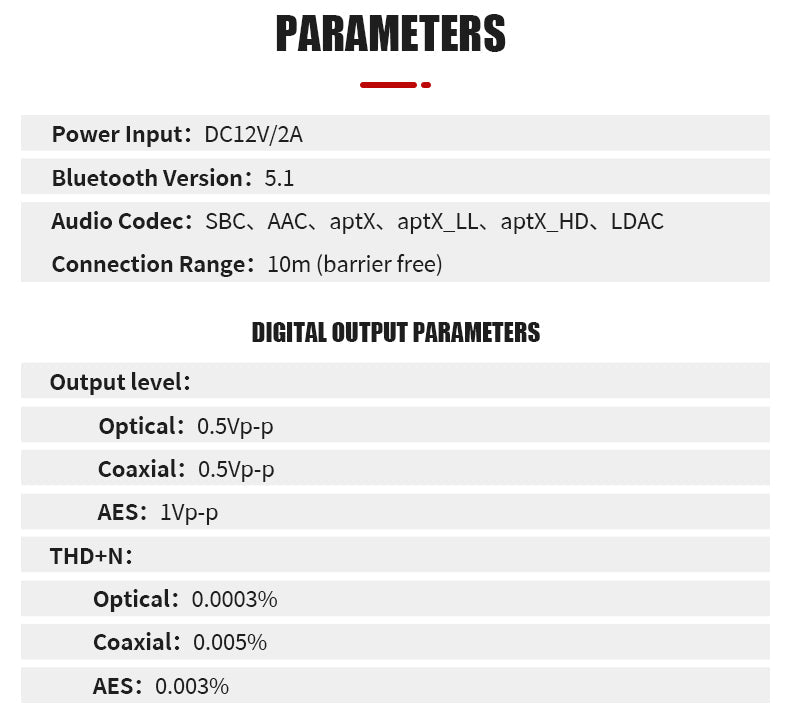

Specs

• Power input: DC12V/2A
• Bluetooth version: 5.1
• Audio codecs supported: SBC, AAC, aptX, aptX_LL, aptX_HD, LDAC
• Connection range: 10m (barrier free)
• Output level
• Optical: 0.5Vp-p
• Coaxial: 0.5Vp-p
• AES: 1Vp-p
• THD+N
• Optical: 0.0003%
• Coaxial: 0.005%
• AES: 0.003%

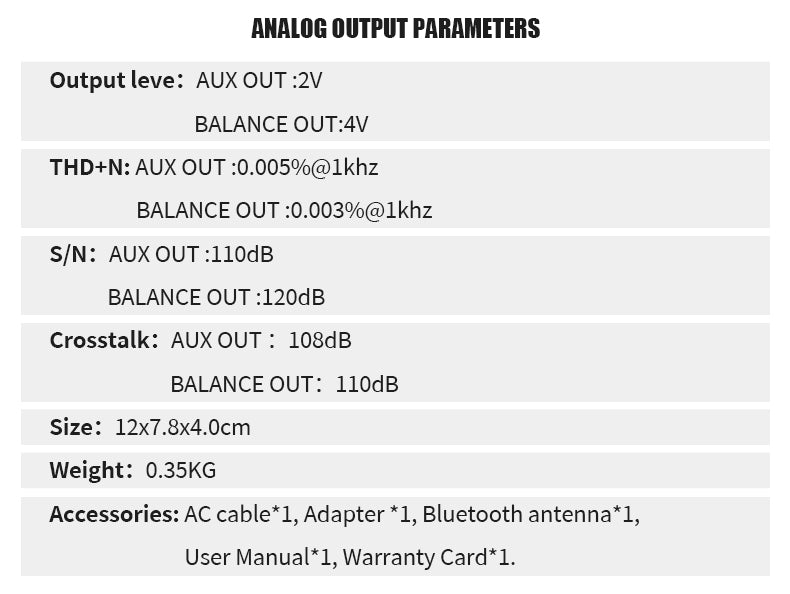

• Output level
• Aux out: 2V
• Balance out: 4V
• THD+N
• Aux out: 0.005% @1kHz
• Balance out: 0.003% @1kHz
• SNR
• Aux out: 110dB
• Balance out: 120dB
• Crosstalk
• Aux out: 108dB
• Balance out: 110dB
• Size: 12 cm x 7.8cm x 4cm
• Weight: 0.35kG

What’s included

• AC cable
• Adapter
• Bluetooth antenna
• User manual
• Warranty card

What pairs well

• xDuoo MU-604 Desktop DAC
